◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYJ ▶ 11006 - CYJ NEW ZEALAND ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-45 - CONSOLE BOX ▶
7-45 — CONSOLE BOX (#31227) — 57 parça

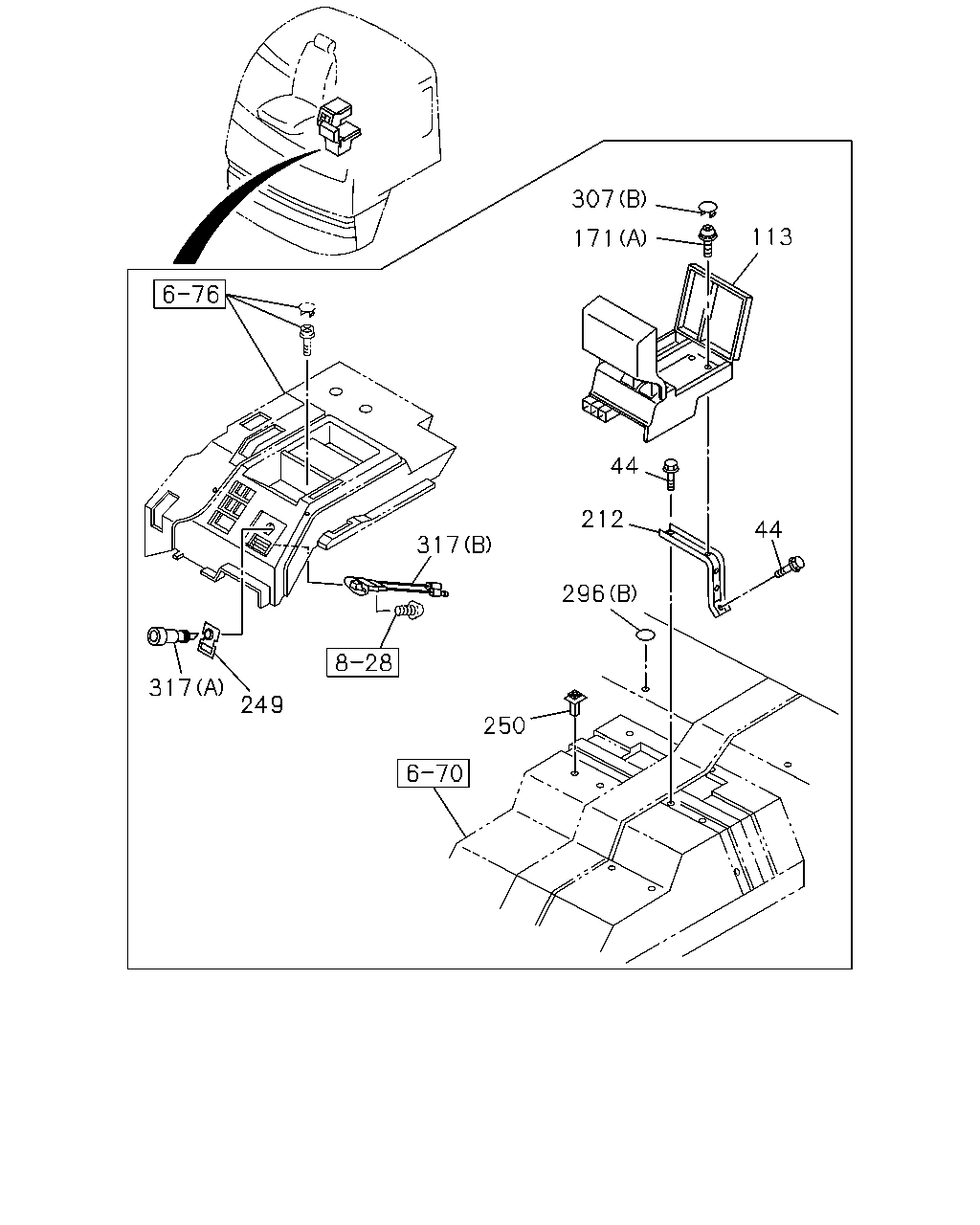

çizim 88657
307 113 171 44 212 44 317 296 317 249 250
BalonParca AdiParca NoAdetTipApplied Date
44 BOLT; SUPPORT,CTR CONSOLE
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0507-0511
44 BOLT; SUPPORT,CTR CONSOLE
CENTER SEAT DELETE(SP9) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0512-0904
44 BOLT; SUPPORT,CTR CONSOLE
CENTER SEAT DELETE(SP9) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 0905-
113 BOX; CONSOLE
TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72537-278-5 01 1 0507-0609
113 BOX; CONSOLE
TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72537-326-1 01 1 0610-
171 SCREW; CONSOLE BOX
TABLE CONSOLE BOX<TDL> (A) M6X24 W/LK&PL WASHER 		8-94279-404-0 04 1 0507-
171 SCREW; CONSOLE BOX
TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (B) M5X14 FLAT HEAD 		1-72537-169-0 06 1 0507-
212 SUPPORT; CONSOLE TO COMPT 1-72537-095-1 01 1 0507-0511
212 SUPPORT; CONSOLE TO COMPT
CENTER SEAT DELETE(SP9) 		1-72537-095-1 01 1 0512-
249 COVER 1-82529-001-0 01 1 0507-0511
249 COVER
ELEC OUTLET 12V<TAW> 		1-82529-001-0 01 1 0512-
250 GROMMET; CONSOLE BOX
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 03 1 0507-
296 SEAL
TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (A) 		1-72537-094-1 01 1 0507-
296 SEAL
(B) OD=25 BLACK 		1-76798-019-0 01 1 0507-
307 COVER; HOLE,CTR CONSOLE
TABLE CONSOLE BOX<TDL> (B) 		1-76337-461-0 04 1 0507-
307 COVER; HOLE,CTR CONSOLE
TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (A) 		1-72537-188-0 02 1 0507-
317 CONSENT
(B) 		1-82523-020-2 01 1 0507-
317 CONSENT
(A) 		8-94382-451-1 01 1 0507-0511
317 CONSENT
ELEC OUTLET 12V<TAW> (A) 		8-94382-451-1 01 1 0512-

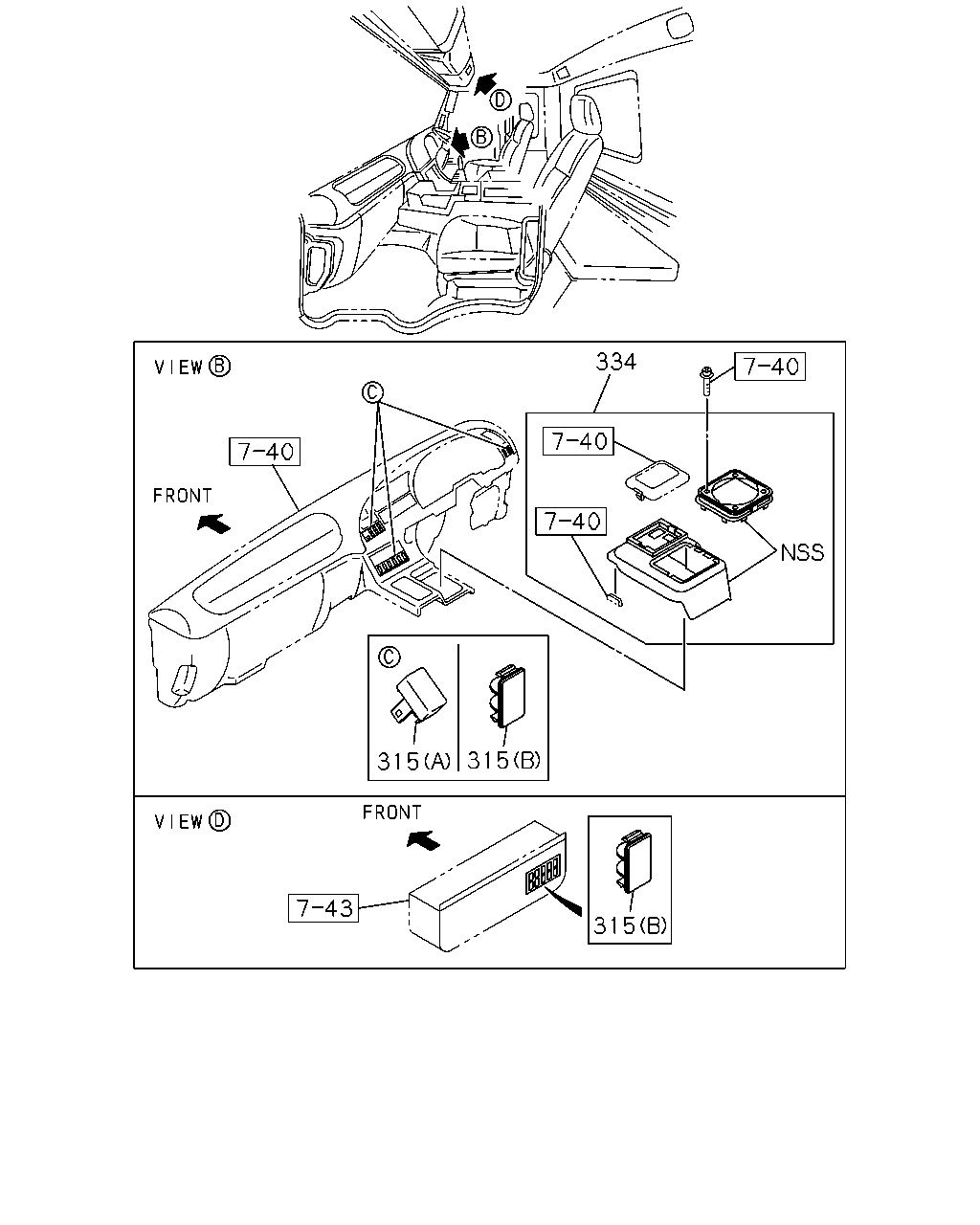

çizim 104957
334 315 315 315
BalonParca AdiParca NoAdetTipApplied Date
315 COVER; HOLE,SW
(A) 		1-82359-069-2 AR 1 0507-
315 COVER; HOLE,SW
(B) 		8-97043-732-1 AR 1 0507-
334 COVER; CHANGE LEVER 1-72447-969-1 01 1 0507-

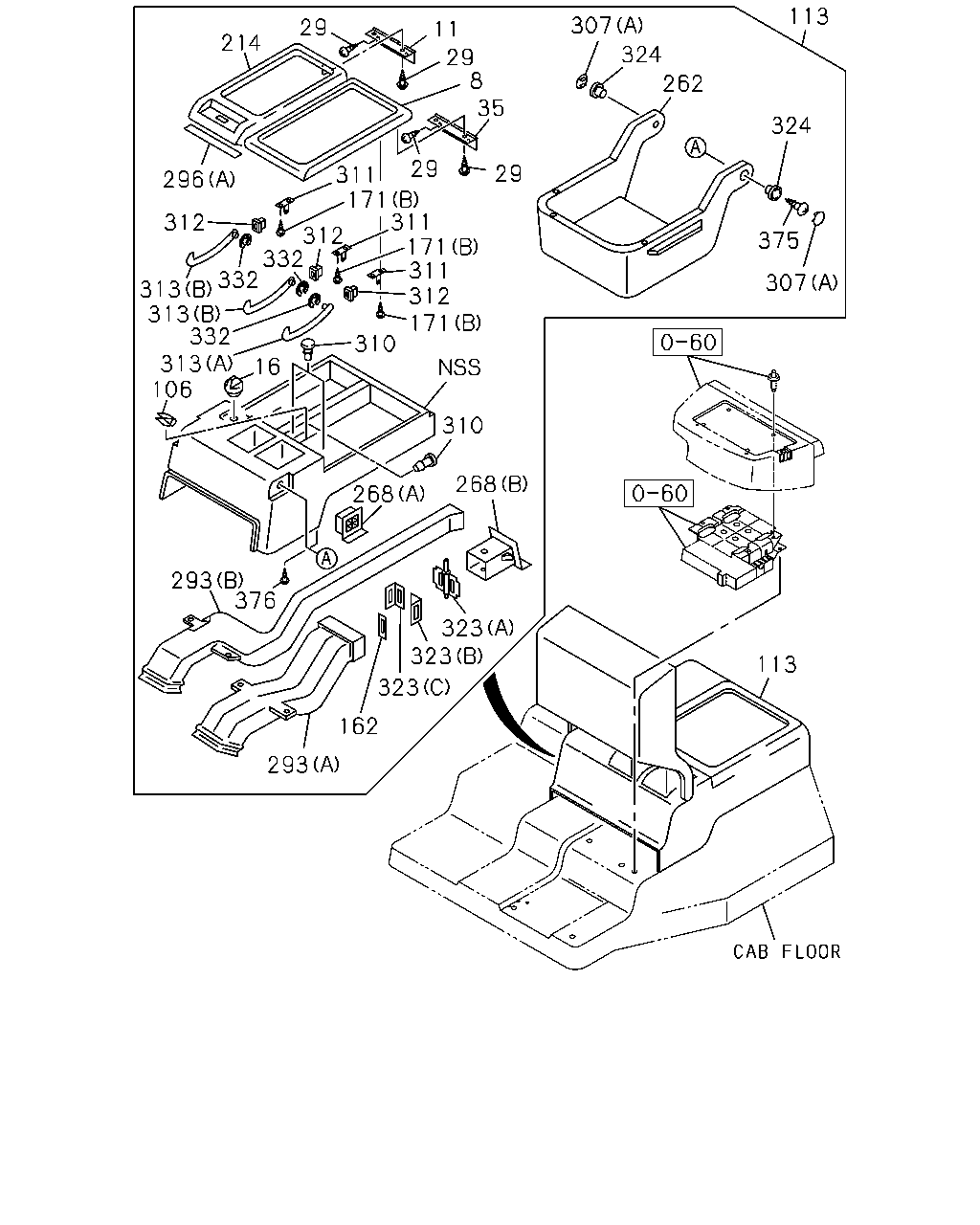

çizim 104959
113 307 29 11 214 324 29 8 35 262 324 29 29 311 171 311 171 311 312 171 296 312 312 332 332 313 313 332 313 106 375 307 310 16 310 268 268 293 376 323 323 113 323 162 293
BalonParca AdiParca NoAdetTipApplied Date
8 LID; CENTER CONSOLE
TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72537-185-0 01 1 0507-0705
8 LID; CENTER CONSOLE
TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72537-332-0 01 1 0706-
11 HINGE; CONSOLE LID
TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72537-070-2 01 1 0507-
16 KNOB ASM
TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72537-189-0 01 1 0507-
29 SCREW; HINGE
TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> M5X14 BINDING HEAD 		1-72537-168-0 08 1 0507-
35 HINGE; CENTER CONSOLE
TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72538-182-1 01 1 0507-
106 LOCK; CONSOLE LID
TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72537-079-0 02 1 0507-
113 BOX; CONSOLE
TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72537-278-5 01 1 0507-0609
113 BOX; CONSOLE
TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72537-326-1 01 1 0610-
162 CUSHION; PARCEL BOX
TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72537-128-0 03 1 0507-
171 SCREW; CONSOLE BOX
TABLE CONSOLE BOX<TDL> (A) M6X24 W/LK&PL WASHER 		8-94279-404-0 04 1 0507-
171 SCREW; CONSOLE BOX
TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (B) M5X14 FLAT HEAD 		1-72537-169-0 06 1 0507-
214 LID; CONSOLE
TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72537-186-0 01 1 0507-0705
214 LID; CONSOLE
TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72537-339-0 01 1 0706-
262 TABLE ASM
TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72537-187-1 01 1 0507-
268 COVER; DUCT
TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (B) 		1-72537-183-0 01 1 0507-
268 COVER; DUCT
TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (A) 		1-72537-184-0 01 1 0507-
293 DUCT
TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (A) 		1-72537-081-3 01 1 0507-
293 DUCT
TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (B) 		1-72537-083-2 01 1 0507-
296 SEAL
TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (A) 		1-72537-094-1 01 1 0507-
296 SEAL
(B) OD=25 BLACK 		1-76798-019-0 01 1 0507-
307 COVER; HOLE,CTR CONSOLE
TABLE CONSOLE BOX<TDL> (B) 		1-76337-461-0 04 1 0507-
307 COVER; HOLE,CTR CONSOLE
TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (A) 		1-72537-188-0 02 1 0507-
310 CUSHION; CTR CONSOLE
TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72538-187-0 02 1 0507-
311 HOLDER; CONSOLE
TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72538-188-2 03 1 0507-
312 STOPPER; CONSOLE
TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72538-186-1 03 1 0507-
313 ARM; CTR CONSOLE
TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (A) 		1-72538-184-3 01 1 0507-
313 ARM; CTR CONSOLE
TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (B) 		1-72538-185-3 02 1 0507-
323 SHUTTER
TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (A) 		1-72537-084-1 01 1 0507-
323 SHUTTER
TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (B) 		1-72537-126-0 01 1 0507-
323 SHUTTER
TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (C) 		1-72537-127-0 01 1 0507-
324 BUSHING
TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72537-116-0 02 1 0507-
332 RING; SNAP,CONSOLE BOX
TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72537-170-0 03 1 0507-
375 SCREW; TAP BUSHING
TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> M6X20 		1-72537-319-0 02 1 0610-
376 SCREW; TAP DUCT
TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> M4X14 		1-72537-320-0 03 1 0610-
