◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYJ ▶ 11006 - CYJ NEW ZEALAND ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-43 - SUN VISOR AND ASSIST GRIP ▶
7-43 — SUN VISOR AND ASSIST GRIP (#31226) — 113 parça

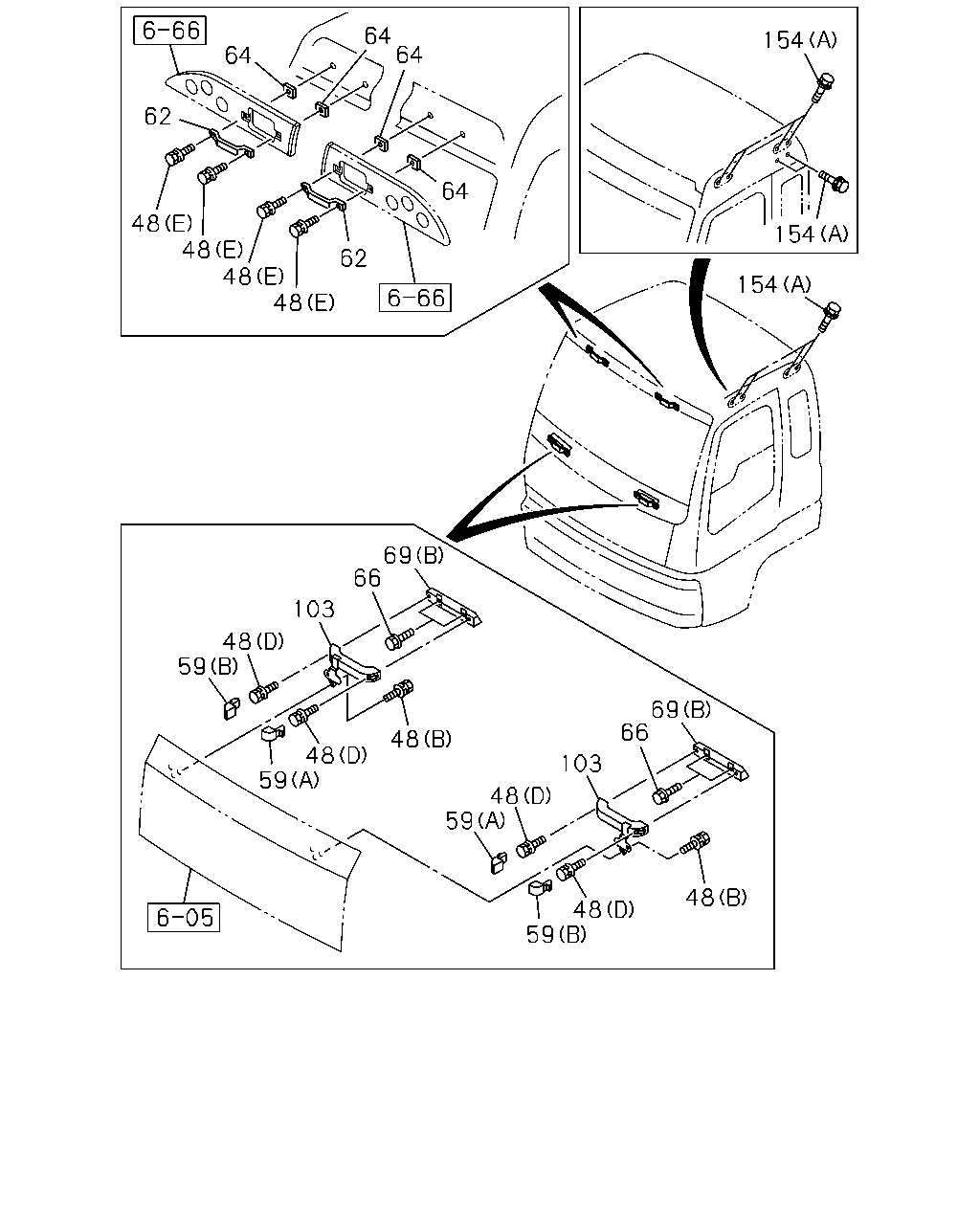

çizim 88547
64 64 154 64 62 64 154 48 48 48 48 62 154 69 66 103 48 59 69 66 48 48 59 103 48 59 48 48 59
BalonParca AdiParca NoAdetTipApplied Date
48 BOLT; ASSIST GRIP
(C) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0507-0904
48 BOLT; ASSIST GRIP
(C) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 0905-
48 BOLT; ASSIST GRIP
(A) M6X12 W/LK&PL WASHER 		1-09980-611-0 04 1 0507-
48 BOLT; ASSIST GRIP
(E) M6X33.5 W/LK&PL WASHER 		1-09980-613-1 04 1 0507-
48 BOLT; ASSIST GRIP
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 04 1 0507-
48 BOLT; ASSIST GRIP
(D) M8X30 W/LK&PL WASHER 		8-94279-210-0 04 1 0507-
59 COVER; ASSIST GRIP
(B) OUTER 		1-71998-789-2 02 1 0507-
59 COVER; ASSIST GRIP
(A) INNER 		1-71998-790-2 02 1 0507-
59 COVER; ASSIST GRIP
(C) 		1-73617-565-0 02 1 0507-
62 GRIP; ASSIST,ROOF PANEL 1-71907-492-0 02 1 0507-0907
62 GRIP; ASSIST,ROOF PANEL 8-97630-819-0 02 1 0908-
64 SHEET; ASSIST GRIP
25X25 		8-94272-533-0 04 1 0507-
66 BOLT; ASSIST GRIP BRKT
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 04 1 0507-
69 BRACKET; ASSIST GRIP
(B) 		1-65570-242-0 01 1 0507-
69 BRACKET; ASSIST GRIP
(B) 		1-65570-243-0 01 1 0507-
69 BRACKET; ASSIST GRIP
(A) 		1-73618-178-2 01 1 0507-
103 GRIP; ASSIST,FRT PNL 1-71998-939-3 01 1 0507-
103 GRIP; ASSIST,FRT PNL 1-71998-940-3 01 1 0507-
154 BOLT; SUPPORT
GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER 		1-79198-003-2 04 1 0507-0511
154 BOLT; SUPPORT
GRIP OUT SIDE<W52> EXC. HIGH ROOF<S2F> (A) M8X15 W/PL WASHER 		1-79198-003-2 04 1 0512-
154 BOLT; SUPPORT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 18 1 0507-
154 BOLT; SUPPORT
EXC. GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER 		1-79198-003-2 08 1 0507-0511
154 BOLT; SUPPORT
HIGH ROOF<S2F> (A) M8X15 W/PL WASHER 		1-79198-003-2 08 1 0512-
154 BOLT; SUPPORT
EXC. HIGH ROOF<S2F>,GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER 		1-79198-003-2 08 1 0512-

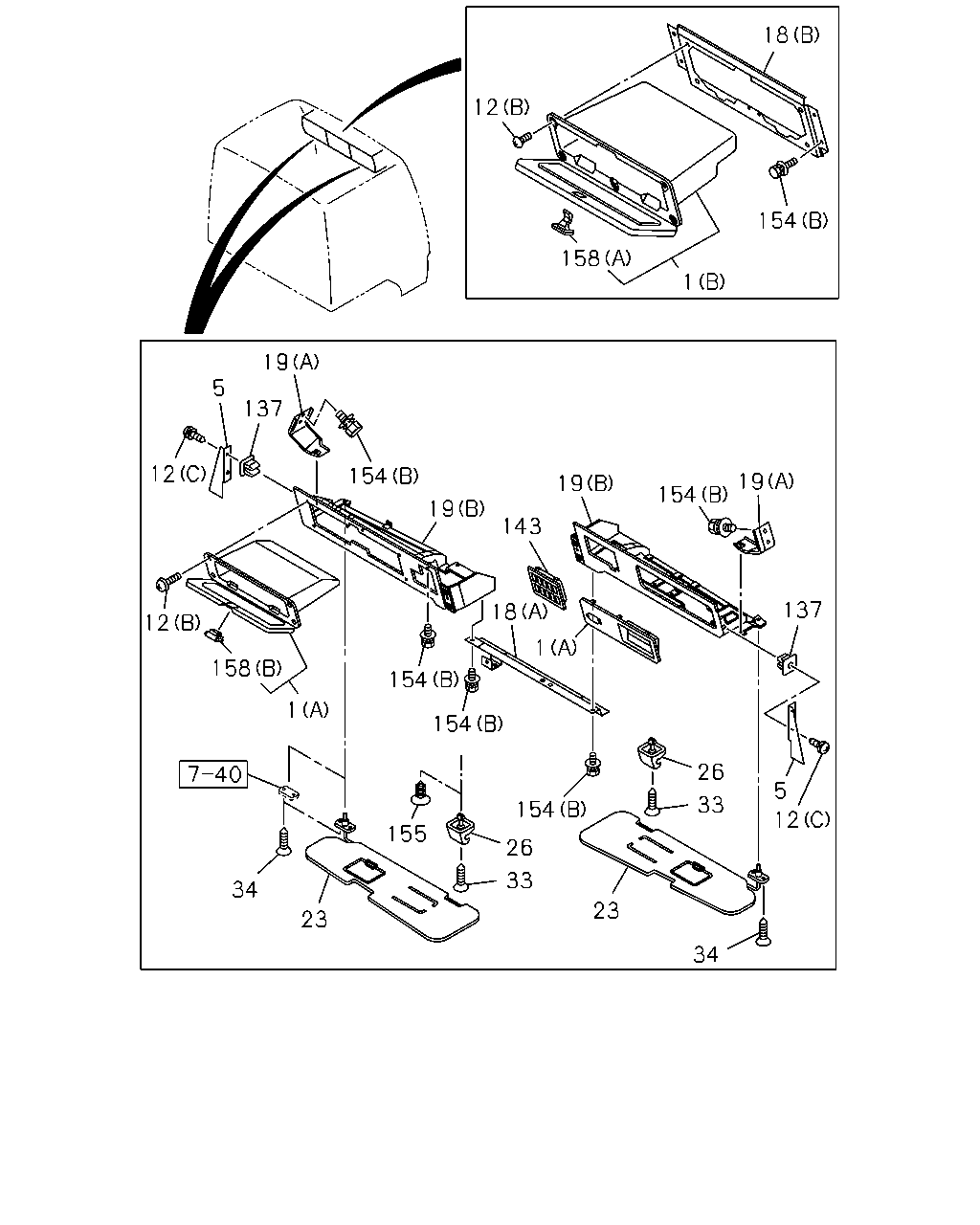

çizim 104848
18 12 154 158 1 19 5 137 12 154 19 19 154 19 143 18 137 12 1 158 154 1 154 26 5 33 154 12 155 26 33 34 23 23 34
BalonParca AdiParca NoAdetTipApplied Date
1 BOARD; HEADER SHELF
HIGH ROOF<S2F> (C) 		1-72447-886-7 01 1 0512-
1 BOARD; HEADER SHELF
(A) 		1-72447-761-6 01 1 0507-
1 BOARD; HEADER SHELF
(A) 		1-72447-876-4 01 1 0507-
1 BOARD; HEADER SHELF
(B) 		1-72447-968-0 01 1 0507-
5 BRACKET; HEADER SHELF FRAME
HIGH ROOF<S2F> 		1-72447-932-0 01 1 0512-
5 BRACKET; HEADER SHELF FRAME
HIGH ROOF<S2F> 		1-72447-933-0 01 1 0512-
12 SCREW; HEADER SHELF
HIGH ROOF<S2F> (C) M5X20 		5-09981-059-0 04 1 0512-
12 SCREW; HEADER SHELF
HIGH ROOF<S2F> (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 07 1 0512-
12 SCREW; HEADER SHELF
(B) M6X24 W/LK&PL WASHER 		8-94279-404-0 08 1 0507-
18 SUPPORT; HEADER SHELF CENTER
(B) 		1-72447-824-2 01 1 0507-
18 SUPPORT; HEADER SHELF CENTER
(A) 		1-72447-877-2 01 1 0507-0909
18 SUPPORT; HEADER SHELF CENTER
(A) 		8-98118-217-1 01 1 0910-
19 SUPPORT ASM; HEADER SHELF
(B) 		1-72447-878-4 01 1 0507-
19 SUPPORT ASM; HEADER SHELF
(B) 		1-72447-879-7 01 1 0507-
19 SUPPORT ASM; HEADER SHELF
(A) 		1-72448-323-1 01 1 0507-
19 SUPPORT ASM; HEADER SHELF
(A) 		1-72448-324-1 01 1 0507-
23 SUN VISOR
CUSTOM CAB(SR5) 		1-73137-178-1 01 1 0512-
23 SUN VISOR
SUN VISOR PASSENGER<D20> 		1-73138-157-1 01 1 0507-
23 SUN VISOR 1-73138-156-1 01 1 0507-0511
23 SUN VISOR
EXC. CUSTOM CAB(SR5) 		1-73138-156-1 01 1 0512-
26 HOLDER; SUN VISOR 1-73137-175-0 01 1 0507-
26 HOLDER; SUN VISOR
SUN VISOR PASSENGER<D20> 		1-73137-175-0 01 1 0507-
33 SCREW; HOLDER,SUN VISOR
M4X20 TAPPING OVAL-HEAD 		0-70580-420-0 01 1 0507-0603
33 SCREW; HOLDER,SUN VISOR
SUN VISOR PASSENGER<D20> M4X20 TAPPING OVAL-HEAD 		0-70580-420-0 01 1 0507-0603
33 SCREW; HOLDER,SUN VISOR
M4X20 TAPPING OVAL-HEAD 		0-70540-420-0 01 1 0604-
33 SCREW; HOLDER,SUN VISOR
SUN VISOR PASSENGER<D20> M4X20 TAPPING OVAL-HEAD 		0-70540-420-0 01 1 0604-
34 SCREW; SUN VISOR
M6X25 		1-09981-441-0 04 1 0507-
137 GROMMET; SCREW,HEADER SHELF
HIGH ROOF<S2F> D=8.6X7.7 L=7.5 		8-94279-078-0 04 1 0512-
143 BEZEL 1-72447-768-2 01 1 0507-
154 BOLT; SUPPORT
GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER 		1-79198-003-2 04 1 0507-0511
154 BOLT; SUPPORT
GRIP OUT SIDE<W52> EXC. HIGH ROOF<S2F> (A) M8X15 W/PL WASHER 		1-79198-003-2 04 1 0512-
154 BOLT; SUPPORT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 18 1 0507-
154 BOLT; SUPPORT
EXC. GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER 		1-79198-003-2 08 1 0507-0511
154 BOLT; SUPPORT
HIGH ROOF<S2F> (A) M8X15 W/PL WASHER 		1-79198-003-2 08 1 0512-
154 BOLT; SUPPORT
EXC. HIGH ROOF<S2F>,GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER 		1-79198-003-2 08 1 0512-
155 FASTENER; HOLDER
EXC. SUN VISOR PASSENGER<D20> 		1-09983-181-0 01 1 0507-
158 LOCK; HEADER SHELF
(B) 		1-72448-376-0 01 1 0507-
158 LOCK; HEADER SHELF
(A) 		1-72538-312-0 01 1 0507-

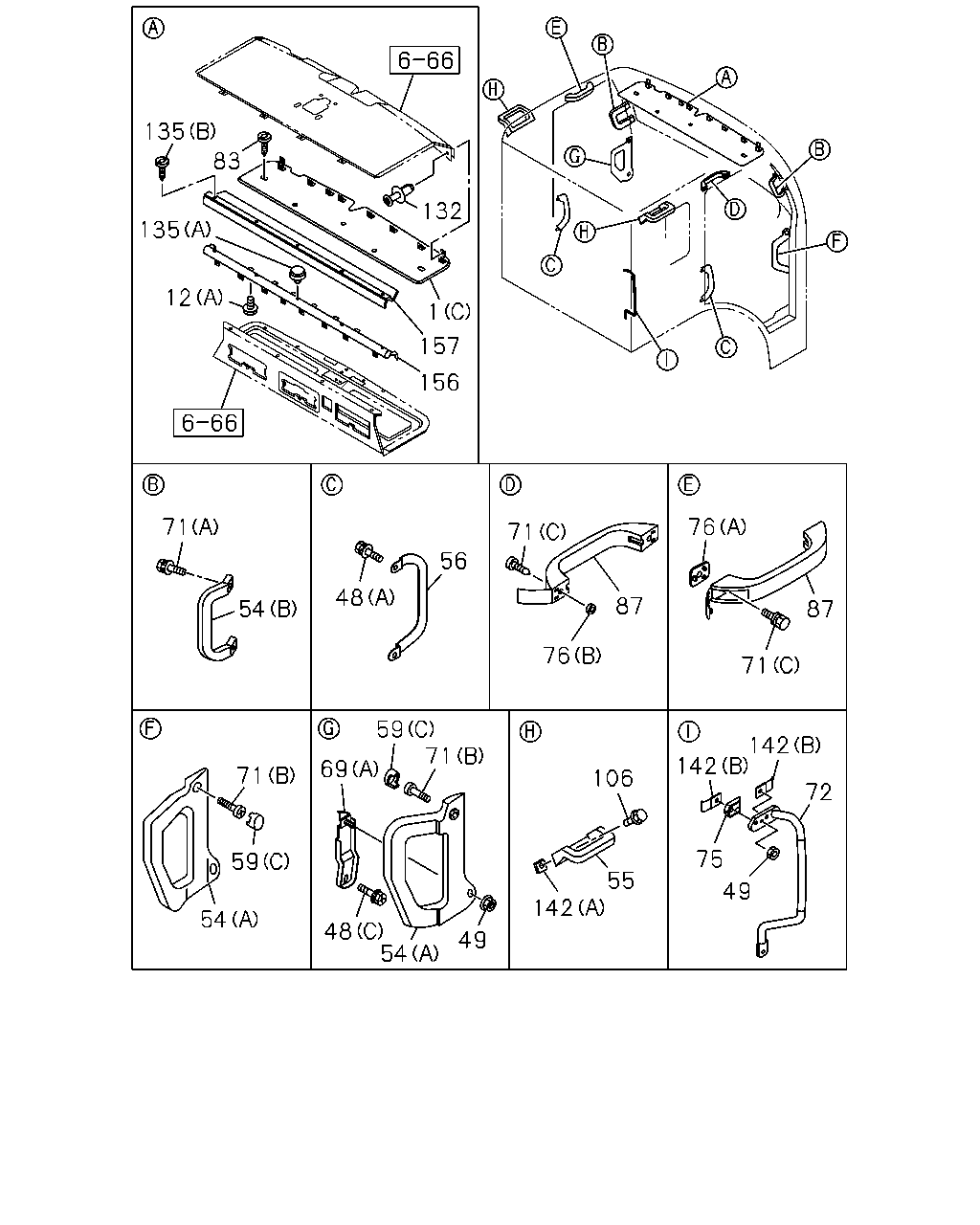

çizim 104850
135 83 132 135 12 1 157 156 71 76 71 56 48 87 54 87 76 71 59 71 142 142 69 71 106 72 75 59 55 49 142 54 48 54 49
BalonParca AdiParca NoAdetTipApplied Date
1 BOARD; HEADER SHELF
HIGH ROOF<S2F> (C) 		1-72447-886-7 01 1 0512-
1 BOARD; HEADER SHELF
(A) 		1-72447-761-6 01 1 0507-
1 BOARD; HEADER SHELF
(A) 		1-72447-876-4 01 1 0507-
1 BOARD; HEADER SHELF
(B) 		1-72447-968-0 01 1 0507-
12 SCREW; HEADER SHELF
HIGH ROOF<S2F> (C) M5X20 		5-09981-059-0 04 1 0512-
12 SCREW; HEADER SHELF
HIGH ROOF<S2F> (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 07 1 0512-
12 SCREW; HEADER SHELF
(B) M6X24 W/LK&PL WASHER 		8-94279-404-0 08 1 0507-
48 BOLT; ASSIST GRIP
(C) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0507-0904
48 BOLT; ASSIST GRIP
(C) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 0905-
48 BOLT; ASSIST GRIP
(A) M6X12 W/LK&PL WASHER 		1-09980-611-0 04 1 0507-
48 BOLT; ASSIST GRIP
(E) M6X33.5 W/LK&PL WASHER 		1-09980-613-1 04 1 0507-
48 BOLT; ASSIST GRIP
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 04 1 0507-
48 BOLT; ASSIST GRIP
(D) M8X30 W/LK&PL WASHER 		8-94279-210-0 04 1 0507-
49 NUT; ASSIST GRIP
GRIP OUT SIDE<W52> M8 FLANGE 		1-09984-126-0 01 1 0507-0808
49 NUT; ASSIST GRIP
M6 FLANGE 		0-91150-106-0 01 1 0507-0602
49 NUT; ASSIST GRIP
M6 FLANGE 		0-91180-106-0 01 1 0603-
54 GRIP; ASSIST,QUARTER SIDE
(A) 		1-73617-563-1 01 1 0507-
54 GRIP; ASSIST,QUARTER SIDE
(A) 		1-73617-564-1 01 1 0507-
54 GRIP; ASSIST,QUARTER SIDE
(B) 		1-73618-185-1 02 1 0507-
55 GRIP; ASSIST,CAB SIDE UPR
GRIP OUT SIDE<W52> 		1-73618-169-1 02 1 0507-
56 GRIP; ASSIST,SIDE SILL 1-73617-570-0 02 1 0507-0804
56 GRIP; ASSIST,SIDE SILL 8-98081-700-0 02 1 0805-
59 COVER; ASSIST GRIP
(B) OUTER 		1-71998-789-2 02 1 0507-
59 COVER; ASSIST GRIP
(A) INNER 		1-71998-790-2 02 1 0507-
59 COVER; ASSIST GRIP
(C) 		1-73617-565-0 02 1 0507-
69 BRACKET; ASSIST GRIP
(B) 		1-65570-242-0 01 1 0507-
69 BRACKET; ASSIST GRIP
(B) 		1-65570-243-0 01 1 0507-
69 BRACKET; ASSIST GRIP
(A) 		1-73618-178-2 01 1 0507-
71 SCREW
(B) M6X20 W/LK&PL WASHER 		1-09981-073-0 03 1 0507-
71 SCREW
(C) M6X30 W/LK WASHER 		5-09981-064-0 04 1 0507-
71 SCREW
(A) M6X34 W/LK&PL WASHER 		8-94279-411-0 04 1 0507-
72 GRIP; ASSIST,CAB ENTRY,BACK
GRIP OUT SIDE<W52> 		1-71907-544-0 01 1 0507-1006
72 GRIP; ASSIST,CAB ENTRY,BACK
GRIP OUT SIDE<W52> 		1-71907-540-0 01 1 1007-
75 SHEET; ASSIST GRIP,CAB ENTRY
GRIP OUT SIDE<W52> 		1-71997-548-0 01 1 0507-
76 SPACER; ASSIST GRIP
(B) OD=13 T=4.5 		8-94230-464-1 02 1 0507-0511
76 SPACER; ASSIST GRIP
ASSIST GRIP A POST<NBK> (B) OD=13 T=4.5 		8-94230-464-1 02 1 0507-0511
76 SPACER; ASSIST GRIP
EXC. HIGH ROOF<S2F> (B) OD=13 T=4.5 		8-94230-464-1 02 1 0512-0707
76 SPACER; ASSIST GRIP
ASSIST GRIP A POST<NBK> (B) OD=13 T=4.5 		8-94230-464-1 02 1 0512-0707
76 SPACER; ASSIST GRIP
EXC. HIGH ROOF<S2F> (B) OD=13 T=4.5 		8-94230-464-1 02 1 0708-
76 SPACER; ASSIST GRIP
(A) 		1-73618-180-0 02 1 0507-0511
76 SPACER; ASSIST GRIP
EXC. HIGH ROOF<S2F> (A) 		1-73618-180-0 02 1 0512-
83 PLUG
HIGH ROOF<S2F> D6X23 LIGHT GRAY 		1-73318-629-0 03 1 0512-
87 GRIP; ASSIST,CANT RAIL SIDE
DARK GRAY 		8-97098-476-2 02 1 0507-
106 SCREW; ASSIST GRIP
GRIP OUT SIDE<W52> M8X30 W/LK&PL WASHER 		8-94279-210-0 04 1 0507-
132 FASTENER; BOARD,HEADER SHELF
HIGH ROOF<S2F> D8X13.5 		1-09987-276-0 08 1 0512-
135 CLIP; HEADER SHELF
HIGH ROOF<S2F> (A) D8X13.5 		1-09987-248-1 01 1 0512-
135 CLIP; HEADER SHELF
HIGH ROOF<S2F> (B) D6X23 LIGHT GRAY 		1-73318-629-0 05 1 0512-
142 SEAL; ASSIST GRIP
GRIP OUT SIDE<W52> (B) 		1-71997-691-1 02 1 0507-
142 SEAL; ASSIST GRIP
GRIP OUT SIDE<W52> (A) 25X25 		8-94272-533-0 04 1 0507-
156 PIPE; HEADER SHELF
HIGH ROOF<S2F> 		1-72447-864-2 01 1 0512-
157 FINISHER; PIPE
HIGH ROOF<S2F> 		1-72447-885-5 01 1 0512-
