Sayfa 7-20 - Isuzu EPC

7-20 — MIRROR AND MIRROR STAY (#31223) — 460 parça

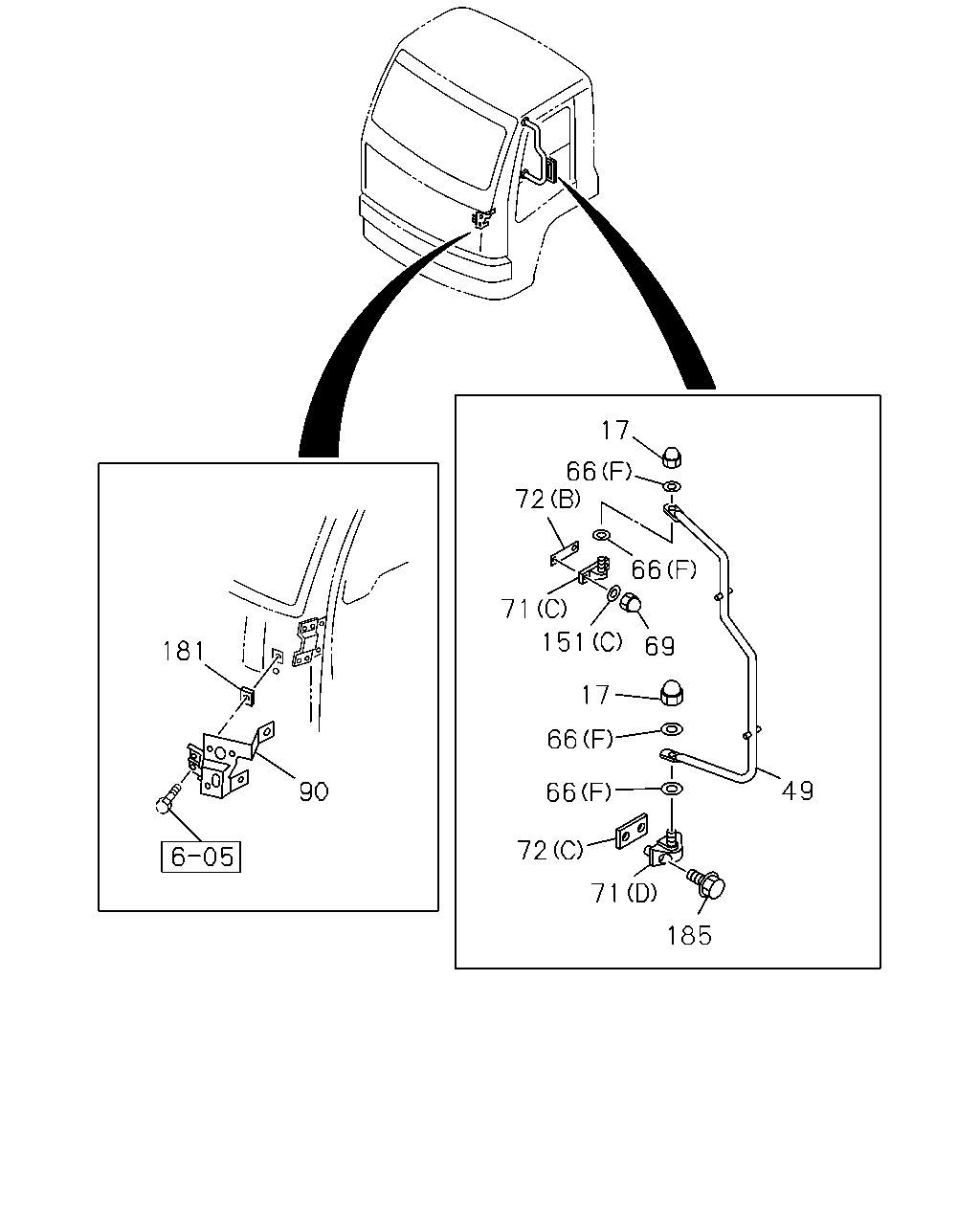

17 66 72 66 71 151 69 181 17 66 49 90 66 72 71 185

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
17	NUT; CAP,MIRROR STAY EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF> M10 CAP NUT	1-09984-134-0	04	1	0512-
49	STAY; MIRROR SIDE MIR STAY O/S W/REMOTE<TBA> MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP>	1-71707-042-1	01	1	0512-
49	STAY; MIRROR SIDE EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-71798-490-3	01	1	0512-
49	STAY; MIRROR SIDE EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-71798-491-3	01	1	0512-
49	STAY; MIRROR SIDE MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP>	1-71707-044-1	01	1	0507-0511
49	STAY; MIRROR SIDE MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> EXC. MIR STAY O/S W/REMOTE<TBA>	1-71707-044-1	01	1	0512-
49	STAY; MIRROR SIDE MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP>	1-71707-085-2	01	1	0507-
66	WASHER; PL HIGH ROOF<S2F> MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	05	1	0512-
66	WASHER; PL MIR O/S UNDER & SIDE UNDER VIEW<TAF> MIR STAY O/S W/REMOTE<TBA> (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	0512-
66	WASHER; PL MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (C) ID=12.5	1-09985-334-0	01	1	0512-
66	WASHER; PL EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF> (F) ID=10.5 OD=26 T=2.6	1-09985-184-0	08	1	0512-
66	WASHER; PL (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	06	1	0507-0511
66	WASHER; PL MIR O/S UNDER & SIDE UNDER VIEW<TAF> LOW ROOF<6XQ> (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	06	1	0512-
66	WASHER; PL (B) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	0507-0511
66	WASHER; PL MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	0512-
66	WASHER; PL (C) ID=12.5	1-09985-334-0	01	1	0507-0511
66	WASHER; PL MIR O/S UNDER & SIDE UNDER VIEW<TAF> MIR STAY O/S W/REMOTE<TBA> (C) ID=12.5	1-09985-334-0	04	1	0512-
66	WASHER; PL (D) ID=18.5 T=3.2	1-79198-014-0	01	1	0507-0511
66	WASHER; PL MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (D) ID=18.5 T=3.2	1-79198-014-0	01	1	0512-
66	WASHER; PL (E) ID=10.2 T=3.2	8-94279-642-0	01	1	0507-0511
66	WASHER; PL MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (E) ID=10.2 T=3.2	8-94279-642-0	01	1	0512-
69	NUT; CAP EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF> M8	1-09984-187-0	04	1	0512-0809
69	NUT; CAP EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF> M8 CAP NUT	8-98059-914-0	04	1	0810-
71	BRACKET; OUTSIDE MIRROR EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF> (C)	1-71798-484-1	02	1	0512-
71	BRACKET; OUTSIDE MIRROR EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF> (D)	1-71798-486-2	02	1	0512-
71	BRACKET; OUTSIDE MIRROR MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> (A)	1-71798-475-1	02	1	0507-
71	BRACKET; OUTSIDE MIRROR (B)	1-71797-809-2	01	1	0507-0511
71	BRACKET; OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71797-809-2	01	1	0512-
71	BRACKET; OUTSIDE MIRROR (B)	1-71798-309-4	01	1	0507-0511
71	BRACKET; OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71798-309-4	01	1	0512-
72	SHEET HIGH ROOF<S2F> MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71797-798-1	01	1	0512-
72	SHEET HIGH ROOF<S2F> MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71797-799-1	01	1	0512-
72	SHEET EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71798-487-3	02	1	0512-
72	SHEET EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF> (C)	1-71798-488-1	02	1	0512-
90	BRACKET; MIRROR STAY	1-71798-828-1	01	1	0507-0809
90	BRACKET; MIRROR STAY	1-71707-237-0	01	1	0810-
90	BRACKET; MIRROR STAY	1-71798-829-1	01	1	0507-
151	WASHER; PL,MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> MIR STAY O/S W/REMOTE<TBA> (A) ID=10.5 OD=26 T=2.6	1-09985-204-0	01	1	0512-
151	WASHER; PL,MIRROR EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF> (C) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	04	1	0512-
151	WASHER; PL,MIRROR MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> (B)	1-71797-913-0	02	1	0507-
181	SEAL; BRKT 25X25	8-94272-533-0	02	1	0507-
185	BOLT; BRKT EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF> M8X35 FLANGE	0-28690-835-0	04	1	0512-0512
185	BOLT; BRKT EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF> M8X35 FLANGE	0-28660-835-0	04	1	0601-0605
185	BOLT; BRKT EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF> M8X35 FLANGE	8-98046-876-0	04	1	0606-

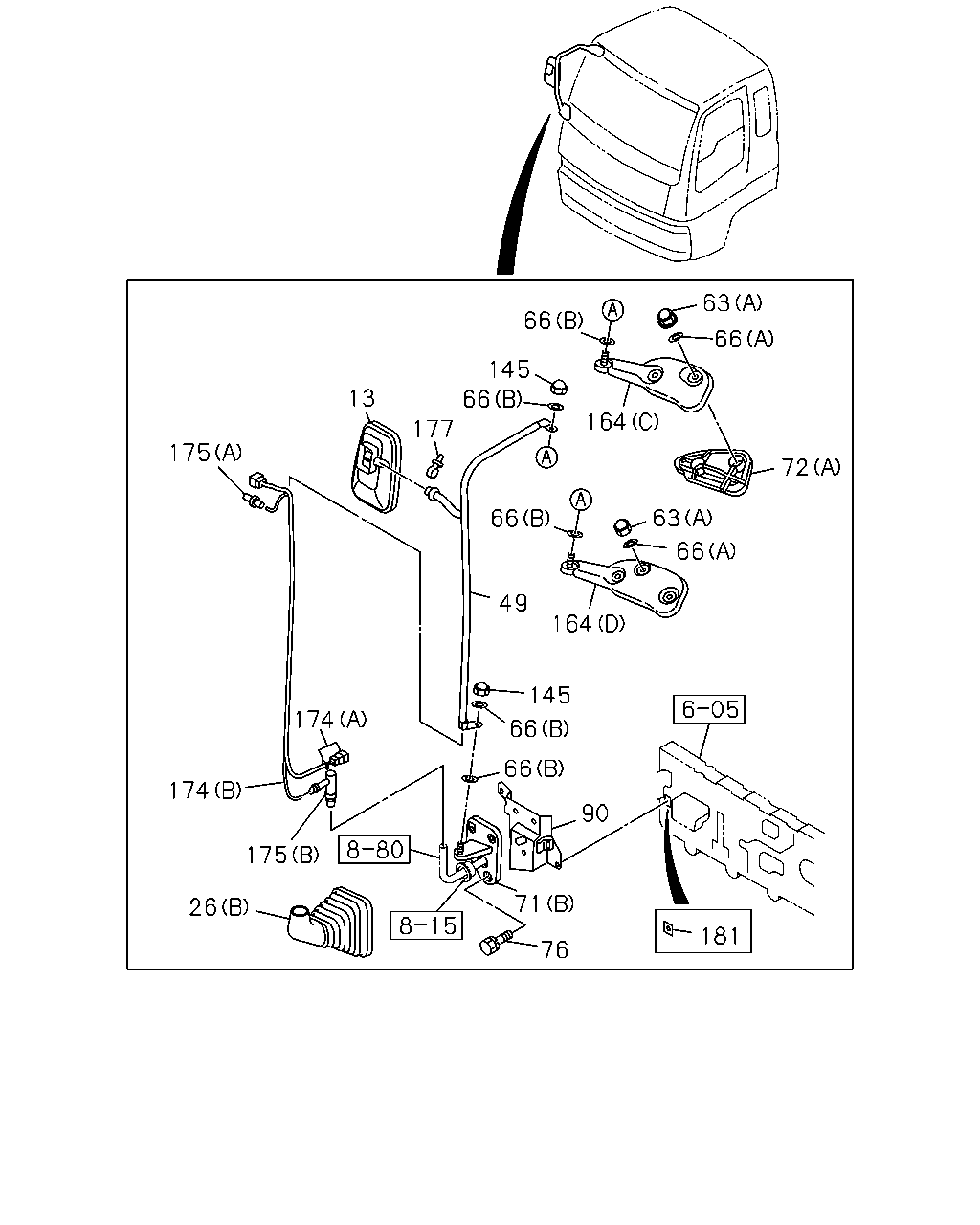

63 66 66 145 13 66 164 177 175 72 63 66 66 49 164 145 174 66 66 174 90 175 71 26 76 181

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP>	1-87412-373-0	01	1	0507-
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP>	1-87412-374-0	01	1	0507-
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> W/WIPER & HEAT WIRE	1-71798-745-4	01	1	0507-
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> W/WIPER & HEAT WIRE	1-71798-835-4	01	1	0507-
26	COVER; OUTSIDE MIRROR MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> (A)	1-71798-476-1	01	1	0507-
26	COVER; OUTSIDE MIRROR MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> (A)	1-71798-477-1	01	1	0507-
26	COVER; OUTSIDE MIRROR (B)	1-71798-316-2	01	1	0507-0511
26	COVER; OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71798-316-2	01	1	0512-
26	COVER; OUTSIDE MIRROR (B)	1-71798-695-0	01	1	0507-0511
26	COVER; OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71798-695-0	01	1	0512-
49	STAY; MIRROR SIDE MIR STAY O/S W/REMOTE<TBA> MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP>	1-71707-042-1	01	1	0512-
49	STAY; MIRROR SIDE EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-71798-490-3	01	1	0512-
49	STAY; MIRROR SIDE EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-71798-491-3	01	1	0512-
49	STAY; MIRROR SIDE MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP>	1-71707-044-1	01	1	0507-0511
49	STAY; MIRROR SIDE MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> EXC. MIR STAY O/S W/REMOTE<TBA>	1-71707-044-1	01	1	0512-
49	STAY; MIRROR SIDE MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP>	1-71707-085-2	01	1	0507-
63	NUT; STAY HIGH ROOF<S2F> MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) M8	1-09984-187-0	05	1	0512-
63	NUT; STAY MIR O/S UNDER & SIDE UNDER VIEW<TAF> MIR STAY O/S W/REMOTE<TBA> (D) M8	1-71798-603-1	02	1	0512-
63	NUT; STAY MIR O/S UNDER & SIDE UNDER VIEW<TAF> MIR STAY O/S W/REMOTE<TBA> (C) M10 CAP NUT	1-71798-859-0	01	1	0512-
63	NUT; STAY (A) M8	1-09984-187-0	06	1	0507-0511
63	NUT; STAY MIR O/S UNDER & SIDE UNDER VIEW<TAF> LOW ROOF<6XQ> (A) M8	1-09984-187-0	06	1	0512-
63	NUT; STAY (B) M14	9-99110-414-0	01	1	0507-0511
63	NUT; STAY (B) M14	9-99110-414-0	01	1	0512-0512
63	NUT; STAY MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) M14	0-91110-514-0	01	1	0601-
66	WASHER; PL HIGH ROOF<S2F> MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	05	1	0512-
66	WASHER; PL MIR O/S UNDER & SIDE UNDER VIEW<TAF> MIR STAY O/S W/REMOTE<TBA> (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	0512-
66	WASHER; PL MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (C) ID=12.5	1-09985-334-0	01	1	0512-
66	WASHER; PL EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF> (F) ID=10.5 OD=26 T=2.6	1-09985-184-0	08	1	0512-
66	WASHER; PL (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	06	1	0507-0511
66	WASHER; PL MIR O/S UNDER & SIDE UNDER VIEW<TAF> LOW ROOF<6XQ> (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	06	1	0512-
66	WASHER; PL (B) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	0507-0511
66	WASHER; PL MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	0512-
66	WASHER; PL (C) ID=12.5	1-09985-334-0	01	1	0507-0511
66	WASHER; PL MIR O/S UNDER & SIDE UNDER VIEW<TAF> MIR STAY O/S W/REMOTE<TBA> (C) ID=12.5	1-09985-334-0	04	1	0512-
66	WASHER; PL (D) ID=18.5 T=3.2	1-79198-014-0	01	1	0507-0511
66	WASHER; PL MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (D) ID=18.5 T=3.2	1-79198-014-0	01	1	0512-
66	WASHER; PL (E) ID=10.2 T=3.2	8-94279-642-0	01	1	0507-0511
66	WASHER; PL MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (E) ID=10.2 T=3.2	8-94279-642-0	01	1	0512-
71	BRACKET; OUTSIDE MIRROR EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF> (C)	1-71798-484-1	02	1	0512-
71	BRACKET; OUTSIDE MIRROR EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF> (D)	1-71798-486-2	02	1	0512-
71	BRACKET; OUTSIDE MIRROR MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> (A)	1-71798-475-1	02	1	0507-
71	BRACKET; OUTSIDE MIRROR (B)	1-71797-809-2	01	1	0507-0511
71	BRACKET; OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71797-809-2	01	1	0512-
71	BRACKET; OUTSIDE MIRROR (B)	1-71798-309-4	01	1	0507-0511
71	BRACKET; OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71798-309-4	01	1	0512-
72	SHEET HIGH ROOF<S2F> MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71797-798-1	01	1	0512-
72	SHEET HIGH ROOF<S2F> MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71797-799-1	01	1	0512-
72	SHEET EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71798-487-3	02	1	0512-
72	SHEET EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF> (C)	1-71798-488-1	02	1	0512-
76	BOLT; STAY BRKT M8X40 W/LK&PL WASHER	0-50140-840-0	06	1	0507-0511
76	BOLT; STAY BRKT M8X40 W/LK&PL WASHER	0-50140-840-0	06	1	0512-0512
76	BOLT; STAY BRKT MIR O/S UNDER & SIDE UNDER VIEW<TAF> M8X40 W/LK&PL WASHER	0-50640-840-0	06	1	0601-
90	BRACKET; MIRROR STAY	1-71798-828-1	01	1	0507-0809
90	BRACKET; MIRROR STAY	1-71707-237-0	01	1	0810-
90	BRACKET; MIRROR STAY	1-71798-829-1	01	1	0507-
145	NUT; CAP,SUB STAY M10	1-09984-183-0	02	1	0507-0511
145	NUT; CAP,SUB STAY MIR O/S UNDER & SIDE UNDER VIEW<TAF> M10	1-09984-183-0	02	1	0512-
164	STAY; ROOF HIGH ROOF<S2F> MIR O/S UNDER & SIDE UNDER VIEW<TAF> (C)	1-71798-300-5	01	1	0512-
164	STAY; ROOF MIR O/S UNDER & SIDE UNDER VIEW<TAF> MIR STAY O/S W/REMOTE<TBA> (A)	1-71798-602-1	01	1	0512-
164	STAY; ROOF (D)	1-71707-090-0	01	1	0507-0511
164	STAY; ROOF MIR O/S UNDER & SIDE UNDER VIEW<TAF> LOW ROOF<6XQ> (D)	1-71707-090-0	01	1	0512-
164	STAY; ROOF (B)	1-71798-299-4	01	1	0507-0511
164	STAY; ROOF MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71798-299-4	01	1	0512-
174	HARNESS; MIRROR MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> (A)	1-82625-276-0	02	1	0507-
174	HARNESS; MIRROR MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> (B)	1-82626-088-2	01	1	0507-
174	HARNESS; MIRROR MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> (B)	1-82626-092-5	01	1	0507-
175	JOINT MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> (A)	1-86815-015-0	02	1	0507-
175	JOINT MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> (B)	1-86815-031-0	02	1	0507-
177	CLIP; HARNESS MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> L=140	5-09707-031-1	02	1	0507-
181	SEAL; BRKT 25X25	8-94272-533-0	02	1	0507-

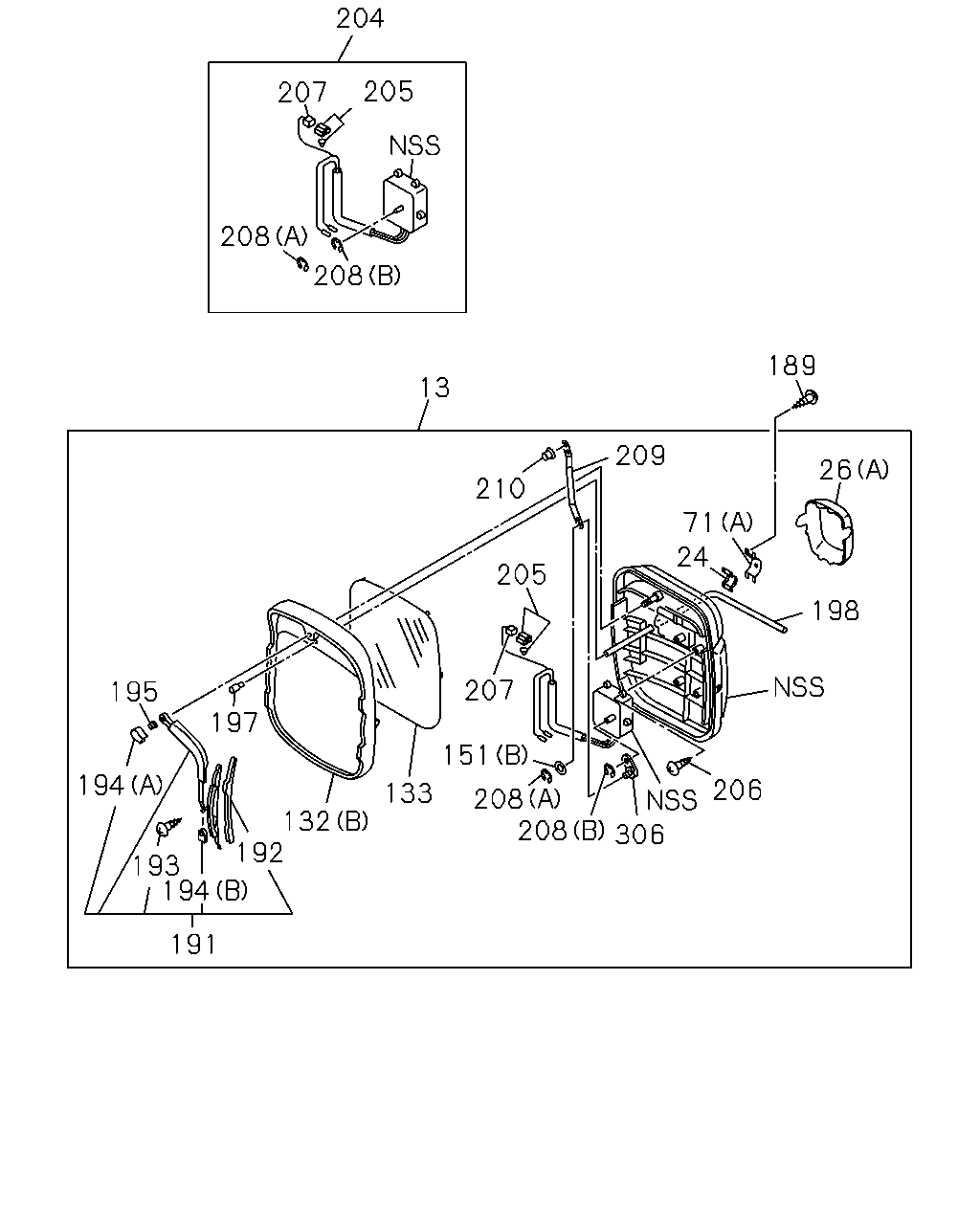

204 205 207 208 208 189 13 209 26 210 71 24 205 198 207 195 197 151 194 206 133 208 208 306 132 192 193 194 191

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP>	1-87412-373-0	01	1	0507-
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP>	1-87412-374-0	01	1	0507-
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> W/WIPER & HEAT WIRE	1-71798-745-4	01	1	0507-
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> W/WIPER & HEAT WIRE	1-71798-835-4	01	1	0507-
24	HOLDER; OUTSIDE MIRROR MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP>	1-71798-474-0	02	1	0507-
26	COVER; OUTSIDE MIRROR MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> (A)	1-71798-476-1	01	1	0507-
26	COVER; OUTSIDE MIRROR MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> (A)	1-71798-477-1	01	1	0507-
26	COVER; OUTSIDE MIRROR (B)	1-71798-316-2	01	1	0507-0511
26	COVER; OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71798-316-2	01	1	0512-
26	COVER; OUTSIDE MIRROR (B)	1-71798-695-0	01	1	0507-0511
26	COVER; OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71798-695-0	01	1	0512-
71	BRACKET; OUTSIDE MIRROR EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF> (C)	1-71798-484-1	02	1	0512-
71	BRACKET; OUTSIDE MIRROR EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF> (D)	1-71798-486-2	02	1	0512-
71	BRACKET; OUTSIDE MIRROR MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> (A)	1-71798-475-1	02	1	0507-
71	BRACKET; OUTSIDE MIRROR (B)	1-71797-809-2	01	1	0507-0511
71	BRACKET; OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71797-809-2	01	1	0512-
71	BRACKET; OUTSIDE MIRROR (B)	1-71798-309-4	01	1	0507-0511
71	BRACKET; OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71798-309-4	01	1	0512-
132	RING; MIRROR MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> (B)	1-71798-459-2	01	1	0507-
132	RING; MIRROR MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> (B)	1-71798-460-0	01	1	0507-
132	RING; MIRROR (A)	1-71737-935-0	01	1	0507-0511
132	RING; MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71737-935-0	01	1	0512-
133	LENS; MIRROR,OUTSIDE MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP>	1-71797-176-1	01	1	0507-
133	LENS; MIRROR,OUTSIDE MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP>	1-71797-177-1	01	1	0507-
151	WASHER; PL,MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> MIR STAY O/S W/REMOTE<TBA> (A) ID=10.5 OD=26 T=2.6	1-09985-204-0	01	1	0512-
151	WASHER; PL,MIRROR EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF> (C) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	04	1	0512-
151	WASHER; PL,MIRROR MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> (B)	1-71797-913-0	02	1	0507-
189	SCREW; PIVOT MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> M5X25 W/LK&PL WASHER	9-03920-525-0	04	1	0507-0604
189	SCREW; PIVOT MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> M5X25 W/LK&PL WASHER	0-36230-525-0	04	1	0605-
191	WIPER ASM; MIRROR MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP>	1-71798-467-2	01	1	0507-
191	WIPER ASM; MIRROR MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP>	1-71798-468-3	01	1	0507-
192	RUBBER; MIRROR WIPER MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP>	1-71798-471-0	01	1	0507-
192	RUBBER; MIRROR WIPER MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP>	1-71798-535-0	01	1	0507-
193	SCREW; WIPER BRADE MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP>	1-09981-538-0	02	1	0507-
194	COVER; MIRROR WIPER MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> (A)	1-71798-472-0	02	1	0507-
194	COVER; MIRROR WIPER MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> (B)	1-71798-473-0	02	1	0507-
195	NUT; MIRROR WIPER MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> M5 FLANGE	1-09984-181-0	02	1	0507-
197	NOZZLE; WIPER MIRROR MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP>	1-71797-906-0	02	1	0507-
198	TUBE; WIPER MIRROR MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> L=230	1-71797-905-0	02	1	0507-
204	MOTOR KIT; MIRROR MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP>	1-71797-985-0	02	1	0507-
205	CONNECTOR KIT; MIRROR MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP>	1-71797-901-0	02	1	0507-
206	SCREW; MOTOR,MIRROR MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP>	1-71797-910-0	08	1	0507-
207	HOLDER; MIRROR MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP>	1-71797-903-0	02	1	0507-
208	RING; SNAP,MIRROR MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> (A)	1-71797-908-0	02	1	0507-
208	RING; SNAP,MIRROR MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> (B)	1-71797-909-0	02	1	0507-
209	LINK ASM; MOTOR,MIRROR MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP>	1-71797-915-0	01	1	0507-
209	LINK ASM; MOTOR,MIRROR MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP>	1-71797-982-0	01	1	0507-
210	PLATE ASM; LINK,MIRROR MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP>	1-71797-907-0	01	1	0507-
210	PLATE ASM; LINK,MIRROR MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP>	1-71798-836-0	01	1	0507-
306	ARM; CRANK,MIRROR MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP>	1-71798-860-0	02	1	0507-

17 66 72 66 71 151 69 49 17 66 181 90 66 72 71 185

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
17	NUT; CAP,MIRROR STAY EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF> M10 CAP NUT	1-09984-134-0	04	1	0512-
49	STAY; MIRROR SIDE MIR STAY O/S W/REMOTE<TBA> MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP>	1-71707-042-1	01	1	0512-
49	STAY; MIRROR SIDE EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-71798-490-3	01	1	0512-
49	STAY; MIRROR SIDE EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-71798-491-3	01	1	0512-
49	STAY; MIRROR SIDE MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP>	1-71707-044-1	01	1	0507-0511
49	STAY; MIRROR SIDE MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> EXC. MIR STAY O/S W/REMOTE<TBA>	1-71707-044-1	01	1	0512-
49	STAY; MIRROR SIDE MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP>	1-71707-085-2	01	1	0507-
66	WASHER; PL HIGH ROOF<S2F> MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	05	1	0512-
66	WASHER; PL MIR O/S UNDER & SIDE UNDER VIEW<TAF> MIR STAY O/S W/REMOTE<TBA> (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	0512-
66	WASHER; PL MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (C) ID=12.5	1-09985-334-0	01	1	0512-
66	WASHER; PL EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF> (F) ID=10.5 OD=26 T=2.6	1-09985-184-0	08	1	0512-
66	WASHER; PL (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	06	1	0507-0511
66	WASHER; PL MIR O/S UNDER & SIDE UNDER VIEW<TAF> LOW ROOF<6XQ> (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	06	1	0512-
66	WASHER; PL (B) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	0507-0511
66	WASHER; PL MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	0512-
66	WASHER; PL (C) ID=12.5	1-09985-334-0	01	1	0507-0511
66	WASHER; PL MIR O/S UNDER & SIDE UNDER VIEW<TAF> MIR STAY O/S W/REMOTE<TBA> (C) ID=12.5	1-09985-334-0	04	1	0512-
66	WASHER; PL (D) ID=18.5 T=3.2	1-79198-014-0	01	1	0507-0511
66	WASHER; PL MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (D) ID=18.5 T=3.2	1-79198-014-0	01	1	0512-
66	WASHER; PL (E) ID=10.2 T=3.2	8-94279-642-0	01	1	0507-0511
66	WASHER; PL MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (E) ID=10.2 T=3.2	8-94279-642-0	01	1	0512-
69	NUT; CAP EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF> M8	1-09984-187-0	04	1	0512-0809
69	NUT; CAP EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF> M8 CAP NUT	8-98059-914-0	04	1	0810-
71	BRACKET; OUTSIDE MIRROR EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF> (C)	1-71798-484-1	02	1	0512-
71	BRACKET; OUTSIDE MIRROR EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF> (D)	1-71798-486-2	02	1	0512-
71	BRACKET; OUTSIDE MIRROR MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> (A)	1-71798-475-1	02	1	0507-
71	BRACKET; OUTSIDE MIRROR (B)	1-71797-809-2	01	1	0507-0511
71	BRACKET; OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71797-809-2	01	1	0512-
71	BRACKET; OUTSIDE MIRROR (B)	1-71798-309-4	01	1	0507-0511
71	BRACKET; OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71798-309-4	01	1	0512-
72	SHEET HIGH ROOF<S2F> MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71797-798-1	01	1	0512-
72	SHEET HIGH ROOF<S2F> MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71797-799-1	01	1	0512-
72	SHEET EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71798-487-3	02	1	0512-
72	SHEET EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF> (C)	1-71798-488-1	02	1	0512-
90	BRACKET; MIRROR STAY	1-71798-828-1	01	1	0507-0809
90	BRACKET; MIRROR STAY	1-71707-237-0	01	1	0810-
90	BRACKET; MIRROR STAY	1-71798-829-1	01	1	0507-
151	WASHER; PL,MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> MIR STAY O/S W/REMOTE<TBA> (A) ID=10.5 OD=26 T=2.6	1-09985-204-0	01	1	0512-
151	WASHER; PL,MIRROR EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF> (C) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	04	1	0512-
151	WASHER; PL,MIRROR MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> (B)	1-71797-913-0	02	1	0507-
181	SEAL; BRKT 25X25	8-94272-533-0	02	1	0507-
185	BOLT; BRKT EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF> M8X35 FLANGE	0-28690-835-0	04	1	0512-0512
185	BOLT; BRKT EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF> M8X35 FLANGE	0-28660-835-0	04	1	0601-0605
185	BOLT; BRKT EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF> M8X35 FLANGE	8-98046-876-0	04	1	0606-

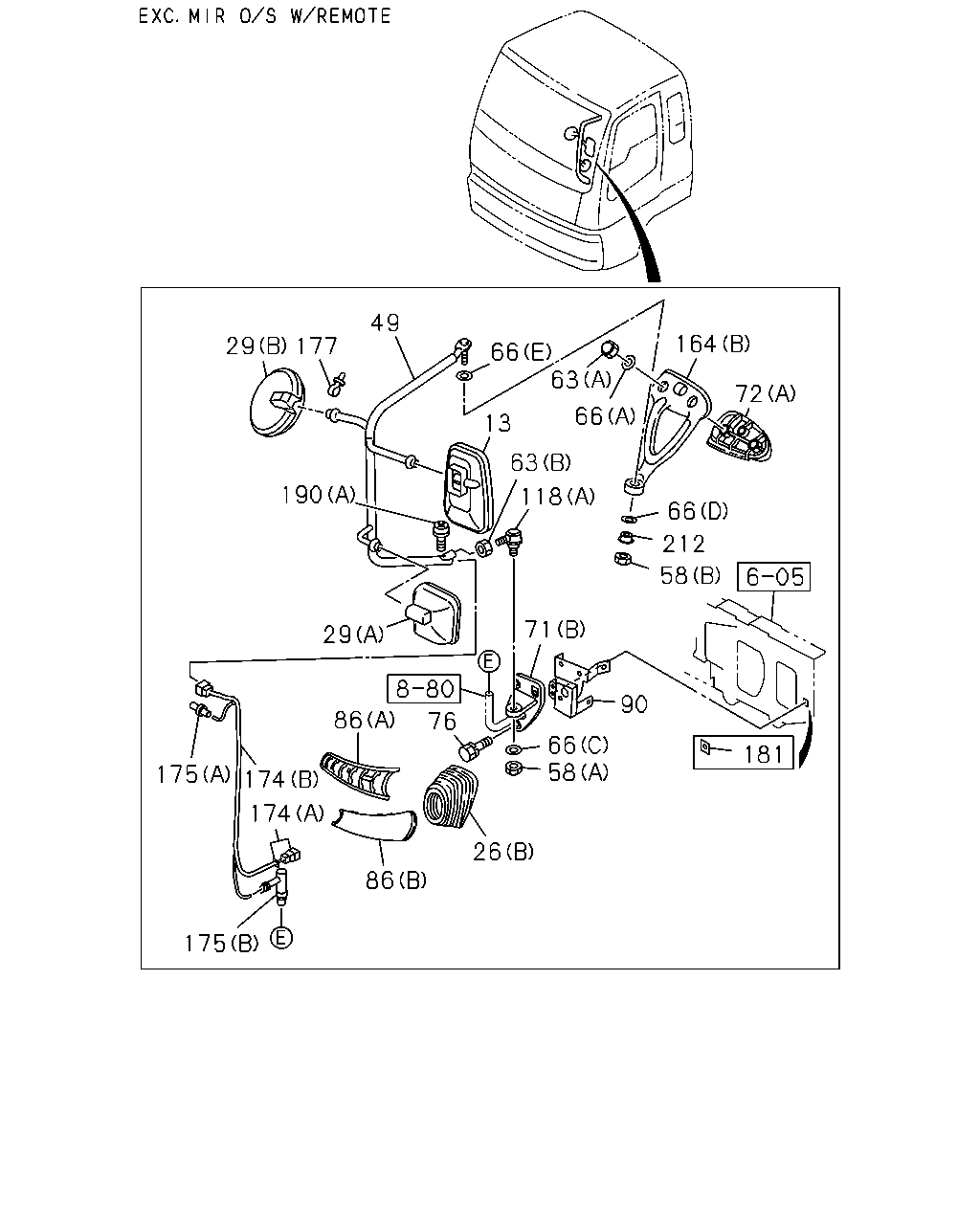

49 164 29 177 66 63 72 66 13 63 190 118 66 212 58 71 29 90 86 76 66 58 181 175 174 174 26 86 175

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP>	1-87412-373-0	01	1	0507-
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP>	1-87412-374-0	01	1	0507-
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> W/WIPER & HEAT WIRE	1-71798-745-4	01	1	0507-
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> W/WIPER & HEAT WIRE	1-71798-835-4	01	1	0507-
26	COVER; OUTSIDE MIRROR MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> (A)	1-71798-476-1	01	1	0507-
26	COVER; OUTSIDE MIRROR MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> (A)	1-71798-477-1	01	1	0507-
26	COVER; OUTSIDE MIRROR (B)	1-71798-316-2	01	1	0507-0511
26	COVER; OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71798-316-2	01	1	0512-
26	COVER; OUTSIDE MIRROR (B)	1-71798-695-0	01	1	0507-0511
26	COVER; OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71798-695-0	01	1	0512-
29	MIRROR ASM; UNDER (B)	1-71797-137-1	01	1	0507-0511
29	MIRROR ASM; UNDER MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71797-137-1	01	1	0512-
29	MIRROR ASM; UNDER (A)	1-71798-421-1	01	1	0507-0511
29	MIRROR ASM; UNDER MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71798-421-1	01	1	0512-
49	STAY; MIRROR SIDE MIR STAY O/S W/REMOTE<TBA> MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP>	1-71707-042-1	01	1	0512-
49	STAY; MIRROR SIDE EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-71798-490-3	01	1	0512-
49	STAY; MIRROR SIDE EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-71798-491-3	01	1	0512-
49	STAY; MIRROR SIDE MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP>	1-71707-044-1	01	1	0507-0511
49	STAY; MIRROR SIDE MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> EXC. MIR STAY O/S W/REMOTE<TBA>	1-71707-044-1	01	1	0512-
49	STAY; MIRROR SIDE MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP>	1-71707-085-2	01	1	0507-
58	NUT; MIRROR STAY MIR O/S UNDER & SIDE UNDER VIEW<TAF> MIR STAY O/S W/REMOTE<TBA> (C) M12	1-09984-184-1	01	1	0512-
58	NUT; MIRROR STAY MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (A) M12	1-09984-178-1	01	1	0512-
58	NUT; MIRROR STAY (A) M12	1-09984-178-1	01	1	0507-0511
58	NUT; MIRROR STAY MIR O/S UNDER & SIDE UNDER VIEW<TAF> MIR STAY O/S W/REMOTE<TBA> (A) M12	1-09984-178-1	02	1	0512-
58	NUT; MIRROR STAY (B) M10	1-09985-342-0	01	1	0507-0511
58	NUT; MIRROR STAY MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (B) M10	1-09985-342-0	01	1	0512-
63	NUT; STAY HIGH ROOF<S2F> MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) M8	1-09984-187-0	05	1	0512-
63	NUT; STAY MIR O/S UNDER & SIDE UNDER VIEW<TAF> MIR STAY O/S W/REMOTE<TBA> (D) M8	1-71798-603-1	02	1	0512-
63	NUT; STAY MIR O/S UNDER & SIDE UNDER VIEW<TAF> MIR STAY O/S W/REMOTE<TBA> (C) M10 CAP NUT	1-71798-859-0	01	1	0512-
63	NUT; STAY (A) M8	1-09984-187-0	06	1	0507-0511
63	NUT; STAY MIR O/S UNDER & SIDE UNDER VIEW<TAF> LOW ROOF<6XQ> (A) M8	1-09984-187-0	06	1	0512-
63	NUT; STAY (B) M14	9-99110-414-0	01	1	0507-0511
63	NUT; STAY (B) M14	9-99110-414-0	01	1	0512-0512
63	NUT; STAY MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) M14	0-91110-514-0	01	1	0601-
66	WASHER; PL HIGH ROOF<S2F> MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	05	1	0512-
66	WASHER; PL MIR O/S UNDER & SIDE UNDER VIEW<TAF> MIR STAY O/S W/REMOTE<TBA> (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	0512-
66	WASHER; PL MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (C) ID=12.5	1-09985-334-0	01	1	0512-
66	WASHER; PL EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF> (F) ID=10.5 OD=26 T=2.6	1-09985-184-0	08	1	0512-
66	WASHER; PL (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	06	1	0507-0511
66	WASHER; PL MIR O/S UNDER & SIDE UNDER VIEW<TAF> LOW ROOF<6XQ> (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	06	1	0512-
66	WASHER; PL (B) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	0507-0511
66	WASHER; PL MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	0512-
66	WASHER; PL (C) ID=12.5	1-09985-334-0	01	1	0507-0511
66	WASHER; PL MIR O/S UNDER & SIDE UNDER VIEW<TAF> MIR STAY O/S W/REMOTE<TBA> (C) ID=12.5	1-09985-334-0	04	1	0512-
66	WASHER; PL (D) ID=18.5 T=3.2	1-79198-014-0	01	1	0507-0511
66	WASHER; PL MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (D) ID=18.5 T=3.2	1-79198-014-0	01	1	0512-
66	WASHER; PL (E) ID=10.2 T=3.2	8-94279-642-0	01	1	0507-0511
66	WASHER; PL MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (E) ID=10.2 T=3.2	8-94279-642-0	01	1	0512-
71	BRACKET; OUTSIDE MIRROR EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF> (C)	1-71798-484-1	02	1	0512-
71	BRACKET; OUTSIDE MIRROR EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF> (D)	1-71798-486-2	02	1	0512-
71	BRACKET; OUTSIDE MIRROR MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> (A)	1-71798-475-1	02	1	0507-
71	BRACKET; OUTSIDE MIRROR (B)	1-71797-809-2	01	1	0507-0511
71	BRACKET; OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71797-809-2	01	1	0512-
71	BRACKET; OUTSIDE MIRROR (B)	1-71798-309-4	01	1	0507-0511
71	BRACKET; OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71798-309-4	01	1	0512-
72	SHEET HIGH ROOF<S2F> MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71797-798-1	01	1	0512-
72	SHEET HIGH ROOF<S2F> MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71797-799-1	01	1	0512-
72	SHEET EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71798-487-3	02	1	0512-
72	SHEET EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF> (C)	1-71798-488-1	02	1	0512-
76	BOLT; STAY BRKT M8X40 W/LK&PL WASHER	0-50140-840-0	06	1	0507-0511
76	BOLT; STAY BRKT M8X40 W/LK&PL WASHER	0-50140-840-0	06	1	0512-0512
76	BOLT; STAY BRKT MIR O/S UNDER & SIDE UNDER VIEW<TAF> M8X40 W/LK&PL WASHER	0-50640-840-0	06	1	0601-
86	COVER; STAY,OUTSIDE MIRROR HIGH ROOF<S2F> (E)	1-73317-322-0	01	1	0512-
86	COVER; STAY,OUTSIDE MIRROR (C) BLACK	1-71737-649-1	01	1	0507-0511
86	COVER; STAY,OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (C) BLACK	1-71737-649-1	01	1	0512-
86	COVER; STAY,OUTSIDE MIRROR (D) BLACK	1-71737-652-1	01	1	0507-0511
86	COVER; STAY,OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (D) BLACK	1-71737-652-1	01	1	0512-
86	COVER; STAY,OUTSIDE MIRROR (A)	1-71798-732-0	01	1	0507-0511
86	COVER; STAY,OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71798-732-0	01	1	0512-
86	COVER; STAY,OUTSIDE MIRROR (B)	1-71798-733-0	01	1	0507-0511
86	COVER; STAY,OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71798-733-0	01	1	0512-
90	BRACKET; MIRROR STAY	1-71798-828-1	01	1	0507-0809
90	BRACKET; MIRROR STAY	1-71707-237-0	01	1	0810-
90	BRACKET; MIRROR STAY	1-71798-829-1	01	1	0507-
118	JOINT ASM; BALL MIR O/S UNDER & SIDE UNDER VIEW<TAF> MIR STAY O/S W/REMOTE<TBA> (C) RH THREAD	1-71798-819-2	01	1	0512-
118	JOINT ASM; BALL MIR O/S UNDER & SIDE UNDER VIEW<TAF> MIR STAY O/S W/REMOTE<TBA> (B) LH THREAD	1-71798-820-2	01	1	0512-
118	JOINT ASM; BALL (A)	1-71797-805-1	01	1	0507-0511
118	JOINT ASM; BALL MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71797-805-1	01	1	0512-
164	STAY; ROOF HIGH ROOF<S2F> MIR O/S UNDER & SIDE UNDER VIEW<TAF> (C)	1-71798-300-5	01	1	0512-
164	STAY; ROOF MIR O/S UNDER & SIDE UNDER VIEW<TAF> MIR STAY O/S W/REMOTE<TBA> (A)	1-71798-602-1	01	1	0512-
164	STAY; ROOF (D)	1-71707-090-0	01	1	0507-0511
164	STAY; ROOF MIR O/S UNDER & SIDE UNDER VIEW<TAF> LOW ROOF<6XQ> (D)	1-71707-090-0	01	1	0512-
164	STAY; ROOF (B)	1-71798-299-4	01	1	0507-0511
164	STAY; ROOF MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71798-299-4	01	1	0512-
174	HARNESS; MIRROR MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> (A)	1-82625-276-0	02	1	0507-
174	HARNESS; MIRROR MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> (B)	1-82626-088-2	01	1	0507-
174	HARNESS; MIRROR MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> (B)	1-82626-092-5	01	1	0507-
175	JOINT MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> (A)	1-86815-015-0	02	1	0507-
175	JOINT MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> (B)	1-86815-031-0	02	1	0507-
177	CLIP; HARNESS MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> L=140	5-09707-031-1	02	1	0507-
181	SEAL; BRKT 25X25	8-94272-533-0	02	1	0507-
190	SCREW; COVER HIGH ROOF<S2F> (B) M5X16 W/PL WASHER TAPPING	8-94279-123-0	03	1	0512-
190	SCREW; COVER (A) M6X16 W/LK&PL WASHER	8-94279-402-0	01	1	0507-0511
190	SCREW; COVER MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) M6X16 W/LK&PL WASHER	8-94279-402-0	01	1	0512-
212	BUSHING; MIRROR	1-09983-175-1	01	1	0507-0511
212	BUSHING; MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA>	1-09983-175-1	01	1	0512-

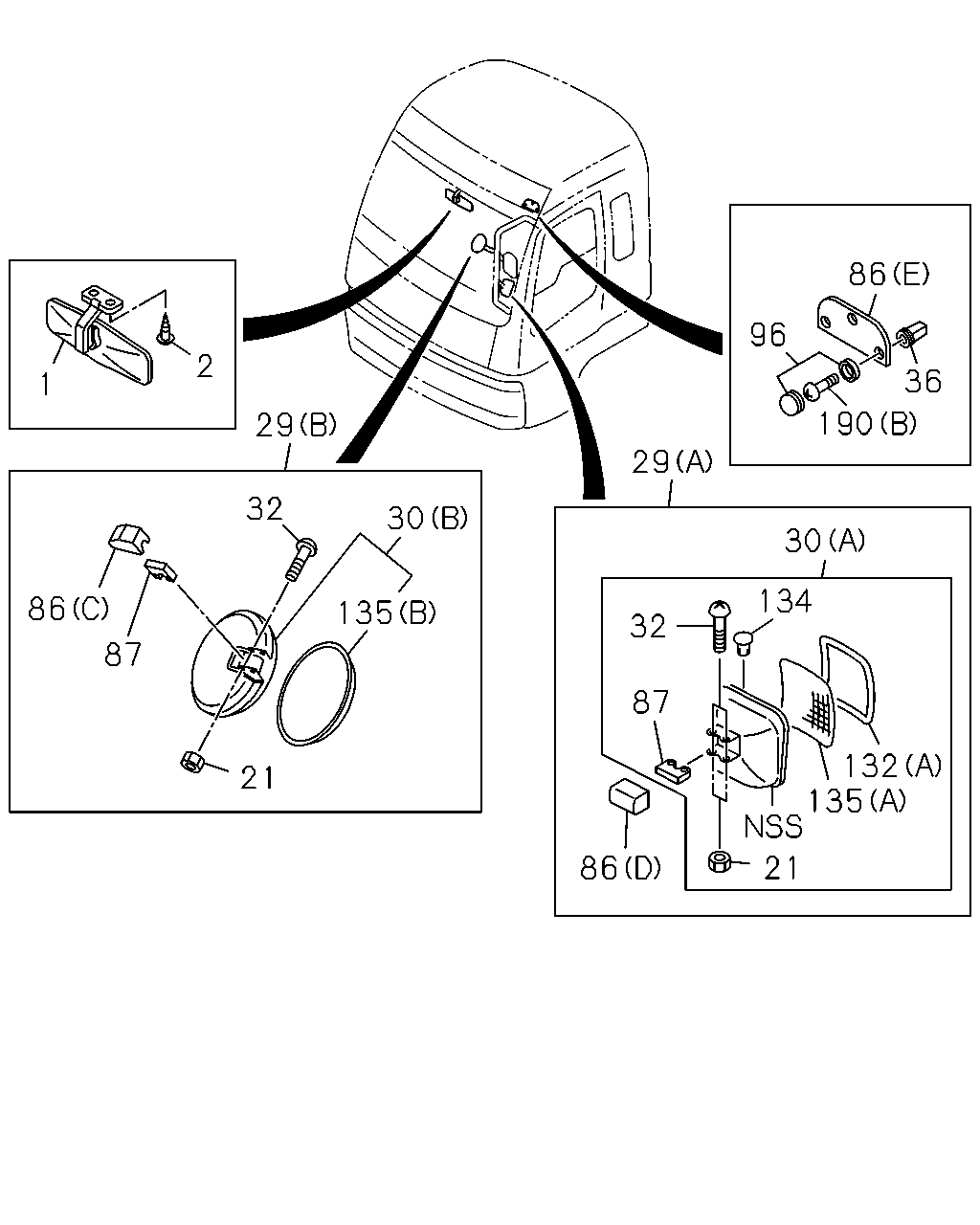

86 96 2 36 1 190 29 29 32 30 30 134 86 135 32 87 87 132 135 21 86 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	MIRROR; ROOM	1-73117-033-1	01	1	0507-
2	SCREW; MIRROR TO BODY M6X20	1-09981-310-0	02	1	0507-
21	NUT; MIRROR M5	1-09984-124-0	04	1	0507-0511
21	NUT; MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> M5	1-09984-124-0	04	1	0512-
29	MIRROR ASM; UNDER (B)	1-71797-137-1	01	1	0507-0511
29	MIRROR ASM; UNDER MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71797-137-1	01	1	0512-
29	MIRROR ASM; UNDER (A)	1-71798-421-1	01	1	0507-0511
29	MIRROR ASM; UNDER MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71798-421-1	01	1	0512-
30	MIRROR; UNDER (B)	1-71797-853-1	01	1	0507-0511
30	MIRROR; UNDER MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71797-853-1	01	1	0512-
30	MIRROR; UNDER (A)	1-71798-592-1	01	1	0507-0511
30	MIRROR; UNDER MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71798-592-1	01	1	0512-
32	SCREW; UNDER MIRROR M5X40 W/PL WASHER	1-71737-797-0	04	1	0507-0511
32	SCREW; UNDER MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> M5X40 W/PL WASHER	1-71737-797-0	04	1	0512-
36	GROMMET; MIRROR HIGH ROOF<S2F> M5 SCREW GROMMET	1-09983-131-0	03	1	0512-
86	COVER; STAY,OUTSIDE MIRROR HIGH ROOF<S2F> (E)	1-73317-322-0	01	1	0512-
86	COVER; STAY,OUTSIDE MIRROR (C) BLACK	1-71737-649-1	01	1	0507-0511
86	COVER; STAY,OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (C) BLACK	1-71737-649-1	01	1	0512-
86	COVER; STAY,OUTSIDE MIRROR (D) BLACK	1-71737-652-1	01	1	0507-0511
86	COVER; STAY,OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (D) BLACK	1-71737-652-1	01	1	0512-
86	COVER; STAY,OUTSIDE MIRROR (A)	1-71798-732-0	01	1	0507-0511
86	COVER; STAY,OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71798-732-0	01	1	0512-
86	COVER; STAY,OUTSIDE MIRROR (B)	1-71798-733-0	01	1	0507-0511
86	COVER; STAY,OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71798-733-0	01	1	0512-
87	SPACER	1-71737-646-2	02	1	0507-0511
87	SPACER MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-71737-646-2	02	1	0512-
96	CAP; MIRROR STAY HIGH ROOF<S2F>	1-73317-324-0	03	1	0512-
132	RING; MIRROR MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> (B)	1-71798-459-2	01	1	0507-
132	RING; MIRROR MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> (B)	1-71798-460-0	01	1	0507-
132	RING; MIRROR (A)	1-71737-935-0	01	1	0507-0511
132	RING; MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71737-935-0	01	1	0512-
134	CLIP; MIRROR LENS	1-71737-936-0	01	1	0507-0511
134	CLIP; MIRROR LENS MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-71737-936-0	01	1	0512-
135	LENS; MIRROR,SIDE UNDER (B)	1-71707-130-0	01	1	0507-0511
135	LENS; MIRROR,SIDE UNDER MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71707-130-0	01	1	0512-
135	LENS; MIRROR,SIDE UNDER (A)	1-71737-929-0	01	1	0507-0511
135	LENS; MIRROR,SIDE UNDER MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71737-929-0	01	1	0512-
190	SCREW; COVER HIGH ROOF<S2F> (B) M5X16 W/PL WASHER TAPPING	8-94279-123-0	03	1	0512-
190	SCREW; COVER (A) M6X16 W/LK&PL WASHER	8-94279-402-0	01	1	0507-0511
190	SCREW; COVER MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) M6X16 W/LK&PL WASHER	8-94279-402-0	01	1	0512-

63 46 151 63 66 164 170 171 170 172 172 200 165 169 118 168 201 118 173 67 165 58 66 54 167 66 63 46 29 177 49 46 166 66 13 164 63 72 190 118 175 174 174 166 66 58 29 26 86 175 90 86 71 76 66 58 181 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP>	1-87412-373-0	01	1	0507-
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP>	1-87412-374-0	01	1	0507-
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> W/WIPER & HEAT WIRE	1-71798-745-4	01	1	0507-
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> W/WIPER & HEAT WIRE	1-71798-835-4	01	1	0507-
26	COVER; OUTSIDE MIRROR MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> (A)	1-71798-476-1	01	1	0507-
26	COVER; OUTSIDE MIRROR MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> (A)	1-71798-477-1	01	1	0507-
26	COVER; OUTSIDE MIRROR (B)	1-71798-316-2	01	1	0507-0511
26	COVER; OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71798-316-2	01	1	0512-
26	COVER; OUTSIDE MIRROR (B)	1-71798-695-0	01	1	0507-0511
26	COVER; OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71798-695-0	01	1	0512-
29	MIRROR ASM; UNDER (B)	1-71797-137-1	01	1	0507-0511
29	MIRROR ASM; UNDER MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71797-137-1	01	1	0512-
29	MIRROR ASM; UNDER (A)	1-71798-421-1	01	1	0507-0511
29	MIRROR ASM; UNDER MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71798-421-1	01	1	0512-
46	WASHER; LK,STAY MIR O/S UNDER & SIDE UNDER VIEW<TAF> MIR STAY O/S W/REMOTE<TBA> (A) ID=10	1-09985-345-0	01	1	0512-
46	WASHER; LK,STAY MIR O/S UNDER & SIDE UNDER VIEW<TAF> MIR STAY O/S W/REMOTE<TBA> (B) ID=16.7 OD=22.5 WAVE WASHER	9-61166-107-0	02	1	0512-
49	STAY; MIRROR SIDE MIR STAY O/S W/REMOTE<TBA> MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP>	1-71707-042-1	01	1	0512-
49	STAY; MIRROR SIDE EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-71798-490-3	01	1	0512-
49	STAY; MIRROR SIDE EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-71798-491-3	01	1	0512-
49	STAY; MIRROR SIDE MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP>	1-71707-044-1	01	1	0507-0511
49	STAY; MIRROR SIDE MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> EXC. MIR STAY O/S W/REMOTE<TBA>	1-71707-044-1	01	1	0512-
49	STAY; MIRROR SIDE MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP>	1-71707-085-2	01	1	0507-
54	BOLT; STAY MIR O/S UNDER & SIDE UNDER VIEW<TAF> MIR STAY O/S W/REMOTE<TBA>	1-09980-618-0	01	1	0512-
58	NUT; MIRROR STAY MIR O/S UNDER & SIDE UNDER VIEW<TAF> MIR STAY O/S W/REMOTE<TBA> (C) M12	1-09984-184-1	01	1	0512-
58	NUT; MIRROR STAY MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (A) M12	1-09984-178-1	01	1	0512-
58	NUT; MIRROR STAY (A) M12	1-09984-178-1	01	1	0507-0511
58	NUT; MIRROR STAY MIR O/S UNDER & SIDE UNDER VIEW<TAF> MIR STAY O/S W/REMOTE<TBA> (A) M12	1-09984-178-1	02	1	0512-
58	NUT; MIRROR STAY (B) M10	1-09985-342-0	01	1	0507-0511
58	NUT; MIRROR STAY MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (B) M10	1-09985-342-0	01	1	0512-
63	NUT; STAY HIGH ROOF<S2F> MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) M8	1-09984-187-0	05	1	0512-
63	NUT; STAY MIR O/S UNDER & SIDE UNDER VIEW<TAF> MIR STAY O/S W/REMOTE<TBA> (D) M8	1-71798-603-1	02	1	0512-
63	NUT; STAY MIR O/S UNDER & SIDE UNDER VIEW<TAF> MIR STAY O/S W/REMOTE<TBA> (C) M10 CAP NUT	1-71798-859-0	01	1	0512-
63	NUT; STAY (A) M8	1-09984-187-0	06	1	0507-0511
63	NUT; STAY MIR O/S UNDER & SIDE UNDER VIEW<TAF> LOW ROOF<6XQ> (A) M8	1-09984-187-0	06	1	0512-
63	NUT; STAY (B) M14	9-99110-414-0	01	1	0507-0511
63	NUT; STAY (B) M14	9-99110-414-0	01	1	0512-0512
63	NUT; STAY MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) M14	0-91110-514-0	01	1	0601-
66	WASHER; PL HIGH ROOF<S2F> MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	05	1	0512-
66	WASHER; PL MIR O/S UNDER & SIDE UNDER VIEW<TAF> MIR STAY O/S W/REMOTE<TBA> (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	0512-
66	WASHER; PL MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (C) ID=12.5	1-09985-334-0	01	1	0512-
66	WASHER; PL EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF> (F) ID=10.5 OD=26 T=2.6	1-09985-184-0	08	1	0512-
66	WASHER; PL (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	06	1	0507-0511
66	WASHER; PL MIR O/S UNDER & SIDE UNDER VIEW<TAF> LOW ROOF<6XQ> (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	06	1	0512-
66	WASHER; PL (B) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	0507-0511
66	WASHER; PL MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	0512-
66	WASHER; PL (C) ID=12.5	1-09985-334-0	01	1	0507-0511
66	WASHER; PL MIR O/S UNDER & SIDE UNDER VIEW<TAF> MIR STAY O/S W/REMOTE<TBA> (C) ID=12.5	1-09985-334-0	04	1	0512-
66	WASHER; PL (D) ID=18.5 T=3.2	1-79198-014-0	01	1	0507-0511
66	WASHER; PL MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (D) ID=18.5 T=3.2	1-79198-014-0	01	1	0512-
66	WASHER; PL (E) ID=10.2 T=3.2	8-94279-642-0	01	1	0507-0511
66	WASHER; PL MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (E) ID=10.2 T=3.2	8-94279-642-0	01	1	0512-
67	NUT; STAY MIR O/S UNDER & SIDE UNDER VIEW<TAF> MIR STAY O/S W/REMOTE<TBA> M12	1-09984-178-1	01	1	0512-
71	BRACKET; OUTSIDE MIRROR EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF> (C)	1-71798-484-1	02	1	0512-
71	BRACKET; OUTSIDE MIRROR EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF> (D)	1-71798-486-2	02	1	0512-
71	BRACKET; OUTSIDE MIRROR MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> (A)	1-71798-475-1	02	1	0507-
71	BRACKET; OUTSIDE MIRROR (B)	1-71797-809-2	01	1	0507-0511
71	BRACKET; OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71797-809-2	01	1	0512-
71	BRACKET; OUTSIDE MIRROR (B)	1-71798-309-4	01	1	0507-0511
71	BRACKET; OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71798-309-4	01	1	0512-
72	SHEET HIGH ROOF<S2F> MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71797-798-1	01	1	0512-
72	SHEET HIGH ROOF<S2F> MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71797-799-1	01	1	0512-
72	SHEET EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71798-487-3	02	1	0512-
72	SHEET EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF> (C)	1-71798-488-1	02	1	0512-
76	BOLT; STAY BRKT M8X40 W/LK&PL WASHER	0-50140-840-0	06	1	0507-0511
76	BOLT; STAY BRKT M8X40 W/LK&PL WASHER	0-50140-840-0	06	1	0512-0512
76	BOLT; STAY BRKT MIR O/S UNDER & SIDE UNDER VIEW<TAF> M8X40 W/LK&PL WASHER	0-50640-840-0	06	1	0601-
86	COVER; STAY,OUTSIDE MIRROR HIGH ROOF<S2F> (E)	1-73317-322-0	01	1	0512-
86	COVER; STAY,OUTSIDE MIRROR (C) BLACK	1-71737-649-1	01	1	0507-0511
86	COVER; STAY,OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (C) BLACK	1-71737-649-1	01	1	0512-
86	COVER; STAY,OUTSIDE MIRROR (D) BLACK	1-71737-652-1	01	1	0507-0511
86	COVER; STAY,OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (D) BLACK	1-71737-652-1	01	1	0512-
86	COVER; STAY,OUTSIDE MIRROR (A)	1-71798-732-0	01	1	0507-0511
86	COVER; STAY,OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71798-732-0	01	1	0512-
86	COVER; STAY,OUTSIDE MIRROR (B)	1-71798-733-0	01	1	0507-0511
86	COVER; STAY,OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71798-733-0	01	1	0512-
90	BRACKET; MIRROR STAY	1-71798-828-1	01	1	0507-0809
90	BRACKET; MIRROR STAY	1-71707-237-0	01	1	0810-
90	BRACKET; MIRROR STAY	1-71798-829-1	01	1	0507-
118	JOINT ASM; BALL MIR O/S UNDER & SIDE UNDER VIEW<TAF> MIR STAY O/S W/REMOTE<TBA> (C) RH THREAD	1-71798-819-2	01	1	0512-
118	JOINT ASM; BALL MIR O/S UNDER & SIDE UNDER VIEW<TAF> MIR STAY O/S W/REMOTE<TBA> (B) LH THREAD	1-71798-820-2	01	1	0512-
118	JOINT ASM; BALL (A)	1-71797-805-1	01	1	0507-0511
118	JOINT ASM; BALL MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71797-805-1	01	1	0512-
151	WASHER; PL,MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> MIR STAY O/S W/REMOTE<TBA> (A) ID=10.5 OD=26 T=2.6	1-09985-204-0	01	1	0512-
151	WASHER; PL,MIRROR EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF> (C) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	04	1	0512-
151	WASHER; PL,MIRROR MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> (B)	1-71797-913-0	02	1	0507-
164	STAY; ROOF HIGH ROOF<S2F> MIR O/S UNDER & SIDE UNDER VIEW<TAF> (C)	1-71798-300-5	01	1	0512-
164	STAY; ROOF MIR O/S UNDER & SIDE UNDER VIEW<TAF> MIR STAY O/S W/REMOTE<TBA> (A)	1-71798-602-1	01	1	0512-
164	STAY; ROOF (D)	1-71707-090-0	01	1	0507-0511
164	STAY; ROOF MIR O/S UNDER & SIDE UNDER VIEW<TAF> LOW ROOF<6XQ> (D)	1-71707-090-0	01	1	0512-
164	STAY; ROOF (B)	1-71798-299-4	01	1	0507-0511
164	STAY; ROOF MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71798-299-4	01	1	0512-
165	LINK; POWER MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> MIR STAY O/S W/REMOTE<TBA> (B)	1-71798-600-1	01	1	0512-
165	LINK; POWER MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> MIR STAY O/S W/REMOTE<TBA> (A)	1-71798-782-2	01	1	0512-
166	BUSHING; STAY MIR O/S UNDER & SIDE UNDER VIEW<TAF> MIR STAY O/S W/REMOTE<TBA>	1-09983-179-0	02	1	0512-
167	RUBBER; STOPPER MIR O/S UNDER & SIDE UNDER VIEW<TAF> MIR STAY O/S W/REMOTE<TBA>	1-71798-308-0	01	1	0512-
168	POWER UNIT; MIRROR STAY MIR O/S UNDER & SIDE UNDER VIEW<TAF> MIR STAY O/S W/REMOTE<TBA>	1-86855-031-0	01	1	0512-1311
168	POWER UNIT; MIRROR STAY MIR O/S UNDER & SIDE UNDER VIEW<TAF> MIR STAY O/S W/REMOTE<TBA>	8-98251-163-0	01	1	1312-
169	WASHER; PL,POWER UNIT MIR O/S UNDER & SIDE UNDER VIEW<TAF> MIR STAY O/S W/REMOTE<TBA> ID=26.2 OD=44 T=2	1-86855-011-1	01	1	0512-
170	CAP; POWER UNIT MIR O/S UNDER & SIDE UNDER VIEW<TAF> MIR STAY O/S W/REMOTE<TBA> (A)	1-86855-012-0	01	1	0512-
170	CAP; POWER UNIT MIR O/S UNDER & SIDE UNDER VIEW<TAF> MIR STAY O/S W/REMOTE<TBA> (B)	1-86855-014-1	01	1	0512-
171	NUT; POWER UNIT MIR O/S UNDER & SIDE UNDER VIEW<TAF> MIR STAY O/S W/REMOTE<TBA> M26	1-86855-013-1	01	1	0512-
172	SEAL; RUBBER,POWER UNIT MIR O/S UNDER & SIDE UNDER VIEW<TAF> MIR STAY O/S W/REMOTE<TBA> (A)	1-79928-003-1	01	1	0512-
172	SEAL; RUBBER,POWER UNIT MIR O/S UNDER & SIDE UNDER VIEW<TAF> MIR STAY O/S W/REMOTE<TBA> (B)	1-86855-015-0	01	1	0512-
173	BOLT; POWER UNIT MIR O/S UNDER & SIDE UNDER VIEW<TAF> MIR STAY O/S W/REMOTE<TBA> M6X16 W/LK&PL WASHER	1-09980-574-0	04	1	0512-
174	HARNESS; MIRROR MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> (A)	1-82625-276-0	02	1	0507-
174	HARNESS; MIRROR MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> (B)	1-82626-088-2	01	1	0507-
174	HARNESS; MIRROR MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> (B)	1-82626-092-5	01	1	0507-
175	JOINT MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> (A)	1-86815-015-0	02	1	0507-
175	JOINT MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> (B)	1-86815-031-0	02	1	0507-
177	CLIP; HARNESS MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> L=140	5-09707-031-1	02	1	0507-
181	SEAL; BRKT 25X25	8-94272-533-0	02	1	0507-
190	SCREW; COVER HIGH ROOF<S2F> (B) M5X16 W/PL WASHER TAPPING	8-94279-123-0	03	1	0512-
190	SCREW; COVER (A) M6X16 W/LK&PL WASHER	8-94279-402-0	01	1	0507-0511
190	SCREW; COVER MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) M6X16 W/LK&PL WASHER	8-94279-402-0	01	1	0512-
200	STOPPER; STAY MIR O/S UNDER & SIDE UNDER VIEW<TAF> MIR STAY O/S W/REMOTE<TBA>	1-71798-597-0	01	1	0512-
201	ROD; MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> MIR STAY O/S W/REMOTE<TBA>	1-71798-821-0	01	1	0512-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
