◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYJ ▶ 11006 - CYJ NEW ZEALAND ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-47 - MUD GUARD AND INSULATOR ▶
6-47 — MUD GUARD AND INSULATOR (#31209) — 204 parça

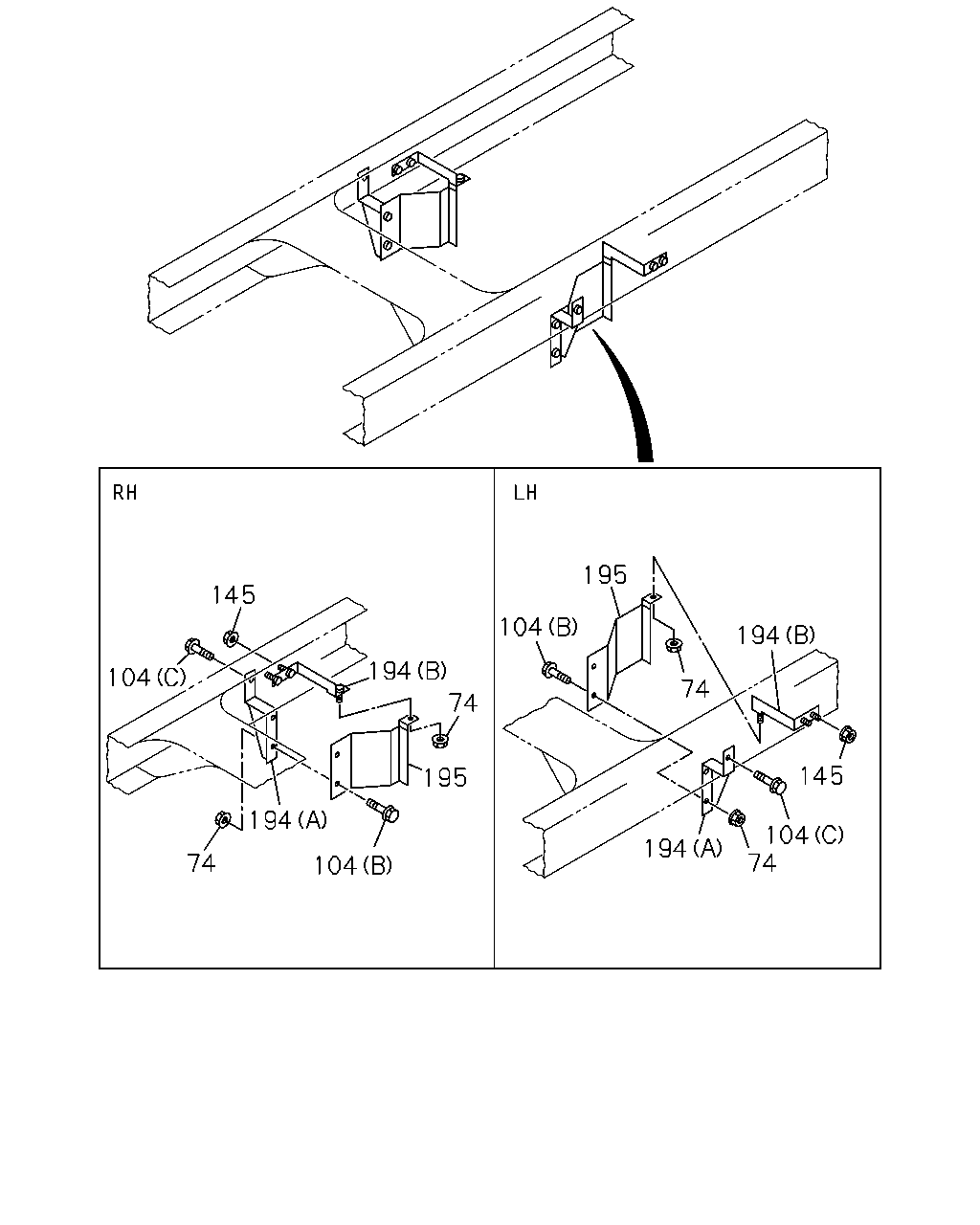

çizim 88654
195 145 104 194 194 104 74 74 145 195 194 104 74 194 74 104
BalonParca AdiParca NoAdetTipApplied Date
74 NUT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8 FLANGE 		0-91150-108-0 06 1 0507-0602
74 NUT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8 FLANGE 		0-91180-108-0 06 1 0603-
74 NUT
M8 FLANGE 		0-91150-108-0 08 1 0507-0602
74 NUT
M8 FLANGE 		0-91180-108-0 08 1 0603-
104 BOLT; BRKT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) M8X25 FLANGE 		0-28650-825-0 02 1 0507-
104 BOLT; BRKT
(D) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0702-0808
104 BOLT; BRKT
(D) M6X16 W/LK&PL WASHER 		0-50640-616-0 01 1 0809-
104 BOLT; BRKT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M8X20 FLANGE 		0-28680-820-0 04 1 0507-0512
104 BOLT; BRKT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M8X20 FLANGE 		0-28650-820-0 04 1 0601-
104 BOLT; BRKT
(A) M10X25 FLANGE 		0-28681-025-0 08 1 0507-0512
104 BOLT; BRKT
(A) M10X25 FLANGE 		0-28651-025-0 08 1 0601-
145 NUT; BRKT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8 FLANGE 		0-91180-108-0 04 1 0507-
194 BRACKET; HEAT PROTECTOR
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) 		1-22159-374-0 01 1 0507-
194 BRACKET; HEAT PROTECTOR
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) 		1-22159-375-0 01 1 0507-
194 BRACKET; HEAT PROTECTOR
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-22159-373-0 02 1 0507-
195 PROTECTOR; HEAT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-22119-543-1 01 1 0507-
195 PROTECTOR; HEAT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-22119-545-0 01 1 0507-

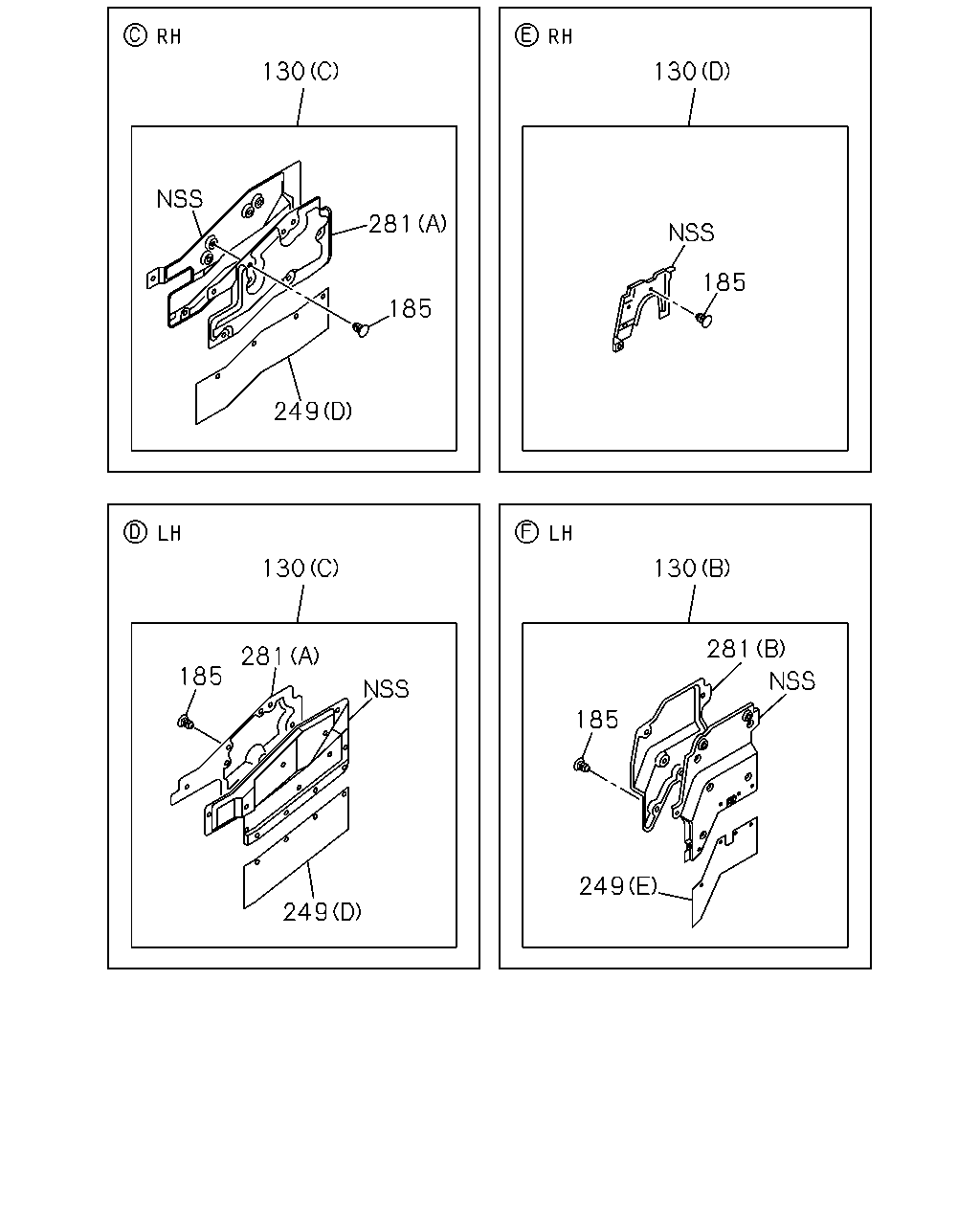

çizim 88890
130 130 281 185 185 249 130 130 281 281 185 185 249 249
BalonParca AdiParca NoAdetTipApplied Date
130 PANEL; SHUTTER NOISE
(C) 		1-79937-959-3 01 1 0507-
130 PANEL; SHUTTER NOISE
(C) 		1-79937-960-5 01 1 0507-
130 PANEL; SHUTTER NOISE
(B) 		1-79937-969-2 01 1 0507-0601
130 PANEL; SHUTTER NOISE
(B) 		1-79947-034-1 01 1 0602-
130 PANEL; SHUTTER NOISE
(A) 		1-53193-329-1 01 1 0507-
130 PANEL; SHUTTER NOISE
(A) 		1-53194-386-1 01 1 0507-
130 PANEL; SHUTTER NOISE
(D) 		1-79937-919-2 01 1 0507-0601
130 PANEL; SHUTTER NOISE
(D) 		1-79937-890-2 01 1 0602-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 09 1 0507-0601
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 09 1 0602-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 05 1 0507-0601
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 20 1 0507-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 06 1 0507-0601
249 RUBBER; SHUTTER
(D) 		1-79937-965-1 01 1 0507-
249 RUBBER; SHUTTER
(D) 		1-79937-966-2 01 1 0507-
249 RUBBER; SHUTTER
(E) 		1-79937-967-1 01 1 0507-0601
249 RUBBER; SHUTTER
(E) 		1-79947-053-1 01 1 0602-
249 RUBBER; SHUTTER
(B) 		1-79937-979-1 01 1 0507-
249 RUBBER; SHUTTER
(C) 		1-79937-981-1 01 1 0507-
249 RUBBER; SHUTTER
(A) 		1-79937-924-2 01 1 0507-
281 INSULATOR; NOISE
(A) 		1-71907-170-1 01 1 0507-
281 INSULATOR; NOISE
(A) 		1-71907-171-2 01 1 0507-
281 INSULATOR; NOISE
(B) 		1-71907-455-0 01 1 0507-0601
281 INSULATOR; NOISE
(C) 		1-71907-671-1 01 1 0507-0808
281 INSULATOR; NOISE
(C) 		8-98097-796-1 01 1 0809-0912
281 INSULATOR; NOISE
(C) 		8-98121-192-0 01 1 1001-1010
281 INSULATOR; NOISE
(C) 		8-98178-867-0 01 1 1011-
281 INSULATOR; NOISE
(D) 		1-73237-894-3 01 1 0507-

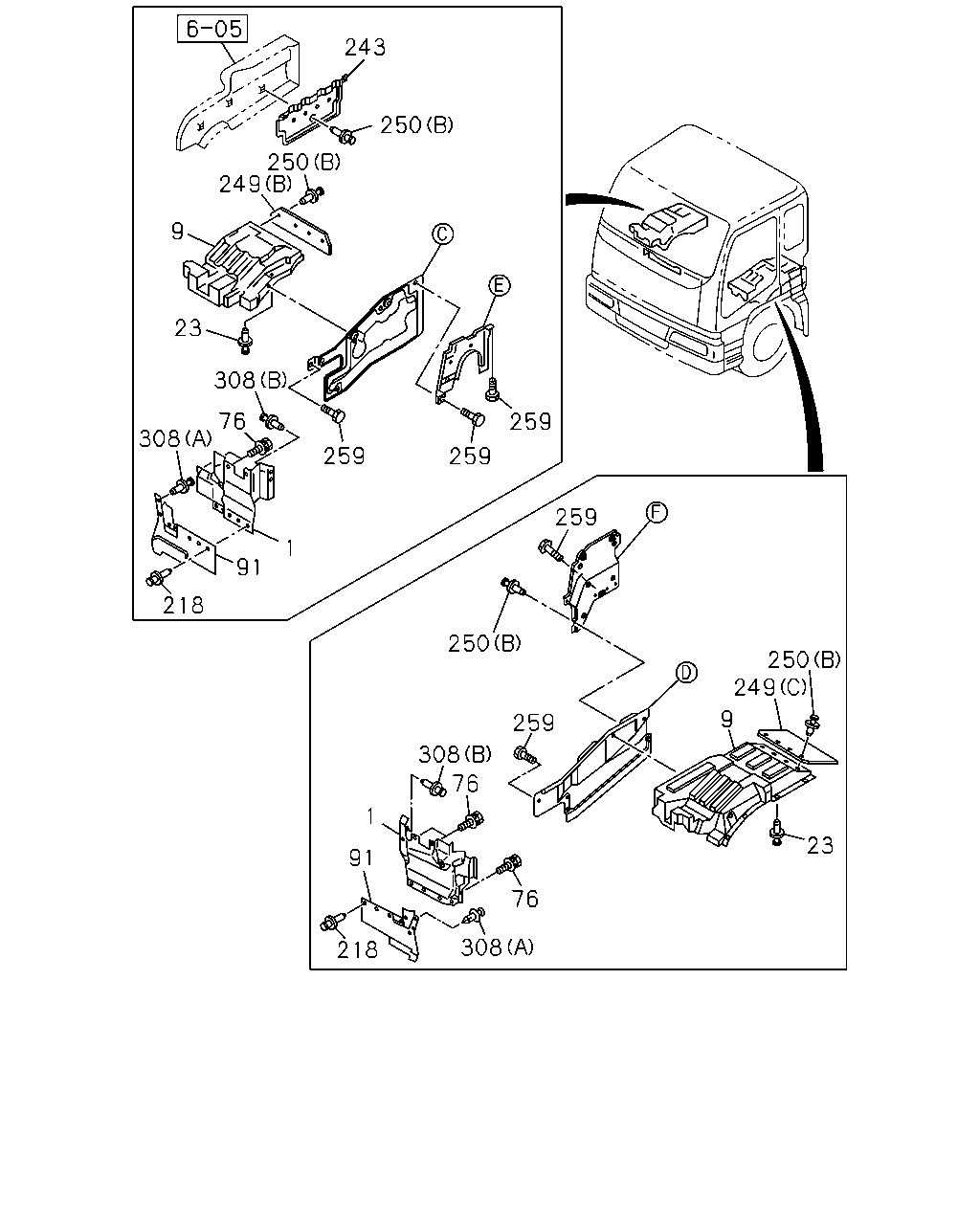

çizim 88891
243 250 250 249 9 23 308 76 259 308 259 259 259 1 91 218 250 250 249 9 259 308 76 1 23 91 76 308 218
BalonParca AdiParca NoAdetTipApplied Date
1 GUARD; MUD,FRT 1-79937-894-6 01 1 0507-
1 GUARD; MUD,FRT 1-79937-895-5 01 1 0507-
9 GUARD; SPLASH,WHEEL HOUSE 1-79937-907-4 01 1 0507-
9 GUARD; SPLASH,WHEEL HOUSE 1-79937-908-4 01 1 0507-
23 FASTENER; MUD COVER
D8X13.5 		1-09987-248-1 21 1 0507-
76 BOLT; MUD GUARD
M8X25 W/LK&PL WASHER 		1-09030-074-0 08 1 0507-0805
76 BOLT; MUD GUARD
M8X25 W/LK&PL WASHER 		1-09030-093-0 08 1 0806-
76 BOLT; MUD GUARD
M6X20 W/LK&PL WASHER 		8-94279-203-0 04 1 0507-
76 BOLT; MUD GUARD
M8X30 W/LK&PL WASHER 		8-94279-210-0 06 1 0507-
91 COVER; MUD,FRT 1-79931-203-1 01 1 0507-
91 COVER; MUD,FRT 1-79931-204-1 01 1 0507-
218 FASTENER; RUBBER
ID=6X6 OD=8 		1-09987-194-0 08 1 0507-0511
218 FASTENER; RUBBER
D8X13.5 		1-09987-248-1 08 1 0512-
243 PROTECTOR; NOISE SHUT PANEL 1-79937-906-2 01 1 0507-
249 RUBBER; SHUTTER
(D) 		1-79937-965-1 01 1 0507-
249 RUBBER; SHUTTER
(D) 		1-79937-966-2 01 1 0507-
249 RUBBER; SHUTTER
(E) 		1-79937-967-1 01 1 0507-0601
249 RUBBER; SHUTTER
(E) 		1-79947-053-1 01 1 0602-
249 RUBBER; SHUTTER
(B) 		1-79937-979-1 01 1 0507-
249 RUBBER; SHUTTER
(C) 		1-79937-981-1 01 1 0507-
249 RUBBER; SHUTTER
(A) 		1-79937-924-2 01 1 0507-
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 04 1 0507-
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 06 1 0507-
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 06 1 0507-
259 BOLT; NOISE PANEL
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 12 1 0507-0904
259 BOLT; NOISE PANEL
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 12 1 0905-
308 FASTENER; MUD GUARD
(A) 		1-09470-007-0 08 1 0507-
308 FASTENER; MUD GUARD
(B) ID=6X6 OD=8 		1-09987-194-0 02 1 0507-

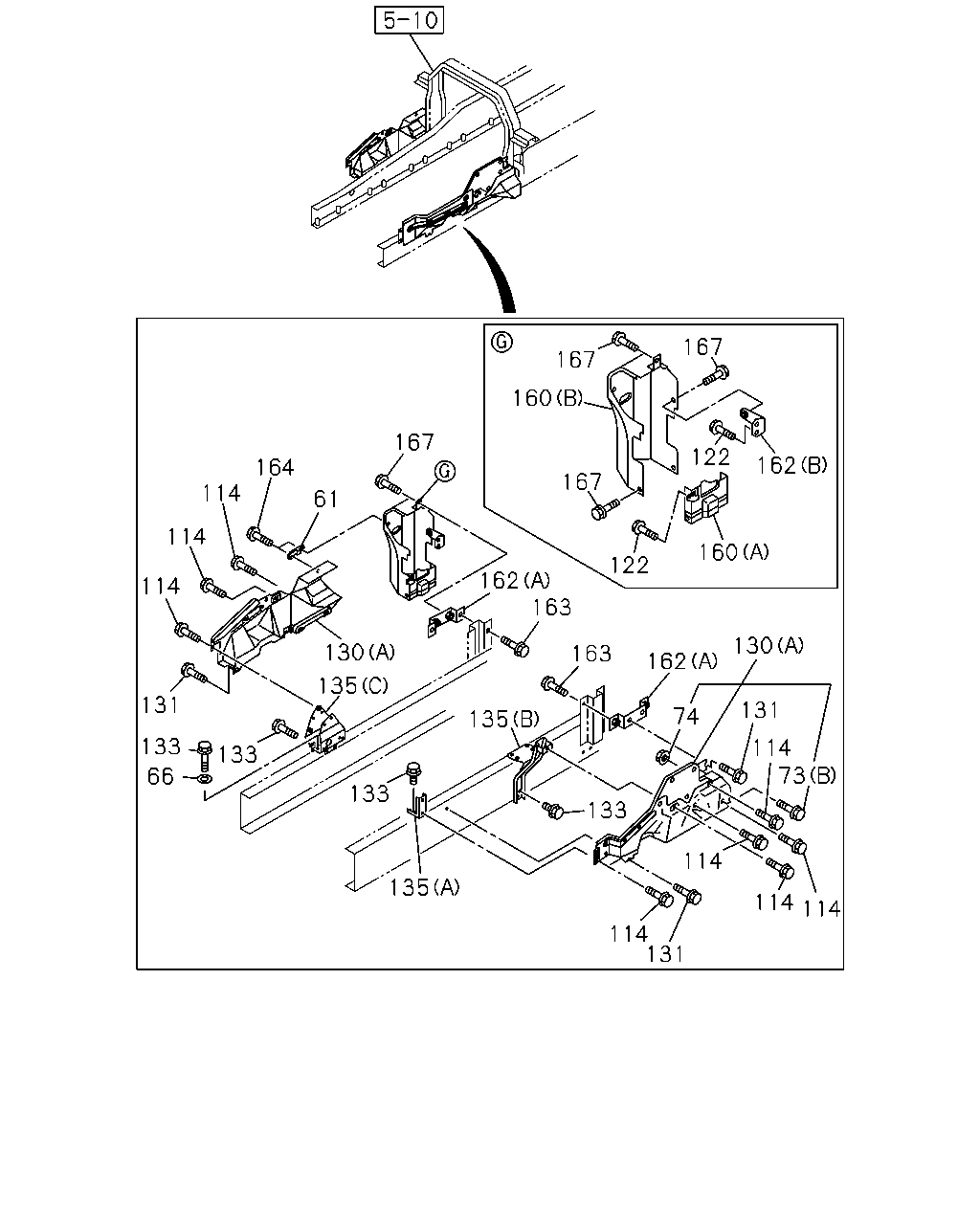

çizim 104724
167 167 160 167 122 162 164 167 114 61 114 160 122 162 163 114 130 130 163 162 135 131 131 74 135 133 114 73 133 66 133 133 114 135 114 114 114 131
BalonParca AdiParca NoAdetTipApplied Date
61 BRACKET; COVER 1-53441-536-1 01 1 0507-0803
61 BRACKET; COVER 8-98039-501-1 01 1 0804-
66 WASHER; LK
ID=14.2 		9-09150-614-0 02 1 0510-0603
66 WASHER; LK
ID=14.2 		0-91510-614-0 02 1 0604-
73 BOLT; MUD COVER BRKT
(B) M8X16 FLANGE 		0-28280-816-0 05 1 0507-0512
73 BOLT; MUD COVER BRKT
(B) M8X16 FLANGE 		0-28250-816-0 05 1 0601-
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-074-0 06 1 0507-0805
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 06 1 0806-
74 NUT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8 FLANGE 		0-91150-108-0 06 1 0507-0602
74 NUT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8 FLANGE 		0-91180-108-0 06 1 0603-
74 NUT
M8 FLANGE 		0-91150-108-0 08 1 0507-0602
74 NUT
M8 FLANGE 		0-91180-108-0 08 1 0603-
114 BOLT
M8X20 FLANGE 		0-28680-820-0 02 1 0507-0512
114 BOLT
M8X20 FLANGE 		0-28650-820-0 02 1 0601-
114 BOLT
M8X22 W/LK&PL WASHER 		1-09030-042-0 09 1 0507-
122 BOLT
M8X30 FLANGE 		0-28680-830-0 04 1 0507-0512
122 BOLT
M8X30 FLANGE 		0-28650-830-0 04 1 0601-
130 PANEL; SHUTTER NOISE
(C) 		1-79937-959-3 01 1 0507-
130 PANEL; SHUTTER NOISE
(C) 		1-79937-960-5 01 1 0507-
130 PANEL; SHUTTER NOISE
(B) 		1-79937-969-2 01 1 0507-0601
130 PANEL; SHUTTER NOISE
(B) 		1-79947-034-1 01 1 0602-
130 PANEL; SHUTTER NOISE
(A) 		1-53193-329-1 01 1 0507-
130 PANEL; SHUTTER NOISE
(A) 		1-53194-386-1 01 1 0507-
130 PANEL; SHUTTER NOISE
(D) 		1-79937-919-2 01 1 0507-0601
130 PANEL; SHUTTER NOISE
(D) 		1-79937-890-2 01 1 0602-
131 BOLT; PANEL
6WG1 TC-C(72L),6WG1 TC-S(97L) M8X16 FLANGE 		0-28050-816-0 01 1 0809-
131 BOLT; PANEL
M8X25 W/LK&PL WASHER 		1-09030-074-0 07 1 0507-0805
131 BOLT; PANEL
M8X25 W/LK&PL WASHER 		1-09030-093-0 07 1 0806-
133 BOLT; FRAME
M14X45 		0-20801-445-0 02 1 0510-
133 BOLT; FRAME
M10X35 FLANGE 		0-28681-035-0 02 1 0510-0512
133 BOLT; FRAME
M10X35 FLANGE 		0-28651-035-0 02 1 0601-
133 BOLT; FRAME
M8X25 FLANGE 		0-28680-825-0 04 1 0507-0512
133 BOLT; FRAME
M8X25 FLANGE 		0-28650-825-0 04 1 0601-
135 BRACKET; SIDE PANEL
6WG1 TC-C(72L),6WG1 TC-S(97L) (B) 		1-53441-508-1 01 1 0512-
135 BRACKET; SIDE PANEL
(C) 		1-33657-583-1 01 1 0510-
135 BRACKET; SIDE PANEL
(A) 		1-53441-507-0 01 1 0507-
135 BRACKET; SIDE PANEL
(B) 		1-53441-598-1 01 1 0507-0511
135 BRACKET; SIDE PANEL
6WF1 TC-C(1B8) (B) 		1-53441-598-1 01 1 0512-
160 COVER ASM; EXH
(A) 		1-79931-418-1 01 1 0507-
160 COVER ASM; EXH
(B) 		1-79931-443-0 01 1 0507-1207
160 COVER ASM; EXH
(B) 		1-79931-441-0 01 1 1208-
162 BRACKET
(B) 		1-53441-552-1 01 1 0507-
162 BRACKET
(A) 		1-53441-520-0 02 1 0507-
162 BRACKET
(C) 		1-71907-521-0 01 1 0507-0701
162 BRACKET
(D) 		1-71907-815-0 01 1 0702-
163 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 04 1 0507-0512
163 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 04 1 0601-
164 BOLT; FLEX COVER
M8X20 FLANGE 		0-28680-820-0 02 1 0507-0512
164 BOLT; FLEX COVER
M8X20 FLANGE 		0-28650-820-0 02 1 0601-
167 BOLT; EXH COVER
M8X20 FLANGE 		0-28680-820-0 04 1 0507-0512
167 BOLT; EXH COVER
M8X20 FLANGE 		0-28650-820-0 04 1 0601-

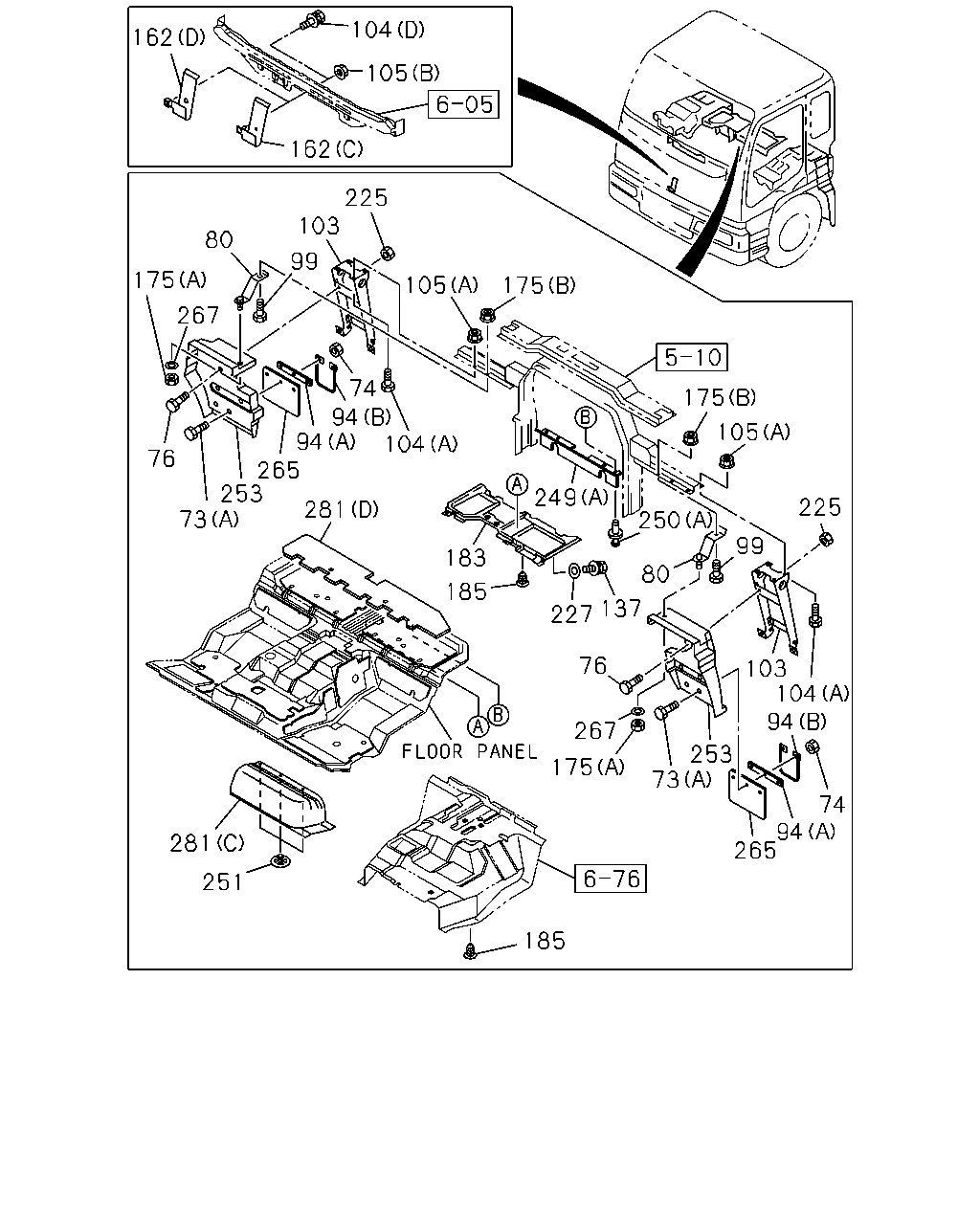

çizim 104726
104 162 105 162 225 103 80 99 175 105 175 267 74 94 94 104 265 253 73 175 105 76 249 225 281 250 99 183 80 185 137 227 103 104 94 76 267 253 73 175 74 94 265 281 251 185
BalonParca AdiParca NoAdetTipApplied Date
73 BOLT; MUD COVER BRKT
(B) M8X16 FLANGE 		0-28280-816-0 05 1 0507-0512
73 BOLT; MUD COVER BRKT
(B) M8X16 FLANGE 		0-28250-816-0 05 1 0601-
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-074-0 06 1 0507-0805
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 06 1 0806-
74 NUT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8 FLANGE 		0-91150-108-0 06 1 0507-0602
74 NUT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8 FLANGE 		0-91180-108-0 06 1 0603-
74 NUT
M8 FLANGE 		0-91150-108-0 08 1 0507-0602
74 NUT
M8 FLANGE 		0-91180-108-0 08 1 0603-
76 BOLT; MUD GUARD
M8X25 W/LK&PL WASHER 		1-09030-074-0 08 1 0507-0805
76 BOLT; MUD GUARD
M8X25 W/LK&PL WASHER 		1-09030-093-0 08 1 0806-
76 BOLT; MUD GUARD
M6X20 W/LK&PL WASHER 		8-94279-203-0 04 1 0507-
76 BOLT; MUD GUARD
M8X30 W/LK&PL WASHER 		8-94279-210-0 06 1 0507-
80 BRACKET; MUD GUARD STAY 1-79931-159-1 02 1 0507-
94 RETAINER; FLAP RUBBER
(A) 		1-79931-091-2 02 1 0507-
94 RETAINER; FLAP RUBBER
(B) 		1-79931-194-0 02 1 0507-
99 BOLT; STAY TO MUD GUARD
M10X25 FLANGE 		0-28681-025-0 02 1 0507-0512
99 BOLT; STAY TO MUD GUARD
M10X25 FLANGE 		0-28651-025-0 02 1 0601-
103 BRACKET ASM; RR MUD FLAP
6WG1 TC-C(72L),6WG1 TC-S(97L) 		1-79931-444-0 02 1 0512-1502
103 BRACKET ASM; RR MUD FLAP
6WG1 TC-C(72L),6WG1 TC-S(97L) 		8-98306-892-0 02 1 1503-
103 BRACKET ASM; RR MUD FLAP 1-79931-307-1 02 1 0507-0511
103 BRACKET ASM; RR MUD FLAP
6WF1 TC-C(1B8) 		1-79931-307-1 02 1 0512-1502
103 BRACKET ASM; RR MUD FLAP
6WF1 TC-C(1B8) 		8-98306-889-0 02 1 1503-
104 BOLT; BRKT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) M8X25 FLANGE 		0-28650-825-0 02 1 0507-
104 BOLT; BRKT
(D) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0702-0808
104 BOLT; BRKT
(D) M6X16 W/LK&PL WASHER 		0-50640-616-0 01 1 0809-
104 BOLT; BRKT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M8X20 FLANGE 		0-28680-820-0 04 1 0507-0512
104 BOLT; BRKT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M8X20 FLANGE 		0-28650-820-0 04 1 0601-
104 BOLT; BRKT
(A) M10X25 FLANGE 		0-28681-025-0 08 1 0507-0512
104 BOLT; BRKT
(A) M10X25 FLANGE 		0-28651-025-0 08 1 0601-
105 NUT; BRKT
6WG1 TC-C(72L),6WG1 TC-S(97L) (A) M10 FLANGE 		0-91150-210-0 07 1 0512-0602
105 NUT; BRKT
6WG1 TC-C(72L),6WG1 TC-S(97L) (A) M10 FLANGE 		0-91180-210-0 07 1 0603-
105 NUT; BRKT
(A) M10 FLANGE 		0-91150-210-0 08 1 0507-0511
105 NUT; BRKT
6WF1 TC-C(1B8) (A) M10 FLANGE 		0-91150-210-0 08 1 0512-0602
105 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 08 1 0603-
105 NUT; BRKT
(B) M6 CAP NUT FLANGE 		1-65471-734-0 01 1 0507-0701
137 BOLT
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0507-0904
137 BOLT
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 0905-
162 BRACKET
(B) 		1-53441-552-1 01 1 0507-
162 BRACKET
(A) 		1-53441-520-0 02 1 0507-
162 BRACKET
(C) 		1-71907-521-0 01 1 0507-0701
162 BRACKET
(D) 		1-71907-815-0 01 1 0702-
175 NUT; STAY FIX
(A) M8 FLANGE 		0-91150-108-0 02 1 0507-0602
175 NUT; STAY FIX
(A) M8 FLANGE 		0-91180-108-0 02 1 0603-
175 NUT; STAY FIX
(B) M10 FLANGE 		0-91150-210-0 02 1 0507-0602
175 NUT; STAY FIX
(B) M10 FLANGE 		0-91180-210-0 02 1 0603-
183 INSULATOR; HEAT,BED PAN 1-71907-526-4 01 1 0507-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 09 1 0507-0601
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 09 1 0602-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 05 1 0507-0601
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 20 1 0507-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 06 1 0507-0601
225 NUT; MUD GUARD
M8 FLANGE 		0-91150-108-0 08 1 0507-0602
225 NUT; MUD GUARD
M8 FLANGE 		0-91180-108-0 08 1 0603-
227 SEAL; MUD GUARD
T=2.0 		8-94279-641-0 01 1 0507-
249 RUBBER; SHUTTER
(D) 		1-79937-965-1 01 1 0507-
249 RUBBER; SHUTTER
(D) 		1-79937-966-2 01 1 0507-
249 RUBBER; SHUTTER
(E) 		1-79937-967-1 01 1 0507-0601
249 RUBBER; SHUTTER
(E) 		1-79947-053-1 01 1 0602-
249 RUBBER; SHUTTER
(B) 		1-79937-979-1 01 1 0507-
249 RUBBER; SHUTTER
(C) 		1-79937-981-1 01 1 0507-
249 RUBBER; SHUTTER
(A) 		1-79937-924-2 01 1 0507-
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 04 1 0507-
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 06 1 0507-
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 06 1 0507-
251 CLIP; NOISE INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 04 1 0507-
253 GUARD; MUD 1-79931-064-7 01 1 0507-0901
253 GUARD; MUD 8-98134-759-0 01 1 0902-
253 GUARD; MUD 1-79931-066-7 01 1 0507-0901
253 GUARD; MUD 8-98134-766-1 01 1 0902-
265 RUBBER; FLAP,REAR 1-79930-978-0 02 1 0507-
267 WASHER; PL,STAY
ID=8.4 OD=26 		9-09164-808-0 02 1 0507-0605
267 WASHER; PL,STAY
ID=8.4 OD=26 		0-91614-808-0 02 1 0606-
281 INSULATOR; NOISE
(A) 		1-71907-170-1 01 1 0507-
281 INSULATOR; NOISE
(A) 		1-71907-171-2 01 1 0507-
281 INSULATOR; NOISE
(B) 		1-71907-455-0 01 1 0507-0601
281 INSULATOR; NOISE
(C) 		1-71907-671-1 01 1 0507-0808
281 INSULATOR; NOISE
(C) 		8-98097-796-1 01 1 0809-0912
281 INSULATOR; NOISE
(C) 		8-98121-192-0 01 1 1001-1010
281 INSULATOR; NOISE
(C) 		8-98178-867-0 01 1 1011-
281 INSULATOR; NOISE
(D) 		1-73237-894-3 01 1 0507-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
