6-35 — FRONT DOOR TRIM (#31206) — 133 parça

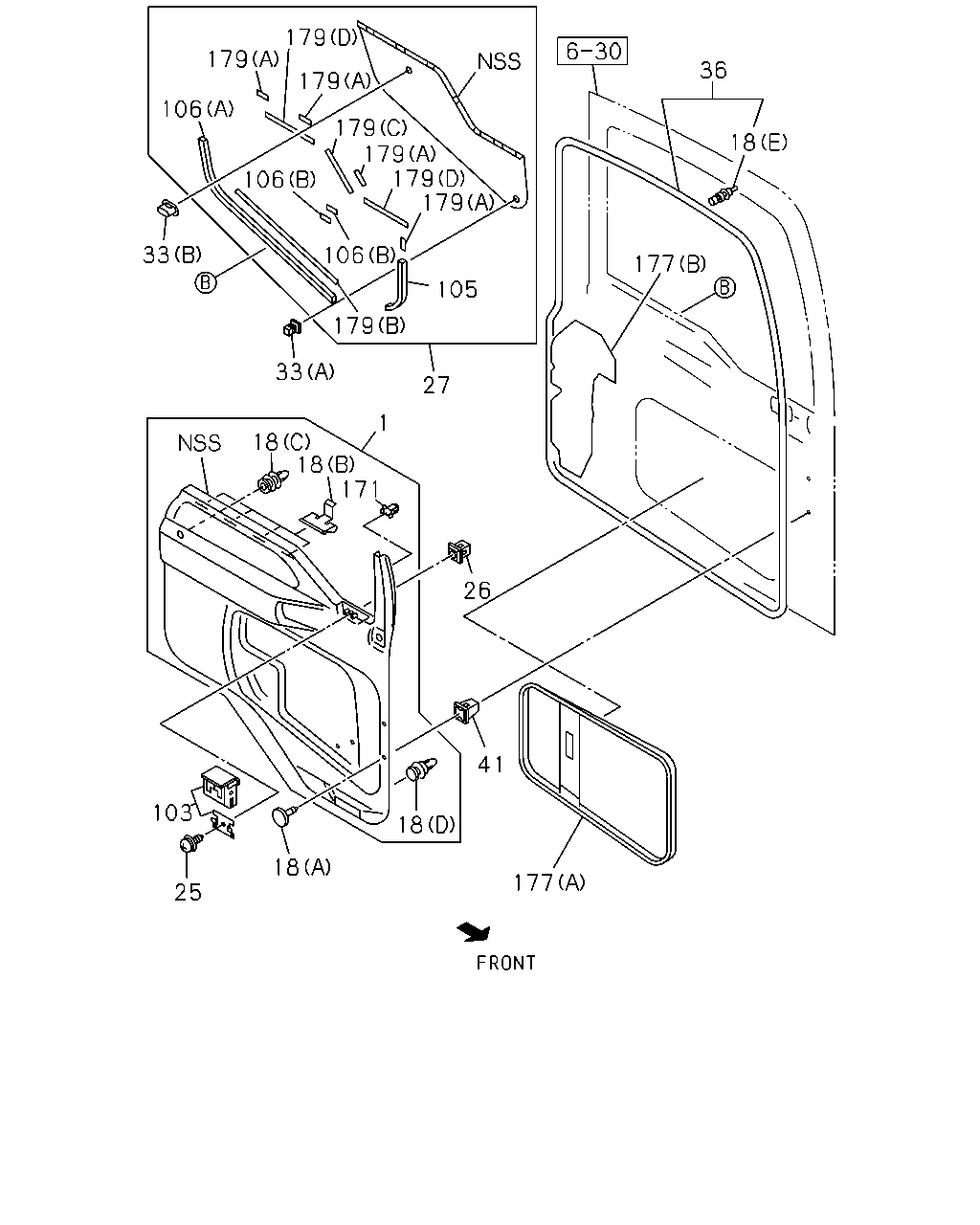

179 179 36 179 106 179 179 179 179 18 106 33 106 177 105 179 33 27 1 18 18 171 26 41 103 18 18 177 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PAD; TRIM,FRT DOOR DOOR WITH UNDER VIEW WINDOW<YD8>	1-73337-511-1	01	1	0512-
1	PAD; TRIM,FRT DOOR 6WG1 TC-C(72L),6WG1 TC-S(97L)	1-73337-506-1	01	1	0512-
1	PAD; TRIM,FRT DOOR	1-73337-509-0	01	1	0507-0511
1	PAD; TRIM,FRT DOOR 6WF1 TC-C(1B8)	1-73337-509-0	01	1	0512-0702
1	PAD; TRIM,FRT DOOR	1-73337-513-1	01	1	0703-
1	PAD; TRIM,FRT DOOR	1-73338-539-0	01	1	0507-0511
1	PAD; TRIM,FRT DOOR EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-73338-539-0	01	1	0512-0702
1	PAD; TRIM,FRT DOOR EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-73337-516-1	01	1	0703-
18	CLIP; DOOR PAD 6WG1 TC-C(72L),6WG1 TC-S(97L) (B)	1-09987-262-0	04	1	0512-
18	CLIP; DOOR PAD EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (A) D4.2X19.9 GRAY	1-09987-272-0	04	1	0512-
18	CLIP; DOOR PAD (E) NATURAL	1-09987-257-0	23	1	0507-
18	CLIP; DOOR PAD (E) NATURAL	1-09987-257-0	23	1	0507-
18	CLIP; DOOR PAD (A) D4.2X19.9 GRAY	1-09987-272-0	04	1	0507-0511
18	CLIP; DOOR PAD DOOR WITH UNDER VIEW WINDOW<YD8> (A) D4.2X19.9 GRAY	1-09987-272-0	02	1	0512-
18	CLIP; DOOR PAD (B)	1-09987-262-0	05	1	0507-0511
18	CLIP; DOOR PAD (B)	1-09987-262-0	05	1	0507-0511
18	CLIP; DOOR PAD 6WF1 TC-C(1B8) (B)	1-09987-262-0	05	1	0512-
18	CLIP; DOOR PAD (B)	1-09987-262-0	05	1	0512-
18	CLIP; DOOR PAD (C) OD=7.9 BLACK	8-94279-974-1	01	1	0507-
18	CLIP; DOOR PAD (C) OD=7.9 BLACK	8-94279-974-1	01	1	0507-
18	CLIP; DOOR PAD (D) OD=8.5 GRAY	8-97893-482-0	05	1	0507-
18	CLIP; DOOR PAD (D) OD=8.5 GRAY	8-97893-482-0	05	1	0507-
25	SCREW; ASH TRAY,DOOR M5X16 W/PL WASHER TAPPING	8-94279-123-0	02	1	0507-
26	GROMMET; SCREW,ASH TRAY DOOR D=7.8X7.8 L=18 NATURAL	8-94279-043-0	02	1	0507-
27	PANEL; ORNAMENT,DOOR EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-76217-149-3	01	1	0512-1210
27	PANEL; ORNAMENT,DOOR EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF>	8-98229-330-0	01	1	1211-
27	PANEL; ORNAMENT,DOOR EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-76217-157-3	01	1	0512-
27	PANEL; ORNAMENT,DOOR	1-76218-099-7	01	1	0507-0511
27	PANEL; ORNAMENT,DOOR MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-76218-099-7	01	1	0512-
27	PANEL; ORNAMENT,DOOR	1-76218-125-7	01	1	0507-0511
27	PANEL; ORNAMENT,DOOR MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-76218-125-7	01	1	0512-1210
27	PANEL; ORNAMENT,DOOR MIR O/S UNDER & SIDE UNDER VIEW<TAF>	8-98229-329-0	01	1	1211-
33	GROMMET; DOOR ORNAMENT EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (A)	1-09983-149-1	02	1	0512-0802
33	GROMMET; DOOR ORNAMENT EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (A) OD=7.9X7.9 ID=4.2X4.2	1-09983-151-1	02	1	0803-
33	GROMMET; DOOR ORNAMENT EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (B)	1-74998-111-0	02	1	0512-
33	GROMMET; DOOR ORNAMENT (A)	1-09983-149-1	02	1	0507-0511
33	GROMMET; DOOR ORNAMENT DOOR WITH UNDER VIEW WINDOW<YD8> (A)	1-09983-149-1	01	1	0512-0802
33	GROMMET; DOOR ORNAMENT DOOR WITH UNDER VIEW WINDOW<YD8> (A) OD=7.9X7.9 ID=4.2X4.2	1-09983-151-1	01	1	0803-
33	GROMMET; DOOR ORNAMENT (B)	1-74998-111-0	02	1	0507-0511
33	GROMMET; DOOR ORNAMENT DOOR WITH UNDER VIEW WINDOW<YD8> (B)	1-74998-111-0	01	1	0512-
36	SEAL; DOOR,MAIN,CAB SIDE	1-76718-176-9	01	1	0507-1010
36	SEAL; DOOR,MAIN,CAB SIDE	8-98177-763-0	01	1	1011-
36	SEAL; DOOR,MAIN,CAB SIDE	1-76718-177-9	01	1	0507-1010
36	SEAL; DOOR,MAIN,CAB SIDE	8-98177-764-0	01	1	1011-
41	GROMMET; SCREW,DOOR PAD EXC. DOOR WITH UNDER VIEW WINDOW<YD8> OD=7.9X7.9 ID=4.2X4.2	1-09983-151-1	04	1	0512-
41	GROMMET; SCREW,DOOR PAD OD=7.9X7.9 ID=4.2X4.2	1-09983-151-1	04	1	0507-0511
41	GROMMET; SCREW,DOOR PAD DOOR WITH UNDER VIEW WINDOW<YD8> OD=7.9X7.9 ID=4.2X4.2	1-09983-151-1	02	1	0512-
103	TRAY ASM; ASH,DOOR	1-76458-085-1	01	1	0507-
103	TRAY ASM; ASH,DOOR	1-76458-086-1	01	1	0507-
105	SEAL; DOOR ORNAMENT,FRT	1-76218-082-2	02	1	0507-
106	SEAL; DOOR ORNAMENT (C)	8-98226-642-0	01	1	1211-
106	SEAL; DOOR ORNAMENT EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-76218-104-0	04	1	0512-
106	SEAL; DOOR ORNAMENT (A)	1-76218-083-2	02	1	0507-
171	RETAINER; DOOR PAD	1-09987-264-0	01	1	0507-0511
171	RETAINER; DOOR PAD	1-09987-264-0	01	1	0507-0511
171	RETAINER; DOOR PAD 6WF1 TC-C(1B8)	1-09987-264-0	01	1	0512-
171	RETAINER; DOOR PAD	1-09987-264-0	01	1	0512-
177	SEAL; WATER,DOOR (A)	1-76778-035-6	01	1	0507-
177	SEAL; WATER,DOOR (A)	1-76778-052-2	01	1	0507-0511
177	SEAL; WATER,DOOR EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (A)	1-76778-052-2	01	1	0512-
177	SEAL; WATER,DOOR (B)	1-76778-055-2	02	1	0507-
179	TAPE; ORNAMENT (A) L=45	1-76218-063-2	08	1	0507-
179	TAPE; ORNAMENT (B) L=770	1-76218-091-2	02	1	0507-
179	TAPE; ORNAMENT (C) L=160	1-76218-094-1	02	1	0507-
179	TAPE; ORNAMENT (D) L=235	1-76218-127-1	04	1	0507-

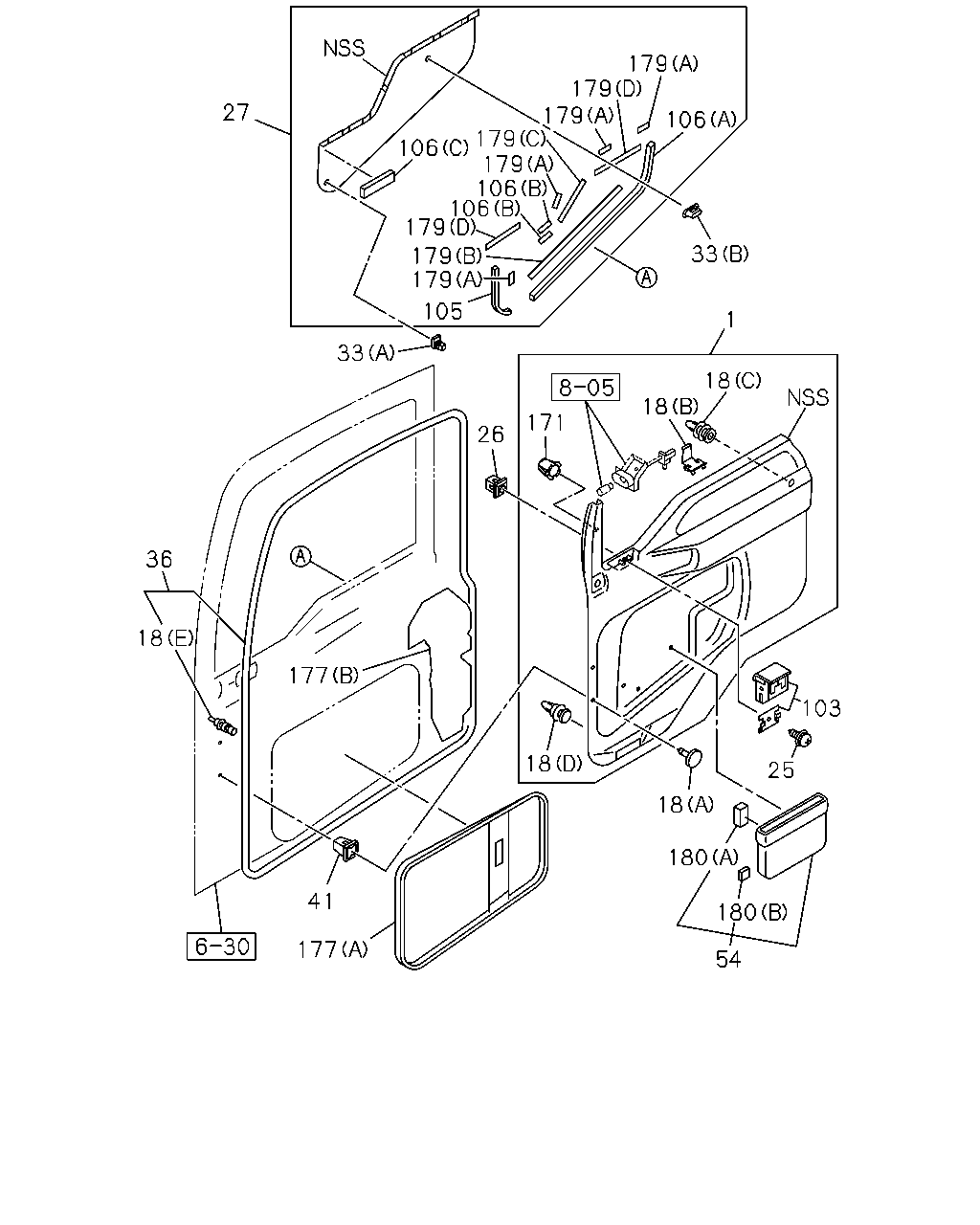

27 106 179 179 179 179 106 179 106 179 179 179 105 33 106 18 18 171 26 33 36 18 177 41 177 18 18 180 180 54 103 25 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PAD; TRIM,FRT DOOR DOOR WITH UNDER VIEW WINDOW<YD8>	1-73337-511-1	01	1	0512-
1	PAD; TRIM,FRT DOOR 6WG1 TC-C(72L),6WG1 TC-S(97L)	1-73337-506-1	01	1	0512-
1	PAD; TRIM,FRT DOOR	1-73337-509-0	01	1	0507-0511
1	PAD; TRIM,FRT DOOR 6WF1 TC-C(1B8)	1-73337-509-0	01	1	0512-0702
1	PAD; TRIM,FRT DOOR	1-73337-513-1	01	1	0703-
1	PAD; TRIM,FRT DOOR	1-73338-539-0	01	1	0507-0511
1	PAD; TRIM,FRT DOOR EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-73338-539-0	01	1	0512-0702
1	PAD; TRIM,FRT DOOR EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-73337-516-1	01	1	0703-
18	CLIP; DOOR PAD 6WG1 TC-C(72L),6WG1 TC-S(97L) (B)	1-09987-262-0	04	1	0512-
18	CLIP; DOOR PAD EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (A) D4.2X19.9 GRAY	1-09987-272-0	04	1	0512-
18	CLIP; DOOR PAD (E) NATURAL	1-09987-257-0	23	1	0507-
18	CLIP; DOOR PAD (E) NATURAL	1-09987-257-0	23	1	0507-
18	CLIP; DOOR PAD (A) D4.2X19.9 GRAY	1-09987-272-0	04	1	0507-0511
18	CLIP; DOOR PAD DOOR WITH UNDER VIEW WINDOW<YD8> (A) D4.2X19.9 GRAY	1-09987-272-0	02	1	0512-
18	CLIP; DOOR PAD (B)	1-09987-262-0	05	1	0507-0511
18	CLIP; DOOR PAD (B)	1-09987-262-0	05	1	0507-0511
18	CLIP; DOOR PAD 6WF1 TC-C(1B8) (B)	1-09987-262-0	05	1	0512-
18	CLIP; DOOR PAD (B)	1-09987-262-0	05	1	0512-
18	CLIP; DOOR PAD (C) OD=7.9 BLACK	8-94279-974-1	01	1	0507-
18	CLIP; DOOR PAD (C) OD=7.9 BLACK	8-94279-974-1	01	1	0507-
18	CLIP; DOOR PAD (D) OD=8.5 GRAY	8-97893-482-0	05	1	0507-
18	CLIP; DOOR PAD (D) OD=8.5 GRAY	8-97893-482-0	05	1	0507-
25	SCREW; ASH TRAY,DOOR M5X16 W/PL WASHER TAPPING	8-94279-123-0	02	1	0507-
26	GROMMET; SCREW,ASH TRAY DOOR D=7.8X7.8 L=18 NATURAL	8-94279-043-0	02	1	0507-
27	PANEL; ORNAMENT,DOOR EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-76217-149-3	01	1	0512-1210
27	PANEL; ORNAMENT,DOOR EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF>	8-98229-330-0	01	1	1211-
27	PANEL; ORNAMENT,DOOR EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-76217-157-3	01	1	0512-
27	PANEL; ORNAMENT,DOOR	1-76218-099-7	01	1	0507-0511
27	PANEL; ORNAMENT,DOOR MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-76218-099-7	01	1	0512-
27	PANEL; ORNAMENT,DOOR	1-76218-125-7	01	1	0507-0511
27	PANEL; ORNAMENT,DOOR MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-76218-125-7	01	1	0512-1210
27	PANEL; ORNAMENT,DOOR MIR O/S UNDER & SIDE UNDER VIEW<TAF>	8-98229-329-0	01	1	1211-
33	GROMMET; DOOR ORNAMENT EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (A)	1-09983-149-1	02	1	0512-0802
33	GROMMET; DOOR ORNAMENT EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (A) OD=7.9X7.9 ID=4.2X4.2	1-09983-151-1	02	1	0803-
33	GROMMET; DOOR ORNAMENT EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (B)	1-74998-111-0	02	1	0512-
33	GROMMET; DOOR ORNAMENT (A)	1-09983-149-1	02	1	0507-0511
33	GROMMET; DOOR ORNAMENT DOOR WITH UNDER VIEW WINDOW<YD8> (A)	1-09983-149-1	01	1	0512-0802
33	GROMMET; DOOR ORNAMENT DOOR WITH UNDER VIEW WINDOW<YD8> (A) OD=7.9X7.9 ID=4.2X4.2	1-09983-151-1	01	1	0803-
33	GROMMET; DOOR ORNAMENT (B)	1-74998-111-0	02	1	0507-0511
33	GROMMET; DOOR ORNAMENT DOOR WITH UNDER VIEW WINDOW<YD8> (B)	1-74998-111-0	01	1	0512-
36	SEAL; DOOR,MAIN,CAB SIDE	1-76718-176-9	01	1	0507-1010
36	SEAL; DOOR,MAIN,CAB SIDE	8-98177-763-0	01	1	1011-
36	SEAL; DOOR,MAIN,CAB SIDE	1-76718-177-9	01	1	0507-1010
36	SEAL; DOOR,MAIN,CAB SIDE	8-98177-764-0	01	1	1011-
41	GROMMET; SCREW,DOOR PAD EXC. DOOR WITH UNDER VIEW WINDOW<YD8> OD=7.9X7.9 ID=4.2X4.2	1-09983-151-1	04	1	0512-
41	GROMMET; SCREW,DOOR PAD OD=7.9X7.9 ID=4.2X4.2	1-09983-151-1	04	1	0507-0511
41	GROMMET; SCREW,DOOR PAD DOOR WITH UNDER VIEW WINDOW<YD8> OD=7.9X7.9 ID=4.2X4.2	1-09983-151-1	02	1	0512-
54	BOX; FRT DOOR 6WG1 TC-C(72L),6WG1 TC-S(97L)	1-72537-177-0	01	1	0512-
103	TRAY ASM; ASH,DOOR	1-76458-085-1	01	1	0507-
103	TRAY ASM; ASH,DOOR	1-76458-086-1	01	1	0507-
105	SEAL; DOOR ORNAMENT,FRT	1-76218-082-2	02	1	0507-
106	SEAL; DOOR ORNAMENT (C)	8-98226-642-0	01	1	1211-
106	SEAL; DOOR ORNAMENT EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-76218-104-0	04	1	0512-
106	SEAL; DOOR ORNAMENT (A)	1-76218-083-2	02	1	0507-
171	RETAINER; DOOR PAD	1-09987-264-0	01	1	0507-0511
171	RETAINER; DOOR PAD	1-09987-264-0	01	1	0507-0511
171	RETAINER; DOOR PAD 6WF1 TC-C(1B8)	1-09987-264-0	01	1	0512-
171	RETAINER; DOOR PAD	1-09987-264-0	01	1	0512-
177	SEAL; WATER,DOOR (A)	1-76778-035-6	01	1	0507-
177	SEAL; WATER,DOOR (A)	1-76778-052-2	01	1	0507-0511
177	SEAL; WATER,DOOR EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (A)	1-76778-052-2	01	1	0512-
177	SEAL; WATER,DOOR (B)	1-76778-055-2	02	1	0507-
179	TAPE; ORNAMENT (A) L=45	1-76218-063-2	08	1	0507-
179	TAPE; ORNAMENT (B) L=770	1-76218-091-2	02	1	0507-
179	TAPE; ORNAMENT (C) L=160	1-76218-094-1	02	1	0507-
179	TAPE; ORNAMENT (D) L=235	1-76218-127-1	04	1	0507-
180	SEAL; BOX 6WG1 TC-C(72L),6WG1 TC-S(97L) (A) 5X10X30	1-72538-153-1	02	1	0512-
180	SEAL; BOX 6WG1 TC-C(72L),6WG1 TC-S(97L) (B) 15X30	1-74998-069-0	02	1	0512-
