6-32 — FRONT DOOR LOCK AND HANDLE (#31205) — 46 parça

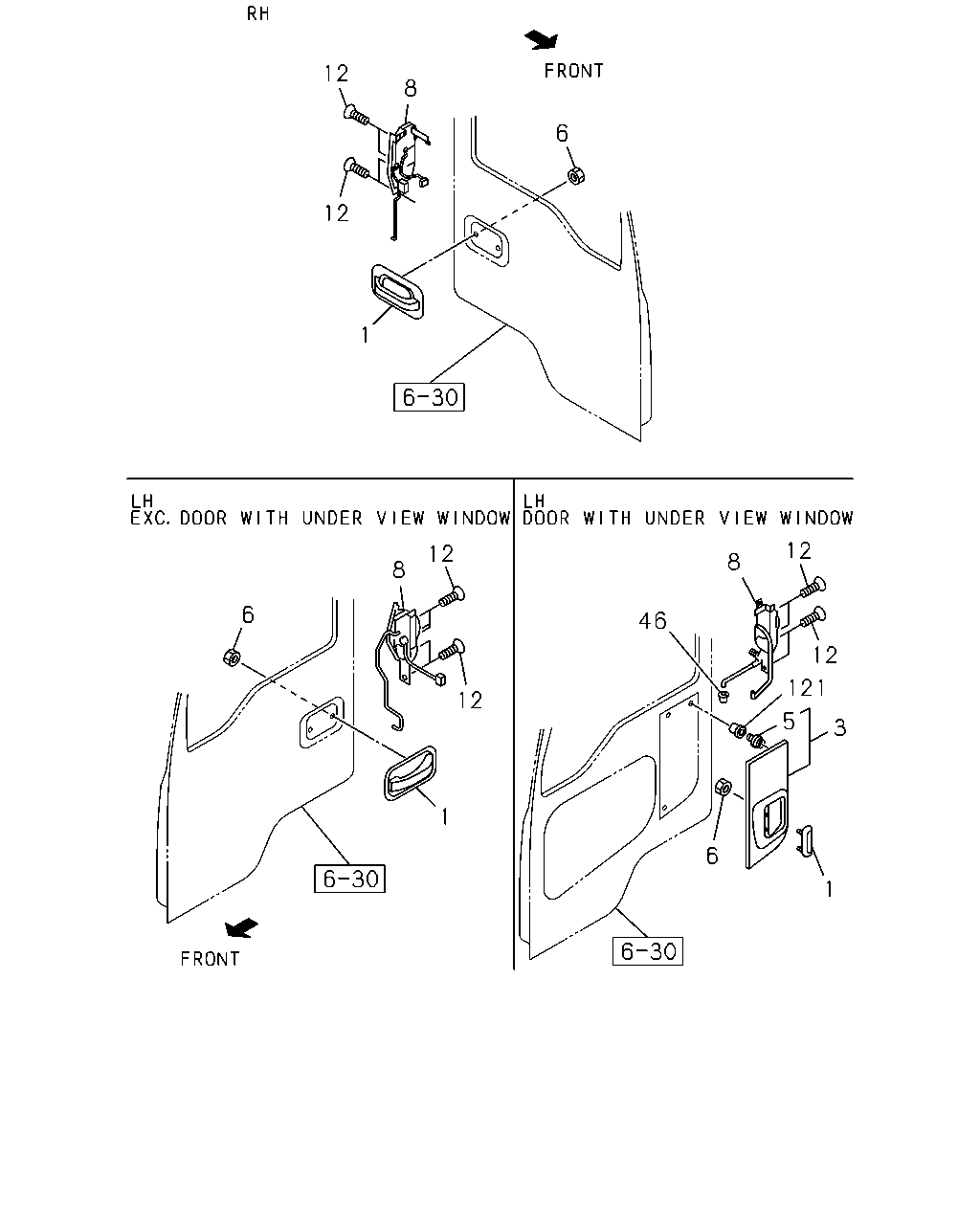

çizim 88788
12 8 6 12 1 12 12 8 8 6 46 12 121 12 5 3 1 6 1
BalonParca AdiParca NoAdetTipApplied Date
1 HANDLE; OUTSIDE,FRT DOOR
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74618-032-0 01 1 0512-
1 HANDLE; OUTSIDE,FRT DOOR 1-74618-024-4 01 1 0507-0511
1 HANDLE; OUTSIDE,FRT DOOR
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74618-024-4 01 1 0512-
1 HANDLE; OUTSIDE,FRT DOOR 1-74618-040-0 01 1 0507-
3 BASE; HANDLE,DOOR OUTSIDE
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74618-039-1 01 1 0512-
5 CLIP; BASE
DOOR WITH UNDER VIEW WINDOW<YD8> D5.4X8 		1-09983-174-0 03 1 0512-
6 NUT; OUTSIDE HANDLE
M6 FLANGE W/RUBBER 		1-09984-180-0 04 1 0507-
8 LOCK; DOOR,FRT DOOR
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74518-126-1 01 1 0512-
8 LOCK; DOOR,FRT DOOR
EXC. AUTO DOOR LOCK<AU4> 		1-74518-107-6 01 1 0512-
8 LOCK; DOOR,FRT DOOR 1-74518-115-3 01 1 0507-0511
8 LOCK; DOOR,FRT DOOR
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74518-115-3 01 1 0512-
8 LOCK; DOOR,FRT DOOR 1-74518-125-3 01 1 0507-0511
8 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> 		1-74518-125-3 01 1 0512-
12 SCREW; DOOR LK
M6X16 		1-09981-447-1 06 1 0507-0805
12 SCREW; DOOR LK
M6X16 		8-97581-217-0 06 1 0806-
12 SCREW; DOOR LK
M6X14 		1-09981-512-1 04 1 0507-
46 BUSHING; DOOR LOCK TO OUTSIDE HANDLE
DOOR WITH UNDER VIEW WINDOW<YD8> 		5-74617-009-0 01 1 0512-
121 FASTENER; COVER
DOOR WITH UNDER VIEW WINDOW<YD8> ID=5.4 OD=6.8 		1-09989-019-0 03 1 0512-

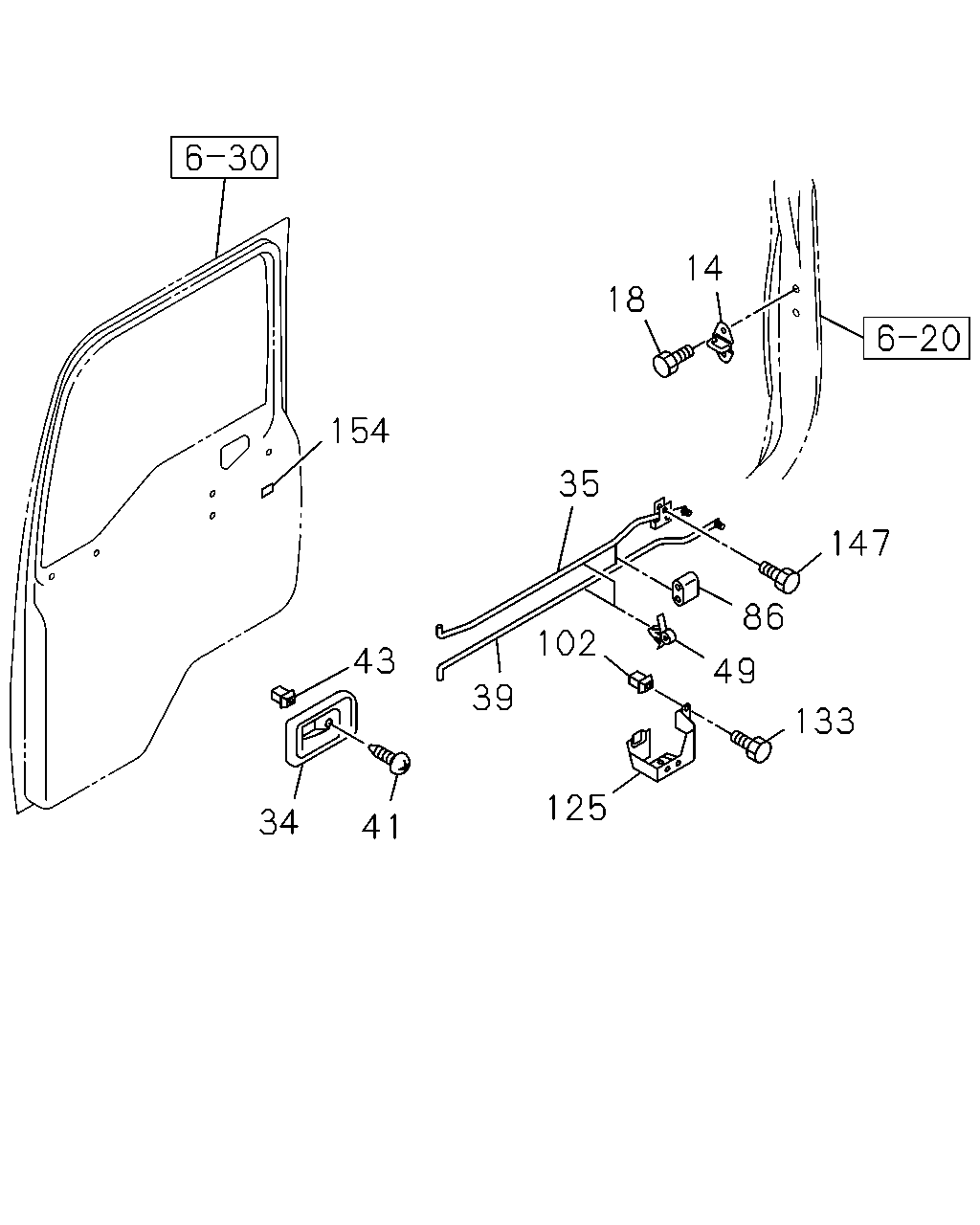

çizim 88846
14 18 154 35 147 86 102 43 49 39 133 125 34 41
BalonParca AdiParca NoAdetTipApplied Date
14 STRIKER; FRT DOOR 8-97221-702-1 02 1 0507-
18 SCREW; DOOR STRIKER
M8X23 W/LK WASHER 		8-97221-701-0 04 1 0507-
34 HANDLE; INSIDE,FRT DOOR 1-74718-022-4 01 1 0507-
34 HANDLE; INSIDE,FRT DOOR 1-74718-023-4 01 1 0507-
35 LINK; DOOR LOCK,INSIDE
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74518-130-2 01 1 0512-
35 LINK; DOOR LOCK,INSIDE
EXC. AUTO DOOR LOCK<AU4> 		1-74518-093-3 01 1 0512-
35 LINK; DOOR LOCK,INSIDE 1-74518-094-3 01 1 0507-0511
35 LINK; DOOR LOCK,INSIDE
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74518-094-3 01 1 0512-
35 LINK; DOOR LOCK,INSIDE 1-74518-129-2 01 1 0507-0511
35 LINK; DOOR LOCK,INSIDE
AUTO DOOR LOCK<AU4> 		1-74518-129-2 01 1 0512-
39 LINK; INSIDE HANDLE,FRT DOOR
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74758-034-1 01 1 0512-
39 LINK; INSIDE HANDLE,FRT DOOR
EXC. AUTO DOOR LOCK<AU4> 		1-74758-021-2 01 1 0512-
39 LINK; INSIDE HANDLE,FRT DOOR 1-74758-022-2 01 1 0507-0511
39 LINK; INSIDE HANDLE,FRT DOOR
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74758-022-2 01 1 0512-
39 LINK; INSIDE HANDLE,FRT DOOR 1-74758-033-1 01 1 0507-0511
39 LINK; INSIDE HANDLE,FRT DOOR
AUTO DOOR LOCK<AU4> 		1-74758-033-1 01 1 0512-
41 SCREW; INSIDE HANDLE
M5X14 		8-94152-495-0 02 1 0507-
43 GROMMET; SCREW,INSIDE LEVER,DOOR
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 0507-
49 CLAMP; DOOR LOCK LINK ROD
ID=3.8 WHITE 		8-94217-699-0 04 1 0507-
86 SEAL; DOOR LOCK LINK 1-76778-044-1 02 1 0507-
102 GROMMET; SCREW,ESCUTCHEON,DOOR PULL
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 04 1 0507-
125 BRACKET; DOOR PULL 1-74718-010-4 01 1 0507-
125 BRACKET; DOOR PULL 1-74718-011-4 01 1 0507-
133 SCREW; DOOR PULL STAY
M5X16 W/PL WASHER TAPPING 		8-94279-123-0 04 1 0507-
147 BOLT; ROD
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0507-
154 SEAL; DOOR
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 30X30 		1-74998-128-1 02 1 0512-
154 SEAL; DOOR
30X30 		1-74998-128-1 02 1 0507-0511
154 SEAL; DOOR
DOOR WITH UNDER VIEW WINDOW<YD8> 30X30 		1-74998-128-1 01 1 0512-
