6-31 — FRONT DOOR GLASS AND REGULATOR (#31204) — 154 parça

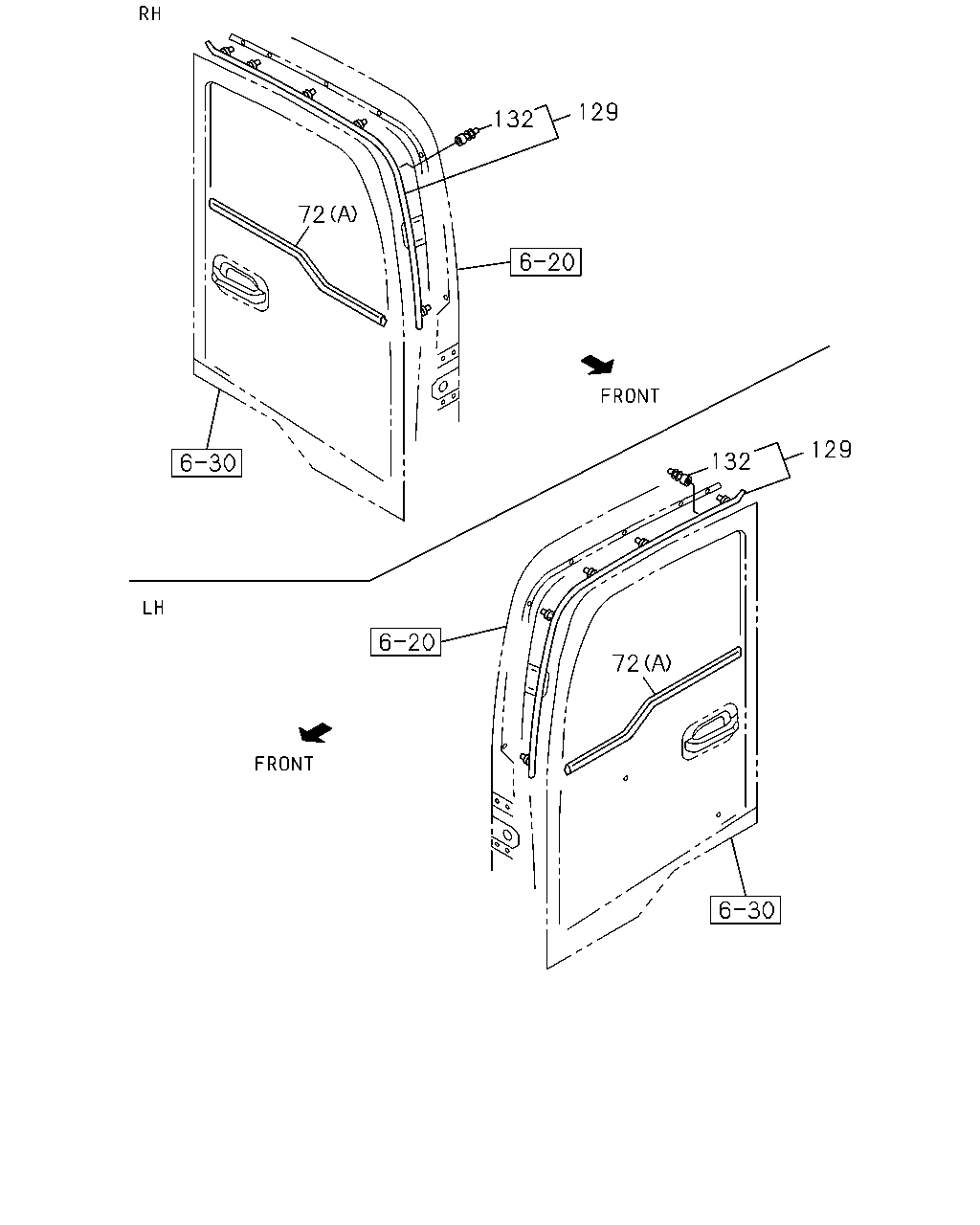

129 132 72 129 132 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
72	SEAL; WAIST,FRT DOOR (A) OUTER	1-76738-088-9	01	1	0507-1207
72	SEAL; WAIST,FRT DOOR (A) OUTER	8-98219-039-0	01	1	1208-
72	SEAL; WAIST,FRT DOOR (A) OUTER	1-76738-089-9	01	1	0507-1207
72	SEAL; WAIST,FRT DOOR (A) OUTER	8-98219-040-0	01	1	1208-
72	SEAL; WAIST,FRT DOOR (B) INNER	1-76738-091-6	01	1	0507-
72	SEAL; WAIST,FRT DOOR (B) INNER	1-76738-092-6	01	1	0507-
129	SEAL; DOOR,SUB UPR	1-76718-198-0	01	1	0507-
129	SEAL; DOOR,SUB UPR	1-76718-199-0	01	1	0507-
132	CLIP; SEAL,DOOR NATURAL	1-09987-253-1	06	1	0507-
132	CLIP; SEAL,DOOR YELLOW	1-09987-254-1	06	1	0507-

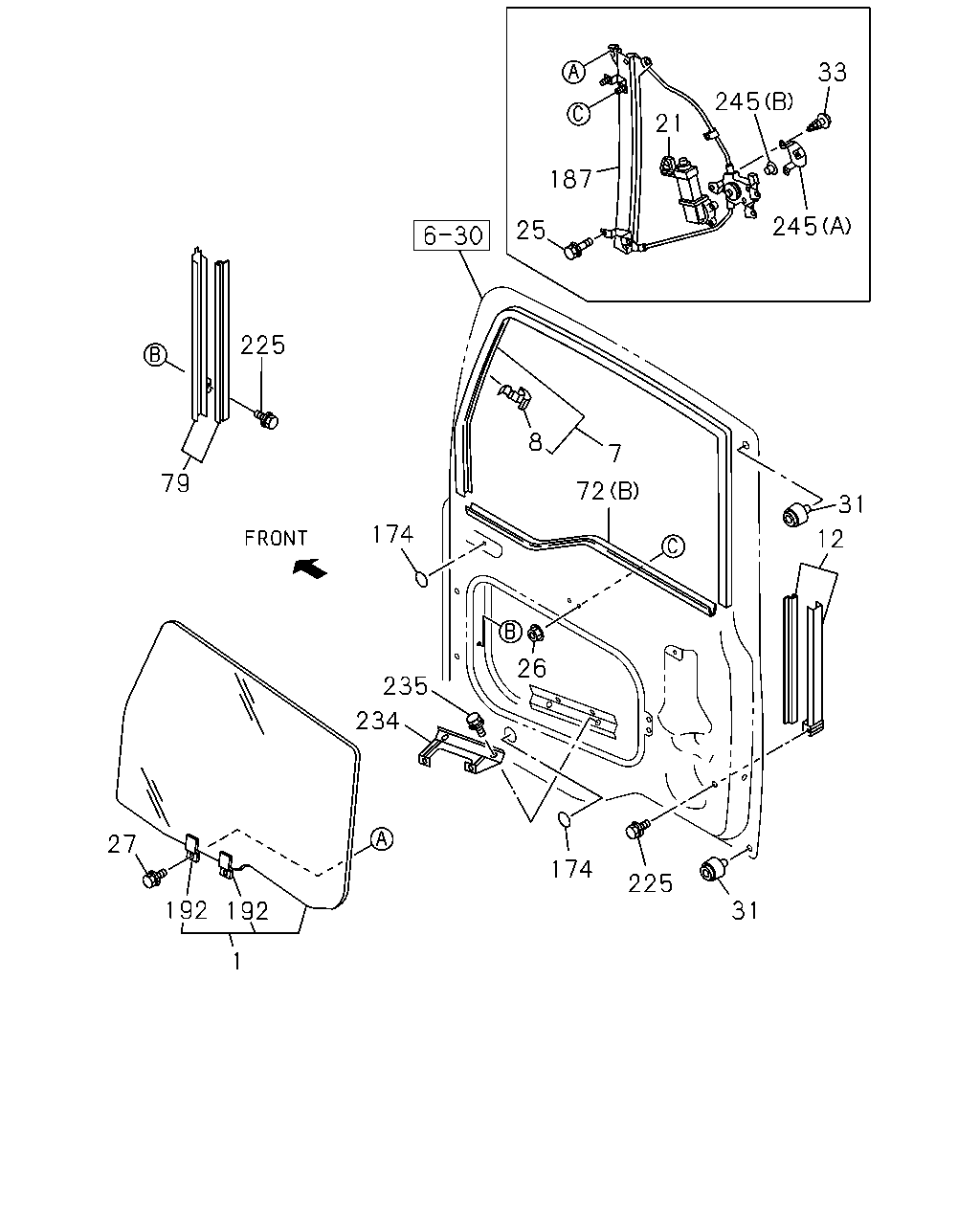

31 225 174 192 1 192 27 234 235 26 174 72 8 7 31 12 79 225 25 187 21 245 33 245

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	GLASS; FRT DOOR DOOR WITH UNDER VIEW WINDOW<YD8>	1-76167-173-2	01	1	0512-
1	GLASS; FRT DOOR	1-76148-095-2	01	1	0507-0511
1	GLASS; FRT DOOR EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-76148-095-2	01	1	0512-
1	GLASS; FRT DOOR	1-76167-177-2	01	1	0507-
7	GLASS RUN; FRT DOOR	1-74318-021-8	01	1	0507-
7	GLASS RUN; FRT DOOR	1-74318-022-8	01	1	0507-
8	CLIP; GLASS GUIDE	1-74318-029-1	02	1	0507-
12	CHANNEL; GLASS RUN,FRT	1-74338-070-3	01	1	0507-
12	CHANNEL; GLASS RUN,FRT	1-74338-071-3	01	1	0507-
21	MOTOR; POWER WINDOW REG,FRT DOOR DOOR WITH UNDER VIEW WINDOW<YD8>	1-74418-162-0	01	1	0512-
21	MOTOR; POWER WINDOW REG,FRT DOOR	1-74418-176-0	01	1	0507-
21	MOTOR; POWER WINDOW REG,FRT DOOR	1-74418-177-0	01	1	0507-0511
21	MOTOR; POWER WINDOW REG,FRT DOOR EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-74418-177-0	01	1	0512-
25	BOLT; WINDOW REG EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6X16 FLANGE	0-28080-616-0	10	1	0512-0512
25	BOLT; WINDOW REG EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6X16 FLANGE	0-28050-616-0	10	1	0601-0710
25	BOLT; WINDOW REG EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6X10 FLANGE	0-28050-610-0	10	1	0711-
25	BOLT; WINDOW REG M6X16 FLANGE	0-28080-616-0	10	1	0507-0511
25	BOLT; WINDOW REG DOOR WITH UNDER VIEW WINDOW<YD8> M6X16 FLANGE	0-28080-616-0	07	1	0512-0512
25	BOLT; WINDOW REG DOOR WITH UNDER VIEW WINDOW<YD8> M6X16 FLANGE	0-28050-616-0	07	1	0601-0710
25	BOLT; WINDOW REG DOOR WITH UNDER VIEW WINDOW<YD8> M6X10 FLANGE	0-28050-610-0	07	1	0711-
26	NUT; FLANGE,WINDOW REG EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6 FLANGE	1-09984-141-0	06	1	0512-
26	NUT; FLANGE,WINDOW REG M6 FLANGE	1-09984-141-0	06	1	0507-0511
26	NUT; FLANGE,WINDOW REG DOOR WITH UNDER VIEW WINDOW<YD8> M6 FLANGE	1-09984-141-0	08	1	0512-
27	BOLT; GLASS FIX M6X12 W/LK&PL WASHER	8-94279-200-0	04	1	0507-
31	STOPPER; RUBBER,DOOR INNER	1-09983-169-0	04	1	0507-
33	SCREW; REG MOTOR	8-98099-646-0	03	1	1204-
33	SCREW; REG MOTOR	8-98099-646-0	03	1	1204-
72	SEAL; WAIST,FRT DOOR (A) OUTER	1-76738-088-9	01	1	0507-1207
72	SEAL; WAIST,FRT DOOR (A) OUTER	8-98219-039-0	01	1	1208-
72	SEAL; WAIST,FRT DOOR (A) OUTER	1-76738-089-9	01	1	0507-1207
72	SEAL; WAIST,FRT DOOR (A) OUTER	8-98219-040-0	01	1	1208-
72	SEAL; WAIST,FRT DOOR (B) INNER	1-76738-091-6	01	1	0507-
72	SEAL; WAIST,FRT DOOR (B) INNER	1-76738-092-6	01	1	0507-
79	CHANNEL; DOOR GLASS,FRT	1-74338-068-3	01	1	0507-
79	CHANNEL; DOOR GLASS,FRT	1-74338-069-3	01	1	0507-0511
79	CHANNEL; DOOR GLASS,FRT EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-74338-069-3	01	1	0512-
174	SEAL; LOCATION HOLE AUTO DOOR LOCK<AU4>,REMOTE CONT DOOR LOCK<SLG> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> OD=25 BLACK	1-76798-019-0	16	1	0512-
174	SEAL; LOCATION HOLE OD=25 BLACK	1-76798-019-0	16	1	0507-0511
174	SEAL; LOCATION HOLE AUTO DOOR LOCK<AU4>,REMOTE CONT DOOR LOCK<SLG> DOOR WITH UNDER VIEW WINDOW<YD8> OD=25 BLACK	1-76798-019-0	13	1	0512-
187	REGULATOR ASM; DOOR DOOR WITH UNDER VIEW WINDOW<YD8>	1-74418-166-3	01	1	0512-
187	REGULATOR ASM; DOOR	1-74418-178-3	01	1	0507-
187	REGULATOR ASM; DOOR	1-74418-179-3	01	1	0507-0511
187	REGULATOR ASM; DOOR EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-74418-179-3	01	1	0512-
192	HOLDER; DOOR GLASS	1-74427-170-0	04	1	0507-0507
192	HOLDER; DOOR GLASS	1-74427-170-0	02	1	0508-
192	HOLDER; DOOR GLASS	1-74427-170-0	02	1	0508-
225	BOLT; FRT CHANNEL EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6X10 FLANGE	0-28080-610-0	04	1	0512-0512
225	BOLT; FRT CHANNEL EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6X10 FLANGE	0-28050-610-0	04	1	0601-
225	BOLT; FRT CHANNEL M6X10 FLANGE	0-28080-610-0	04	1	0507-0511
225	BOLT; FRT CHANNEL DOOR WITH UNDER VIEW WINDOW<YD8> M6X10 FLANGE	0-28080-610-0	03	1	0512-0512
225	BOLT; FRT CHANNEL DOOR WITH UNDER VIEW WINDOW<YD8> M6X10 FLANGE	0-28050-610-0	03	1	0601-
234	BRACKET; OK WINDOW	1-74998-057-4	01	1	0507-
234	BRACKET; OK WINDOW	1-74998-062-4	01	1	0507-
235	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	08	1	0507-
245	DAMPER; WINDOW REGULATOR DOOR WITH UNDER VIEW WINDOW<YD8> (A)	1-74418-147-1	01	1	0512-
245	DAMPER; WINDOW REGULATOR (A)	1-74418-180-0	01	1	0507-
245	DAMPER; WINDOW REGULATOR (A)	1-74418-181-0	01	1	0507-0511
245	DAMPER; WINDOW REGULATOR EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (A)	1-74418-181-0	01	1	0512-
245	DAMPER; WINDOW REGULATOR (B)	1-74417-074-0	01	1	0507-
245	DAMPER; WINDOW REGULATOR (B)	1-74417-074-0	01	1	0507-

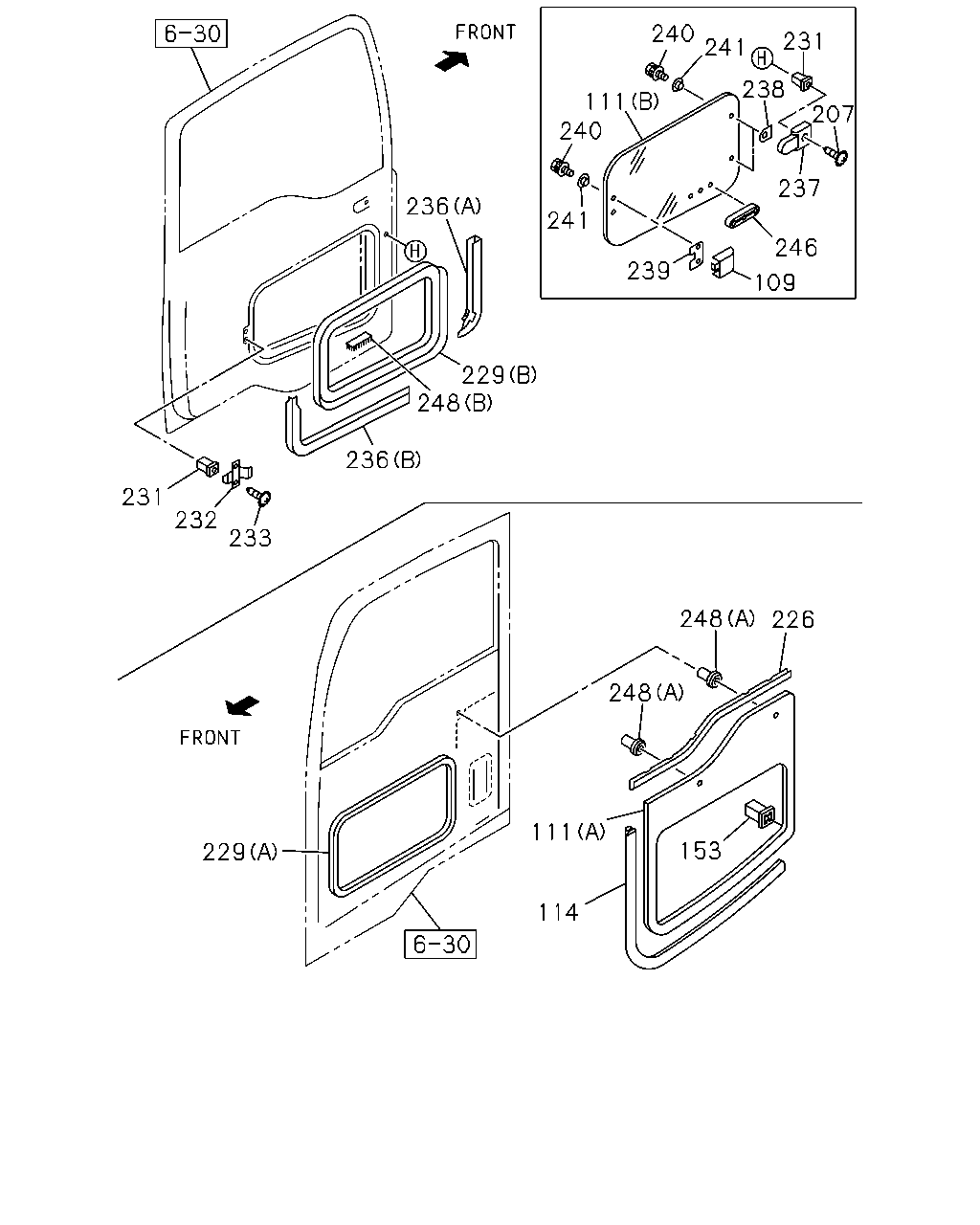

240 241 231 238 111 240 207 237 236 241 246 239 109 229 248 236 231 232 233 248 226 248 111 153 229 114

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
109	LOCK ASM; DOOR WINDOW GLASS DOOR WITH UNDER VIEW WINDOW<YD8>	1-74998-052-0	01	1	0512-
111	GLASS; FRT DOOR,LWR DOOR WITH UNDER VIEW WINDOW<YD8> (A)	1-76167-155-2	01	1	0512-
111	GLASS; FRT DOOR,LWR DOOR WITH UNDER VIEW WINDOW<YD8> (B)	1-76167-176-0	01	1	0512-
114	MOLDING; OK WINDOW,LWR DOOR WITH UNDER VIEW WINDOW<YD8>	1-71538-038-1	01	1	0512-
153	GROMMET; FRT DOOR DOOR WITH UNDER VIEW WINDOW<YD8> OD=7.9X7.9 ID=4.2X4.2	1-09983-151-1	01	1	0512-
207	SCREW; DOOR GLASS DOOR WITH UNDER VIEW WINDOW<YD8> M5X16 W/PL WASHER TAPPING	8-94279-123-0	02	1	0512-
226	FINISHER; OK WINDOW,LWR DOOR WITH UNDER VIEW WINDOW<YD8>	1-76738-093-6	01	1	0512-
229	SEAL; OK WINDOW DOOR WITH UNDER VIEW WINDOW<YD8> (A) OUTER	1-76738-096-5	01	1	0512-
229	SEAL; OK WINDOW DOOR WITH UNDER VIEW WINDOW<YD8> (B) INNER	1-76738-097-4	01	1	0512-
231	GROMMET; SCREW DOOR WITH UNDER VIEW WINDOW<YD8> D=7.8X7.8 L=18 NATURAL	8-94279-043-0	04	1	0512-
232	STRIKER; OK WINDOW DOOR WITH UNDER VIEW WINDOW<YD8>	1-74998-055-1	01	1	0512-0805
232	STRIKER; OK WINDOW DOOR WITH UNDER VIEW WINDOW<YD8>	8-98048-053-0	01	1	0806-
233	SCREW; STRIKER DOOR WITH UNDER VIEW WINDOW<YD8> M5X16 W/PL WASHER TAPPING	8-94279-123-0	02	1	0512-
236	COVER; OK WINDOW DOOR WITH UNDER VIEW WINDOW<YD8> (A)	1-73338-363-5	01	1	0512-
236	COVER; OK WINDOW DOOR WITH UNDER VIEW WINDOW<YD8> (B)	1-73338-364-5	01	1	0512-
237	HINGE; DOOR WINDOW GLASS DOOR WITH UNDER VIEW WINDOW<YD8>	1-74998-050-1	02	1	0512-
238	SHEET; HINGE DOOR WITH UNDER VIEW WINDOW<YD8>	1-74998-051-0	02	1	0512-
239	SHEET; LOCK DOOR WITH UNDER VIEW WINDOW<YD8>	1-74998-053-0	01	1	0512-
240	SCREW; HINGE & LOCK DOOR WITH UNDER VIEW WINDOW<YD8> M6X12	8-94279-346-0	04	1	0512-
241	GASKET; HINGE & LOCK DOOR WITH UNDER VIEW WINDOW<YD8>	1-74998-054-0	04	1	0512-
246	GRILLE; OK WINDOW DOOR WITH UNDER VIEW WINDOW<YD8>	1-74298-002-1	01	1	0512-
248	FASTENER DOOR WITH UNDER VIEW WINDOW<YD8> (A) ID=5.4 OD=6.8	1-09989-019-0	02	1	0512-
248	FASTENER DOOR WITH UNDER VIEW WINDOW<YD8> (B)	1-74998-072-1	01	1	0512-

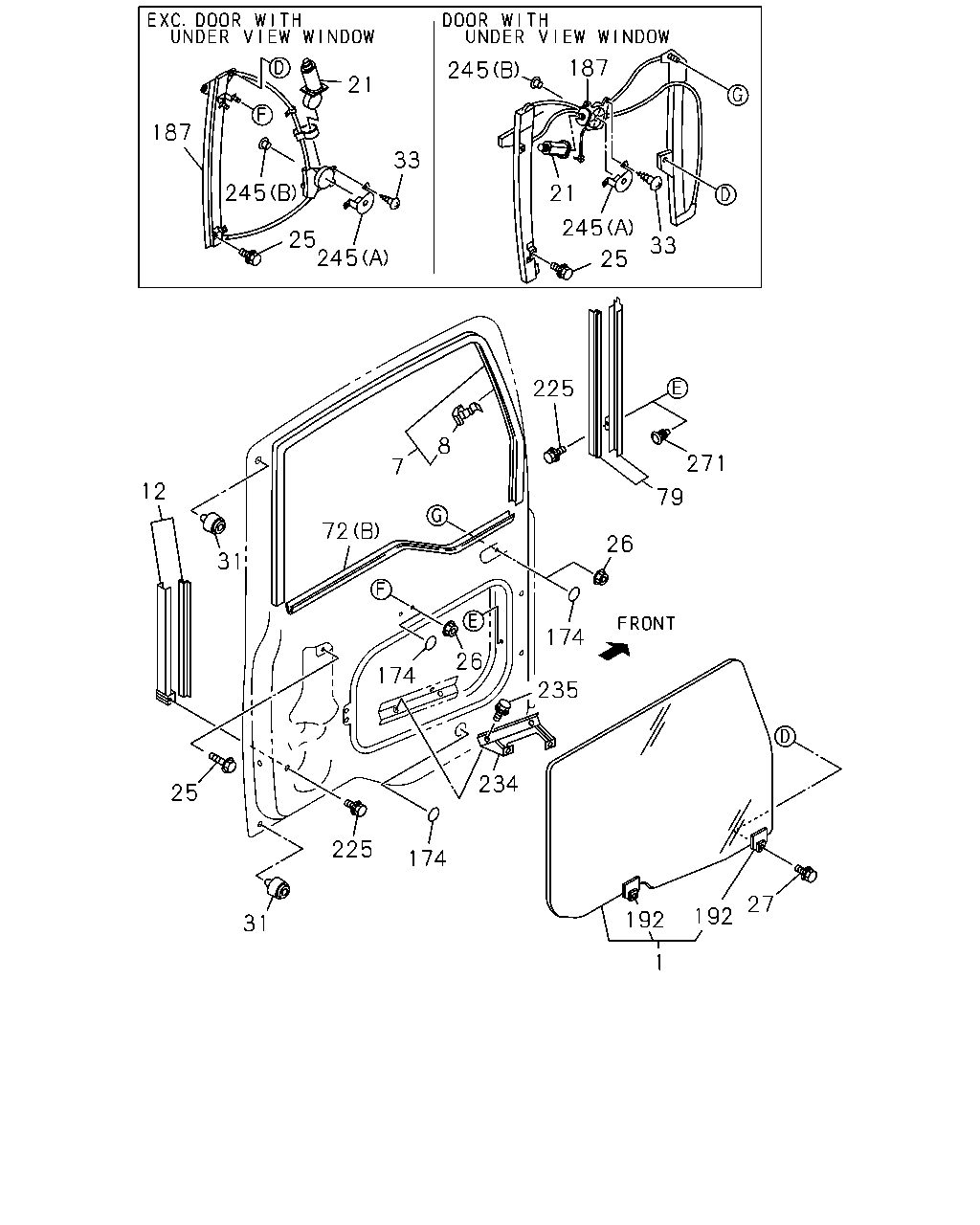

1 192 192 27 174 234 225 31 25 235 174 26 174 26 79 271 225 8 7 72 31 12 25 33 245 21 187 245 245 33 21 25 245 187

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	GLASS; FRT DOOR DOOR WITH UNDER VIEW WINDOW<YD8>	1-76167-173-2	01	1	0512-
1	GLASS; FRT DOOR	1-76148-095-2	01	1	0507-0511
1	GLASS; FRT DOOR EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-76148-095-2	01	1	0512-
1	GLASS; FRT DOOR	1-76167-177-2	01	1	0507-
7	GLASS RUN; FRT DOOR	1-74318-021-8	01	1	0507-
7	GLASS RUN; FRT DOOR	1-74318-022-8	01	1	0507-
8	CLIP; GLASS GUIDE	1-74318-029-1	02	1	0507-
12	CHANNEL; GLASS RUN,FRT	1-74338-070-3	01	1	0507-
12	CHANNEL; GLASS RUN,FRT	1-74338-071-3	01	1	0507-
21	MOTOR; POWER WINDOW REG,FRT DOOR DOOR WITH UNDER VIEW WINDOW<YD8>	1-74418-162-0	01	1	0512-
21	MOTOR; POWER WINDOW REG,FRT DOOR	1-74418-176-0	01	1	0507-
21	MOTOR; POWER WINDOW REG,FRT DOOR	1-74418-177-0	01	1	0507-0511
21	MOTOR; POWER WINDOW REG,FRT DOOR EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-74418-177-0	01	1	0512-
25	BOLT; WINDOW REG EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6X16 FLANGE	0-28080-616-0	10	1	0512-0512
25	BOLT; WINDOW REG EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6X16 FLANGE	0-28050-616-0	10	1	0601-0710
25	BOLT; WINDOW REG EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6X10 FLANGE	0-28050-610-0	10	1	0711-
25	BOLT; WINDOW REG M6X16 FLANGE	0-28080-616-0	10	1	0507-0511
25	BOLT; WINDOW REG DOOR WITH UNDER VIEW WINDOW<YD8> M6X16 FLANGE	0-28080-616-0	07	1	0512-0512
25	BOLT; WINDOW REG DOOR WITH UNDER VIEW WINDOW<YD8> M6X16 FLANGE	0-28050-616-0	07	1	0601-0710
25	BOLT; WINDOW REG DOOR WITH UNDER VIEW WINDOW<YD8> M6X10 FLANGE	0-28050-610-0	07	1	0711-
26	NUT; FLANGE,WINDOW REG EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6 FLANGE	1-09984-141-0	06	1	0512-
26	NUT; FLANGE,WINDOW REG M6 FLANGE	1-09984-141-0	06	1	0507-0511
26	NUT; FLANGE,WINDOW REG DOOR WITH UNDER VIEW WINDOW<YD8> M6 FLANGE	1-09984-141-0	08	1	0512-
27	BOLT; GLASS FIX M6X12 W/LK&PL WASHER	8-94279-200-0	04	1	0507-
31	STOPPER; RUBBER,DOOR INNER	1-09983-169-0	04	1	0507-
33	SCREW; REG MOTOR	8-98099-646-0	03	1	1204-
33	SCREW; REG MOTOR	8-98099-646-0	03	1	1204-
72	SEAL; WAIST,FRT DOOR (A) OUTER	1-76738-088-9	01	1	0507-1207
72	SEAL; WAIST,FRT DOOR (A) OUTER	8-98219-039-0	01	1	1208-
72	SEAL; WAIST,FRT DOOR (A) OUTER	1-76738-089-9	01	1	0507-1207
72	SEAL; WAIST,FRT DOOR (A) OUTER	8-98219-040-0	01	1	1208-
72	SEAL; WAIST,FRT DOOR (B) INNER	1-76738-091-6	01	1	0507-
72	SEAL; WAIST,FRT DOOR (B) INNER	1-76738-092-6	01	1	0507-
79	CHANNEL; DOOR GLASS,FRT	1-74338-068-3	01	1	0507-
79	CHANNEL; DOOR GLASS,FRT	1-74338-069-3	01	1	0507-0511
79	CHANNEL; DOOR GLASS,FRT EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-74338-069-3	01	1	0512-
174	SEAL; LOCATION HOLE AUTO DOOR LOCK<AU4>,REMOTE CONT DOOR LOCK<SLG> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> OD=25 BLACK	1-76798-019-0	16	1	0512-
174	SEAL; LOCATION HOLE OD=25 BLACK	1-76798-019-0	16	1	0507-0511
174	SEAL; LOCATION HOLE AUTO DOOR LOCK<AU4>,REMOTE CONT DOOR LOCK<SLG> DOOR WITH UNDER VIEW WINDOW<YD8> OD=25 BLACK	1-76798-019-0	13	1	0512-
187	REGULATOR ASM; DOOR DOOR WITH UNDER VIEW WINDOW<YD8>	1-74418-166-3	01	1	0512-
187	REGULATOR ASM; DOOR	1-74418-178-3	01	1	0507-
187	REGULATOR ASM; DOOR	1-74418-179-3	01	1	0507-0511
187	REGULATOR ASM; DOOR EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-74418-179-3	01	1	0512-
192	HOLDER; DOOR GLASS	1-74427-170-0	04	1	0507-0507
192	HOLDER; DOOR GLASS	1-74427-170-0	02	1	0508-
192	HOLDER; DOOR GLASS	1-74427-170-0	02	1	0508-
225	BOLT; FRT CHANNEL EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6X10 FLANGE	0-28080-610-0	04	1	0512-0512
225	BOLT; FRT CHANNEL EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6X10 FLANGE	0-28050-610-0	04	1	0601-
225	BOLT; FRT CHANNEL M6X10 FLANGE	0-28080-610-0	04	1	0507-0511
225	BOLT; FRT CHANNEL DOOR WITH UNDER VIEW WINDOW<YD8> M6X10 FLANGE	0-28080-610-0	03	1	0512-0512
225	BOLT; FRT CHANNEL DOOR WITH UNDER VIEW WINDOW<YD8> M6X10 FLANGE	0-28050-610-0	03	1	0601-
234	BRACKET; OK WINDOW	1-74998-057-4	01	1	0507-
234	BRACKET; OK WINDOW	1-74998-062-4	01	1	0507-
235	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	08	1	0507-
245	DAMPER; WINDOW REGULATOR DOOR WITH UNDER VIEW WINDOW<YD8> (A)	1-74418-147-1	01	1	0512-
245	DAMPER; WINDOW REGULATOR (A)	1-74418-180-0	01	1	0507-
245	DAMPER; WINDOW REGULATOR (A)	1-74418-181-0	01	1	0507-0511
245	DAMPER; WINDOW REGULATOR EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (A)	1-74418-181-0	01	1	0512-
245	DAMPER; WINDOW REGULATOR (B)	1-74417-074-0	01	1	0507-
245	DAMPER; WINDOW REGULATOR (B)	1-74417-074-0	01	1	0507-
271	PLUG; HOLE DOOR WITH UNDER VIEW WINDOW<YD8> OD=16 L=11	1-76378-155-0	01	1	0512-
