Isuzu WW
▶
TRUCKS
▶
CYJ
▶
11006 - CYJ NEW ZEALAND
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-05 - FRONT PANEL
▶
6-05 — FRONT PANEL
(#31200) — 172 parça
◀
[605A] FRONT SIDE PANEL (26 parça)
[605A] LID LOCK AND CABLE (26 parça)
[605A] FENDER (56 parça)
[605A] FRONT LID (16 parça)
[605A] DASH PANEL (48 parça)
▶
164
16
19
19
43
571
18
571
24
546
22
308
22
238
21
22
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
16
PANEL; FRONT,SIDE
WHITE
1-65472-648-4
01
1
0507-
16
PANEL; FRONT,SIDE
WHITE
1-65472-649-4
01
1
0507-
18
SEAL; A-POST UPR,FRT SIDE PANEL
1-71998-898-2
01
1
0507-
18
SEAL; A-POST UPR,FRT SIDE PANEL
1-71998-899-2
01
1
0507-
19
SEAL; FRT SIDE PANEL
(C)
1-71907-410-0
01
1
0507-
19
SEAL; FRT SIDE PANEL
(C)
1-71907-411-0
01
1
0507-
19
SEAL; FRT SIDE PANEL
(A)
1-71907-579-1
01
1
0507-1111
19
SEAL; FRT SIDE PANEL
(A)
8-98208-433-0
01
1
1112-
19
SEAL; FRT SIDE PANEL
(A)
1-71907-580-1
01
1
0507-1111
19
SEAL; FRT SIDE PANEL
(A)
8-98208-434-0
01
1
1112-
19
SEAL; FRT SIDE PANEL
(B) OD=45 BLACK
1-76798-017-0
03
1
0507-
21
GROMMET; SCREW,FRT SIDE PANEL
(A) D=10.5X7 L=10.5 M5
1-09983-160-3
14
1
0507-
21
GROMMET; SCREW,FRT SIDE PANEL
(B) D=8.6X7.7 L=7.5
8-94279-078-0
02
1
0507-
22
SCREW; FRT PANEL SIDE
M5X20 W/PL WASHER TAPPING
8-97893-344-0
14
1
0507-0810
22
SCREW; FRT PANEL SIDE
M5X16 W/PL WASHER TAPPING
8-94279-123-0
14
1
0811-1010
22
SCREW; FRT PANEL SIDE
M5X20 W/PL WASHER TAPPING
8-97893-344-0
14
1
1011-
24
SEAL; FRT PANEL LWR
OD=25 BLACK
1-76798-019-0
06
1
0507-
43
GROMMET; LOCATION HOLE,A-POST
OD=45 BLACK
1-76798-017-0
02
1
0507-
164
SEAL; FRT PILLAR
1-71907-414-0
02
1
0507-
238
SCREW
M5X16 W/PL WASHER TAPPING
8-94279-123-0
06
1
0507-
308
PLATE; FRT PANEL
1-65472-568-1
01
1
0507-
308
PLATE; FRT PANEL
1-65472-569-1
01
1
0507-
546
PLUG; DUMMY HOLE
OD=16 L=11
1-76378-155-0
02
1
0507-
571
CLIP; SEAL
(A)
1-09987-228-0
16
1
0507-
571
CLIP; SEAL
(B) PINK
1-09987-256-0
08
1
0507-
571
CLIP; SEAL
(B) NATURAL
1-09987-257-0
08
1
0507-

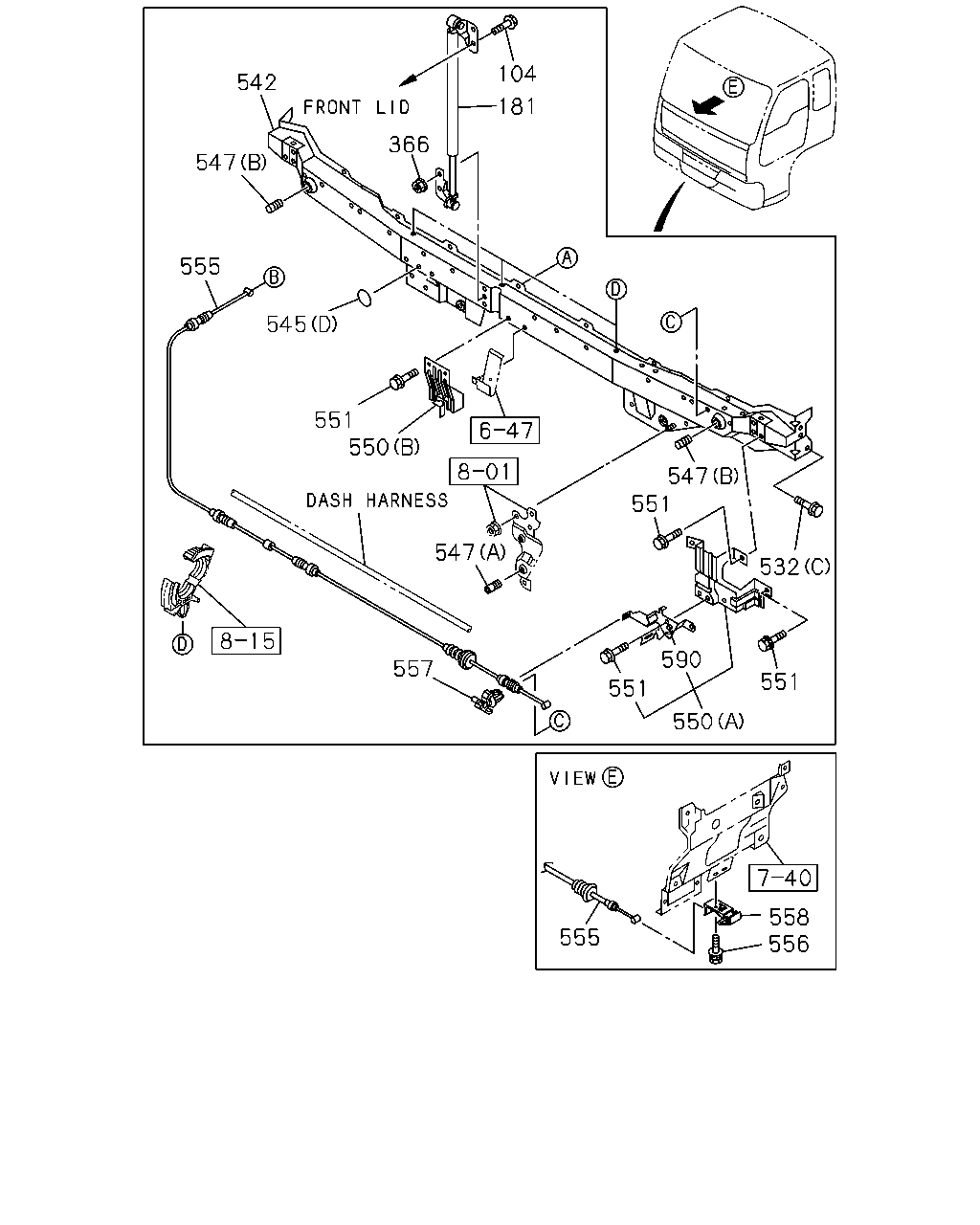

104
542
181
366
547
555
545
551
550
547
551
547
532
590
557
551
551
550
558
556
555
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
104
BOLT; SUPPORT BAR
M6X20 W/LK&PL WASHER
8-94279-203-0
02
1
0507-
181
SUPPORT ASM; DOOR CHECK,FRT
1-71107-864-0
01
1
0507-
366
NUT; SUPPORT
M8 CUTTING NUT W/FLANGE
1-09985-340-0
02
1
0507-
532
BOLT; FRT PANEL
(B) M8X20
1-79198-002-0
02
1
0507-
532
BOLT; FRT PANEL
(A) M6X12 W/LK&PL WASHER
8-94279-200-0
02
1
0507-
532
BOLT; FRT PANEL
(C) M8X29.5 W/LK+PL WASHER
8-94279-209-0
08
1
0507-
542
RAIL; FRT MOUNTING
6WG1 TC-C(72L),6WG1 TC-S(97L)
1-61470-723-1
01
1
0512-
542
RAIL; FRT MOUNTING
1-61470-721-1
01
1
0507-0511
542
RAIL; FRT MOUNTING
6WF1 TC-C(1B8)
1-61470-721-1
01
1
0512-
545
SEAL; FRT LID
(A)
1-71907-472-0
02
1
0507-
545
SEAL; FRT LID
(B) L=2038
1-71907-481-1
01
1
0507-
545
SEAL; FRT LID
(C)
1-71907-578-0
02
1
0507-
545
SEAL; FRT LID
(D) OD=25 BLACK
1-76798-019-0
01
1
0507-
547
RUBBER; CUSHION
(A) OD=22 L=39
1-71907-419-0
02
1
0507-
547
RUBBER; CUSHION
(C) L=1825
1-71907-581-1
01
1
0507-
547
RUBBER; CUSHION
(B) OD=22 L=29
8-94324-556-2
02
1
0507-
550
LOCK ASM; FRT LID
(A)
1-79317-011-1
01
1
0507-
550
LOCK ASM; FRT LID
(A)
1-79317-012-1
01
1
0507-
550
LOCK ASM; FRT LID
(B)
1-79317-013-1
01
1
0507-
551
BOLT; LOCK
M8X20.5 W/LK&PL WASHER
8-94279-207-0
10
1
0507-
555
CABLE; FRT LID
L=2512
1-79347-007-3
01
1
0507-
556
BOLT; CABLE
M6X12 W/LK&PL WASHER
8-94279-200-0
01
1
0507-
557
CLIP; CABLE
ID=4.8
8-94128-483-0
01
1
0507-
558
LEVER; FRT LID
1-79338-007-1
01
1
0507-
590
LOCK; FRT LID
1-79318-009-4
01
1
0507-
590
LOCK; FRT LID
1-79318-010-2
01
1
0507-

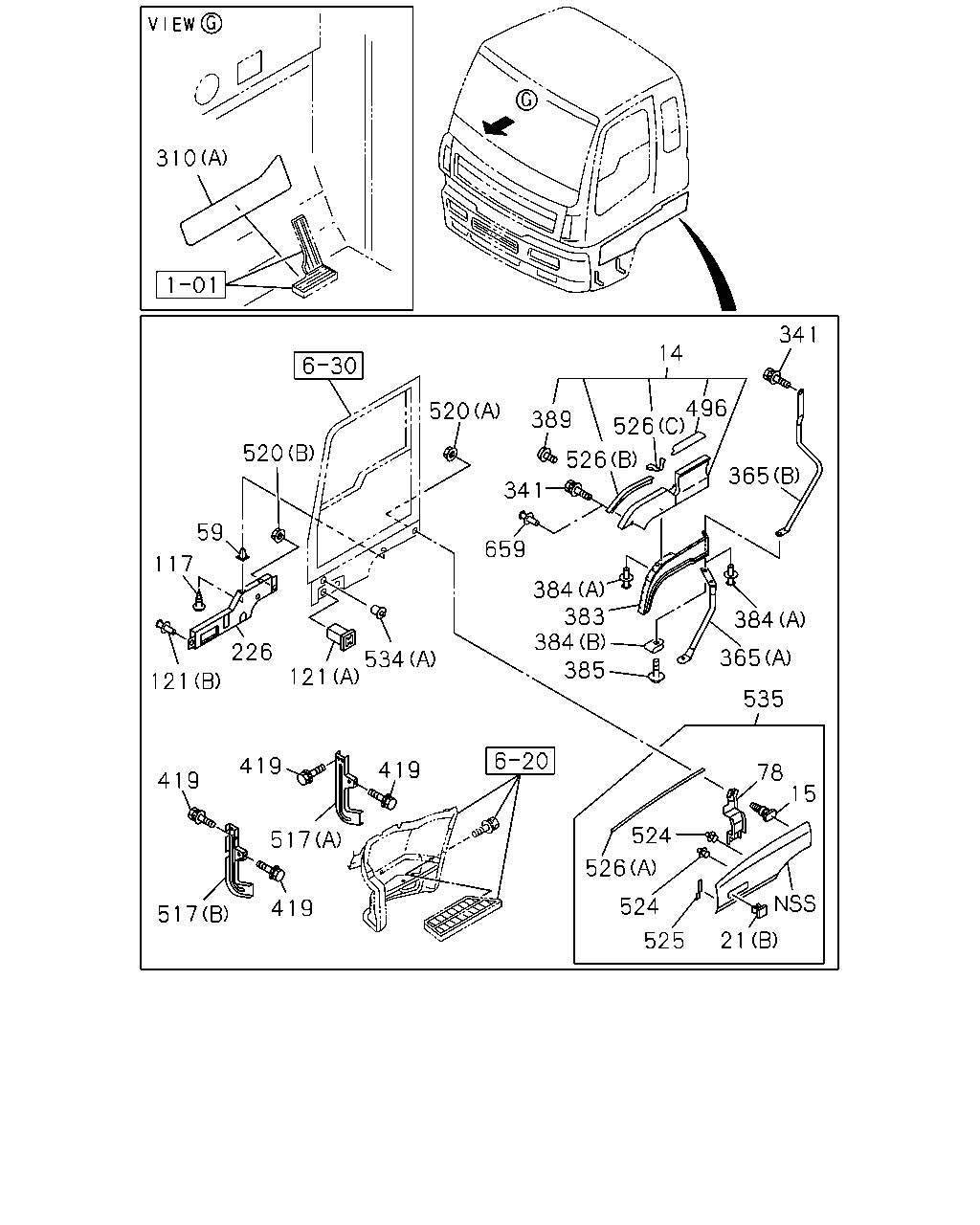

310
341
14
496
526
520
389
520
526
365
341
59
659
117
384
383
384
385
384
226
365
534
121
121
535
419
419
78
15
419
524
517
526
524
419
517
21
525
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
14
FENDER; FRT
1-65472-874-9
01
1
0507-0901
14
FENDER; FRT
8-98137-383-0
01
1
0902-0910
14
FENDER; FRT
8-98154-744-1
01
1
0911-
14
FENDER; FRT
1-65472-875-9
01
1
0507-0901
14
FENDER; FRT
8-98137-384-0
01
1
0902-0910
14
FENDER; FRT
8-98154-745-1
01
1
0911-
15
BOLT; FENDER
M6X7
1-71268-294-0
04
1
0507-
21
GROMMET; SCREW,FRT SIDE PANEL
(A) D=10.5X7 L=10.5 M5
1-09983-160-3
14
1
0507-
21
GROMMET; SCREW,FRT SIDE PANEL
(B) D=8.6X7.7 L=7.5
8-94279-078-0
02
1
0507-
59
GROMMET; SCREW
D=7.8X7.8 L=18 NATURAL
8-94279-043-0
10
1
0507-
78
BRACKET; FENDER
1-71267-214-0
01
1
0507-
78
BRACKET; FENDER
1-71267-215-0
01
1
0507-
117
SCREW; COVER
M5X16 W/PL WASHER TAPPING
8-94279-123-0
10
1
0507-
121
GROMMET; FENDER
(B) D8X13.5
1-09987-248-1
08
1
0507-
121
GROMMET; FENDER
(A) D=7.8X7.8 L=18 NATURAL
8-94279-043-0
02
1
0507-
226
PROTECTOR; FRT
1-71267-268-1
01
1
0507-
226
PROTECTOR; FRT
1-71267-269-1
01
1
0507-
310
SILENCER; FRT PANEL
(A)
1-72377-007-1
01
1
0507-
310
SILENCER; FRT PANEL
(B)
1-72377-008-1
01
1
0507-
341
BOLT; FENDER TO COWL
M6X16 W/LK&PL WASHER
1-09980-492-0
16
1
0507-0810
341
BOLT; FENDER TO COWL
M6X20 W/LK&PL WASHER
1-09980-495-0
16
1
0811-0910
341
BOLT; FENDER TO COWL
M6X20 W/LK&PL WASHER
1-09980-495-0
14
1
0911-
365
SUPPORT; FENDER
(A)
1-71907-417-1
01
1
0507-0810
365
SUPPORT; FENDER
(B)
8-98120-231-0
01
1
0811-
365
SUPPORT; FENDER
(A)
1-71907-418-1
01
1
0507-0810
365
SUPPORT; FENDER
(B)
8-98120-232-0
01
1
0811-
383
GUARD; MUD,FENDER LWR
1-71907-456-2
01
1
0507-
383
GUARD; MUD,FENDER LWR
1-71907-457-2
01
1
0507-
384
CLIP; FENDER LWR
(A) D8X13.5
1-09987-248-1
07
1
0507-0711
384
CLIP; FENDER LWR
(A) D8X13.5
1-09987-248-1
09
1
0712-0810
384
CLIP; FENDER LWR
(A) D8X13.5
1-09987-248-1
13
1
0811-
384
CLIP; FENDER LWR
(B) ID=6
1-09987-266-0
04
1
0507-0810
385
SCREW; FENDER LWR
M6X25
1-65481-736-0
04
1
0507-0810
389
SCREW; STAND,FENDER
M6X22
1-65481-386-0
06
1
0507-
419
BOLT; STEP
M8X24.5 W/LK&PL WASHER
8-94279-208-0
10
1
0507-0904
419
BOLT; STEP
M8X24.5 W/LK&PL WASHER
8-98059-720-0
10
1
0905-
496
RUBBER; STEP
1-71998-861-2
01
1
0507-
496
RUBBER; STEP
1-71998-862-2
01
1
0507-
517
SUPPORT; STEP PANEL
(A)
1-65671-530-1
01
1
0507-
517
SUPPORT; STEP PANEL
(A)
1-65671-531-1
01
1
0507-
517
SUPPORT; STEP PANEL
(B)
1-65671-766-1
01
1
0507-
517
SUPPORT; STEP PANEL
(B)
1-65671-774-0
01
1
0507-
520
NUT; FENDER
(A) M6 FLANGE W/RUBBER
1-09984-180-0
02
1
0507-
520
NUT; FENDER
(B) M6
8-94343-366-1
02
1
0507-
524
CLIP; FENDER COVER
D5.4X8
1-09983-154-0
08
1
0507-
525
SEAL; FENDER
10X145
1-71267-342-0
02
1
0507-
526
FINISHER; FENDER
(A)
1-71268-275-1
02
1
0507-
526
FINISHER; FENDER
(B)
1-71907-641-0
02
1
0507-
526
FINISHER; FENDER
(C)
1-71907-642-0
01
1
0507-
526
FINISHER; FENDER
(C)
1-71907-643-0
01
1
0507-
534
FASTENER
(A) ID=5.4 OD=6.8
1-09989-021-0
08
1
0507-1302
534
FASTENER
(A) ID=5.4 OD=6.8
8-98241-984-0
08
1
1303-
534
FASTENER
(B) D6X12.5
8-94146-425-0
02
1
0507-
535
FENDER; BLISTER
1-71267-293-1
01
1
0507-
535
FENDER; BLISTER
1-71267-294-1
01
1
0507-
659
CLIP; FENDER
D8X13.5
1-09987-248-1
02
1
0911-

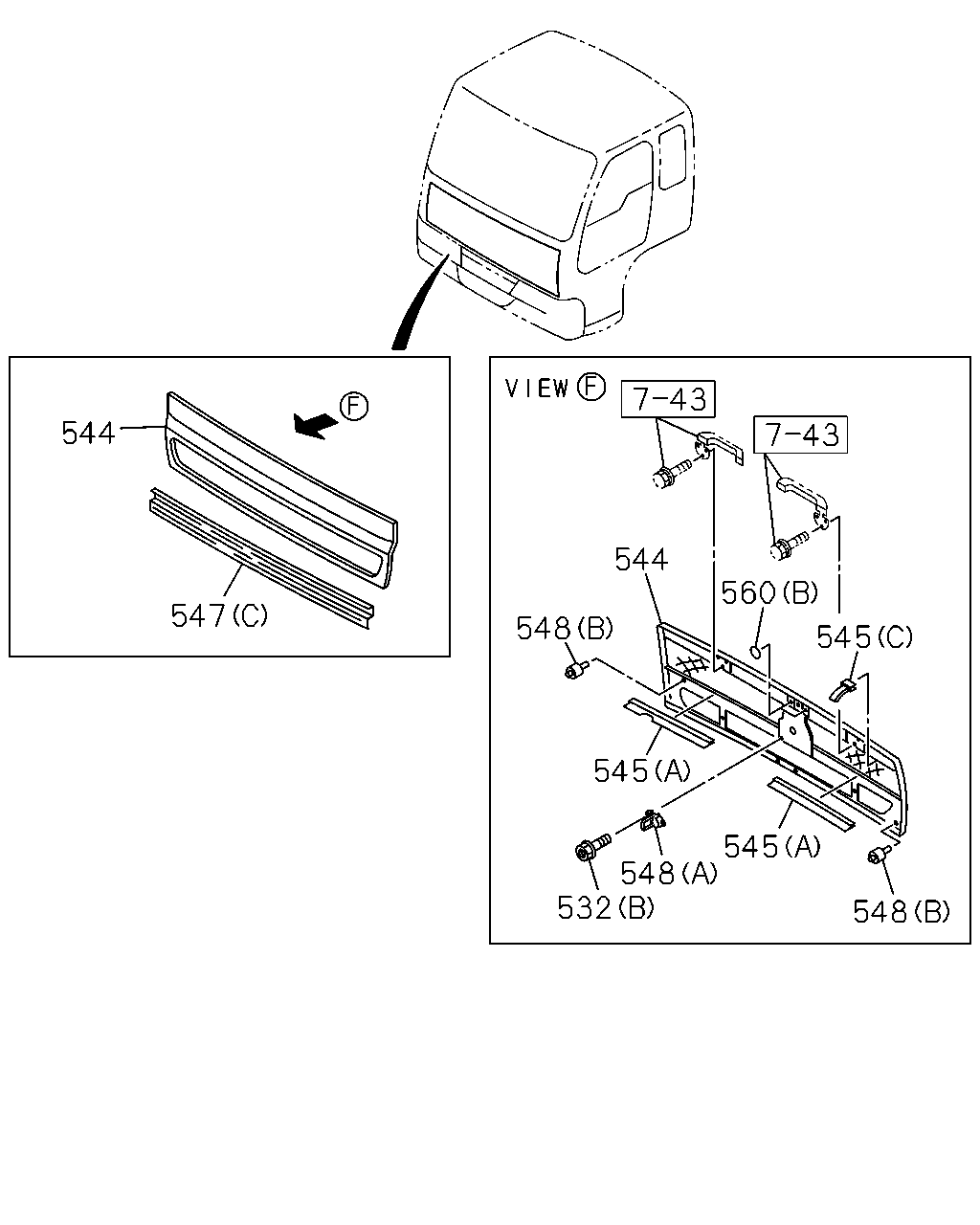

544
544
560
547
548
545
545
545
548
532
548
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
532
BOLT; FRT PANEL
(B) M8X20
1-79198-002-0
02
1
0507-
532
BOLT; FRT PANEL
(A) M6X12 W/LK&PL WASHER
8-94279-200-0
02
1
0507-
532
BOLT; FRT PANEL
(C) M8X29.5 W/LK+PL WASHER
8-94279-209-0
08
1
0507-
544
LID; FRT
WHITE
1-71107-367-2
01
1
0507-
545
SEAL; FRT LID
(A)
1-71907-472-0
02
1
0507-
545
SEAL; FRT LID
(B) L=2038
1-71907-481-1
01
1
0507-
545
SEAL; FRT LID
(C)
1-71907-578-0
02
1
0507-
545
SEAL; FRT LID
(D) OD=25 BLACK
1-76798-019-0
01
1
0507-
547
RUBBER; CUSHION
(A) OD=22 L=39
1-71907-419-0
02
1
0507-
547
RUBBER; CUSHION
(C) L=1825
1-71907-581-1
01
1
0507-
547
RUBBER; CUSHION
(B) OD=22 L=29
8-94324-556-2
02
1
0507-
548
STRIKER; FRT LID PANEL
(A)
1-79317-003-1
01
1
0507-
548
STRIKER; FRT LID PANEL
(B)
1-79318-008-1
02
1
0507-
560
SEAL; COVER
(A)
1-71998-827-1
01
1
0507-
560
SEAL; COVER
(B) OD=36 T=0.05 BLACK
5-76777-035-0
02
1
0507-1105
560
SEAL; COVER
(B) OD=20 T=0.05 BLACK
5-76777-036-0
02
1
0507-1105

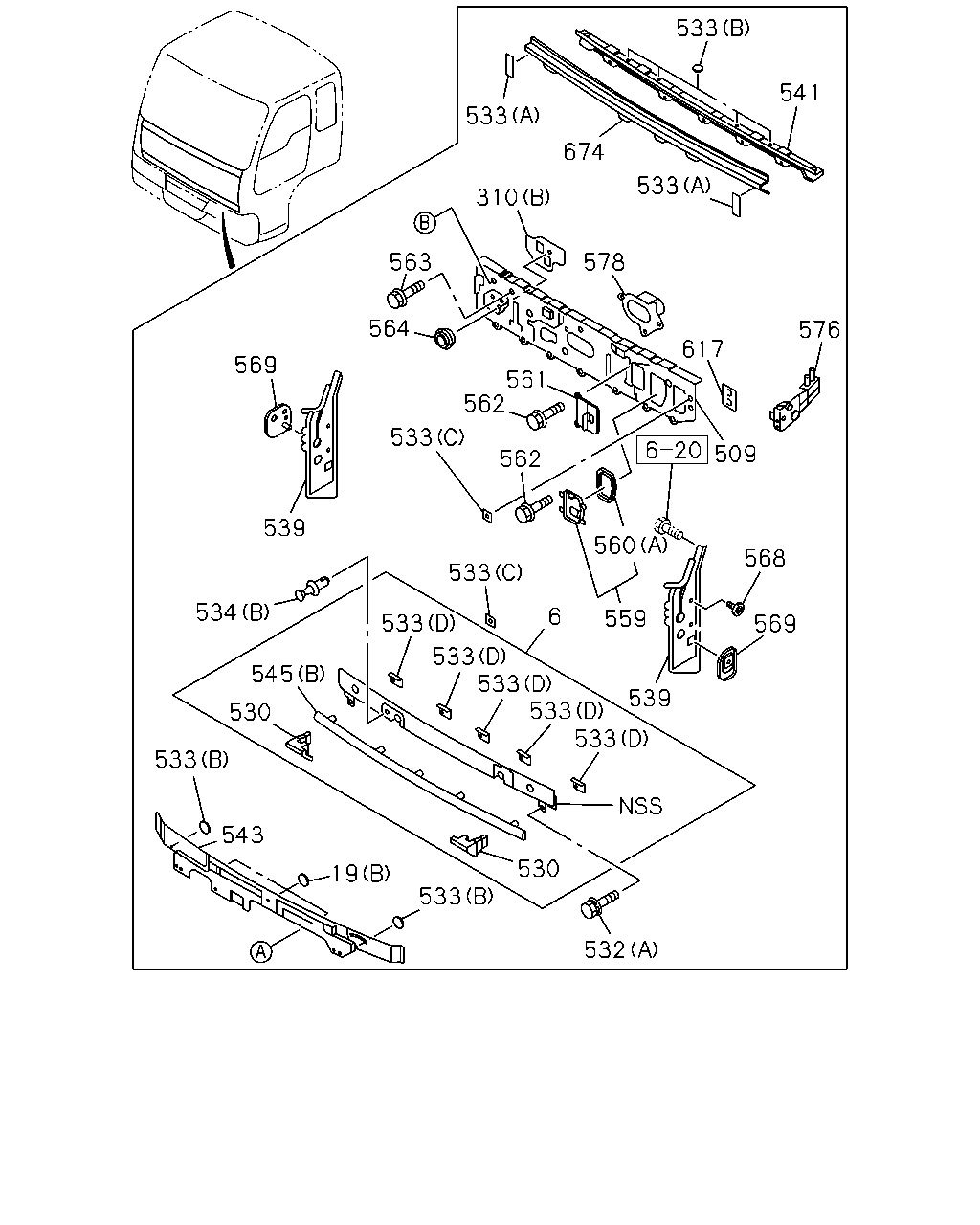

533
541
533
674
533
310
563
578
564
576
617
569
561
562
533
509
562
539
560
568
533
534
6
559
533
569
533
533
533
533
545
539
530
533
543
530
19
533
532
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
PANEL; FRONT
1-65472-549-4
01
1
0507-
19
SEAL; FRT SIDE PANEL
(C)
1-71907-410-0
01
1
0507-
19
SEAL; FRT SIDE PANEL
(C)
1-71907-411-0
01
1
0507-
19
SEAL; FRT SIDE PANEL
(A)
1-71907-579-1
01
1
0507-1111
19
SEAL; FRT SIDE PANEL
(A)
8-98208-433-0
01
1
1112-
19
SEAL; FRT SIDE PANEL
(A)
1-71907-580-1
01
1
0507-1111
19
SEAL; FRT SIDE PANEL
(A)
8-98208-434-0
01
1
1112-
19
SEAL; FRT SIDE PANEL
(B) OD=45 BLACK
1-76798-017-0
03
1
0507-
310
SILENCER; FRT PANEL
(A)
1-72377-007-1
01
1
0507-
310
SILENCER; FRT PANEL
(B)
1-72377-008-1
01
1
0507-
509
PANEL; DASH
1-62270-478-6
01
1
0507-
530
STOPPER; FRT PANEL,SIDE
1-71907-482-1
01
1
0507-
530
STOPPER; FRT PANEL,SIDE
1-71907-487-0
01
1
0507-
532
BOLT; FRT PANEL
(B) M8X20
1-79198-002-0
02
1
0507-
532
BOLT; FRT PANEL
(A) M6X12 W/LK&PL WASHER
8-94279-200-0
02
1
0507-
532
BOLT; FRT PANEL
(C) M8X29.5 W/LK+PL WASHER
8-94279-209-0
08
1
0507-
533
SEAL; FRT PANEL
(D) L=30
1-71996-079-2
07
1
0507-
533
SEAL; FRT PANEL
(A) 20X65
1-76778-046-3
02
1
0507-
533
SEAL; FRT PANEL
(B) OD=36 T=0.05 BLACK
5-76777-035-0
12
1
0507-
533
SEAL; FRT PANEL
(C) 25X25
8-94272-533-0
02
1
0507-
534
FASTENER
(A) ID=5.4 OD=6.8
1-09989-021-0
08
1
0507-1302
534
FASTENER
(A) ID=5.4 OD=6.8
8-98241-984-0
08
1
1303-
534
FASTENER
(B) D6X12.5
8-94146-425-0
02
1
0507-
539
CLOSING; PILLAR
1-61480-673-6
01
1
0507-
539
CLOSING; PILLAR
1-61480-674-6
01
1
0507-
541
PANEL; FRONT,INNER
1-61470-690-0
01
1
0507-
543
CLOSING; FRT MTG RAIL
1-61470-727-0
01
1
0507-
545
SEAL; FRT LID
(A)
1-71907-472-0
02
1
0507-
545
SEAL; FRT LID
(B) L=2038
1-71907-481-1
01
1
0507-
545
SEAL; FRT LID
(C)
1-71907-578-0
02
1
0507-
545
SEAL; FRT LID
(D) OD=25 BLACK
1-76798-019-0
01
1
0507-
559
COVER; EVAPOLATOR
1-71996-194-1
01
1
0507-
560
SEAL; COVER
(A)
1-71998-827-1
01
1
0507-
560
SEAL; COVER
(B) OD=36 T=0.05 BLACK
5-76777-035-0
02
1
0507-1105
560
SEAL; COVER
(B) OD=20 T=0.05 BLACK
5-76777-036-0
02
1
0507-1105
561
COVER; HEATER CORE
1-71998-829-1
01
1
0507-
562
BOLT; COVER
M6X19.5 W/LK&PL WASHER
8-94279-201-0
08
1
0507-
563
BOLT; DASH PANEL
M8X20
1-79198-002-0
16
1
0507-
563
BOLT; DASH PANEL
M8X29.5 W/LK+PL WASHER
8-94279-209-0
02
1
0507-
564
GROMMET; DASH PANEL
OD=23.5
1-09983-101-0
02
1
0507-
568
PATCH; INST REINF
1-61480-675-2
02
1
0507-
569
PATCH; LWR GRIP
1-61480-689-2
01
1
0507-
569
PATCH; LWR GRIP
1-61480-736-2
01
1
0507-
576
FRAME; INST SIDE
1-62280-176-6
01
1
0507-
576
FRAME; INST SIDE
1-62280-177-7
01
1
0507-
578
COVER; WIPER MOTOR
1-62280-254-1
01
1
0507-
617
SEAL; DASH
1-61281-497-1
02
1
0507-
674
PANEL; UPR
1-61470-688-2
01
1
0507-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
