◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYJ ▶ 11006 - CYJ NEW ZEALAND ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-01 - FRONT BUMPER ▶
6-01 — FRONT BUMPER (#31198) — 69 parça

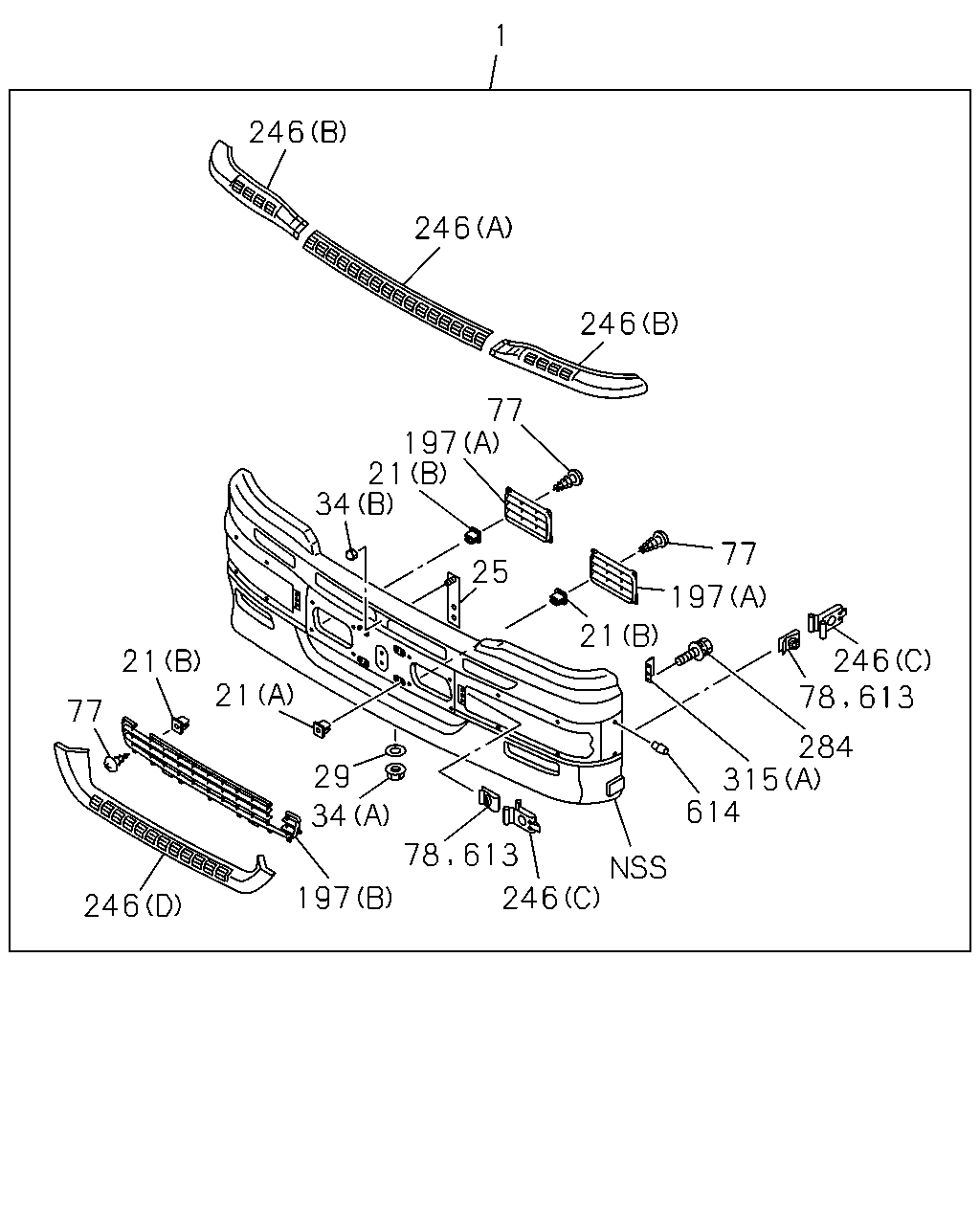

çizim 88917
1 246 246 246 77 197 21 34 77 25 197 1 246 21 21 77 284 315 614 29 34 246 197 246 78 613 78 613
BalonParca AdiParca NoAdetTipApplied Date
1 BUMPER ASM; FRT
WHITE 		1-71211-419-2 01 1 0507-
21 GROMMET; SCREW,BUMPER PROTECTOR
(B) D=9X9 L=7 M5 		8-94163-979-0 22 1 0507-
21 GROMMET; SCREW,BUMPER PROTECTOR
(A) D=9.7X9.7 L=8 		8-94222-314-0 04 1 0507-
25 SPACER; PLATFORM 1-71230-640-0 01 1 0507-
29 WASHER; FRT BUMPER
ID=8.4 OD=22 		9-09160-708-0 17 1 0507-0605
29 WASHER; FRT BUMPER
ID=8.4 OD=22 		0-91610-708-0 17 1 0606-
34 NUT; BRKT,BUMPER
(A) M8 FLANGE 		0-91150-108-0 17 1 0507-0602
34 NUT; BRKT,BUMPER
(C) M8 FLANGE 		0-91180-108-0 03 1 0603-
34 NUT; BRKT,BUMPER
(B) M10 CAP NUT 		1-09650-480-0 01 1 0507-
34 NUT; BRKT,BUMPER
(C) M8 FLANGE 		0-91150-108-0 03 1 0507-0602
34 NUT; BRKT,BUMPER
(A) M8 FLANGE 		0-91180-108-0 17 1 0603-
77 SCREW; BRKT
M5X16 TAPPING 		9-07076-516-0 22 1 0507-0603
77 SCREW; BRKT
M5X16 TAPPING 		0-71240-516-0 22 1 0604-
78 NUT; SPIRE 1-71260-174-0 06 1 0507-0610
197 GRILLE; BUMPER
(A) 		1-71260-115-1 01 1 0507-
197 GRILLE; BUMPER
(A) 		1-71260-116-1 01 1 0507-
197 GRILLE; BUMPER
(B) 		1-71260-210-1 01 1 0507-0610
197 GRILLE; BUMPER
(B) 		8-97617-998-0 01 1 0611-
246 PROTECTOR; BUMPER
(B) 		1-71260-094-2 01 1 0507-
246 PROTECTOR; BUMPER
(B) 		1-71260-095-2 01 1 0507-
246 PROTECTOR; BUMPER
(A) 		1-71260-155-1 01 1 0507-
246 PROTECTOR; BUMPER
(D) 		1-71260-156-1 01 1 0507-
246 PROTECTOR; BUMPER
(C) 		1-71260-162-0 06 1 0507-
284 BOLT; BRKT
M8X25 W/LK&PL WASHER 		0-50140-825-0 04 1 0507-0512
284 BOLT; BRKT
M8X25 W/LK&PL WASHER 		0-50640-825-0 04 1 0601-
315 STAY; BUMPER
(A) 		1-71230-346-2 01 1 0507-
315 STAY; BUMPER
(A) 		1-71230-347-2 01 1 0507-
315 STAY; BUMPER
(C) 		1-71230-435-0 01 1 0507-
315 STAY; BUMPER
(B) 		1-71230-444-0 01 1 0507-
315 STAY; BUMPER
(C) 		1-71230-447-0 01 1 0507-
315 STAY; BUMPER
(B) 		8-97608-941-0 01 1 0507-
613 CLIP 1-71260-174-0 06 1 0611-
614 STOPPER; LID 1-71260-163-0 12 1 0507-

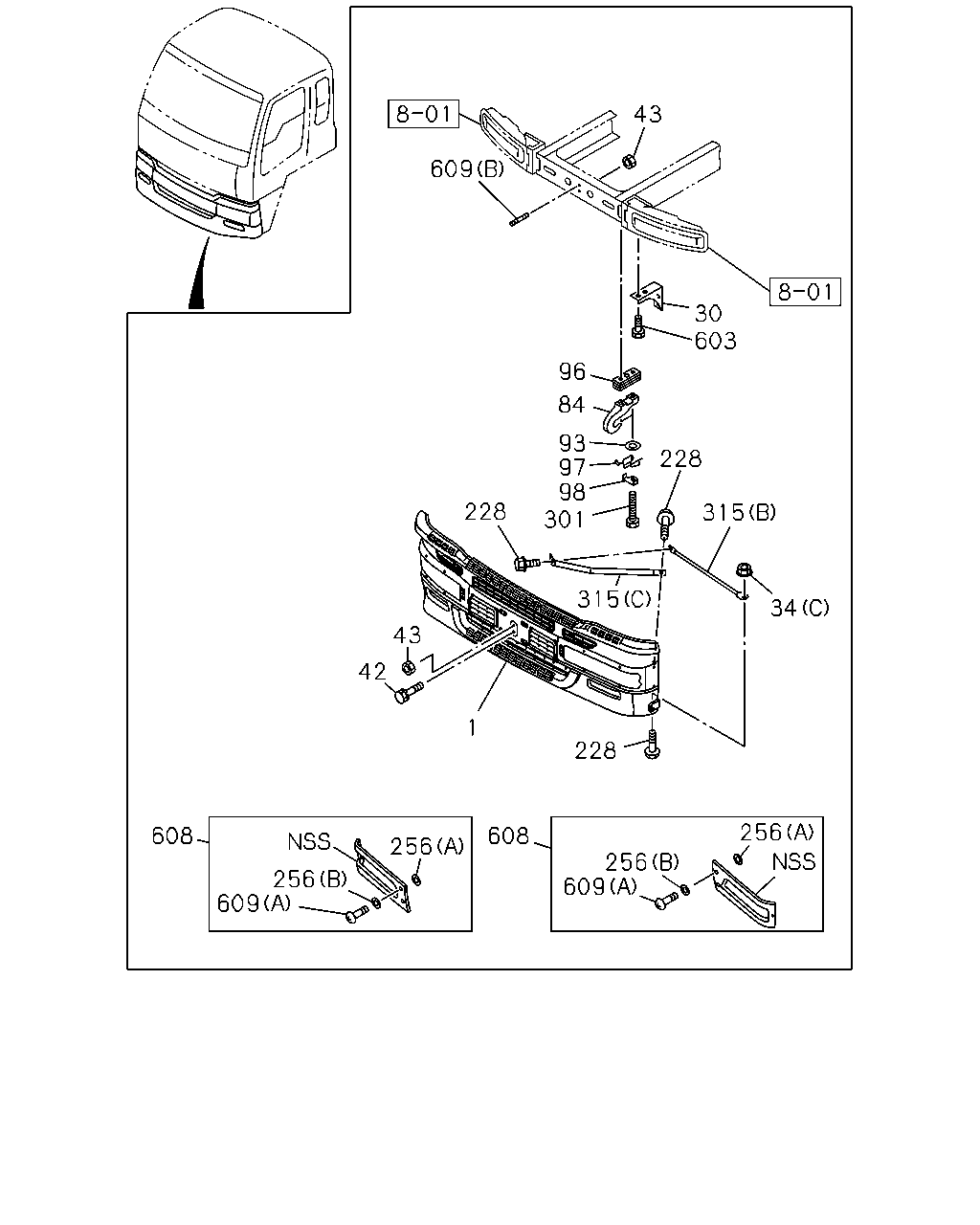

çizim 88920
43 609 30 603 96 84 93 97 98 301 228 228 315 315 34 43 42 1 228 256 608 608 256 256 609 256 609
BalonParca AdiParca NoAdetTipApplied Date
1 BUMPER ASM; FRT
WHITE 		1-71211-419-2 01 1 0507-
30 BRACKET; FRT BUMPER 1-71230-428-0 01 1 0507-
30 BRACKET; FRT BUMPER 1-71230-429-0 01 1 0507-
34 NUT; BRKT,BUMPER
(A) M8 FLANGE 		0-91150-108-0 17 1 0507-0602
34 NUT; BRKT,BUMPER
(C) M8 FLANGE 		0-91180-108-0 03 1 0603-
34 NUT; BRKT,BUMPER
(B) M10 CAP NUT 		1-09650-480-0 01 1 0507-
34 NUT; BRKT,BUMPER
(C) M8 FLANGE 		0-91150-108-0 03 1 0507-0602
34 NUT; BRKT,BUMPER
(A) M8 FLANGE 		0-91180-108-0 17 1 0603-
42 BOLT; BUMPER
M10X30 W/LK&PL WASHER 		8-94279-213-0 09 1 0507-
43 NUT; BRKT TO BUMPER
M10 FLANGE 		0-91150-210-0 01 1 0507-0602
43 NUT; BRKT TO BUMPER
M10 FLANGE 		0-91180-210-0 01 1 0603-
84 HOOK 1-57181-027-1 01 1 0507-
93 WASHER; LK,HOOK
ID=16.2 		9-09150-516-0 02 1 0507-0603
93 WASHER; LK,HOOK
ID=16.2 		0-91510-516-0 02 1 0604-
96 PLATE; DIST,HOOK 1-53497-473-0 01 1 0507-
97 SPRING; FRT HOOK 9-53519-003-0 01 1 0507-
98 STOPPER; SPR,FRT HOOK 9-53519-006-0 01 1 0507-
228 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 06 1 0507-0512
228 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 06 1 0601-
256 WASHER; PL
(A) 		1-71260-173-0 06 1 0507-
256 WASHER; PL
(B) ID=6.5 OD=14 T=1.2 NYLON 		5-09985-028-0 06 1 0507-
301 BOLT; HOOK TO FRAME
M16X90 		0-10811-690-0 01 1 0507-0512
301 BOLT; HOOK TO FRAME
M16X90 		0-10861-690-0 01 1 0601-
301 BOLT; HOOK TO FRAME
M16X95 		0-10811-695-0 01 1 0507-
315 STAY; BUMPER
(A) 		1-71230-346-2 01 1 0507-
315 STAY; BUMPER
(A) 		1-71230-347-2 01 1 0507-
315 STAY; BUMPER
(C) 		1-71230-435-0 01 1 0507-
315 STAY; BUMPER
(B) 		1-71230-444-0 01 1 0507-
315 STAY; BUMPER
(C) 		1-71230-447-0 01 1 0507-
315 STAY; BUMPER
(B) 		8-97608-941-0 01 1 0507-
603 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 04 1 0507-0512
603 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 04 1 0601-
608 LID; BUMPER 1-71210-752-6 01 1 0507-
608 LID; BUMPER 1-71210-753-6 01 1 0507-
609 STUD; BUMPER
(A) 		1-71260-175-0 06 1 0507-
609 STUD; BUMPER
(B) M10X28,M10X15 L=50 		5-09300-050-0 01 1 0507-
