Isuzu WW
▶
TRUCKS
▶
CYJ
▶
11006 - CYJ NEW ZEALAND
▶
5 - Frame, Cab Mounting
▶
5-30 - SPARE TIRE CARRIER AND COVER
▶

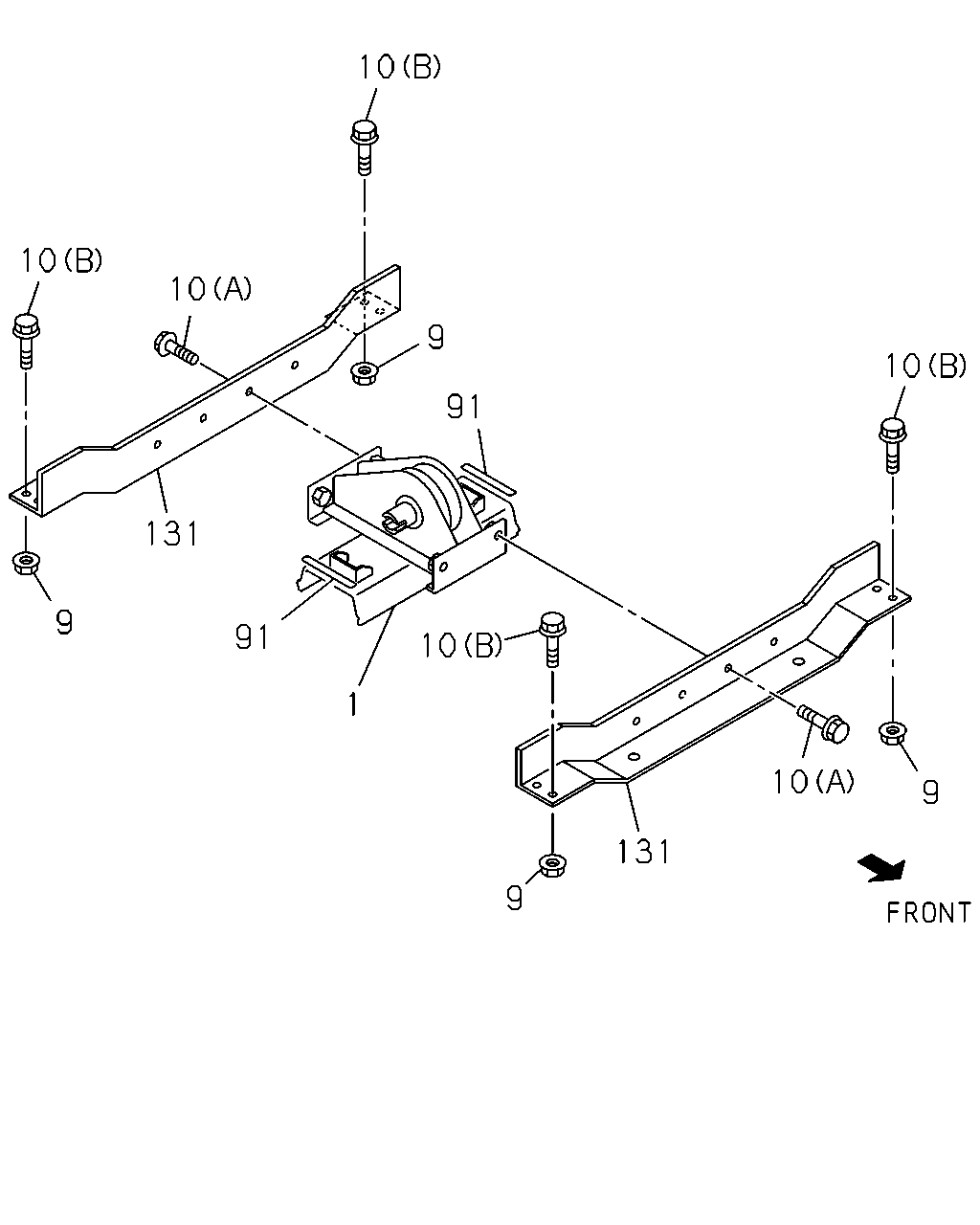

5-30 — SPARE TIRE CARRIER AND COVER
(#31197) — 10 parça
10
10
10
9
10
91
131
9
91
10
1
10
9
131
9
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HANGER ASM; TIRE FT
SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8>
1-53630-210-4
01
1
0507-
9
NUT; BRKT TO FRAME
SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> M10 FLANGE
0-91150-210-0
08
1
0507-0602
9
NUT; BRKT TO FRAME
SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> M10 FLANGE
0-91180-210-0
08
1
0603-
10
BOLT; TIRE HANGER
SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> (B) M10X40 FLANGE
0-28081-040-0
08
1
0507-0512
10
BOLT; TIRE HANGER
SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> (B) M10X40 FLANGE
0-28051-040-0
08
1
0601-
10
BOLT; TIRE HANGER
SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> (A) M12X40 FLANGE
0-28681-240-0
04
1
0507-0512
10
BOLT; TIRE HANGER
SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> (A) M12X40 FLANGE
0-28651-240-0
04
1
0601-
91
PAD; TIRE CARRIER
DISC WHEEL AL<SDM> SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8>
1-53639-042-0
02
1
0507-
131
CROSSMEMBER; SPARE TIRE
DISC WHEEL AL<SDM> SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8>
1-53631-455-0
02
1
0507-
131
CROSSMEMBER; SPARE TIRE
SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> EXC. DISC WHEEL AL<SDM>
1-53631-395-1
02
1
0507-
