Isuzu WW
▶
TRUCKS
▶
CYJ
▶
11006 - CYJ NEW ZEALAND
▶
5 - Frame, Cab Mounting
▶
5-20 - BATTERY CARRIER
▶

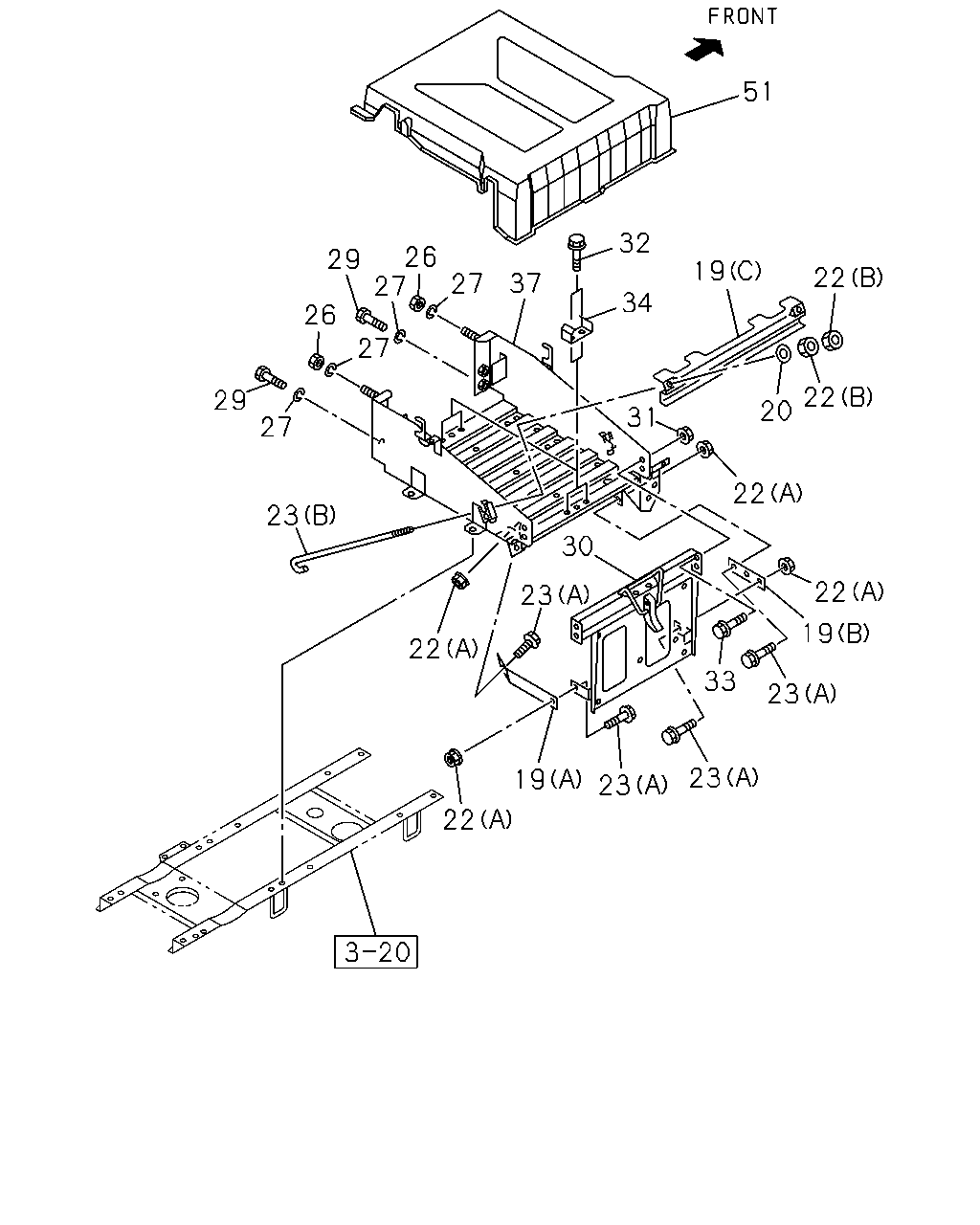

5-20 — BATTERY CARRIER
(#31196) — 28 parça
51
32
26
27
29
19
22
37
27
34
26
27
22
20
29
31
27
22
23
30
22
23
33
19
22
23
23
19
23
22
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
19
STAY; BATTERY
(B) FRONT
1-47479-118-0
01
1
0507-
19
STAY; BATTERY
(A) REAR
1-47479-874-0
01
1
0507-
19
STAY; BATTERY
(C)
1-53618-039-2
01
1
0507-
20
WASHER; PL,STAY
ID=8.4 OD=22
9-09164-708-0
02
1
0507-0605
20
WASHER; PL,STAY
ID=8.4 OD=22
0-91614-708-0
02
1
0606-
22
NUT; STAY
(A) M8 FLANGE
0-91150-108-0
04
1
0507-0602
22
NUT; STAY
(A) M8 FLANGE
0-91180-108-0
04
1
0603-0702
22
NUT; STAY
(A) M8 FLANGE
0-91180-108-0
02
1
0703-
22
NUT; STAY
(B) M8
9-09110-408-0
04
1
0507-0512
22
NUT; STAY
(B) M8
0-91110-508-0
04
1
0601-
23
BOLT; STAY
(A) M8X20 FLANGE
0-28680-820-0
04
1
0507-0512
23
BOLT; STAY
(A) M8X20 FLANGE
0-28650-820-0
04
1
0601-
23
BOLT; STAY
(B) L=250
1-53616-108-0
02
1
0507-
26
NUT; BRKT
M14
1-09440-072-0
02
1
0507-
27
WASHER; LK,BRKT
ID=14.2
9-09150-514-0
04
1
0507-0603
27
WASHER; LK,BRKT
ID=14.2
0-91510-514-0
04
1
0604-
29
BOLT; BRKT TO FRAME
M14X45
1-09000-764-0
02
1
0507-
30
PLATE; BATTERY
1-53619-148-1
01
1
0507-
31
NUT; PLATE
M8 FLANGE
0-91150-108-0
04
1
0507-0602
31
NUT; PLATE
M8 FLANGE
0-91180-108-0
04
1
0603-
32
BOLT; PLATE TO SPACER
BATTERY 145F51 NS150<PN1>,BATTERY 170F51 NX250-12<PN2>,BATTERY 115F51 N120<SJ3> M8X16 FLANGE
0-28080-816-0
04
1
0507-0512
32
BOLT; PLATE TO SPACER
BATTERY 145F51 NS150<PN1>,BATTERY 170F51 NX250-12<PN2>,BATTERY 115F51 N120<SJ3> M8X16 FLANGE
0-28050-816-0
04
1
0601-
33
BOLT; PLATE TO BRKT
M8X25 FLANGE
0-28680-825-0
04
1
0507-0512
33
BOLT; PLATE TO BRKT
M8X25 FLANGE
0-28650-825-0
04
1
0601-1007
33
BOLT; PLATE TO BRKT
M8X20 FLANGE
0-28650-820-0
04
1
1008-
34
SPACER; BATTERY BRKT
BATTERY 145F51 NS150<PN1>,BATTERY 170F51 NX250-12<PN2>,BATTERY 115F51 N120<SJ3>
1-53619-084-0
02
1
0507-
37
BRACKET; BATTERY
1-53610-161-3
01
1
0507-
51
COVER; BATTERY
1-53612-068-0
01
1
0507-
