Isuzu WW
▶
TRUCKS
▶
CYJ
▶
11006 - CYJ NEW ZEALAND
▶
5 - Frame, Cab Mounting
▶
5-15 - CAB MOUNTING; CAB SIDE
▶
5-15 — CAB MOUNTING; CAB SIDE
(#31193) — 86 parça
◀

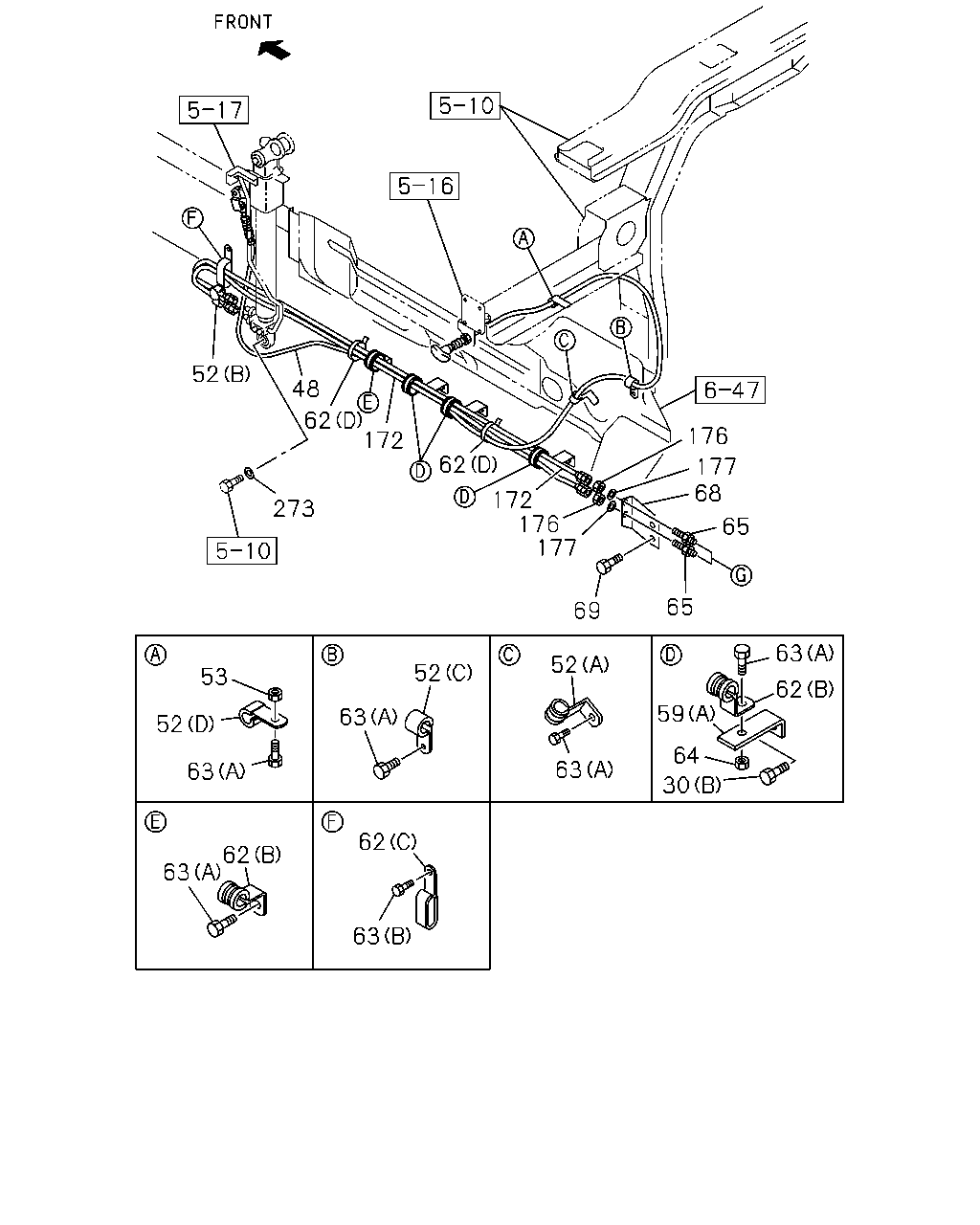

[515A] CAB TILT PIPING;FRAME SIDE (40 parça)

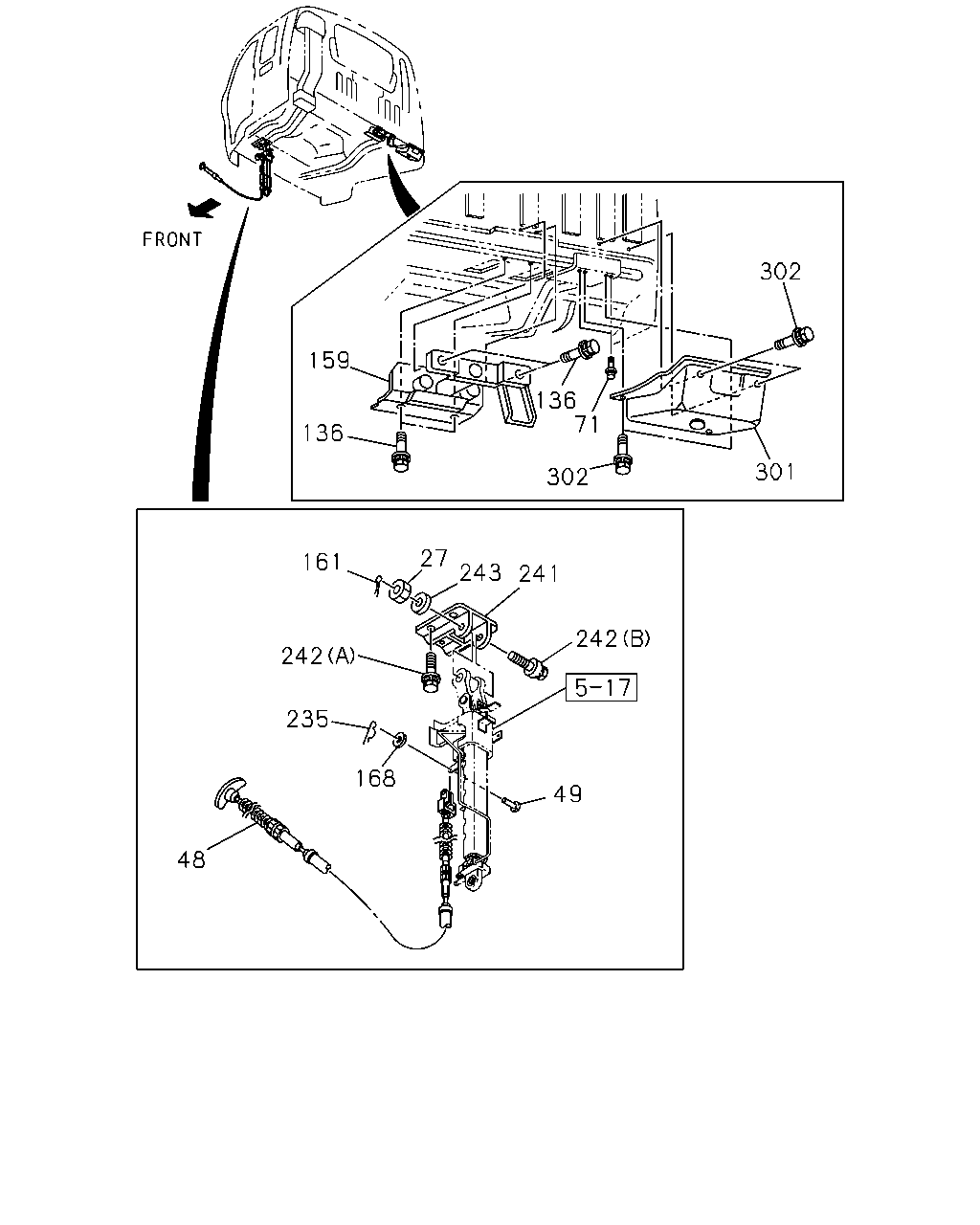

[515A] BRACKET,PIN AND OTHER PARTS (24 parça)

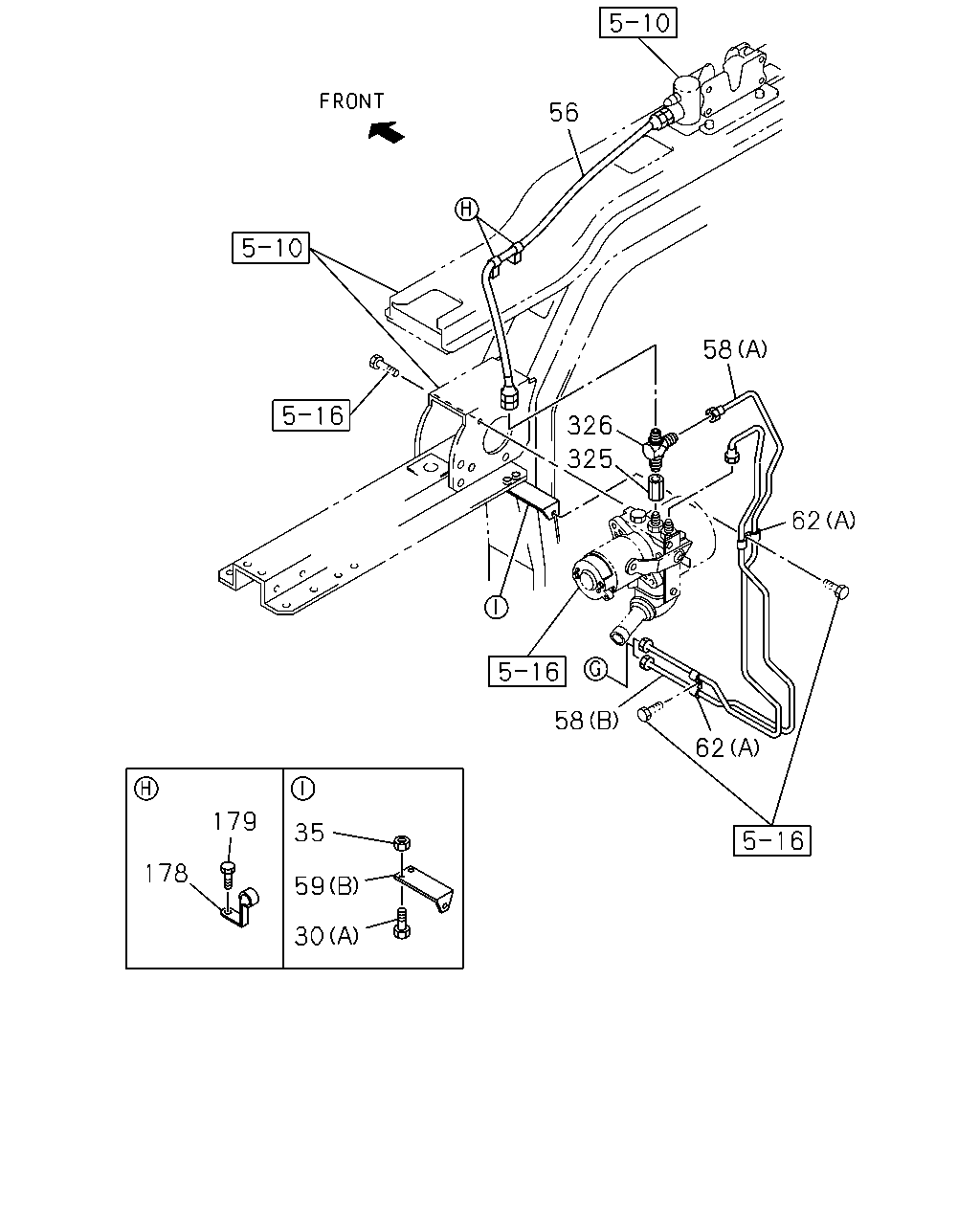

[515A] CAB TILT PIPING;CAB MTG MBR SIDE (22 parça)
▶
52
48
62
172
176
62
177
68
172
176
177
273
65
65
69
63
52
52
53
62
59
63
52
64
63
63
30
62
62
63
63
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
30
BOLT; BRKT FIX
(A) M8X20 FLANGE
0-28680-820-0
02
1
0507-0512
30
BOLT; BRKT FIX
(A) M8X20 FLANGE
0-28650-820-0
02
1
0601-
30
BOLT; BRKT FIX
(B) M8X30 FLANGE
0-28680-830-0
03
1
0507-0512
30
BOLT; BRKT FIX
(B) M8X30 FLANGE
0-28650-830-0
03
1
0601-
48
CABLE ASM; CONT
L=2457
1-62500-730-0
01
1
0507-0511
48
CABLE ASM; CONT
6WF1 TC-C(1B8) L=2457
1-62500-730-0
01
1
0512-
52
CLIP; CONT CABLE
(A) ID=6 H=20 L=20
1-09700-603-0
01
1
0507-
52
CLIP; CONT CABLE
(B) ID=6-10 & 10-14
1-09709-201-1
01
1
0507-
52
CLIP; CONT CABLE
(C) ID=7 L=20
9-09524-635-0
01
1
0507-0606
52
CLIP; CONT CABLE
(C) ID=7 L=20
0-95234-635-0
01
1
0607-
52
CLIP; CONT CABLE
(D) ID=7 L=50
9-09524-685-0
01
1
0507-0606
52
CLIP; CONT CABLE
(D) ID=7 L=50
0-95234-685-0
01
1
0607-
53
NUT; CLIP
M8 FLANGE
0-91150-108-0
01
1
0507-0602
53
NUT; CLIP
M8 FLANGE
0-91180-108-0
01
1
0603-
59
BRACKET; CLIP
(A) L=55
1-47475-304-0
03
1
0507-
59
BRACKET; CLIP
(B)
1-47477-317-0
01
1
0507-
62
CLIP; OIL PIPE
(A) ID=7 & 7 L=17.5 & 17.5
1-09700-745-0
02
1
0507-
62
CLIP; OIL PIPE
(B) ID=21 L=30 H=40
1-09700-991-1
04
1
0507-
62
CLIP; OIL PIPE
(D) L=140
5-09707-031-1
02
1
0507-0511
62
CLIP; OIL PIPE
6WF1 TC-C(1B8) (D) L=140
5-09707-031-1
02
1
0512-
62
CLIP; OIL PIPE
(C) ID=9X2 L=16
9-09534-825-0
01
1
0507-0606
62
CLIP; OIL PIPE
(C) ID=9X2 L=16
0-95324-825-0
01
1
0607-
63
BOLT; CLIP
(A) M8X20 FLANGE
0-28680-820-0
07
1
0507-0512
63
BOLT; CLIP
(A) M8X20 FLANGE
0-28650-820-0
07
1
0601-
63
BOLT; CLIP
(B) M8X30 FLANGE
0-28680-830-0
01
1
0507-0512
63
BOLT; CLIP
(B) M8X30 FLANGE
0-28650-830-0
01
1
0601-
64
NUT; CLIP
M8 FLANGE
0-91150-108-0
03
1
0507-0602
64
NUT; CLIP
M8 FLANGE
0-91180-108-0
03
1
0603-
65
UNION; OIL PIPE
M12 L=66.5
9-09223-306-1
02
1
0507-0607
65
UNION; OIL PIPE
M12 L=66.5
0-92113-306-0
02
1
0608-
68
BRACKET; UNION
1-47479-429-0
01
1
0507-
69
BOLT; BRKT
M8X30 FLANGE
0-28680-830-0
02
1
0507-0512
69
BOLT; BRKT
M8X30 FLANGE
0-28650-830-0
02
1
0601-
172
HOSE; FLEX,OIL TILT
L=1600
1-09365-052-1
02
1
0507-0909
172
HOSE; FLEX,OIL TILT
L=1600
8-97634-002-0
02
1
0910-
176
NUT; UNION
M12
9-09840-280-0
02
1
0507-
177
WASHER; LK,UNION
ID=12.2
9-09150-512-0
02
1
0507-0603
177
WASHER; LK,UNION
ID=12.2
0-91510-512-0
02
1
0604-
273
WASHER; PL,OIL CYL
ID=10.5 OD=32
9-09164-810-0
01
1
0507-0605
273
WASHER; PL,OIL CYL
ID=10.5 OD=32
0-91614-810-0
01
1
0606-
302
159
136
71
136
301
302
27
161
243
241
242
242
235
168
49
48
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
27
NUT; OIL CYL
M14
9-99116-414-0
01
1
0507-0604
27
NUT; OIL CYL
M14 SLOTTED
0-91116-514-0
01
1
0605-
48
CABLE ASM; CONT
L=2457
1-62500-730-0
01
1
0507-0511
48
CABLE ASM; CONT
6WF1 TC-C(1B8) L=2457
1-62500-730-0
01
1
0512-
49
PIN; JAW FIX
OD=6 L=17
9-08223-617-0
01
1
0507-0511
49
PIN; JAW FIX
6WF1 TC-C(1B8) OD=6 L=17
9-08223-617-0
01
1
0512-0606
49
PIN; JAW FIX
OD=6 L=17
0-82253-617-0
01
1
0607-
71
BOLT
M10X25 W/LK&PL WASHER
1-09980-488-0
02
1
0507-
136
BOLT; CAB LK
M8X24.5 W/LK&PL WASHER
8-94279-217-0
04
1
0507-
159
PIN
1-79717-627-1
01
1
0507-
161
PIN; SPLIT
OD=2.8 L=25
9-08113-025-0
01
1
0507-0606
161
PIN; SPLIT
OD=2.8 L=25
0-81123-025-0
01
1
0607-
168
WASHER; PL
ID=6.4
9-09160-506-0
01
1
0507-0511
168
WASHER; PL
6WF1 TC-C(1B8) ID=6.4
9-09160-506-0
01
1
0512-
235
PIN; SNAP
L=21.2
8-94157-840-0
01
1
0507-0511
235
PIN; SNAP
6WF1 TC-C(1B8) L=21.2
8-94157-840-0
01
1
0512-
241
BRACKET; POWER CYL UPR,CAB TILT
1-53458-338-1
01
1
0507-
242
BOLT; POWER CYL BRKT,CAB TILT
(A) M10X30 W/SP WASHER
1-09980-546-0
05
1
0507-
242
BOLT; POWER CYL BRKT,CAB TILT
(B) M14X70
1-53458-633-0
01
1
0507-
243
WASHER; LK,POWER CYL BRKT
ID=14.2
9-09150-514-0
01
1
0507-0603
243
WASHER; LK,POWER CYL BRKT
ID=14.2
0-91510-514-0
01
1
0604-0805
243
WASHER; LK,POWER CYL BRKT
ID=14.2
0-91510-814-0
01
1
0806-
301
BRACKET; RR MTG,CAB
1-62570-866-1
02
1
0507-
302
BOLT; BRKT,CAB
M10X25 W/LK&PL WASHER
1-09980-488-0
08
1
0507-
56
58
326
325
62
58
62
179
35
178
59
30
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
30
BOLT; BRKT FIX
(A) M8X20 FLANGE
0-28680-820-0
02
1
0507-0512
30
BOLT; BRKT FIX
(A) M8X20 FLANGE
0-28650-820-0
02
1
0601-
30
BOLT; BRKT FIX
(B) M8X30 FLANGE
0-28680-830-0
03
1
0507-0512
30
BOLT; BRKT FIX
(B) M8X30 FLANGE
0-28650-830-0
03
1
0601-
35
NUT; BRKT
M8 FLANGE
0-91150-108-0
02
1
0507-0602
35
NUT; BRKT
M8 FLANGE
0-91180-108-0
02
1
0603-
56
HOSE; FLEX,OIL PIPE
L=750
1-09365-058-0
01
1
0507-
58
PIPE; OIL,POWER UNIT
(A) L=989
1-49166-916-0
01
1
0507-
58
PIPE; OIL,POWER UNIT
(B) L=1017 SERVICED BY L=1100
1-47428-731-0
01
1
0507-
59
BRACKET; CLIP
(A) L=55
1-47475-304-0
03
1
0507-
59
BRACKET; CLIP
(B)
1-47477-317-0
01
1
0507-
62
CLIP; OIL PIPE
(A) ID=7 & 7 L=17.5 & 17.5
1-09700-745-0
02
1
0507-
62
CLIP; OIL PIPE
(B) ID=21 L=30 H=40
1-09700-991-1
04
1
0507-
62
CLIP; OIL PIPE
(D) L=140
5-09707-031-1
02
1
0507-0511
62
CLIP; OIL PIPE
6WF1 TC-C(1B8) (D) L=140
5-09707-031-1
02
1
0512-
62
CLIP; OIL PIPE
(C) ID=9X2 L=16
9-09534-825-0
01
1
0507-0606
62
CLIP; OIL PIPE
(C) ID=9X2 L=16
0-95324-825-0
01
1
0607-
178
CLIP; FLEX HOSE
ID=8 H=20 L=20
1-09700-604-0
02
1
0507-
179
BOLT; CLIP,FLEX HOSE
M8X20 FLANGE
0-28680-820-0
02
1
0507-0512
179
BOLT; CLIP,FLEX HOSE
M8X20 FLANGE
0-28650-820-0
02
1
0601-
325
ADAPTER; PUMP
M12 & RC1/4 STRAIGHT
1-09660-885-0
01
1
0507-
326
UNION; PUMP
M12X2 & PT1/4 3WAY
1-09656-230-1
01
1
0507-
