5-01 — FRAME AND OTHER PARTS (#31191) — 104 parça

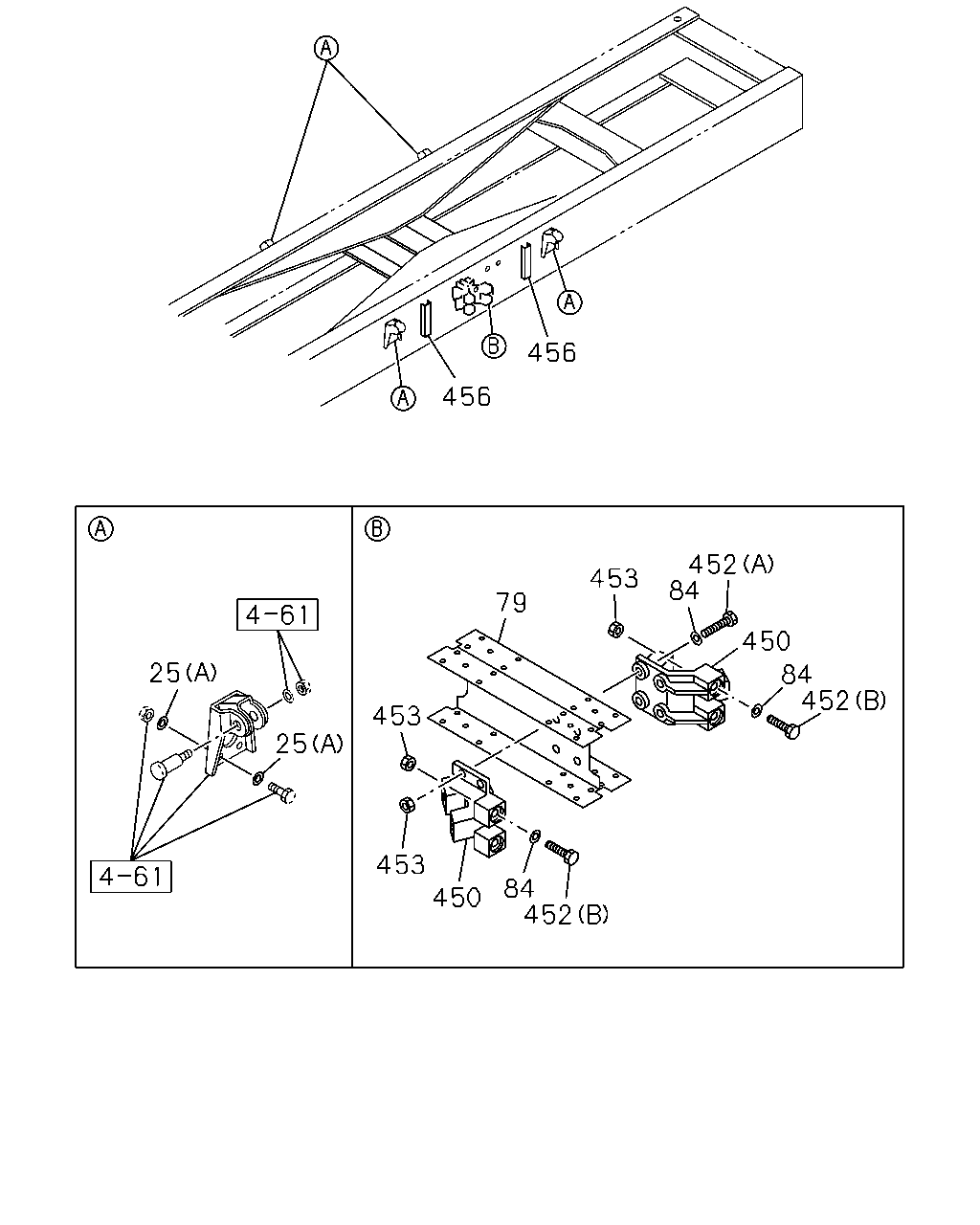

456 456 452 84 453 79 450 25 84 452 453 25 453 84 452 450

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
25	WASHER; PL,BRKT (B) ID=16.2	1-09503-223-0	20	1	0507-
25	WASHER; PL,BRKT (A) ID=15	9-09651-069-0	82	1	0507-1201
25	WASHER; PL,BRKT (A) ID=15	8-98010-627-1	82	1	1202-
79	MEMBER; CROSS,TRUNNION ASM	1-53181-912-3	01	1	0507-
84	WASHER; PL,BRKT ID=16.2	1-09503-223-0	16	1	0507-
450	BRACKET; V ROD	1-53353-122-1	04	1	0507-
452	BOLT; V ROD (A) M16X70	1-09000-673-0	08	1	0507-
452	BOLT; V ROD (B) M16X90	1-09000-675-0	08	1	0507-
453	NUT; V ROD M16 FLANGE	1-09440-066-0	16	1	0507-
456	PATCH; STOPPER	1-53119-203-0	04	1	0507-

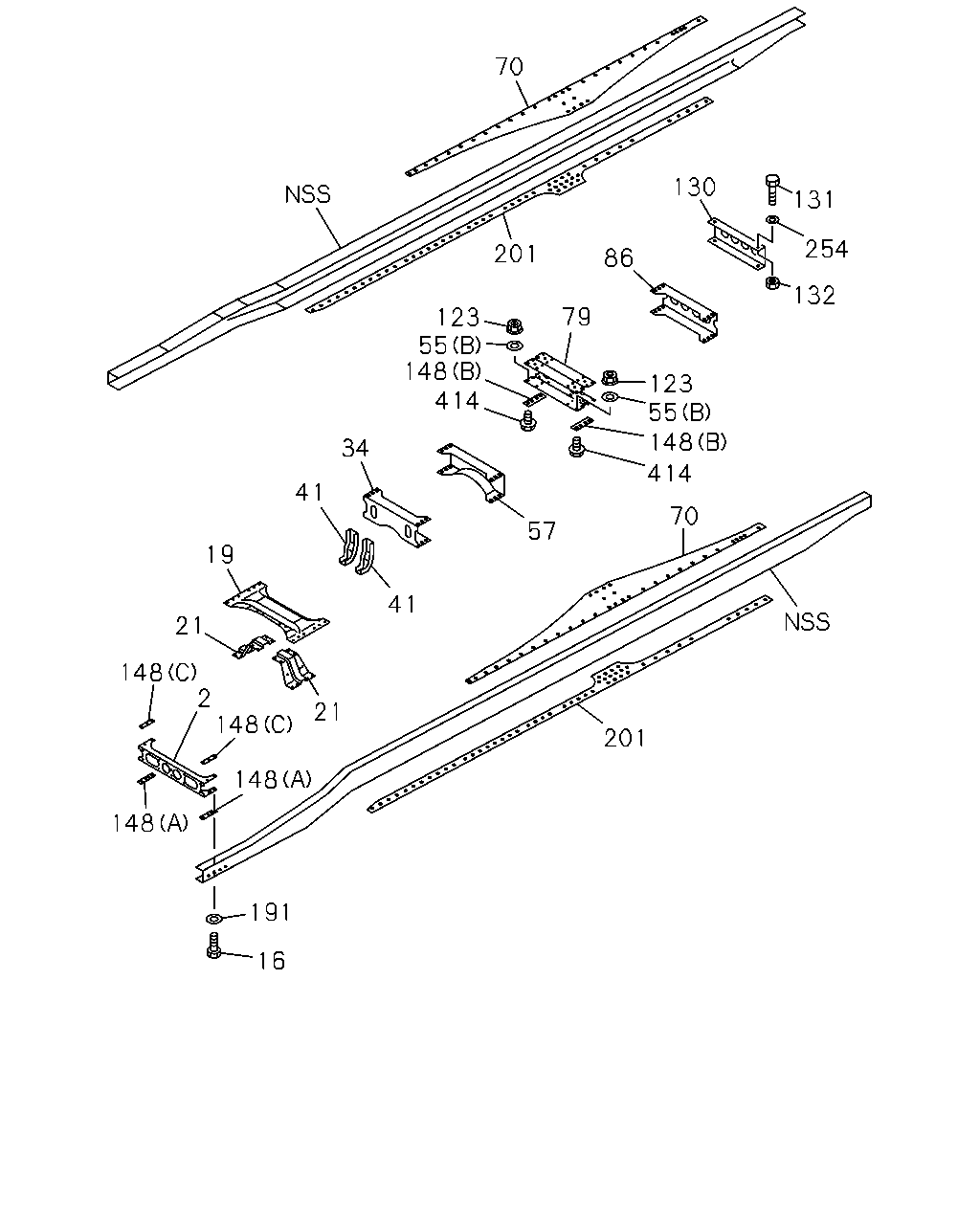

70 130 131 254 201 86 132 79 123 55 148 414 123 55 148 34 414 41 70 57 19 41 21 148 2 148 21 201 148 148 191 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	MEMBER; CROSS,1ST	8-97604-959-3	01	1	0507-
16	BOLT; 1ST C/MBR TO S/MBR M16X40	9-92061-640-0	02	1	0507-0512
16	BOLT; 1ST C/MBR TO S/MBR M16X40	0-20951-640-0	02	1	0601-
19	MEMBER; CROSS,2ND	1-53174-231-1	01	1	0507-
21	GUSSET; 2ND CROSS	1-53164-185-1	02	1	0507-
34	MEMBER; CROSS,3RD 6WG1 TC-C(72L),6WG1 TC-S(97L)	1-53182-090-0	01	1	0512-
34	MEMBER; CROSS,3RD 6WF1 TC-C(1B8)	1-53181-437-5	01	1	0507-0507
34	MEMBER; CROSS,3RD 6WF1 TC-C(1B8)	1-53182-093-0	01	1	0508-
41	BRACKET; CENTER BRG,FRAME SIDE 6WG1 TC-C(72L),6WG1 TC-S(97L) L=320	1-53271-385-0	02	1	0512-
41	BRACKET; CENTER BRG,FRAME SIDE L=310	1-53271-383-0	02	1	0507-0511
41	BRACKET; CENTER BRG,FRAME SIDE 6WF1 TC-C(1B8) L=310	1-53271-383-0	02	1	0512-
55	WASHER; PL (B) ID=19	9-09160-518-0	32	1	0507-
55	WASHER; PL (A) ID=15	9-09651-069-0	10	1	0507-1201
55	WASHER; PL (A) ID=15	8-98010-627-1	10	1	1202-
57	MEMBER; CROSS,RR SUSP FRT	1-53181-937-3	01	1	0507-
70	GUSSET; TRUNNION,UPR	1-53161-888-0	02	1	0507-
79	MEMBER; CROSS,TRUNNION ASM	1-53181-912-3	01	1	0507-
86	MEMBER; CROSS,RR SUSP RR	1-53181-646-8	01	1	0507-
123	NUT M18	9-99110-518-0	16	1	0507-0512
123	NUT M18	0-91110-518-0	16	1	0601-
130	MEMBER; CROSS,END	1-53181-613-1	01	1	0507-
131	BOLT; END C/MBR M14X40	9-92061-440-0	04	1	0507-0512
131	BOLT; END C/MBR M14X40	0-20951-440-0	04	1	0601-
132	NUT; END C/MBR M14	9-99110-514-0	04	1	0507-0512
132	NUT; END C/MBR M14	0-91110-514-0	04	1	0601-
148	SPACER; C/MBR (B)	1-53168-375-0	02	1	0507-
148	SPACER; C/MBR (C)	1-53168-400-1	02	1	0507-
148	SPACER; C/MBR (A)	1-53168-403-1	02	1	0507-
191	WASHER; PL,1ST C/MBR TO S/MBR ID=16.2	1-09503-223-0	02	1	0507-
201	GUSSET; C/MBR 6WG1 TC-C(72L),6WG1 TC-S(97L)	1-53161-925-0	02	1	0512-
201	GUSSET; C/MBR	1-53161-889-1	02	1	0507-0511
201	GUSSET; C/MBR 6WF1 TC-C(1B8)	1-53161-889-1	02	1	0512-
254	WASHER; PL,C/MBR ID=15	9-09651-069-0	04	1	0507-1201
254	WASHER; PL,C/MBR ID=15	8-98010-627-1	04	1	1202-
414	BOLT M18X60	9-91066-860-0	16	1	0507-0805
414	BOLT M18X60	8-98036-497-0	16	1	0806-

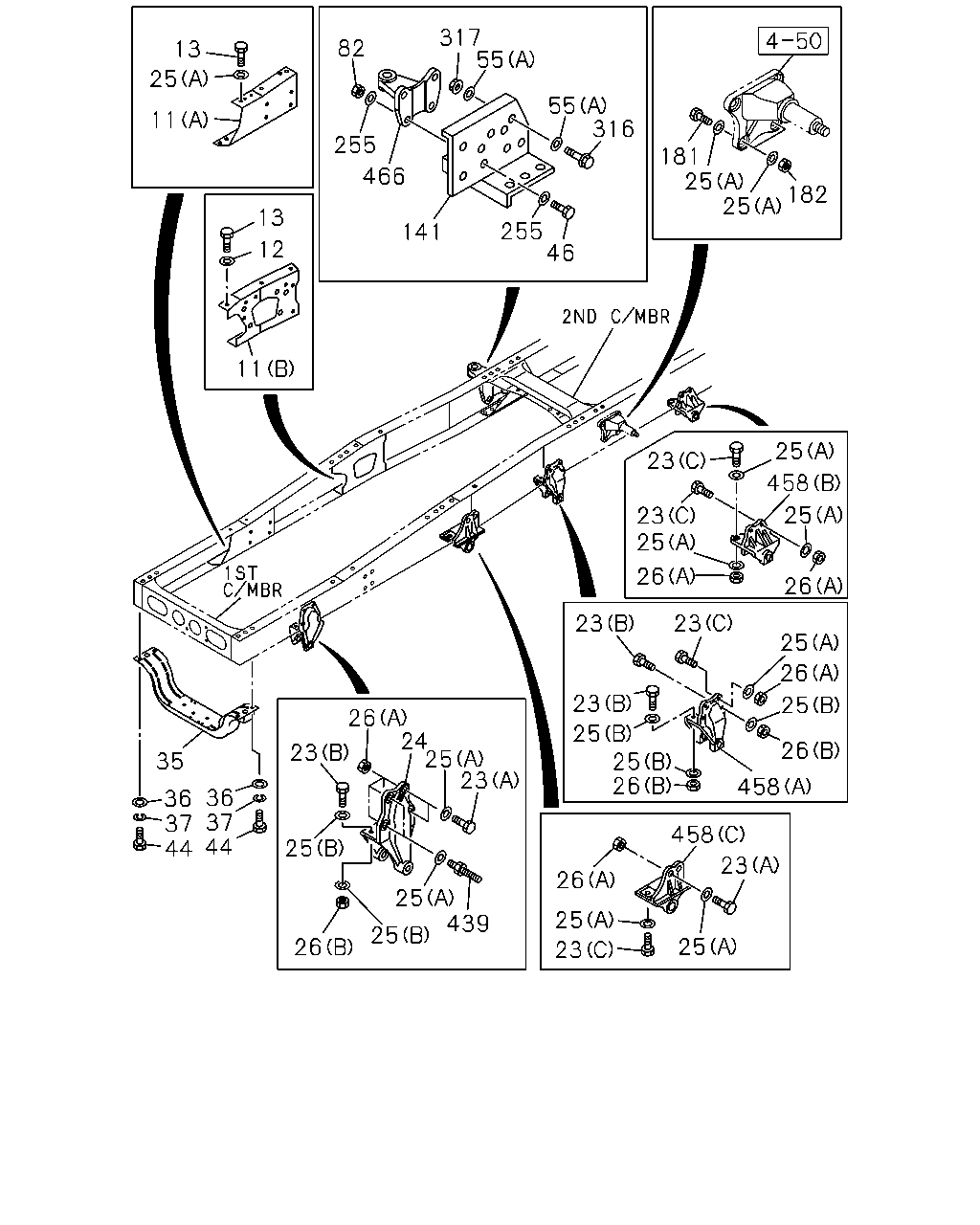

317 55 82 13 25 55 316 11 255 181 25 25 466 182 13 255 46 141 12 11 25 23 458 25 23 25 26 26 23 23 25 26 23 25 26 24 25 23 25 25 26 26 23 35 458 36 37 44 36 37 44 458 25 23 26 25 439 25 25 25 26 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
11	BRACKET; ENG MTG 6WG1 TC-C(72L),6WG1 TC-S(97L) (B)	8-98056-611-1	01	1	0806-
11	BRACKET; ENG MTG 6WG1 TC-C(72L),6WG1 TC-S(97L) (B)	8-98056-612-0	01	1	0806-
11	BRACKET; ENG MTG (A)	1-53211-367-1	01	1	0507-
11	BRACKET; ENG MTG (A)	1-53211-368-1	01	1	0507-
11	BRACKET; ENG MTG (B)	1-53221-230-4	01	1	0507-0805
11	BRACKET; ENG MTG 6WF1 TC-C(1B8) (B)	1-53221-230-4	01	1	0806-
11	BRACKET; ENG MTG (B)	1-53221-231-4	01	1	0507-0805
11	BRACKET; ENG MTG 6WF1 TC-C(1B8) (B)	1-53221-231-4	01	1	0806-
12	WASHER; PL,BRKT,ENG MTG ID=15	9-09651-069-0	02	1	0507-1201
12	WASHER; PL,BRKT,ENG MTG ID=15	8-98010-627-1	02	1	1202-
13	BOLT; BRKT,ENG MTG M14X40	9-92061-440-0	04	1	0507-0512
13	BOLT; BRKT,ENG MTG M14X40	0-20951-440-0	04	1	0601-
23	BOLT; BRKT,SPR (A) M14X40	9-92061-440-0	10	1	0507-0512
23	BOLT; BRKT,SPR (A) M14X40	0-20951-440-0	10	1	0601-
23	BOLT; BRKT,SPR (C) M14X50	9-92061-450-0	16	1	0507-0512
23	BOLT; BRKT,SPR (C) M14X50	0-20951-450-0	16	1	0601-
23	BOLT; BRKT,SPR (B) M16X50	9-92061-650-0	12	1	0507-0512
23	BOLT; BRKT,SPR (B) M16X50	0-20951-650-0	12	1	0601-
24	BRACKET; FRT SPR,FRT	1-53351-237-1	01	1	0507-
24	BRACKET; FRT SPR,FRT	1-53351-238-1	01	1	0507-
25	WASHER; PL,BRKT (B) ID=16.2	1-09503-223-0	20	1	0507-
25	WASHER; PL,BRKT (A) ID=15	9-09651-069-0	82	1	0507-1201
25	WASHER; PL,BRKT (A) ID=15	8-98010-627-1	82	1	1202-
26	NUT; BRKT,SPR (A) M14	9-99110-514-0	24	1	0507-0512
26	NUT; BRKT,SPR (A) M14	0-91110-514-0	24	1	0601-
26	NUT; BRKT,SPR (B) M16	9-99110-516-0	12	1	0507-0512
26	NUT; BRKT,SPR (B) M16	0-91110-516-0	12	1	0601-
35	MEMBER; UNDER	1-53174-263-2	01	1	0507-
36	WASHER; PL,UNDER MBR ID=17	9-09164-516-0	04	1	0507-
37	WASHER; LK,UNDER MBR ID=16.2	9-09150-816-0	04	1	0507-0603
37	WASHER; LK,UNDER MBR ID=16.2	0-91510-816-0	04	1	0604-
44	BOLT; UNDER MBR M16X60	9-92061-660-0	04	1	0507-0512
44	BOLT; UNDER MBR M16X60	0-20951-660-0	04	1	0601-
46	BOLT; BRKT FIX M14X60	9-92061-460-0	04	1	0507-0512
46	BOLT; BRKT FIX M14X60	0-20951-460-0	04	1	0601-
55	WASHER; PL (B) ID=19	9-09160-518-0	32	1	0507-
55	WASHER; PL (A) ID=15	9-09651-069-0	10	1	0507-1201
55	WASHER; PL (A) ID=15	8-98010-627-1	10	1	1202-
82	NUT; BRKT M14	9-99110-514-0	04	1	0507-0512
82	NUT; BRKT M14	0-91110-514-0	04	1	0601-
141	STIFFENER	1-53151-833-1	01	1	0507-
181	BOLT; S/ABS BRKT TO FRAME M14X50	9-92061-450-0	08	1	0507-0512
181	BOLT; S/ABS BRKT TO FRAME M14X50	0-20951-450-0	08	1	0601-
182	NUT; S/ABS BRKT TO FRAME M14	9-99110-514-0	08	1	0507-0512
182	NUT; S/ABS BRKT TO FRAME M14	0-91110-514-0	08	1	0601-
255	WASHER; PL,BRKT ID=15	9-09651-069-0	08	1	0507-1201
255	WASHER; PL,BRKT ID=15	8-98010-627-1	08	1	1202-
316	BOLT; STIFFENER M14X50	9-92061-450-0	05	1	0507-0512
316	BOLT; STIFFENER M14X50	0-20951-450-0	05	1	0601-
317	NUT; STIFFENER M14	9-99110-514-0	05	1	0507-0512
317	NUT; STIFFENER M14	0-91110-514-0	05	1	0601-
439	STUD; BRKT,SPR M12X25,M14X45 L=81	1-09029-103-0	02	1	0507-
458	BRACKET; LEAF SPRING (A)	1-53351-217-0	01	1	0507-
458	BRACKET; LEAF SPRING (A)	1-53351-218-0	01	1	0507-
458	BRACKET; LEAF SPRING (B)	1-53352-067-3	02	1	0507-
458	BRACKET; LEAF SPRING (C)	1-53352-179-0	01	1	0507-
458	BRACKET; LEAF SPRING (C)	1-53352-180-0	01	1	0507-
466	BRACKET; BOOSTER	1-44515-073-0	01	1	0507-
