4-60 — REAR SUSPENSION (#31185) — 109 parça

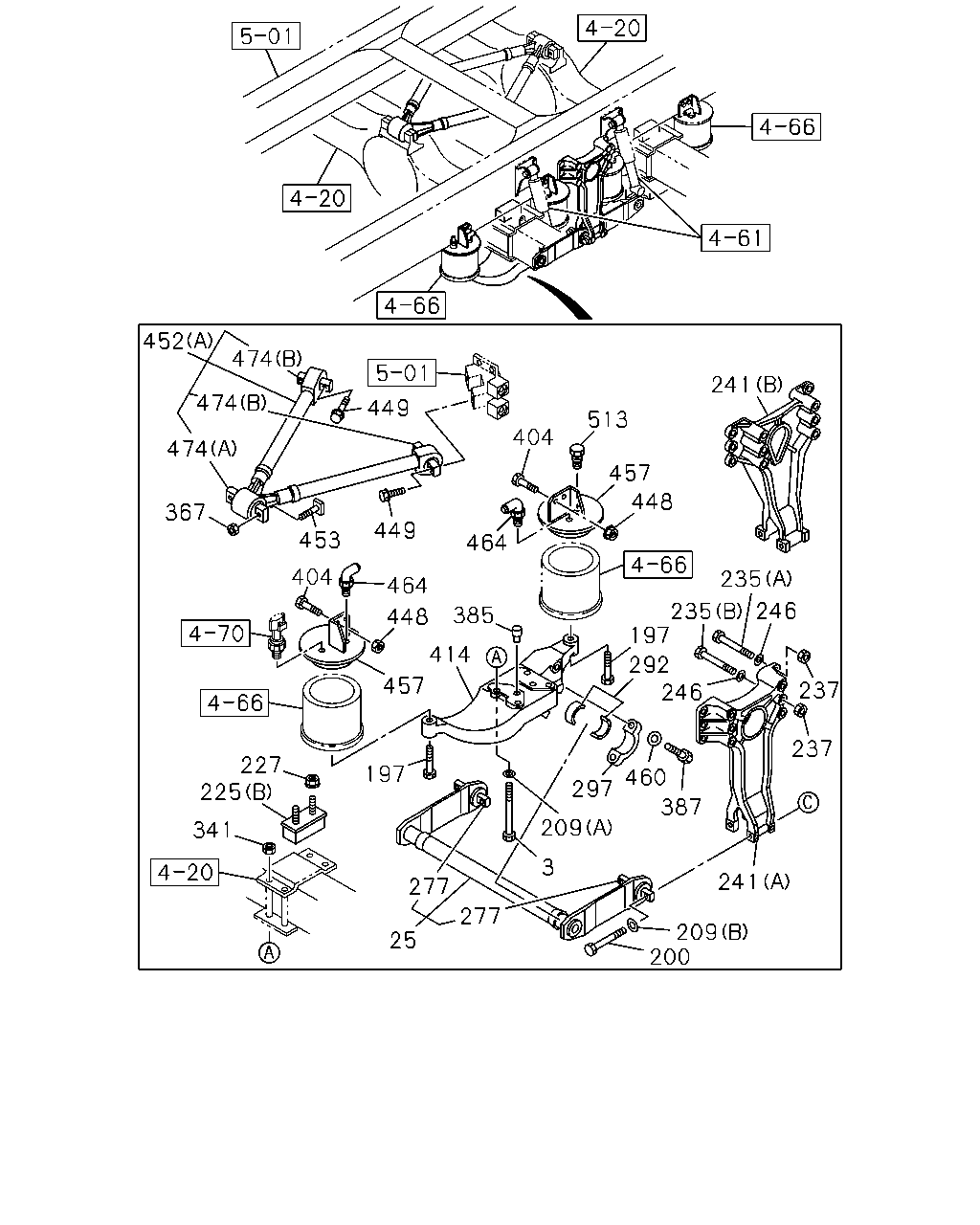

çizim 104502
452 474 474 474 449 404 513 241 457 464 448 367 453 449 404 464 448 385 414 457 197 227 225 341 277 277 25 3 200 241 209 237 237 246 235 235 197 292 246 460 387 297 209
BalonParca AdiParca NoAdetTipApplied Date
3 BOLT; BEAM 1-09000-762-1 16 1 0507-0805
3 BOLT; BEAM 8-98019-969-0 16 1 0806-
25 BAR ASM; STAB,RR SUSP 1-51771-254-2 02 1 0507-
197 BOLT 1-09044-116-0 08 1 0507-
200 BOLT; BRKT
M18X190 		1-09000-772-1 04 1 0507-
209 WASHER; PL
(A) ID=25 		1-09503-282-0 16 1 0507-
209 WASHER; PL
(B) ID=19 		9-09160-518-0 04 1 0507-
225 RUBBER; CUSHION,RR SPR
(A) REARWARD 		1-53366-028-2 02 1 0507-
225 RUBBER; CUSHION,RR SPR
(B) FORWARD 		1-53366-041-2 02 1 0507-
227 NUT; CUSHION RUBBER
M12 FLANGE 		0-91150-212-0 08 1 0507-0602
227 NUT; CUSHION RUBBER
M12 FLANGE 		0-91180-212-0 08 1 0603-
235 BOLT; TORQUE ROD
(A) M20X60 		1-09000-752-0 12 1 0507-
235 BOLT; TORQUE ROD
(B) M20X150 		1-09000-754-0 12 1 0507-
237 NUT; TORQUE ROD
M20 		9-99110-520-0 20 1 0507-0512
237 NUT; TORQUE ROD
M20 		0-91110-520-0 20 1 0601-
241 BRACKET; TORQUE ROD
(A) 		1-53361-089-1 02 1 0507-1212
241 BRACKET; TORQUE ROD
(B) 		8-98215-730-2 02 1 1301-
246 WASHER; TORQUE ROD 1-09503-313-0 24 1 0507-0805
246 WASHER; TORQUE ROD
ID=21 		8-98010-403-0 24 1 0806-
277 BUSHING; STAB,RR UPR 1-51519-184-1 04 1 0507-
292 BUSHING; RUBBER,STAB 1-51779-126-0 04 1 0507-
297 CAP; STAB BAR 1-52175-025-0 04 1 0507-
341 NUT; BEAM
M24 		9-99110-524-0 16 1 0507-0512
341 NUT; BEAM
M24 		0-91110-524-0 16 1 0601-
367 NUT
M24 FLANGE 		1-42334-045-1 04 1 0507-0805
367 NUT
M24 FLANGE 		8-98019-963-0 04 1 0806-
385 PIN; KNOCK,SUSP BEAM 1-52179-036-2 08 1 0507-
387 BOLT; CAP FIX,STAB BAR
M18X55 		1-09000-757-2 08 1 0507-0805
387 BOLT; CAP FIX,STAB BAR
M18X55 		8-98019-973-0 08 1 0806-
404 BOLT; PLATE
M14X45 FLANGE 		1-09044-117-0 16 1 0507-
414 BEAM; AIR SPR
FORWARD LH,REARWARD RH 		1-52171-300-1 02 1 0507-
414 BEAM; AIR SPR
FORWARD RH,REARWARD LH 		1-52171-301-1 02 1 0507-
448 NUT; PLATE
M14 FLANGE 		1-09440-086-0 16 1 0507-0706
448 NUT; PLATE
M14 FLANGE 		8-98010-395-0 16 1 0707-
449 BOLT; FRAME
M18X70 FLANGE 		1-09044-102-1 08 1 0507-0805
449 BOLT; FRAME
M18X70 FLANGE 		8-98010-540-0 08 1 0806-1102
449 BOLT; FRAME
M18X70 FLANGE 		8-98183-506-0 08 1 1103-
452 ROD ASM; V
(A) FORWARD 		1-51510-769-1 01 1 0507-0512
452 ROD ASM; V
(A) FORWARD 		8-97609-115-0 01 1 0601-
452 ROD ASM; V
(B) REARWARD 		1-51510-772-1 01 1 0507-0512
452 ROD ASM; V
(B) REARWARD 		8-97609-116-0 01 1 0601-
453 PIN; AXLE
M24X78 SQUARE HEAD 		1-09749-038-1 04 1 0507-0805
453 PIN; AXLE
M24X78 SQUARE HEAD 		8-98010-551-0 04 1 0806-
457 PLATE; AIR SPRING,UPR
FORWARD REAR 		8-97604-502-0 01 1 0507-
457 PLATE; AIR SPRING,UPR
FORWARD FRONT 		8-97604-502-0 01 1 0507-
457 PLATE; AIR SPRING,UPR
REARWARD REAR 		8-97604-502-0 01 1 0507-
457 PLATE; AIR SPRING,UPR
REARWARD FRONT 		8-97604-502-0 01 1 0507-
457 PLATE; AIR SPRING,UPR
FORWARD FRONT 		8-97604-503-0 01 1 0507-
457 PLATE; AIR SPRING,UPR
FORWARD REAR 		8-97604-503-0 01 1 0507-
457 PLATE; AIR SPRING,UPR
REARWARD FRONT 		8-97604-503-0 01 1 0507-
457 PLATE; AIR SPRING,UPR
REARWARD REAR 		8-97604-503-0 01 1 0507-
460 WASHER; CAP
ID=19 		1-09503-312-0 08 1 0507-
464 UNION; AIR
DIN8 & M16 ELBOW 		1-09661-520-0 08 1 0507-
474 REPAIR KIT; V-ROD
(A) 		1-51519-159-1 02 1 0507-0512
474 REPAIR KIT; V-ROD
(A) 		8-97609-171-0 02 1 0601-
474 REPAIR KIT; V-ROD
(B) 		1-51519-160-2 04 1 0507-0512
474 REPAIR KIT; V-ROD
(B) 		8-97609-172-0 04 1 0601-
513 PLUG; PLATE 9-09204-510-0 04 1 0507-

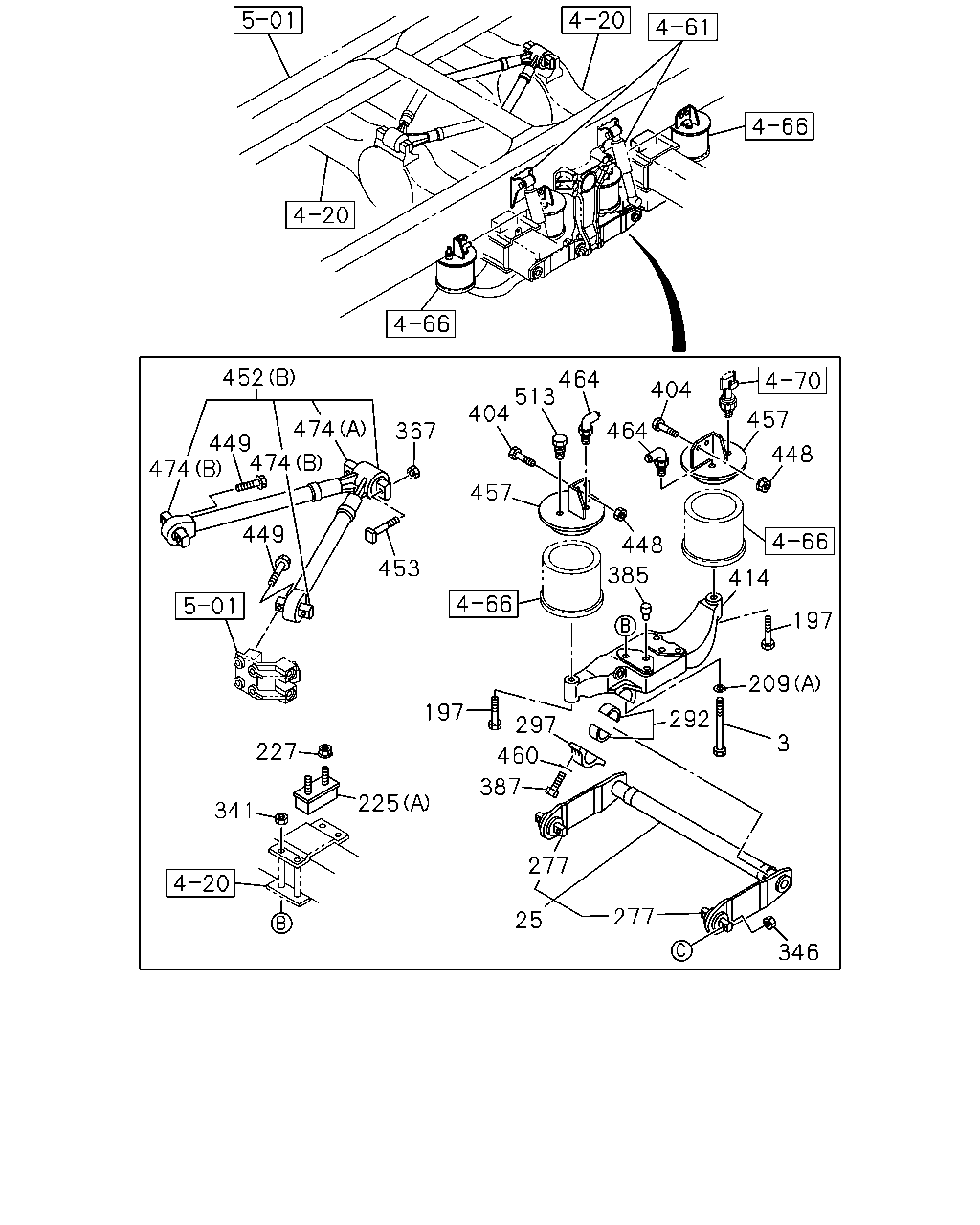

çizim 104503
452 464 513 404 404 457 474 464 367 449 474 474 448 457 449 448 453 414 385 197 209 197 292 297 3 227 460 387 225 341 277 277 25 346
BalonParca AdiParca NoAdetTipApplied Date
3 BOLT; BEAM 1-09000-762-1 16 1 0507-0805
3 BOLT; BEAM 8-98019-969-0 16 1 0806-
25 BAR ASM; STAB,RR SUSP 1-51771-254-2 02 1 0507-
197 BOLT 1-09044-116-0 08 1 0507-
209 WASHER; PL
(A) ID=25 		1-09503-282-0 16 1 0507-
209 WASHER; PL
(B) ID=19 		9-09160-518-0 04 1 0507-
225 RUBBER; CUSHION,RR SPR
(A) REARWARD 		1-53366-028-2 02 1 0507-
225 RUBBER; CUSHION,RR SPR
(B) FORWARD 		1-53366-041-2 02 1 0507-
227 NUT; CUSHION RUBBER
M12 FLANGE 		0-91150-212-0 08 1 0507-0602
227 NUT; CUSHION RUBBER
M12 FLANGE 		0-91180-212-0 08 1 0603-
277 BUSHING; STAB,RR UPR 1-51519-184-1 04 1 0507-
292 BUSHING; RUBBER,STAB 1-51779-126-0 04 1 0507-
297 CAP; STAB BAR 1-52175-025-0 04 1 0507-
341 NUT; BEAM
M24 		9-99110-524-0 16 1 0507-0512
341 NUT; BEAM
M24 		0-91110-524-0 16 1 0601-
346 NUT; BRKT
M18 SELF LOCK 		1-09464-032-0 04 1 0507-0805
346 NUT; BRKT
M18 SELF LOCK 		8-98010-391-0 04 1 0806-
367 NUT
M24 FLANGE 		1-42334-045-1 04 1 0507-0805
367 NUT
M24 FLANGE 		8-98019-963-0 04 1 0806-
385 PIN; KNOCK,SUSP BEAM 1-52179-036-2 08 1 0507-
387 BOLT; CAP FIX,STAB BAR
M18X55 		1-09000-757-2 08 1 0507-0805
387 BOLT; CAP FIX,STAB BAR
M18X55 		8-98019-973-0 08 1 0806-
404 BOLT; PLATE
M14X45 FLANGE 		1-09044-117-0 16 1 0507-
414 BEAM; AIR SPR
FORWARD LH,REARWARD RH 		1-52171-300-1 02 1 0507-
414 BEAM; AIR SPR
FORWARD RH,REARWARD LH 		1-52171-301-1 02 1 0507-
448 NUT; PLATE
M14 FLANGE 		1-09440-086-0 16 1 0507-0706
448 NUT; PLATE
M14 FLANGE 		8-98010-395-0 16 1 0707-
449 BOLT; FRAME
M18X70 FLANGE 		1-09044-102-1 08 1 0507-0805
449 BOLT; FRAME
M18X70 FLANGE 		8-98010-540-0 08 1 0806-1102
449 BOLT; FRAME
M18X70 FLANGE 		8-98183-506-0 08 1 1103-
452 ROD ASM; V
(A) FORWARD 		1-51510-769-1 01 1 0507-0512
452 ROD ASM; V
(A) FORWARD 		8-97609-115-0 01 1 0601-
452 ROD ASM; V
(B) REARWARD 		1-51510-772-1 01 1 0507-0512
452 ROD ASM; V
(B) REARWARD 		8-97609-116-0 01 1 0601-
453 PIN; AXLE
M24X78 SQUARE HEAD 		1-09749-038-1 04 1 0507-0805
453 PIN; AXLE
M24X78 SQUARE HEAD 		8-98010-551-0 04 1 0806-
457 PLATE; AIR SPRING,UPR
FORWARD REAR 		8-97604-502-0 01 1 0507-
457 PLATE; AIR SPRING,UPR
FORWARD FRONT 		8-97604-502-0 01 1 0507-
457 PLATE; AIR SPRING,UPR
REARWARD REAR 		8-97604-502-0 01 1 0507-
457 PLATE; AIR SPRING,UPR
REARWARD FRONT 		8-97604-502-0 01 1 0507-
457 PLATE; AIR SPRING,UPR
FORWARD FRONT 		8-97604-503-0 01 1 0507-
457 PLATE; AIR SPRING,UPR
FORWARD REAR 		8-97604-503-0 01 1 0507-
457 PLATE; AIR SPRING,UPR
REARWARD FRONT 		8-97604-503-0 01 1 0507-
457 PLATE; AIR SPRING,UPR
REARWARD REAR 		8-97604-503-0 01 1 0507-
460 WASHER; CAP
ID=19 		1-09503-312-0 08 1 0507-
464 UNION; AIR
DIN8 & M16 ELBOW 		1-09661-520-0 08 1 0507-
474 REPAIR KIT; V-ROD
(A) 		1-51519-159-1 02 1 0507-0512
474 REPAIR KIT; V-ROD
(A) 		8-97609-171-0 02 1 0601-
474 REPAIR KIT; V-ROD
(B) 		1-51519-160-2 04 1 0507-0512
474 REPAIR KIT; V-ROD
(B) 		8-97609-172-0 04 1 0601-
513 PLUG; PLATE 9-09204-510-0 04 1 0507-
