4-55 — FRONT LEAF SPRING (#31184) — 37 parça

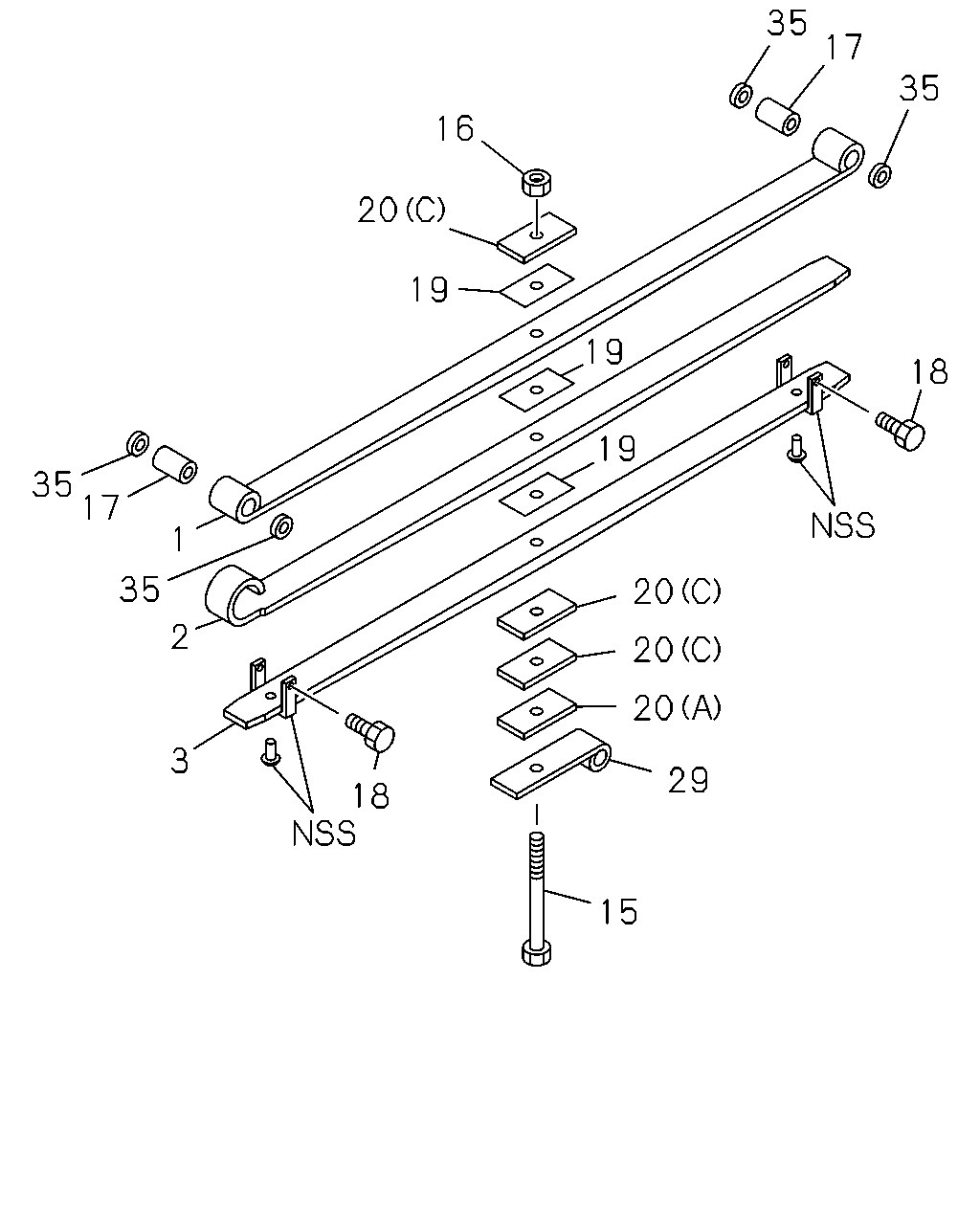

35 17 35 16 20 19 19 18 19 35 17 1 35 20 2 20 20 3 29 18 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING; LEAF,NO 1,FRT ASM PART: B = 1-51130-925-0	1-51131-904-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: A = 1-51130-924-0	1-51131-922-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: B = 1-51130-925-0	1-51132-904-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: A = 1-51130-924-0	1-51132-922-0	01	1	-
3	SPRING; LEAF,NO 3,FRT W/CLIP ASM PART: B = 1-51130-925-0	1-51133-904-0	01	1	-
3	SPRING; LEAF,NO 3,FRT W/CLIP ASM PART: A = 1-51130-924-0	1-51133-922-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=155 ASM PART: B = 1-51130-925-0	1-51156-336-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=165 ASM PART: A = 1-51130-924-0	1-51156-366-0	01	1	-
16	NUT; CENTER BOLT,LEAF SPR,FRT M16 ASM PART: A = 1-51130-924-0, B = 1-51130-925-0	1-09400-054-0	01	1	-
17	BUSHING; LEAF SPR,FRT OD=42 ASM PART: A = 1-51130-924-0, B = 1-51130-925-0	1-51351-044-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT M10X99 ASM PART: B = 1-51130-925-0	1-09000-328-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT M10X103 ASM PART: A = 1-51130-924-0	1-09000-536-0	02	1	-
19	SPACER; LEAF SPRING,FRT T=1 ASM PART: A = 1-51130-924-0, B = 1-51130-925-0	1-51177-071-0	03	1	-
20	SEAT; LEAF SPR,FRT (A), T=12 ASM PART: B = 1-51130-925-0	1-51177-069-0	01	1	-
20	SEAT; LEAF SPR,FRT (A), T=12 ASM PART: A = 1-51130-924-0	1-51177-069-0	05	1	-
20	SEAT; LEAF SPR,FRT (B), T=10 ASM PART: A = 1-51130-924-0	1-51177-078-0	01	1	-
20	SEAT; LEAF SPR,FRT (C), T=14 ASM PART: B = 1-51130-925-0	1-51177-097-0	03	1	-
29	SUPPORTER; LEAF SPR,FRT ASM PART: B = 1-51130-925-0	1-51681-650-0	01	1	-
35	SEAL; DUST ASM PART: A = 1-51130-924-0, B = 1-51130-925-0	1-51177-321-0	04	1	-

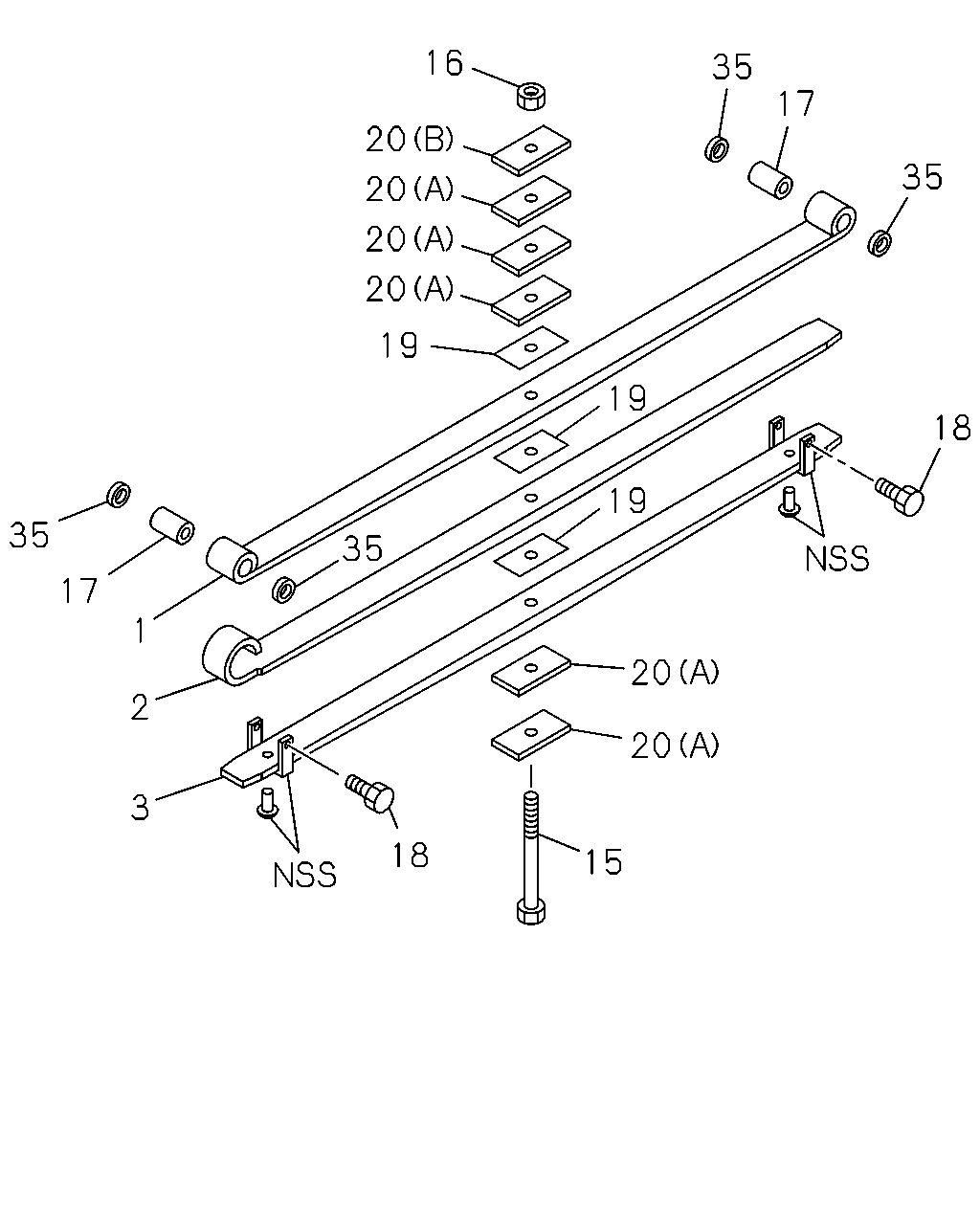

16 35 17 20 35 20 20 20 19 19 18 19 35 35 17 1 20 2 20 3 18 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING; LEAF,NO 1,FRT ASM PART: B = 1-51130-925-0	1-51131-904-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: A = 1-51130-924-0	1-51131-922-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: B = 1-51130-925-0	1-51132-904-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: A = 1-51130-924-0	1-51132-922-0	01	1	-
3	SPRING; LEAF,NO 3,FRT W/CLIP ASM PART: B = 1-51130-925-0	1-51133-904-0	01	1	-
3	SPRING; LEAF,NO 3,FRT W/CLIP ASM PART: A = 1-51130-924-0	1-51133-922-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=155 ASM PART: B = 1-51130-925-0	1-51156-336-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=165 ASM PART: A = 1-51130-924-0	1-51156-366-0	01	1	-
16	NUT; CENTER BOLT,LEAF SPR,FRT M16 ASM PART: A = 1-51130-924-0, B = 1-51130-925-0	1-09400-054-0	01	1	-
17	BUSHING; LEAF SPR,FRT OD=42 ASM PART: A = 1-51130-924-0, B = 1-51130-925-0	1-51351-044-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT M10X99 ASM PART: B = 1-51130-925-0	1-09000-328-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT M10X103 ASM PART: A = 1-51130-924-0	1-09000-536-0	02	1	-
19	SPACER; LEAF SPRING,FRT T=1 ASM PART: A = 1-51130-924-0, B = 1-51130-925-0	1-51177-071-0	03	1	-
20	SEAT; LEAF SPR,FRT (A), T=12 ASM PART: B = 1-51130-925-0	1-51177-069-0	01	1	-
20	SEAT; LEAF SPR,FRT (A), T=12 ASM PART: A = 1-51130-924-0	1-51177-069-0	05	1	-
20	SEAT; LEAF SPR,FRT (B), T=10 ASM PART: A = 1-51130-924-0	1-51177-078-0	01	1	-
20	SEAT; LEAF SPR,FRT (C), T=14 ASM PART: B = 1-51130-925-0	1-51177-097-0	03	1	-
35	SEAL; DUST ASM PART: A = 1-51130-924-0, B = 1-51130-925-0	1-51177-321-0	04	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
