◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYJ ▶ 11006 - CYJ NEW ZEALAND ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-50 - FRONT SUSPENSION ▶
4-50 — FRONT SUSPENSION (#31183) — 129 parça

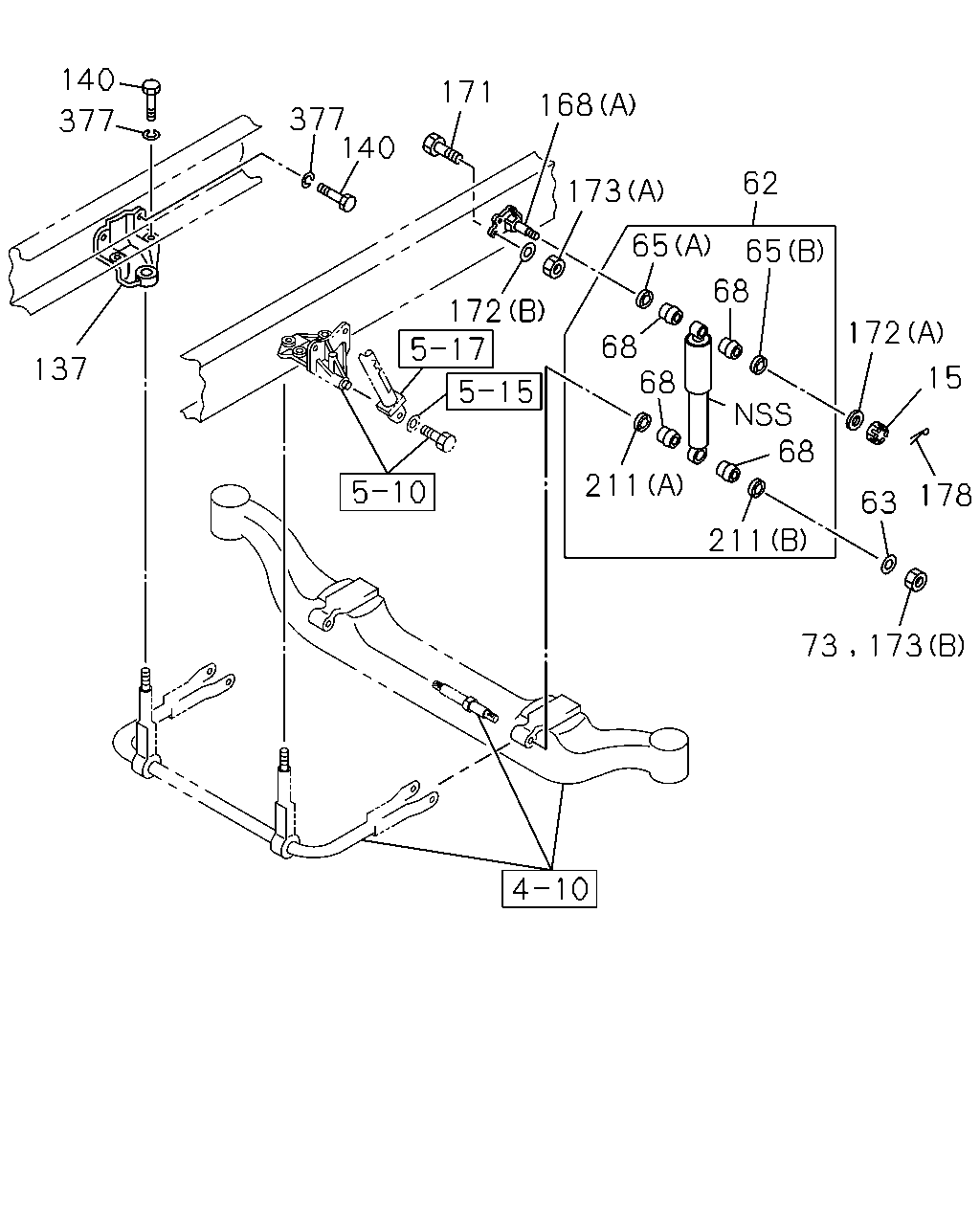

çizim 88814
140 171 168 377 140 377 62 173 65 65 68 172 172 68 68 137 15 68 211 178 63 211 73 173
BalonParca AdiParca NoAdetTipApplied Date
15 NUT; S/ABS,UPR
M20 SLOTTED 		9-99116-420-0 02 1 0507-1107
15 NUT; S/ABS,UPR
M20 		0-91110-520-0 02 1 1108-
62 ABSORBER ASM; SHOCK,FRT 1-51630-805-1 02 1 0507-
63 WASHER; PL,S/ABS,LWR
ID=21 		9-09160-520-0 04 1 0507-0605
63 WASHER; PL,S/ABS,LWR
ID=21 		0-91610-520-0 04 1 0606-
65 WASHER; S/ABS
(A) ID=27 		9-51631-027-0 02 1 0507-
65 WASHER; S/ABS
(B) ID=21 		9-51631-028-0 02 1 0507-
68 BUSHING; S/ABS 9-51631-026-0 08 1 0507-
68 BUSHING; S/ABS 9-51631-026-0 08 1 0507-
73 NUT; BRKT,SHOCK
M20 		9-99110-520-0 01 1 0507-0512
73 NUT; BRKT,SHOCK
M20 		0-91110-520-0 01 1 0601-
137 BRACKET; STAB BAR TO FRAME 1-51781-111-0 01 1 0507-
140 BOLT; BRKT
M14X50 		9-92061-450-0 04 1 0507-0512
140 BOLT; BRKT
M14X50 		0-20951-450-0 04 1 0601-
168 BRACKET; S/ABS,FRT SUSP
(A) 		1-51681-745-0 02 1 0507-1012
168 BRACKET; S/ABS,FRT SUSP
(A) 		8-98182-383-0 02 1 1101-
168 BRACKET; S/ABS,FRT SUSP
(B) 		1-51681-746-0 02 1 0507-1309
168 BRACKET; S/ABS,FRT SUSP
(B) 		8-98182-384-0 02 1 1310-
171 BOLT; S/ABS BRKT
M14X40 		9-92061-440-0 08 1 0507-0512
171 BOLT; S/ABS BRKT
M14X40 		0-20951-440-0 08 1 0601-
172 WASHER; PL,S/ABS BRKT
(A) ID=21 		9-09160-520-0 04 1 0507-0605
172 WASHER; PL,S/ABS BRKT
(A) ID=21 		0-91610-520-0 04 1 0606-
172 WASHER; PL,S/ABS BRKT
(B) ID=15 		9-09651-069-0 08 1 0507-0910
172 WASHER; PL,S/ABS BRKT
(B) ID=15 		8-98010-627-1 08 1 0911-
173 NUT; S/ABS
(A) M14 		9-99110-514-0 08 1 0507-0512
173 NUT; S/ABS
(A) M14 		0-91110-514-0 08 1 0601-
173 NUT; S/ABS
(B) M20 		9-99110-520-0 02 1 0507-0512
173 NUT; S/ABS
(B) M20 		0-91110-520-0 02 1 0601-
178 PIN; SPLIT,S/ABS
OD=3.7 L=35 		9-08114-035-0 02 1 0507-0606
178 PIN; SPLIT,S/ABS
OD=3.7 L=35 		0-81124-035-0 02 1 0607-1011
211 WASHER; BRKT,SHOCK
(A) ID=27 		9-51631-027-0 02 1 0507-
211 WASHER; BRKT,SHOCK
(B) ID=21 		9-51631-028-0 02 1 0507-
377 WASHER; LK,BRKT
ID=15 		9-09651-069-0 04 1 0507-1201
377 WASHER; LK,BRKT
ID=15 		8-98010-627-1 04 1 1202-

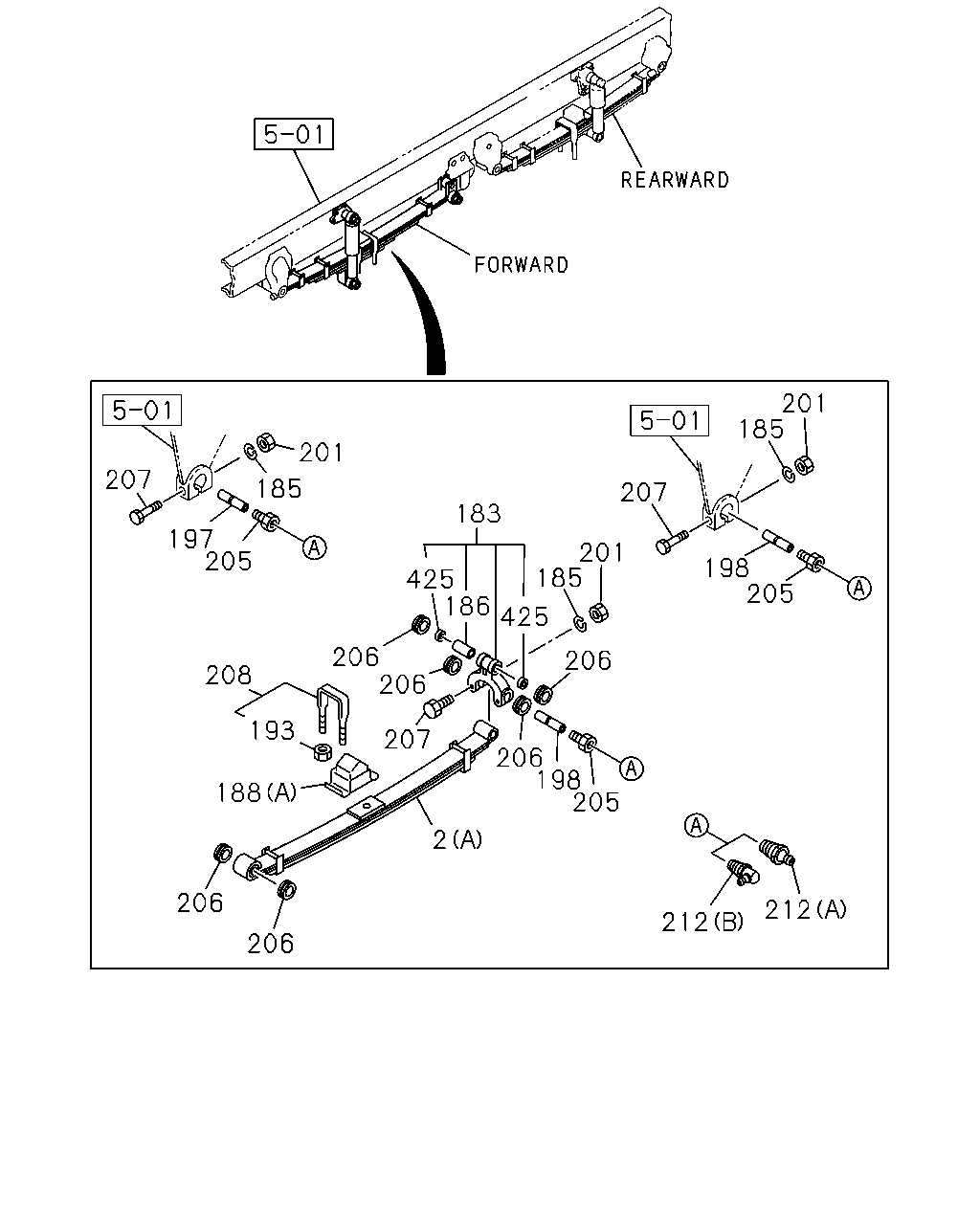

çizim 89554
201 185 201 207 185 207 183 197 205 201 185 198 205 425 186 425 206 206 206 208 193 207 206 198 205 188 2 206 212 212 206
BalonParca AdiParca NoAdetTipApplied Date
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. (A) FORWARD 3-LEAF 		1-51130-924-0 02 1 0507-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. (B) REARWARD 3-LEAF 		1-51130-925-0 02 1 0507-
183 SHACKLE; FRT SUSP 1-51162-071-0 04 1 0507-1005
183 SHACKLE; FRT SUSP 1-51162-029-5 04 1 1006-
185 WASHER; LK,PIN
ID=12.2 		9-09150-612-0 24 1 0507-0603
185 WASHER; LK,PIN
ID=12.2 		0-91510-612-0 24 1 0604-
186 BUSHING; SHACKLE
OD=42 		1-51351-044-0 04 1 0507-1005
186 BUSHING; SHACKLE
OD=38 		8-98081-829-0 04 1 1006-
188 RUBBER; CLAMP,U-BOLT,FRT SPR
(B) REARWARD 		1-51172-081-1 02 1 0507-
188 RUBBER; CLAMP,U-BOLT,FRT SPR
(A) FORWARD 		1-51172-096-2 02 1 0507-
193 NUT; U BOLT
M22 		9-09112-822-0 16 1 0507-0512
193 NUT; U BOLT
M22 		0-91112-822-0 16 1 0601-1206
193 NUT; U BOLT
M22 		8-98179-318-0 16 1 1207-
197 PIN; FRT SPR,FRT 1-51161-031-0 04 1 0507-
198 PIN; FRT SPR & SHACKLE,FWD FRT 1-51161-031-0 08 1 0507-
201 NUT; PIN LK
M12 		9-99110-512-0 24 1 0507-0512
201 NUT; PIN LK
M12 		0-91110-512-0 24 1 0601-
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 12 1 0507-
206 WASHER; LK,SPRING PIN
ID=32.4 		1-51169-018-0 24 1 0507-
207 BOLT; SPR TO SHACKLE
M12X80 		0-10806-280-0 24 1 0507-0512
207 BOLT; SPR TO SHACKLE
M12X80 		0-10856-280-0 24 1 0601-
208 U-BOLT SET; FRT SPRING
L=230 		1-87870-269-2 04 1 0507-1206
208 U-BOLT SET; FRT SPRING
L=230 		1-87870-269-2 04 1 0507-1206
208 U-BOLT SET; FRT SPRING
L=230 		1-87870-493-0 04 1 1207-
208 U-BOLT SET; FRT SPRING
L=230 		1-87870-493-0 04 1 1207-
212 NIPPLE; GREASE,ELBOW
(A) PT1/8 STRAIGHT 		9-09031-010-0 07 1 0507-0512
212 NIPPLE; GREASE,ELBOW
(A) PT1/8 STRAIGHT 		0-90301-410-0 07 1 0601-
212 NIPPLE; GREASE,ELBOW
(B) PT1/8 ELBOW 		9-09031-210-0 05 1 0507-0512
212 NIPPLE; GREASE,ELBOW
(B) PT1/8 ELBOW 		0-90301-610-0 05 1 0601-
425 SEAL; DUST 1-51177-321-0 08 1 0507-1005

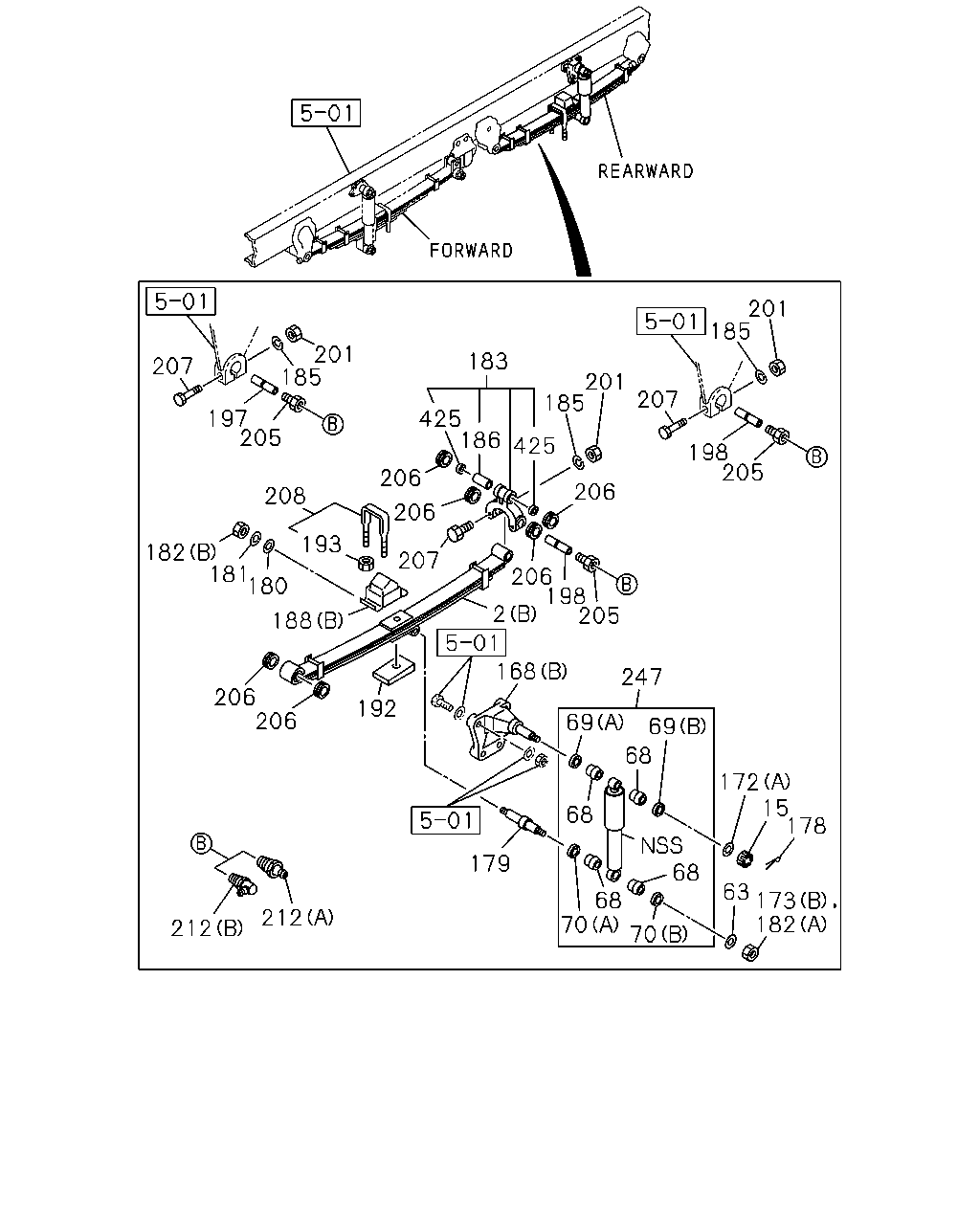

çizim 104498
201 185 201 185 183 207 201 185 207 197 205 425 186 425 198 205 206 206 208 206 193 182 181 180 207 206 198 205 2 188 168 247 206 206 192 69 69 68 172 15 178 68 68 179 63 173 182 68 70 212 70 212
BalonParca AdiParca NoAdetTipApplied Date
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. (A) FORWARD 3-LEAF 		1-51130-924-0 02 1 0507-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. (B) REARWARD 3-LEAF 		1-51130-925-0 02 1 0507-
15 NUT; S/ABS,UPR
M20 SLOTTED 		9-99116-420-0 02 1 0507-1107
15 NUT; S/ABS,UPR
M20 		0-91110-520-0 02 1 1108-
63 WASHER; PL,S/ABS,LWR
ID=21 		9-09160-520-0 04 1 0507-0605
63 WASHER; PL,S/ABS,LWR
ID=21 		0-91610-520-0 04 1 0606-
68 BUSHING; S/ABS 9-51631-026-0 08 1 0507-
68 BUSHING; S/ABS 9-51631-026-0 08 1 0507-
69 WASHER; UPR,S/ABS
(A) ID=27 		9-51631-027-0 02 1 0507-
69 WASHER; UPR,S/ABS
(B) ID=21 		9-51631-028-0 02 1 0507-
70 WASHER; LWR,S/ABS
(A) ID=27 		9-51631-027-0 02 1 0507-
70 WASHER; LWR,S/ABS
(B) ID=21 		9-51631-028-0 02 1 0507-
168 BRACKET; S/ABS,FRT SUSP
(A) 		1-51681-745-0 02 1 0507-1012
168 BRACKET; S/ABS,FRT SUSP
(A) 		8-98182-383-0 02 1 1101-
168 BRACKET; S/ABS,FRT SUSP
(B) 		1-51681-746-0 02 1 0507-1309
168 BRACKET; S/ABS,FRT SUSP
(B) 		8-98182-384-0 02 1 1310-
172 WASHER; PL,S/ABS BRKT
(A) ID=21 		9-09160-520-0 04 1 0507-0605
172 WASHER; PL,S/ABS BRKT
(A) ID=21 		0-91610-520-0 04 1 0606-
172 WASHER; PL,S/ABS BRKT
(B) ID=15 		9-09651-069-0 08 1 0507-0910
172 WASHER; PL,S/ABS BRKT
(B) ID=15 		8-98010-627-1 08 1 0911-
173 NUT; S/ABS
(A) M14 		9-99110-514-0 08 1 0507-0512
173 NUT; S/ABS
(A) M14 		0-91110-514-0 08 1 0601-
173 NUT; S/ABS
(B) M20 		9-99110-520-0 02 1 0507-0512
173 NUT; S/ABS
(B) M20 		0-91110-520-0 02 1 0601-
178 PIN; SPLIT,S/ABS
OD=3.7 L=35 		9-08114-035-0 02 1 0507-0606
178 PIN; SPLIT,S/ABS
OD=3.7 L=35 		0-81124-035-0 02 1 0607-1011
179 PIN 1-51682-094-1 02 1 0507-
180 WASHER; PL,PIN
ID=25 		1-09503-169-0 02 1 0507-
181 WASHER; LK,PIN
ID=24.5 		9-09150-524-0 02 1 0507-0603
181 WASHER; LK,PIN
ID=24.5 		0-91510-524-0 02 1 0604-
182 NUT; S/ABS LWR
(A) M20 		9-99110-520-0 01 1 0507-0512
182 NUT; S/ABS LWR
(A) M20 		0-91110-520-0 01 1 0601-
182 NUT; S/ABS LWR
(B) M24 		9-99110-524-0 02 1 0507-0512
182 NUT; S/ABS LWR
(B) M24 		0-91110-524-0 02 1 0601-
183 SHACKLE; FRT SUSP 1-51162-071-0 04 1 0507-1005
183 SHACKLE; FRT SUSP 1-51162-029-5 04 1 1006-
185 WASHER; LK,PIN
ID=12.2 		9-09150-612-0 24 1 0507-0603
185 WASHER; LK,PIN
ID=12.2 		0-91510-612-0 24 1 0604-
186 BUSHING; SHACKLE
OD=42 		1-51351-044-0 04 1 0507-1005
186 BUSHING; SHACKLE
OD=38 		8-98081-829-0 04 1 1006-
188 RUBBER; CLAMP,U-BOLT,FRT SPR
(B) REARWARD 		1-51172-081-1 02 1 0507-
188 RUBBER; CLAMP,U-BOLT,FRT SPR
(A) FORWARD 		1-51172-096-2 02 1 0507-
192 PIECE; DIST 1-51177-281-1 02 1 0507-1308
192 PIECE; DIST 8-98200-748-0 02 1 1309-
193 NUT; U BOLT
M22 		9-09112-822-0 16 1 0507-0512
193 NUT; U BOLT
M22 		0-91112-822-0 16 1 0601-1206
193 NUT; U BOLT
M22 		8-98179-318-0 16 1 1207-
197 PIN; FRT SPR,FRT 1-51161-031-0 04 1 0507-
198 PIN; FRT SPR & SHACKLE,FWD FRT 1-51161-031-0 08 1 0507-
201 NUT; PIN LK
M12 		9-99110-512-0 24 1 0507-0512
201 NUT; PIN LK
M12 		0-91110-512-0 24 1 0601-
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 12 1 0507-
206 WASHER; LK,SPRING PIN
ID=32.4 		1-51169-018-0 24 1 0507-
207 BOLT; SPR TO SHACKLE
M12X80 		0-10806-280-0 24 1 0507-0512
207 BOLT; SPR TO SHACKLE
M12X80 		0-10856-280-0 24 1 0601-
208 U-BOLT SET; FRT SPRING
L=230 		1-87870-269-2 04 1 0507-1206
208 U-BOLT SET; FRT SPRING
L=230 		1-87870-269-2 04 1 0507-1206
208 U-BOLT SET; FRT SPRING
L=230 		1-87870-493-0 04 1 1207-
208 U-BOLT SET; FRT SPRING
L=230 		1-87870-493-0 04 1 1207-
212 NIPPLE; GREASE,ELBOW
(A) PT1/8 STRAIGHT 		9-09031-010-0 07 1 0507-0512
212 NIPPLE; GREASE,ELBOW
(A) PT1/8 STRAIGHT 		0-90301-410-0 07 1 0601-
212 NIPPLE; GREASE,ELBOW
(B) PT1/8 ELBOW 		9-09031-210-0 05 1 0507-0512
212 NIPPLE; GREASE,ELBOW
(B) PT1/8 ELBOW 		0-90301-610-0 05 1 0601-
247 ABSORBER ASM; SHOCK,RWD FRT 1-51630-805-1 02 1 0507-
425 SEAL; DUST 1-51177-321-0 08 1 0507-1005
