◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYJ ▶ 11006 - CYJ NEW ZEALAND ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-43 - POWER STEERING BOOSTER ▶
4-43 — POWER STEERING BOOSTER (#31182) — 28 parça

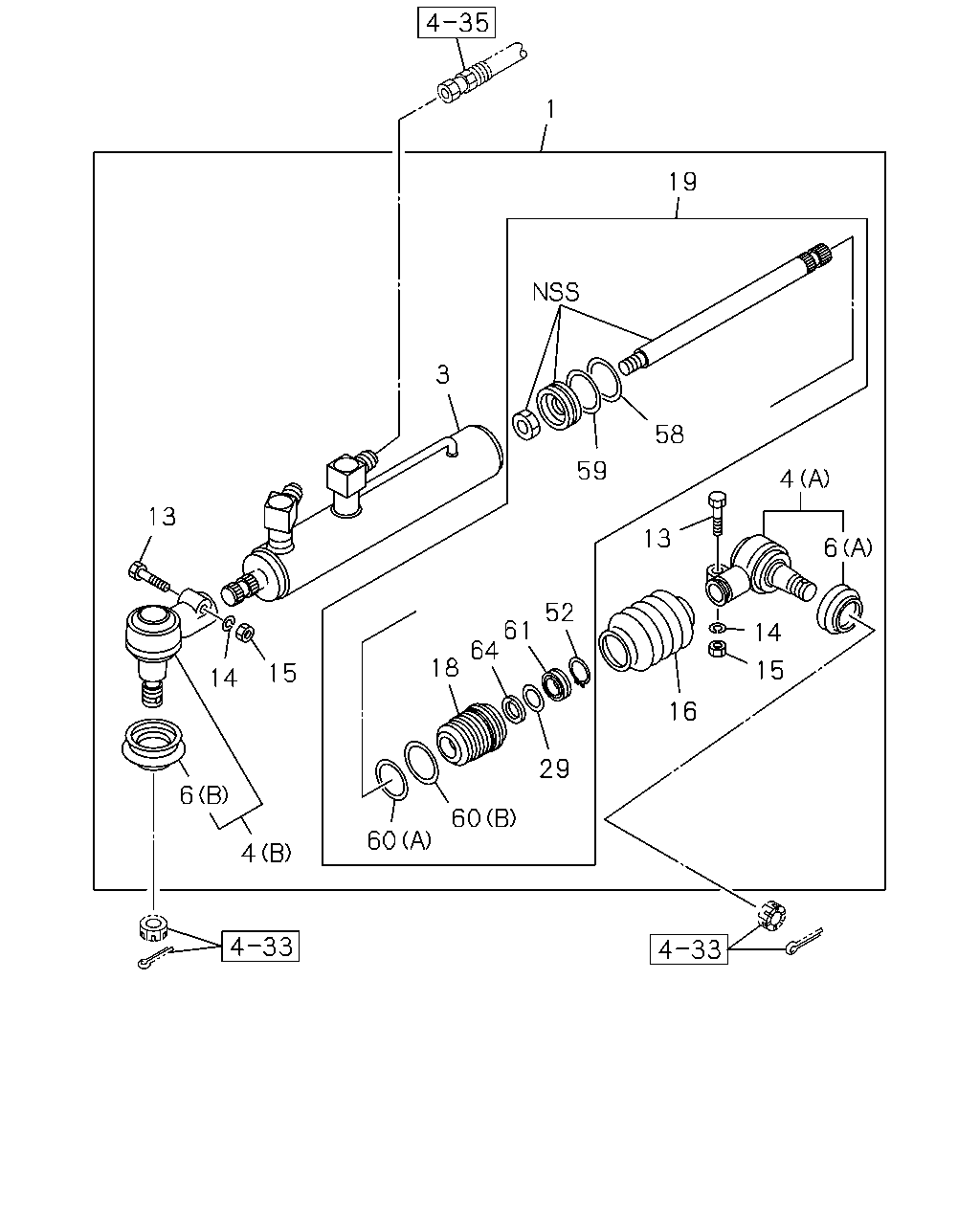

çizim 88812
1 19 3 58 59 4 13 13 6 52 61 64 14 18 15 15 14 16 29 6 60 60 4
BalonParca AdiParca NoAdetTipApplied Date
1 BOOSTER ASM; POWER STRG 1-44510-124-2 01 1 0507-
3 CYLINDER ASM; POWER STRG BOOSTER 1-44511-035-0 01 1 0507-
4 SOCKET ASM; BALL,POWER STRG BOOSTER
(B) 		1-44517-021-0 01 1 0507-
4 SOCKET ASM; BALL,POWER STRG BOOSTER
(A) 		1-44517-022-0 01 1 0507-
6 COVER; DUST,POWER STRG BOOSTER
(A) 		1-43159-091-0 01 1 0507-
6 COVER; DUST,POWER STRG BOOSTER
(B) 		1-43159-078-0 01 1 0507-
13 BOLT; SOCKET,POWER STRG BOOSTER 1-44519-247-0 02 1 0507-
14 WASHER; SOCKET,POWER STRG BOOSTER 1-44519-248-0 02 1 0507-
15 NUT; SOCKET,POWER STRG BOOSTER 1-44519-249-0 02 1 0507-
16 BOOT; POWER STRG BOOSTER 1-44519-246-0 01 1 0507-
18 BEARING; POWER STRG BOOSTER 1-44519-237-0 01 1 0507-
19 PISTON & ROD ASM; POWER STRG BOOSTER 1-44520-008-0 01 1 0507-
29 RING; BACKUP,POWER STRG BOOSTER 1-44519-239-0 01 1 0507-
52 RING; RET,POWER STRG BOOSTER 1-44519-241-0 01 1 0507-
58 RING; SEAL,POWER STRG BOOSTER 1-44519-245-0 01 1 0507-
59 GASKET; PISTON,POWER STRG BOOSTER 1-44519-244-0 01 1 0507-
60 GASKET; BRG,POWER STRG BOOSTER
(A) 		1-44519-242-0 01 1 0507-
60 GASKET; BRG,POWER STRG BOOSTER
(B) 		1-44519-243-0 01 1 0507-
61 SEAL; DUST,POWER STRG BOOSTER 1-44519-240-0 01 1 0507-
64 GASKET; POWER STRG BOOSTER 1-44519-238-0 01 1 0507-
çizim 104494
2 58 59 61 64 29 60 60
BalonParca AdiParca NoAdetTipApplied Date
2 REPAIR KIT; POWER STRG BOOSTER 1-44519-250-0 01 1 0507-
29 RING; BACKUP,POWER STRG BOOSTER 1-44519-239-0 01 1 0507-
58 RING; SEAL,POWER STRG BOOSTER 1-44519-245-0 01 1 0507-
59 GASKET; PISTON,POWER STRG BOOSTER 1-44519-244-0 01 1 0507-
60 GASKET; BRG,POWER STRG BOOSTER
(A) 		1-44519-242-0 01 1 0507-
60 GASKET; BRG,POWER STRG BOOSTER
(B) 		1-44519-243-0 01 1 0507-
61 SEAL; DUST,POWER STRG BOOSTER 1-44519-240-0 01 1 0507-
64 GASKET; POWER STRG BOOSTER 1-44519-238-0 01 1 0507-
