Isuzu WW
▶
BUSES
▶
MT
▶
10662 - MT(THAI)
▶
0 - Engine, Emission, Engine Electrical
▶
0-10 - CYLINDER HEAD COVER
▶

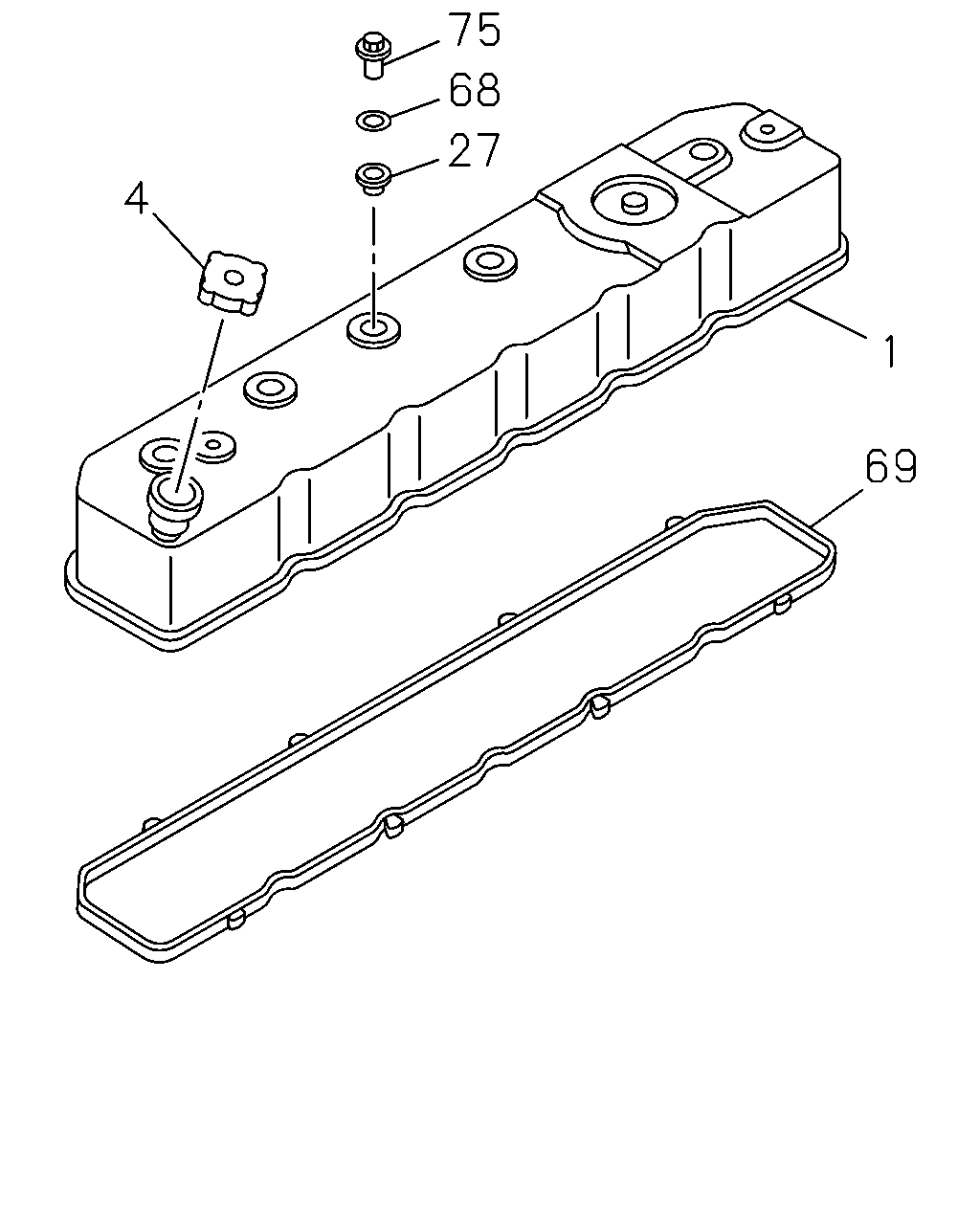

0-10 — CYLINDER HEAD COVER
(#3116) — 12 parça
75
68
27
4
1
69
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
COVER; CYL HD
1-11171-265-1
01
1
9104-
1
COVER; CYL HD
1-11171-265-1
01
1
0108-
4
CAP; OIL FILLER
1-11750-020-0
01
1
9104-
4
CAP; OIL FILLER
1-11750-020-0
01
1
0108-
27
GASKET; HD COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
9-11179-030-0
04
1
9104-
27
GASKET; HD COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
9-11179-030-0
04
1
0108-
68
WASHER; CAP NUT,HD COVER
9-11179-105-0
04
1
9104-
68
WASHER; CAP NUT,HD COVER
9-11179-105-0
04
1
0108-
69
GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
1-11173-055-0
01
1
9104-
69
GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
1-11173-055-0
01
1
0108-
75
NUT; CAP,HD COVER
M8 CAP NUT OD=22
8-94340-192-0
04
1
9104-
75
NUT; CAP,HD COVER
M8 CAP NUT OD=22
8-94340-192-0
04
1
0108-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
