Isuzu WW
▶
TRUCKS
▶
FVM
▶
10937 - FVM(INDONESIA)WB6300
▶
0 - Engine, Emission, Engine Electrical
▶
0-39 - AIR COMPRESSOR; BRAKE
▶

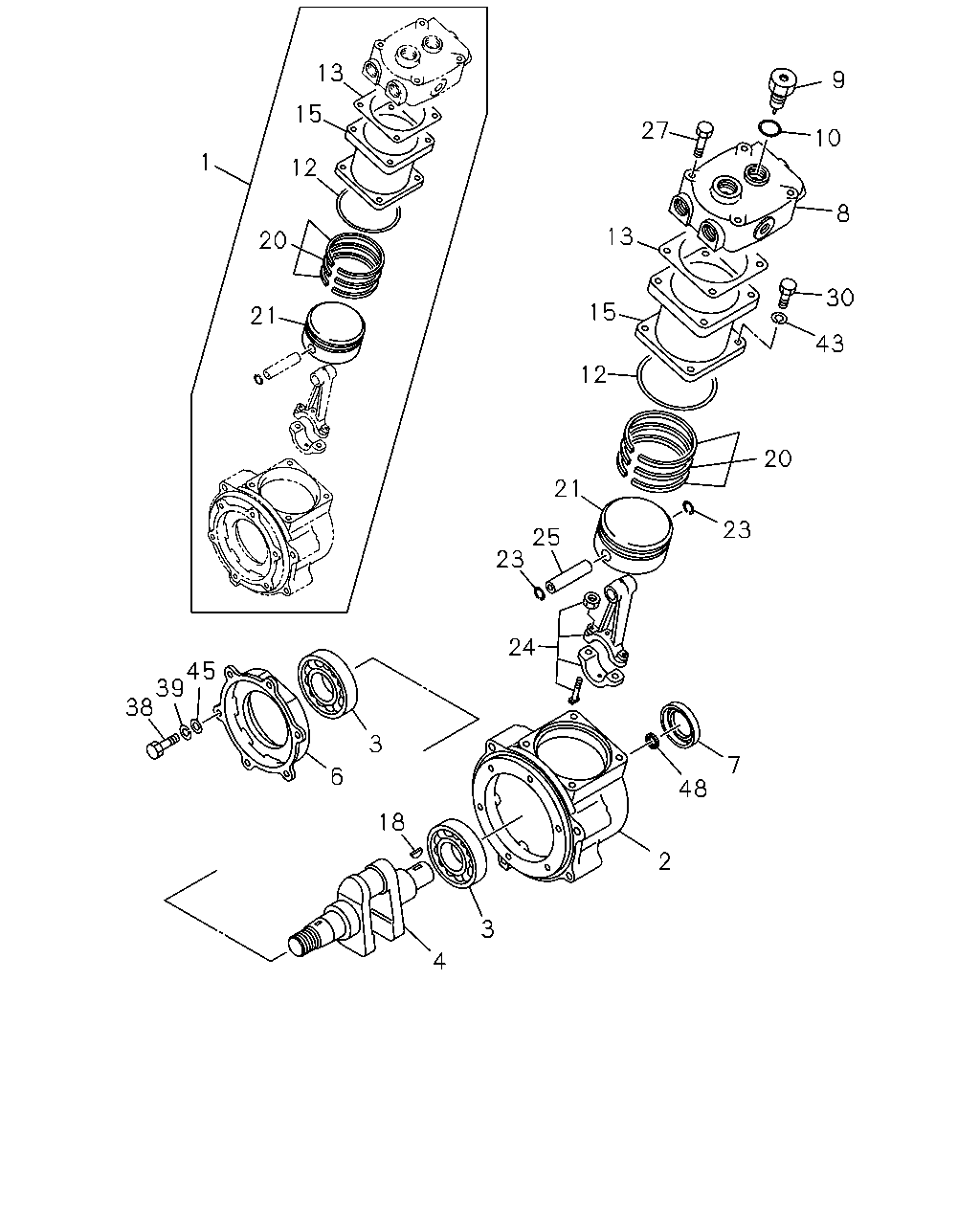

0-39 — AIR COMPRESSOR; BRAKE
(#31147) — 26 parça
13
9
15
27
10
1
12
8
13
20
30
15
21
43
12
20
21
23
25
23
24
45
39
38
3
7
6
48
18
2
3
4
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LINER KIT; CYL,AIR CMPR
1-19163-038-0
01
1
0311-
2
CRANKCASE; AIR CMPR
1-19151-288-0
01
1
0311-
3
BEARING; AIR CMPR
1-09800-232-0
02
1
0311-
4
CRANKSHAFT; AIR CMPR
1-19171-055-1
01
1
0311-
6
COVER ASM; BRG,AIR CMPR
1-19156-043-0
01
1
0311-
7
SEAL; OIL,BRG COVER,AIR CMPR
1-09625-534-0
01
1
0311-
8
HEAD ASM; CYL,AIR CMPR
1-19110-016-0
01
1
0311-
9
VALVE ASM; UNLOADER,AIR CMPR
1-19120-021-1
01
1
0311-
10
SHIM; AIR CMPR
9-19139-021-0
01
1
0311-
12
GASKET; AIR CMPR
1-09623-539-0
01
1
0311-
13
GASKET; AIR CMPR
1-19139-001-0
01
1
0311-1402
13
GASKET; AIR CMPR
8-98113-037-0
01
1
1403-
15
CYLINDER; AIR CMPR
1-19151-251-0
01
1
0311-
18
KEY; AIR CMPR
9-08055-516-0
01
1
0311-
20
RING KIT; PISTON,AIR CMPR
1-19163-034-0
01
1
0311-
21
PISTON; AIR CMPR
1-19161-016-0
01
1
0311-
23
RING; SNAP,PISTON,AIR CMPR
9-19168-003-0
02
1
0311-
24
ROD ASM; CONN,AIR CMPR
1-19173-007-0
01
1
0311-
25
PIN; PISTON,AIR CMPR
9-19167-003-0
01
1
0311-
27
BOLT; HD
M10X60
9-01066-060-0
04
1
0311-
30
BOLT; CYL TO CRANKCASE
M10X25
9-02051-025-0
04
1
0311-
38
BOLT; COVER FIX
M6X16
9-02050-616-0
06
1
0311-
39
WASHER; LK,COVER FIX
ID=6.1 IDN
9-09150-506-0
06
1
0311-
43
WASHER; LK,CYL TO CRANKCASE,AIR CMPR
ID=10.2
9-09150-610-0
04
1
0311-
45
WASHER; PL,COVER FIX,AIR CMPR
1-19159-005-0
06
1
0311-
48
SLEEVE; CR/SHF
1-19179-018-0
01
1
0311-
