◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CVR ▶ 10661 - CVR ▶ 9 - Tools ▶ 9-01 - TOOLS ▶
9-01 — TOOLS (#3113) — 159 parça
çizim 7279
140 106 101 100 99 93 87 87 88 89 91 61 57 49 47 17
BalonParca AdiParca NoAdetTipApplied Date A B C D
17 HAMMER 9-85121-406-0 01 1 9002- ● ● ● ●
47 WRENCH ASM; UNIVERSAL,INJ PUMP
6QA1 STD ENG(L24) (B) 		9-85113-501-0 01 1 9002- ● ● ● ●
47 WRENCH ASM; UNIVERSAL,INJ PUMP
6RB1 STD ENG(07L) (A) 		9-85113-901-0 01 1 9002-9306 ● ● ● ●
49 REPLACER ASM; VALVE
6QA1 STD ENG(L24) 		1-85235-005-0 01 1 9002- ● ● ● ●
57 TOOL; SETTING CRANK GEAR
OD=153 		9-85220-025-0 01 1 9002- ● ● ● ●
61 PULLER ASM; PILOT BRG
(B) 		1-85210-050-0 01 1 9002- ● ● ● ●
61 PULLER ASM; PILOT BRG
(A) 		9-85210-157-0 01 1 9002- ● ● ● ●
87 TOOL; PISTON
6QA1 STD ENG(L24) (B) 		9-85221-177-0 01 1 9002- ● ● ● ●
87 TOOL; PISTON
6RB1 STD ENG(07L) (A) 		9-85221-319-0 01 1 9002-9306 ● ● ● ●
88 TOOL; CONNROD BUSHING
6RB1 STD ENG(07L) 		9-85220-042-0 01 1 9002-9306 ● ● ● ●
89 TOOL; PISTON RING 1-85221-025-0 01 1 9002- ● ● ● ●
91 REPLACER ASM; CYL LINER
6QA1 STD ENG(L24) 		9-85231-169-0 01 1 9002- ● ● ● ●
93 SETTING KIT; VALVE GUIDE
6QA1 STD ENG(L24) (A) 		9-85231-220-0 01 1 9002- ● ● ● ●
93 SETTING KIT; VALVE GUIDE
6RB1 STD ENG(07L) (B) 		9-85231-222-0 01 1 9002-9306 ● ● ● ●
99 WRENCH; CYL HD BOLT
6QA1 STD ENG(L24) 		9-85111-950-0 01 1 9002- ● ● ● ●
100 LEVER; CYL HD BOLT
6QA1 STD ENG(L24) OD=16 L=200 		9-85111-934-0 01 1 9002- ● ● ● ●
101 LEVER; EXT
6QA1 STD ENG(L24) 		9-85111-935-0 01 1 9002- ● ● ● ●
106 TOOL; SETTING PILOT BRG
(B) 		9-85221-247-0 01 1 9002- ● ● ● ●
106 TOOL; SETTING PILOT BRG
(C) 		9-85221-249-0 01 1 9002- ● ● ● ●
106 TOOL; SETTING PILOT BRG
(A) 		9-85241-409-0 01 1 9002- ● ● ● ●
140 REMOVER; WEAR RING 1-85210-027-0 01 1 9002- ● ● ● ●
çizim 35223
250 249 246 248 227 192 180 180 171 172 173 250 246 248
BalonParca AdiParca NoAdetTipApplied Date A B C D
171 PULLER ASM; PINION BRG 9-85210-152-0 01 1 9002- ● ● ● ●
172 PULLER ASM; BRG DIFF PILOT 9-85210-182-0 01 1 9002- ● ● ● ●
173 WRENCH; COUPLING DRIVER 9-85111-944-0 01 1 9002- ● ● ● ●
180 PULLER; FRT & RR HUB
(A) 		1-85210-002-0 01 1 9002- ● ● ● ●
180 PULLER; FRT & RR HUB
(B) 		1-85210-003-0 01 1 9002- ● ● ● ●
192 GAUGE; TIRE PRESSURE 1-85315-001-0 01 1 9002- ● ● ● ●
192 GAUGE; TIRE PRESSURE
TIRE INFLATOR DEVICE<W47> 		1-85315-001-0 01 1 9002- ● ● ● ●
227 PUMP ASM; TIRE 9-85521-132-0 01 1 9002- ● ● ● ●
246 CHAIN; TIRE,1000-20,SINGLE
(A) 10.00-20 SINGLE TYPE 		9-85591-239-0 AR 1 9002- ● ● ● ●
246 CHAIN; TIRE,1000-20,SINGLE
(B) 11.00-20 SINGLE TYPE 		9-85591-259-0 AR 1 9002- ● ● ● ●
248 CHAIN; TIRE,1000-20,DOUBLE
(A) 10.00-20 DOUBLE TYPE 		9-85591-240-0 AR 1 9002- ● ● ● ●
248 CHAIN; TIRE,1000-20,DOUBLE
(B) 11.00-20 DOUBLE TYPE 		9-85591-260-0 AR 1 9002- ● ● ● ●
249 CHAIN; TIRE,TRIPLE
9.00-20 TRIPLE TYPE 		9-85591-256-0 AR 1 9002- ● ● ● ●
250 CHAIN; TIRE,1000-20,TRIPLE
(A) 10.00-20 TRIPLE TYPE 		9-85591-241-0 AR 1 9002- ● ● ● ●
250 CHAIN; TIRE,1000-20,TRIPLE
(B) 11.00-20 TRIPLE TYPE 		9-85591-261-0 AR 1 9002- ● ● ● ●
çizim 36828
181 132 189 85 72 72 95 102 84 230 93 71 62 47 50 52 53 178
BalonParca AdiParca NoAdetTipApplied Date A B C D
47 WRENCH ASM; UNIVERSAL,INJ PUMP
6QA1 STD ENG(L24) (B) 		9-85113-501-0 01 1 9002- ● ● ● ●
47 WRENCH ASM; UNIVERSAL,INJ PUMP
6RB1 STD ENG(07L) (A) 		9-85113-901-0 01 1 9002-9306 ● ● ● ●
50 REPLACER; NOZZLE HOLDER
6RB1 STD ENG(07L) 		9-85232-001-0 01 1 9002-9306 ● ● ● ●
52 REMOVER; WATER PUMP 9-85210-097-0 01 1 9002- ● ● ● ●
53 PULLER; TAPER BUSHING 9-85210-123-0 01 1 9002- ● ● ● ●
62 TOOL ASM; SETTING WEAR RING 1-85220-014-0 01 1 9002- ● ● ● ●
71 TOOL; SETTING,OIL SEAL,FRT 1-85220-015-0 01 1 9002- ● ● ● ●
72 TOOL; SETTING,OIL SEAL,RR
6RB1 STD ENG(07L) (B) W/REAR PTO 		1-85220-013-0 01 1 9002-9306 ● ● ● ●
72 TOOL; SETTING,OIL SEAL,RR
6QA1 STD ENG(L24) ENGINE REAR PTO(SV1) (B) W/REAR PTO 		1-85220-013-0 01 1 9002-9306 ● ●
72 TOOL; SETTING,OIL SEAL,RR
6RB1 STD ENG(07L) (A) WO/REAR PTO 		1-85220-035-0 01 1 9002-9306 ● ● ● ●
72 TOOL; SETTING,OIL SEAL,RR
6QA1 STD ENG(L24) EXC. ENGINE REAR PTO(SV1) (A) WO/REAR PTO 		1-85220-035-0 01 1 9002-9306 ● ● ● ●
72 TOOL; SETTING,OIL SEAL,RR
(A) WO/REAR PTO 		1-85220-035-0 01 1 9307- ● ●
84 REPLACER; VALVE SEAL 9-85221-289-0 01 1 9002- ● ● ● ●
85 REPLACER ASM; VALVE SPR
6RB1 STD ENG(07L) 		9-85231-436-0 01 1 9002-9306 ● ● ● ●
93 SETTING KIT; VALVE GUIDE
6QA1 STD ENG(L24) (A) 		9-85231-220-0 01 1 9002- ● ● ● ●
93 SETTING KIT; VALVE GUIDE
6RB1 STD ENG(07L) (B) 		9-85231-222-0 01 1 9002-9306 ● ● ● ●
95 SETTING TOOL; BRIDGE GUIDE
6RB1 STD ENG(07L) 		9-85221-324-0 01 1 9002-9306 ● ● ● ●
102 ADAPTER; COMP GAGE
6RB1 STD ENG(07L) 		9-85431-505-0 01 1 9002-9306 ● ● ● ●
132 WRENCH; NUT CR/SHF
B=46 & 54 L=165 		9-85112-320-0 01 1 9002- ● ● ● ●
178 BAR; TRANS GUIDE 9-85291-203-0 01 1 9002- ● ● ● ●
181 PULLER ASM; AIR CMPR 1-85210-036-0 01 1 9002- ● ● ● ●
189 TUBE; AIR BREATHER
L=460 		9-85291-414-0 01 1 9002- ● ● ● ●
230 PUMP; GREASE 1-85556-007-2 01 1 9002- ● ● ● ●

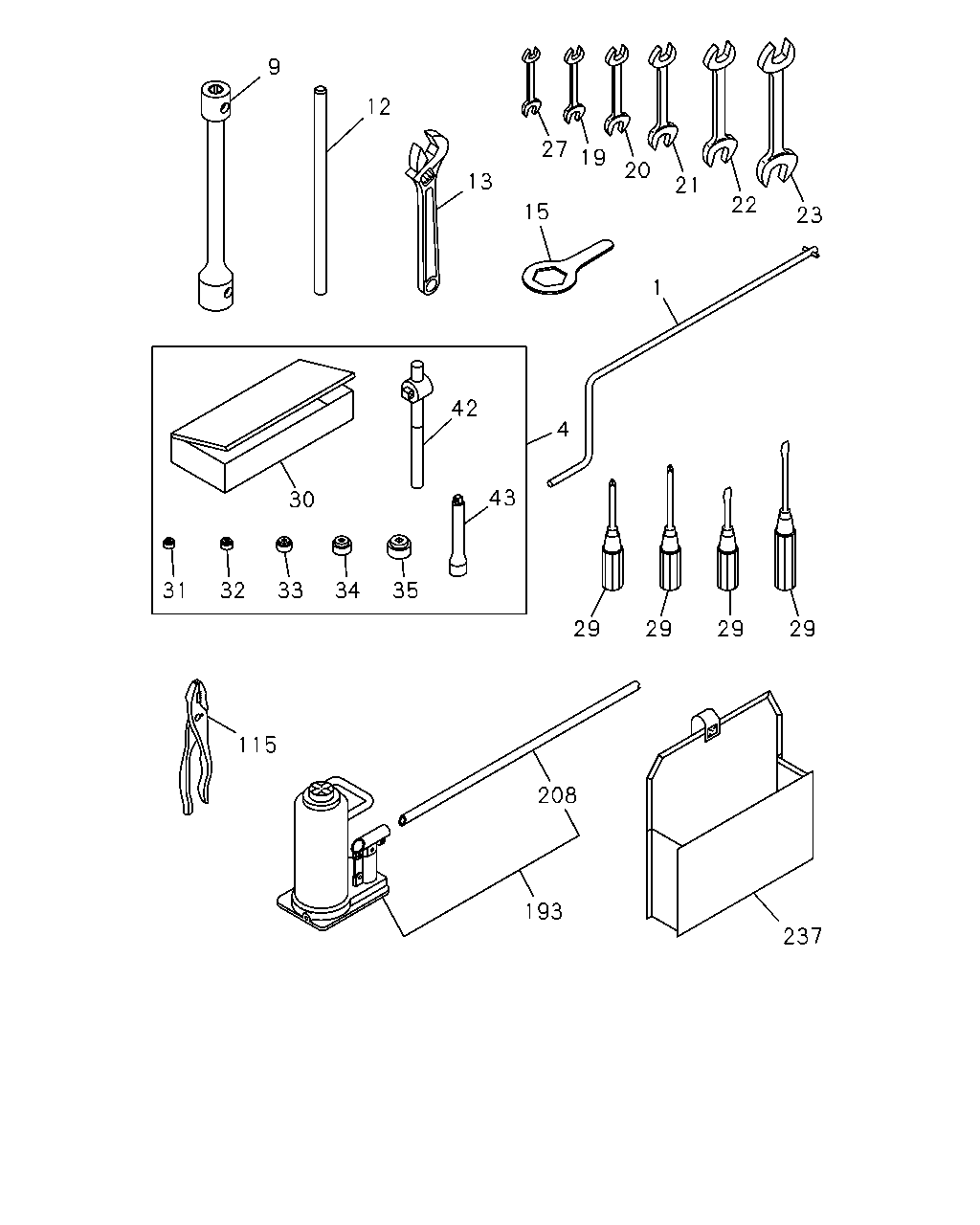

çizim 37004
237 193 208 115 31 32 33 34 35 30 42 43 4 29 29 29 29 1 23 22 21 20 19 27 15 13 12 9
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 HANDLE; SPARE TIRE CARRIER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR2<RF6>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> 		9-23110-018-0 01 1 9002- ● ● ● ●
4 WRENCH KIT; SOCKET 9-85110-012-0 01 1 9002- ● ● ● ●
9 WRENCH; WHEEL PIN
B=30 L=450 		1-85111-032-0 01 1 9002-9111 ● ●
9 WRENCH; WHEEL PIN
EXC. WHEEL 8STUD 7.50VX20 165-13<Q62> B=30 L=450 		1-85111-032-0 01 1 9002-9111 ● ●
9 WRENCH; WHEEL PIN
B=33X30 L=450 		1-85111-033-1 01 1 9112- ● ●
9 WRENCH; WHEEL PIN
EXC. WHEEL 8STUD 7.50VX20 165-13<Q62> B=33X30 L=450 		1-85111-033-1 01 1 9112- ● ●
9 WRENCH; WHEEL PIN
WHEEL 8STUD 7.50VX20 165-13<Q62> B=41X21 L=440 		1-85113-015-1 01 1 9002- ● ●
12 HANDLE; WRENCH,WHEEL PIN
OD=25 L=480 		1-85116-011-0 01 1 9002- ● ● ● ●
13 WRENCH; MONKEY 1-85117-003-1 01 1 9002-9304 ● ● ● ●
13 WRENCH; MONKEY
L=255 		1-85117-002-1 01 1 9305- ● ● ● ●
15 WRENCH; TOP GEAR NUT 9-85111-330-0 01 1 9002- ● ● ● ●
19 WRENCH; 7X8
7X8 		9-09592-107-0 01 1 9002- ● ● ● ●
20 WRENCH; 10X12
10X12 		9-09592-110-0 01 1 9002- ● ● ● ●
21 WRENCH; 14X17
14X17 		9-09592-114-0 01 1 9002- ● ● ● ●
22 WRENCH; 19X22
19X22 		9-99592-119-0 01 1 9002- ● ● ● ●
23 WRENCH; 24X27
24X27 		9-09592-124-0 01 1 9002- ● ● ● ●
27 WRENCH; OPEN END 5.5X7
5.5X7 		9-09592-105-0 01 1 9002- ● ● ● ●
29 DRIVER; SCREW
<+> L=205 		9-09595-022-0 01 1 9002- ● ● ● ●
29 DRIVER; SCREW
<+> L=275 		9-09595-023-0 01 1 9002- ● ● ● ●
29 DRIVER; SCREW
<-> L=205 		9-09595-126-0 01 1 9002- ● ● ● ●
29 DRIVER; SCREW
<-> L=325 		9-09595-129-0 01 1 9002- ● ● ● ●
30 BOX; SOCKET WRENCH 9-85581-260-0 01 1 9002- ● ● ● ●
31 WRENCH; 12 9-09590-012-0 01 1 9002- ● ● ● ●
32 WRENCH; 14 9-09590-014-0 01 1 9002- ● ● ● ●
33 WRENCH; 17 9-09590-017-0 01 1 9002- ● ● ● ●
34 WRENCH; 19 9-09590-019-0 01 1 9002- ● ● ● ●
35 WRENCH; 22 9-09590-022-0 01 1 9002- ● ● ● ●
42 HANDLE; SLIDING 9-09590-512-0 01 1 9002- ● ● ● ●
43 BAR; EXTENSION,SOCKET WRENCH 9-09590-812-0 01 1 9002- ● ● ● ●
115 PLIER 5-85171-001-0 01 1 9002- ● ● ● ●
193 JACK ASM
15TON 		1-85510-004-2 01 1 9002-9310 ● ● ● ●
193 JACK ASM
15TON 		1-85510-019-0 01 1 9311- ● ●
208 HANDLE; JACK
L=680 		1-85515-004-0 01 1 9002-9405 ● ● ● ●
208 HANDLE; JACK
L=600 		1-85515-008-0 01 1 9406- ● ●
237 BAG; TOOL 8-94367-102-0 01 1 9002-9509 ● ● ● ●
237 BAG; TOOL 8-97130-902-0 01 1 9510- ● ●
çizim 37007
232 163 177 106 56 106 170 156 158 166 167 169 154 153 152 151 146 77 135 141 146 146
BalonParca AdiParca NoAdetTipApplied Date A B C D
56 TOOL; SETTING TOP GEAR MAIN
L=350 		9-85221-310-0 01 1 9002- ● ● ● ●
77 TOOL; SETTING,CYL LINER
6RB1 STD ENG(07L) 		9-85220-043-0 01 1 9002-9306 ● ● ● ●
106 TOOL; SETTING PILOT BRG
(B) 		9-85221-247-0 01 1 9002- ● ● ● ●
106 TOOL; SETTING PILOT BRG
(C) 		9-85221-249-0 01 1 9002- ● ● ● ●
106 TOOL; SETTING PILOT BRG
(A) 		9-85241-409-0 01 1 9002- ● ● ● ●
135 COVER; ENG MTG,FRT 9-85595-016-0 02 1 9002- ● ● ● ●
141 HANDLE; WRENCH
(A) OD=25 L=480 		1-85116-011-0 01 1 9002- ● ● ● ●
141 HANDLE; WRENCH
(B) OD=16 L=200 		9-85111-934-0 01 1 9002- ● ● ● ●
141 HANDLE; WRENCH
(A) OD=19 L=400 		9-85114-306-0 01 1 9002- ● ● ● ●
141 HANDLE; WRENCH
(A) OD=16 L=300 		9-85114-307-0 01 1 9002- ● ● ● ●
146 REPLACER KIT; LEAF SPR
(A) 		1-85237-003-0 01 1 9002-9307 ● ● ● ●
146 REPLACER KIT; LEAF SPR
(A) 		1-85237-016-0 01 1 9308- ● ●
146 REPLACER KIT; LEAF SPR
(B) 		1-85237-007-0 01 1 9002-9307 ● ● ● ●
146 REPLACER KIT; LEAF SPR
(B) 		1-85237-017-0 01 1 9308- ● ●
146 REPLACER KIT; LEAF SPR
(C) 		9-85231-556-0 01 1 9002- ● ● ● ●
151 REMOVER; OIL BRK,FRT RETURN SPR
ID=16 		1-85237-002-0 01 1 9002- ● ● ● ●
152 DRIVER; NEEDLE,KING PIN
L=220 		1-85238-001-0 01 1 9002- ● ● ● ●
153 DRIVER; WASHER,THRUST WASHER 1-85238-002-0 01 1 9002- ● ● ● ●
154 SLEEPER; KING PIN 1-85238-003-0 01 1 9002- ● ● ● ●
156 PULLER; ANCHOR PIN 1-85210-025-0 01 1 9002- ● ● ● ●
158 SETTING TOOL; RETURN SPR 9-85221-231-0 01 1 9002- ● ● ● ●
163 TOOL; SETTING
L=150 		9-85221-248-0 01 1 9002- ● ● ● ●
166 ALIGNER; CLU RELEASE LEVER
EXC. 14INCH TWO PLATE SPICER CLUTCH(M07),16 INCHCLUTCH(RF2) L=17.5 H=70 		1-85253-010-0 01 1 9002-9306 ● ● ● ●
166 ALIGNER; CLU RELEASE LEVER
6QA1 STD ENG(L24) 16 INCH CLUTCH(RF2) L=11 H=60 		1-85253-009-0 01 1 9002-9306 ● ● ● ●
166 ALIGNER; CLU RELEASE LEVER
L=11 H=60 		1-85253-009-0 01 1 9307- ● ●
167 ALIGNER; CLU PILOT
EXC. 14INCH TWO PLATE SPICER CLUTCH(M07) L=300 OD=41.1 		1-85253-020-0 01 1 9002-9306 ● ● ● ●
167 ALIGNER; CLU PILOT
L=300 OD=41.1 		1-85253-020-0 01 1 9307- ● ●
169 BRACKET; SPLINE YOKE 9-85221-243-1 01 1 9002- ● ● ● ●
170 HANDLE; TURNING,FINAL 9-85251-121-0 01 1 9002- ● ● ● ●
177 SETTING TOOL KIT 1-85220-004-0 01 1 9002- ● ● ● ●
232 HOSE; AIR,AIR CHARGE
TIRE INFLATOR DEVICE<W47> 		1-09360-628-1 01 1 9002- ● ● ● ●

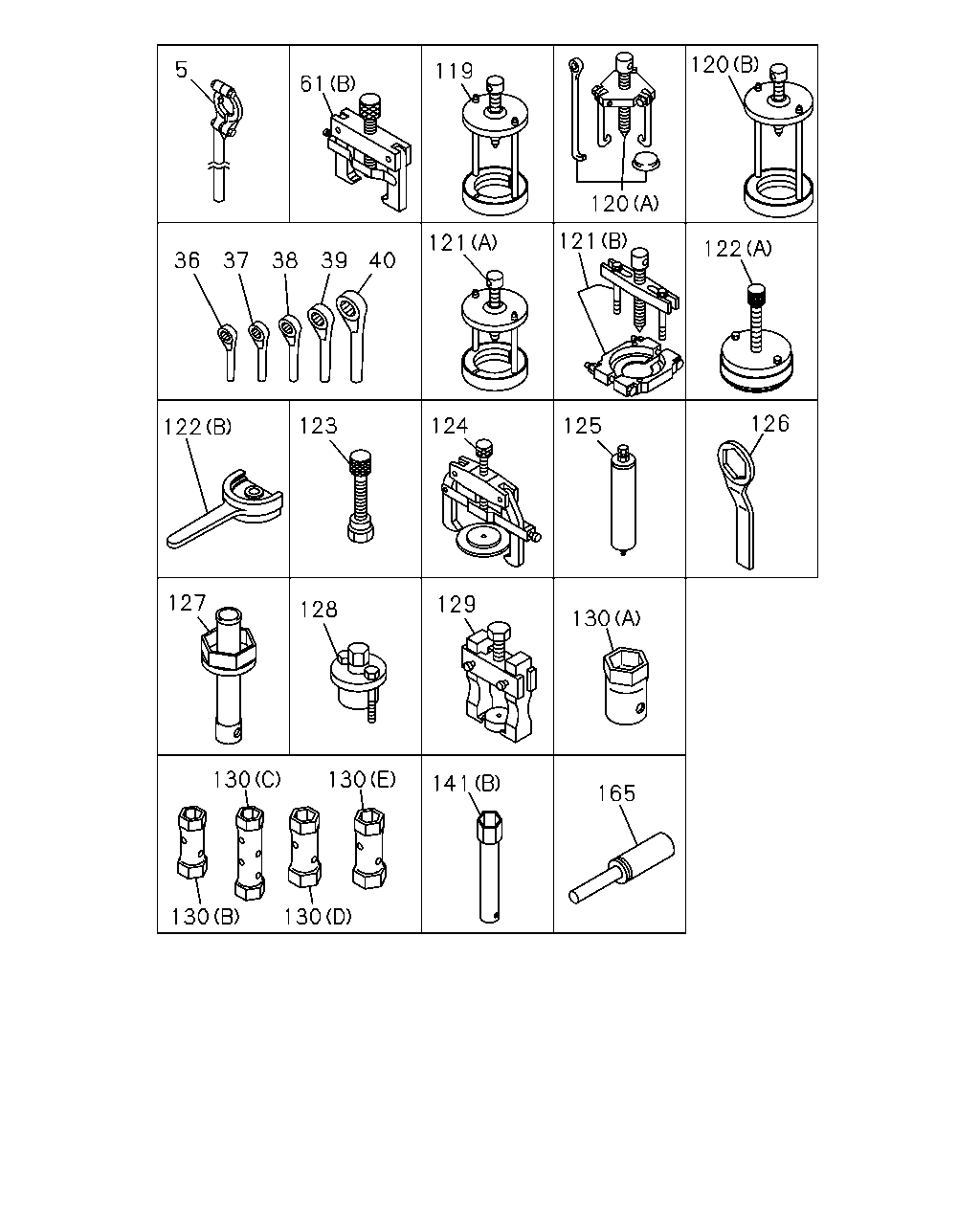

çizim 37321
5 61 119 120 120 122 121 121 40 39 38 37 36 122 123 124 125 126 130 129 128 127 130 130 130 130 141 165
BalonParca AdiParca NoAdetTipApplied Date A B C D
5 WRENCH ASM; NUT,MAINSHAFT 1-85110-010-0 01 1 9002- ● ● ● ●
36 WRENCH; 24 9-85111-377-0 01 1 9002- ● ● ● ●
37 WRENCH; 27 9-85111-375-0 01 1 9002- ● ● ● ●
38 WRENCH; 32 9-85111-358-0 01 1 9002- ● ● ● ●
39 WRENCH; 36 9-85111-374-0 01 1 9002- ● ● ● ●
40 WRENCH; 41 9-85111-356-0 01 1 9002- ● ● ● ●
61 PULLER ASM; PILOT BRG
(B) 		1-85210-050-0 01 1 9002- ● ● ● ●
61 PULLER ASM; PILOT BRG
(A) 		9-85210-157-0 01 1 9002- ● ● ● ●
119 PULLER ASM; TOP GEAR BRG
L=235 		9-85210-190-0 01 1 9002- ● ● ● ●
120 PULLER ASM; MAIN REAR BRG
(A) 		9-85210-148-0 01 1 9002- ● ● ● ●
120 PULLER ASM; MAIN REAR BRG
(B) 		9-85210-184-0 01 1 9002- ● ● ● ●
121 PULLER ASM; COUNTER REAR
(A) 		9-85210-185-0 01 1 9002- ● ● ● ●
121 PULLER ASM; COUNTER REAR
(B) 		9-85210-195-0 01 1 9002- ● ● ● ●
122 PULLER ASM; COUNTER FRT
(A) 		1-85210-010-0 01 1 9002- ● ● ● ●
122 PULLER ASM; COUNTER FRT
(B) 		9-85210-129-1 01 1 9002- ● ● ● ●
123 PULLER; SPEEDOMETER BUSHING 9-85210-091-0 01 1 9002- ● ● ● ●
124 PULLER ASM; BRG DIFF 9-85210-131-0 01 1 9002- ● ● ● ●
125 PULLER ASM; KING PIN
L=450 		1-85210-009-0 01 1 9002- ● ● ● ●
126 WRENCH; FRT HUB BRG NUT
L=350 B=75 		1-85110-002-0 01 1 9002- ● ● ● ●
127 WRENCH ASM; HUB BRG NUT
BOLT HEAD OD=63 		9-85113-509-0 01 1 9002- ● ● ● ●
127 WRENCH ASM; HUB BRG NUT
BOLT HEAD OD=67 		9-85113-524-0 01 1 9002- ● ● ● ●
128 PULLER ASM; STRG WHEEL 9-85210-099-0 01 1 9002- ● ● ● ●
129 PULLER ASM; PITMAN ARM 1-85210-011-0 01 1 9002- ● ● ● ●
130 WRENCH; BOX
(A) B=63 		9-85111-368-0 01 1 9002- ● ● ● ●
130 WRENCH; BOX
(E) B=46 & 54 L=165 		9-85112-320-0 01 1 9002- ● ● ● ●
130 WRENCH; BOX
(B) B=32 & 41 L=150 		9-85112-322-0 01 1 9002- ● ● ● ●
130 WRENCH; BOX
(C) B=36 & 41 L=200 		9-85112-330-0 01 1 9307- ● ●
130 WRENCH; BOX
(D) B=41 & 46 L=165 		9-85113-401-0 01 1 9307- ● ●
141 HANDLE; WRENCH
(A) OD=25 L=480 		1-85116-011-0 01 1 9002- ● ● ● ●
141 HANDLE; WRENCH
(B) OD=16 L=200 		9-85111-934-0 01 1 9002- ● ● ● ●
141 HANDLE; WRENCH
(A) OD=19 L=400 		9-85114-306-0 01 1 9002- ● ● ● ●
141 HANDLE; WRENCH
(A) OD=16 L=300 		9-85114-307-0 01 1 9002- ● ● ● ●
165 SETTING TOOL; PTO 9-85241-702-0 01 1 9002- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
