◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ GTR ▶ 10936 - GTR(INDONESIA) ▶ 9 - Tools ▶ 9-01 - TOOLS ▶
9-01 — TOOLS (#31127) — 66 parça
çizim 85843
174 180 167 178 227 193 230 192 208 237
BalonParca AdiParca NoAdetTipApplied Date
167 ALIGNER; CLU PILOT
L=185 		1-85253-012-0 01 1 0311-
174 PULLER ASM; MAIN CLU SHAFT 9-85210-148-0 01 1 0311-
178 BAR; TRANS GUIDE 9-85291-203-0 01 1 0311-
180 PULLER; FRT & RR HUB 1-85210-002-0 02 1 0311-
192 GAUGE; TIRE PRESSURE 1-85315-002-0 01 1 0311-
193 JACK ASM
10TON IDN 		8-97520-133-0 01 1 0311-
208 HANDLE; JACK
L=600 IDN 		8-97520-128-0 01 1 0311-
227 PUMP ASM; TIRE 9-85521-132-0 01 1 0311-
230 PUMP; GREASE
1.0 L IDN 		8-97520-072-0 01 1 0311-
237 BAG; TOOL
IDN 		8-97520-067-0 01 1 0311-
çizim 85844
17 13 9 12 141 29 23 22 21 52 20 70 57 70 85 77
BalonParca AdiParca NoAdetTipApplied Date
9 WRENCH; WHEEL PIN
B=41 L=440 IDN 		8-97520-132-0 01 1 0311-
12 HANDLE; WRENCH,WHEEL PIN
L=600 IDN 		8-97520-069-0 01 1 0311-
13 WRENCH; MONKEY
IDN 		8-97520-131-0 01 1 0311-
17 HAMMER
L=321 IDN 		8-97520-070-0 01 1 0311-
20 WRENCH; 10X12
10X12 IDN 		8-97520-360-0 01 1 0311-
21 WRENCH; 14X17
14X17 IDN 		8-97520-361-0 01 1 0311-
22 WRENCH; 19X22
19X22 IDN 		8-97520-362-0 01 1 0311-
23 WRENCH; 24X27 9-09592-124-0 01 1 0311-0607
23 WRENCH; 24X27
24X27 IDN 		0-95902-524-0 01 1 0608-
29 DRIVER; SCREW
(A) <-> L=158 IDN 		8-97520-129-0 01 1 0311-
29 DRIVER; SCREW
(C) <+>,<-> L=285 IDN 		8-97520-130-0 01 1 0311-
29 DRIVER; SCREW
(B) <+> L=190 IDN 		9-09595-522-0 01 1 0311-
52 REMOVER; WATER PUMP 1-85210-047-0 01 1 0311-
57 TOOL; SETTING CRANK GEAR
ID=144.5 		1-85221-072-0 01 1 0311-
70 TOOL; SETTING,OIL SEAL
(A) 		1-85220-025-1 01 1 0311-1108
70 TOOL; SETTING,OIL SEAL
(B) 		8-98194-607-0 01 1 1109-
77 TOOL; SETTING,CYL LINER 1-85221-073-0 01 1 0311-
85 REPLACER ASM; VALVE SPR 1-85235-007-0 01 1 0311-
141 HANDLE; WRENCH
OD=25 L=480 IDN 		1-85116-011-0 01 1 0311-1502
141 HANDLE; WRENCH
OD=25 L=480 IDN 		8-98257-407-0 01 1 1503-
çizim 85845
274 271 268 209
BalonParca AdiParca NoAdetTipApplied Date
209 CLIP; JACK HANDLE 1-73638-011-1 02 1 0311-0708
209 CLIP; JACK HANDLE 8-98053-799-0 02 1 0709-
268 SCREW; CLIP
M6X12 W/LK WASHER 		9-03910-612-0 02 1 0311-0604
268 SCREW; CLIP
M6X12 W/LK WASHER 		0-36220-612-0 02 1 0605-
271 CLIP; TIRE HANGER 1-73638-012-1 02 1 0311-0708
271 CLIP; TIRE HANGER 8-98053-800-0 02 1 0709-
274 SCREW; CLIP
M6X12 W/LK WASHER 		9-03910-612-0 02 1 0311-0604
274 SCREW; CLIP
M6X12 W/LK WASHER 		0-36220-612-0 02 1 0605-

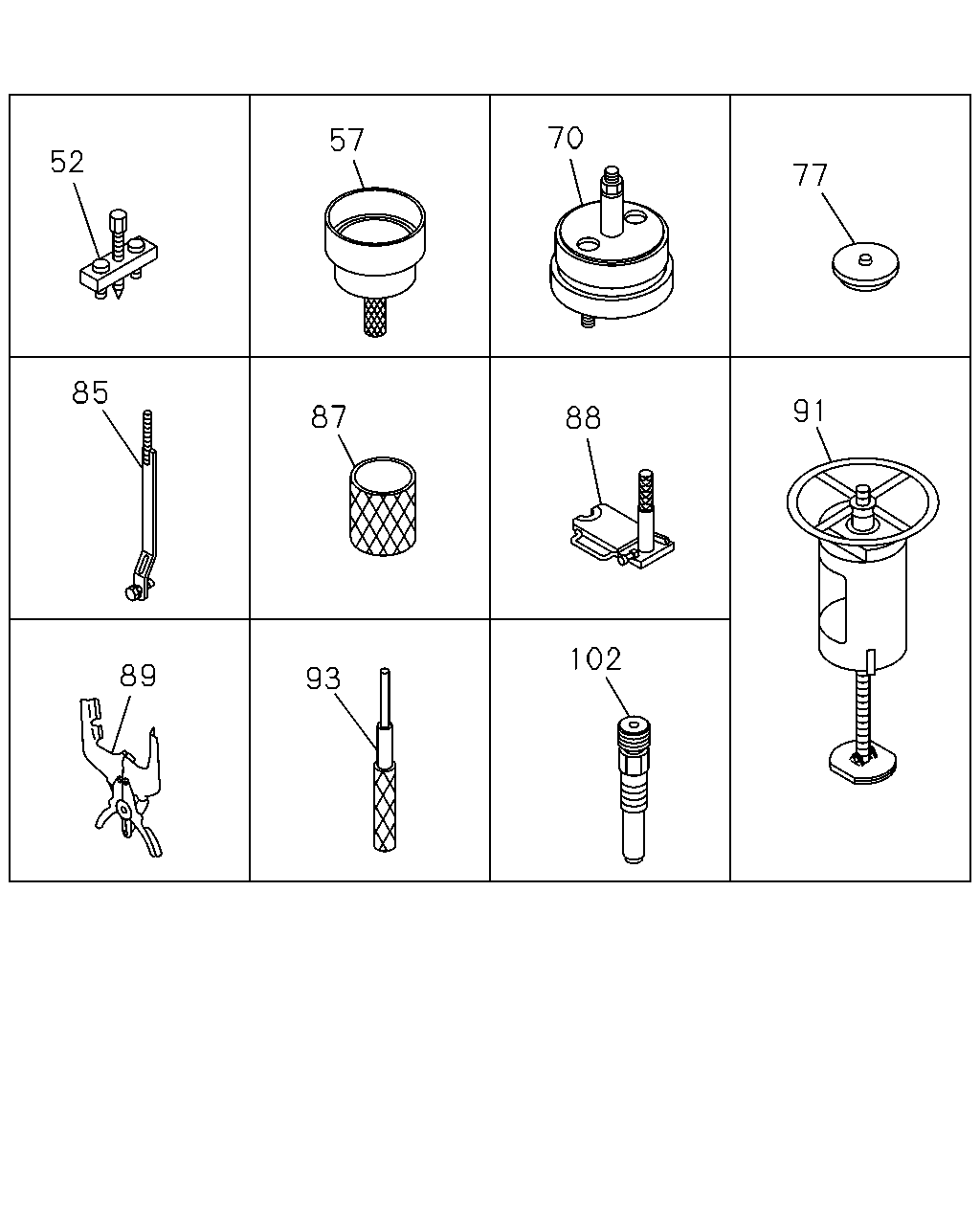

çizim 85846
70 57 52 77 85 91 87 88 102 89 93
BalonParca AdiParca NoAdetTipApplied Date
52 REMOVER; WATER PUMP 1-85210-047-0 01 1 0311-
57 TOOL; SETTING CRANK GEAR
ID=144.5 		1-85221-072-0 01 1 0311-
70 TOOL; SETTING,OIL SEAL
(A) 		1-85220-025-1 01 1 0311-1108
70 TOOL; SETTING,OIL SEAL
(B) 		8-98194-607-0 01 1 1109-
77 TOOL; SETTING,CYL LINER 1-85221-073-0 01 1 0311-
85 REPLACER ASM; VALVE SPR 1-85235-007-0 01 1 0311-
87 TOOL; PISTON 1-85221-082-0 01 1 0311-
88 TOOL; CONNROD BUSHING 1-85220-037-0 01 1 0311-
91 REPLACER ASM; CYL LINER 1-85231-021-0 01 1 0311-
93 SETTING KIT; VALVE GUIDE
L=260 		9-85231-202-0 01 1 0311-
102 ADAPTER; COMP GAGE 5-85317-001-0 01 1 0311-

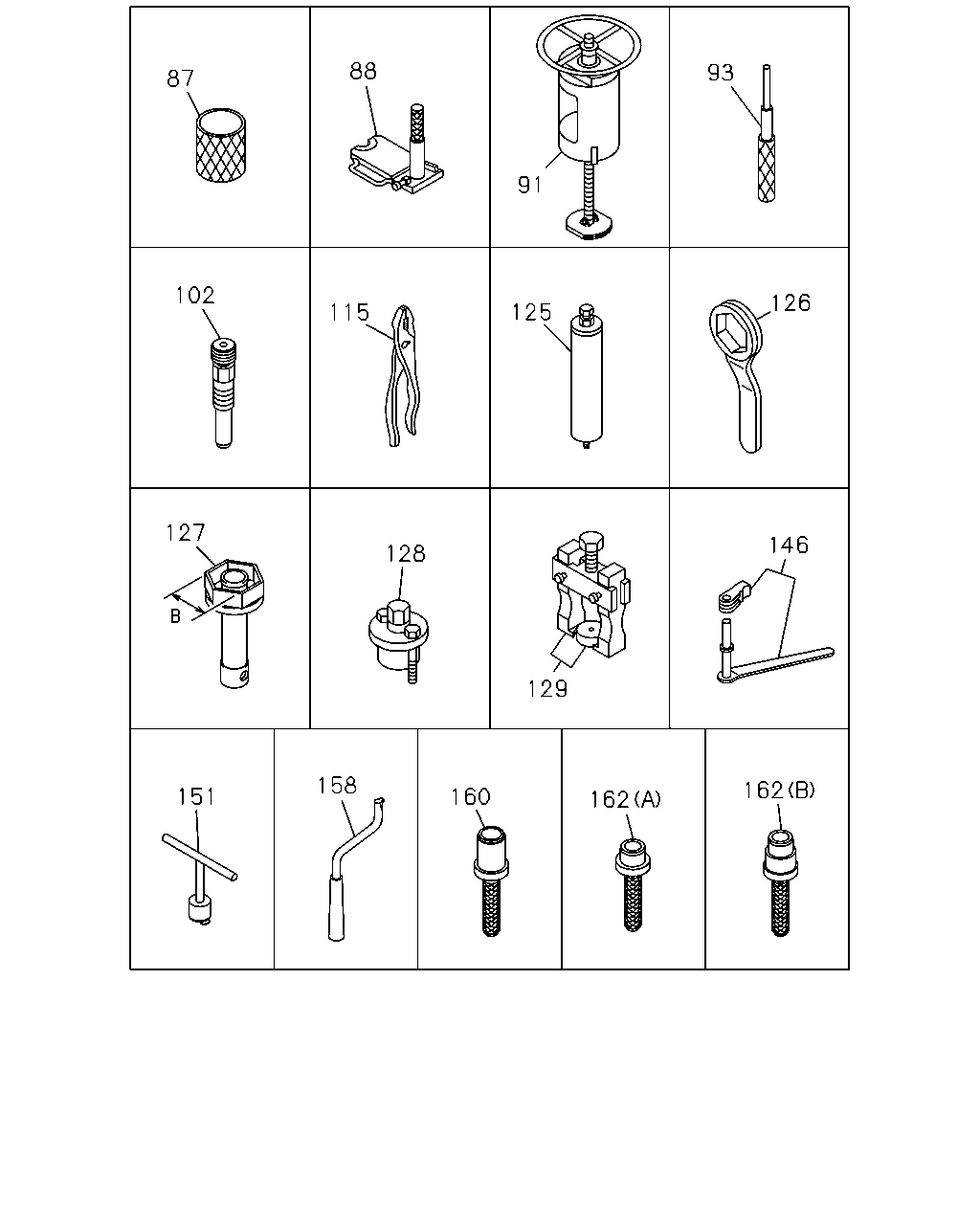

çizim 85848
88 93 87 91 102 126 125 115 127 146 128 129 158 162 151 160 162
BalonParca AdiParca NoAdetTipApplied Date
87 TOOL; PISTON 1-85221-082-0 01 1 0311-
88 TOOL; CONNROD BUSHING 1-85220-037-0 01 1 0311-
91 REPLACER ASM; CYL LINER 1-85231-021-0 01 1 0311-
93 SETTING KIT; VALVE GUIDE
L=260 		9-85231-202-0 01 1 0311-
102 ADAPTER; COMP GAGE 5-85317-001-0 01 1 0311-
115 PLIER
L=156 IDN 		8-97520-071-0 01 1 0311-
125 PULLER ASM; KING PIN
L=450 		1-85210-009-0 01 1 0311-
126 WRENCH; FRT HUB BRG NUT
L=350 B=75 		1-85110-002-1 01 1 0311-
127 WRENCH ASM; HUB BRG NUT
B=98 L=305 		9-85113-533-1 01 1 0311-
128 PULLER ASM; STRG WHEEL 9-85210-099-0 01 1 0311-
129 PULLER ASM; PITMAN ARM 1-85210-011-0 01 1 0311-
146 REPLACER KIT; LEAF SPR 1-85237-016-0 01 1 0311-
151 REMOVER; OIL BRK,FRT RETURN SPR
ID=16 		1-85237-002-0 01 1 0311-
158 SETTING TOOL; RETURN SPR 9-85221-231-0 01 1 0311-
160 REMOVER; NEEDLE BRG
L=228 		1-85238-010-0 01 1 0311-
162 SETTING TOOL; NEEDLE BRG
(B) L=181 		1-85238-008-0 01 1 0311-
162 SETTING TOOL; NEEDLE BRG
(A) L=213 		1-85238-009-0 01 1 0311-
