Isuzu WW
▶
TRUCKS
▶
GTR
▶
10936 - GTR(INDONESIA)
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-50 - FRONT SEAT
▶

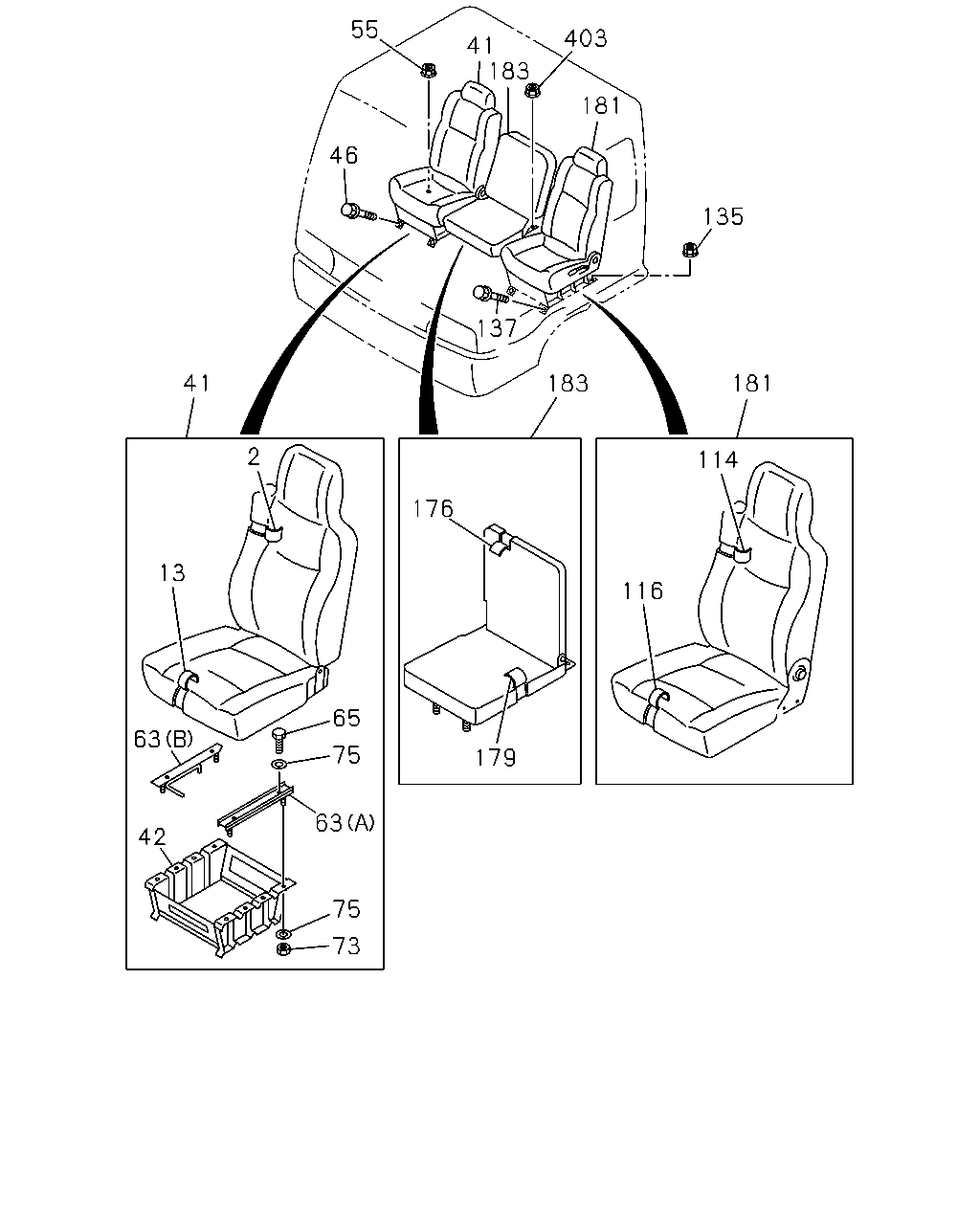

7-50 — FRONT SEAT
(#31108) — 26 parça
55
403
41
183
181
46
135
137
183
181
41
2
114
176
13
116
65
63
75
179
63
42
75
73
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
COVER; TRIM,FRT SEAT,BACK
IDN
8-97525-075-0
01
1
0311-
13
COVER; TRIM,FRT SEAT,CUSHION
IDN
8-97525-077-0
01
1
0311-
41
SEAT ASM; DRIVER
IDN
8-97525-016-0
01
1
0311-
42
STAND; DRIVER SEAT
IDN
8-97525-087-0
01
1
0311-
46
BOLT; STAND TO FLOOR
M10X20 W/LK&PL WASHER
8-94279-211-0
02
1
0311-0703
46
BOLT; STAND TO FLOOR
M10X20 FLANGE
0-28451-020-0
02
1
0704-
55
NUT; DRIVER SEAT STAND TO FLOOR PANEL
M10 FLANGE
1-09984-153-0
02
1
0311-0703
55
NUT; DRIVER SEAT STAND TO FLOOR PANEL
M10 FLANGE
0-91180-110-0
02
1
0704-
63
ADJUSTER; SEAT SLIDE
(A) IDN
8-97525-079-0
01
1
0311-
63
ADJUSTER; SEAT SLIDE
(B) IDN
8-97525-080-0
01
1
0311-
65
SCREW; ADJ TO SEAT
IDN
8-97525-081-0
04
1
0311-
73
NUT; ADJ,HEIGHT CONT
IDN
8-97525-083-0
04
1
0311-
75
WASHER; SEAT ADJ
IDN
8-97525-082-0
08
1
0311-
114
COVER; TRIM,PASSENGER SEAT,BACK
IDN
8-97525-076-0
01
1
0311-
116
COVER; TRIM,PASSENGER SEAT,CUSHION
IDN
8-97525-078-0
01
1
0311-
135
NUT; SEAT STAND
M10 FLANGE
1-09984-153-0
02
1
0311-0703
135
NUT; SEAT STAND
M10 FLANGE
0-91180-110-0
02
1
0704-
137
BOLT; STAND
M10X20 W/LK&PL WASHER
8-94279-211-0
02
1
0311-0703
137
BOLT; STAND
M10X20 FLANGE
0-28451-020-0
02
1
0704-
176
COVER; TRIM,PASSENGER SEAT CENTER,BACK
IDN
8-97525-084-0
01
1
0311-
179
COVER; TRIM,PASSENGER SEAT CENTER,CUSH
IDN
8-97525-085-0
01
1
0311-
181
SEAT ASM; PASSENGER
IDN
8-97525-017-1
01
1
0311-
183
SEAT ASM; PASSENGER CENTER
IDN
8-97525-018-1
01
1
0311-
403
NUT; CENTER SEAT
M8 FLANGE
8-94279-518-0
04
1
0311-0312
403
NUT; CENTER SEAT
M8 FLANGE
1-75538-207-0
04
1
0401-0703
403
NUT; CENTER SEAT
M8 FLANGE
0-91180-108-0
04
1
0704-
