Isuzu WW
▶
TRUCKS
▶
FRR
▶
10889 - FRR(34) RHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-35 - ENGINE CONTROL VALVE AND LEVER
▶
0-35 — ENGINE CONTROL VALVE AND LEVER
(#31107) — 25 parça
◀

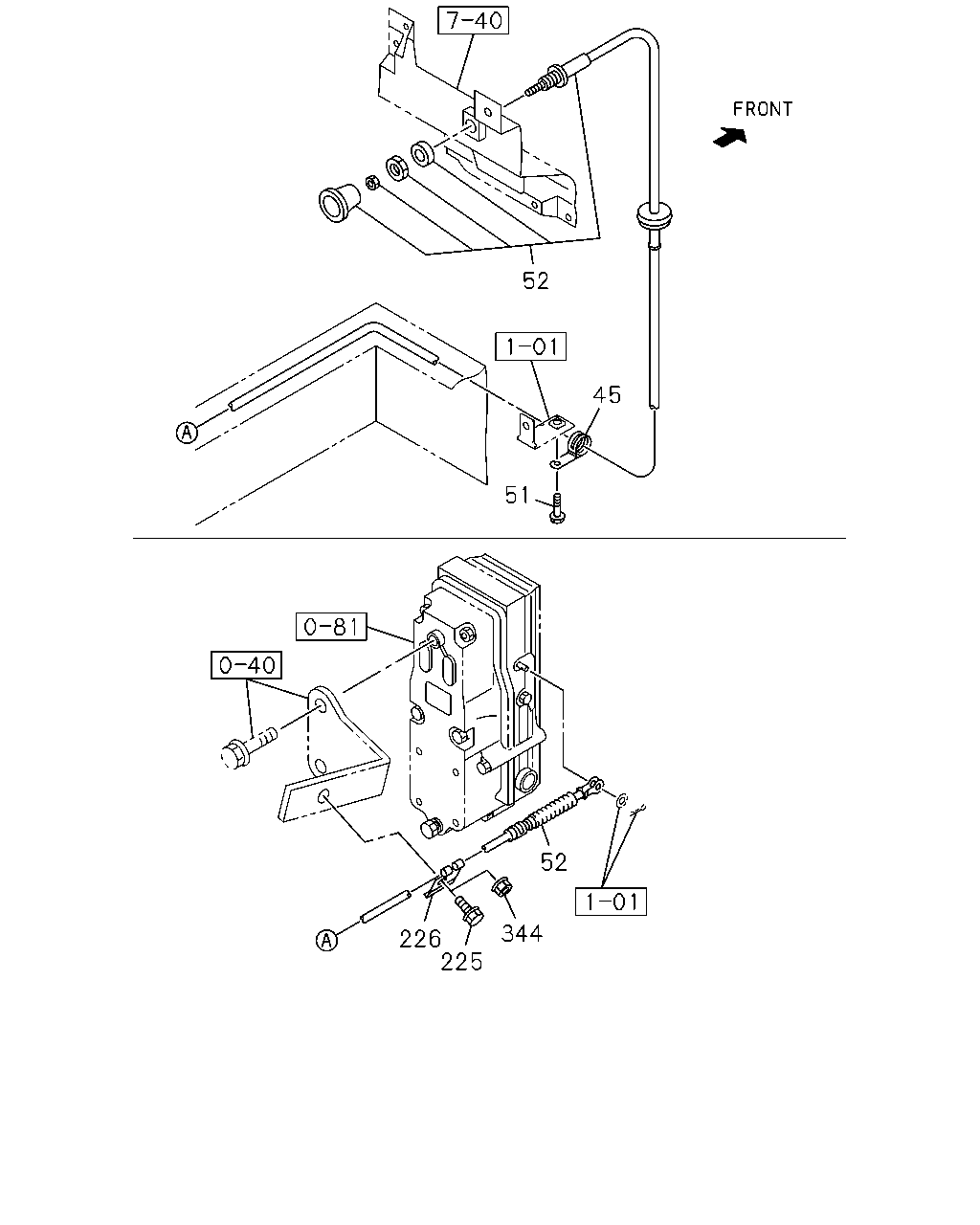

[035A] FUEL CUT CABLE (9 parça)
[035A] LEVER ASM (16 parça)
▶
52
45
51
52
344
226
225
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
45
CLIP; FUEL CUT CABLE
ID=11 L=20
9-09525-035-0
01
1
0107-0606
45
CLIP; FUEL CUT CABLE
ID=11 L=20
0-95235-035-0
01
1
0607-
51
BOLT; CLIP,FUEL CUT CABLE
M8X24.5 W/LK&PL WASHER
8-94279-208-0
01
1
0107-0904
51
BOLT; CLIP,FUEL CUT CABLE
M8X24.5 W/LK&PL WASHER
8-98059-720-0
01
1
0905-
52
CABLE; FUEL CUT
L=3395
1-73907-623-3
01
1
0107-
225
BOLT; CLIP FIX
M8X20 FLANGE
0-28680-820-0
01
1
0107-0308
226
CLIP; CABLE END
1-14319-082-0
01
1
0107-
344
NUT; CABLE END
M8 FLANGE
0-91150-108-0
01
1
0309-0602
344
NUT; CABLE END
M8 FLANGE
0-91180-108-0
01
1
0603-

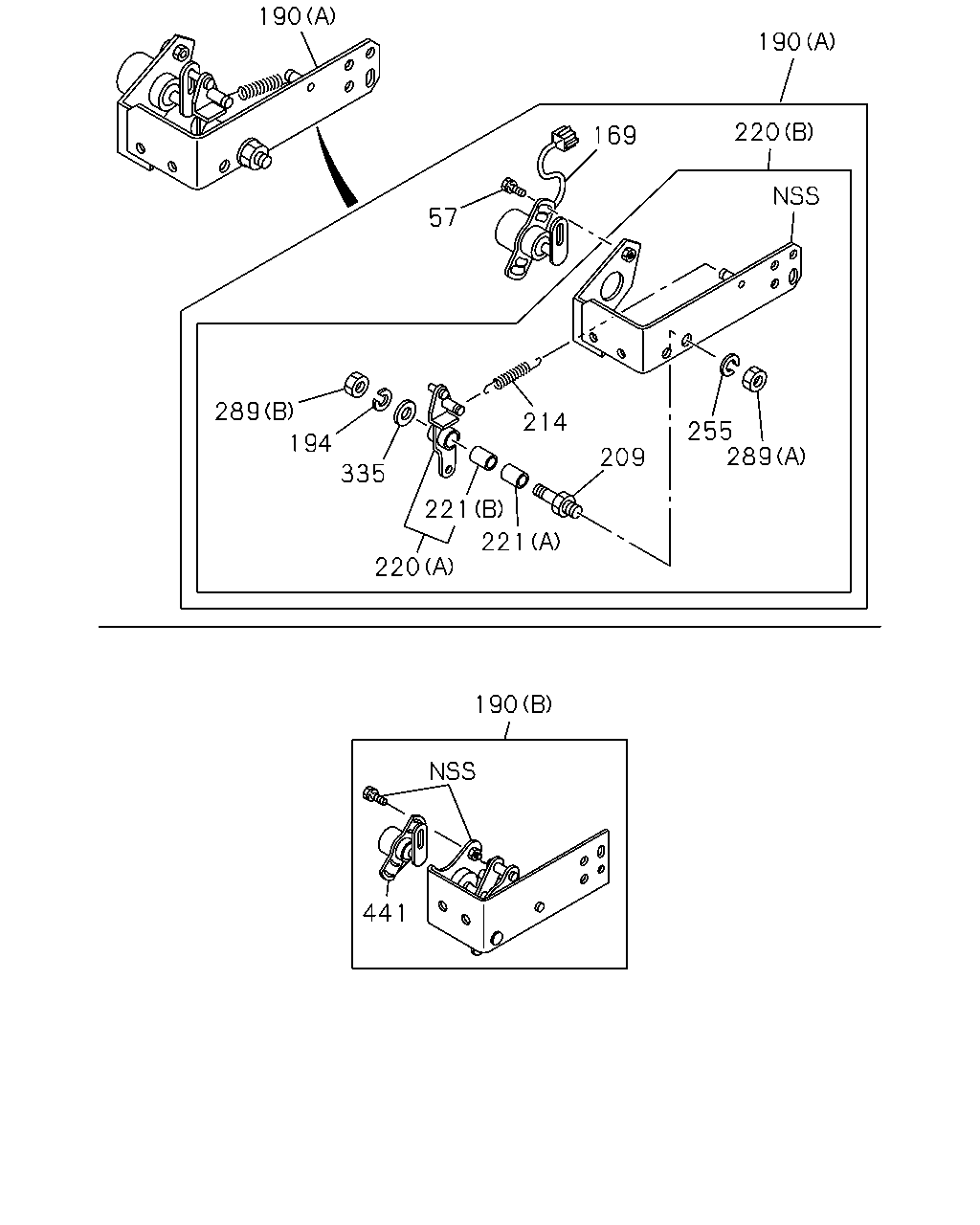

190
190
220
169
57
289
214
255
289
194
335
209
221
221
220
190
441
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
57
BOLT; BRKT
TRANSMISSION SIDE PTO WO/LEVER(SH5) M6X20 W/LK&PL WASHER
0-50140-620-0
02
1
0107-0112
169
SENSOR
TRANSMISSION SIDE PTO WO/LEVER(SH5)
1-81534-010-0
01
1
0107-0112
190
LEVER; ENG CONT
TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)
1-23335-504-0
01
1
0107-0112
190
LEVER; ENG CONT
TRANSMISSION SIDE PTO WO/LEVER(SH5) (B)
8-97219-466-4
01
1
0201-
194
WASHER; LK,LEVER
TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=8.2
9-09150-508-0
01
1
0107-0112
209
SHAFT; ENG CONT
TRANSMISSION SIDE PTO WO/LEVER(SH5)
1-14336-002-1
01
1
0107-0112
214
SPRING; ENG CONT RETURN
TRANSMISSION SIDE PTO WO/LEVER(SH5)
8-94481-840-1
01
1
0107-0112
220
LEVER ASM
TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)
1-23311-357-0
01
1
0107-0112
220
LEVER ASM
TRANSMISSION SIDE PTO WO/LEVER(SH5) (B)
1-23335-505-0
01
1
0107-0112
221
BUSHING; LEVER
TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)
1-09330-057-0
01
1
0107-0112
221
BUSHING; LEVER
TRANSMISSION SIDE PTO WO/LEVER(SH5) (B)
1-09330-058-0
01
1
0107-0112
255
WASHER; LK,LEVER
TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=10.2
9-09150-510-0
01
1
0107-0112
289
NUT; LEVER
TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M10
9-09110-410-0
01
1
0107-0112
289
NUT; LEVER
TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M8
9-09111-408-0
01
1
0107-0112
335
WASHER; PL LEVER
TRANSMISSION SIDE PTO WO/LEVER(SH5)
5-09503-135-0
01
1
0107-0112
441
SENSOR; THROTTLE POSITION
TRANSMISSION SIDE PTO WO/LEVER(SH5)
8-97200-308-0
01
1
0503-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
