8-75 — CONDENSER (#3110) — 139 parça

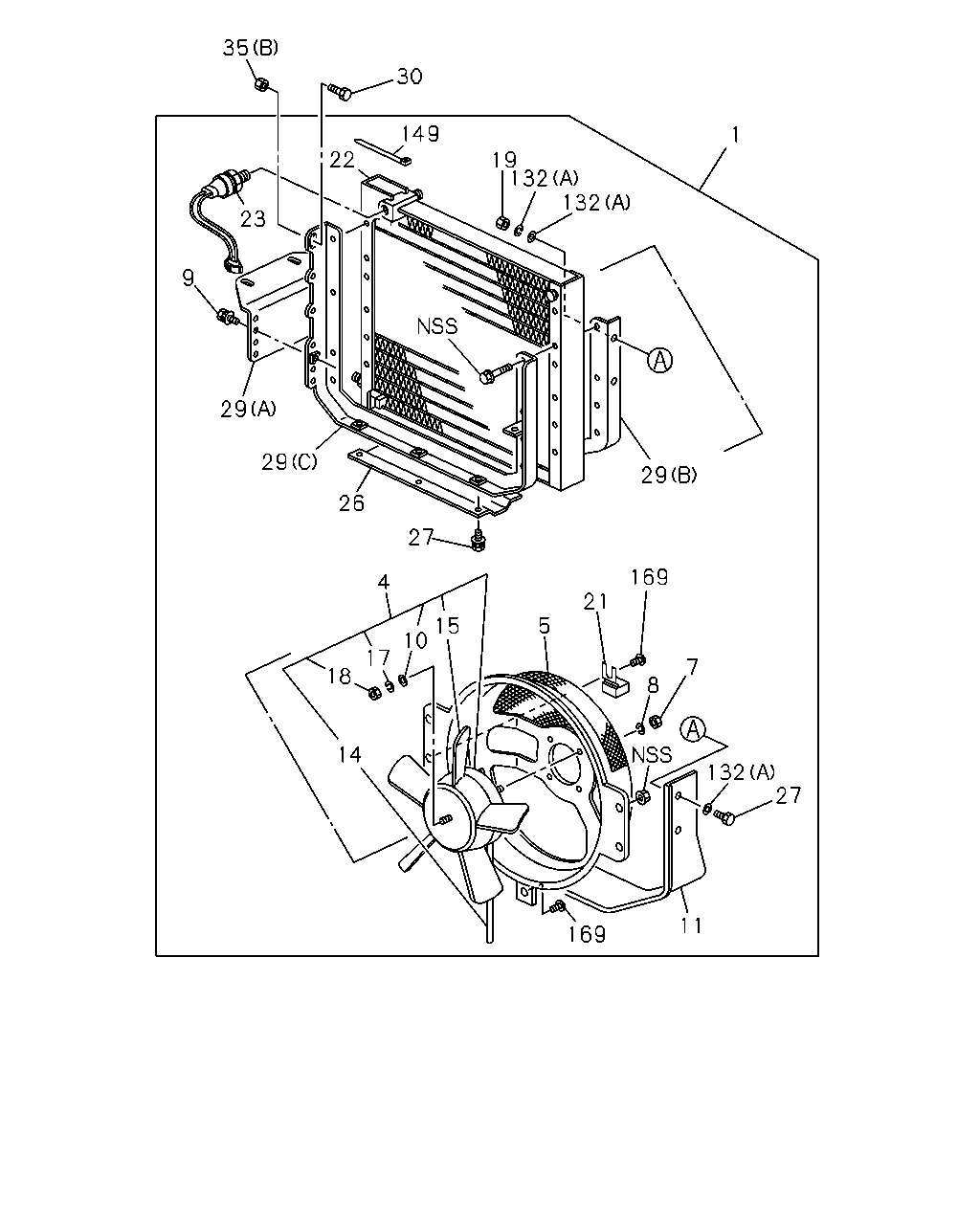

30 35 1 169 11 27 132 8 7 35 68 21 5 15 10 17 18 14 4 27 26 149 29 132 27 29 9 23 22 19 132 132 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-055-2	01	1	9002-9306	●	●
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-166-0	01	1	9307-		●
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-049-2	01	1	9002-9306			●	●
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-167-0	01	1	9307-				●
4	MOTOR ASM; FAN AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-033-0	01	1	9002-9306	●	●	●	●
4	MOTOR ASM; FAN AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-175-0	01	1	9307-		●		●
5	SHROUD; FAN MOTOR AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-185-0	01	1	9107-9306	●	●
5	SHROUD; FAN MOTOR AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-185-0	01	1	9307-		●		●
5	SHROUD; FAN MOTOR AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-034-0	01	1	9002-9106	●	●	●	●
5	SHROUD; FAN MOTOR AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-034-0	01	1	9107-9306			●	●
7	NUT; FAN AIR CONDITIONER MANUAL CONTROL(C60) M4	1-83539-065-0	04	1	9002-	●	●	●	●
8	WASHER; LK,FAN AIR CONDITIONER MANUAL CONTROL(C60) ID=4.1	9-09150-504-0	04	1	9002-	●	●	●	●
9	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8X22	1-83579-198-0	06	1	9002-	●	●	●	●
10	WASHER; PL,FAN AIR CONDITIONER MANUAL CONTROL(C60)	9-09160-605-0	01	1	9002-9009	●	●	●	●
10	WASHER; PL,FAN AIR CONDITIONER MANUAL CONTROL(C60)	9-09160-605-0	01	1	9010-9106	●	●
10	WASHER; PL,FAN AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-045-0	01	1	9010-9106			●	●
10	WASHER; PL,FAN AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-045-0	01	1	9107-	●	●	●	●
11	COVER; SHROUD AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-035-0	01	1	9002-	●	●
11	COVER; SHROUD AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-077-0	01	1	9002-			●	●
14	HOSE; DRAIN AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-258-0	01	1	9002-	●	●	●	●
15	FAN; MOTOR AIR CONDITIONER MANUAL CONTROL(C60)	1-83561-064-0	01	1	9002-	●	●	●	●
17	WASHER; LK,FAN AIR CONDITIONER MANUAL CONTROL(C60) ID=5.1	9-09150-505-0	01	1	9002-9009	●	●	●	●
17	WASHER; LK,FAN AIR CONDITIONER MANUAL CONTROL(C60) ID=5.1	9-09150-505-0	01	1	9010-9106	●	●
17	WASHER; LK,FAN AIR CONDITIONER MANUAL CONTROL(C60) ID=5	1-83539-044-0	01	1	9010-9106			●	●
17	WASHER; LK,FAN AIR CONDITIONER MANUAL CONTROL(C60) ID=5	1-83539-044-0	01	1	9107-	●	●	●	●
18	NUT; FAN,CENTER AIR CONDITIONER MANUAL CONTROL(C60) M5	9-99110-505-0	01	1	9002-	●	●	●	●
19	NUT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	1-83539-068-0	02	1	9002-	●	●	●	●
21	CONDENSER AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-046-0	01	1	9002-9106	●	●
21	CONDENSER AIR CONDITIONER MANUAL CONTROL(C60)	1-84132-007-0	01	1	9002-9106			●	●
21	CONDENSER AIR CONDITIONER MANUAL CONTROL(C60)	1-84132-007-0	01	1	9107-9306	●	●	●	●
21	CONDENSER AIR CONDITIONER MANUAL CONTROL(C60)	8-94150-133-0	01	1	9307-		●		●
22	CONDENSER ASM; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-076-0	01	1	9002-9106	●	●
22	CONDENSER ASM; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-140-0	01	1	9107-9306	●	●
22	CONDENSER ASM; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-170-0	01	1	9307-		●
22	CONDENSER ASM; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-084-1	01	1	9002-9306			●	●
22	CONDENSER ASM; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-171-0	01	1	9307-				●
23	SWITCH; PRESSURE,CONDENSER AIR CONDITIONER MANUAL CONTROL(C60)	1-82410-085-0	01	1	9002-9106	●	●	●	●
23	SWITCH; PRESSURE,CONDENSER AIR CONDITIONER MANUAL CONTROL(C60)	1-82510-085-0	01	1	9107-9306	●	●	●	●
23	SWITCH; PRESSURE,CONDENSER AIR CONDITIONER MANUAL CONTROL(C60)	1-82380-127-0	01	1	9307-		●		●
26	BRACKET; LOW AIR CONDITIONER MANUAL CONTROL(C60)	1-83571-505-0	01	1	9002-9106	●	●
26	BRACKET; LOW AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-071-0	01	1	9002-9106			●	●
26	BRACKET; LOW AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-071-0	01	1	9107-	●	●	●	●
27	BOLT; BRKT,LOW SIDE AIR CONDITIONER MANUAL CONTROL(C60) M8X22	1-83579-198-0	03	1	9002-9009	●	●
27	BOLT; BRKT,LOW SIDE AIR CONDITIONER MANUAL CONTROL(C60) M8X18	1-83539-067-0	02	1	9010-9106	●	●
27	BOLT; BRKT,LOW SIDE AIR CONDITIONER MANUAL CONTROL(C60) M8X18	1-83539-067-0	02	1	9002-9009	●	●	●	●
27	BOLT; BRKT,LOW SIDE AIR CONDITIONER MANUAL CONTROL(C60) M8X22	1-83579-198-0	03	1	9010-	●	●	●	●
27	BOLT; BRKT,LOW SIDE AIR CONDITIONER MANUAL CONTROL(C60) M8X18	9-02040-818-0	02	1	9307-		●		●
27	BOLT; BRKT,LOW SIDE AIR CONDITIONER MANUAL CONTROL(C60) L=55	1-83539-087-0	01	1	9002-			●	●
27	BOLT; BRKT,LOW SIDE AIR CONDITIONER MANUAL CONTROL(C60) M8X22 W/LK&PL WASHER	9-01960-822-0	03	1	9002-9009			●	●
27	BOLT; BRKT,LOW SIDE AIR CONDITIONER MANUAL CONTROL(C60) M8X18	9-02040-818-0	02	1	9010-9106			●	●
27	BOLT; BRKT,LOW SIDE AIR CONDITIONER MANUAL CONTROL(C60) M8X18	9-02040-818-0	02	1	9107-9306	●	●	●	●
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83571-503-0	01	1	9002-	●	●
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83571-504-0	01	1	9002-9106	●	●
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83539-070-0	01	1	9107-	●	●
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83571-506-0	01	1	9002-9106	●	●
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83539-072-0	01	1	9107-	●	●
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83539-074-0	01	1	9002-			●	●
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83539-075-0	01	1	9002-			●	●
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83539-086-0	01	1	9002-			●	●
30	BOLT; CONDENSER,A/C AIR CONDITIONER MANUAL CONTROL(C60) M10X35 W/LK&PL WASHER	0-50141-035-0	05	1	9002-	●	●	●	●
35	NUT; CONDENSER,A/C AIR CONDITIONER MANUAL CONTROL(C60) (B)	9-09110-510-0	05	1	9002-	●	●	●	●
35	NUT; CONDENSER,A/C AIR CONDITIONER MANUAL CONTROL(C60) (A) M6	1-83539-083-0	01	1	9002-			●	●
68	WASHER; LK,CONDENSER AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-082-0	01	1	9002-			●	●
132	WASHER; BRKT AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-14319-034-0	04	1	9002-	●	●	●	●
132	WASHER; BRKT AIR CONDITIONER MANUAL CONTROL(C60) (C)	9-09160-506-0	01	1	9002-9009			●	●
132	WASHER; BRKT AIR CONDITIONER MANUAL CONTROL(C60) (C)	9-09160-606-0	01	1	9010-			●	●
132	WASHER; BRKT AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83579-492-0	02	1	9010-			●	●
149	CLIP; HARNESS AIR CONDITIONER MANUAL CONTROL(C60) L=140	5-09707-008-0	01	1	9307-		●		●
169	SCREW; SHROUD AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-066-0	02	1	9002-	●	●
169	SCREW; SHROUD AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-066-0	01	1	9002-			●	●

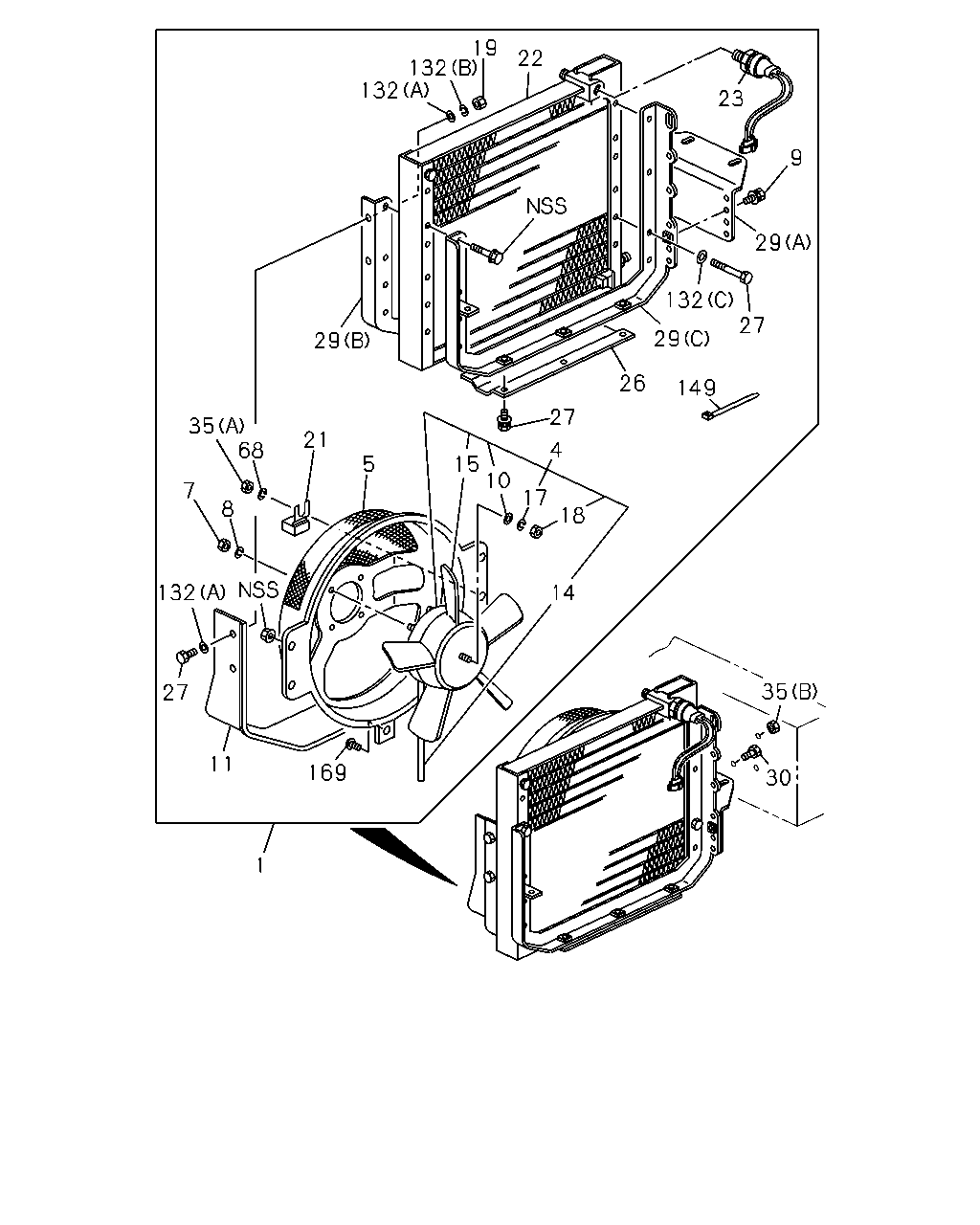

11 169 27 132 7 8 169 21 5 15 10 17 18 14 4 27 26 29 29 9 23 22 149 30 35 19 132 132 1 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-055-2	01	1	9002-9306	●	●
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-166-0	01	1	9307-		●
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-049-2	01	1	9002-9306			●	●
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-167-0	01	1	9307-				●
4	MOTOR ASM; FAN AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-033-0	01	1	9002-9306	●	●	●	●
4	MOTOR ASM; FAN AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-175-0	01	1	9307-		●		●
5	SHROUD; FAN MOTOR AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-185-0	01	1	9107-9306	●	●
5	SHROUD; FAN MOTOR AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-185-0	01	1	9307-		●		●
5	SHROUD; FAN MOTOR AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-034-0	01	1	9002-9106	●	●	●	●
5	SHROUD; FAN MOTOR AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-034-0	01	1	9107-9306			●	●
7	NUT; FAN AIR CONDITIONER MANUAL CONTROL(C60) M4	1-83539-065-0	04	1	9002-	●	●	●	●
8	WASHER; LK,FAN AIR CONDITIONER MANUAL CONTROL(C60) ID=4.1	9-09150-504-0	04	1	9002-	●	●	●	●
9	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8X22	1-83579-198-0	06	1	9002-	●	●	●	●
10	WASHER; PL,FAN AIR CONDITIONER MANUAL CONTROL(C60)	9-09160-605-0	01	1	9002-9009	●	●	●	●
10	WASHER; PL,FAN AIR CONDITIONER MANUAL CONTROL(C60)	9-09160-605-0	01	1	9010-9106	●	●
10	WASHER; PL,FAN AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-045-0	01	1	9010-9106			●	●
10	WASHER; PL,FAN AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-045-0	01	1	9107-	●	●	●	●
11	COVER; SHROUD AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-035-0	01	1	9002-	●	●
11	COVER; SHROUD AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-077-0	01	1	9002-			●	●
14	HOSE; DRAIN AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-258-0	01	1	9002-	●	●	●	●
15	FAN; MOTOR AIR CONDITIONER MANUAL CONTROL(C60)	1-83561-064-0	01	1	9002-	●	●	●	●
17	WASHER; LK,FAN AIR CONDITIONER MANUAL CONTROL(C60) ID=5.1	9-09150-505-0	01	1	9002-9009	●	●	●	●
17	WASHER; LK,FAN AIR CONDITIONER MANUAL CONTROL(C60) ID=5.1	9-09150-505-0	01	1	9010-9106	●	●
17	WASHER; LK,FAN AIR CONDITIONER MANUAL CONTROL(C60) ID=5	1-83539-044-0	01	1	9010-9106			●	●
17	WASHER; LK,FAN AIR CONDITIONER MANUAL CONTROL(C60) ID=5	1-83539-044-0	01	1	9107-	●	●	●	●
18	NUT; FAN,CENTER AIR CONDITIONER MANUAL CONTROL(C60) M5	9-99110-505-0	01	1	9002-	●	●	●	●
19	NUT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	1-83539-068-0	02	1	9002-	●	●	●	●
21	CONDENSER AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-046-0	01	1	9002-9106	●	●
21	CONDENSER AIR CONDITIONER MANUAL CONTROL(C60)	1-84132-007-0	01	1	9002-9106			●	●
21	CONDENSER AIR CONDITIONER MANUAL CONTROL(C60)	1-84132-007-0	01	1	9107-9306	●	●	●	●
21	CONDENSER AIR CONDITIONER MANUAL CONTROL(C60)	8-94150-133-0	01	1	9307-		●		●
22	CONDENSER ASM; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-076-0	01	1	9002-9106	●	●
22	CONDENSER ASM; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-140-0	01	1	9107-9306	●	●
22	CONDENSER ASM; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-170-0	01	1	9307-		●
22	CONDENSER ASM; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-084-1	01	1	9002-9306			●	●
22	CONDENSER ASM; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-171-0	01	1	9307-				●
23	SWITCH; PRESSURE,CONDENSER AIR CONDITIONER MANUAL CONTROL(C60)	1-82410-085-0	01	1	9002-9106	●	●	●	●
23	SWITCH; PRESSURE,CONDENSER AIR CONDITIONER MANUAL CONTROL(C60)	1-82510-085-0	01	1	9107-9306	●	●	●	●
23	SWITCH; PRESSURE,CONDENSER AIR CONDITIONER MANUAL CONTROL(C60)	1-82380-127-0	01	1	9307-		●		●
26	BRACKET; LOW AIR CONDITIONER MANUAL CONTROL(C60)	1-83571-505-0	01	1	9002-9106	●	●
26	BRACKET; LOW AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-071-0	01	1	9002-9106			●	●
26	BRACKET; LOW AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-071-0	01	1	9107-	●	●	●	●
27	BOLT; BRKT,LOW SIDE AIR CONDITIONER MANUAL CONTROL(C60) M8X22	1-83579-198-0	03	1	9002-9009	●	●
27	BOLT; BRKT,LOW SIDE AIR CONDITIONER MANUAL CONTROL(C60) M8X18	1-83539-067-0	02	1	9010-9106	●	●
27	BOLT; BRKT,LOW SIDE AIR CONDITIONER MANUAL CONTROL(C60) M8X18	1-83539-067-0	02	1	9002-9009	●	●	●	●
27	BOLT; BRKT,LOW SIDE AIR CONDITIONER MANUAL CONTROL(C60) M8X22	1-83579-198-0	03	1	9010-	●	●	●	●
27	BOLT; BRKT,LOW SIDE AIR CONDITIONER MANUAL CONTROL(C60) M8X18	9-02040-818-0	02	1	9307-		●		●
27	BOLT; BRKT,LOW SIDE AIR CONDITIONER MANUAL CONTROL(C60) L=55	1-83539-087-0	01	1	9002-			●	●
27	BOLT; BRKT,LOW SIDE AIR CONDITIONER MANUAL CONTROL(C60) M8X22 W/LK&PL WASHER	9-01960-822-0	03	1	9002-9009			●	●
27	BOLT; BRKT,LOW SIDE AIR CONDITIONER MANUAL CONTROL(C60) M8X18	9-02040-818-0	02	1	9010-9106			●	●
27	BOLT; BRKT,LOW SIDE AIR CONDITIONER MANUAL CONTROL(C60) M8X18	9-02040-818-0	02	1	9107-9306	●	●	●	●
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83571-503-0	01	1	9002-	●	●
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83571-504-0	01	1	9002-9106	●	●
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83539-070-0	01	1	9107-	●	●
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83571-506-0	01	1	9002-9106	●	●
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83539-072-0	01	1	9107-	●	●
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83539-074-0	01	1	9002-			●	●
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83539-075-0	01	1	9002-			●	●
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83539-086-0	01	1	9002-			●	●
30	BOLT; CONDENSER,A/C AIR CONDITIONER MANUAL CONTROL(C60) M10X35 W/LK&PL WASHER	0-50141-035-0	05	1	9002-	●	●	●	●
35	NUT; CONDENSER,A/C AIR CONDITIONER MANUAL CONTROL(C60) (B)	9-09110-510-0	05	1	9002-	●	●	●	●
35	NUT; CONDENSER,A/C AIR CONDITIONER MANUAL CONTROL(C60) (A) M6	1-83539-083-0	01	1	9002-			●	●
132	WASHER; BRKT AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-14319-034-0	04	1	9002-	●	●	●	●
132	WASHER; BRKT AIR CONDITIONER MANUAL CONTROL(C60) (C)	9-09160-506-0	01	1	9002-9009			●	●
132	WASHER; BRKT AIR CONDITIONER MANUAL CONTROL(C60) (C)	9-09160-606-0	01	1	9010-			●	●
132	WASHER; BRKT AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83579-492-0	02	1	9010-			●	●
149	CLIP; HARNESS AIR CONDITIONER MANUAL CONTROL(C60) L=140	5-09707-008-0	01	1	9307-		●		●
169	SCREW; SHROUD AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-066-0	02	1	9002-	●	●
169	SCREW; SHROUD AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-066-0	01	1	9002-			●	●
