8-74 — EVAPORATOR (#3109) — 123 parça

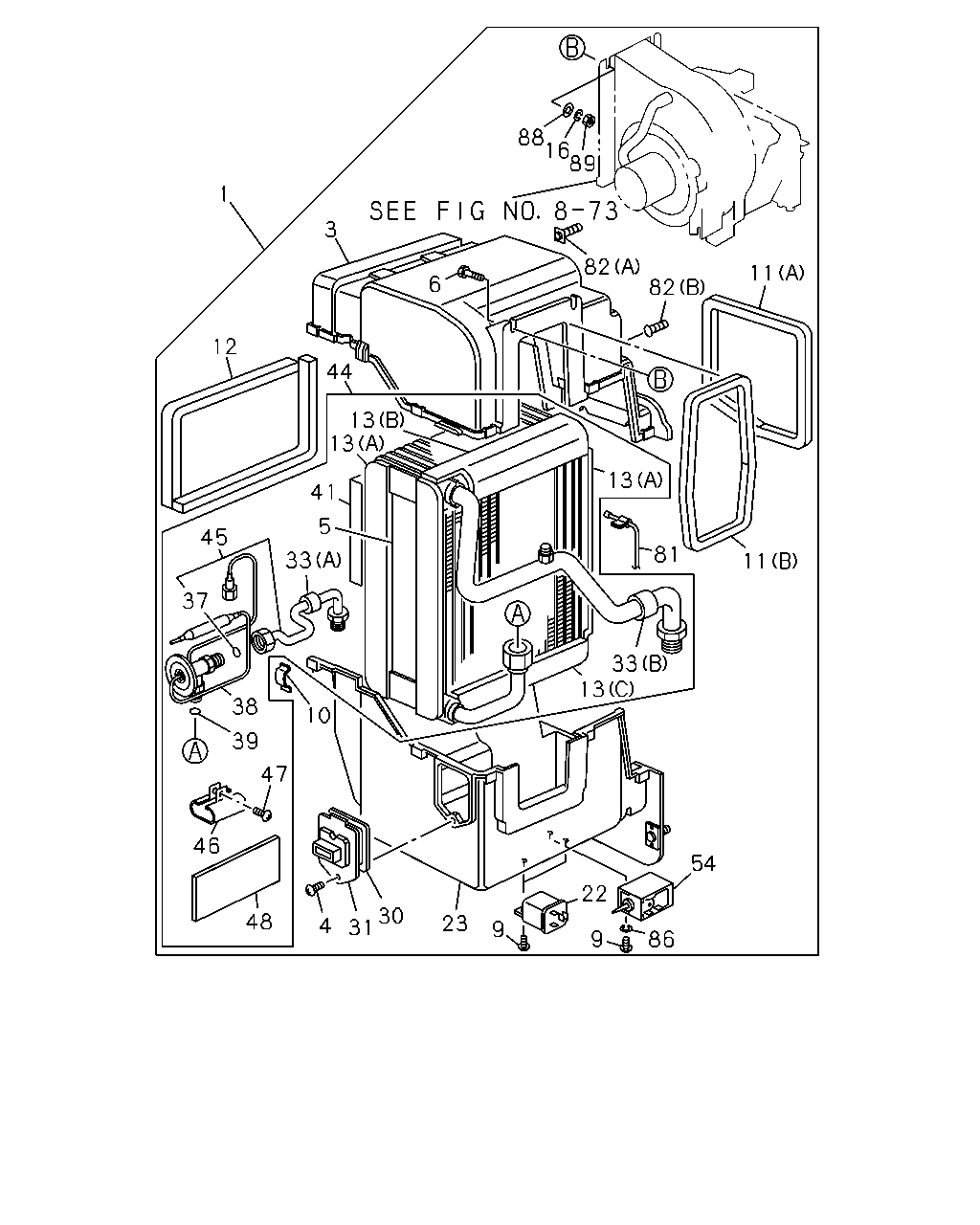

86 9 22 54 9 23 30 31 4 48 46 47 39 38 10 33 45 37 5 41 13 13 44 12 1 3 6 82 82 11 11 81 13 33 13 88 16 89

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	EVAPORATOR ASM AIR CONDITIONER MANUAL CONTROL(C60)	1-83541-074-4	01	1	9002-9306	●	●
1	EVAPORATOR ASM AIR CONDITIONER MANUAL CONTROL(C60)	1-83541-114-0	01	1	9307-		●
1	EVAPORATOR ASM AIR CONDITIONER MANUAL CONTROL(C60)	1-83541-057-5	01	1	9002-9306			●	●
1	EVAPORATOR ASM AIR CONDITIONER MANUAL CONTROL(C60)	1-83541-113-0	01	1	9307-				●
3	CASE; EVAP,UPR AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-290-0	01	1	9002-	●	●
3	CASE; EVAP,UPR AIR CONDITIONER MANUAL CONTROL(C60)	1-83564-217-0	01	1	9002-			●	●
4	SCREW; RESISTOR TO CASE AIR CONDITIONER MANUAL CONTROL(C60)	0-71181-414-0	01	1	9002-	●	●	●	●
5	EVAPORATOR AIR CONDITIONER MANUAL CONTROL(C60)	1-83562-040-3	01	1	9002-9306	●	●
5	EVAPORATOR AIR CONDITIONER MANUAL CONTROL(C60)	1-83562-073-0	01	1	9307-		●
5	EVAPORATOR AIR CONDITIONER MANUAL CONTROL(C60)	1-83562-054-2	01	1	9002-9306			●	●
5	EVAPORATOR AIR CONDITIONER MANUAL CONTROL(C60)	1-83562-083-0	01	1	9307-				●
6	BOLT; EVAP TO BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60)	9-02046-622-0	02	1	9002-			●	●
9	SCREW; THERMOSTAT TO CASE AIR CONDITIONER MANUAL CONTROL(C60)	8-94248-769-0	01	1	9002-	●	●
9	SCREW; THERMOSTAT TO CASE AIR CONDITIONER MANUAL CONTROL(C60)	8-94248-807-0	03	1	9002-9306			●	●
9	SCREW; THERMOSTAT TO CASE AIR CONDITIONER MANUAL CONTROL(C60)	8-94248-807-0	01	1	9307-				●
10	CLIP; EVAP CASE AIR CONDITIONER MANUAL CONTROL(C60)	1-83574-148-0	11	1	9002-	●	●	●	●
10	CLIP; EVAP CASE AIR CONDITIONER MANUAL CONTROL(C60)	1-83574-148-0	10	1	9307-				●
11	LINING; EVAP A/C AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83579-238-0	01	1	9002-	●	●
11	LINING; EVAP A/C AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83579-172-0	01	1	9002-	●	●	●	●
11	LINING; EVAP A/C AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83579-174-0	01	1	9002-			●	●
12	LINING; EVAP AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-173-0	02	1	9002-	●	●	●	●
13	SEAL; EVAP AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83579-166-0	02	1	9002-	●	●
13	SEAL; EVAP AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83579-167-0	02	1	9002-	●	●
13	SEAL; EVAP AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83579-166-0	03	1	9002-			●	●
13	SEAL; EVAP AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83579-167-0	01	1	9002-			●	●
13	SEAL; EVAP AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83579-259-0	01	1	9002-			●	●
16	WASHER; LK,EVAP TO BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60) ID=6.1	9-09150-506-0	02	1	9002-			●	●
22	RELAY; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-094-0	02	1	9002-	●	●	●	●
23	CASE; EVAP,LWR AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-289-0	01	1	9002-	●	●
23	CASE; EVAP,LWR AIR CONDITIONER MANUAL CONTROL(C60)	1-83564-218-0	01	1	9002-			●	●
30	LINING; EVAP RESISTOR AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-368-0	01	1	9002-	●	●	●	●
31	RESISTOR; POWER EVAP AIR CONDITIONER MANUAL CONTROL(C60)	1-83519-028-1	01	1	9002-	●	●	●	●
33	LINING; EVAP AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83579-168-0	01	1	9002-	●	●	●	●
33	LINING; EVAP AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83579-169-0	01	1	9002-	●	●	●	●
37	GASKET; EVAP AIR CONDITIONER MANUAL CONTROL(C60)	8-94113-332-0	01	1	9002-9306	●	●	●	●
37	GASKET; EVAP AIR CONDITIONER MANUAL CONTROL(C60)	8-94481-700-0	01	1	9307-		●		●
38	VALVE; EXPANSION AIR CONDITIONER MANUAL CONTROL(C60)	8-94243-996-0	01	1	9002-9306	●	●
38	VALVE; EXPANSION AIR CONDITIONER MANUAL CONTROL(C60)	1-83569-157-0	01	1	9307-		●		●
38	VALVE; EXPANSION AIR CONDITIONER MANUAL CONTROL(C60)	8-94142-345-0	01	1	9002-9306			●	●
39	GASKET; EVAP AIR CONDITIONER MANUAL CONTROL(C60)	1-09623-517-0	01	1	9002-9009	●	●
39	GASKET; EVAP AIR CONDITIONER MANUAL CONTROL(C60)	1-09623-517-0	01	1	9307-		●
39	GASKET; EVAP AIR CONDITIONER MANUAL CONTROL(C60)	8-94133-331-0	01	1	9002-9009			●	●
39	GASKET; EVAP AIR CONDITIONER MANUAL CONTROL(C60)	1-09623-517-0	01	1	9010-9306	●	●	●	●
39	GASKET; EVAP AIR CONDITIONER MANUAL CONTROL(C60)	8-94481-717-0	01	1	9307-				●
41	ELIMINATOR; EVAP AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-260-0	01	1	9002-			●	●
44	EVAPORATOR ASM; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83541-082-2	01	1	9002-9306	●	●
44	EVAPORATOR ASM; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83562-072-0	01	1	9307-		●
44	EVAPORATOR ASM; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83562-053-2	01	1	9002-9306			●	●
44	EVAPORATOR ASM; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83562-082-0	01	1	9307-				●
45	PIPE; EXPANSION VLV AIR CONDITIONER MANUAL CONTROL(C60)	1-83567-222-1	01	1	9002-9306	●	●
45	PIPE; EXPANSION VLV AIR CONDITIONER MANUAL CONTROL(C60)	1-83567-495-0	01	1	9307-		●
45	PIPE; EXPANSION VLV AIR CONDITIONER MANUAL CONTROL(C60)	1-83567-367-0	01	1	9002-9306			●	●
45	PIPE; EXPANSION VLV AIR CONDITIONER MANUAL CONTROL(C60)	1-83567-516-0	01	1	9307-				●
46	CLIP; EXPANSION VLV AIR CONDITIONER MANUAL CONTROL(C60)	1-83574-124-0	01	1	9002-	●	●	●	●
47	SCREW; EVAP AIR CONDITIONER MANUAL CONTROL(C60) M5X14	8-94244-002-0	01	1	9002-	●	●	●	●
48	INSULATOR; EVAP AIR CONDITIONER MANUAL CONTROL(C60)	5-83579-024-0	01	1	9002-	●	●	●	●
54	THERMOSTAT; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-466-0	01	1	9002-	●	●	●	●
81	CLIP; THERMOSTAT A/C AIR CONDITIONER MANUAL CONTROL(C60)	8-94122-018-0	01	1	9307-		●		●
82	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83579-176-0	01	1	9002-	●	●
82	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83579-092-0	01	1	9002-	●	●	●	●
82	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83539-089-0	01	1	9002-			●	●
86	WASHER; THERMOSTAT AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-170-0	01	1	9002-			●	●
88	WASHER; PL,EVAP TO BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60) ID=6.4 OD=14	9-09160-606-0	04	1	9002-			●	●
89	NUT; EVAP TO BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60) M6	9-09110-406-0	02	1	9307-				●

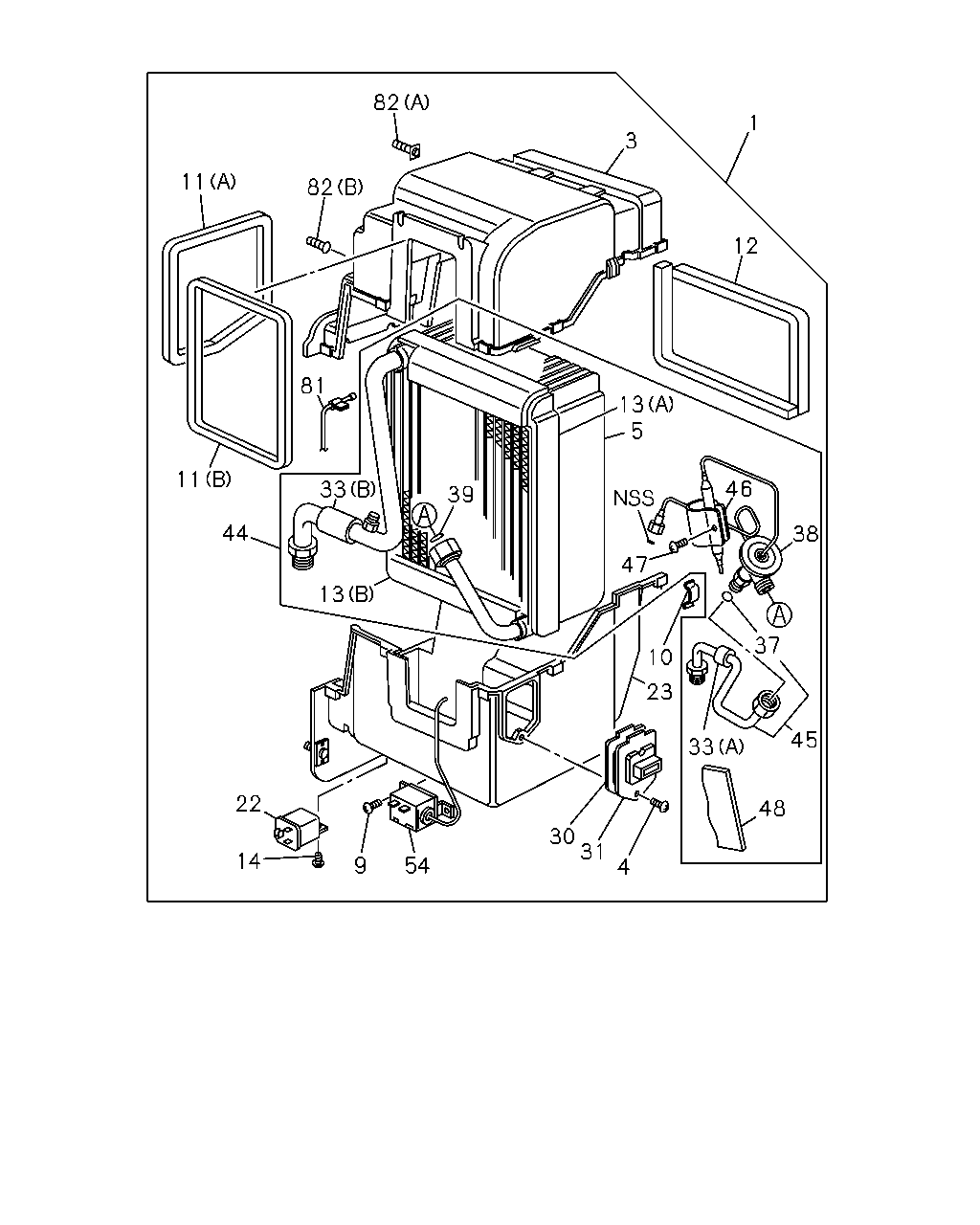

4 31 30 54 9 14 22 48 45 33 23 10 37 38 46 47 5 13 39 13 33 44 11 81 11 82 82 3 12 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	EVAPORATOR ASM AIR CONDITIONER MANUAL CONTROL(C60)	1-83541-074-4	01	1	9002-9306	●	●
1	EVAPORATOR ASM AIR CONDITIONER MANUAL CONTROL(C60)	1-83541-114-0	01	1	9307-		●
1	EVAPORATOR ASM AIR CONDITIONER MANUAL CONTROL(C60)	1-83541-057-5	01	1	9002-9306			●	●
1	EVAPORATOR ASM AIR CONDITIONER MANUAL CONTROL(C60)	1-83541-113-0	01	1	9307-				●
3	CASE; EVAP,UPR AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-290-0	01	1	9002-	●	●
3	CASE; EVAP,UPR AIR CONDITIONER MANUAL CONTROL(C60)	1-83564-217-0	01	1	9002-			●	●
4	SCREW; RESISTOR TO CASE AIR CONDITIONER MANUAL CONTROL(C60)	0-71181-414-0	01	1	9002-	●	●	●	●
5	EVAPORATOR AIR CONDITIONER MANUAL CONTROL(C60)	1-83562-040-3	01	1	9002-9306	●	●
5	EVAPORATOR AIR CONDITIONER MANUAL CONTROL(C60)	1-83562-073-0	01	1	9307-		●
5	EVAPORATOR AIR CONDITIONER MANUAL CONTROL(C60)	1-83562-054-2	01	1	9002-9306			●	●
5	EVAPORATOR AIR CONDITIONER MANUAL CONTROL(C60)	1-83562-083-0	01	1	9307-				●
9	SCREW; THERMOSTAT TO CASE AIR CONDITIONER MANUAL CONTROL(C60)	8-94248-769-0	01	1	9002-	●	●
9	SCREW; THERMOSTAT TO CASE AIR CONDITIONER MANUAL CONTROL(C60)	8-94248-807-0	03	1	9002-9306			●	●
9	SCREW; THERMOSTAT TO CASE AIR CONDITIONER MANUAL CONTROL(C60)	8-94248-807-0	01	1	9307-				●
10	CLIP; EVAP CASE AIR CONDITIONER MANUAL CONTROL(C60)	1-83574-148-0	11	1	9002-	●	●	●	●
10	CLIP; EVAP CASE AIR CONDITIONER MANUAL CONTROL(C60)	1-83574-148-0	10	1	9307-				●
11	LINING; EVAP A/C AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83579-238-0	01	1	9002-	●	●
11	LINING; EVAP A/C AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83579-172-0	01	1	9002-	●	●	●	●
11	LINING; EVAP A/C AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83579-174-0	01	1	9002-			●	●
12	LINING; EVAP AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-173-0	02	1	9002-	●	●	●	●
13	SEAL; EVAP AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83579-166-0	02	1	9002-	●	●
13	SEAL; EVAP AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83579-167-0	02	1	9002-	●	●
13	SEAL; EVAP AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83579-166-0	03	1	9002-			●	●
13	SEAL; EVAP AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83579-167-0	01	1	9002-			●	●
13	SEAL; EVAP AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83579-259-0	01	1	9002-			●	●
14	SCREW; RELAY TO BRKT AIR CONDITIONER MANUAL CONTROL(C60)	8-94248-807-0	02	1	9002-	●	●
22	RELAY; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-094-0	02	1	9002-	●	●	●	●
23	CASE; EVAP,LWR AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-289-0	01	1	9002-	●	●
23	CASE; EVAP,LWR AIR CONDITIONER MANUAL CONTROL(C60)	1-83564-218-0	01	1	9002-			●	●
30	LINING; EVAP RESISTOR AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-368-0	01	1	9002-	●	●	●	●
31	RESISTOR; POWER EVAP AIR CONDITIONER MANUAL CONTROL(C60)	1-83519-028-1	01	1	9002-	●	●	●	●
33	LINING; EVAP AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83579-168-0	01	1	9002-	●	●	●	●
33	LINING; EVAP AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83579-169-0	01	1	9002-	●	●	●	●
37	GASKET; EVAP AIR CONDITIONER MANUAL CONTROL(C60)	8-94113-332-0	01	1	9002-9306	●	●	●	●
37	GASKET; EVAP AIR CONDITIONER MANUAL CONTROL(C60)	8-94481-700-0	01	1	9307-		●		●
38	VALVE; EXPANSION AIR CONDITIONER MANUAL CONTROL(C60)	8-94243-996-0	01	1	9002-9306	●	●
38	VALVE; EXPANSION AIR CONDITIONER MANUAL CONTROL(C60)	1-83569-157-0	01	1	9307-		●		●
38	VALVE; EXPANSION AIR CONDITIONER MANUAL CONTROL(C60)	8-94142-345-0	01	1	9002-9306			●	●
39	GASKET; EVAP AIR CONDITIONER MANUAL CONTROL(C60)	1-09623-517-0	01	1	9002-9009	●	●
39	GASKET; EVAP AIR CONDITIONER MANUAL CONTROL(C60)	1-09623-517-0	01	1	9307-		●
39	GASKET; EVAP AIR CONDITIONER MANUAL CONTROL(C60)	8-94133-331-0	01	1	9002-9009			●	●
39	GASKET; EVAP AIR CONDITIONER MANUAL CONTROL(C60)	1-09623-517-0	01	1	9010-9306	●	●	●	●
39	GASKET; EVAP AIR CONDITIONER MANUAL CONTROL(C60)	8-94481-717-0	01	1	9307-				●
44	EVAPORATOR ASM; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83541-082-2	01	1	9002-9306	●	●
44	EVAPORATOR ASM; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83562-072-0	01	1	9307-		●
44	EVAPORATOR ASM; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83562-053-2	01	1	9002-9306			●	●
44	EVAPORATOR ASM; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83562-082-0	01	1	9307-				●
45	PIPE; EXPANSION VLV AIR CONDITIONER MANUAL CONTROL(C60)	1-83567-222-1	01	1	9002-9306	●	●
45	PIPE; EXPANSION VLV AIR CONDITIONER MANUAL CONTROL(C60)	1-83567-495-0	01	1	9307-		●
45	PIPE; EXPANSION VLV AIR CONDITIONER MANUAL CONTROL(C60)	1-83567-367-0	01	1	9002-9306			●	●
45	PIPE; EXPANSION VLV AIR CONDITIONER MANUAL CONTROL(C60)	1-83567-516-0	01	1	9307-				●
46	CLIP; EXPANSION VLV AIR CONDITIONER MANUAL CONTROL(C60)	1-83574-124-0	01	1	9002-	●	●	●	●
47	SCREW; EVAP AIR CONDITIONER MANUAL CONTROL(C60) M5X14	8-94244-002-0	01	1	9002-	●	●	●	●
48	INSULATOR; EVAP AIR CONDITIONER MANUAL CONTROL(C60)	5-83579-024-0	01	1	9002-	●	●	●	●
54	THERMOSTAT; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-466-0	01	1	9002-	●	●	●	●
81	CLIP; THERMOSTAT A/C AIR CONDITIONER MANUAL CONTROL(C60)	8-94122-018-0	01	1	9307-		●		●
82	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83579-176-0	01	1	9002-	●	●
82	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83579-092-0	01	1	9002-	●	●	●	●
82	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83539-089-0	01	1	9002-			●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
