◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LV ▶ 10885 - LV423(THAI)BMTA ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-28 - CHASSIS ELECTRICAL ▶
8-28 — CHASSIS ELECTRICAL (#31087) — 84 parça

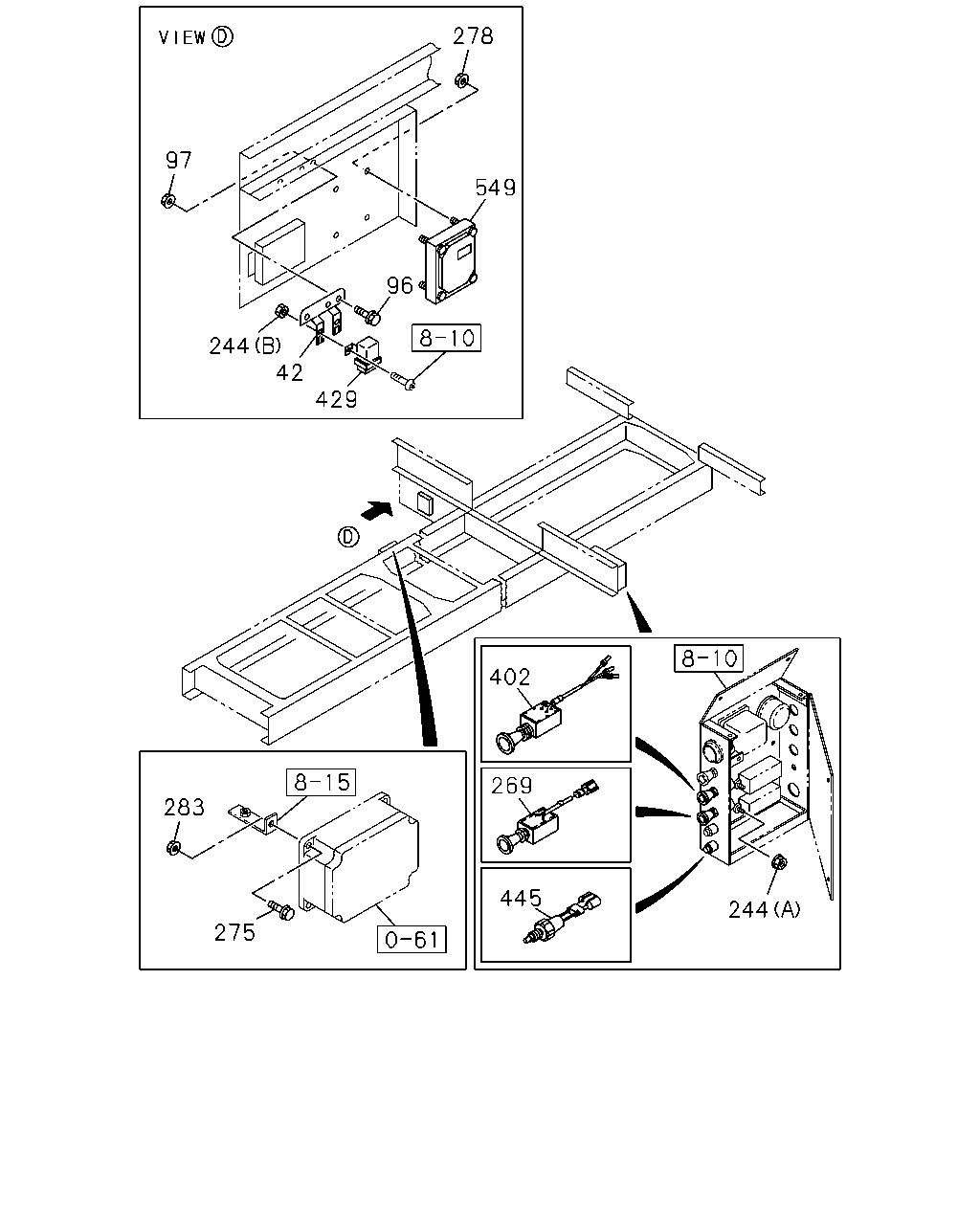

çizim 22753
278 97 549 96 244 42 429 402 269 283 445 244 275
BalonParca AdiParca NoAdetTipApplied Date
42 BRACKET; RELAY 8-97258-763-0 01 1 0105-
96 BOLT; BRKT FIX
M6X16 FLANGE 		0-28680-616-0 02 1 0105-0512
96 BOLT; BRKT FIX
M6X16 FLANGE 		0-28650-616-0 02 1 0601-
97 NUT; BRKT FIX
M6 FLANGE 		0-91150-106-0 02 1 0105-0602
97 NUT; BRKT FIX
M6 FLANGE 		0-91180-106-0 02 1 0603-
244 NUT; FUSE BOX
(B) M5 		9-99110-405-0 02 1 0105-0512
244 NUT; FUSE BOX
(B) M5 		0-91110-505-0 02 1 0601-
244 NUT; FUSE BOX
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) M6 FLANGE 		0-91150-106-0 04 1 0105-0602
244 NUT; FUSE BOX
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) M6 FLANGE 		0-91180-106-0 04 1 0603-
269 SWITCH; BATTERY,ENG ROOM
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> 		1-82340-358-1 01 1 0105-0706
269 SWITCH; BATTERY,ENG ROOM
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> 		8-97621-398-0 01 1 0707-
275 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 0105-0512
275 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0601-
278 NUT; CONT UNIT
M6 FLANGE 		0-91150-106-0 04 1 0105-0602
278 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 04 1 0603-
283 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0105-0602
283 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603-
402 SWITCH; IGNITION SAFETY
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> 		1-82340-382-1 01 1 0105-0706
402 SWITCH; IGNITION SAFETY
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> 		8-97621-399-0 01 1 0707-
429 RELAY; POWER CUT
24V 12.5A JIDECO 		8-97062-815-1 01 1 0105-0111
429 RELAY; POWER CUT
24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0112-
445 SWITCH; ENG STOP
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> 		1-82380-107-1 01 1 0105-
549 CONTROL UNIT; ENGINE 1-80110-177-0 01 1 0105-

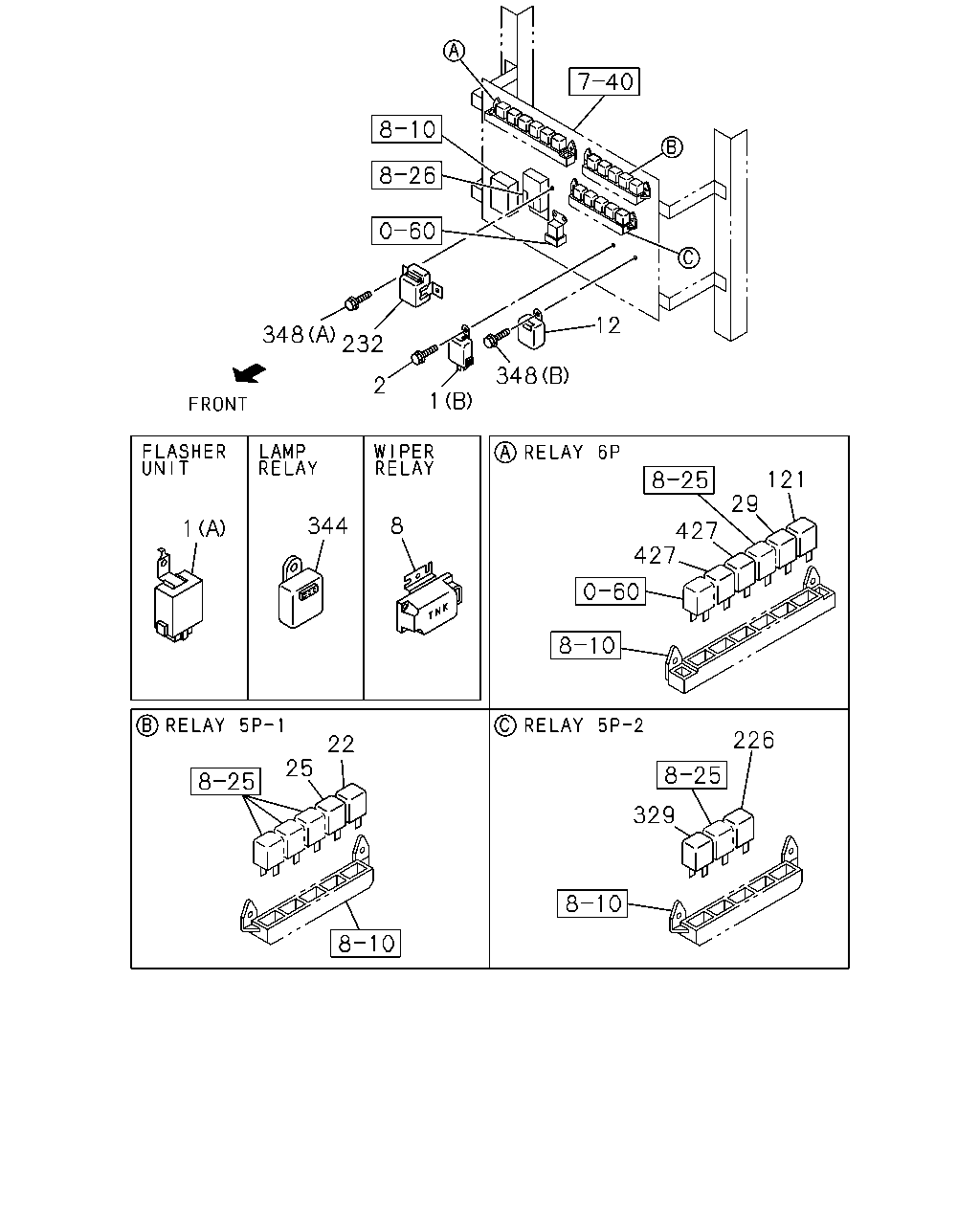

çizim 79530
12 348 232 348 2 1 121 29 344 8 1 427 427 226 22 25 329
BalonParca AdiParca NoAdetTipApplied Date
1 UNIT; FLASHER
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> TURN SIGNAL LAMP SIDE<TEL> (A) 		1-83470-052-0 01 1 0105-
1 UNIT; FLASHER
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. TURN SIGNAL LAMP SIDE<TEL> (A) 		1-83470-051-0 01 1 0105-
1 UNIT; FLASHER
TURN SIGNAL LAMP SIDE<TEL> (B) 		1-83470-058-0 01 1 0105-
1 UNIT; FLASHER
EXC. TURN SIGNAL LAMP SIDE<TEL> (B) 		1-83470-055-0 01 1 0105-
2 BOLT; FLASHER UNIT
M6X16 FLANGE 		0-28680-616-0 01 1 0105-0512
2 BOLT; FLASHER UNIT
M6X16 FLANGE 		0-28650-616-0 01 1 0601-
8 RELAY; WIPER
WIPER MOTOR KIT<ST7> TNK 		1-82550-169-0 01 1 0105-
12 RELAY; LAMP,FAILURE INDICATOR 1-82550-143-2 01 1 0105-
22 RELAY; STOP LAMP
24V 12.5A JIDECO 		8-97062-815-1 01 1 0105-0111
22 RELAY; STOP LAMP
24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0112-
25 RELAY; TAIL LAMP
24V 12.5A JIDECO 		8-97062-815-1 01 1 0105-0111
25 RELAY; TAIL LAMP
24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0112-
29 RELAY; HORN
24V 12.5A JIDECO 		8-97062-815-1 01 1 0105-0111
29 RELAY; HORN
24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0112-
121 RELAY; PARKING BRK
24V 12.5A JIDECO 		8-97062-815-1 01 1 0105-0111
121 RELAY; PARKING BRK
24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0112-
226 RELAY; EXH BRK
EXHAUST BRAKE<NF8> 24V 12.5A JIDECO 		8-97062-815-1 01 1 0105-
232 RELAY; WARNING BUZZER
INDICATOR WARNING BUZZER(WF9) 		1-82550-119-1 01 1 0105-
329 RELAY; BACK LAMP
24V 12.5A JIDECO 		8-97062-815-1 01 1 0105-0111
329 RELAY; BACK LAMP
24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0112-
344 RELAY; LAMP
LAMPS TAIL AND STOP DELUXE<T81> 		1-82550-201-0 01 1 0105-
348 SCREW; LAMP FAILURE RELAY
(B) M6X16 FLANGE 		0-28680-616-0 01 1 0105-0512
348 SCREW; LAMP FAILURE RELAY
(B) M6X16 FLANGE 		0-28650-616-0 01 1 0601-
348 SCREW; LAMP FAILURE RELAY
INDICATOR WARNING BUZZER(WF9) (A) M6X16 FLANGE 		0-28680-616-0 02 1 0105-0512
348 SCREW; LAMP FAILURE RELAY
INDICATOR WARNING BUZZER(WF9) (A) M6X16 FLANGE 		0-28650-616-0 02 1 0601-
427 RELAY; RETARDER
A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) 24V 12.5A JIDECO 		8-97062-815-1 02 1 0105-0111
427 RELAY; RETARDER
24V 12.5A MATSUSHITA 		8-97262-933-0 02 1 0112-

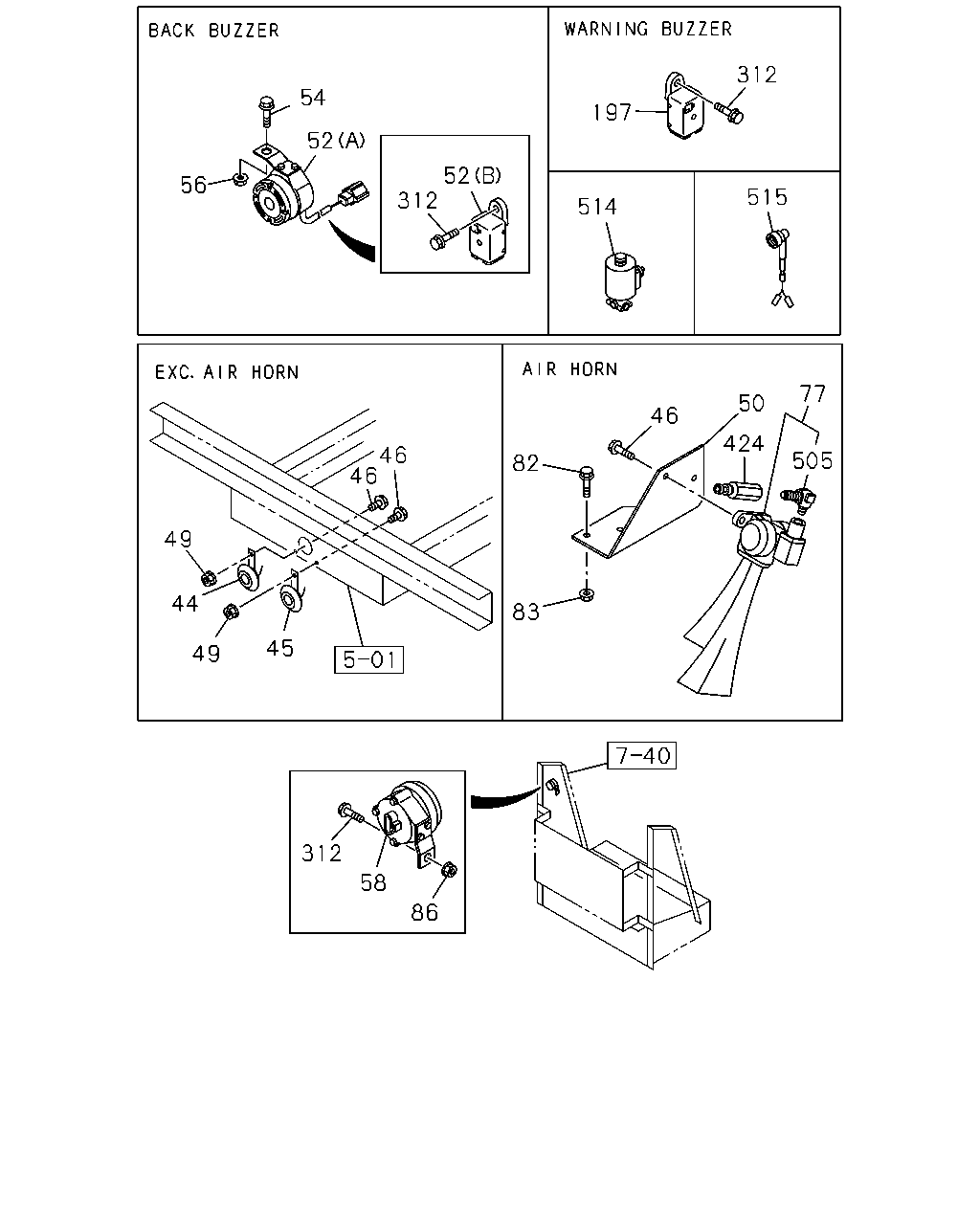

çizim 83073
312 54 197 52 52 312 56 515 514 77 50 46 424 46 46 505 82 49 44 83 45 49 312 58 86
BalonParca AdiParca NoAdetTipApplied Date
44 HORN; HIGH NOTE
EXC. AIR HORN(WB8) 		1-83410-061-1 01 1 0105-
45 HORN; LOW NOTE
EXC. AIR HORN(WB8) 		1-83410-062-1 01 1 0105-
46 BOLT; HORN TO BODY
M8X25 FLANGE 		0-28680-825-0 02 1 0105-0512
46 BOLT; HORN TO BODY
M8X25 FLANGE 		0-28650-825-0 02 1 0601-
49 NUT; HORN TO BODY
M8 FLANGE 		0-91150-108-0 02 1 0105-0602
49 NUT; HORN TO BODY
M8 FLANGE 		0-91180-108-0 02 1 0603-
50 BRACKET; HORN
AIR HORN(WB8) 		1-47478-948-0 01 1 0105-
52 BUZZER; BACK
(B) 		1-83460-040-0 01 1 0105-
52 BUZZER; BACK
REVERSING WARNING BUZZER<YM9> (A) METRO 		1-83460-088-1 01 1 0105-0612
52 BUZZER; BACK
REVERSING WARNING BUZZER<YM9> (A) METRO 		8-98069-867-0 01 1 0701-
54 BOLT; BACK BUZZER
REVERSING WARNING BUZZER<YM9> M10X30 FLANGE 		0-28681-030-0 01 1 0105-0512
54 BOLT; BACK BUZZER
REVERSING WARNING BUZZER<YM9> M10X30 FLANGE 		0-28651-030-0 01 1 0601-
56 NUT; BACK BUZZER
REVERSING WARNING BUZZER<YM9> M10 FLANGE 		0-91150-210-0 01 1 0105-0602
56 NUT; BACK BUZZER
REVERSING WARNING BUZZER<YM9> M10 FLANGE 		0-91180-210-0 01 1 0603-
58 BUZZER; AIR PRESSURE WARNING
METRO 		1-83460-074-1 01 1 0105-0612
58 BUZZER; AIR PRESSURE WARNING
METRO 		8-98069-865-0 01 1 0701-
77 HORN ASM
AIR HORN(WB8) 		1-83430-041-2 01 1 0105-
82 BOLT; BRKT,HORN
AIR HORN(WB8) M8X30 FLANGE 		0-28680-830-0 02 1 0105-0512
82 BOLT; BRKT,HORN
AIR HORN(WB8) M8X30 FLANGE 		0-28650-830-0 02 1 0601-
83 NUT; BRKT,HORN
AIR HORN(WB8) M8 FLANGE 		0-91150-108-0 02 1 0105-0602
83 NUT; BRKT,HORN
AIR HORN(WB8) M8 FLANGE 		0-91180-108-0 02 1 0603-
86 NUT; BUZZER
M6 FLANGE 		0-91150-106-0 01 1 0105-0602
86 NUT; BUZZER
M6 FLANGE 		0-91180-106-0 01 1 0603-
197 BUZZER; WARNING,AIR HEAT OIL BRK
INDICATOR WARNING BUZZER(WF9) 		1-83460-051-1 01 1 0105-
312 BOLT; BUZZER
M6X16 FLANGE 		0-28680-616-0 01 1 0105-0512
312 BOLT; BUZZER
INDICATOR WARNING BUZZER(WF9) M6X16 FLANGE 		0-28680-616-0 01 1 0105-0512
312 BOLT; BUZZER
M6X16 FLANGE 		0-28680-616-0 01 1 0105-0512
312 BOLT; BUZZER
M6X16 FLANGE 		0-28650-616-0 01 1 0601-
312 BOLT; BUZZER
INDICATOR WARNING BUZZER(WF9) M6X16 FLANGE 		0-28650-616-0 01 1 0601-
312 BOLT; BUZZER
M6X16 FLANGE 		0-28650-616-0 01 1 0601-
424 ADAPTER
AIR HORN(WB8) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0105-
505 JOINT; AIR HORN
AIR HORN(WB8) 		1-83439-006-0 01 1 0105-
514 VALVE; SOLENOID 1-82563-803-0 01 1 0105-
515 HARNESS; VLV 1-82449-002-0 02 1 0105-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
