Isuzu WW
▶
BUSES
▶
LV
▶
10885 - LV423(THAI)BMTA
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-26 - ELECTRICAL CONTROL AND OTHER PARTS
▶

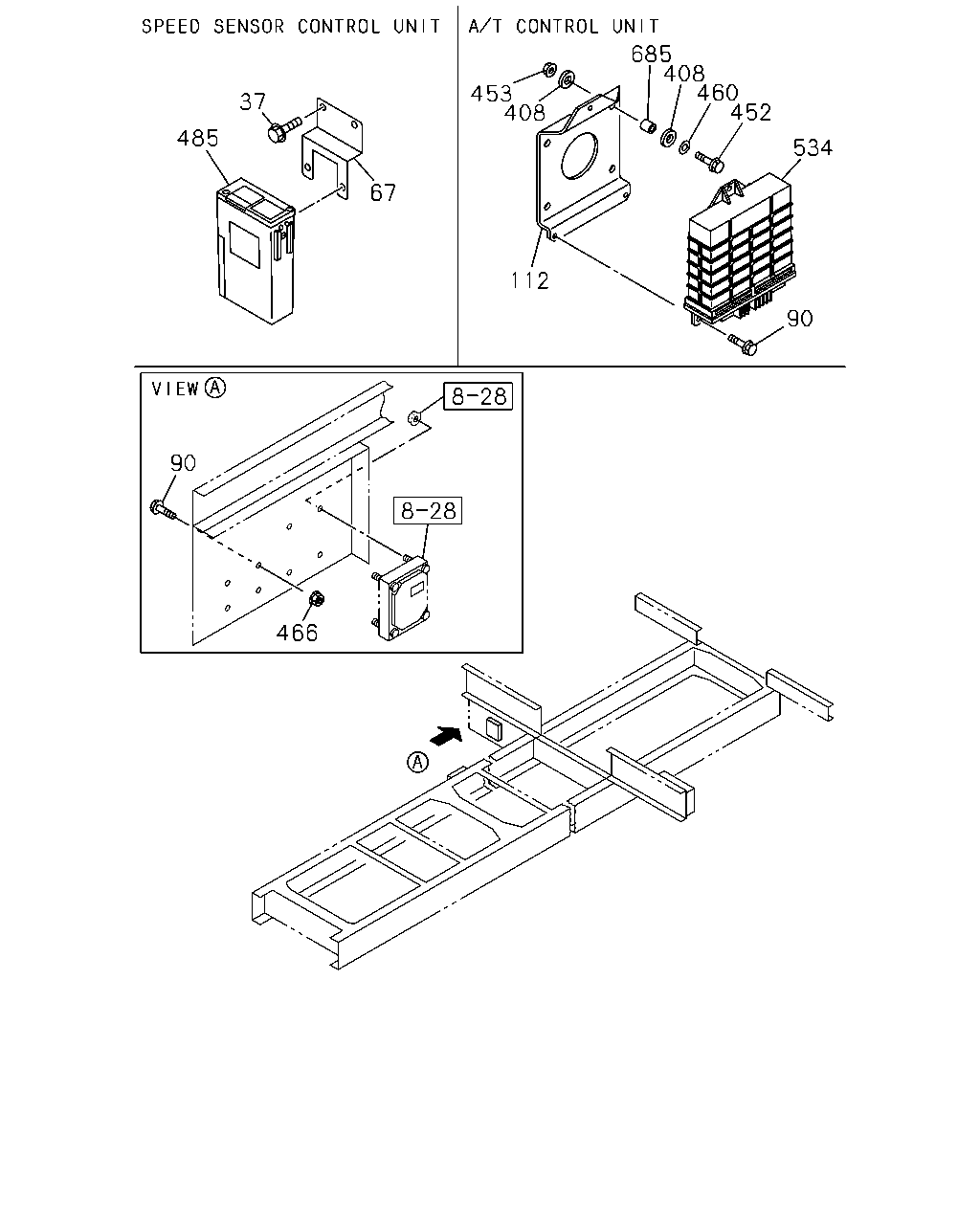

8-26 — ELECTRICAL CONTROL AND OTHER PARTS
(#31086) — 29 parça
◀
[826A] NO.1 (7 parça)
[826A] NO.2 (22 parça)
▶
233
232
465
17
507
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
17
CLIP; ACTUATOR TO HARNESS
1-14319-099-0
01
1
0105-
232
PIN; COTTER,ENG STOP ACTUATOR
L=17.9
1-09747-002-0
01
1
0105-
233
WASHER; PL,ENG STOP ACTUATOR
ID=5.3
9-09160-505-0
01
1
0105-0605
233
WASHER; PL,ENG STOP ACTUATOR
ID=5.3
0-91610-505-0
01
1
0606-
465
BOLT; CLIP
M8X16 FLANGE
0-28080-816-0
01
1
0105-0512
465
BOLT; CLIP
M8X16 FLANGE
0-28050-816-0
01
1
0601-
507
CONNECTOR
1-82690-974-0
01
1
0105-
685
408
460
452
453
408
37
485
534
67
112
90
90
466
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
37
BOLT; BRKT FIX
M6X16 FLANGE
0-28680-616-0
02
1
0105-0512
37
BOLT; BRKT FIX
M6X16 FLANGE
0-28650-616-0
02
1
0601-
67
BRACKET; CONT UNIT
1-82699-720-0
01
1
0105-
90
BOLT; QOS CONTROLLER
M6X19.5 W/LK&PL WASHER
8-94279-201-0
06
1
0209-0301
90
BOLT; QOS CONTROLLER
M6X19.5 W/LK&PL WASHER
8-94279-201-0
04
1
0302-
90
BOLT; QOS CONTROLLER
M6X20 FLANGE
0-28680-620-0
03
1
0105-0512
90
BOLT; QOS CONTROLLER
M6X20 FLANGE
0-28650-620-0
03
1
0601-
112
BRACKET; CONT UNIT
1-82698-317-0
01
1
0105-
408
RUBBER; CUSHION
1-33619-148-0
08
1
0105-
452
BOLT; BRKT
M8X30 FLANGE
0-28680-830-0
04
1
0105-0512
452
BOLT; BRKT
M8X30 FLANGE
0-28650-830-0
04
1
0601-
453
NUT; BRKT
M8 FLANGE
0-91150-108-0
04
1
0105-0602
453
NUT; BRKT
M8 FLANGE
0-91180-108-0
04
1
0603-
460
WASHER; PL,BRKT
ID=8.4 OD=22
9-09160-708-0
04
1
0105-0605
460
WASHER; PL,BRKT
ID=8.4 OD=22
0-91610-708-0
04
1
0606-
466
NUT; CLIP
M6 FLANGE
0-91150-106-0
06
1
0209-0301
466
NUT; CLIP
M6 FLANGE
0-91150-106-0
04
1
0302-0602
466
NUT; CLIP
M6 FLANGE
0-91180-106-0
04
1
0603-
485
CONTROL UNIT; SPEED SENSOR
1-80190-059-1
01
1
0105-1008
485
CONTROL UNIT; SPEED SENSOR
8-98140-862-0
01
1
1009-
534
CONTROL UNIT; AUTO MISSION
A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E)
1-80110-558-0
01
1
0105-
685
SPACER; BRKT
9-09651-072-0
04
1
0105-
