Isuzu WW
▶
BUSES
▶
LV
▶
10885 - LV423(THAI)BMTA
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-25 - SWITCH AND RELAY; INSTRUMENT PANEL
▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL
(#31085) — 54 parça
◀
[825A] NO.2 (11 parça)
[825A] NO.3 (18 parça)
[825A] NO.1 (25 parça)
▶

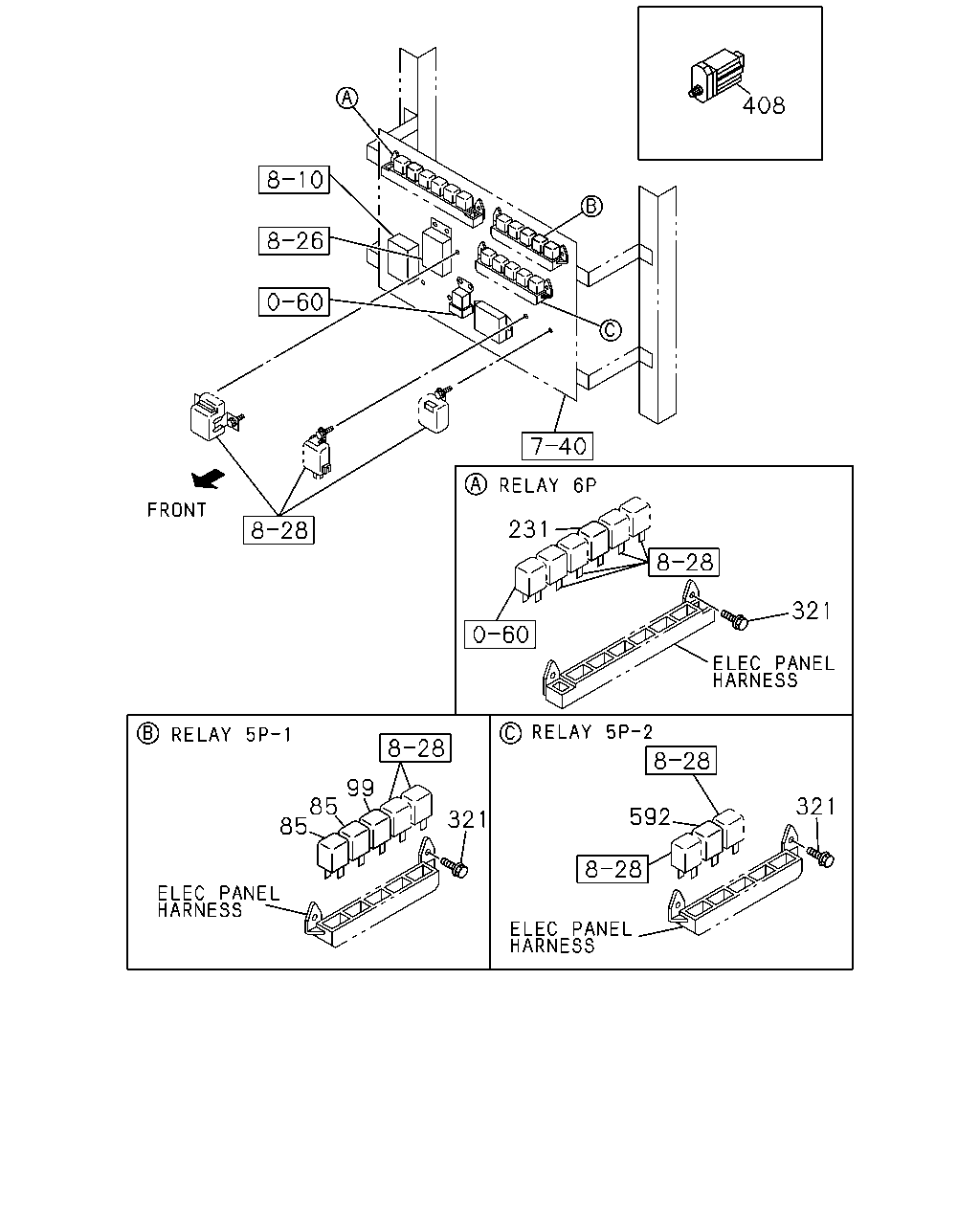

408
231
321
99
85
85
321
592
321
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
85
RELAY; HEADLAMP
24V 12.5A JIDECO
8-97062-815-1
02
1
0105-0111
85
RELAY; HEADLAMP
24V 12.5A MATSUSHITA
8-97262-933-0
02
1
0112-
99
RELAY; FOG LAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 24V 12.5A JIDECO
8-97062-815-1
01
1
0105-0111
99
RELAY; FOG LAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 24V 12.5A MATSUSHITA
8-97262-933-0
01
1
0112-
231
RELAY; NEUTRAL
FOOT BRAKE W/EXHAUST BRAKE<SJB> 24V 12.5A JIDECO
8-97062-815-1
01
1
0105-
308
BULB; SELECT SW
8-98069-434-0
06
1
0105-
321
BOLT; RELAY
M6X16 FLANGE
0-28680-616-0
06
1
0105-0512
321
BOLT; RELAY
M6X16 FLANGE
0-28650-616-0
06
1
0601-
408
SWITCH; DIAGNOSIS MONITOR
1-82250-342-0
01
1
0105-
592
RELAY; WEAR INDICATOR
24V 12.5A JIDECO
8-97062-815-1
01
1
0105-0111
592
RELAY; WEAR INDICATOR
24V 12.5A MATSUSHITA
8-97262-933-0
01
1
0112-

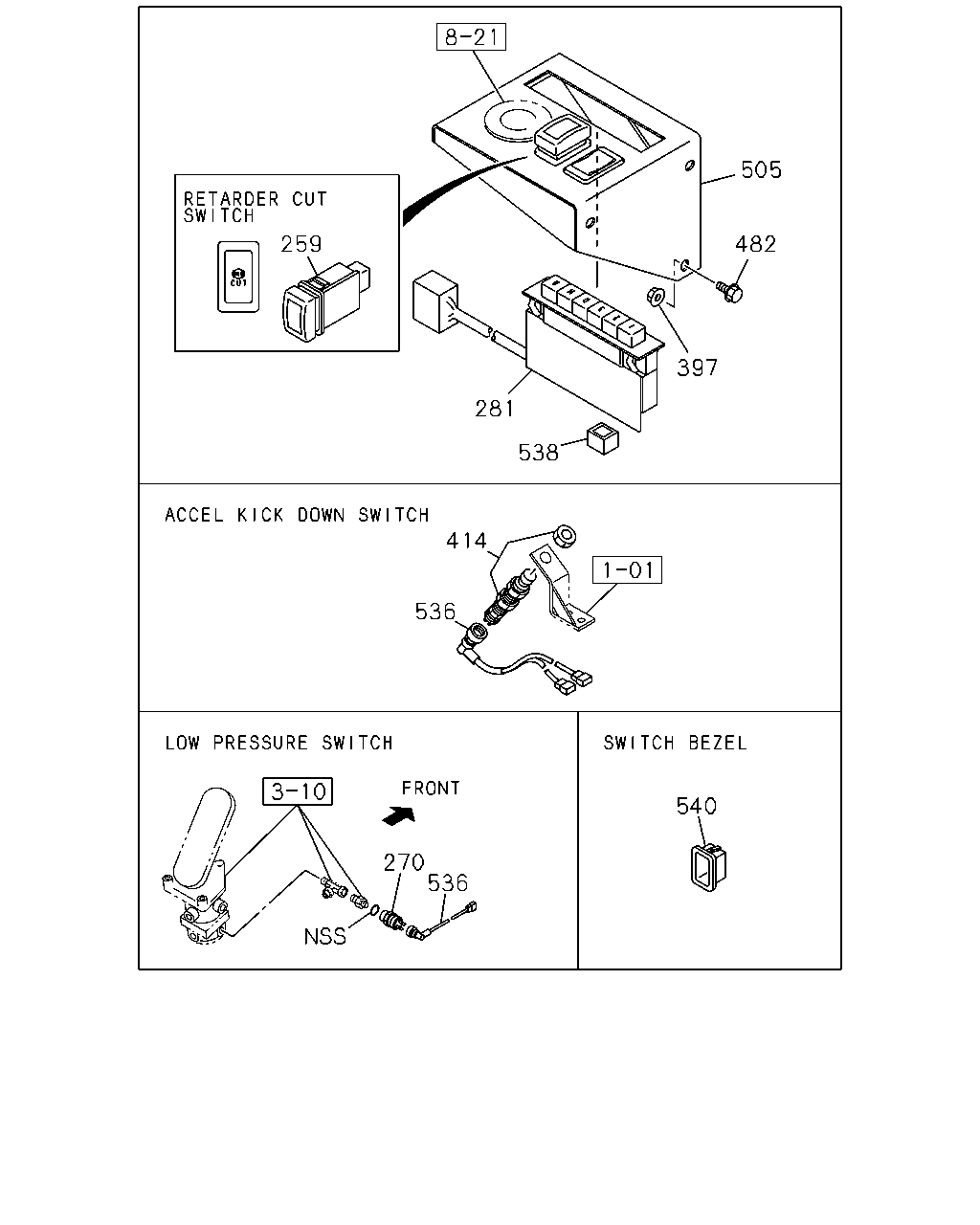

505
259
482
397
281
538
414
536
540
270
536
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
259
SWITCH; RETARDER
1-82340-407-1
01
1
0105-
270
SWITCH; PRESS,WHEEL PARKING
1-48340-047-0
01
1
0105-0105
281
SWITCH; SELECT,TRANS CONT
1-82380-152-0
01
1
0105-
308
BULB; SELECT SW
8-98069-434-0
06
1
0105-
397
NUT; BRKT FIX
M8 FLANGE
0-91150-108-0
03
1
0105-0602
397
NUT; BRKT FIX
M8 FLANGE
0-91180-108-0
03
1
0603-
414
SWITCH; KICK DOWN
1-82380-139-0
01
1
0105-
482
BOLT; BRKT
M8X20 FLANGE
0-28680-820-0
03
1
0105-0512
482
BOLT; BRKT
M8X20 FLANGE
0-28650-820-0
03
1
0601-
505
BRACKET; SW
1-47479-144-0
01
1
0105-
536
HARNESS; SW
1-82449-002-0
01
1
0105-
538
CAP; SW
MARK"N"
1-82389-014-0
01
1
0105-
538
CAP; SW
MARK"R"
1-82389-015-0
01
1
0105-
538
CAP; SW
MARK"D"
1-82389-016-0
01
1
0105-
538
CAP; SW
MARK"1"
1-82389-019-0
01
1
0105-
538
CAP; SW
MARK"2"
1-82389-020-0
01
1
0105-
538
CAP; SW
MARK"3"
1-82389-021-0
01
1
0105-
540
BEZEL; SW
1-82490-017-0
01
1
0105-

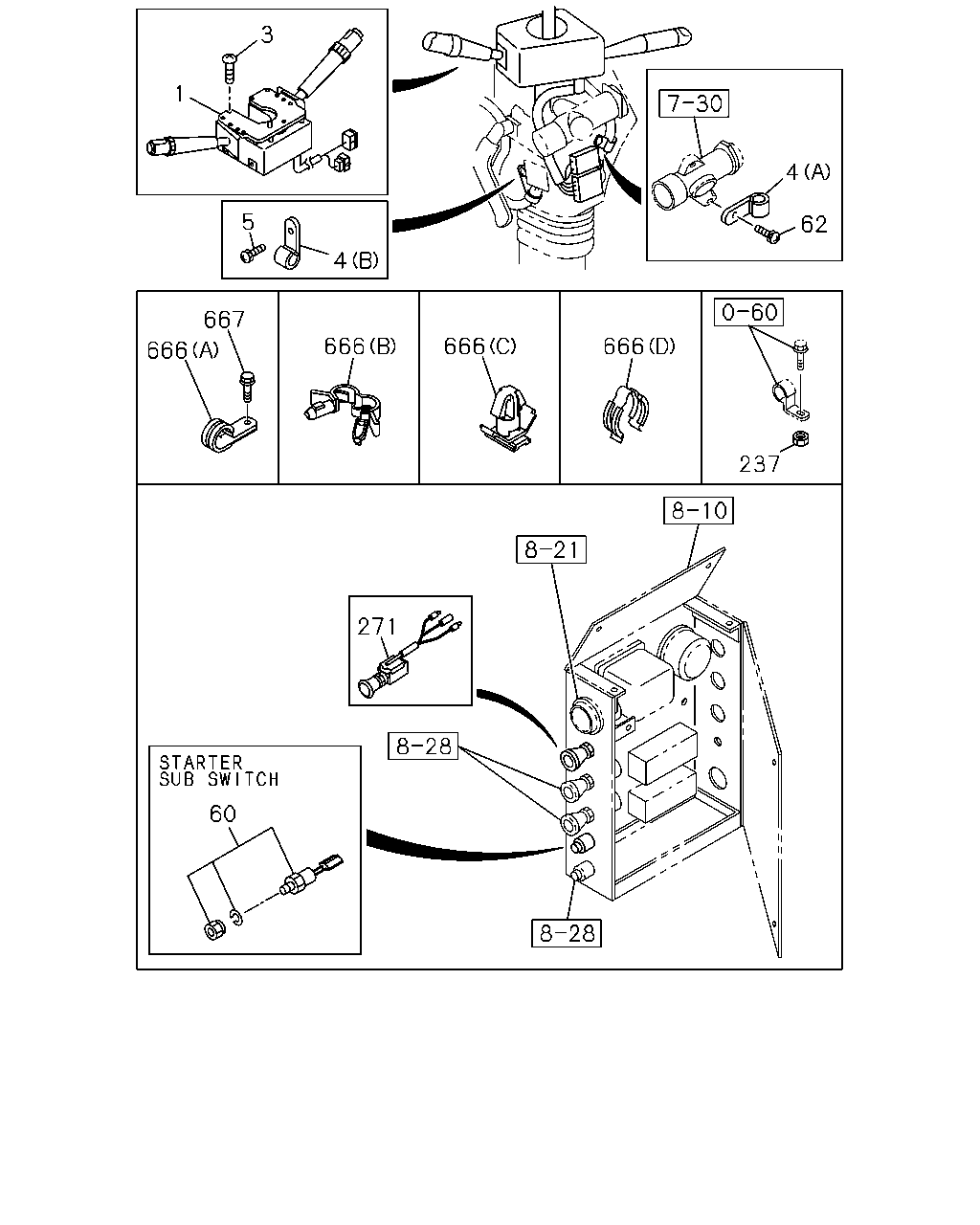

3
1
4
5
62
4
667
666
666
666
666
237
271
60
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SWITCH; COMB
1-82360-607-0
01
1
0105-0105
1
SWITCH; COMB
1-82360-620-0
01
1
0105-0312
1
SWITCH; COMB
1-82360-716-0
01
1
0401-
3
SCREW; COMB SW
M5X12 TAPPING W/PL WASHER
0-74105-512-0
04
1
0105-0604
3
SCREW; COMB SW
M5X12 TAPPING W/PL WASHER
0-74165-512-0
04
1
0605-
4
CLIP; COMB SW
(A) ID=16 L=20
9-09525-535-0
01
1
0105-0606
4
CLIP; COMB SW
(A) ID=16 L=20
0-95235-535-0
01
1
0607-
4
CLIP; COMB SW
(B) ID=14.5 L=30
9-09916-893-1
01
1
0105-
5
SCREW; COMB SW CABLE
M6X16 W/LK&PL WASHER
8-94279-402-0
01
1
0105-0110
5
SCREW; COMB SW CABLE
M6X12 W/PL WASHER
8-97806-950-0
01
1
0111-
60
SWITCH; IGNITION SUB
ELECTRIC SWITCH BOX ENGINE ROOM<TEK>
1-82380-107-1
01
1
0105-
62
BOLT; STARTER SW
M8X30 W/PL WASHER
1-09981-482-2
02
1
0105-0111
62
BOLT; STARTER SW
M8X30 W/PL WASHER
1-09980-621-1
02
1
0112-
237
NUT
M8 FLANGE
0-91150-108-0
01
1
0105-0602
237
NUT
M8 FLANGE
0-91180-108-0
01
1
0603-
271
SWITCH; OIL PRESS METER
ELECTRIC SWITCH BOX ENGINE ROOM<TEK>
1-82340-526-1
01
1
0105-0706
271
SWITCH; OIL PRESS METER
ELECTRIC SWITCH BOX ENGINE ROOM<TEK>
8-97621-401-0
01
1
0707-
308
BULB; SELECT SW
8-98069-434-0
06
1
0105-
666
CLIP; AXLE HARNESS
(C) OD=9 H=9.5
1-09709-179-0
01
1
0105-
666
CLIP; AXLE HARNESS
(B) ID=5-12 L=18
1-09709-287-0
01
1
0105-
666
CLIP; AXLE HARNESS
(D)
1-09709-301-0
02
1
0105-
666
CLIP; AXLE HARNESS
(A) ID=11 L=16
9-09525-025-0
01
1
0105-0606
666
CLIP; AXLE HARNESS
(A) ID=11 L=16
0-95235-025-0
01
1
0607-
667
BOLT; CLIP
M8X20 FLANGE
0-28680-820-0
01
1
0105-0512
667
BOLT; CLIP
M8X20 FLANGE
0-28650-820-0
01
1
0601-
