◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LV ▶ 10885 - LV423(THAI)BMTA ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-21 - METER ASM ▶
8-21 — METER ASM (#31084) — 43 parça

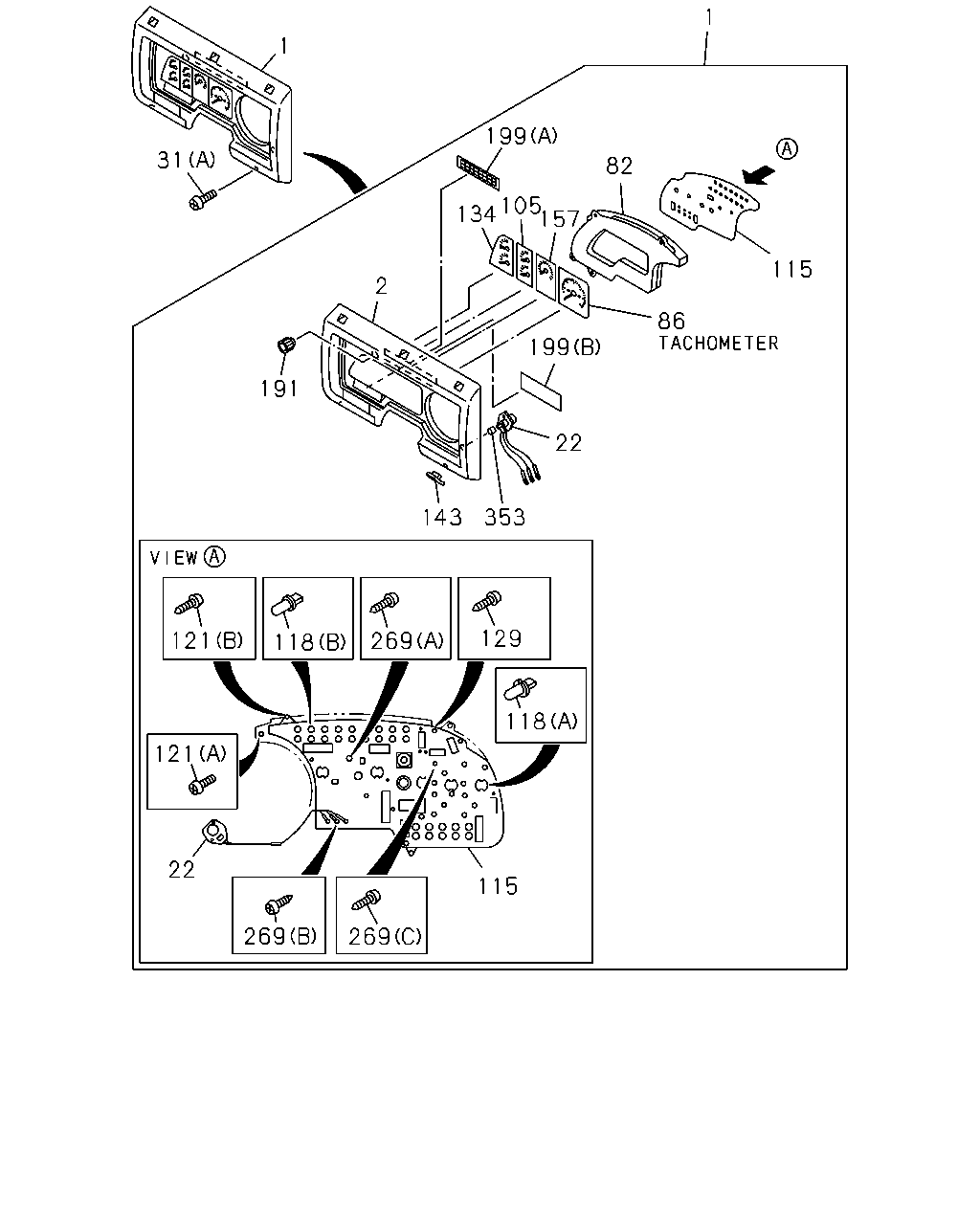

çizim 79598
1 1 199 31 82 105 134 157 115 2 86 199 191 22 143 353 129 121 269 118 118 121 22 115 269 269
BalonParca AdiParca NoAdetTipApplied Date
1 METER COMPL; CLUSTER 1-83115-802-0 01 1 0105-
2 PANEL; CLUSTER 1-83119-508-0 01 1 0105-
22 RHEOSTAT; CLUSTER METER 1-83119-470-0 01 1 0105-
31 SCREW; METER,INST PANEL
(A) M6X20 W/LK&PL WASHER 		9-03920-620-0 08 1 0105-0604
31 SCREW; METER,INST PANEL
(A) M6X20 W/LK&PL WASHER 		0-36230-620-0 08 1 0605-
31 SCREW; METER,INST PANEL
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (B) M4X16 TAPPING 		9-07066-416-0 01 1 0105-0603
31 SCREW; METER,INST PANEL
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (B) M4X16 TAPPING 		0-71040-416-0 01 1 0604-
82 CASE ASM; CLUSTER METER 1-83119-509-0 01 1 0105-
86 TACHOMETER; CLUSTER METER 1-83120-704-0 01 1 0105-
105 GAUGE; THERMO & FUEL,CLUSTER METER 1-83180-275-0 01 1 0105-
115 CIRCUIT; PRINTED,CLUSTER METER 1-83189-437-0 01 1 0105-
118 BULB; CLUSTER METER
(A) 24V 3W GREEN SOCKET 		1-82194-061-0 05 1 0105-
118 BULB; CLUSTER METER
(B) 24V 1.8W BROWN SOCKET 		1-82194-062-0 18 1 0105-
121 SCREW; PANEL FIX,CLUSTER METER
(A) M4 TAPPING 		1-83119-442-0 04 1 0105-
121 SCREW; PANEL FIX,CLUSTER METER
(B) M4 TAPPING 		1-83119-515-0 04 1 0105-
129 SCREW; PRINTED CIRCUIT,CLUSTER METER
M3 TAPPING 		1-83119-052-0 10 1 0105-
134 GAUGE; OIL PRESSURE & VOLTAGE 1-83180-276-0 01 1 0105-
143 COVER; CLUSTER METER 1-83119-516-0 05 1 0105-
157 METER; AIR PRESSURE,CLUSTER METER 1-83150-241-0 01 1 0105-
191 KNOB; BULB CHECK 1-83119-431-0 01 1 0105-
199 LENS; WARNING LAMP
(B) 		1-83119-435-0 01 1 0105-
199 LENS; WARNING LAMP
(A) 		1-83119-794-0 01 1 0105-
269 SCREW; METER CLUSTER
(A) M3 TAPPING 		1-83119-439-0 04 1 0105-
269 SCREW; METER CLUSTER
(B) M3 TAPPING 		1-83119-440-0 03 1 0105-
269 SCREW; METER CLUSTER
(C) M3 TAPPING 		1-83119-441-0 11 1 0105-
353 KNOB; RHEOSTAT 1-83119-471-0 01 1 0105-
çizim 79599
393 262
BalonParca AdiParca NoAdetTipApplied Date
262 METER; OIL THERMO 1-83160-094-0 01 1 0105-
393 CONNECTOR; THERMO METER
A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) 		1-82699-838-0 01 1 0105-

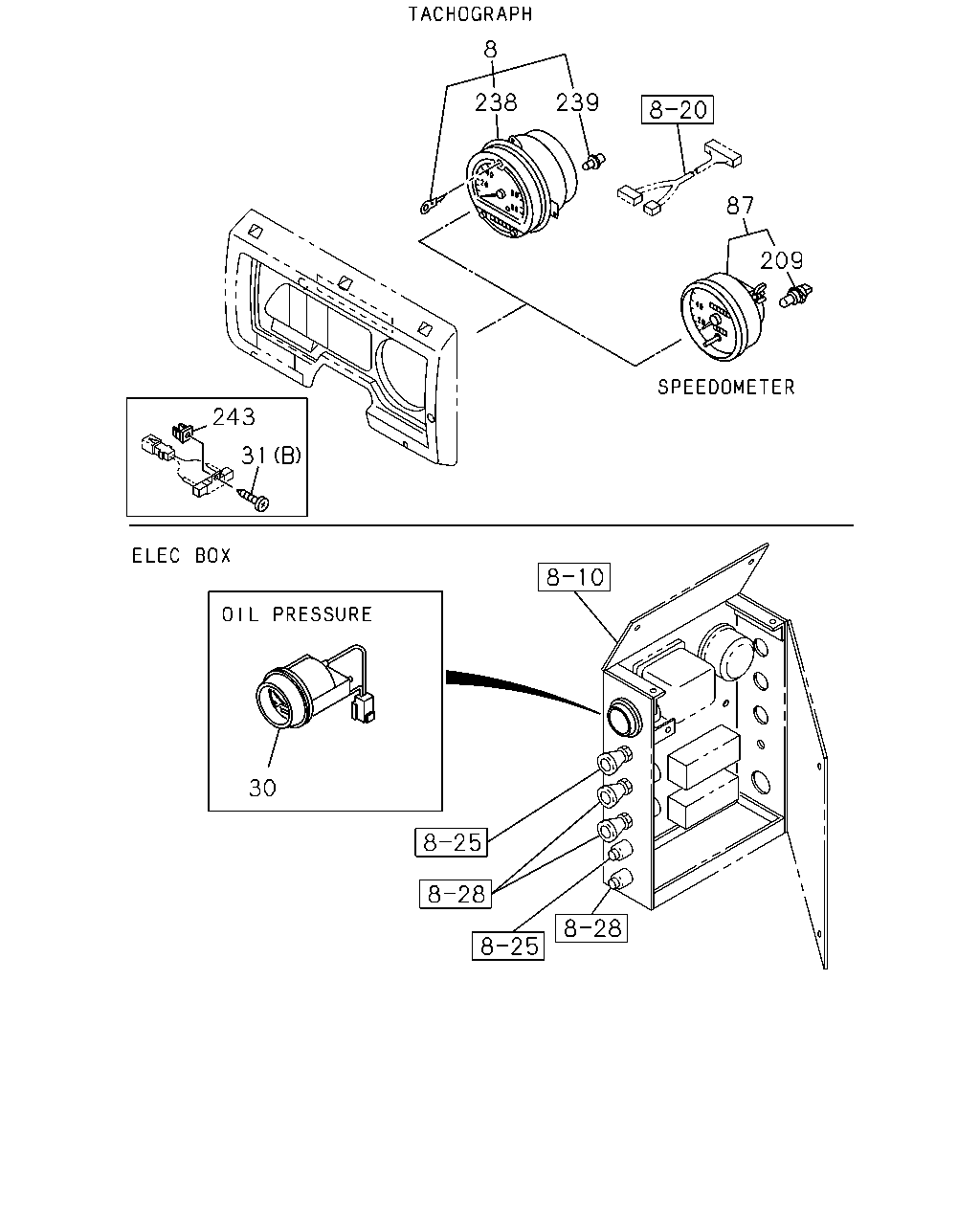

çizim 82708
8 238 239 87 209 243 31 30
BalonParca AdiParca NoAdetTipApplied Date
8 TACHOGRAPH; CLUSTER METER
ELECTRICAL TACHOGRAPH 15-6(PN3) 		1-83120-745-0 01 1 0105-0204
8 TACHOGRAPH; CLUSTER METER
ELECTRICAL TACHOGRAPH 15-6(PN3) 		1-83120-934-0 01 1 0205-
8 TACHOGRAPH; CLUSTER METER
TACHOGRAPH 120KM/H(WC8) 		1-83120-743-0 01 1 0105-0204
8 TACHOGRAPH; CLUSTER METER
TACHOGRAPH 120KM/H(WC8) 		1-83120-932-0 01 1 0205-
30 GAUGE; OIL PRESSURE
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> 		1-83150-232-0 01 1 0105-
31 SCREW; METER,INST PANEL
(A) M6X20 W/LK&PL WASHER 		9-03920-620-0 08 1 0105-0604
31 SCREW; METER,INST PANEL
(A) M6X20 W/LK&PL WASHER 		0-36230-620-0 08 1 0605-
31 SCREW; METER,INST PANEL
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (B) M4X16 TAPPING 		9-07066-416-0 01 1 0105-0603
31 SCREW; METER,INST PANEL
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (B) M4X16 TAPPING 		0-71040-416-0 01 1 0604-
87 SPEEDOMETER
EXC. ELECTRICAL TACHOGRAPH 15-6(PN3),TACHOGRAPH 120KM/H(WC8) 		1-83120-490-1 01 1 0105-
209 BULB; SPEEDOMETER
EXC. ELECTRICAL TACHOGRAPH 15-6(PN3),TACHOGRAPH 120KM/H(WC8) 24V 3W GREEN SOCKET 		1-82194-061-0 02 1 0105-
238 PANEL; TACHOGRAPH
ELECTRICAL TACHOGRAPH 15-6(PN3),TACHOGRAPH 120KM/H(WC8) 		1-83129-311-0 01 1 0105-
239 BULB; TACHOGRAPH
ELECTRICAL TACHOGRAPH 15-6(PN3),TACHOGRAPH 120KM/H(WC8) 24V 1.8W 		1-82194-076-0 03 1 0105-0204
239 BULB; TACHOGRAPH
ELECTRICAL TACHOGRAPH 15-6(PN3),TACHOGRAPH 120KM/H(WC8) 24V 1.4W 		1-82194-101-0 03 1 0205-
243 GROMMET; SCREW
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> D=7.5X7.5 L=7 		8-94430-147-0 01 1 0105-
