◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LV ▶ 10885 - LV423(THAI)BMTA ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#31082) — 297 parça

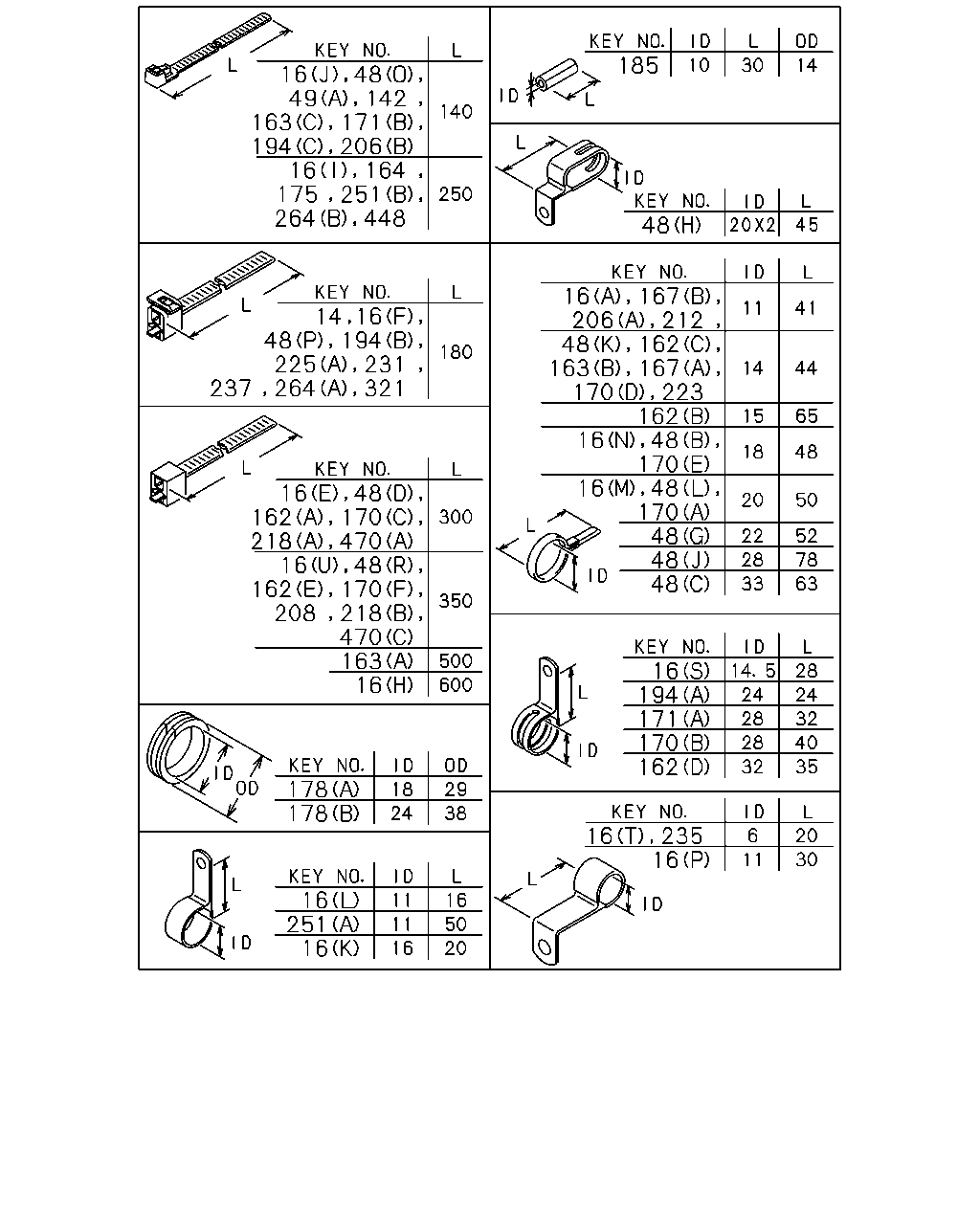

çizim 23190
185 49 142 163 171 16 164 48 16 167 48 162 163 167 162 170 170 48 48 48 48 194 237 162 170 162 170 470 163 16 16 194 171 170 162 178 178 16 16 251 16 16 48 206 194 175 251 448 264 14 16 225 231 321 264 16 48 218 470 16 48 208 218 235 16 48 16 16 48 223 170 212 206
BalonParca AdiParca NoAdetTipApplied Date
14 CLIP; BAND,HARNESS
L=180 		1-09707-162-1 02 1 0105-0107
14 CLIP; BAND,HARNESS
L=180 		1-09707-162-1 01 1 0108-
14 CLIP; BAND,HARNESS
L=180 		1-09707-162-1 03 1 0105-0107
16 CLIP; HARNESS
(T) L=35 L=20 		1-09700-769-0 01 1 0106-
16 CLIP; HARNESS
(P) ID=11 H=30 L=17 		1-09700-113-0 02 1 0105-
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 01 1 0105-
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 02 1 0105-
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 04 1 0105-
16 CLIP; HARNESS
(B) ID=9 		1-09700-839-1 02 1 0105-
16 CLIP; HARNESS
(G) ID=14.5 H=23 L=30 		1-09700-859-0 01 1 0105-
16 CLIP; HARNESS
(R) ID=35 H=45 L=33 		1-09700-947-0 02 1 0105-
16 CLIP; HARNESS
(S) ID=14.5 L=28 		1-09701-013-0 01 1 0105-
16 CLIP; HARNESS
(E) L=300 		1-09707-001-1 01 1 0105-0401
16 CLIP; HARNESS
(U) L=350 		1-09707-183-0 01 1 0402-
16 CLIP; HARNESS
(H) L=600 		1-09707-107-1 01 1 0105-
16 CLIP; HARNESS
(F) L=180 		1-09707-162-1 01 1 0105-
16 CLIP; HARNESS
(O) ID=50 		1-09709-175-0 04 1 0105-
16 CLIP; HARNESS
(C) OD=9 H=6 		1-09709-178-0 01 1 0105-
16 CLIP; HARNESS
(D) OD=9 H=9.5 		1-09709-179-0 02 1 0105-
16 CLIP; HARNESS
(Q) ID=5-12 L=18 		1-09709-287-0 03 1 0105-
16 CLIP; HARNESS
(I) L=250 		5-09707-030-1 01 1 0105-
16 CLIP; HARNESS
(I) L=250 		5-09707-030-1 08 1 0105-
16 CLIP; HARNESS
(J) L=140 		5-09707-031-1 01 1 0105-
16 CLIP; HARNESS
(L) ID=11 L=16 		9-09525-025-0 10 1 0105-0606
16 CLIP; HARNESS
(L) ID=11 L=16 		0-95235-025-0 10 1 0607-
16 CLIP; HARNESS
(K) ID=16 L=20 		9-09525-535-0 03 1 0105-0606
16 CLIP; HARNESS
(K) ID=16 L=20 		0-95235-535-0 03 1 0607-
16 CLIP; HARNESS
(N) ID=18 L=48 		9-09917-429-0 04 1 0105-
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 02 1 0105-
48 CLIP; FRAME HARNESS
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (O) L=140 		5-09707-031-1 01 1 0208-
48 CLIP; FRAME HARNESS
(P) L=180 		1-09707-162-1 01 1 0108-
48 CLIP; FRAME HARNESS
(Q) ID=31.5 H=23 L=25 		1-09701-017-0 02 1 0109-
48 CLIP; FRAME HARNESS
(C) ID=33 L=63 		1-09700-807-0 13 1 0105-
48 CLIP; FRAME HARNESS
(E) ID=35 L=35 		1-09700-895-0 03 1 0105-
48 CLIP; FRAME HARNESS
(F) ID=34.5 H=23 L=27.5 		1-09700-905-0 13 1 0105-
48 CLIP; FRAME HARNESS
(H) ID=20X2 H=25 L=45 		1-09701-252-0 03 1 0105-
48 CLIP; FRAME HARNESS
(I) ID=11 & 13 H=26 L=48 		1-09701-270-0 08 1 0105-
48 CLIP; FRAME HARNESS
(D) L=300 		1-09707-001-1 02 1 0105-0401
48 CLIP; FRAME HARNESS
(R) L=350 		1-09707-183-0 02 1 0402-
48 CLIP; FRAME HARNESS
(K) ID=14 L=44 		9-09917-427-0 01 1 0105-
48 CLIP; FRAME HARNESS
(L) ID=20 L=50 		9-09917-430-0 01 1 0105-0907
48 CLIP; FRAME HARNESS
(L) ID=20 L=50 		9-09917-430-0 08 1 0908-
48 CLIP; FRAME HARNESS
(L) ID=20 L=50 		9-09917-430-0 07 1 0105-0907
48 CLIP; FRAME HARNESS
(G) ID=22 L=52 		9-09917-431-0 01 1 0105-
48 CLIP; FRAME HARNESS
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 0105-0108
48 CLIP; FRAME HARNESS
(A) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 0105-0108
48 CLIP; FRAME HARNESS
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 0109-
48 CLIP; FRAME HARNESS
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (B) ID=18 L=48 		9-09917-429-0 02 1 0105-
48 CLIP; FRAME HARNESS
GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (J) ID=28 L=78 		1-09700-858-0 02 1 0105-
48 CLIP; FRAME HARNESS
GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (M) ID=27.5 H=23 L=24 		1-09700-863-0 02 1 0105-
48 CLIP; FRAME HARNESS
GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (M) ID=27.5 H=23 L=24 		1-09700-863-0 02 1 0105-
48 CLIP; FRAME HARNESS
GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (H) ID=20X2 H=25 L=45 		1-09701-252-0 01 1 0105-
48 CLIP; FRAME HARNESS
EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (N) ID=20 H=23 L=27 		1-09700-861-0 01 1 0105-
48 CLIP; FRAME HARNESS
EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (A) ID=24.5 H=23 L=25 		1-09700-862-0 04 1 0105-
48 CLIP; FRAME HARNESS
EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (G) ID=22 L=52 		9-09917-431-0 02 1 0105-
49 CLIP; GEN HARNESS
(B) ID=20 H=23 L=27 		1-09700-861-0 01 1 0105-
49 CLIP; GEN HARNESS
GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (B) ID=20 H=23 L=27 		1-09700-861-0 01 1 0105-
49 CLIP; GEN HARNESS
GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (A) L=140 		5-09707-031-1 01 1 0105-
142 CLIP; HARNESS,ENG
L=140 		5-09707-031-1 05 1 0105-
162 CLIP; SW HARNESS
(B) ID=15 L=65 		1-09700-466-0 04 1 0105-
162 CLIP; SW HARNESS
(D) ID=32 L=35 		1-09701-244-0 01 1 0105-
162 CLIP; SW HARNESS
(A) L=300 		1-09707-001-1 01 1 0105-0401
162 CLIP; SW HARNESS
(E) L=350 		1-09707-183-0 01 1 0402-
162 CLIP; SW HARNESS
(C) ID=14 L=44 		9-09917-427-0 04 1 0105-0107
163 CLIP; METER HARNESS
(A) L=500 		1-09707-082-1 02 1 0105-
163 CLIP; METER HARNESS
(C) L=140 		5-09707-031-1 01 1 0105-
163 CLIP; METER HARNESS
(B) ID=14 L=44 		9-09917-427-0 05 1 0105-
164 CLIP; BAND METER HARNESS
ELECTRICAL TACHOGRAPH 15-6(PN3),TACHOGRAPH 120KM/H(WC8) L=250 		5-09707-030-1 01 1 0209-
167 CLIP; HARNESS ACCEL & STOP
(B) ID=11 L=41 		1-09700-403-0 01 1 0105-
167 CLIP; HARNESS ACCEL & STOP
(A) ID=14 L=44 		9-09917-427-0 01 1 0105-
170 CLIP; ELEC HARNESS
(B) ID=28 L=40 		1-09700-995-1 01 1 0105-
170 CLIP; ELEC HARNESS
(C) L=300 		1-09707-001-1 02 1 0105-0401
170 CLIP; ELEC HARNESS
(F) L=350 		1-09707-183-0 02 1 0402-
170 CLIP; ELEC HARNESS
(C) L=300 		1-09707-001-1 03 1 0105-0401
170 CLIP; ELEC HARNESS
(F) L=350 		1-09707-183-0 03 1 0402-
170 CLIP; ELEC HARNESS
(D) ID=14 L=44 		9-09917-427-0 01 1 0105-
170 CLIP; ELEC HARNESS
(E) ID=18 L=48 		9-09917-429-0 03 1 0105-
170 CLIP; ELEC HARNESS
(A) ID=20 L=50 		9-09917-430-0 04 1 0105-
171 CLIP; STARTER HARNESS
(A) ID=28 L=32 		1-09701-107-1 02 1 0105-
171 CLIP; STARTER HARNESS
(B) L=140 		5-09707-031-1 04 1 0105-
175 CLIP; AIR TANK
L=250 		5-09707-030-1 05 1 0105-
178 GROMMET; HARNESS
(A) ID=18 OD=23 T=12 		1-09332-035-0 02 1 0105-
178 GROMMET; HARNESS
(C) 		1-82699-219-0 01 1 0105-
178 GROMMET; HARNESS
(B) ID=24 OD=30 T=12 		9-09956-093-1 02 1 0105-
185 SLEEVE; RUBBER
ID=10 OD=14 L=30 		9-09956-682-0 04 1 0105-0107
185 SLEEVE; RUBBER
ID=10 OD=14 L=30 		9-09956-682-0 06 1 0108-
194 CLIP; BAND
(A) ID=24 L=24 		1-09701-001-1 01 1 0105-
194 CLIP; BAND
(B) L=180 		1-09707-162-1 05 1 0105-
194 CLIP; BAND
(C) L=140 		5-09707-031-1 02 1 0105-
206 CLIP; FUEL TANK HARNESS
(A) ID=11 L=41 		1-09700-403-0 01 1 0105-
206 CLIP; FUEL TANK HARNESS
(B) L=140 		5-09707-031-1 03 1 0105-
208 CLIP; HARNESS,MAG VLV
L=350 		1-09707-183-0 04 1 0402-
212 CLIP; HORN HARNESS
ID=11 L=41 		1-09700-403-0 02 1 0105-
218 CLIP; BAND,RR COMB
(A) L=300 		1-09707-001-1 02 1 0105-0401
218 CLIP; BAND,RR COMB
(B) L=350 		1-09707-183-0 02 1 0402-
223 CLIP; AIR TANK HARNESS
ID=14 L=44 		9-09917-427-0 01 1 0105-
223 CLIP; AIR TANK HARNESS
ID=14 L=44 		9-09917-427-0 04 1 0105-
225 CLIP; AIR TANK HARNESS
(A) L=180 		1-09707-162-1 02 1 0105-
225 CLIP; AIR TANK HARNESS
(B) ID=12-16 & 12-16 		1-09709-191-0 01 1 0105-
231 CLIP; BAND,OIL PRESS
L=180 		1-09707-162-1 01 1 0105-
235 CLIP; HARNESS,SPD SENSOR,SSPS
L=35 L=20 		1-09700-769-0 02 1 0105-
237 CLIP; BAND,ACL
L=180 		1-09707-162-1 01 1 0105-
251 CLIP; WATER LEVEL HARNESS
(B) L=250 		5-09707-030-1 01 1 0105-
251 CLIP; WATER LEVEL HARNESS
(A) ID=11 L=50 		9-09525-085-0 02 1 0105-0606
251 CLIP; WATER LEVEL HARNESS
(A) ID=11 L=50 		0-95235-085-0 02 1 0607-
264 CLIP; HARNESS,HEADLAMP
(A) L=180 		1-09707-162-1 02 1 0105-
264 CLIP; HARNESS,HEADLAMP
(B) L=250 		5-09707-030-1 02 1 0105-
321 CLIP; HARNESS LOW PRESS SW
L=180 		1-09707-162-1 01 1 0105-0107
448 CLIP; AIR SUSP HARNESS
L=250 		5-09707-030-1 05 1 0105-
470 CLIP; HARNESS,LICENSE LAMP
(A) L=300 		1-09707-001-1 01 1 0105-0401
470 CLIP; HARNESS,LICENSE LAMP
(C) L=350 		1-09707-183-0 01 1 0402-
470 CLIP; HARNESS,LICENSE LAMP
(B) OD=9 H=6 		1-09709-178-0 01 1 0105-
çizim 82388
38 219 515 294 371 38 38 313 38 139 169 38 139 38 38 219 294 297 340 423 520 386 38 38 38 139 313
BalonParca AdiParca NoAdetTipApplied Date
38 BOLT; CLIP,HARNESS
(J) M8X25 FLANGE 		0-28680-825-0 01 1 0209-0512
38 BOLT; CLIP,HARNESS
(J) M8X25 FLANGE 		0-28650-825-0 16 1 0601-
38 BOLT; CLIP,HARNESS
(B) M8X16 FLANGE 		0-28080-816-0 03 1 0105-0512
38 BOLT; CLIP,HARNESS
(B) M8X16 FLANGE 		0-28050-816-0 03 1 0601-
38 BOLT; CLIP,HARNESS
(H) M6X20 FLANGE 		0-28680-620-0 02 1 0105-0512
38 BOLT; CLIP,HARNESS
(H) M6X20 FLANGE 		0-28650-620-0 02 1 0601-
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0105-0512
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0601-
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 01 1 0105-0512
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0601-
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 10 1 0105-0512
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 10 1 0601-
38 BOLT; CLIP,HARNESS
(G) M8X25 FLANGE 		0-28680-825-0 10 1 0105-0105
38 BOLT; CLIP,HARNESS
(G) M8X25 FLANGE 		0-28680-825-0 12 1 0106-0512
38 BOLT; CLIP,HARNESS
(G) M8X25 FLANGE 		0-28650-825-0 12 1 0601-
38 BOLT; CLIP,HARNESS
(G) M8X25 FLANGE 		0-28680-825-0 05 1 0105-0512
38 BOLT; CLIP,HARNESS
(G) M8X25 FLANGE 		0-28650-825-0 01 1 0601-
38 BOLT; CLIP,HARNESS
(G) M8X25 FLANGE 		0-28680-825-0 16 1 0105-0512
38 BOLT; CLIP,HARNESS
(G) M8X25 FLANGE 		0-28650-825-0 05 1 0601-
38 BOLT; CLIP,HARNESS
(G) M8X25 FLANGE 		0-28680-825-0 03 1 0105-0512
38 BOLT; CLIP,HARNESS
(G) M8X25 FLANGE 		0-28680-825-0 03 1 0105-0512
38 BOLT; CLIP,HARNESS
(G) M8X25 FLANGE 		0-28650-825-0 03 1 0601-
38 BOLT; CLIP,HARNESS
(G) M8X25 FLANGE 		0-28650-825-0 03 1 0601-
38 BOLT; CLIP,HARNESS
(E) M8X30 FLANGE 		0-28680-830-0 02 1 0105-0512
38 BOLT; CLIP,HARNESS
(E) M8X30 FLANGE 		0-28650-830-0 02 1 0601-
38 BOLT; CLIP,HARNESS
(I) M8X35 FLANGE 		0-28680-835-0 01 1 0105-0512
38 BOLT; CLIP,HARNESS
(I) M8X35 FLANGE 		0-28650-835-0 01 1 0601-
38 BOLT; CLIP,HARNESS
(I) M8X35 FLANGE 		0-28680-835-0 10 1 0105-0512
38 BOLT; CLIP,HARNESS
(I) M8X35 FLANGE 		0-28650-835-0 10 1 0601-
38 BOLT; CLIP,HARNESS
(F) M8X20 W/LK WASHER 		0-50040-820-0 01 1 0105-0906
38 BOLT; CLIP,HARNESS
(F) M8X20 W/LK WASHER 		0-50540-820-0 01 1 0907-
38 BOLT; CLIP,HARNESS
(C) M12X16 FLANGE 		1-09044-079-0 01 1 0105-
38 BOLT; CLIP,HARNESS
(D) M8X16 W/LK&PL WASHER 		8-97087-055-0 02 1 0105-
38 BOLT; CLIP,HARNESS
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (G) M8X25 FLANGE 		0-28680-825-0 02 1 0105-0512
38 BOLT; CLIP,HARNESS
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (G) M8X25 FLANGE 		0-28650-825-0 02 1 0601-
139 BOLT; BRKT
(A) M8X25 FLANGE 		0-28680-825-0 02 1 0105-0202
139 BOLT; BRKT
(A) M8X25 FLANGE 		0-28680-825-0 03 1 0105-0512
139 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 03 1 0601-
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28680-830-0 05 1 0105-0512
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 05 1 0601-
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28680-830-0 01 1 0105-0512
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28680-830-0 01 1 0105-0512
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 0601-
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 0601-
139 BOLT; BRKT
(C) M8X20 FLANGE 		0-28690-820-0 04 1 0105-0512
139 BOLT; BRKT
(C) M8X20 FLANGE 		0-28660-820-0 04 1 0601-
139 BOLT; BRKT
(A) M8X25 FLANGE 		0-28690-825-0 02 1 0105-0512
139 BOLT; BRKT
(A) M8X25 FLANGE 		0-28660-825-0 02 1 0601-
169 BOLT; ELEC HARNESS
M8X20 FLANGE 		0-28680-820-0 01 1 0105-0512
169 BOLT; ELEC HARNESS
M8X20 FLANGE 		0-28650-820-0 01 1 0601-
219 NUT
(B) M6 FLANGE 		0-91150-106-0 02 1 0105-0602
219 NUT
(B) M6 FLANGE 		0-91180-106-0 02 1 0603-
219 NUT
(A) M8 FLANGE 		0-91150-108-0 05 1 0105-0602
219 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0603-
219 NUT
(A) M8 FLANGE 		0-91150-108-0 08 1 0105-0105
219 NUT
(A) M8 FLANGE 		0-91150-108-0 10 1 0106-0602
219 NUT
(A) M8 FLANGE 		0-91180-108-0 10 1 0603-
219 NUT
(A) M8 FLANGE 		0-91150-108-0 01 1 0105-0602
219 NUT
(A) M8 FLANGE 		0-91180-108-0 03 1 0603-
219 NUT
(A) M8 FLANGE 		0-91150-108-0 04 1 0105-0602
219 NUT
(A) M8 FLANGE 		0-91180-108-0 04 1 0603-
219 NUT
(A) M8 FLANGE 		0-91150-108-0 07 1 0105-0602
219 NUT
(A) M8 FLANGE 		0-91180-108-0 05 1 0603-
219 NUT
(A) M8 FLANGE 		0-91150-108-0 20 1 0105-0107
219 NUT
(A) M8 FLANGE 		0-91150-108-0 18 1 0108-0602
219 NUT
(A) M8 FLANGE 		0-91180-108-0 18 1 0603-
219 NUT
(A) M8 FLANGE 		0-91150-108-0 03 1 0105-0602
219 NUT
(A) M8 FLANGE 		0-91180-108-0 07 1 0603-
219 NUT
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) M8 FLANGE 		0-91150-108-0 02 1 0105-0602
219 NUT
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) M8 FLANGE 		0-91180-108-0 02 1 0603-
294 NUT
(A) M8 FLANGE 		0-91150-108-0 15 1 0105-0107
294 NUT
(A) M8 FLANGE 		0-91150-108-0 11 1 0108-0602
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0603-
294 NUT
(A) M8 FLANGE 		0-91150-108-0 02 1 0105-0202
294 NUT
(A) M8 FLANGE 		0-91150-108-0 02 1 0105-0202
294 NUT
(A) M8 FLANGE 		0-91150-108-0 02 1 0203-0602
294 NUT
(A) M8 FLANGE 		0-91180-108-0 11 1 0603-
294 NUT
(B) M10 FLANGE 		0-91150-110-0 02 1 0105-0602
294 NUT
(B) M10 FLANGE 		0-91180-110-0 02 1 0603-
297 NUT; HARNESS ELEC PANEL
M8 FLANGE 		0-91150-108-0 01 1 0105-0602
297 NUT; HARNESS ELEC PANEL
M8 FLANGE 		0-91180-108-0 01 1 0603-
313 BOLT; BRKT
(A) M8X25 FLANGE 		0-28680-825-0 10 1 0105-0512
313 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 0601-
313 BOLT; BRKT
(A) M8X25 FLANGE 		0-28680-825-0 02 1 0105-0512
313 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 10 1 0601-
313 BOLT; BRKT
(B) M16X25 FLANGE 		0-28881-625-0 02 1 0105-0512
313 BOLT; BRKT
(B) M16X25 FLANGE 		0-28851-625-0 02 1 0601-
340 NUT; HARNESS CAB TO FRAME
M8 FLANGE 		0-91150-108-0 01 1 0105-0602
340 NUT; HARNESS CAB TO FRAME
M8 FLANGE 		0-91180-108-0 01 1 0603-
371 BOLT; GEN HARNESS
M8X12 FLANGE 		0-28080-812-0 01 1 0105-0512
371 BOLT; GEN HARNESS
GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) M8X12 FLANGE 		0-28080-812-0 01 1 0105-0512
371 BOLT; GEN HARNESS
M8X12 FLANGE 		0-28050-812-0 01 1 0601-
371 BOLT; GEN HARNESS
GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) M8X12 FLANGE 		0-28050-812-0 01 1 0601-
386 BOLT; GRAND HARNESS
M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 0105-
423 WASHER; HARNESS,EARTH
ID=8.4 		1-09503-264-0 02 1 0105-
515 NUT; BRKT
M8 FLANGE 		0-91150-108-0 01 1 0105-0602
515 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0603-
515 NUT; BRKT
M8 FLANGE 		0-91150-108-0 03 1 0105-0602
515 NUT; BRKT
M8 FLANGE 		0-91180-108-0 03 1 0603-
520 WASHER; PL,EARTH CABLE
ID=8.4 		1-09503-264-0 01 1 0105-

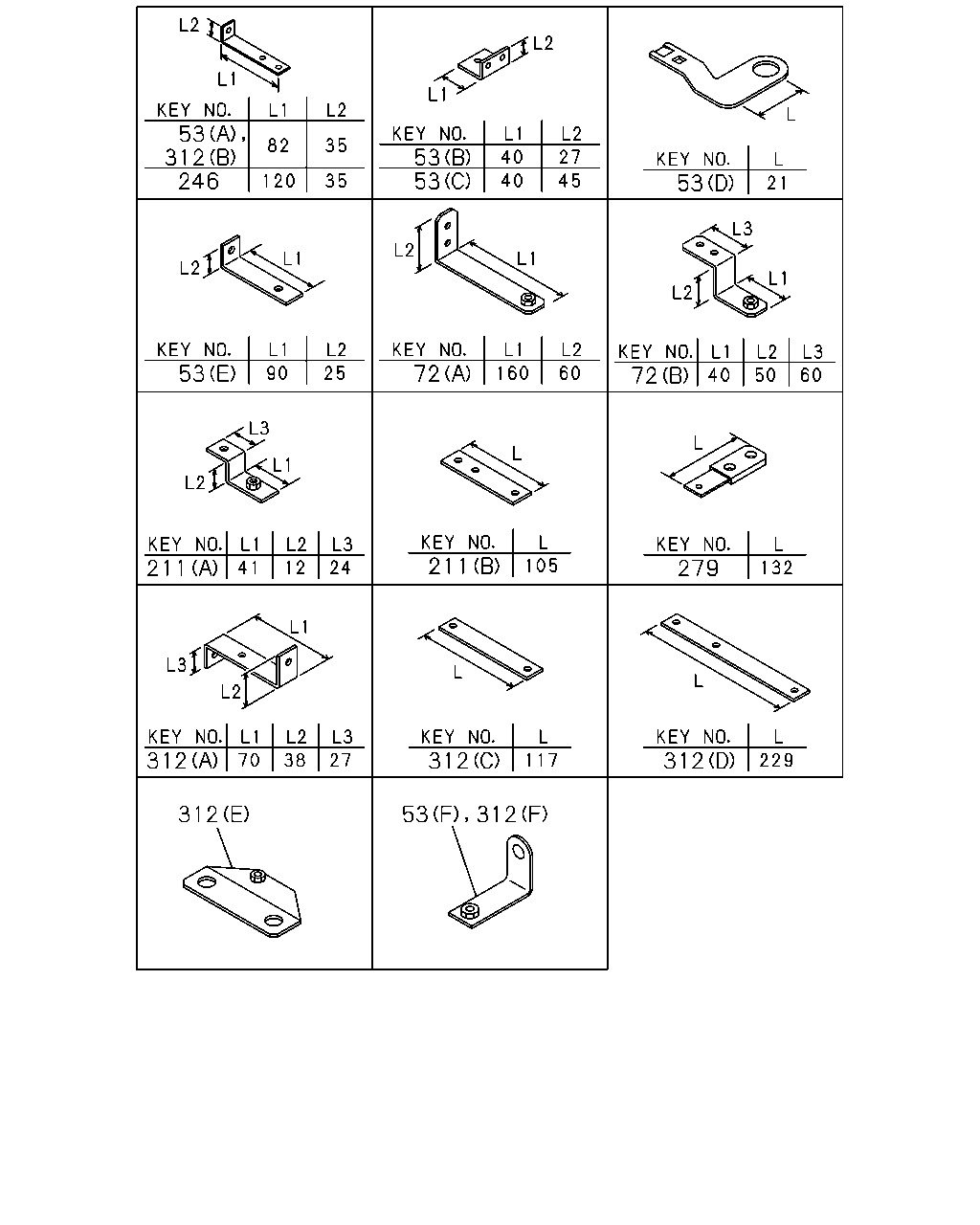

çizim 82448
53 312 246 53 53 53 53 72 72 211 211 279 312 312 312 312 53 312
BalonParca AdiParca NoAdetTipApplied Date
53 BRACKET; HARNESS
(F) 		1-82699-104-0 01 1 0209-
53 BRACKET; HARNESS
(E) L=90 B=25 		1-47475-530-0 03 1 0105-
53 BRACKET; HARNESS
(A) L=82 B=20 		1-47478-420-0 02 1 0105-
53 BRACKET; HARNESS
(A) L=82 B=20 		1-47478-420-0 01 1 0105-
53 BRACKET; HARNESS
(B) 		1-47478-422-0 01 1 0105-
53 BRACKET; HARNESS
(C) 		1-47478-919-0 02 1 0105-
53 BRACKET; HARNESS
(D) 		1-82699-356-1 01 1 0105-
72 BRACKET; CLIP,POWER WINDOW HARNESS
(A) 		1-52171-251-0 02 1 0105-
72 BRACKET; CLIP,POWER WINDOW HARNESS
(B) 		1-52171-252-0 01 1 0105-
211 BRACKET; AXLE HARNESS
(A) 		1-47476-393-0 02 1 0105-0202
211 BRACKET; AXLE HARNESS
(B) L=105 		1-47477-409-0 03 1 0105-
246 BRACKET; CLIP,SPD SENSOR
L=120 		1-82699-465-0 01 1 0105-
279 STAY; HARNESS 1-82699-873-0 02 1 0105-
312 BRACKET; CLIP HARNESS
(A) 		1-38329-071-0 01 1 0105-
312 BRACKET; CLIP HARNESS
(B) L=82 B=20 		1-47478-420-0 01 1 0105-
312 BRACKET; CLIP HARNESS
(C) 		1-47478-992-0 02 1 0105-
312 BRACKET; CLIP HARNESS
(D) 		1-47478-993-0 02 1 0105-
312 BRACKET; CLIP HARNESS
(E) 		1-47479-134-0 01 1 0105-
312 BRACKET; CLIP HARNESS
(F) 		1-82699-104-0 02 1 0105-

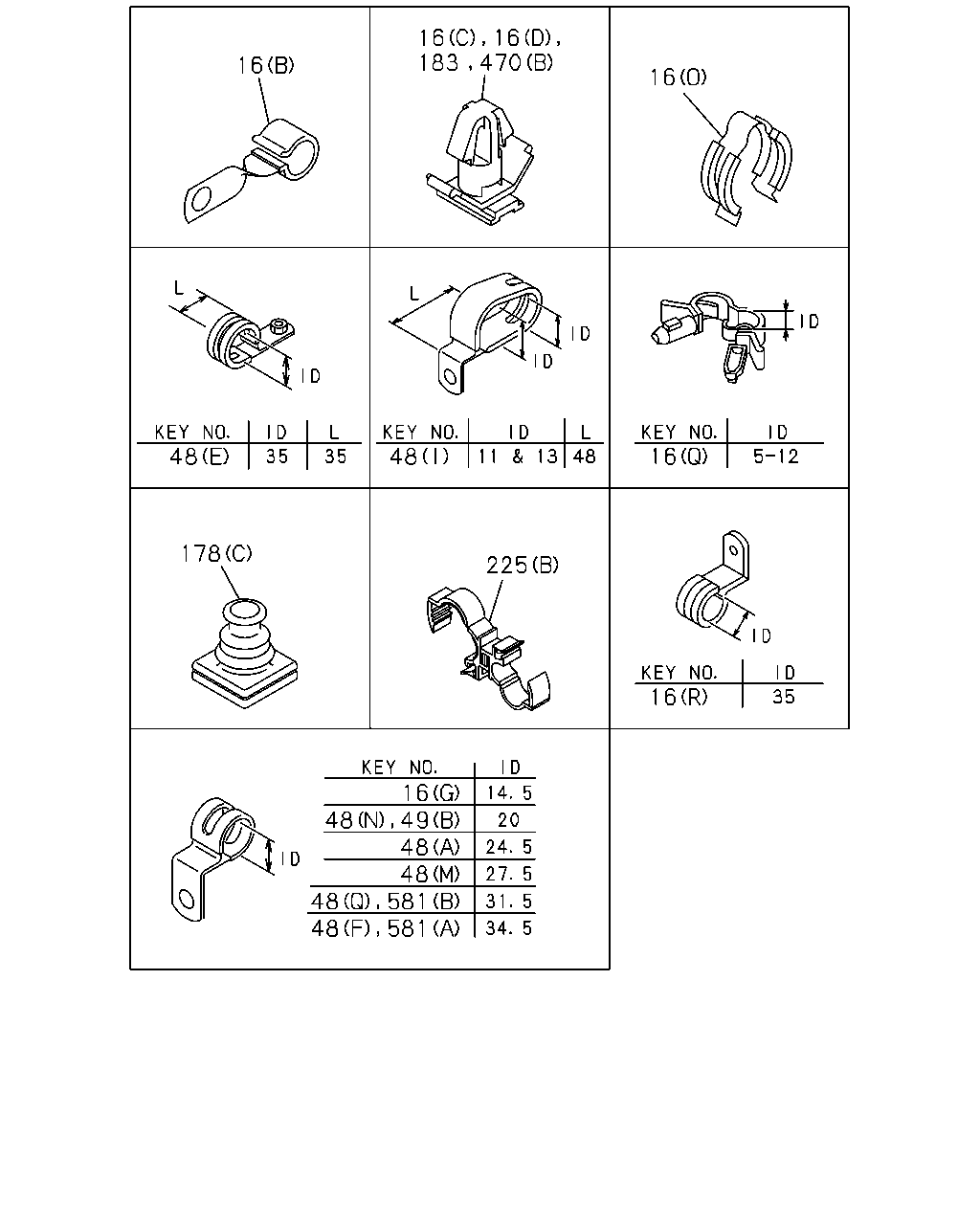

çizim 82449
16 16 16 16 48 48 16 178 225 16 16 48 48 183 470 48 49 581 581 48 48
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(T) L=35 L=20 		1-09700-769-0 01 1 0106-
16 CLIP; HARNESS
(P) ID=11 H=30 L=17 		1-09700-113-0 02 1 0105-
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 01 1 0105-
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 02 1 0105-
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 04 1 0105-
16 CLIP; HARNESS
(B) ID=9 		1-09700-839-1 02 1 0105-
16 CLIP; HARNESS
(G) ID=14.5 H=23 L=30 		1-09700-859-0 01 1 0105-
16 CLIP; HARNESS
(R) ID=35 H=45 L=33 		1-09700-947-0 02 1 0105-
16 CLIP; HARNESS
(S) ID=14.5 L=28 		1-09701-013-0 01 1 0105-
16 CLIP; HARNESS
(E) L=300 		1-09707-001-1 01 1 0105-0401
16 CLIP; HARNESS
(U) L=350 		1-09707-183-0 01 1 0402-
16 CLIP; HARNESS
(H) L=600 		1-09707-107-1 01 1 0105-
16 CLIP; HARNESS
(F) L=180 		1-09707-162-1 01 1 0105-
16 CLIP; HARNESS
(O) ID=50 		1-09709-175-0 04 1 0105-
16 CLIP; HARNESS
(C) OD=9 H=6 		1-09709-178-0 01 1 0105-
16 CLIP; HARNESS
(D) OD=9 H=9.5 		1-09709-179-0 02 1 0105-
16 CLIP; HARNESS
(Q) ID=5-12 L=18 		1-09709-287-0 03 1 0105-
16 CLIP; HARNESS
(I) L=250 		5-09707-030-1 01 1 0105-
16 CLIP; HARNESS
(I) L=250 		5-09707-030-1 08 1 0105-
16 CLIP; HARNESS
(J) L=140 		5-09707-031-1 01 1 0105-
16 CLIP; HARNESS
(L) ID=11 L=16 		9-09525-025-0 10 1 0105-0606
16 CLIP; HARNESS
(L) ID=11 L=16 		0-95235-025-0 10 1 0607-
16 CLIP; HARNESS
(K) ID=16 L=20 		9-09525-535-0 03 1 0105-0606
16 CLIP; HARNESS
(K) ID=16 L=20 		0-95235-535-0 03 1 0607-
16 CLIP; HARNESS
(N) ID=18 L=48 		9-09917-429-0 04 1 0105-
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 02 1 0105-
48 CLIP; FRAME HARNESS
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (O) L=140 		5-09707-031-1 01 1 0208-
48 CLIP; FRAME HARNESS
(P) L=180 		1-09707-162-1 01 1 0108-
48 CLIP; FRAME HARNESS
(Q) ID=31.5 H=23 L=25 		1-09701-017-0 02 1 0109-
48 CLIP; FRAME HARNESS
(C) ID=33 L=63 		1-09700-807-0 13 1 0105-
48 CLIP; FRAME HARNESS
(E) ID=35 L=35 		1-09700-895-0 03 1 0105-
48 CLIP; FRAME HARNESS
(F) ID=34.5 H=23 L=27.5 		1-09700-905-0 13 1 0105-
48 CLIP; FRAME HARNESS
(H) ID=20X2 H=25 L=45 		1-09701-252-0 03 1 0105-
48 CLIP; FRAME HARNESS
(I) ID=11 & 13 H=26 L=48 		1-09701-270-0 08 1 0105-
48 CLIP; FRAME HARNESS
(D) L=300 		1-09707-001-1 02 1 0105-0401
48 CLIP; FRAME HARNESS
(R) L=350 		1-09707-183-0 02 1 0402-
48 CLIP; FRAME HARNESS
(K) ID=14 L=44 		9-09917-427-0 01 1 0105-
48 CLIP; FRAME HARNESS
(L) ID=20 L=50 		9-09917-430-0 01 1 0105-0907
48 CLIP; FRAME HARNESS
(L) ID=20 L=50 		9-09917-430-0 08 1 0908-
48 CLIP; FRAME HARNESS
(L) ID=20 L=50 		9-09917-430-0 07 1 0105-0907
48 CLIP; FRAME HARNESS
(G) ID=22 L=52 		9-09917-431-0 01 1 0105-
48 CLIP; FRAME HARNESS
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 0105-0108
48 CLIP; FRAME HARNESS
(A) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 0105-0108
48 CLIP; FRAME HARNESS
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 0109-
48 CLIP; FRAME HARNESS
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (B) ID=18 L=48 		9-09917-429-0 02 1 0105-
48 CLIP; FRAME HARNESS
GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (J) ID=28 L=78 		1-09700-858-0 02 1 0105-
48 CLIP; FRAME HARNESS
GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (M) ID=27.5 H=23 L=24 		1-09700-863-0 02 1 0105-
48 CLIP; FRAME HARNESS
GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (M) ID=27.5 H=23 L=24 		1-09700-863-0 02 1 0105-
48 CLIP; FRAME HARNESS
GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (H) ID=20X2 H=25 L=45 		1-09701-252-0 01 1 0105-
48 CLIP; FRAME HARNESS
EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (N) ID=20 H=23 L=27 		1-09700-861-0 01 1 0105-
48 CLIP; FRAME HARNESS
EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (A) ID=24.5 H=23 L=25 		1-09700-862-0 04 1 0105-
48 CLIP; FRAME HARNESS
EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (G) ID=22 L=52 		9-09917-431-0 02 1 0105-
49 CLIP; GEN HARNESS
(B) ID=20 H=23 L=27 		1-09700-861-0 01 1 0105-
49 CLIP; GEN HARNESS
GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (B) ID=20 H=23 L=27 		1-09700-861-0 01 1 0105-
49 CLIP; GEN HARNESS
GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (A) L=140 		5-09707-031-1 01 1 0105-
178 GROMMET; HARNESS
(A) ID=18 OD=23 T=12 		1-09332-035-0 02 1 0105-
178 GROMMET; HARNESS
(C) 		1-82699-219-0 01 1 0105-
178 GROMMET; HARNESS
(B) ID=24 OD=30 T=12 		9-09956-093-1 02 1 0105-
183 CLIP; CONNECTOR
OD=9 H=6 		1-09709-178-0 01 1 0105-
225 CLIP; AIR TANK HARNESS
(A) L=180 		1-09707-162-1 02 1 0105-
225 CLIP; AIR TANK HARNESS
(B) ID=12-16 & 12-16 		1-09709-191-0 01 1 0105-
470 CLIP; HARNESS,LICENSE LAMP
(A) L=300 		1-09707-001-1 01 1 0105-0401
470 CLIP; HARNESS,LICENSE LAMP
(C) L=350 		1-09707-183-0 01 1 0402-
470 CLIP; HARNESS,LICENSE LAMP
(B) OD=9 H=6 		1-09709-178-0 01 1 0105-
581 CLIP; HARNESS,REAR SUSP
GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (A) ID=34.5 H=23 L=27.5 		1-09700-905-0 02 1 0105-
581 CLIP; HARNESS,REAR SUSP
EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (B) ID=31.5 H=23 L=25 		1-09701-017-0 02 1 0105-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
