8-10 — WIRING HARNESS AND FUSE (#31081) — 151 parça

27 554 343 10 431 6 189 189 189 189 189

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

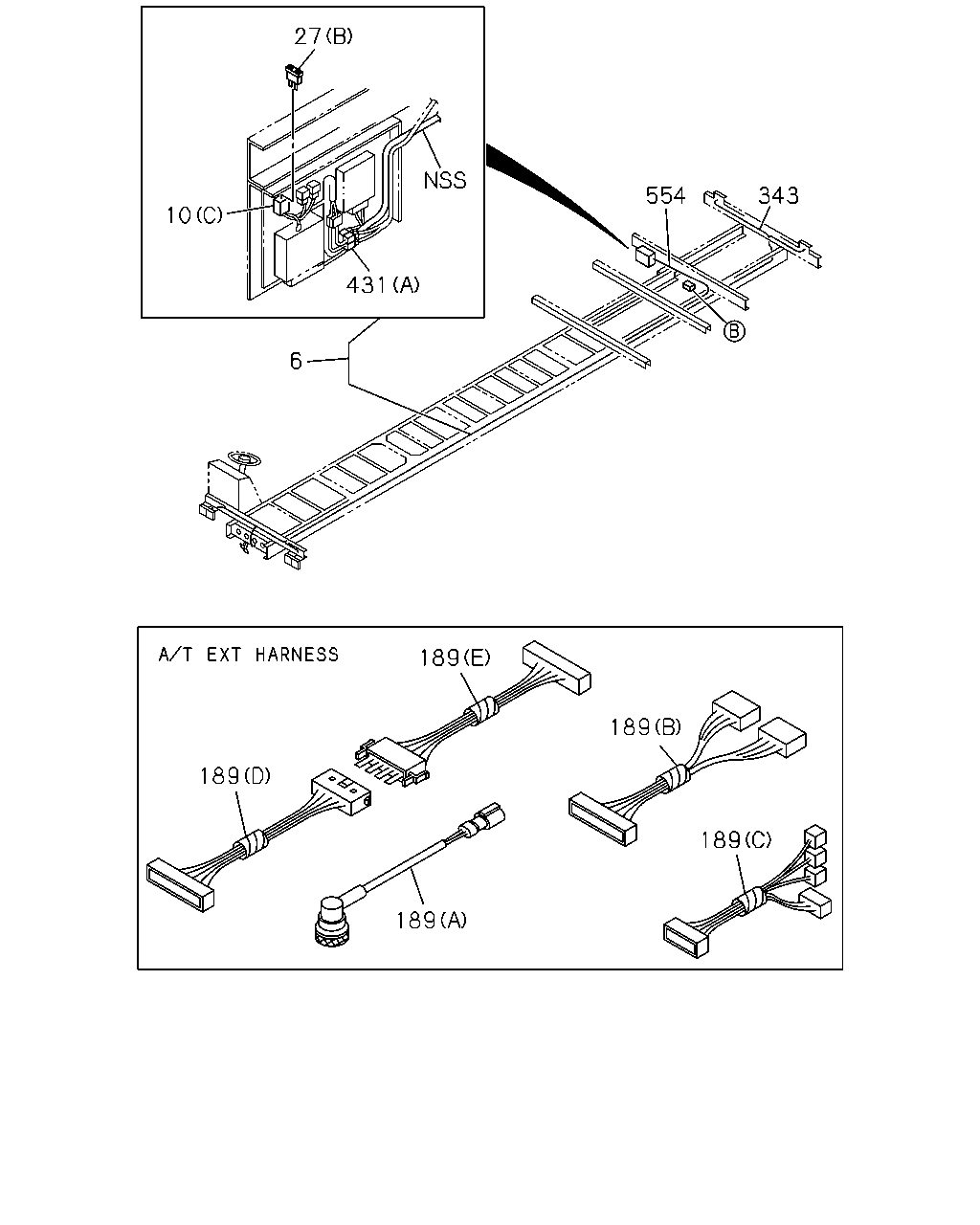

6	HARNESS; FRAME GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT)	1-82674-215-1	01	1	0105-
6	HARNESS; FRAME EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT)	1-82674-214-1	01	1	0105-
10	BOX; FUSE,HARNESS (D) 7.5AX1 10AX1 15AX1	1-82510-585-0	01	1	0105-
10	BOX; FUSE,HARNESS (C) 10AX14 15AX5 25AX2 30AX1	1-82510-596-0	01	1	0105-
10	BOX; FUSE,HARNESS ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) 125A	1-82510-234-2	01	1	0105-
10	BOX; FUSE,HARNESS ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (B) 100A	1-82510-235-2	01	1	0105-
27	FUSE UNIT (B) 10A RED	5-82516-002-0	AR	1	0105-
27	FUSE UNIT (B) 15A BLUE	5-82516-003-0	AR	1	0105-
27	FUSE UNIT (B) 25A CLEAR	5-82516-005-0	AR	1	0105-
27	FUSE UNIT (B) 7.5A BROWN	8-94159-007-0	AR	1	0105-
27	FUSE UNIT (B) 30A GREEN	8-94159-008-0	AR	1	0105-
27	FUSE UNIT (A) 100A	9-82941-126-0	AR	1	0105-
27	FUSE UNIT (A) 125A	9-82941-130-1	AR	1	0105-
189	HARNESS; EXT (A) L=250	1-82659-134-1	02	1	0105-0105
189	HARNESS; EXT A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) (A) L=250	1-82659-134-1	01	1	0105-
189	HARNESS; EXT (A) L=250	1-82659-134-1	01	1	0105-
189	HARNESS; EXT (A) L=250	1-82659-134-1	01	1	0105-0105
189	HARNESS; EXT (B)	1-82671-987-0	01	1	0105-
189	HARNESS; EXT (C)	1-82671-988-0	01	1	0105-
189	HARNESS; EXT (D)	1-82672-258-0	01	1	0105-
189	HARNESS; EXT (E)	1-82672-259-0	01	1	0105-
343	HARNESS; EXT,RR COMB LAMP LAMPS TAIL AND STOP DELUXE<T81>	1-82673-577-0	02	1	0105-
431	CONNECTOR; JOINT (A) BROWN 10P	1-82699-601-0	03	1	0105-
431	CONNECTOR; JOINT (B) 10P	8-97077-943-0	01	1	0105-
554	HARNESS; AUTO MISSION	1-82674-216-0	01	1	0105-

14 14 20 253 343 152 303

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

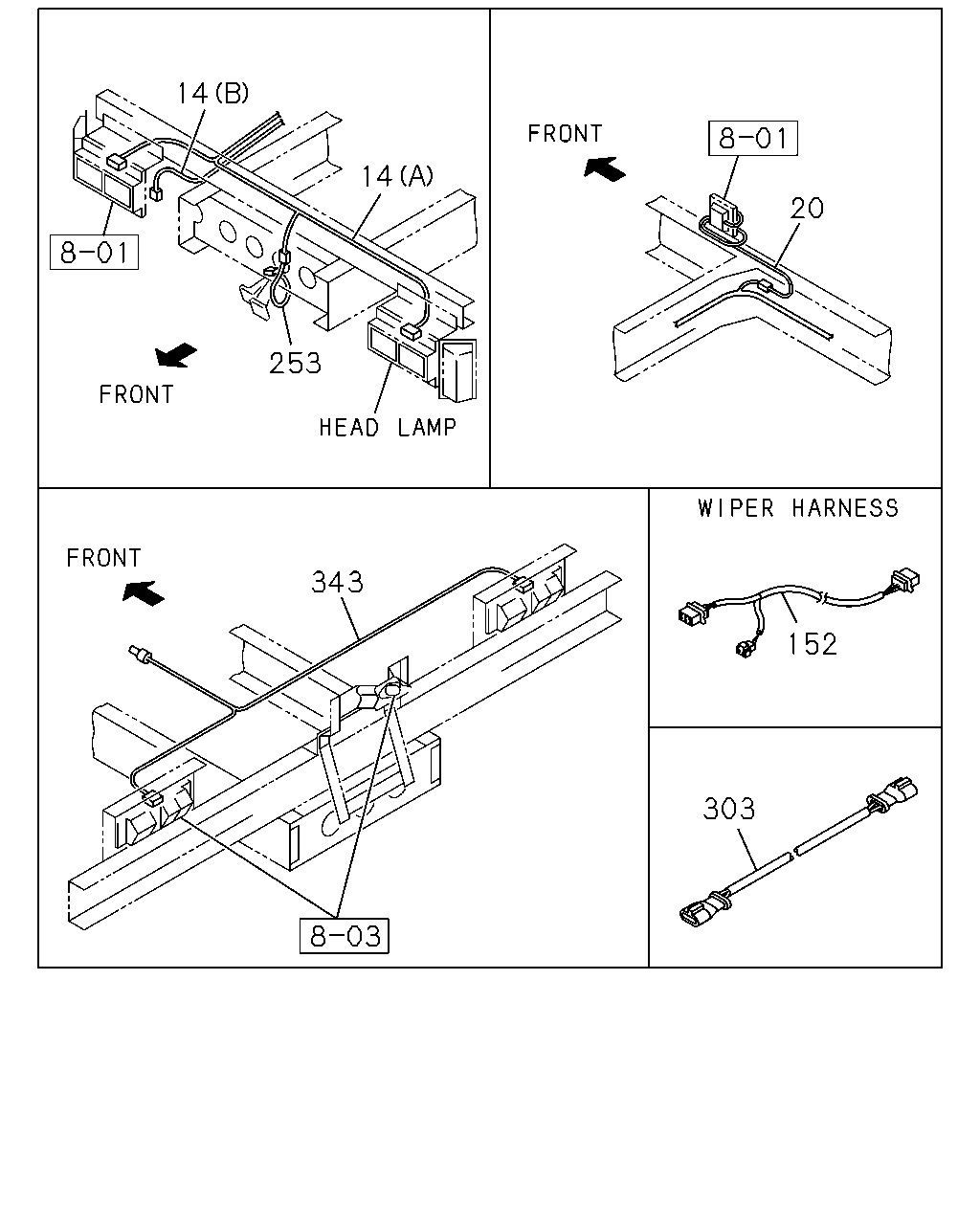

14	HARNESS; HEADLAMP HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B)	1-82639-072-2	02	1	0105-0407
14	HARNESS; HEADLAMP EXC. HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B)	1-82639-072-2	02	1	0408-0409
14	HARNESS; HEADLAMP (B)	1-82639-072-2	02	1	0410-
14	HARNESS; HEADLAMP HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B)	1-82639-071-2	02	1	0105-0407
14	HARNESS; HEADLAMP EXC. HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>, HALOGEN HEADLAMPS<TT5> (B)	1-82639-071-2	02	1	0105-0407
14	HARNESS; HEADLAMP HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B)	1-82639-071-2	02	1	0408-0409
14	HARNESS; HEADLAMP HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A)	1-82673-574-0	02	1	0105-
20	HARNESS; SIDE FLASHER TURN SIGNAL LAMP SIDE<TEL>	1-82638-388-1	02	1	0105-
152	HARNESS; WIPER WIPER MOTOR KIT<ST7>	1-82625-630-0	01	1	0105-
253	HARNESS; EXT,HORN AIR HORN(WB8)	1-82673-576-0	01	1	0105-
253	HARNESS; EXT,HORN EXC. AIR HORN(WB8)	1-82673-575-0	01	1	0105-
303	HARNESS; WATER LEVEL	1-82670-567-0	01	1	0105-
343	HARNESS; EXT,RR COMB LAMP LAMPS TAIL AND STOP DELUXE<T81>	1-82673-577-0	02	1	0105-

187 199 187

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

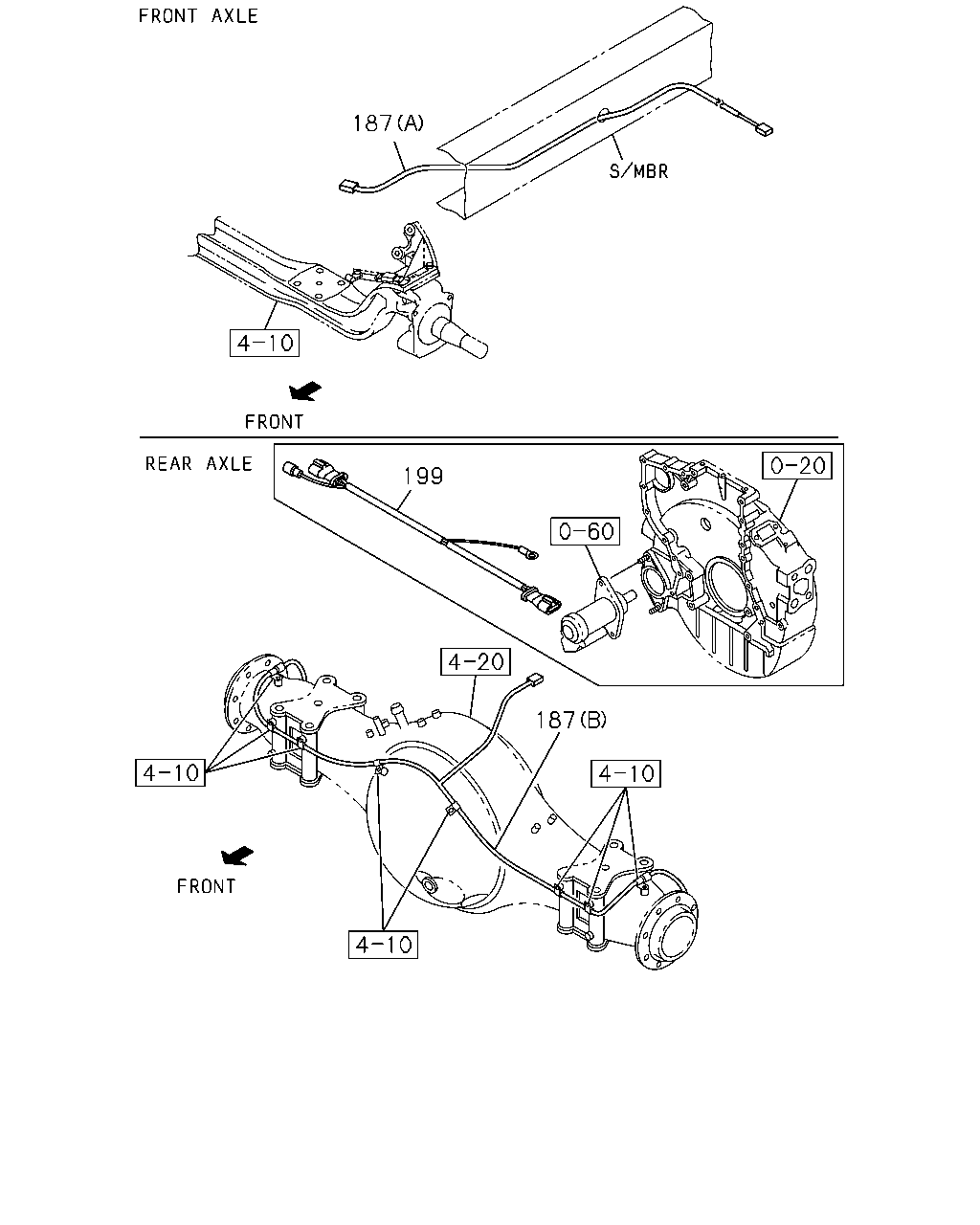

187	HARNESS; AXLE (B)	1-82674-558-0	02	1	0105-0105
187	HARNESS; AXLE (B)	1-82674-936-0	02	1	0105-
187	HARNESS; AXLE (A)	1-82674-560-0	01	1	0105-0105
187	HARNESS; AXLE (A)	1-82674-935-0	01	1	0105-
199	HARNESS; STARTER	1-82641-150-2	01	1	0105-

38 343 28 136 431 20 14 277 253 276 297 275 296 298 280

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
14	HARNESS; HEADLAMP HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B)	1-82639-072-2	02	1	0105-0407
14	HARNESS; HEADLAMP EXC. HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B)	1-82639-072-2	02	1	0408-0409
14	HARNESS; HEADLAMP (B)	1-82639-072-2	02	1	0410-
14	HARNESS; HEADLAMP HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B)	1-82639-071-2	02	1	0105-0407
14	HARNESS; HEADLAMP EXC. HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>, HALOGEN HEADLAMPS<TT5> (B)	1-82639-071-2	02	1	0105-0407
14	HARNESS; HEADLAMP HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B)	1-82639-071-2	02	1	0408-0409
14	HARNESS; HEADLAMP HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A)	1-82673-574-0	02	1	0105-
20	HARNESS; SIDE FLASHER TURN SIGNAL LAMP SIDE<TEL>	1-82638-388-1	02	1	0105-
28	SCREW; FUSE BOX (B) M6X42	8-97811-324-0	02	1	0105-
28	SCREW; FUSE BOX (C) M5X12	9-93490-512-0	02	1	0105-
28	SCREW; FUSE BOX ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) M6X25 W/LK WASHER	9-03910-625-0	04	1	0105-0604
28	SCREW; FUSE BOX ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) M6X25 W/LK WASHER	0-36220-625-0	04	1	0605-
38	HARNESS; CHAS ENGINE OVERRUN BUZZER<SK4>	1-82625-451-0	01	1	0105-

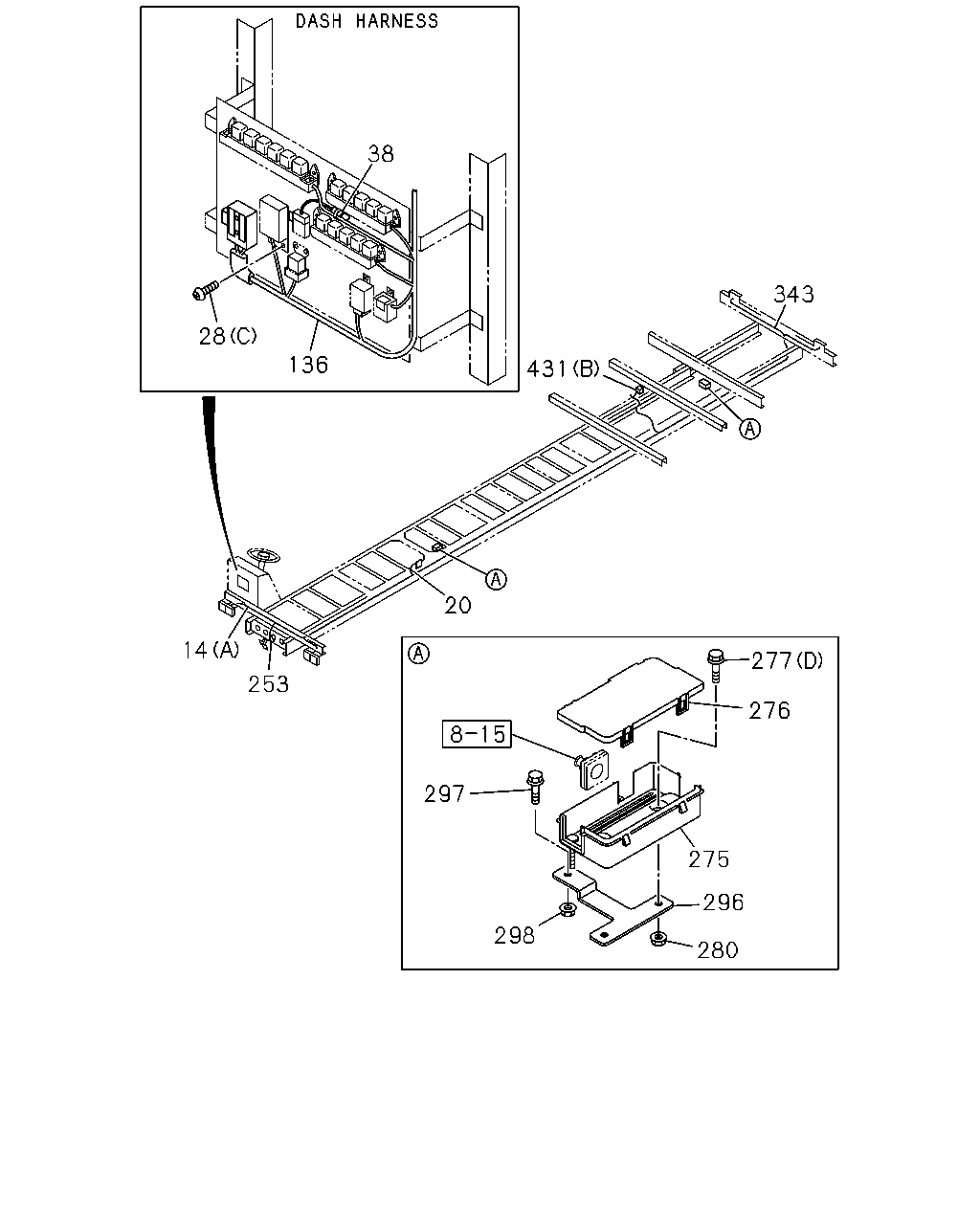

136	HARNESS; DASH GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT)	1-82660-041-4	01	1	0105-
136	HARNESS; DASH EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT)	1-82660-040-4	01	1	0105-
253	HARNESS; EXT,HORN AIR HORN(WB8)	1-82673-576-0	01	1	0105-
253	HARNESS; EXT,HORN EXC. AIR HORN(WB8)	1-82673-575-0	01	1	0105-
275	BOX ASM; FRAME HARNESS	1-82699-147-2	01	1	0105-
276	COVER; BOX,FRAME HARNESS	1-82699-151-1	01	1	0105-
277	BOLT; BOX ASM FIX (D) M8X25 W/LK&PL WASHER	1-09030-027-0	02	1	0105-
277	BOLT; BOX ASM FIX ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (C) M8X20 FLANGE	0-28680-820-0	02	1	0105-0512
277	BOLT; BOX ASM FIX ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (C) M8X20 FLANGE	0-28650-820-0	02	1	0601-
277	BOLT; BOX ASM FIX ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) M8X30 FLANGE	0-28680-830-0	04	1	0105-0512
277	BOLT; BOX ASM FIX ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) M8X30 FLANGE	0-28650-830-0	04	1	0601-
277	BOLT; BOX ASM FIX ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (B)	1-09064-006-0	02	1	0105-
277	BOLT; BOX ASM FIX GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (D) M8X25 FLANGE	0-28680-825-0	04	1	0105-0512
277	BOLT; BOX ASM FIX GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (D) M8X25 FLANGE	0-28650-825-0	04	1	0601-
280	NUT; BOX ASM FIX M8	9-09110-408-0	02	1	0105-0512
280	NUT; BOX ASM FIX M8	0-91110-508-0	02	1	0601-
280	NUT; BOX ASM FIX ELECTRIC SWITCH BOX ENGINE ROOM<TEK> M8 FLANGE	0-91150-108-0	04	1	0105-0602
280	NUT; BOX ASM FIX GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) M8 FLANGE	0-91150-108-0	04	1	0105-0602
280	NUT; BOX ASM FIX ELECTRIC SWITCH BOX ENGINE ROOM<TEK> M8 FLANGE	0-91180-108-0	04	1	0603-
280	NUT; BOX ASM FIX GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) M8 FLANGE	0-91180-108-0	04	1	0603-
296	BRACKET; HARNESS BOX	1-82698-227-0	01	1	0105-
297	BOLT; BOX BRKT M8X25 FLANGE	0-28680-825-0	01	1	0105-0512
297	BOLT; BOX BRKT M8X25 FLANGE	0-28650-825-0	01	1	0601-
298	NUT; BOX BRKT M8 FLANGE	0-91150-108-0	01	1	0105-0602
298	NUT; BOX BRKT M8 FLANGE	0-91180-108-0	01	1	0603-
343	HARNESS; EXT,RR COMB LAMP LAMPS TAIL AND STOP DELUXE<T81>	1-82673-577-0	02	1	0105-
431	CONNECTOR; JOINT (A) BROWN 10P	1-82699-601-0	03	1	0105-
431	CONNECTOR; JOINT (B) 10P	8-97077-943-0	01	1	0105-

164 560 33 28 27 10 10 277 560 280 277 279 280 277 277 10 10 277

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

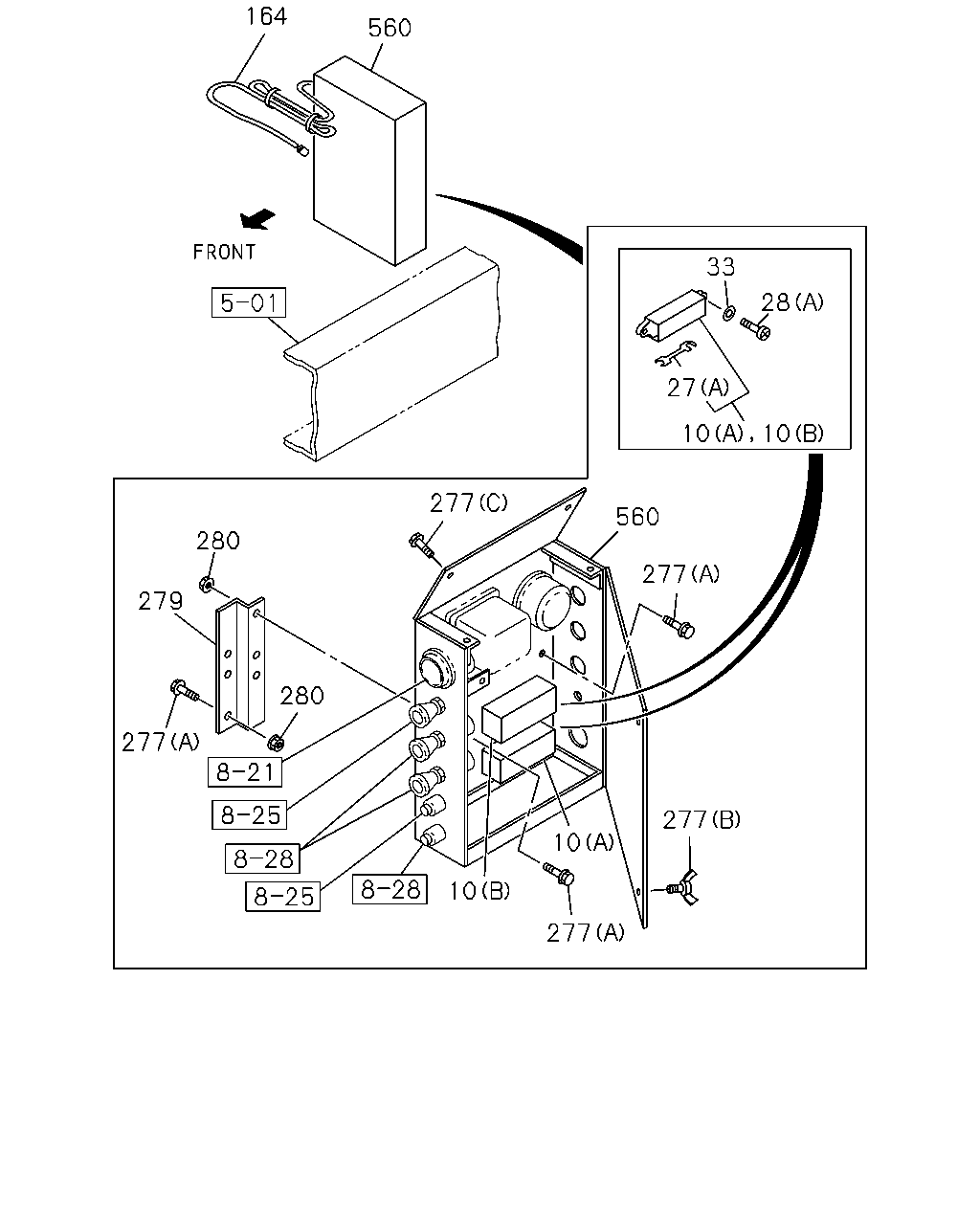

10	BOX; FUSE,HARNESS (D) 7.5AX1 10AX1 15AX1	1-82510-585-0	01	1	0105-
10	BOX; FUSE,HARNESS (C) 10AX14 15AX5 25AX2 30AX1	1-82510-596-0	01	1	0105-
10	BOX; FUSE,HARNESS ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) 125A	1-82510-234-2	01	1	0105-
10	BOX; FUSE,HARNESS ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (B) 100A	1-82510-235-2	01	1	0105-
27	FUSE UNIT (B) 10A RED	5-82516-002-0	AR	1	0105-
27	FUSE UNIT (B) 15A BLUE	5-82516-003-0	AR	1	0105-
27	FUSE UNIT (B) 25A CLEAR	5-82516-005-0	AR	1	0105-
27	FUSE UNIT (B) 7.5A BROWN	8-94159-007-0	AR	1	0105-
27	FUSE UNIT (B) 30A GREEN	8-94159-008-0	AR	1	0105-
27	FUSE UNIT (A) 100A	9-82941-126-0	AR	1	0105-
27	FUSE UNIT (A) 125A	9-82941-130-1	AR	1	0105-
28	SCREW; FUSE BOX (B) M6X42	8-97811-324-0	02	1	0105-
28	SCREW; FUSE BOX (C) M5X12	9-93490-512-0	02	1	0105-
28	SCREW; FUSE BOX ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) M6X25 W/LK WASHER	9-03910-625-0	04	1	0105-0604
28	SCREW; FUSE BOX ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) M6X25 W/LK WASHER	0-36220-625-0	04	1	0605-
33	WASHER; LK,FUSE BOX FIX ID=6.1	9-09150-506-0	02	1	0105-0603
33	WASHER; LK,FUSE BOX FIX ID=6.1	0-91510-506-0	02	1	0604-
33	WASHER; LK,FUSE BOX FIX ID=6.4	9-09160-506-0	02	1	0105-
33	WASHER; LK,FUSE BOX FIX ELECTRIC SWITCH BOX ENGINE ROOM<TEK> ID=6.1	9-09150-506-0	04	1	0105-0603
33	WASHER; LK,FUSE BOX FIX ELECTRIC SWITCH BOX ENGINE ROOM<TEK> ID=6.1	0-91510-506-0	04	1	0604-
33	WASHER; LK,FUSE BOX FIX ELECTRIC SWITCH BOX ENGINE ROOM<TEK> ID=6.4	9-09160-506-0	04	1	0105-
164	HARNESS; ELEC ELECTRIC SWITCH BOX ENGINE ROOM<TEK>	1-82673-754-0	01	1	0105-
277	BOLT; BOX ASM FIX (D) M8X25 W/LK&PL WASHER	1-09030-027-0	02	1	0105-
277	BOLT; BOX ASM FIX ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (C) M8X20 FLANGE	0-28680-820-0	02	1	0105-0512
277	BOLT; BOX ASM FIX ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (C) M8X20 FLANGE	0-28650-820-0	02	1	0601-
277	BOLT; BOX ASM FIX ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) M8X30 FLANGE	0-28680-830-0	04	1	0105-0512
277	BOLT; BOX ASM FIX ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) M8X30 FLANGE	0-28650-830-0	04	1	0601-
277	BOLT; BOX ASM FIX ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (B)	1-09064-006-0	02	1	0105-
277	BOLT; BOX ASM FIX GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (D) M8X25 FLANGE	0-28680-825-0	04	1	0105-0512
277	BOLT; BOX ASM FIX GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (D) M8X25 FLANGE	0-28650-825-0	04	1	0601-
279	BRACKET; CONNECTOR BOX GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT)	1-48495-200-2	02	1	0105-
280	NUT; BOX ASM FIX M8	9-09110-408-0	02	1	0105-0512
280	NUT; BOX ASM FIX M8	0-91110-508-0	02	1	0601-
280	NUT; BOX ASM FIX ELECTRIC SWITCH BOX ENGINE ROOM<TEK> M8 FLANGE	0-91150-108-0	04	1	0105-0602
280	NUT; BOX ASM FIX GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) M8 FLANGE	0-91150-108-0	04	1	0105-0602
280	NUT; BOX ASM FIX ELECTRIC SWITCH BOX ENGINE ROOM<TEK> M8 FLANGE	0-91180-108-0	04	1	0603-
280	NUT; BOX ASM FIX GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) M8 FLANGE	0-91180-108-0	04	1	0603-
560	BOX; ELECTRIC ELECTRIC SWITCH BOX ENGINE ROOM<TEK>	1-82698-164-3	01	1	0105-

136 10 62 62 62 431 27 10 41 28 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
10	BOX; FUSE,HARNESS (D) 7.5AX1 10AX1 15AX1	1-82510-585-0	01	1	0105-
10	BOX; FUSE,HARNESS (C) 10AX14 15AX5 25AX2 30AX1	1-82510-596-0	01	1	0105-
10	BOX; FUSE,HARNESS ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) 125A	1-82510-234-2	01	1	0105-
10	BOX; FUSE,HARNESS ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (B) 100A	1-82510-235-2	01	1	0105-
27	FUSE UNIT (B) 10A RED	5-82516-002-0	AR	1	0105-
27	FUSE UNIT (B) 15A BLUE	5-82516-003-0	AR	1	0105-
27	FUSE UNIT (B) 25A CLEAR	5-82516-005-0	AR	1	0105-
27	FUSE UNIT (B) 7.5A BROWN	8-94159-007-0	AR	1	0105-
27	FUSE UNIT (B) 30A GREEN	8-94159-008-0	AR	1	0105-
27	FUSE UNIT (A) 100A	9-82941-126-0	AR	1	0105-
27	FUSE UNIT (A) 125A	9-82941-130-1	AR	1	0105-
28	SCREW; FUSE BOX (B) M6X42	8-97811-324-0	02	1	0105-
28	SCREW; FUSE BOX (C) M5X12	9-93490-512-0	02	1	0105-
28	SCREW; FUSE BOX ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) M6X25 W/LK WASHER	9-03910-625-0	04	1	0105-0604
28	SCREW; FUSE BOX ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) M6X25 W/LK WASHER	0-36220-625-0	04	1	0605-
33	WASHER; LK,FUSE BOX FIX ID=6.1	9-09150-506-0	02	1	0105-0603
33	WASHER; LK,FUSE BOX FIX ID=6.1	0-91510-506-0	02	1	0604-
33	WASHER; LK,FUSE BOX FIX ID=6.4	9-09160-506-0	02	1	0105-
33	WASHER; LK,FUSE BOX FIX ELECTRIC SWITCH BOX ENGINE ROOM<TEK> ID=6.1	9-09150-506-0	04	1	0105-0603
33	WASHER; LK,FUSE BOX FIX ELECTRIC SWITCH BOX ENGINE ROOM<TEK> ID=6.1	0-91510-506-0	04	1	0604-
33	WASHER; LK,FUSE BOX FIX ELECTRIC SWITCH BOX ENGINE ROOM<TEK> ID=6.4	9-09160-506-0	04	1	0105-
41	PULLER; FUSE L=31.0 B=10.0	8-94369-144-0	01	1	0105-

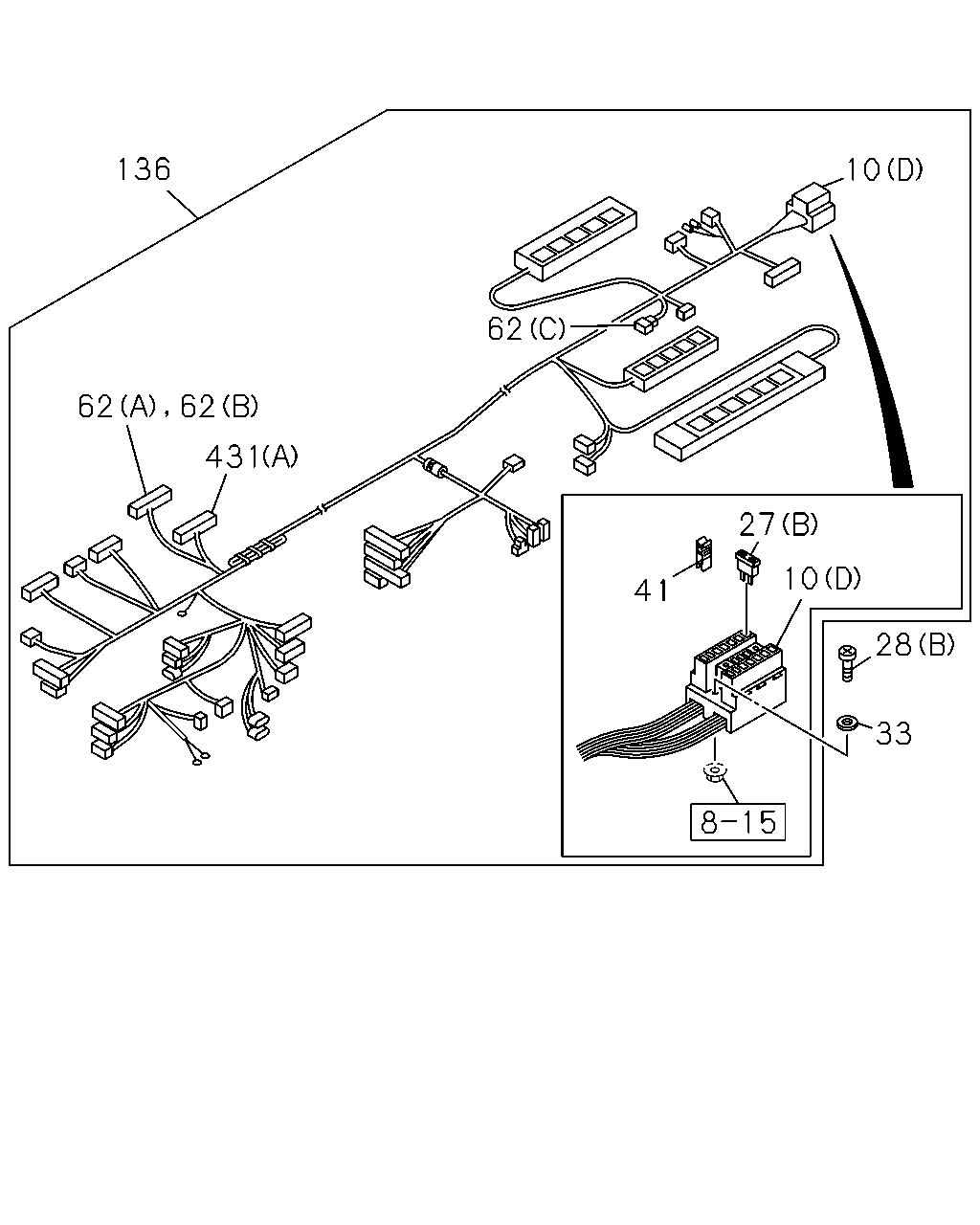

62	DIODE; HARNESS (A) BLACK 10P	1-82699-703-0	01	1	0105-
62	DIODE; HARNESS (B) BLACK 11P	1-82699-704-0	01	1	0105-0105
62	DIODE; HARNESS (C) BLACK 2P-1.5A	8-94422-639-1	05	1	0105-
136	HARNESS; DASH GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT)	1-82660-041-4	01	1	0105-
136	HARNESS; DASH EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT)	1-82660-040-4	01	1	0105-
431	CONNECTOR; JOINT (A) BROWN 10P	1-82699-601-0	03	1	0105-
431	CONNECTOR; JOINT (B) 10P	8-97077-943-0	01	1	0105-
