◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LV ▶ 10885 - LV423(THAI)BMTA ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#31074) — 11 parça

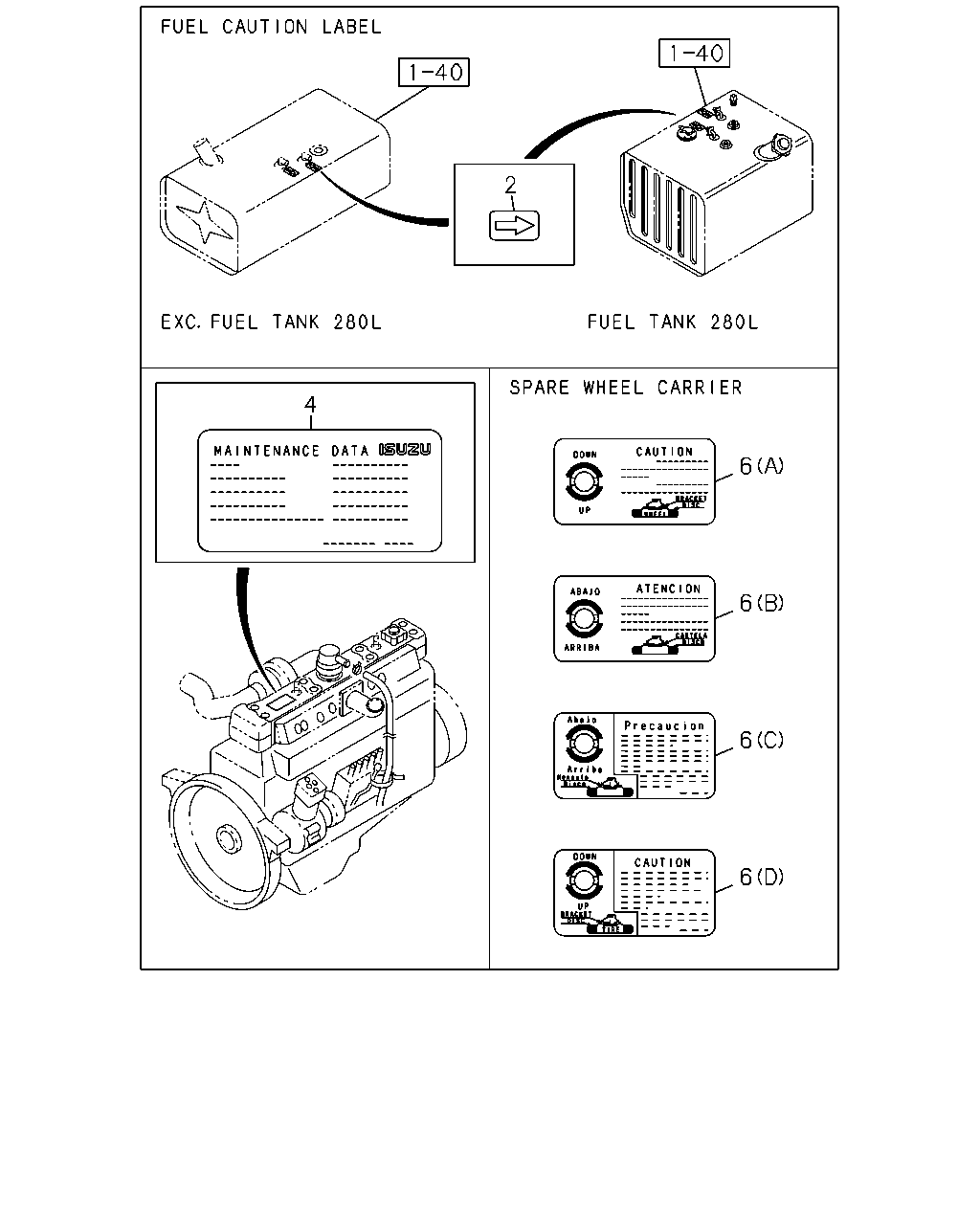

çizim 21748
2 4 6 6 6 6
BalonParca AdiParca NoAdetTipApplied Date
2 LABEL; FUEL CAUTION 1-85889-068-0 02 1 0105-
4 LABEL; ENG MAINTENANCE 1-85886-841-0 01 1 0105-
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER<SFB> CAUTIONS SPANISH<YN1> (B) 		1-53639-005-0 01 1 0105-0708
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER<SFB> CAUTIONS SPANISH<YN1> (C) 		8-98082-439-0 01 1 0709-
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER<SFB> EXC. CAUTIONS SPANISH<YN1> (A) 		1-53639-004-0 01 1 0105-0708
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER<SFB> EXC. CAUTIONS SPANISH<YN1> (D) 		8-98082-437-0 01 1 0709-
çizim 23209
49 49 150
BalonParca AdiParca NoAdetTipApplied Date
49 PLATE; CAUTION,FUSE BOX
CAUTIONS SPANISH<YN1> (B) 		1-85878-297-0 01 1 0105-
49 PLATE; CAUTION,FUSE BOX
EXC. CAUTIONS SPANISH<YN1> (A) 		1-85878-298-1 01 1 0105-
150 PLATE; CAUTION,INSTRUCTION
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> 		1-85888-543-0 01 1 0105-
çizim 23210
228 181
BalonParca AdiParca NoAdetTipApplied Date
181 PLATE; CAUTION,AIR CLEANER 1-85886-796-1 01 1 0105-
228 PLATE; CAUTION,AIR DRYER 1-85887-935-0 01 1 0105-1001
