◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LV ▶ 10885 - LV423(THAI)BMTA ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-47 - MUD GUARD AND INSULATOR ▶
6-47 — MUD GUARD AND INSULATOR (#31069) — 127 parça

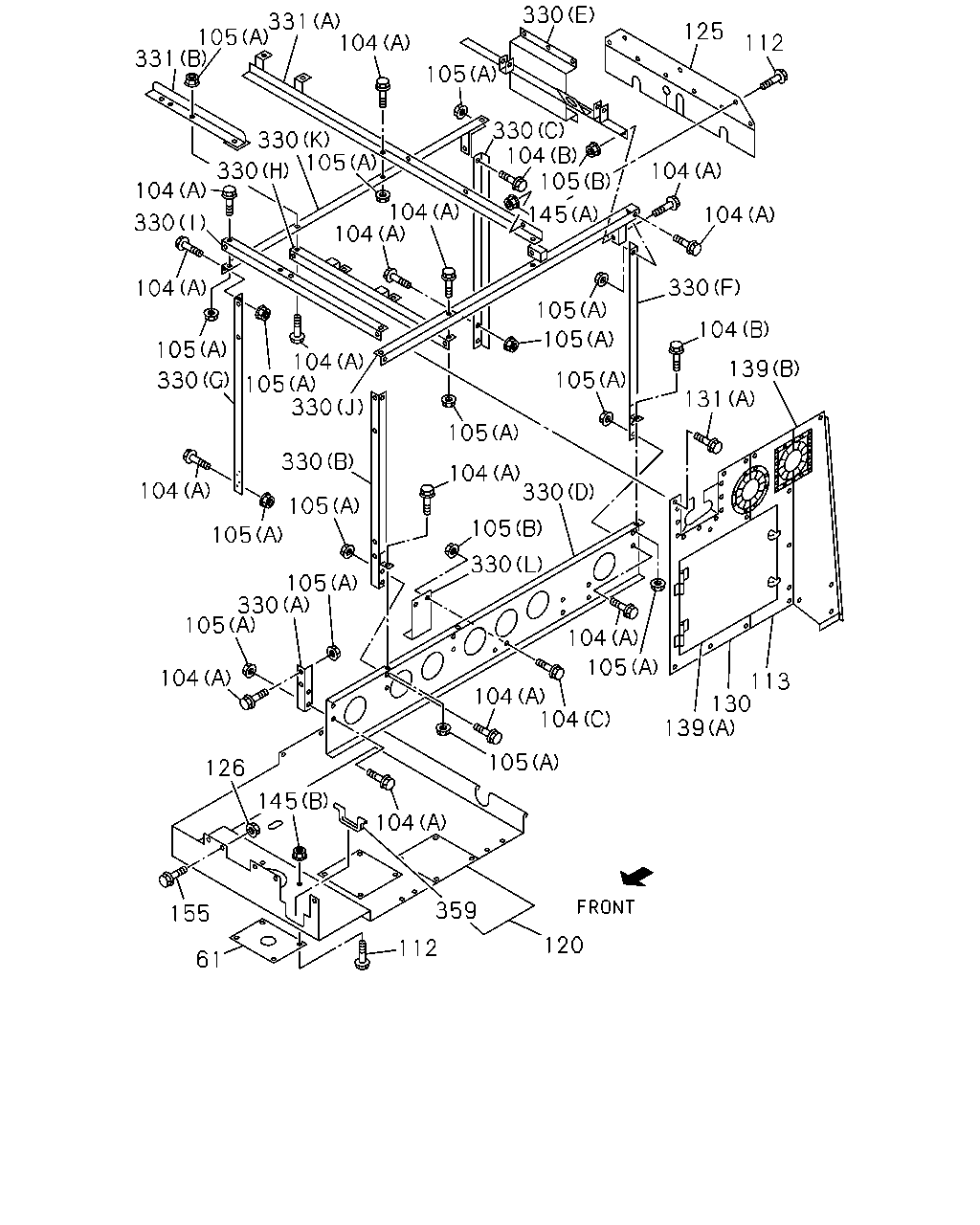

çizim 20973
330 331 104 125 105 331 112 105 330 104 105 145 330 105 330 104 104 104 104 104 330 330 104 105 104 105 105 104 105 330 139 105 330 131 105 330 104 330 104 105 105 105 330 105 330 105 104 105 104 113 130 139 104 104 105 126 145 104 359 155 120 112 61
BalonParca AdiParca NoAdetTipApplied Date
61 BRACKET; COVER
RADIATOR FAN DUCT<WF8> 		1-65600-674-0 01 1 0105-
104 BOLT; BRKT
(A) M10X25 FLANGE 		0-28681-025-0 01 1 0105-0512
104 BOLT; BRKT
(A) M10X25 FLANGE 		0-28651-025-0 01 1 0601-
104 BOLT; BRKT
(A) M10X25 FLANGE 		0-28681-025-0 07 1 0105-0512
104 BOLT; BRKT
(A) M10X25 FLANGE 		0-28651-025-0 07 1 0601-
104 BOLT; BRKT
(A) M10X25 FLANGE 		0-28681-025-0 10 1 0105-0512
104 BOLT; BRKT
(A) M10X25 FLANGE 		0-28651-025-0 10 1 0601-
104 BOLT; BRKT
(A) M10X25 FLANGE 		0-28681-025-0 12 1 0105-0512
104 BOLT; BRKT
(A) M10X25 FLANGE 		0-28651-025-0 12 1 0601-
104 BOLT; BRKT
(B) M10X30 FLANGE 		0-28681-030-0 01 1 0105-0512
104 BOLT; BRKT
(B) M10X30 FLANGE 		0-28651-030-0 01 1 0601-
104 BOLT; BRKT
RADIATOR FAN DUCT<WF8> (C) M8X16 FLANGE 		0-28080-816-0 08 1 0105-0512
104 BOLT; BRKT
RADIATOR FAN DUCT<WF8> (C) M8X16 FLANGE 		0-28050-816-0 08 1 0601-
105 NUT; BRKT
(A) M10 FLANGE 		0-91150-210-0 01 1 0105-0602
105 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 01 1 0603-
105 NUT; BRKT
(A) M10 FLANGE 		0-91150-210-0 05 1 0105-0602
105 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 05 1 0603-
105 NUT; BRKT
(A) M10 FLANGE 		0-91150-210-0 09 1 0105-0602
105 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 09 1 0603-
105 NUT; BRKT
(A) M10 FLANGE 		0-91150-210-0 14 1 0105-0602
105 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 14 1 0603-
105 NUT; BRKT
RADIATOR FAN DUCT<WF8> (B) M8 FLANGE 		0-91150-108-0 08 1 0105-0602
105 NUT; BRKT
RADIATOR FAN DUCT<WF8> (B) M8 FLANGE 		0-91180-108-0 08 1 0603-
112 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 03 1 0105-0112
112 BOLT; BRKT
RADIATOR FAN DUCT<WF8> M8X20 FLANGE 		0-28680-820-0 03 1 0201-0512
112 BOLT; BRKT
RADIATOR FAN DUCT<WF8> M8X20 FLANGE 		0-28650-820-0 04 1 0601-
112 BOLT; BRKT
RADIATOR FAN DUCT<WF8> M8X20 FLANGE 		0-28680-820-0 04 1 0105-0512
112 BOLT; BRKT
RADIATOR FAN DUCT<WF8> M8X20 FLANGE 		0-28650-820-0 03 1 0601-
113 PANEL; SIDE
RADIATOR FAN DUCT<WF8> 		1-53193-984-2 01 1 0105-
113 PANEL; SIDE
EXC. RADIATOR FAN DUCT<WF8> 		1-53193-983-1 01 1 0105-0112
120 PANEL; UNDER
RADIATOR FAN DUCT<WF8> 		1-53194-080-1 01 1 0105-
125 PANEL; RR 1-53193-981-1 01 1 0105-0112
125 PANEL; RR
RADIATOR FAN DUCT<WF8> 		1-53193-981-1 01 1 0201-
126 NUT; PANEL
RADIATOR FAN DUCT<WF8> M8 FLANGE 		0-91150-108-0 05 1 0105-0602
126 NUT; PANEL
RADIATOR FAN DUCT<WF8> M8 FLANGE 		0-91180-108-0 05 1 0603-
130 PANEL; SHUTTER NOISE
RADIATOR FAN DUCT<WF8> 		1-53194-079-0 01 1 0105-
131 BOLT; PANEL
(B) M8X20 FLANGE 		0-28680-820-0 04 1 0105-0112
131 BOLT; PANEL
RADIATOR FAN DUCT<WF8> (A) M8X20 FLANGE 		0-28680-820-0 07 1 0105-0112
131 BOLT; PANEL
RADIATOR FAN DUCT<WF8> (A) M8X20 FLANGE 		0-28680-820-0 11 1 0201-0512
131 BOLT; PANEL
RADIATOR FAN DUCT<WF8> (A) M8X20 FLANGE 		0-28650-820-0 11 1 0601-
139 PANEL; SIDE
(B) 		1-53193-982-1 01 1 0105-0112
139 PANEL; SIDE
RADIATOR FAN DUCT<WF8> (B) 		1-53193-982-1 01 1 0201-
139 PANEL; SIDE
RADIATOR FAN DUCT<WF8> (A) 		1-53193-986-1 01 1 0105-
145 NUT; BRKT
(A) M8 FLANGE 		0-91150-108-0 03 1 0105-0112
145 NUT; BRKT
RADIATOR FAN DUCT<WF8> (A) M8 FLANGE 		0-91150-108-0 03 1 0201-0602
145 NUT; BRKT
RADIATOR FAN DUCT<WF8> (A) M8 FLANGE 		0-91180-108-0 04 1 0603-
145 NUT; BRKT
RADIATOR FAN DUCT<WF8> (B) M8 FLANGE 		0-91150-108-0 04 1 0105-0602
145 NUT; BRKT
RADIATOR FAN DUCT<WF8> (B) M8 FLANGE 		0-91180-108-0 03 1 0603-
155 BOLT; PANEL
RADIATOR FAN DUCT<WF8> M8X20 FLANGE 		0-28680-820-0 08 1 0105-0512
155 BOLT; PANEL
RADIATOR FAN DUCT<WF8> M8X20 FLANGE 		0-28650-820-0 08 1 0601-
330 BRACKET; ENG COVER
(A) 		1-65600-544-0 01 1 0105-
330 BRACKET; ENG COVER
(F) 		1-65600-659-0 01 1 0105-
330 BRACKET; ENG COVER
(B) 		1-65600-660-0 01 1 0105-
330 BRACKET; ENG COVER
(C) 		1-65600-661-1 01 1 0105-
330 BRACKET; ENG COVER
(D) 		1-65600-662-3 01 1 0105-
330 BRACKET; ENG COVER
(E) 		1-65600-663-2 01 1 0105-
330 BRACKET; ENG COVER
(G) 		1-65600-668-0 01 1 0105-
330 BRACKET; ENG COVER
(H) 		1-65600-669-1 01 1 0105-
330 BRACKET; ENG COVER
(I) 		1-65600-670-6 01 1 0105-
330 BRACKET; ENG COVER
(J) 		1-65600-671-0 01 1 0105-
330 BRACKET; ENG COVER
RADIATOR FAN DUCT<WF8> (L) 		1-65600-673-0 02 1 0105-
330 BRACKET; ENG COVER
RADIATOR FAN DUCT<WF8> (K) 		1-65600-678-0 01 1 0105-
330 BRACKET; ENG COVER
EXC. RADIATOR FAN DUCT<WF8> (K) 		1-65600-680-0 01 1 0105-
331 BRACKET; ENG COVER BRKT
(A) 		1-65600-664-1 01 1 0105-
331 BRACKET; ENG COVER BRKT
(B) 		1-65600-679-0 01 1 0105-
359 FINISHER; TRANS UNDER PANEL
RADIATOR FAN DUCT<WF8> L=290 SERVICED BY L=500 		1-79937-746-0 01 1 0105-

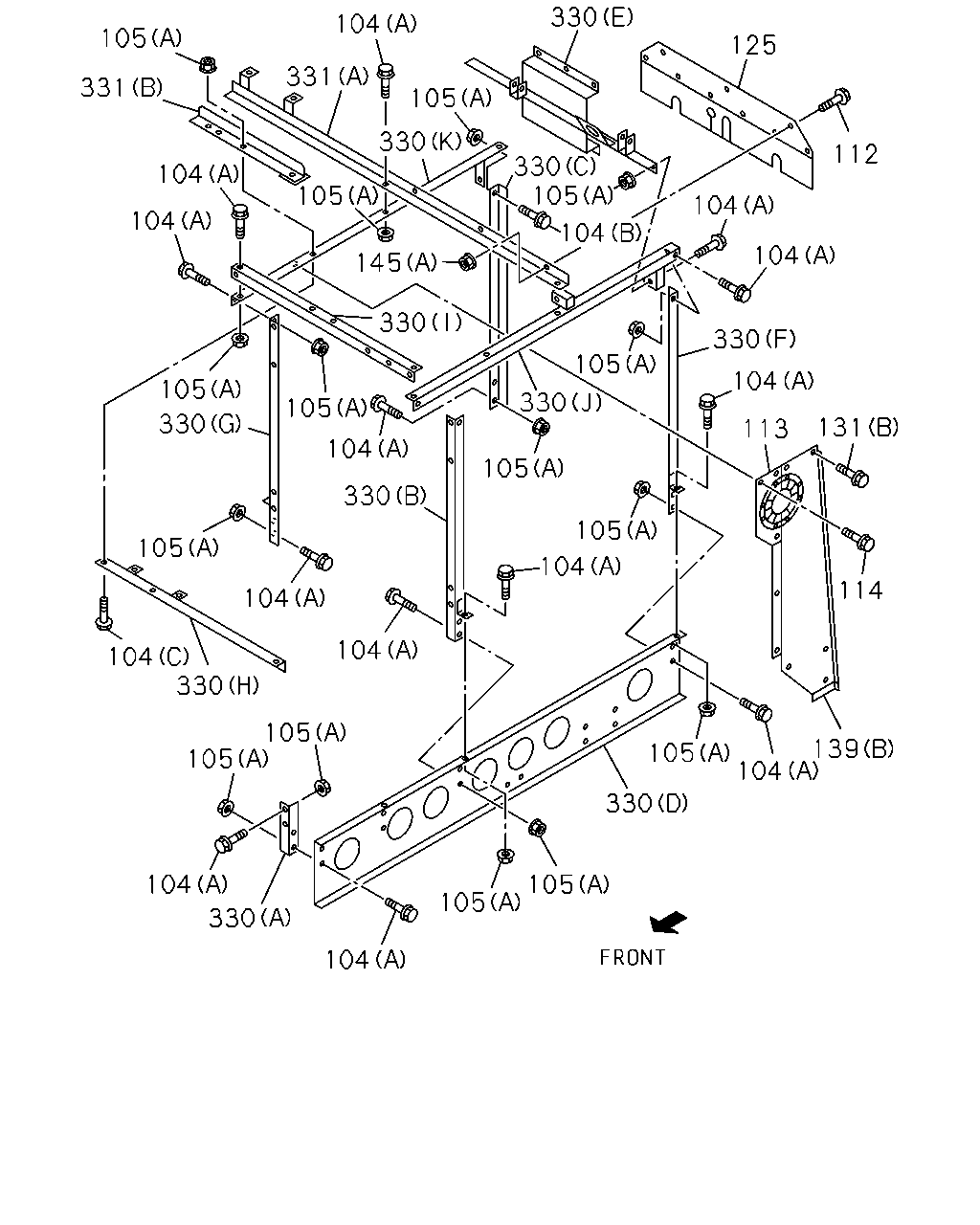

çizim 20974
330 104 105 125 331 331 105 330 112 330 105 104 105 104 104 104 104 145 330 330 105 104 105 330 105 330 131 113 104 105 330 105 105 104 114 104 104 104 330 105 139 105 104 105 330 104 105 105 330 104
BalonParca AdiParca NoAdetTipApplied Date
104 BOLT; BRKT
(A) M10X25 FLANGE 		0-28681-025-0 01 1 0105-0512
104 BOLT; BRKT
(A) M10X25 FLANGE 		0-28651-025-0 01 1 0601-
104 BOLT; BRKT
(A) M10X25 FLANGE 		0-28681-025-0 07 1 0105-0512
104 BOLT; BRKT
(A) M10X25 FLANGE 		0-28651-025-0 07 1 0601-
104 BOLT; BRKT
(A) M10X25 FLANGE 		0-28681-025-0 10 1 0105-0512
104 BOLT; BRKT
(A) M10X25 FLANGE 		0-28651-025-0 10 1 0601-
104 BOLT; BRKT
(A) M10X25 FLANGE 		0-28681-025-0 12 1 0105-0512
104 BOLT; BRKT
(A) M10X25 FLANGE 		0-28651-025-0 12 1 0601-
104 BOLT; BRKT
(B) M10X30 FLANGE 		0-28681-030-0 01 1 0105-0512
104 BOLT; BRKT
(B) M10X30 FLANGE 		0-28651-030-0 01 1 0601-
104 BOLT; BRKT
RADIATOR FAN DUCT<WF8> (C) M8X16 FLANGE 		0-28080-816-0 08 1 0105-0512
104 BOLT; BRKT
RADIATOR FAN DUCT<WF8> (C) M8X16 FLANGE 		0-28050-816-0 08 1 0601-
105 NUT; BRKT
(A) M10 FLANGE 		0-91150-210-0 01 1 0105-0602
105 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 01 1 0603-
105 NUT; BRKT
(A) M10 FLANGE 		0-91150-210-0 05 1 0105-0602
105 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 05 1 0603-
105 NUT; BRKT
(A) M10 FLANGE 		0-91150-210-0 09 1 0105-0602
105 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 09 1 0603-
105 NUT; BRKT
(A) M10 FLANGE 		0-91150-210-0 14 1 0105-0602
105 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 14 1 0603-
105 NUT; BRKT
RADIATOR FAN DUCT<WF8> (B) M8 FLANGE 		0-91150-108-0 08 1 0105-0602
105 NUT; BRKT
RADIATOR FAN DUCT<WF8> (B) M8 FLANGE 		0-91180-108-0 08 1 0603-
112 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 03 1 0105-0112
112 BOLT; BRKT
RADIATOR FAN DUCT<WF8> M8X20 FLANGE 		0-28680-820-0 03 1 0201-0512
112 BOLT; BRKT
RADIATOR FAN DUCT<WF8> M8X20 FLANGE 		0-28650-820-0 04 1 0601-
112 BOLT; BRKT
RADIATOR FAN DUCT<WF8> M8X20 FLANGE 		0-28680-820-0 04 1 0105-0512
112 BOLT; BRKT
RADIATOR FAN DUCT<WF8> M8X20 FLANGE 		0-28650-820-0 03 1 0601-
113 PANEL; SIDE
RADIATOR FAN DUCT<WF8> 		1-53193-984-2 01 1 0105-
113 PANEL; SIDE
EXC. RADIATOR FAN DUCT<WF8> 		1-53193-983-1 01 1 0105-0112
114 BOLT
RADIATOR FAN DUCT<WF8> M8X20 FLANGE 		0-28680-820-0 08 1 0105-0512
114 BOLT
RADIATOR FAN DUCT<WF8> M8X20 FLANGE 		0-28650-820-0 08 1 0601-
114 BOLT
EXC. RADIATOR FAN DUCT<WF8> M8X20 FLANGE 		0-28680-820-0 04 1 0105-0112
125 PANEL; RR 1-53193-981-1 01 1 0105-0112
125 PANEL; RR
RADIATOR FAN DUCT<WF8> 		1-53193-981-1 01 1 0201-
131 BOLT; PANEL
(B) M8X20 FLANGE 		0-28680-820-0 04 1 0105-0112
131 BOLT; PANEL
RADIATOR FAN DUCT<WF8> (A) M8X20 FLANGE 		0-28680-820-0 07 1 0105-0112
131 BOLT; PANEL
RADIATOR FAN DUCT<WF8> (A) M8X20 FLANGE 		0-28680-820-0 11 1 0201-0512
131 BOLT; PANEL
RADIATOR FAN DUCT<WF8> (A) M8X20 FLANGE 		0-28650-820-0 11 1 0601-
139 PANEL; SIDE
(B) 		1-53193-982-1 01 1 0105-0112
139 PANEL; SIDE
RADIATOR FAN DUCT<WF8> (B) 		1-53193-982-1 01 1 0201-
139 PANEL; SIDE
RADIATOR FAN DUCT<WF8> (A) 		1-53193-986-1 01 1 0105-
145 NUT; BRKT
(A) M8 FLANGE 		0-91150-108-0 03 1 0105-0112
145 NUT; BRKT
RADIATOR FAN DUCT<WF8> (A) M8 FLANGE 		0-91150-108-0 03 1 0201-0602
145 NUT; BRKT
RADIATOR FAN DUCT<WF8> (A) M8 FLANGE 		0-91180-108-0 04 1 0603-
145 NUT; BRKT
RADIATOR FAN DUCT<WF8> (B) M8 FLANGE 		0-91150-108-0 04 1 0105-0602
145 NUT; BRKT
RADIATOR FAN DUCT<WF8> (B) M8 FLANGE 		0-91180-108-0 03 1 0603-
330 BRACKET; ENG COVER
(A) 		1-65600-544-0 01 1 0105-
330 BRACKET; ENG COVER
(F) 		1-65600-659-0 01 1 0105-
330 BRACKET; ENG COVER
(B) 		1-65600-660-0 01 1 0105-
330 BRACKET; ENG COVER
(C) 		1-65600-661-1 01 1 0105-
330 BRACKET; ENG COVER
(D) 		1-65600-662-3 01 1 0105-
330 BRACKET; ENG COVER
(E) 		1-65600-663-2 01 1 0105-
330 BRACKET; ENG COVER
(G) 		1-65600-668-0 01 1 0105-
330 BRACKET; ENG COVER
(H) 		1-65600-669-1 01 1 0105-
330 BRACKET; ENG COVER
(I) 		1-65600-670-6 01 1 0105-
330 BRACKET; ENG COVER
(J) 		1-65600-671-0 01 1 0105-
330 BRACKET; ENG COVER
RADIATOR FAN DUCT<WF8> (L) 		1-65600-673-0 02 1 0105-
330 BRACKET; ENG COVER
RADIATOR FAN DUCT<WF8> (K) 		1-65600-678-0 01 1 0105-
330 BRACKET; ENG COVER
EXC. RADIATOR FAN DUCT<WF8> (K) 		1-65600-680-0 01 1 0105-
331 BRACKET; ENG COVER BRKT
(A) 		1-65600-664-1 01 1 0105-
331 BRACKET; ENG COVER BRKT
(B) 		1-65600-679-0 01 1 0105-
