Isuzu WW
▶
TRUCKS
▶
CVR
▶
10661 - CVR
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-65 - CONTROL LEVER; HEATER AND AIR CON
▶
8-65 — CONTROL LEVER; HEATER AND AIR CON
(#3106) — 45 parça
Tümü
A - CVR5MC
B - CVR5MF
C - CVR6MC
D - CVR6MF
◀

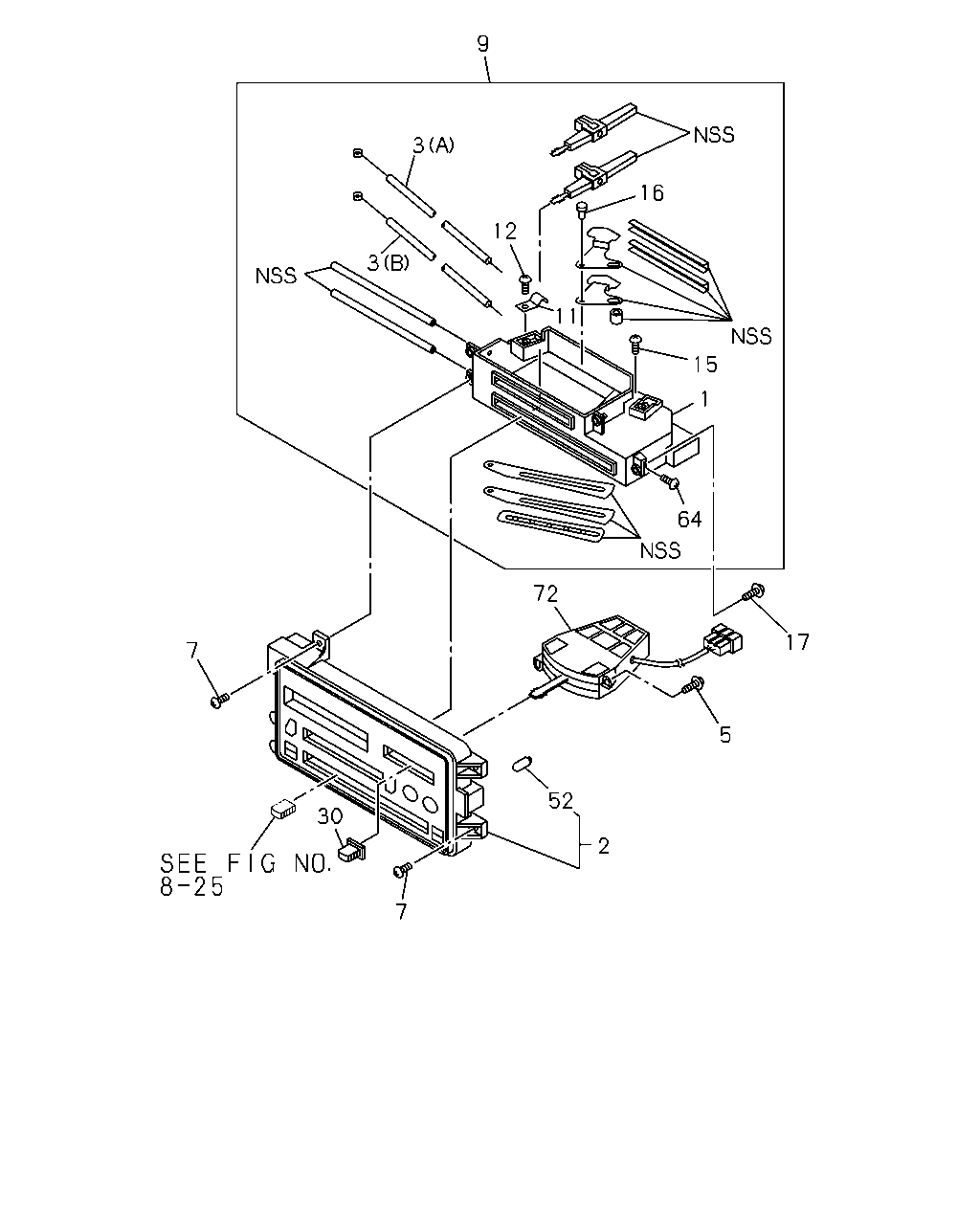

[865A] RHD (22 parça)

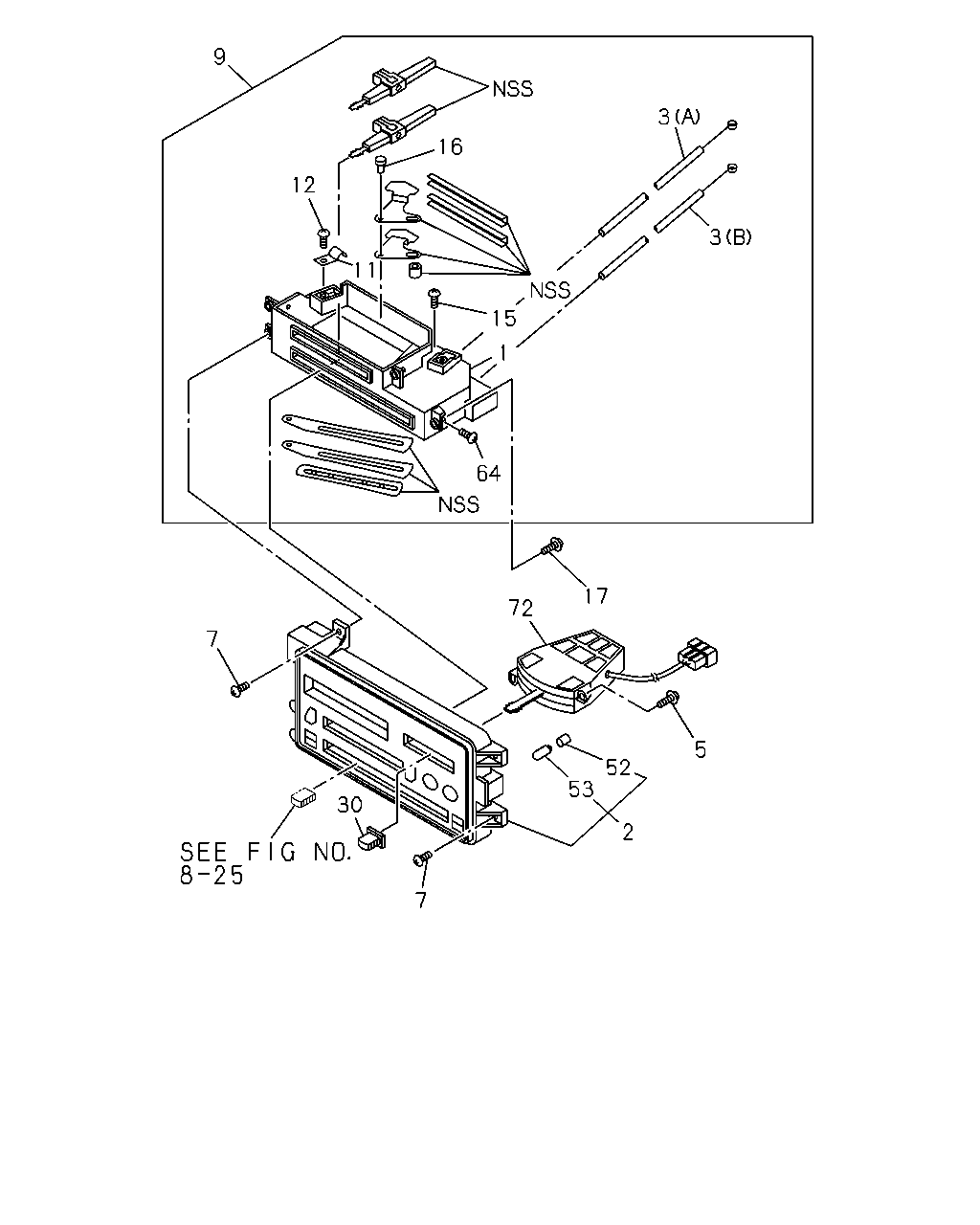

[865A] LHD (23 parça)
▶
7
30
2
52
5
17
72
7
64
1
15
11
12
16
9
3
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
1
LEVER SUB ASM; HTR CONT
1-83519-040-0
01
1
9002-
●
●
●
●
2
PANEL ASM; CONT,ILLUMINATION
1-72410-135-3
01
1
9002-
●
●
2
PANEL ASM; CONT,ILLUMINATION
1-72410-149-1
01
1
9002-
●
●
3
CABLE; HTR CONT LVR
(A) FRESH,RECIRCULATION
1-83519-037-0
01
1
9002-
●
●
3
CABLE; HTR CONT LVR
(B) HOT,COOL
1-83519-043-0
01
1
9002-
●
●
3
CABLE; HTR CONT LVR
(A) FRESH,RECIRCULATION
1-83519-045-0
01
1
9002-
●
●
3
CABLE; HTR CONT LVR
(B) HOT,COOL
1-83519-046-0
01
1
9002-
●
●
5
SCREW; FAN SW
M5X14 W/PL WASHER
5-09981-050-0
02
1
9002-
●
●
●
●
7
SCREW; ILLUMINATION PNL
M5X14 W/PL WASHER
5-09981-050-0
04
1
9002-
●
●
●
●
9
LEVER ASM; HTR & A/C CONT
1-83513-079-3
01
1
9002-
●
●
9
LEVER ASM; HTR & A/C CONT
1-83513-082-2
01
1
9002-
●
●
11
CLIP; CABLE,HTR CONT LVR
1-83519-034-0
02
1
9002-
●
●
●
●
12
SCREW; CABLE CLIP,HTR CONT LVR
1-83519-038-0
02
1
9002-
●
●
●
●
15
SCREW; HTR CONT LVR CLIP
1-83519-036-0
06
1
9002-
●
●
●
●
16
PIN; HTR CONT LVR
1-83519-039-0
02
1
9002-
●
●
●
●
17
SCREW; CONT LEVER,HTR
M5X14 W/PL WASHER
5-09981-050-0
04
1
9002-
●
●
●
●
30
KNOB; FAN SW
1-82346-067-0
03
1
9002-
●
●
●
●
52
BULB; PANEL ILLUMINATION
24V1.2W WO/FILTER
1-82194-027-0
AR
1
9002-
●
●
●
●
52
BULB; PANEL ILLUMINATION
24V1.2W GREEN FILTER
1-82194-045-0
AR
1
9002-
●
●
●
●
52
BULB; PANEL ILLUMINATION
24V1.2W BLUE FILTER
1-82194-046-0
AR
1
9002-
●
●
●
●
64
SCREW; PANEL,HTR CONT LVR
1-83519-041-0
04
1
9307-
●
●
72
SWITCH; FAN MOTOR
1-82360-236-0
01
1
9002-
●
●
●
●
7
30
2
53
52
5
17
72
7
64
1
15
3
3
16
11
12
9
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
1
LEVER SUB ASM; HTR CONT
1-83519-040-0
01
1
9002-
●
●
●
●
2
PANEL ASM; CONT,ILLUMINATION
1-72410-135-3
01
1
9002-
●
●
2
PANEL ASM; CONT,ILLUMINATION
1-72410-149-1
01
1
9002-
●
●
3
CABLE; HTR CONT LVR
(A) FRESH,RECIRCULATION
1-83519-037-0
01
1
9002-
●
●
3
CABLE; HTR CONT LVR
(B) HOT,COOL
1-83519-043-0
01
1
9002-
●
●
3
CABLE; HTR CONT LVR
(A) FRESH,RECIRCULATION
1-83519-045-0
01
1
9002-
●
●
3
CABLE; HTR CONT LVR
(B) HOT,COOL
1-83519-046-0
01
1
9002-
●
●
5
SCREW; FAN SW
M5X14 W/PL WASHER
5-09981-050-0
02
1
9002-
●
●
●
●
7
SCREW; ILLUMINATION PNL
M5X14 W/PL WASHER
5-09981-050-0
04
1
9002-
●
●
●
●
9
LEVER ASM; HTR & A/C CONT
1-83513-079-3
01
1
9002-
●
●
9
LEVER ASM; HTR & A/C CONT
1-83513-082-2
01
1
9002-
●
●
11
CLIP; CABLE,HTR CONT LVR
1-83519-034-0
02
1
9002-
●
●
●
●
12
SCREW; CABLE CLIP,HTR CONT LVR
1-83519-038-0
02
1
9002-
●
●
●
●
15
SCREW; HTR CONT LVR CLIP
1-83519-036-0
06
1
9002-
●
●
●
●
16
PIN; HTR CONT LVR
1-83519-039-0
02
1
9002-
●
●
●
●
17
SCREW; CONT LEVER,HTR
M5X14 W/PL WASHER
5-09981-050-0
04
1
9002-
●
●
●
●
30
KNOB; FAN SW
1-82346-067-0
03
1
9002-
●
●
●
●
52
BULB; PANEL ILLUMINATION
24V1.2W WO/FILTER
1-82194-027-0
AR
1
9002-
●
●
●
●
52
BULB; PANEL ILLUMINATION
24V1.2W GREEN FILTER
1-82194-045-0
AR
1
9002-
●
●
●
●
52
BULB; PANEL ILLUMINATION
24V1.2W BLUE FILTER
1-82194-046-0
AR
1
9002-
●
●
●
●
53
COVER; COLLAR
GREEN
1-82199-001-0
02
1
9002-9103
●
●
64
SCREW; PANEL,HTR CONT LVR
1-83519-041-0
04
1
9307-
●
●
72
SWITCH; FAN MOTOR
1-82360-236-0
01
1
9002-
●
●
●
●
