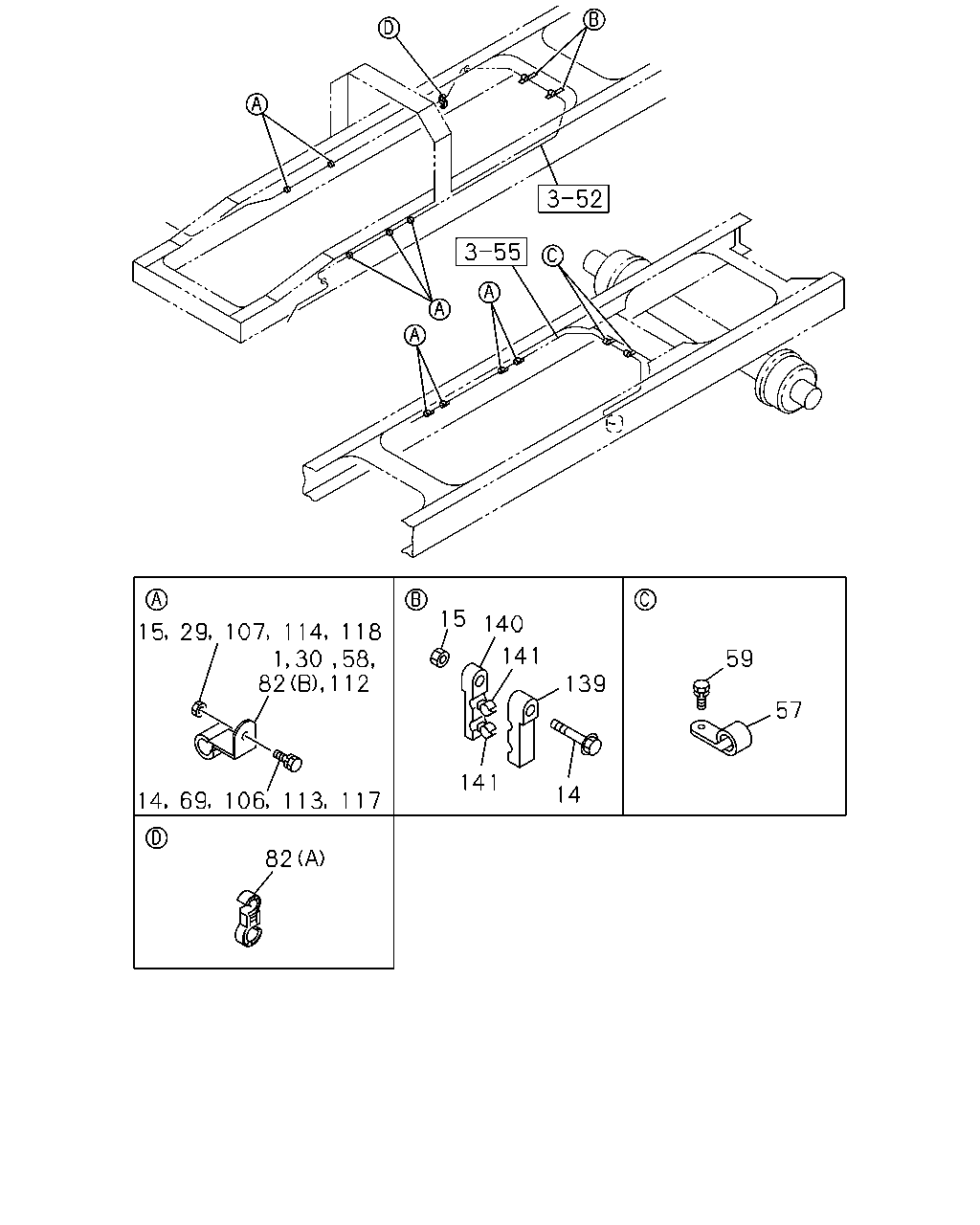

3-58 — FIXING PARTS; OIL PIPING (#31059) — 44 parça

15 140 15 29 82 112 141 59 139 57 141 14 69 106 113 117 14 82 107 114 118 1 30 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CLIP; OIL PIPE TO BODY ID=6 H=20 L=20	1-09700-603-0	03	1	0107-
14	BOLT; CLIP,OIL PIPE M8X50 FLANGE	0-28080-850-0	02	1	0107-0512
14	BOLT; CLIP,OIL PIPE M8X50 FLANGE	0-28050-850-0	02	1	0601-
14	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	01	1	0107-0512
14	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28650-830-0	01	1	0601-
15	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	03	1	0107-0602
15	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	03	1	0603-
29	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	0107-0602
29	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0603-
30	CLIP; OIL PIPE ID=6 H=20 L=20	1-09700-603-0	06	1	0107-
57	CLIP; BRK PIPE,RR AXLE ID=7 L=20	9-09524-635-0	04	1	0107-0606
57	CLIP; BRK PIPE,RR AXLE ID=7 L=20	0-95234-635-0	04	1	0607-
58	CLIP; OIL PIPE ID=6 H=20 L=20	1-09700-603-0	04	1	0107-
59	BOLT; BRK PIPE,RR AXLE M8X10 FLANGE	0-28080-810-0	04	1	0107-0512
59	BOLT; BRK PIPE,RR AXLE M8X10 FLANGE	0-28050-810-0	04	1	0601-
69	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	01	1	0107-0512
69	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0601-
82	CLIP; OIL PIPE (A) ID=6.35 & 6.35	1-09709-273-1	01	1	0107-
82	CLIP; OIL PIPE (B) ID=7 L=20	9-09524-635-0	01	1	0107-0606
82	CLIP; OIL PIPE (B) ID=7 L=20	0-95234-635-0	01	1	0607-
106	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	02	1	0107-0512
106	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28650-825-0	02	1	0601-
106	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	04	1	0107-0512
106	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28650-830-0	04	1	0601-
107	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	06	1	0107-0602
107	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	06	1	0603-
112	CLIP; OIL PIPE WHEEL BASE 4200MM(42W) ID=6 H=20 L=20	1-09700-603-0	02	1	0107-
112	CLIP; OIL PIPE WHEEL BASE 4800MM(48W) ID=6 H=20 L=20	1-09700-603-0	03	1	0107-
113	BOLT; CLIP,OIL PIPE WHEEL BASE 4200MM(42W) M8X25 FLANGE	0-28680-825-0	02	1	0107-0512
113	BOLT; CLIP,OIL PIPE WHEEL BASE 4200MM(42W) M8X25 FLANGE	0-28650-825-0	02	1	0601-
113	BOLT; CLIP,OIL PIPE WHEEL BASE 4800MM(48W) M8X25 FLANGE	0-28680-825-0	03	1	0107-0512
113	BOLT; CLIP,OIL PIPE WHEEL BASE 4800MM(48W) M8X25 FLANGE	0-28650-825-0	03	1	0601-
114	NUT; CLIP,OIL PIPE WHEEL BASE 4200MM(42W) M8 FLANGE	0-91150-108-0	02	1	0107-0602
114	NUT; CLIP,OIL PIPE WHEEL BASE 4200MM(42W) M8 FLANGE	0-91180-108-0	02	1	0603-
114	NUT; CLIP,OIL PIPE WHEEL BASE 4800MM(48W) M8 FLANGE	0-91150-108-0	03	1	0107-0602
114	NUT; CLIP,OIL PIPE WHEEL BASE 4800MM(48W) M8 FLANGE	0-91180-108-0	03	1	0603-
117	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	04	1	0107-0512
117	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28650-825-0	04	1	0601-
118	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	04	1	0107-0602
118	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	04	1	0603-
139	CLIP; UPR ID=10 & 10	1-09709-241-0	02	1	0107-
140	CLIP; LWR ID=10 & 10	1-09709-243-0	02	1	0107-
141	COLLAR ID=6	1-47459-010-0	02	1	0107-
141	COLLAR ID=8	1-47459-011-0	02	1	0107-
