Isuzu WW
▶
TRUCKS
▶
FSR
▶
10890 - FSR34(RHD)
▶
3 - Brakes, Brake System
▶
3-46 - AIR DRYER
▶
3-46 — AIR DRYER
(#31056) — 40 parça
◀

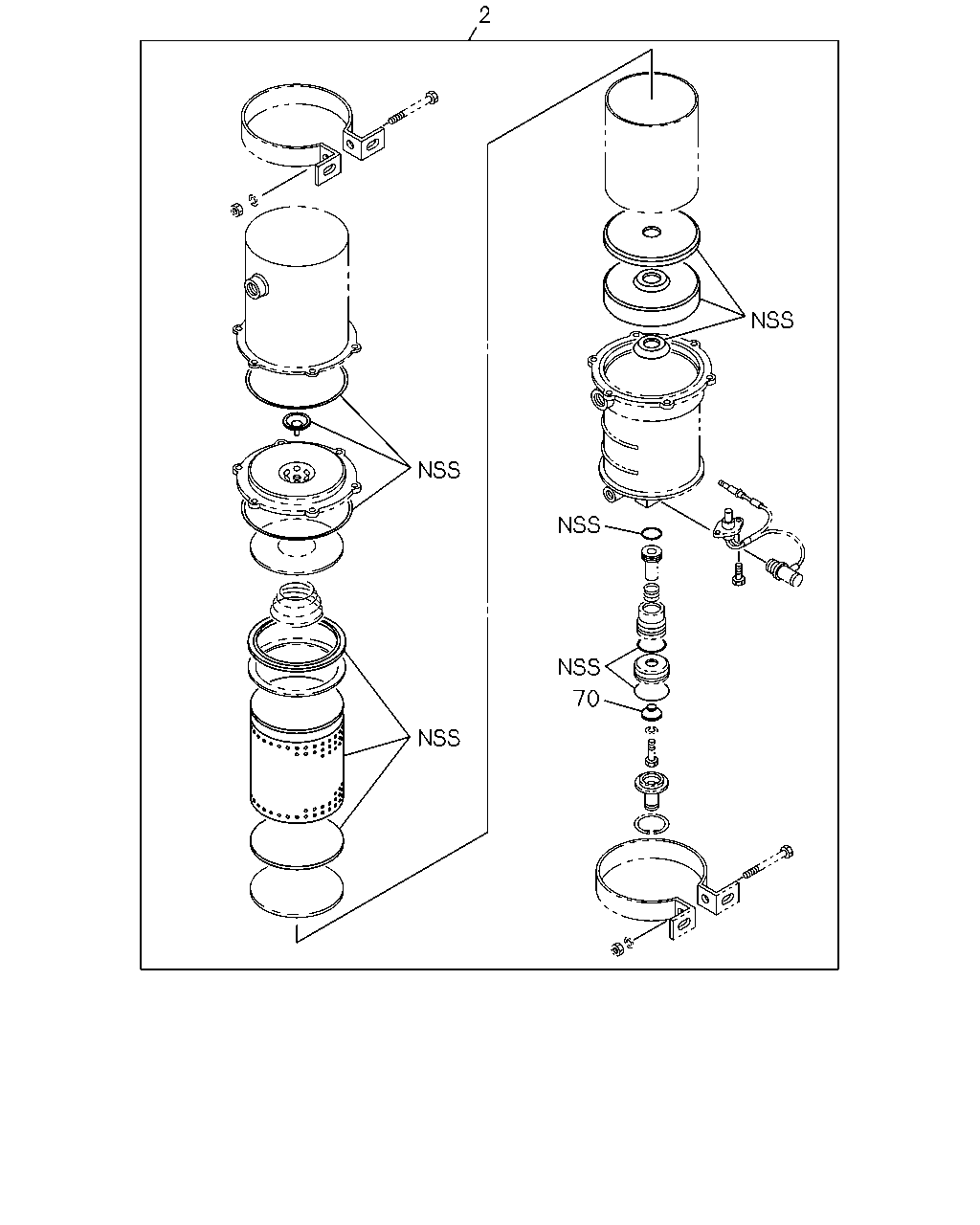

[346A] REPAIR KIT (3 parça)

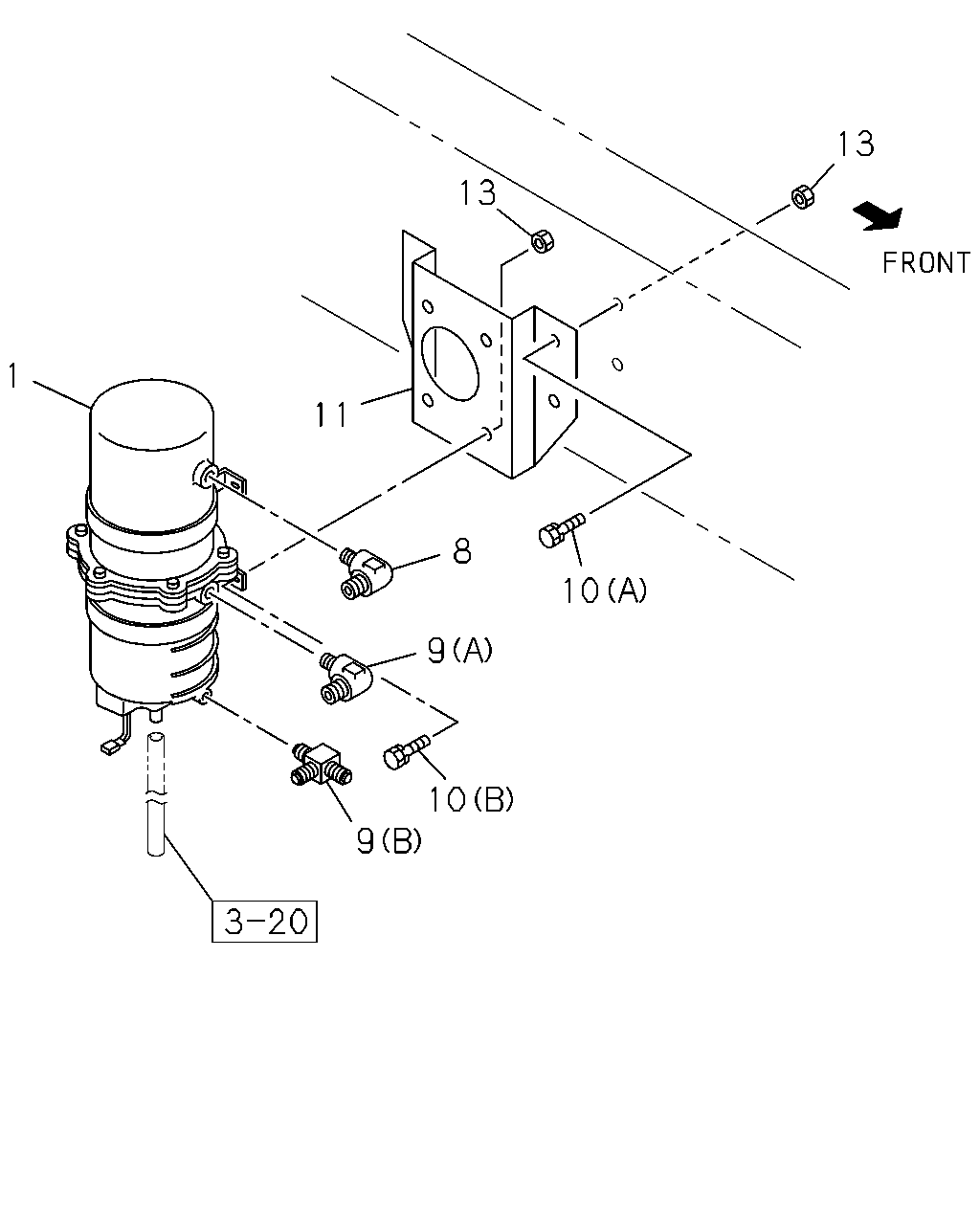

[346A] FIXING (14 parça)

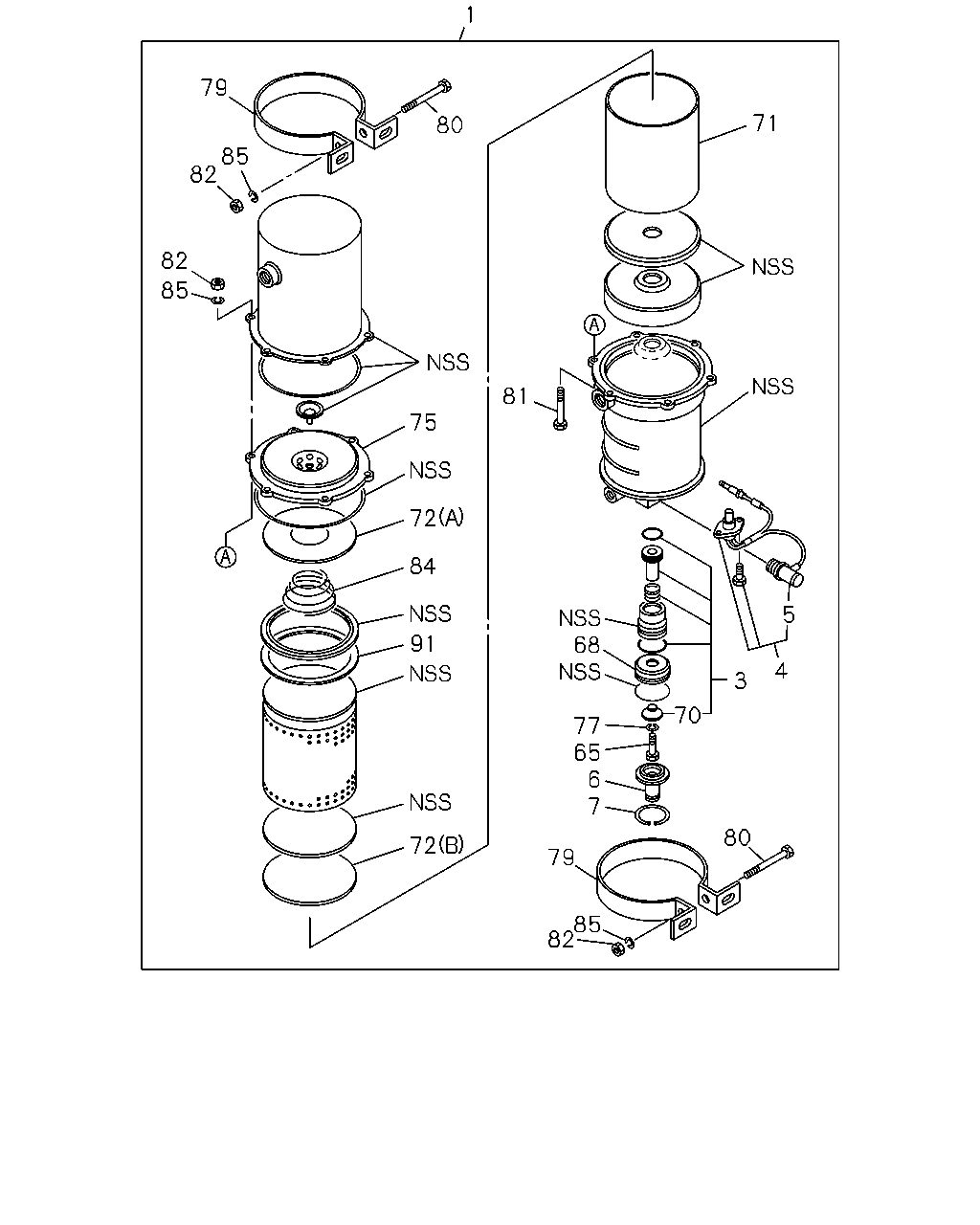

[346A] COMPONENT (23 parça)
▶
2
70
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
REPAIR KIT; AIR DRYER
1-85576-083-0
01
1
0107-1001
2
REPAIR KIT; AIR DRYER
1-85576-229-0
01
1
1002-
70
VALVE; AIR DRYER
1-48199-105-0
01
1
0107-
13
13
1
11
8
10
9
10
9
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DRYER; AIR
1-48190-114-2
01
1
0107-
8
CONNECTOR; OUT,AIR DRYER
M22 & PT1/2 ELBOW
1-09650-444-0
01
1
0107-0607
8
CONNECTOR; OUT,AIR DRYER
M22 & PT1/2 ELBOW
0-92134-315-0
01
1
0608-
9
CONNECTOR; PIPE,AIR DRYER
(B) M12X2 & PT1/4 3WAY
1-09656-230-1
01
1
0107-
9
CONNECTOR; PIPE,AIR DRYER
(A) M22 & R1/2 W/VALVE
1-48320-026-2
01
1
0107-
10
BOLT; AIR DRYER
(B) M10X25 FLANGE
0-28681-025-0
04
1
0107-0512
10
BOLT; AIR DRYER
(B) M10X25 FLANGE
0-28651-025-0
04
1
0601-
10
BOLT; AIR DRYER
(A) M10X35 FLANGE
0-28681-035-0
04
1
0107-0512
10
BOLT; AIR DRYER
(A) M10X35 FLANGE
0-28651-035-0
04
1
0601-
11
BRACKET; AIR DRYER
1-48195-045-0
01
1
0107-
13
NUT; AIR DRYER
M10 FLANGE
0-91150-210-0
04
1
0107-0602
13
NUT; AIR DRYER
M10 FLANGE
0-91150-210-0
04
1
0107-0602
13
NUT; AIR DRYER
M10 FLANGE
0-91180-210-0
04
1
0603-
13
NUT; AIR DRYER
M10 FLANGE
0-91180-210-0
04
1
0603-
1
79
71
80
85
82
82
85
81
75
72
84
5
68
91
4
3
70
77
65
6
7
80
72
79
85
82
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DRYER; AIR
1-48190-114-2
01
1
0107-
3
PISTON KIT; AIR DRYER
1-85576-084-0
01
1
0107-
4
THERMOSTAT KIT; AIR DRYER
1-85576-121-0
01
1
0107-
5
HEATER ASM; AIR DRYER
1-48199-200-0
01
1
0107-
6
COVER; EXH,AIR DRYER
1-48199-101-0
01
1
0107-
7
RING; SNAP,AIR DRYER
1-48199-100-0
01
1
0107-
65
BOLT; PURGE VLV
1-48199-102-0
01
1
0107-1001
65
BOLT; PURGE VLV
1-48199-393-0
01
1
1002-
68
BODY; VALVE
1-48199-216-0
01
1
0107-
70
VALVE; AIR DRYER
1-48199-105-0
01
1
0107-
71
CASE; INNER,AIR DRYER
1-48199-099-0
01
1
0107-
72
PLATE; FILTER,AIR DRYER
(A)
1-48199-097-0
01
1
0107-
72
PLATE; FILTER,AIR DRYER
(B)
1-48199-098-0
01
1
0107-
75
COVER; CASE,AIR DRYER
1-48199-201-0
01
1
0107-
77
WASHER; LK,VALVE
1-48199-103-0
01
1
0107-1001
79
BRACKET; AIR DRYER
1-48199-209-0
02
1
0107-
80
BOLT; BRKT
1-48199-212-0
02
1
0107-
81
BOLT; CASE,AIR DRYER
1-48199-208-0
06
1
0107-
82
NUT; CASE,AIR DRYER
1-48199-211-0
08
1
0107-1001
82
NUT; CASE,AIR DRYER
1-48199-320-0
08
1
1002-
84
SPRING; AIR DRYER
1-48199-092-0
01
1
0107-
85
WASHER; CASE,AIR DRYER
1-48199-024-0
08
1
0107-1001
91
GUIDE; CASE,AIR DRYER
1-48199-091-0
01
1
0107-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
