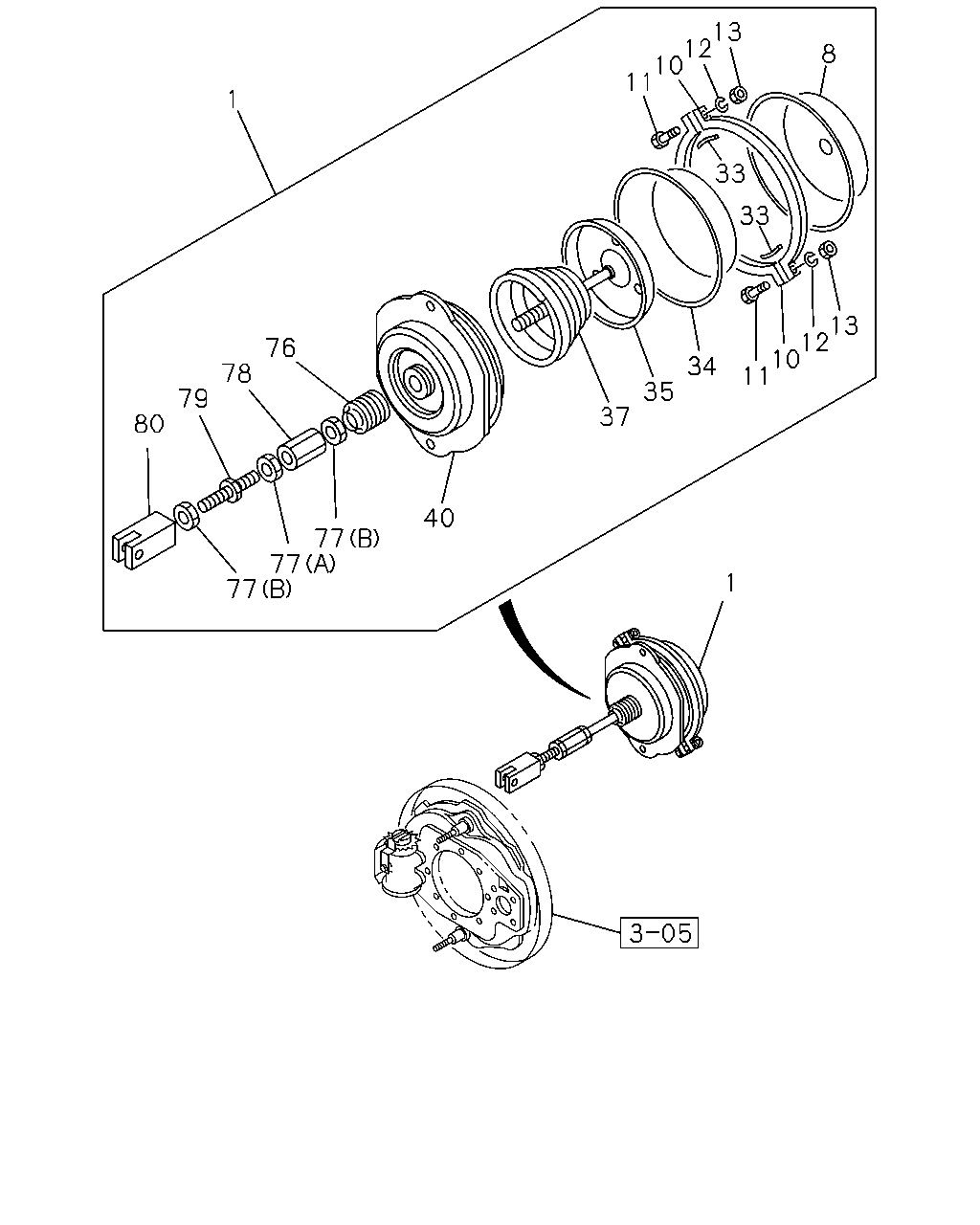

3-41 - REAR BRAKE POWER CHAMBER
▶
3-41 — REAR BRAKE POWER CHAMBER
(#31055) — 18 parça
13
12
10
11
8
1
33
33
13
12
10
11
76
34
78
35
79
37
80
40
77
77
77
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CHAMBER ASM; SPRING
1-48250-305-1
01
1
0107-
1
CHAMBER ASM; SPRING
1-48250-304-1
01
1
0107-
8
SHELL; CYL,SPR CHAMBER
1-48251-031-0
02
1
0107-
10
RING; CLAMP,SPR CHAMBER
1-48259-016-0
04
1
0107-
11
BOLT; CLAMP RING
1-48259-035-0
04
1
0107-
12
WASHER; LK,CLAMP RING
ID=10.2
9-09150-510-0
04
1
0107-
13
NUT; CLAMP RING
9-83315-080-0
04
1
0107-
33
RETAINER; DIAPH
1-48259-044-0
04
1
0107-
34
DIAPHRAGM
1-48252-026-0
02
1
0107-
35
PLATE; ROD END,SPR CHAMBER
1-48253-024-0
02
1
0107-
37
SPRING; LWR,SPR CHAMBER
1-48255-008-0
02
1
0107-
40
COVER ASM; LWR,SPR CHAMBER
1-48251-032-0
02
1
0107-
76
GUARD; SPR CHAMBER BRK
1-48259-096-0
02
1
0107-
77
NUT; SPR CHAMBER BRK
(A)
1-48253-021-0
02
1
0107-
77
NUT; SPR CHAMBER BRK
(B)
9-88510-432-0
04
1
0107-
78
TURNBACKLE; SPR CHAMBER BRK
1-48253-023-0
02
1
0107-
79
STUD; SPR CHAMBER BRK
1-48253-027-0
02
1
0107-
80
CLEVIS; SPR CHAMBER BRK
1-48253-026-0
02
1
0107-
