◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CVR ▶ 10661 - CVR ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-60 - HEATER UNIT; FRONT ▶
8-60 — HEATER UNIT; FRONT (#3105) — 84 parça

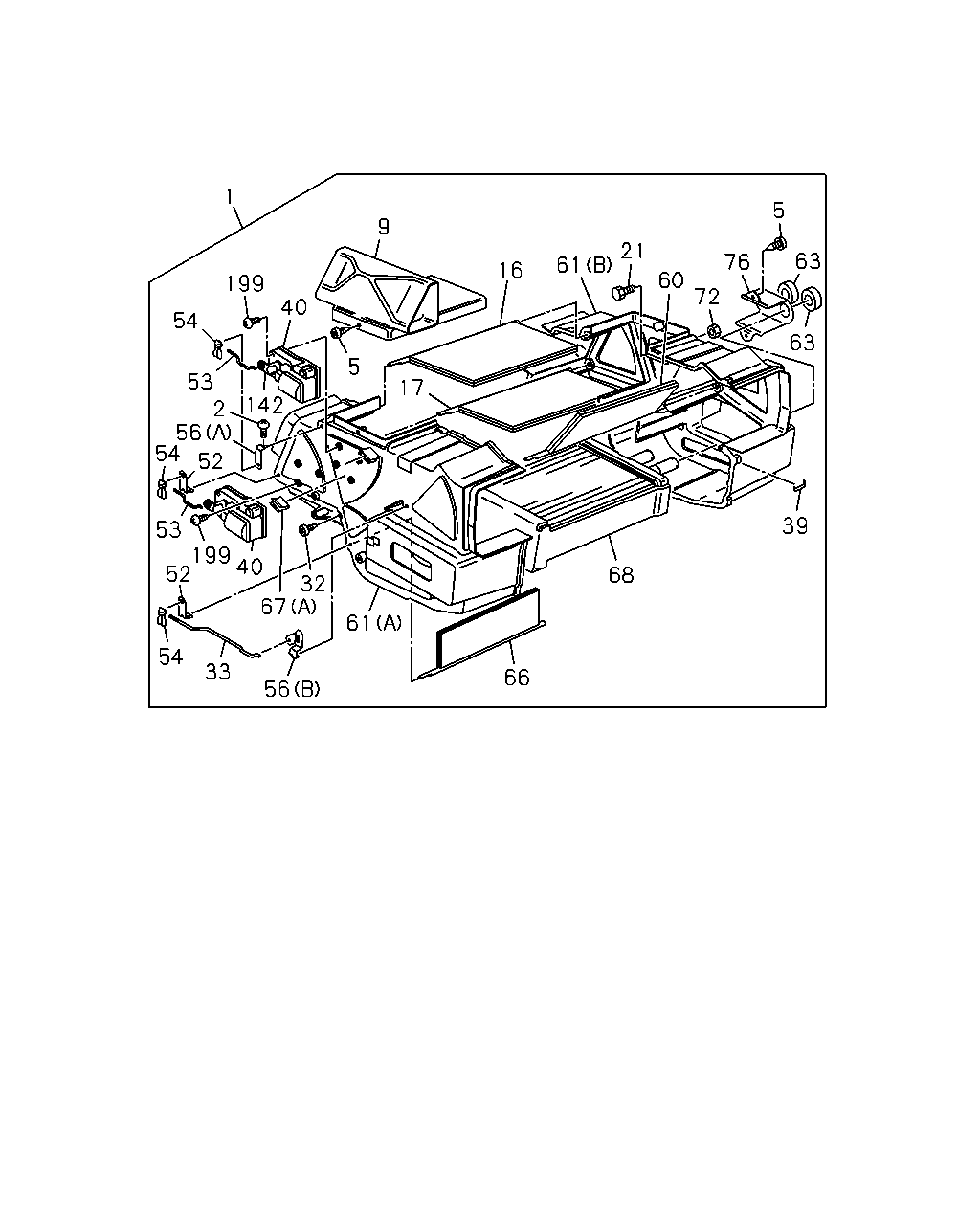

çizim 6840
66 68 39 63 63 5 76 72 60 21 61 16 9 1 199 54 53 40 5 17 142 2 56 54 52 53 199 52 54 33 67 40 32 61 56
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 HEATER UNIT 1-83511-109-4 01 1 9002- ● ●
1 HEATER UNIT 1-83511-086-4 01 1 9002- ● ●
2 SCREW; LEVER 5-83571-160-0 04 1 9002- ● ● ● ●
5 SCREW; BRKT
M5X12 TAPPING 		9-07076-512-0 04 1 9002- ● ●
9 DUCT; HTR UNIT 1-83563-118-1 01 1 9002- ● ●
16 SHUTTER; HTR UNIT,CENTER UPR 1-83579-096-1 01 1 9002- ● ●
16 SHUTTER; HTR UNIT,CENTER UPR 1-83579-272-1 01 1 9002- ● ●
17 SHUTTER; HTR UNIT,CENTER 1-83579-100-1 01 1 9002- ● ●
17 SHUTTER; HTR UNIT,CENTER 1-83579-131-1 01 1 9002- ● ●
21 BOLT; CASE,HTR UNIT 1-15619-207-0 03 1 9002- ● ● ● ●
32 SCREW; HTR UNIT 1-83579-133-0 01 1 9002- ● ●
32 SCREW; HTR UNIT 1-83579-133-0 02 1 9002- ● ●
33 ROD; SHUTTER LEVER
(B) 		1-83579-099-0 02 1 9002- ● ●
33 ROD; SHUTTER LEVER
(A) 		1-83579-393-0 01 1 9002- ● ●
33 ROD; SHUTTER LEVER 1-83579-128-1 01 1 9002- ● ●
39 CLIP; HTR UNIT 1-83574-143-0 03 1 9002- ● ●
39 CLIP; HTR UNIT 1-83574-148-0 09 1 9002- ● ●
40 ACTUATOR; HTR UNIT
D/H 		1-83579-419-0 02 1 9002- ● ● ● ●
52 LEVER; SHUTTER,HTR UNIT 1-83564-216-0 02 1 9002- ● ●
53 ROD; SHUTTER LEVER 1-83579-273-0 02 1 9002- ● ●
54 CLIP; SHUTTER LEVER 1-83574-143-0 03 1 9002- ● ●
56 LEVER; SHUTTER,HTR UNIT
(A) 		1-83564-110-0 01 1 9002- ● ●
56 LEVER; SHUTTER,HTR UNIT
(B) 		1-83564-112-0 01 1 9002- ● ●
56 LEVER; SHUTTER,HTR UNIT
(A) 		1-83564-163-0 01 1 9002- ● ●
56 LEVER; SHUTTER,HTR UNIT
(B) 		1-83564-215-0 01 1 9002- ● ●
60 DOOR; MIX,HTR UNIT 1-83579-193-1 01 1 9002- ● ●
61 CASE; HTR UNIT
(A) 		1-83564-106-0 01 1 9002- ● ●
61 CASE; HTR UNIT
(B) 		1-83564-205-0 01 1 9002- ● ●
61 CASE; HTR UNIT
(A) 		1-83564-213-0 01 1 9002- ● ●
61 CASE; HTR UNIT
(B) 		1-83564-214-0 01 1 9002- ● ●
63 LINING; HTR UNIT 1-83579-237-0 02 1 9002- ● ●
63 LINING; HTR UNIT 1-83579-104-0 02 1 9002- ● ●
66 SHUTTER; HTR UNIT,CENTER LWR 1-83579-097-1 01 1 9002- ● ●
66 SHUTTER; HTR UNIT,CENTER LWR 1-83579-271-1 01 1 9002- ● ●
67 CLIP; HTR UNIT
(B) 		1-83574-148-0 18 1 9002- ● ●
67 CLIP; HTR UNIT
(A) 		1-83574-149-0 01 1 9002- ● ● ● ●
68 CORE; HTR UNIT 1-83562-057-0 01 1 9002- ● ●
68 CORE; HTR UNIT 1-83562-034-1 01 1 9002- ● ●
72 NUT; CASE,HTR UNIT 9-88410-525-0 03 1 9002- ● ● ● ●
76 BRACKET; HTR UNIT 1-83571-368-0 01 1 9002- ● ●
142 LEVER; ACTUATOR 1-83564-114-0 02 1 9002- ● ●
199 SCREW; ACTUATOR 1-83579-422-0 06 1 9002- ● ● ● ●

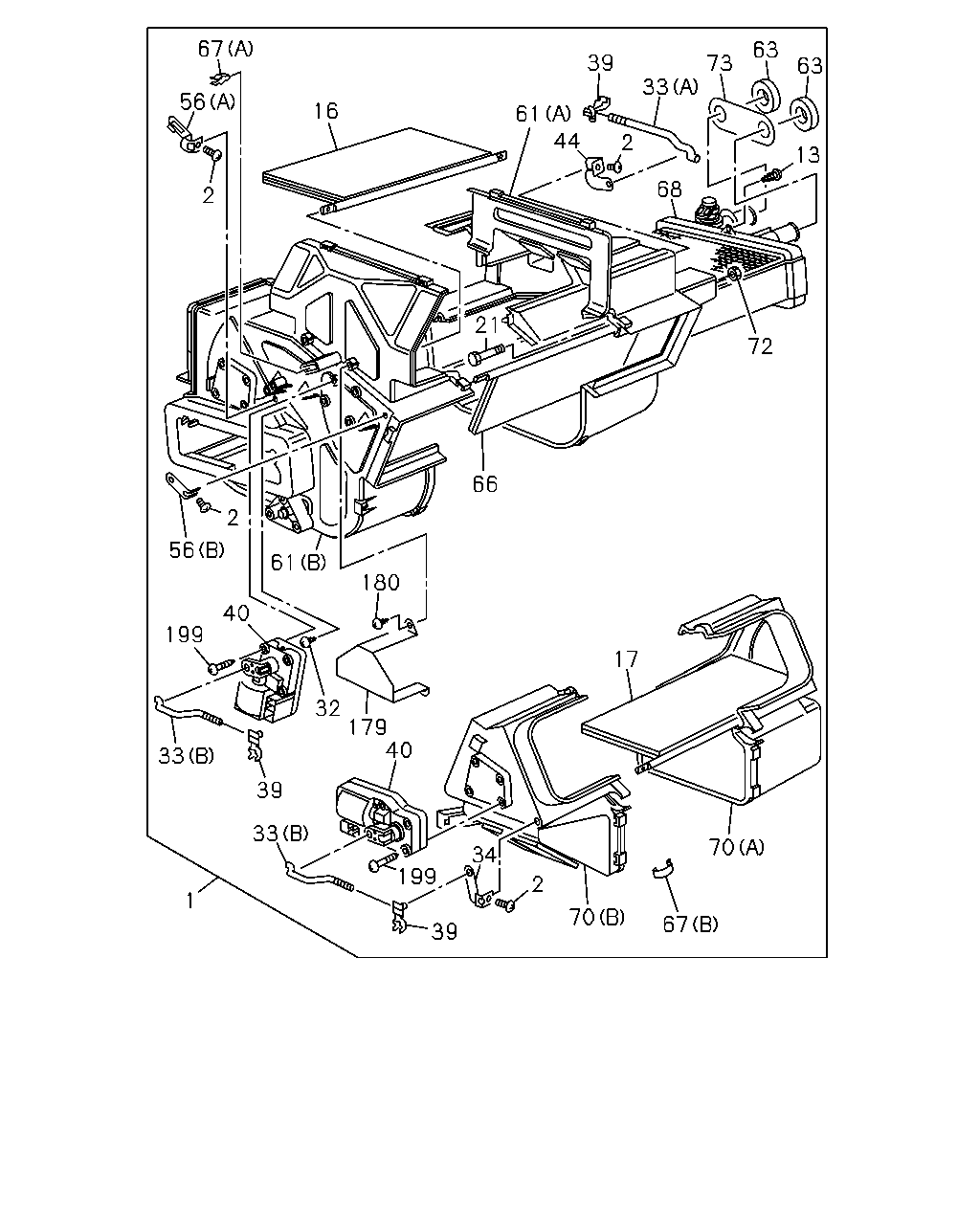

çizim 6841
67 70 2 70 17 34 199 39 1 33 39 40 179 32 33 199 40 61 180 66 56 2 72 13 63 63 73 33 2 68 44 61 39 16 2 56 67 21
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 HEATER UNIT 1-83511-109-4 01 1 9002- ● ●
1 HEATER UNIT 1-83511-086-4 01 1 9002- ● ●
2 SCREW; LEVER 5-83571-160-0 04 1 9002- ● ● ● ●
13 SCREW; THERMOSTAT TO BODY 8-94248-807-0 01 1 9002- ● ●
16 SHUTTER; HTR UNIT,CENTER UPR 1-83579-096-1 01 1 9002- ● ●
16 SHUTTER; HTR UNIT,CENTER UPR 1-83579-272-1 01 1 9002- ● ●
17 SHUTTER; HTR UNIT,CENTER 1-83579-100-1 01 1 9002- ● ●
17 SHUTTER; HTR UNIT,CENTER 1-83579-131-1 01 1 9002- ● ●
21 BOLT; CASE,HTR UNIT 1-15619-207-0 03 1 9002- ● ● ● ●
32 SCREW; HTR UNIT 1-83579-133-0 01 1 9002- ● ●
32 SCREW; HTR UNIT 1-83579-133-0 02 1 9002- ● ●
33 ROD; SHUTTER LEVER
(B) 		1-83579-099-0 02 1 9002- ● ●
33 ROD; SHUTTER LEVER
(A) 		1-83579-393-0 01 1 9002- ● ●
33 ROD; SHUTTER LEVER 1-83579-128-1 01 1 9002- ● ●
34 LEVER; SHUTTER,HTR UNIT 1-83564-113-0 01 1 9002- ● ●
39 CLIP; HTR UNIT 1-83574-143-0 03 1 9002- ● ●
39 CLIP; HTR UNIT 1-83574-148-0 09 1 9002- ● ●
40 ACTUATOR; HTR UNIT
D/H 		1-83579-419-0 02 1 9002- ● ● ● ●
44 LEVER; SHUTTER,HTR UNIT 1-83564-111-0 01 1 9002- ● ●
56 LEVER; SHUTTER,HTR UNIT
(A) 		1-83564-110-0 01 1 9002- ● ●
56 LEVER; SHUTTER,HTR UNIT
(B) 		1-83564-112-0 01 1 9002- ● ●
56 LEVER; SHUTTER,HTR UNIT
(A) 		1-83564-163-0 01 1 9002- ● ●
56 LEVER; SHUTTER,HTR UNIT
(B) 		1-83564-215-0 01 1 9002- ● ●
61 CASE; HTR UNIT
(A) 		1-83564-106-0 01 1 9002- ● ●
61 CASE; HTR UNIT
(B) 		1-83564-205-0 01 1 9002- ● ●
61 CASE; HTR UNIT
(A) 		1-83564-213-0 01 1 9002- ● ●
61 CASE; HTR UNIT
(B) 		1-83564-214-0 01 1 9002- ● ●
63 LINING; HTR UNIT 1-83579-237-0 02 1 9002- ● ●
63 LINING; HTR UNIT 1-83579-104-0 02 1 9002- ● ●
66 SHUTTER; HTR UNIT,CENTER LWR 1-83579-097-1 01 1 9002- ● ●
66 SHUTTER; HTR UNIT,CENTER LWR 1-83579-271-1 01 1 9002- ● ●
67 CLIP; HTR UNIT
(B) 		1-83574-148-0 18 1 9002- ● ●
67 CLIP; HTR UNIT
(A) 		1-83574-149-0 01 1 9002- ● ● ● ●
68 CORE; HTR UNIT 1-83562-057-0 01 1 9002- ● ●
68 CORE; HTR UNIT 1-83562-034-1 01 1 9002- ● ●
70 CASE; HTR UNIT,CENTER
(A) 		1-83564-108-0 01 1 9002- ● ●
70 CASE; HTR UNIT,CENTER
(B) 		1-83564-109-0 01 1 9002- ● ●
72 NUT; CASE,HTR UNIT 9-88410-525-0 03 1 9002- ● ● ● ●
73 PLATE; HTR UNIT 1-83579-103-0 01 1 9002- ● ●
179 COVER; ACTUATOR 1-83579-366-0 01 1 9002- ● ●
180 SCREW; COVER,ACTUATOR
M4X16 TAPPING 		1-83579-114-0 03 1 9002- ● ●
199 SCREW; ACTUATOR 1-83579-422-0 06 1 9002- ● ● ● ●
