◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 10890 - FSR34(RHD) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-30 - GEAR SHIFTER AND QUADRANT BOX ▶
2-30 — GEAR SHIFTER AND QUADRANT BOX (#31040) — 119 parça

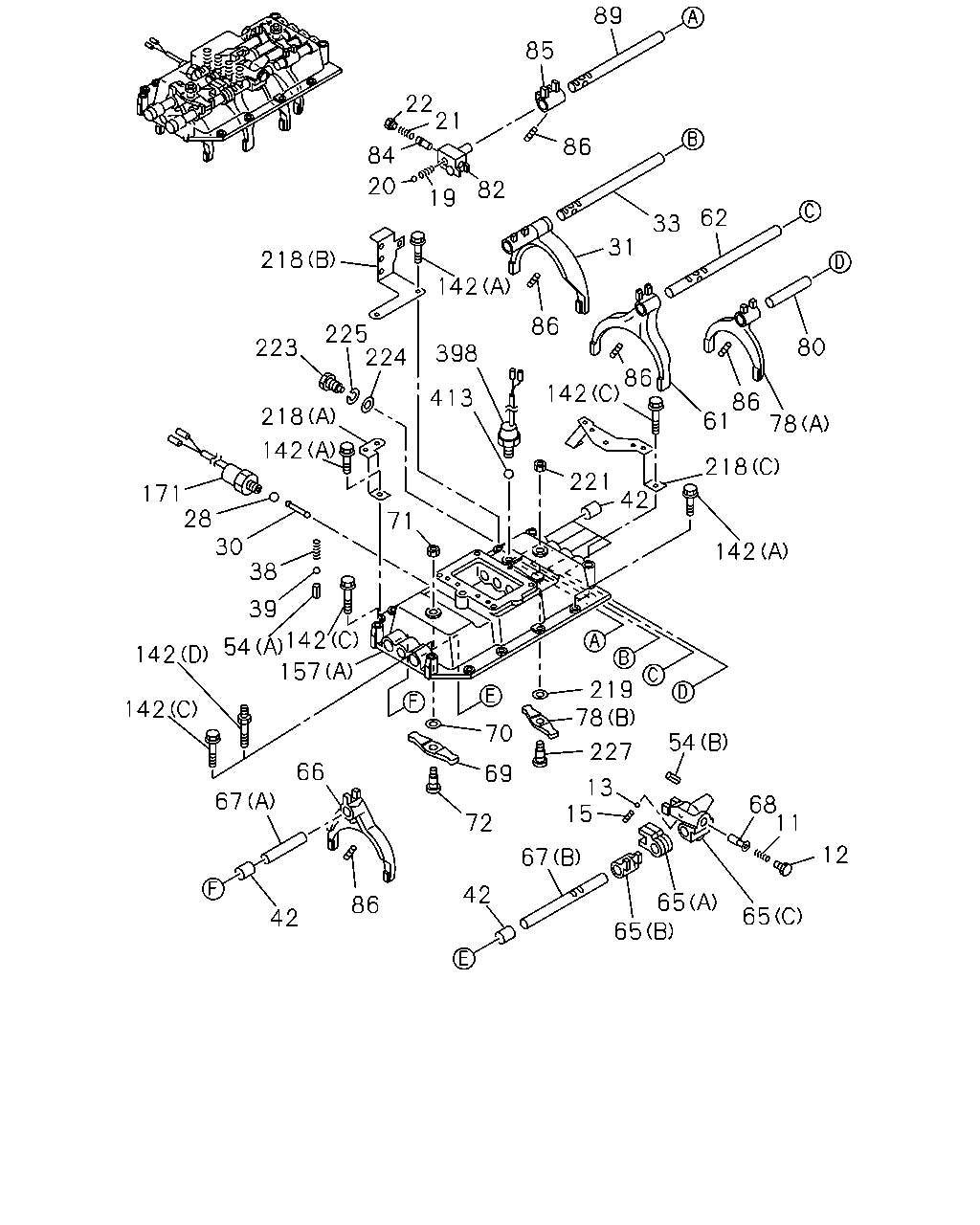

çizim 21606
89 85 22 21 84 86 19 20 82 62 33 31 218 142 225 224 86 80 223 398 86 142 413 86 61 78 218 142 218 221 42 171 28 30 38 71 142 39 142 157 54 142 219 78 142 70 54 227 66 69 13 15 67 68 11 72 12 67 42 65 65 86 65 42
BalonParca AdiParca NoAdetTipApplied Date
11 SPRING; RETURN,SHIFT SLEEVE 9-09941-160-0 01 1 0107-
12 CAP; RETURN SPR,SHIFT BLOCK 9-33516-060-1 01 1 0107-
13 BALL; LK,SHIFT SLEEVE 9-00097-509-0 01 1 0107-
15 SPRING; LK,SHIFT SLEEVE 1-09580-442-0 01 1 0107-
19 SPRING; COIL COMP 1-09580-441-0 01 1 0107-
20 BALL; DETENT SLEEVE 9-00097-509-0 01 1 0107-
21 SPRING; COIL COMP SLEEVE 9-09941-160-0 01 1 0107-
22 CAP; RETURN SPR,SHIFT BLOCK 9-33516-060-1 01 1 0107-
28 BALL; INTER LK 9-00097-501-0 04 1 0107-
30 PIN; INTER LK 9-33534-003-0 03 1 0107-
31 ARM; SHIFT,LOW & 2ND 1-33511-439-1 01 1 0107-
33 ROD; SHIFT,LOW & 2ND 1-33531-253-1 01 1 0107-1202
33 ROD; SHIFT,LOW & 2ND 8-98207-578-0 01 1 1203-
38 SPRING; DETENT 1-09580-419-0 04 1 0107-
39 BALL; DETENT 1-09843-012-0 04 1 0107-
42 CAP; QUAD BOX
OD=24 L=31 		9-33545-011-1 06 1 0107-
54 PIN; SPR,SHIFT BLOCK
(B) 		1-09748-006-0 01 1 0107-0201
54 PIN; SPR,SHIFT BLOCK
(A) 		1-09748-014-0 03 1 0107-
61 ARM; SHIFT,3RD & 4TH 1-33511-490-1 01 1 0107-
62 ROD; SHIFT,3RD & 4TH 1-33531-254-1 01 1 0107-1202
62 ROD; SHIFT,3RD & 4TH 8-98207-586-0 01 1 1203-
65 BLOCK ASM; SHIFT,5TH & 6TH
(A) 		1-33511-202-3 01 1 0107-
65 BLOCK ASM; SHIFT,5TH & 6TH
(B) 		1-33511-208-3 01 1 0107-
65 BLOCK ASM; SHIFT,5TH & 6TH
(C) 		1-33511-513-0 01 1 0107-
66 ARM; SHIFT,5TH & 6TH 1-33511-505-0 01 1 0107-
67 ROD; SHIFT,5TH & 6TH
(A) L=122 		1-33531-235-1 01 1 0107-1202
67 ROD; SHIFT,5TH & 6TH
(A) L=122 		8-98207-587-0 01 1 1203-
67 ROD; SHIFT,5TH & 6TH
(B) L=278 		1-33531-255-1 01 1 0107-1202
67 ROD; SHIFT,5TH & 6TH
(B) L=278 		8-98207-589-0 01 1 1203-
68 SLEEVE; 5TH & 6TH 1-33516-025-0 01 1 0107-
69 LEVER; SHIFT,5TH & 6TH 1-33511-082-0 01 1 0107-
70 WASHER; PL,SHIFT LEVER
ID=16.5 		9-09857-042-0 01 1 0107-
71 NUT; SHIFT LEVER
M12 FLANGE 		0-91150-212-0 01 1 0107-0602
71 NUT; SHIFT LEVER
M12 FLANGE 		0-91180-212-0 01 1 0603-
72 SPINDLE; 5TH & 6TH 1-33519-012-0 01 1 0107-
78 ARM; SHIFT,REV
(B) 		1-33511-082-0 01 1 0107-
78 ARM; SHIFT,REV
(A) 		1-33511-234-1 01 1 0107-
80 ROD; SHIFT,REV ARM 1-33531-234-1 01 1 0107-1202
80 ROD; SHIFT,REV ARM 8-98207-584-0 01 1 1203-
82 BLOCK; SHIFT,REV 1-33511-310-1 01 1 0107-
84 SLEEVE; REV 1-33516-025-0 01 1 0107-
85 BLOCK; SHIFT,REV RR 1-33511-201-3 01 1 0107-
86 SCREW; TAPER,ARM TO ROD
M12X20 		1-09052-039-0 09 1 0107-
89 ROD; SHIFT,REV 1-33531-252-1 01 1 0107-1202
89 ROD; SHIFT,REV 8-98207-582-0 01 1 1203-
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		0-28181-028-0 12 1 0107-0805
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		8-98044-944-0 12 1 0806-
142 BOLT; QUAD BOX
(C) M10X60 FLANGE 		0-28181-060-0 03 1 0107-0512
142 BOLT; QUAD BOX
(C) M10X60 FLANGE 		0-28151-060-0 03 1 0601-
142 BOLT; QUAD BOX
(B) M10X28 FLANGE REAMER 		1-09040-089-1 02 1 0107-0805
142 BOLT; QUAD BOX
(B) M10X28 FLANGE REAMER 		8-97365-375-0 02 1 0806-
142 BOLT; QUAD BOX
(D) M10X20,M10X60 L=90 		1-09049-020-0 01 1 0107-
157 BOX; QUAD,TRANS
(B) 		1-33541-478-0 01 1 0107-
157 BOX; QUAD,TRANS
(A) 		1-33541-481-0 01 1 0107-
171 SWITCH; NEUTRAL 1-82440-101-1 01 1 0107-0702
171 SWITCH; NEUTRAL 8-98072-777-0 01 1 0703-0801
171 SWITCH; NEUTRAL 8-98108-345-0 01 1 0802-1104
171 SWITCH; NEUTRAL 8-98166-989-0 01 1 1105-1109
171 SWITCH; NEUTRAL 8-97640-725-0 01 1 1110-
218 BRACKET; HARNESS CLIP,QUAD BOX
(A) 		1-82699-639-1 01 1 0107-
218 BRACKET; HARNESS CLIP,QUAD BOX
(B) 		1-82699-663-1 01 1 0107-
218 BRACKET; HARNESS CLIP,QUAD BOX
(C) 		1-82699-733-0 01 1 0107-
219 WASHER; PL,SPINDLE
ID=16.5 		9-09857-042-0 01 1 0107-
221 NUT; SPINDLE
M12 FLANGE 		0-91150-212-0 01 1 0107-0602
221 NUT; SPINDLE
M12 FLANGE 		0-91180-212-0 01 1 0603-
223 SCREW; SET,QUAD BOX
M14X45 		9-09816-057-1 01 1 0107-
224 WASHER; PL,QUAD BOX
ID=15 		9-09160-514-0 01 1 0107-0605
224 WASHER; PL,QUAD BOX
ID=15 		0-91610-514-0 01 1 0606-
225 WASHER; LK,QUAD BOX
ID=14.2 		9-09150-514-0 01 1 0107-0603
225 WASHER; LK,QUAD BOX
ID=14.2 		0-91510-514-0 01 1 0604-
227 SPINDLE; 1ST & REV 1-33519-012-0 01 1 0107-
398 SWITCH; REV LAMP 1-82440-083-3 01 1 0107-0602
398 SWITCH; REV LAMP 8-98042-853-0 01 1 0603-1209
398 SWITCH; REV LAMP 8-98228-482-0 01 1 1210-
413 BALL; BACK SW 9-00097-013-0 01 1 0107-

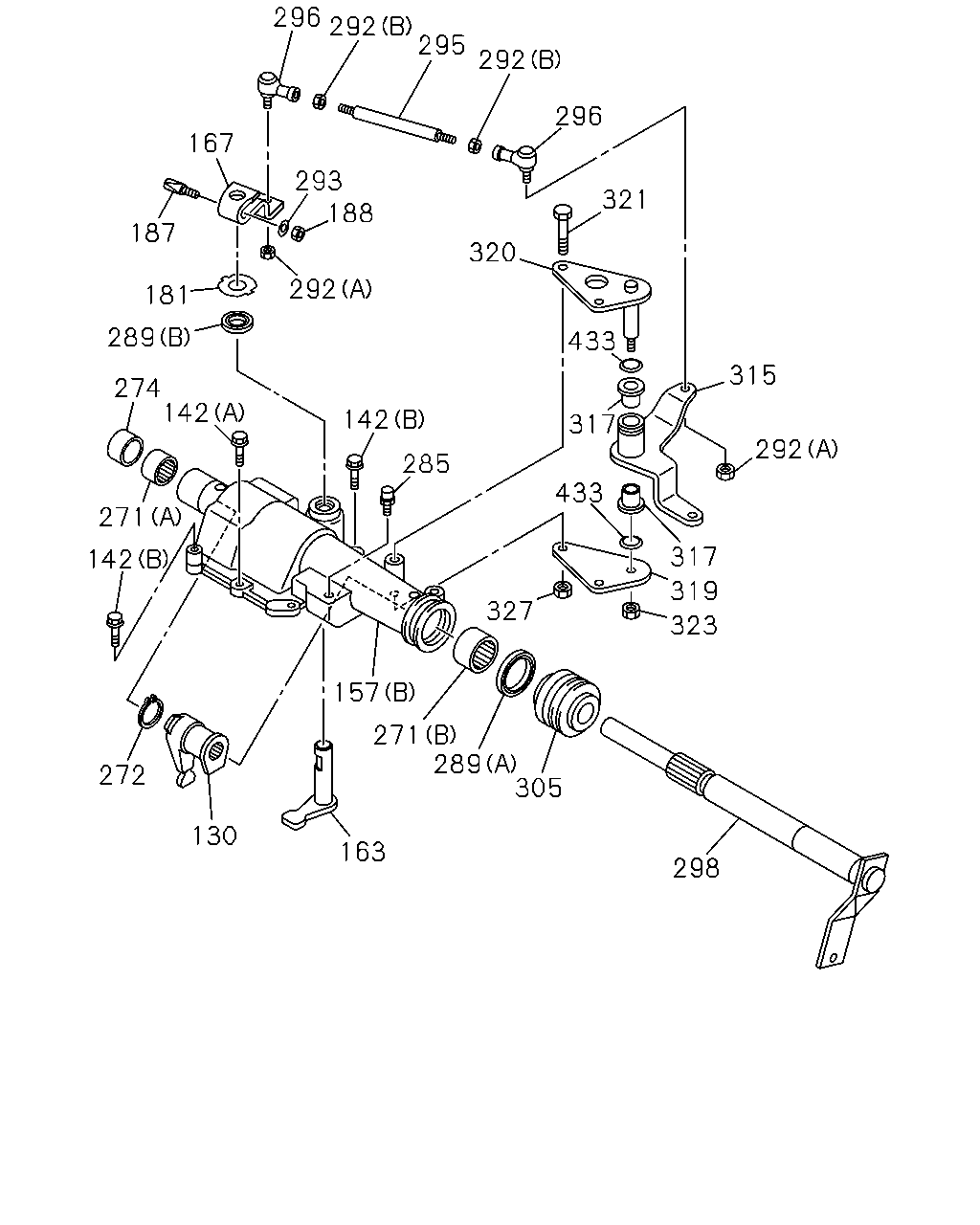

çizim 24559
296 292 295 292 296 167 293 188 321 187 320 292 181 289 433 315 274 142 142 317 292 285 433 271 317 142 319 327 323 157 271 289 305 272 130 163 298
BalonParca AdiParca NoAdetTipApplied Date
130 LEVER; SHIFT,INTERNAL 1-33521-111-1 01 1 0107-
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		0-28181-028-0 12 1 0107-0805
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		8-98044-944-0 12 1 0806-
142 BOLT; QUAD BOX
(C) M10X60 FLANGE 		0-28181-060-0 03 1 0107-0512
142 BOLT; QUAD BOX
(C) M10X60 FLANGE 		0-28151-060-0 03 1 0601-
142 BOLT; QUAD BOX
(B) M10X28 FLANGE REAMER 		1-09040-089-1 02 1 0107-0805
142 BOLT; QUAD BOX
(B) M10X28 FLANGE REAMER 		8-97365-375-0 02 1 0806-
142 BOLT; QUAD BOX
(D) M10X20,M10X60 L=90 		1-09049-020-0 01 1 0107-
157 BOX; QUAD,TRANS
(B) 		1-33541-478-0 01 1 0107-
157 BOX; QUAD,TRANS
(A) 		1-33541-481-0 01 1 0107-
163 LEVER; SELECT,INTERNAL 1-33522-041-4 01 1 0107-
167 LEVER; SELECT,EXTERNAL 1-33521-064-1 01 1 0107-
181 WASHER; PL,SELECT LEVER
OD=40 		1-09532-008-0 01 1 0107-
187 BOLT; SELECT LEVER
M8X42 		1-33659-045-0 01 1 0107-
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-062-1 01 1 0107-
271 BUSHING; QUAD BOX
(A) ID=20 OD=23 		1-33549-016-0 01 1 0107-
271 BUSHING; QUAD BOX
(B) ID=28 OD=32 		1-33549-104-0 01 1 0107-
272 RING; SNAP,QUAD BOX 1-09588-175-0 01 1 0107-
274 COVER; SHAFT,QUAD BOX 9-33545-017-1 01 1 0107-
285 BREATHER; AIR,QUAD BOX 1-33149-003-0 01 1 0107-
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41 		1-09625-334-0 01 1 0107-0307
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41 		1-09625-647-0 01 1 0308-
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30 		1-09625-386-0 01 1 0107-
292 NUT; LINK ROD
(A) M8 FLANGE 		1-09440-062-1 02 1 0107-
292 NUT; LINK ROD
(B) M8 		9-09111-408-0 02 1 0107-0512
292 NUT; LINK ROD
(B) M8 		0-91111-508-0 02 1 0601-
293 WASHER; PL,TAPER BOLT
ID=8.4 OD=22 		9-09160-708-0 01 1 0107-0605
293 WASHER; PL,TAPER BOLT
ID=8.4 OD=22 		0-91610-708-0 01 1 0606-
295 ROD; LINK,RELAY LEVER
L=130 		1-09765-262-0 01 1 0107-
296 ROD END
L=48 		1-09760-038-1 02 1 0107-0309
296 ROD END
L=45.5 		1-09760-118-1 02 1 0310-
298 SHAFT; SHIFT LEVER 1-33522-166-0 01 1 0107-0307
298 SHAFT; SHIFT LEVER 1-33522-187-0 01 1 0308-
305 BOOT; LEVER SHAFT 1-33529-028-0 01 1 0107-
315 LEVER; SELECT 1-33651-702-0 01 1 0107-
317 BUSHING; LEVER 1-09330-119-0 02 1 0107-
319 BRACKET; SELECT LEVER 1-33657-515-0 01 1 0107-
320 SHAFT; LEVER 1-33619-474-0 01 1 0107-
321 BOLT; BRKT,RELAY LEVER
M10X80 		0-10806-080-0 02 1 0107-0512
321 BOLT; BRKT,RELAY LEVER
M10X80 		0-10856-080-0 02 1 0601-
323 NUT; LK,SELECT LEVER
M10 FLANGE 		0-91150-110-0 01 1 0107-
327 NUT; BRKT,RELAY LEVER
M10 FLANGE 		0-91150-210-0 02 1 0107-0602
327 NUT; BRKT,RELAY LEVER
M10 FLANGE 		0-91180-210-0 02 1 0603-
433 GASKET; BUSHING 1-09623-594-0 02 1 0107-
