Sayfa 8-52 - Isuzu EPC

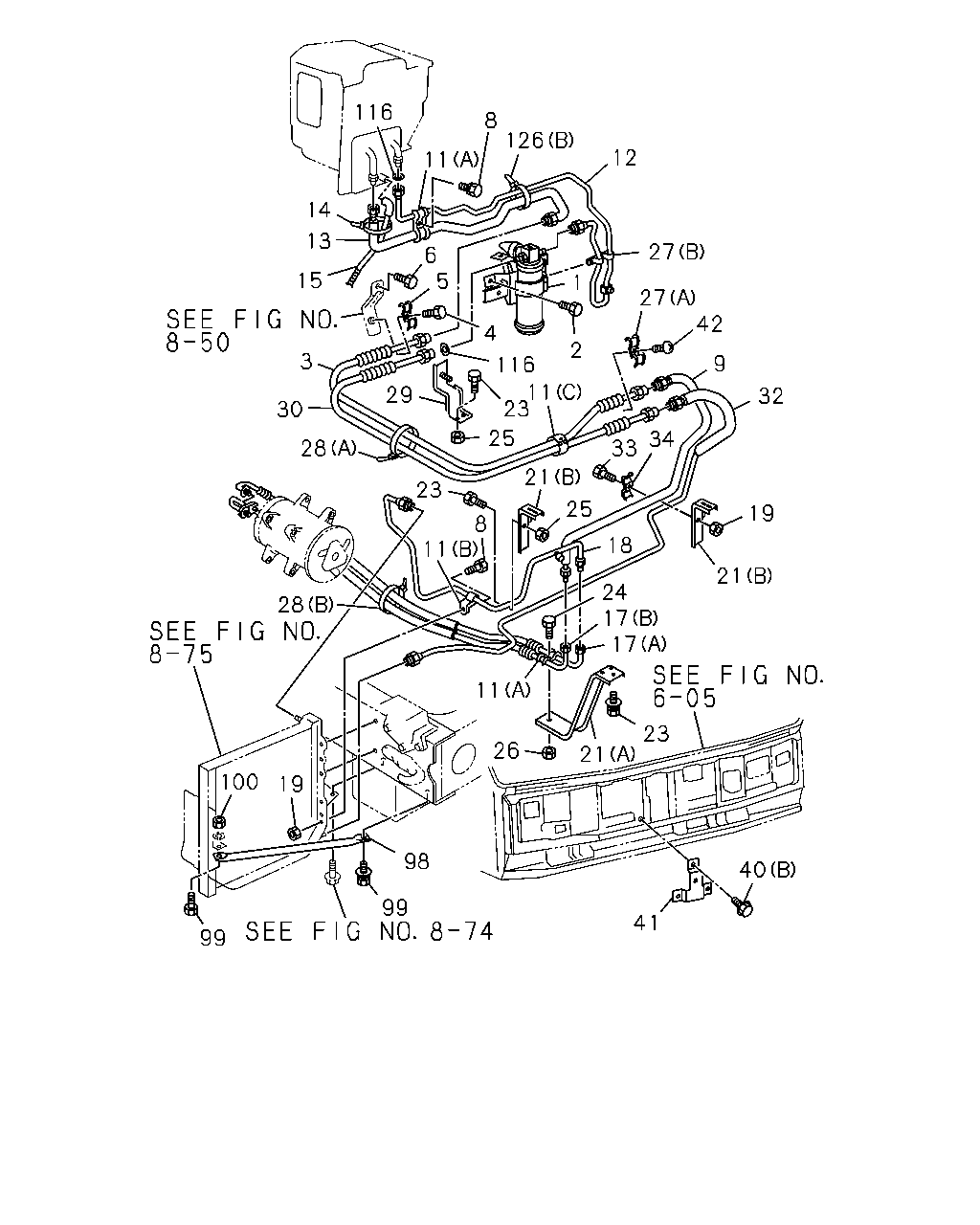

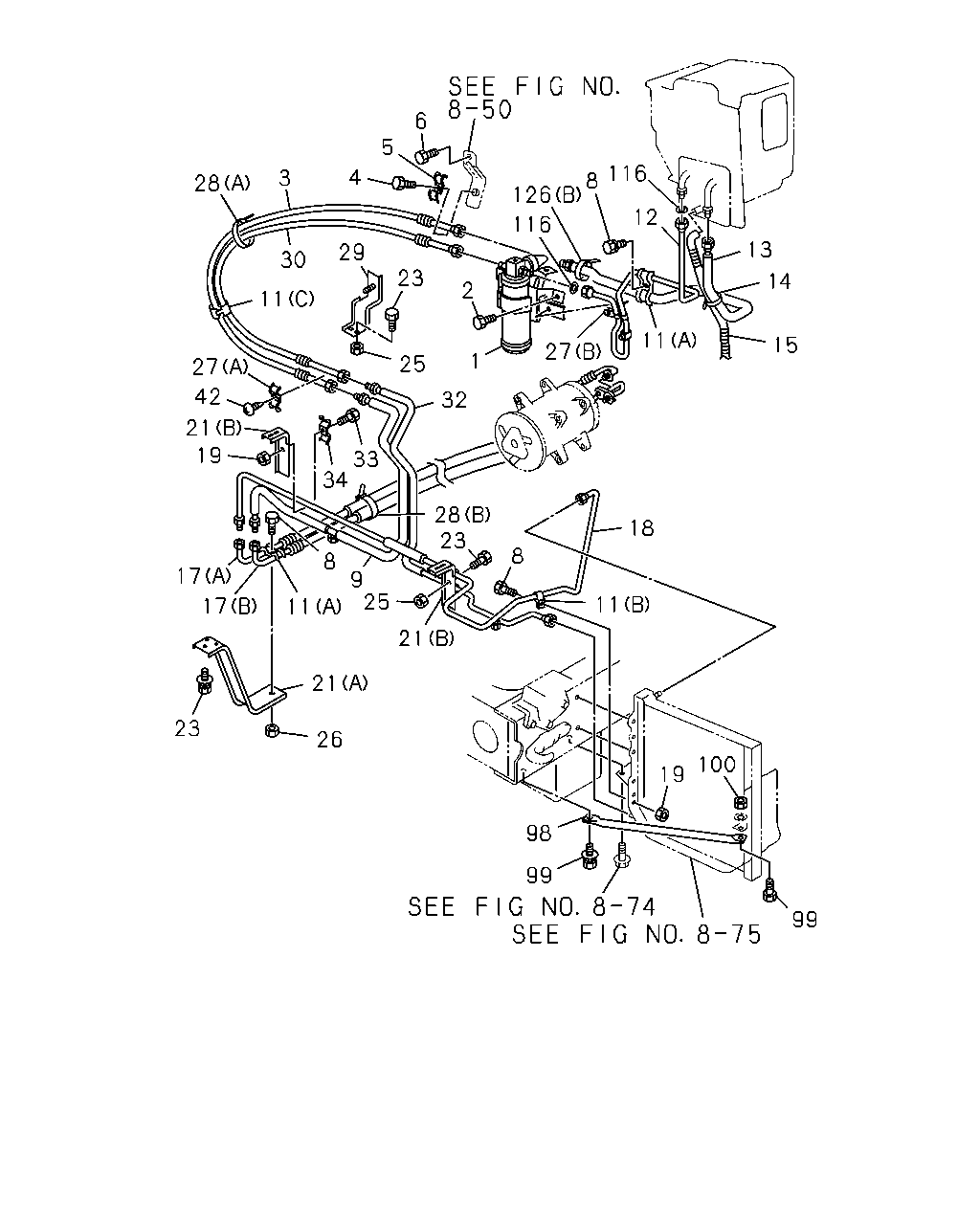

8-52 — PIPING; AIR CONDITIONING (#3104) — 240 parça

99 99 98 19 100 11 18 8 23 28 21 25 9 8 11 21 26 23 17 17 19 21 42 27 11 30 29 23 25 32 33 34 1 27 2 116 126 8 116 13 14 15 11 6 5 4 3 28 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	TANK; RECEIVER AIR CONDITIONER MANUAL CONTROL(C60)	1-83535-037-2	01	1	9002-9306	●	●	●	●
1	TANK; RECEIVER AIR CONDITIONER MANUAL CONTROL(C60) "R-134A"	1-83535-065-0	01	1	9307-		●		●
2	BOLT; RECEIVER TANK AIR CONDITIONER MANUAL CONTROL(C60) M6X20	1-09980-279-0	03	1	9002-	●	●	●	●
3	HOSE; FLEX,EVAP TO COOLER CMPR AIR CONDITIONER MANUAL CONTROL(C60)	1-83566-608-0	01	1	9002-9306	●	●	●	●
3	HOSE; FLEX,EVAP TO COOLER CMPR AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-037-0	01	1	9307-		●		●
4	SCREW; CLIP,FLEX HOSE,A/C AIR CONDITIONER MANUAL CONTROL(C60) M6X16 W/LK WASHER	9-03910-616-0	01	1	9002-9203	●	●	●	●
4	SCREW; CLIP,FLEX HOSE,A/C AIR CONDITIONER MANUAL CONTROL(C60) M6X16 W/LK&PL WASHER	1-09980-574-0	01	1	9204-	●	●	●	●
5	CLIP; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONTROL(C60) ID=10.5 & 16.6	1-09700-636-1	01	1	9002-9306	●	●	●	●
5	CLIP; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONTROL(C60) ID=9.2 & 16.2	1-83574-188-0	01	1	9307-		●		●
6	SCREW; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M6X16 W/LK WASHER	9-03910-616-0	01	1	9002-9203	●	●	●	●
6	SCREW; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M6X16 W/LK&PL WASHER	1-09980-574-0	01	1	9204-	●	●	●	●
8	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M6X20 W/LK WASHER	9-01900-620-0	02	1	9002-9204	●	●	●	●
8	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M6X20 W/LK WASHER	0-50040-620-0	02	1	9205-9302	●	●	●	●
8	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M6X20 FLANGE	0-28080-620-0	02	1	9303-9306	●	●	●	●
8	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8X30 W/LK WASHER	9-01900-830-0	01	1	9002-9204	●	●	●	●
8	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8X30 W/LK WASHER	0-50040-830-0	01	1	9205-9302	●	●	●	●
8	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8X30 FLANGE	0-28080-830-0	01	1	9303-	●	●	●	●
8	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M6X20 FLANGE	0-28080-620-0	02	1	9307-		●
8	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M6X20 FLANGE	0-28080-620-0	01	1	9307-				●
9	PIPE; COOLER,HOSE TO HOSE AIR CONDITIONER MANUAL CONTROL(C60)	1-83567-175-1	01	1	9002-9306	●	●	●	●
9	PIPE; COOLER,HOSE TO HOSE AIR CONDITIONER MANUAL CONTROL(C60)	1-83567-508-0	01	1	9307-		●		●
11	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=12.7 & 20	1-09700-640-0	01	1	9002-	●	●
11	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=9.6 & 12.7	1-83574-114-0	01	1	9002-9306	●	●
11	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=8.2 & 12.2	1-83574-206-0	01	1	9307-		●
11	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=12 H=24 L=20	1-09700-605-0	01	1	9002-	●	●	●	●
11	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=10.5 & 16.6	1-09700-636-1	01	1	9002-9306	●	●	●	●
11	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=9.2 & 16.2	1-83574-188-0	01	1	9307-		●		●
11	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-09707-123-0	01	1	9002-	●	●	●	●
11	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A) D=20 & 9.6	1-09700-639-0	01	1	9002-9306			●	●
11	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=12.2 & 20	1-83574-185-0	01	1	9307-				●
11	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A) D=12.7 & 9.6	1-83574-103-0	01	1	9002-			●	●
12	PIPE; COOLER,EVAP TO TANK AIR CONDITIONER MANUAL CONTROL(C60)	1-83567-100-0	01	1	9002-9306	●	●
12	PIPE; COOLER,EVAP TO TANK AIR CONDITIONER MANUAL CONTROL(C60)	1-83567-506-0	01	1	9307-		●
12	PIPE; COOLER,EVAP TO TANK AIR CONDITIONER MANUAL CONTROL(C60)	1-83567-156-1	01	1	9002-9306			●	●
12	PIPE; COOLER,EVAP TO TANK AIR CONDITIONER MANUAL CONTROL(C60)	1-83567-466-0	01	1	9307-				●
13	PIPE; COOLER,EVAP TO FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60)	1-83567-101-1	01	1	9002-9306	●	●
13	PIPE; COOLER,EVAP TO FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60)	1-83567-507-0	01	1	9307-		●
13	PIPE; COOLER,EVAP TO FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60)	1-83567-155-1	01	1	9002-9306			●	●
13	PIPE; COOLER,EVAP TO FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60)	1-83567-465-0	01	1	9307-				●
14	CLIP; BAND,EVAP DRAIN HOSE AIR CONDITIONER MANUAL CONTROL(C60) L=250	5-09707-030-1	03	1	9002-	●	●	●	●
15	HOSE; DRAIN AIR CONDITIONER MANUAL CONTROL(C60)	1-83566-254-1	01	1	9002-	●	●	●	●
17	HOSE; FLEX,CMPR TO PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83566-588-0	01	1	9002-9306	●	●	●	●
17	HOSE; FLEX,CMPR TO PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83572-034-0	01	1	9307-		●		●
17	HOSE; FLEX,CMPR TO PIPE AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83566-589-0	01	1	9002-9306	●	●	●	●
17	HOSE; FLEX,CMPR TO PIPE AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83572-035-0	01	1	9307-		●		●
18	PIPE; CONDENSER TO CMPR AIR CONDITIONER MANUAL CONTROL(C60)	1-83567-176-1	01	1	9002-9306	●	●
18	PIPE; CONDENSER TO CMPR AIR CONDITIONER MANUAL CONTROL(C60)	1-83567-502-0	01	1	9307-		●
18	PIPE; CONDENSER TO CMPR AIR CONDITIONER MANUAL CONTROL(C60)	1-83567-166-0	01	1	9002-9306			●	●
18	PIPE; CONDENSER TO CMPR AIR CONDITIONER MANUAL CONTROL(C60)	1-83567-504-0	01	1	9307-				●
19	NUT; CLIP FIX AIR CONDITIONER MANUAL CONTROL(C60) M6	9-09110-406-0	01	1	9002-9103	●	●	●	●
19	NUT; CLIP FIX AIR CONDITIONER MANUAL CONTROL(C60) M6 FLANGE	5-09440-004-0	01	1	9104-	●	●	●	●
19	NUT; CLIP FIX AIR CONDITIONER MANUAL CONTROL(C60) M8	9-09110-408-0	01	1	9002-	●	●	●	●
21	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83571-311-1	02	1	9002-9306	●	●	●	●
21	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83571-312-1	01	1	9002-	●	●	●	●
21	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83571-710-0	02	1	9307-		●
21	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83571-710-0	01	1	9307-				●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8X20 W/LK WASHER	9-01900-820-0	04	1	9002-9204	●	●	●	●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8X20 W/LK WASHER	0-50040-820-0	04	1	9205-9302	●	●	●	●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE	0-28080-820-0	04	1	9303-9306	●	●	●	●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE	0-28080-820-0	04	1	9307-		●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8X20 W/LK WASHER	9-01900-820-0	05	1	9002-9204	●	●	●	●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8X20 W/LK WASHER	0-50040-820-0	05	1	9205-9302	●	●	●	●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE	0-28080-820-0	05	1	9303-	●	●	●	●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE	0-28080-820-0	02	1	9307-				●
25	NUT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8	9-09110-408-0	02	1	9002-	●	●	●	●
26	NUT; PIPE CLIP AIR CONDITIONER MANUAL CONTROL(C60) M6 FLANGE	5-09440-004-0	01	1	9002-9306	●	●
26	NUT; PIPE CLIP AIR CONDITIONER MANUAL CONTROL(C60) M6	9-09110-406-0	02	1	9002-9306	●	●	●	●
26	NUT; PIPE CLIP AIR CONDITIONER MANUAL CONTROL(C60) M6	9-09110-406-0	02	1	9307-		●
26	NUT; PIPE CLIP AIR CONDITIONER MANUAL CONTROL(C60) M6 FLANGE	5-09440-004-0	01	1	9307-		●		●
26	NUT; PIPE CLIP AIR CONDITIONER MANUAL CONTROL(C60) M6	9-09110-406-0	01	1	9307-				●
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A) D=20 & 9.6	1-09700-639-0	01	1	9002-	●	●
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83574-178-0	01	1	9307-		●		●
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A) D=20 & 9.6	1-09700-639-0	02	1	9002-			●	●
28	CLIP; PIPE,HOSE A/C AIR CONDITIONER MANUAL CONTROL(C60) (A) L=170	1-83574-139-0	01	1	9002-	●	●	●	●
28	CLIP; PIPE,HOSE A/C AIR CONDITIONER MANUAL CONTROL(C60) (B) L=250	5-09707-030-1	01	1	9002-	●	●	●	●
29	BRACKET; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60)	1-83571-524-0	01	1	9002-9306	●	●
29	BRACKET; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60)	1-83571-524-0	01	1	9307-		●		●
29	BRACKET; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60)	1-83571-355-0	01	1	9002-9007			●	●
29	BRACKET; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60)	1-83571-422-0	01	1	9008-9306			●	●
30	HOSE; FLEX,TANK TO CONDENSER AIR CONDITIONER MANUAL CONTROL(C60)	1-83566-339-2	01	1	9002-9306	●	●	●	●
30	HOSE; FLEX,TANK TO CONDENSER AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-036-0	01	1	9307-		●		●
32	PIPE; COOLER,HOSE TO CONDENSER AIR CONDITIONER MANUAL CONTROL(C60)	1-83567-221-0	01	1	9002-9306	●	●
32	PIPE; COOLER,HOSE TO CONDENSER AIR CONDITIONER MANUAL CONTROL(C60)	1-83567-503-0	01	1	9307-		●
32	PIPE; COOLER,HOSE TO CONDENSER AIR CONDITIONER MANUAL CONTROL(C60)	1-83567-194-1	01	1	9002-9306			●	●
32	PIPE; COOLER,HOSE TO CONDENSER AIR CONDITIONER MANUAL CONTROL(C60)	1-83567-505-0	01	1	9307-				●
33	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M6X20 W/LK WASHER	9-01900-620-0	01	1	9002-9204	●	●	●	●
33	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M6X20 W/LK WASHER	0-50040-620-0	01	1	9205-9302	●	●	●	●
33	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M6X20 FLANGE	0-28080-620-0	01	1	9303-	●	●	●	●
34	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60)	1-83574-157-0	01	1	9002-9306	●	●	●	●
34	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) ID=12.2 & 16.2	1-83574-190-0	01	1	9307-		●		●
42	SCREW; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M6X16 W/LK WASHER	9-03910-616-0	01	1	9002-9203	●	●
42	SCREW; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M6X16 W/LK&PL WASHER	1-09980-574-0	01	1	9204-9402	●	●
42	SCREW; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M6X16 W/LK&PL WASHER	1-09980-574-0	01	1	9403-		●		●
42	SCREW; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M6X16 W/LK&PL WASHER	1-09980-574-0	01	1	9403-		●
42	SCREW; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M6X12 W/LK WASHER	9-03910-612-0	02	1	9002-			●	●
98	STAY; CONDENSER AIR CONDITIONER MANUAL CONTROL(C60)	1-83571-295-1	01	1	9002-	●	●	●	●
99	BOLT; STAY FIX AIR CONDITIONER MANUAL CONTROL(C60) M8X20 W/LK WASHER	9-01900-820-0	01	1	9002-9204	●	●	●	●
99	BOLT; STAY FIX AIR CONDITIONER MANUAL CONTROL(C60) M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-9302	●	●	●	●
99	BOLT; STAY FIX AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE	0-28080-820-0	01	1	9303-	●	●	●	●
99	BOLT; STAY FIX AIR CONDITIONER MANUAL CONTROL(C60) M8X35	9-01970-835-0	01	1	9002-9005	●	●	●	●
99	BOLT; STAY FIX AIR CONDITIONER MANUAL CONTROL(C60) M8X35 W/LK&PL WASHER	0-50140-835-0	01	1	9006-	●	●	●	●
100	NUT; STAY FIX AIR CONDITIONER MANUAL CONTROL(C60) M8	9-09110-508-0	02	1	9002-	●	●	●	●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) ID=6	8-94481-700-0	02	1	9307-	●	●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) ID=7.65	8-94113-332-0	02	1	9002-9306			●	●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) ID=6.07	8-94461-902-0	02	1	9307-				●
126	CLIP; RECEIVER TANK AIR CONDITIONER MANUAL CONTROL(C60) (B)	5-09707-031-1	01	1	9002-	●	●	●	●
126	CLIP; RECEIVER TANK AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-97084-632-0	01	1	9002-	●	●	●	●

40 41 98 99 19 100 11 26 21 23 17 17 21 24 18 19 34 33 25 21 11 8 23 28 30 3 25 23 11 116 29 4 1 2 27 9 42 32 27 12 126 11 8 116 14 15 13 6 5 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	TANK; RECEIVER AIR CONDITIONER MANUAL CONTROL(C60)	1-83535-037-2	01	1	9002-9306	●	●	●	●
1	TANK; RECEIVER AIR CONDITIONER MANUAL CONTROL(C60) "R-134A"	1-83535-065-0	01	1	9307-		●		●
2	BOLT; RECEIVER TANK AIR CONDITIONER MANUAL CONTROL(C60) M6X20	1-09980-279-0	03	1	9002-	●	●	●	●
3	HOSE; FLEX,EVAP TO COOLER CMPR AIR CONDITIONER MANUAL CONTROL(C60)	1-83566-608-0	01	1	9002-9306	●	●	●	●
3	HOSE; FLEX,EVAP TO COOLER CMPR AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-037-0	01	1	9307-		●		●
4	SCREW; CLIP,FLEX HOSE,A/C AIR CONDITIONER MANUAL CONTROL(C60) M6X16 W/LK WASHER	9-03910-616-0	01	1	9002-9203	●	●	●	●
4	SCREW; CLIP,FLEX HOSE,A/C AIR CONDITIONER MANUAL CONTROL(C60) M6X16 W/LK&PL WASHER	1-09980-574-0	01	1	9204-	●	●	●	●
5	CLIP; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONTROL(C60) ID=10.5 & 16.6	1-09700-636-1	01	1	9002-9306	●	●	●	●
5	CLIP; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONTROL(C60) ID=9.2 & 16.2	1-83574-188-0	01	1	9307-		●		●
6	SCREW; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M6X16 W/LK WASHER	9-03910-616-0	01	1	9002-9203	●	●	●	●
6	SCREW; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M6X16 W/LK&PL WASHER	1-09980-574-0	01	1	9204-	●	●	●	●
8	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M6X20 W/LK WASHER	9-01900-620-0	02	1	9002-9204	●	●	●	●
8	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M6X20 W/LK WASHER	0-50040-620-0	02	1	9205-9302	●	●	●	●
8	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M6X20 FLANGE	0-28080-620-0	02	1	9303-9306	●	●	●	●
8	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8X30 W/LK WASHER	9-01900-830-0	01	1	9002-9204	●	●	●	●
8	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8X30 W/LK WASHER	0-50040-830-0	01	1	9205-9302	●	●	●	●
8	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8X30 FLANGE	0-28080-830-0	01	1	9303-	●	●	●	●
8	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M6X20 FLANGE	0-28080-620-0	02	1	9307-		●
8	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M6X20 FLANGE	0-28080-620-0	01	1	9307-				●
9	PIPE; COOLER,HOSE TO HOSE AIR CONDITIONER MANUAL CONTROL(C60)	1-83567-175-1	01	1	9002-9306	●	●	●	●
9	PIPE; COOLER,HOSE TO HOSE AIR CONDITIONER MANUAL CONTROL(C60)	1-83567-508-0	01	1	9307-		●		●
11	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=12.7 & 20	1-09700-640-0	01	1	9002-	●	●
11	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=9.6 & 12.7	1-83574-114-0	01	1	9002-9306	●	●
11	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=8.2 & 12.2	1-83574-206-0	01	1	9307-		●
11	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=12 H=24 L=20	1-09700-605-0	01	1	9002-	●	●	●	●
11	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=10.5 & 16.6	1-09700-636-1	01	1	9002-9306	●	●	●	●
11	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=9.2 & 16.2	1-83574-188-0	01	1	9307-		●		●
11	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-09707-123-0	01	1	9002-	●	●	●	●
11	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A) D=20 & 9.6	1-09700-639-0	01	1	9002-9306			●	●
11	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=12.2 & 20	1-83574-185-0	01	1	9307-				●
11	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A) D=12.7 & 9.6	1-83574-103-0	01	1	9002-			●	●
12	PIPE; COOLER,EVAP TO TANK AIR CONDITIONER MANUAL CONTROL(C60)	1-83567-100-0	01	1	9002-9306	●	●
12	PIPE; COOLER,EVAP TO TANK AIR CONDITIONER MANUAL CONTROL(C60)	1-83567-506-0	01	1	9307-		●
12	PIPE; COOLER,EVAP TO TANK AIR CONDITIONER MANUAL CONTROL(C60)	1-83567-156-1	01	1	9002-9306			●	●
12	PIPE; COOLER,EVAP TO TANK AIR CONDITIONER MANUAL CONTROL(C60)	1-83567-466-0	01	1	9307-				●
13	PIPE; COOLER,EVAP TO FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60)	1-83567-101-1	01	1	9002-9306	●	●
13	PIPE; COOLER,EVAP TO FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60)	1-83567-507-0	01	1	9307-		●
13	PIPE; COOLER,EVAP TO FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60)	1-83567-155-1	01	1	9002-9306			●	●
13	PIPE; COOLER,EVAP TO FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60)	1-83567-465-0	01	1	9307-				●
14	CLIP; BAND,EVAP DRAIN HOSE AIR CONDITIONER MANUAL CONTROL(C60) L=250	5-09707-030-1	03	1	9002-	●	●	●	●
15	HOSE; DRAIN AIR CONDITIONER MANUAL CONTROL(C60)	1-83566-254-1	01	1	9002-	●	●	●	●
17	HOSE; FLEX,CMPR TO PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83566-588-0	01	1	9002-9306	●	●	●	●
17	HOSE; FLEX,CMPR TO PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83572-034-0	01	1	9307-		●		●
17	HOSE; FLEX,CMPR TO PIPE AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83566-589-0	01	1	9002-9306	●	●	●	●
17	HOSE; FLEX,CMPR TO PIPE AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83572-035-0	01	1	9307-		●		●
18	PIPE; CONDENSER TO CMPR AIR CONDITIONER MANUAL CONTROL(C60)	1-83567-176-1	01	1	9002-9306	●	●
18	PIPE; CONDENSER TO CMPR AIR CONDITIONER MANUAL CONTROL(C60)	1-83567-502-0	01	1	9307-		●
18	PIPE; CONDENSER TO CMPR AIR CONDITIONER MANUAL CONTROL(C60)	1-83567-166-0	01	1	9002-9306			●	●
18	PIPE; CONDENSER TO CMPR AIR CONDITIONER MANUAL CONTROL(C60)	1-83567-504-0	01	1	9307-				●
19	NUT; CLIP FIX AIR CONDITIONER MANUAL CONTROL(C60) M6	9-09110-406-0	01	1	9002-9103	●	●	●	●
19	NUT; CLIP FIX AIR CONDITIONER MANUAL CONTROL(C60) M6 FLANGE	5-09440-004-0	01	1	9104-	●	●	●	●
19	NUT; CLIP FIX AIR CONDITIONER MANUAL CONTROL(C60) M8	9-09110-408-0	01	1	9002-	●	●	●	●
21	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83571-311-1	02	1	9002-9306	●	●	●	●
21	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83571-312-1	01	1	9002-	●	●	●	●
21	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83571-710-0	02	1	9307-		●
21	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83571-710-0	01	1	9307-				●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8X20 W/LK WASHER	9-01900-820-0	04	1	9002-9204	●	●	●	●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8X20 W/LK WASHER	0-50040-820-0	04	1	9205-9302	●	●	●	●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE	0-28080-820-0	04	1	9303-9306	●	●	●	●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE	0-28080-820-0	04	1	9307-		●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8X20 W/LK WASHER	9-01900-820-0	05	1	9002-9204	●	●	●	●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8X20 W/LK WASHER	0-50040-820-0	05	1	9205-9302	●	●	●	●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE	0-28080-820-0	05	1	9303-	●	●	●	●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE	0-28080-820-0	02	1	9307-				●
24	SCREW; CLIP FIX AIR CONDITIONER MANUAL CONTROL(C60) M6X16 W/LK WASHER	9-01910-616-0	01	1	9002-9005			●	●
24	SCREW; CLIP FIX AIR CONDITIONER MANUAL CONTROL(C60) M6X16 W/LK WASHER	0-50040-616-0	01	1	9006-9302			●	●
24	SCREW; CLIP FIX AIR CONDITIONER MANUAL CONTROL(C60) M6X16 FLANGE	0-28080-616-0	01	1	9303-			●	●
25	NUT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8	9-09110-408-0	02	1	9002-	●	●	●	●
26	NUT; PIPE CLIP AIR CONDITIONER MANUAL CONTROL(C60) M6 FLANGE	5-09440-004-0	01	1	9002-9306	●	●
26	NUT; PIPE CLIP AIR CONDITIONER MANUAL CONTROL(C60) M6	9-09110-406-0	02	1	9002-9306	●	●	●	●
26	NUT; PIPE CLIP AIR CONDITIONER MANUAL CONTROL(C60) M6	9-09110-406-0	02	1	9307-		●
26	NUT; PIPE CLIP AIR CONDITIONER MANUAL CONTROL(C60) M6 FLANGE	5-09440-004-0	01	1	9307-		●		●
26	NUT; PIPE CLIP AIR CONDITIONER MANUAL CONTROL(C60) M6	9-09110-406-0	01	1	9307-				●
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A) D=20 & 9.6	1-09700-639-0	01	1	9002-	●	●
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83574-178-0	01	1	9307-		●		●
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A) D=20 & 9.6	1-09700-639-0	02	1	9002-			●	●
28	CLIP; PIPE,HOSE A/C AIR CONDITIONER MANUAL CONTROL(C60) (A) L=170	1-83574-139-0	01	1	9002-	●	●	●	●
28	CLIP; PIPE,HOSE A/C AIR CONDITIONER MANUAL CONTROL(C60) (B) L=250	5-09707-030-1	01	1	9002-	●	●	●	●
29	BRACKET; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60)	1-83571-524-0	01	1	9002-9306	●	●
29	BRACKET; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60)	1-83571-524-0	01	1	9307-		●		●
29	BRACKET; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60)	1-83571-355-0	01	1	9002-9007			●	●
29	BRACKET; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60)	1-83571-422-0	01	1	9008-9306			●	●
30	HOSE; FLEX,TANK TO CONDENSER AIR CONDITIONER MANUAL CONTROL(C60)	1-83566-339-2	01	1	9002-9306	●	●	●	●
30	HOSE; FLEX,TANK TO CONDENSER AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-036-0	01	1	9307-		●		●
32	PIPE; COOLER,HOSE TO CONDENSER AIR CONDITIONER MANUAL CONTROL(C60)	1-83567-221-0	01	1	9002-9306	●	●
32	PIPE; COOLER,HOSE TO CONDENSER AIR CONDITIONER MANUAL CONTROL(C60)	1-83567-503-0	01	1	9307-		●
32	PIPE; COOLER,HOSE TO CONDENSER AIR CONDITIONER MANUAL CONTROL(C60)	1-83567-194-1	01	1	9002-9306			●	●
32	PIPE; COOLER,HOSE TO CONDENSER AIR CONDITIONER MANUAL CONTROL(C60)	1-83567-505-0	01	1	9307-				●
33	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M6X20 W/LK WASHER	9-01900-620-0	01	1	9002-9204	●	●	●	●
33	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M6X20 W/LK WASHER	0-50040-620-0	01	1	9205-9302	●	●	●	●
33	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M6X20 FLANGE	0-28080-620-0	01	1	9303-	●	●	●	●
34	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60)	1-83574-157-0	01	1	9002-9306	●	●	●	●
34	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) ID=12.2 & 16.2	1-83574-190-0	01	1	9307-		●		●
40	BOLT; CLIP BRKT AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83539-048-0	01	1	9002-	●	●	●	●
40	BOLT; CLIP BRKT AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-09980-279-0	04	1	9002-			●	●
41	BRACKET; PIPE CLIP AIR CONDITIONER MANUAL CONTROL(C60)	1-83571-256-0	02	1	9002-			●	●
42	SCREW; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M6X16 W/LK WASHER	9-03910-616-0	01	1	9002-9203	●	●
42	SCREW; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M6X16 W/LK&PL WASHER	1-09980-574-0	01	1	9204-9402	●	●
42	SCREW; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M6X16 W/LK&PL WASHER	1-09980-574-0	01	1	9403-		●		●
42	SCREW; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M6X16 W/LK&PL WASHER	1-09980-574-0	01	1	9403-		●
42	SCREW; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M6X12 W/LK WASHER	9-03910-612-0	02	1	9002-			●	●
98	STAY; CONDENSER AIR CONDITIONER MANUAL CONTROL(C60)	1-83571-295-1	01	1	9002-	●	●	●	●
99	BOLT; STAY FIX AIR CONDITIONER MANUAL CONTROL(C60) M8X20 W/LK WASHER	9-01900-820-0	01	1	9002-9204	●	●	●	●
99	BOLT; STAY FIX AIR CONDITIONER MANUAL CONTROL(C60) M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-9302	●	●	●	●
99	BOLT; STAY FIX AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE	0-28080-820-0	01	1	9303-	●	●	●	●
99	BOLT; STAY FIX AIR CONDITIONER MANUAL CONTROL(C60) M8X35	9-01970-835-0	01	1	9002-9005	●	●	●	●
99	BOLT; STAY FIX AIR CONDITIONER MANUAL CONTROL(C60) M8X35 W/LK&PL WASHER	0-50140-835-0	01	1	9006-	●	●	●	●
100	NUT; STAY FIX AIR CONDITIONER MANUAL CONTROL(C60) M8	9-09110-508-0	02	1	9002-	●	●	●	●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) ID=6	8-94481-700-0	02	1	9307-	●	●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) ID=7.65	8-94113-332-0	02	1	9002-9306			●	●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) ID=6.07	8-94461-902-0	02	1	9307-				●
126	CLIP; RECEIVER TANK AIR CONDITIONER MANUAL CONTROL(C60) (B)	5-09707-031-1	01	1	9002-	●	●	●	●
126	CLIP; RECEIVER TANK AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-97084-632-0	01	1	9002-	●	●	●	●

17 122 122 17 122 122 1 40 126 120 172 173

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	TANK; RECEIVER AIR CONDITIONER MANUAL CONTROL(C60)	1-83535-037-2	01	1	9002-9306	●	●	●	●
1	TANK; RECEIVER AIR CONDITIONER MANUAL CONTROL(C60) "R-134A"	1-83535-065-0	01	1	9307-		●		●
17	HOSE; FLEX,CMPR TO PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83566-588-0	01	1	9002-9306	●	●	●	●
17	HOSE; FLEX,CMPR TO PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83572-034-0	01	1	9307-		●		●
17	HOSE; FLEX,CMPR TO PIPE AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83566-589-0	01	1	9002-9306	●	●	●	●
17	HOSE; FLEX,CMPR TO PIPE AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83572-035-0	01	1	9307-		●		●
40	BOLT; CLIP BRKT AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83539-048-0	01	1	9002-	●	●	●	●
40	BOLT; CLIP BRKT AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-09980-279-0	04	1	9002-			●	●
120	BRACKET; RECEIVER TANK AIR CONDITIONER MANUAL CONTROL(C60)	1-83571-645-1	01	1	9002-		●		●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-09623-488-0	01	1	9002-9306	●	●	●	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=13.9	8-94113-330-0	01	1	9307-		●		●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-09623-489-0	01	1	9202-9306	●	●	●	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=10.8	8-94113-331-0	01	1	9307-		●		●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=11.0	8-94461-900-0	01	1	9307-		●		●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) (D) ID=14.8	8-94461-901-0	01	1	9307-		●		●
126	CLIP; RECEIVER TANK AIR CONDITIONER MANUAL CONTROL(C60) (B)	5-09707-031-1	01	1	9002-	●	●	●	●
126	CLIP; RECEIVER TANK AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-97084-632-0	01	1	9002-	●	●	●	●
172	SWITCH; PRESS,RECEIVER TANK AIR CONDITIONER MANUAL CONTROL(C60)	1-83564-283-0	01	1	9002-9306	●	●	●	●
172	SWITCH; PRESS,RECEIVER TANK AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-224-0	01	1	9307-		●		●
173	COVER; PRESS SW AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-429-0	01	1	9002-9306	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
