Isuzu WW
▶
TRUCKS
▶
CVR
▶
10661 - CVR
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-50 - AIR CONDITIONING SYSTEM; FRONT
▶
8-50 — AIR CONDITIONING SYSTEM; FRONT
(#3103) — 27 parça
Tümü
A - CVR5MC
B - CVR5MF
C - CVR6MC
D - CVR6MF
◀

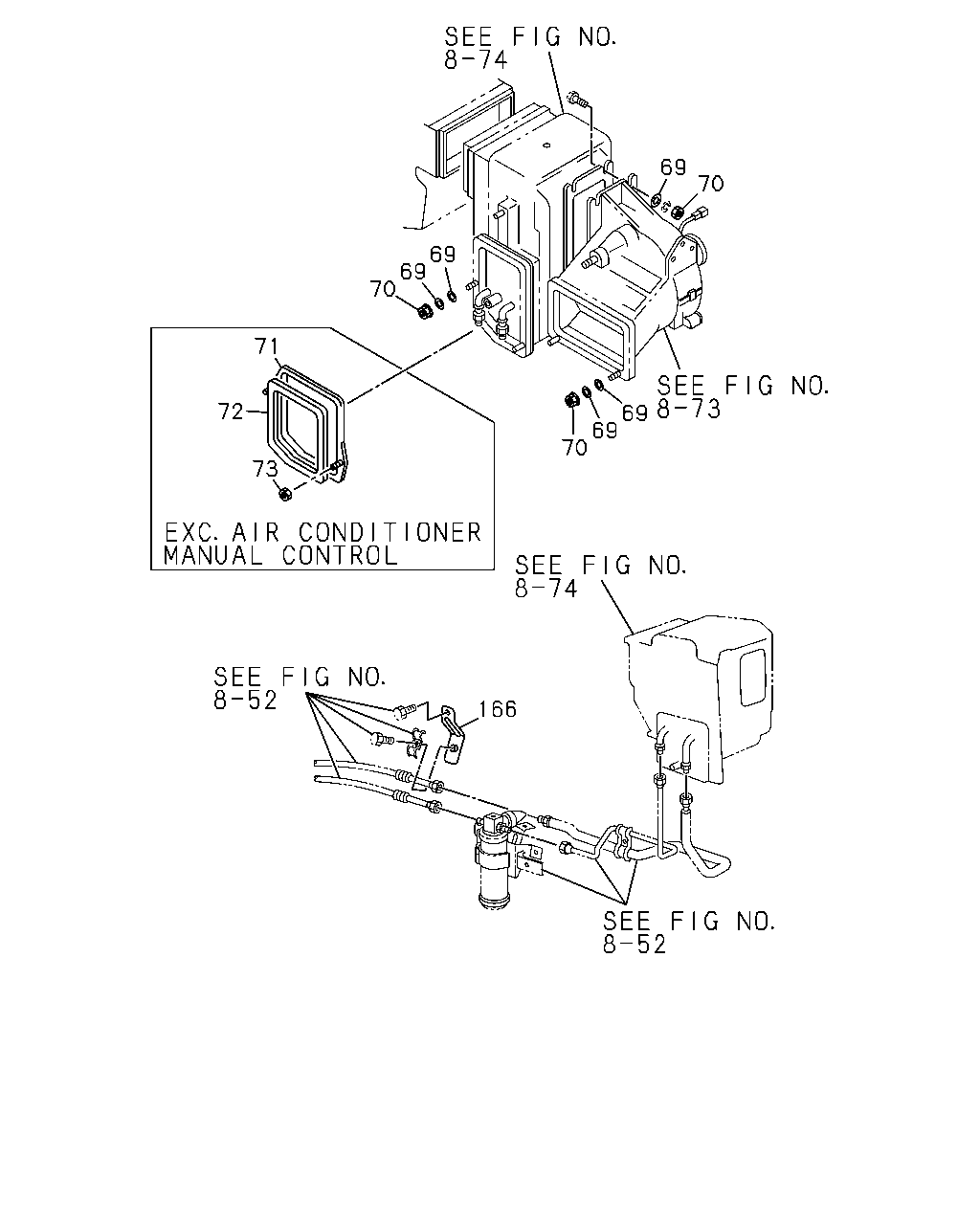

[850A] NO.1 (11 parça)
[850A] NO.2 (16 parça)
▶
166
73
72
71
70
69
69
70
69
69
70
69
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
69
WASHER; PL,EVAP
AIR CONDITIONER MANUAL CONTROL(C60) OD=20
1-09509-047-0
01
1
9002-
●
●
69
WASHER; PL,EVAP
AIR CONDITIONER MANUAL CONTROL(C60) OD=14
1-09509-048-0
02
1
9002-
●
●
69
WASHER; PL,EVAP
AIR CONDITIONER MANUAL CONTROL(C60) OD=20
1-09509-047-0
02
1
9002-
●
●
69
WASHER; PL,EVAP
AIR CONDITIONER MANUAL CONTROL(C60) OD=14
1-09509-048-0
04
1
9002-
●
●
70
NUT; EVAP,A/C
AIR CONDITIONER MANUAL CONTROL(C60) M6 FLANGE
1-09984-141-0
03
1
9002-
●
●
70
NUT; EVAP,A/C
AIR CONDITIONER MANUAL CONTROL(C60) M6 FLANGE
1-09984-141-0
06
1
9002-
●
●
71
COVER; EVAP,A/C
EXC. AIR CONDITIONER MANUAL CONTROL(C60)
1-71997-460-1
01
1
9002-
●
●
●
●
72
SEAL; COVER,EVAP
EXC. AIR CONDITIONER MANUAL CONTROL(C60)
1-71997-462-1
01
1
9002-9210
●
●
●
●
72
SEAL; COVER,EVAP
EXC. AIR CONDITIONER MANUAL CONTROL(C60)
1-71998-221-0
01
1
9211-
●
●
●
●
73
NUT; COVER,A/C EVAP
EXC. AIR CONDITIONER MANUAL CONTROL(C60) M6 FLANGE
1-09984-141-0
02
1
9002-
●
●
●
●
166
BRACKET; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60)
1-83571-266-1
01
1
9002-
●
●
213
23
16
18
14
1
4
66
12
14
14
24
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
1
BRACKET; A/C
AIR CONDITIONER MANUAL CONTROL(C60)
1-83571-316-0
01
1
9002-
●
●
●
●
4
BOLT; A/C CMPR BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M10X35 W/LK&PL WASHER
0-50151-035-0
04
1
9002-
●
●
●
●
4
BOLT; A/C CMPR BRKT
6RB1 STD ENG(07L) AIR CONDITIONER MANUAL CONTROL(C60) M12X35
9-01911-235-0
01
1
9002-9005
●
●
●
●
4
BOLT; A/C CMPR BRKT
6RB1 STD ENG(07L) AIR CONDITIONER MANUAL CONTROL(C60) M12X35 W/LK WASHER
0-50041-235-0
01
1
9006-9306
●
●
●
●
12
BOLT; ADJ,CMPR
AIR CONDITIONER MANUAL CONTROL(C60) M10X135
1-09009-113-1
01
1
9002-
●
●
●
●
14
BOLT; CMPR
AIR CONDITIONER MANUAL CONTROL(C60) M10X45 W/LK WASHER
0-50041-045-0
02
1
9002-
●
●
●
●
14
BOLT; CMPR
AIR CONDITIONER MANUAL CONTROL(C60) M10X50
9-01056-050-0
01
1
9002-9004
●
●
●
●
14
BOLT; CMPR
AIR CONDITIONER MANUAL CONTROL(C60) M10X50
0-10806-050-0
01
1
9005-
●
●
●
●
16
PLATE; ADJ,CMPR
AIR CONDITIONER MANUAL CONTROL(C60)
1-13674-114-2
01
1
9002-
●
●
●
●
18
WASHER; LK,CMPR
AIR CONDITIONER MANUAL CONTROL(C60) ID=10.2
9-09150-510-0
01
1
9002-
●
●
●
●
23
BOLT; ADJ PLATE TO BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M12X40
9-01911-240-0
01
1
9002-9005
●
●
●
●
23
BOLT; ADJ PLATE TO BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M12X40 W/LK WASHER
0-50041-240-0
01
1
9006-
●
●
●
●
24
PIECE; SLIDING
AIR CONDITIONER MANUAL CONTROL(C60)
1-13679-010-0
01
1
9002-
●
●
●
●
66
BELT; A/C CMPR
AIR CONDITIONER MANUAL CONTROL(C60) L=1110
1-13671-217-0
01
1
9002-
●
●
●
●
213
BOLT; FLEX HOSE TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) M10X40 W/LK&PL WASHER
9-01961-040-0
01
1
9002-9204
●
●
●
●
213
BOLT; FLEX HOSE TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) M10X40 W/LK&PL WASHER
0-50141-040-0
01
1
9205-
●
●
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
