Isuzu WW
▶
TRUCKS
▶
FSR
▶
10890 - FSR34(RHD)
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-41 - FUEL PIPING; CHASSIS
▶

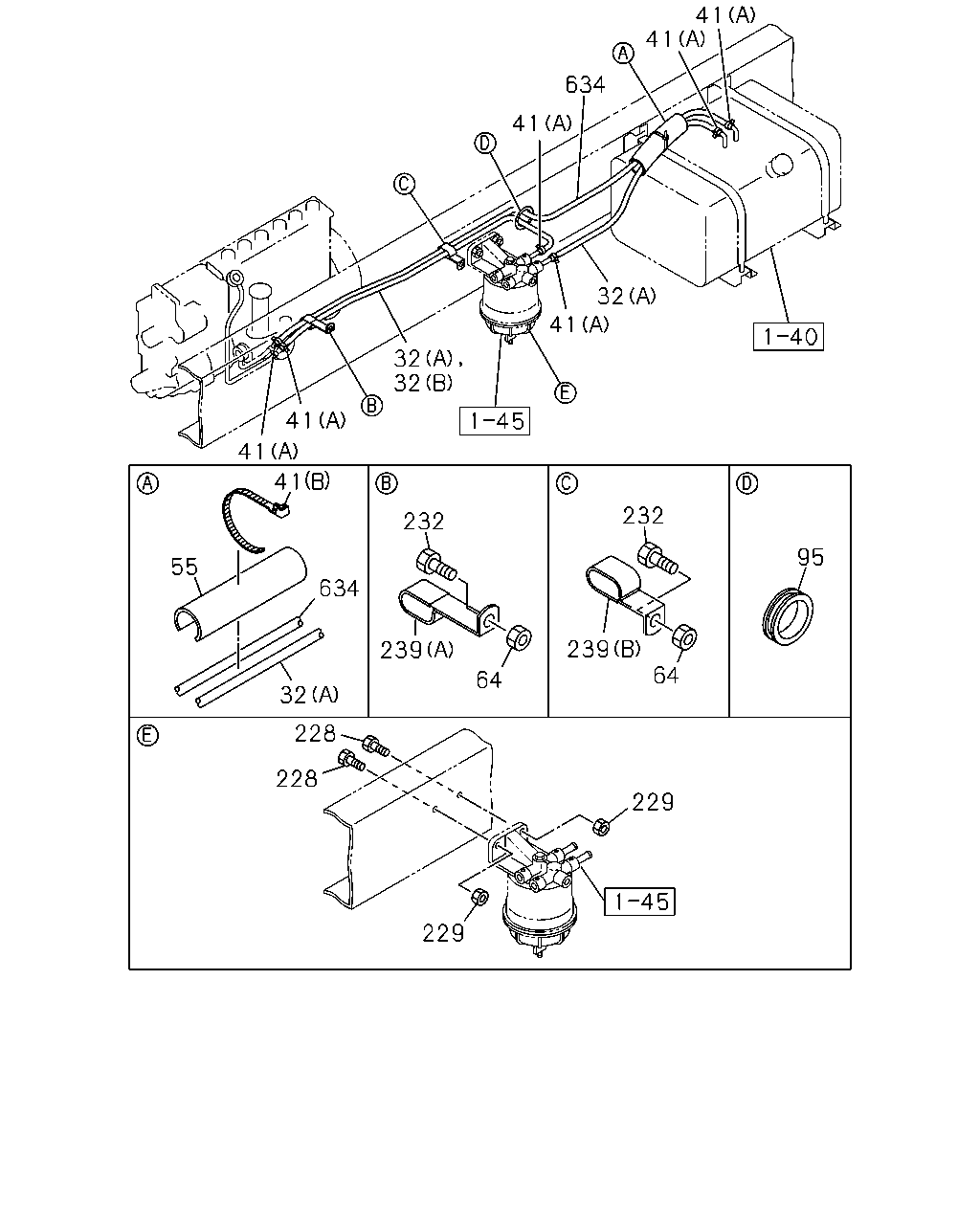

1-41 — FUEL PIPING; CHASSIS
(#31026) — 19 parça
41
41
41
41
41
41
634
32
32
32
232
232
239
64
95
229
229
228
228
32
55
634
64
239
41
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
32
PIPE; DELIVERY,FUEL TANK
(B) L=980 SERVICED BY L=3000
0-01260-300-0
01
1
0107-0107
32
PIPE; DELIVERY,FUEL TANK
(B) L=980 SERVICED BY L=3000
0-01260-300-0
01
1
0108-
32
PIPE; DELIVERY,FUEL TANK
(B) L=980 SERVICED BY L=3000
0-01260-300-0
01
1
0108-
32
PIPE; DELIVERY,FUEL TANK
(A) L=1050 SERVICED BY L=3000
0-01260-300-0
01
1
0107-0107
41
CLIP; FUEL PIPE,FUEL TANK
(A) ID=14
1-09704-102-0
06
1
0107-
41
CLIP; FUEL PIPE,FUEL TANK
(B) L=250
5-09707-030-1
01
1
0107-
55
COVER; PIPE,FUEL TANK
L=1300
1-09360-677-1
01
1
0107-
64
NUT; CLIP
M8 FLANGE
0-91150-108-0
02
1
0107-0602
64
NUT; CLIP
M8 FLANGE
0-91180-108-0
02
1
0603-
95
BUSHING; PIPE,FUEL TANK
ID=28 OD=35 T=17
9-09956-256-2
01
1
0107-
228
BOLT; BRKT,SEDIMENTER
M10X40 FLANGE
0-28681-040-0
02
1
0107-0512
228
BOLT; BRKT,SEDIMENTER
M10X40 FLANGE
0-28651-040-0
02
1
0601-
229
NUT; BRKT,FUEL FILTER
M10 FLANGE
0-91150-210-0
02
1
0107-0602
229
NUT; BRKT,FUEL FILTER
M10 FLANGE
0-91180-210-0
02
1
0603-
232
BOLT; CLIP,PIPE
M8X30 FLANGE
0-28680-830-0
02
1
0107-0512
232
BOLT; CLIP,PIPE
M8X30 FLANGE
0-28650-830-0
02
1
0601-
239
CLIP; FUEL PIPE
(B) ID=14X29 H=30 L=25
1-09701-101-0
01
1
0107-
239
CLIP; FUEL PIPE
(A) M13X2 H=20 L=60
1-09701-280-0
01
1
0107-
634
HOSE; RUBBER RETURN
L=1700 SERVICED BY L=3000
0-01260-300-0
01
1
0107-
