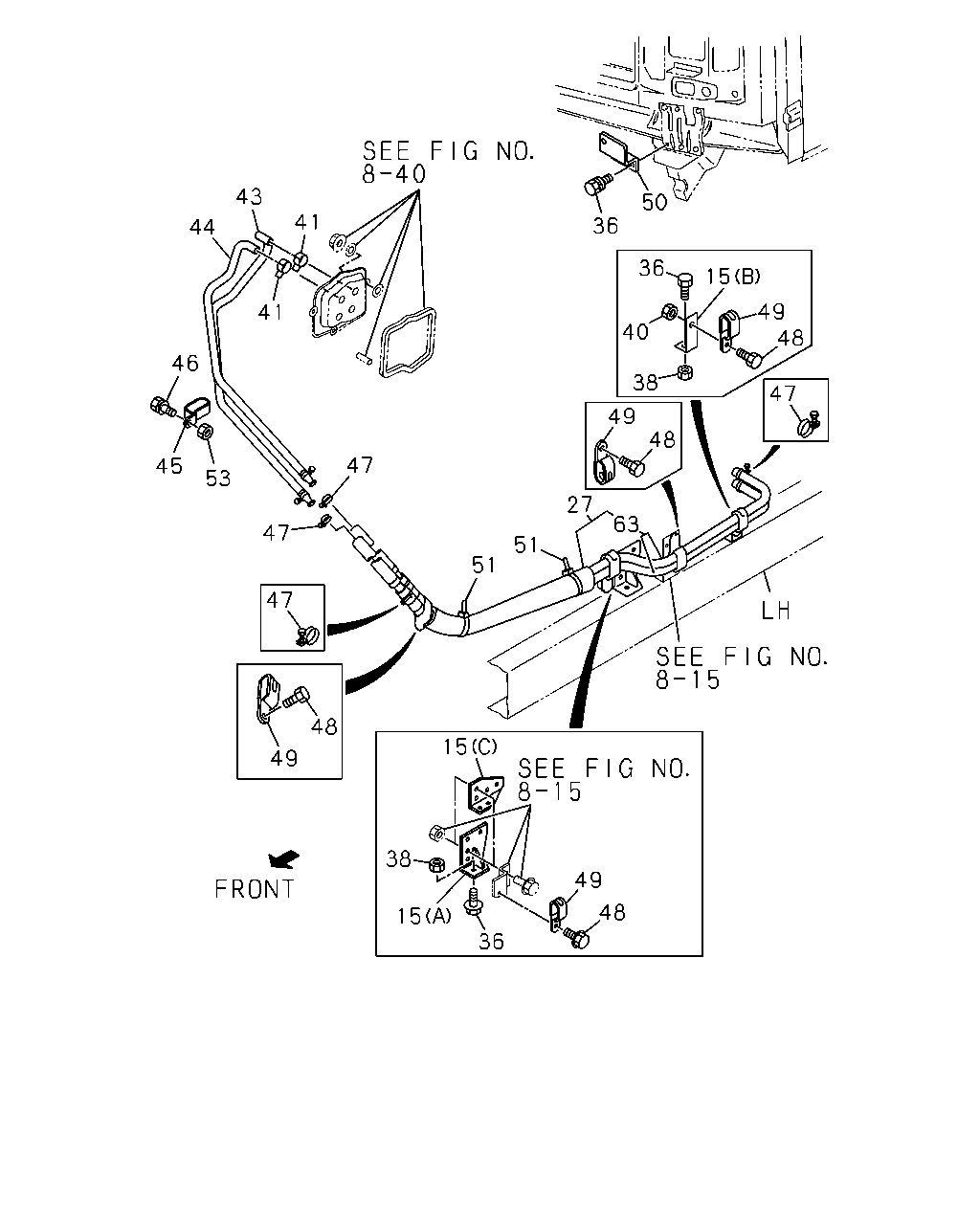

8-45 — HEATER PIPING
(#3102) — 40 parça
Tümü
A - CVR5MC
B - CVR5MF
C - CVR6MC
D - CVR6MF
48
49
36
15
38
15
49
48
47
47
47
53
45
46
41
41
43
44
36
50
15
36
40
49
48
47
38
49
48
27
63
51
51
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
15
BRACKET; WATER HOSE
(B)
1-47475-525-0
01
1
9002-
●
●
●
●
15
BRACKET; WATER HOSE
(A)
1-47475-485-2
01
1
9307-9307
●
●
15
BRACKET; WATER HOSE
(C)
1-47476-705-0
01
1
9308-
●
●
27
HOSE; WATER,HTR UNIT TO WATER PIPE
1-83565-431-0
01
1
9002-
●
●
●
●
36
BOLT; BRKT
M8X20 W/LK WASHER
9-01900-820-0
01
1
9002-9009
●
●
●
●
36
BOLT; BRKT
M8X25 W/LK WASHER
9-01900-825-0
01
1
9010-9204
●
●
●
●
36
BOLT; BRKT
M8X25 W/LK WASHER
0-50040-825-0
01
1
9205-9302
●
●
●
●
36
BOLT; BRKT
M8X25 FLANGE
0-28080-825-0
01
1
9303-9306
●
●
●
●
36
BOLT; BRKT
M8X30 FLANGE
0-28080-830-0
01
1
9307-
●
●
36
BOLT; BRKT
M8X30 FLANGE
0-28080-830-0
02
1
9307-
●
●
38
NUT; BRKT
M8
9-09110-408-0
01
1
9307-
●
●
38
NUT; BRKT
M8
9-09110-408-0
02
1
9307-
●
●
40
NUT; CLIP
M8
9-09110-408-0
03
1
9002-9010
●
●
●
●
40
NUT; CLIP
M8
9-09110-408-0
01
1
9011-
●
●
●
●
41
CLAMP; WATER HOSE,HTR
ID=26
1-09704-090-1
02
1
9002-
●
●
●
●
43
HOSE; WATER,OUTLET,HTR
1-83565-295-0
01
1
9002-
●
●
43
HOSE; WATER,OUTLET,HTR
1-83565-324-0
01
1
9002-9301
●
●
43
HOSE; WATER,OUTLET,HTR
1-83565-592-0
01
1
9302-
●
●
44
HOSE; WATER,HTR,INL
1-83565-294-0
01
1
9002-
●
●
44
HOSE; WATER,HTR,INL
1-83565-323-0
01
1
9002-9301
●
●
44
HOSE; WATER,HTR,INL
1-83565-591-0
01
1
9302-
●
●
45
CLIP; WATER PIPE
1-09700-625-0
01
1
9002-
●
●
45
CLIP; WATER PIPE
1-09700-625-0
03
1
9002-
●
●
46
SCREW; CLIP
M6X20
1-09980-279-0
01
1
9002-
●
●
●
●
47
CLAMP; WATER HOSE,HTR
ID=26
1-09704-090-1
04
1
9002-
●
●
●
●
48
BOLT; CLIP FIX
M8X20 W/LK WASHER
9-01900-820-0
03
1
9002-9204
●
●
●
●
48
BOLT; CLIP FIX
M8X20 W/LK WASHER
0-50040-820-0
03
1
9205-9302
●
●
●
●
48
BOLT; CLIP FIX
M8X20 FLANGE
0-28080-820-0
03
1
9303-
●
●
●
●
48
BOLT; CLIP FIX
M8X20 W/LK WASHER
9-01900-820-0
02
1
9004-9010
●
●
●
●
48
BOLT; CLIP FIX
M8X20 W/LK WASHER
9-01900-820-0
01
1
9011-9204
●
●
●
●
48
BOLT; CLIP FIX
M8X20 W/LK WASHER
0-50040-820-0
01
1
9205-9302
●
●
●
●
48
BOLT; CLIP FIX
M8X20 FLANGE
0-28080-820-0
01
1
9303-
●
●
●
●
49
CLIP; WATER HOSE,HTR
ID=24X2 L=25
1-09700-710-0
03
1
9002-
●
●
●
●
49
CLIP; WATER HOSE,HTR
ID=24X2 L=25
1-09700-710-0
02
1
9004-9010
●
●
●
●
49
CLIP; WATER HOSE,HTR
ID=24X2 L=25
1-09700-710-0
01
1
9011-
●
●
●
●
50
BRACKET
CAB SUSPENSION RIGID<W71>
1-83571-321-0
01
1
9002-
●
●
51
CLIP; WATER HOSE,HTR
L=250
5-09707-030-1
02
1
9002-
●
●
●
●
53
NUT; HOSE CLIP
M6 FLANGE
1-09984-141-0
02
1
9002-
●
●
63
HOSE; WATER
L=930
1-83565-448-0
01
1
9002-
●
●
●
●
63
HOSE; WATER
L=885
1-83565-449-0
01
1
9002-
●
●
●
●
