Isuzu WW
▶
TRUCKS
▶
FSR
▶
10890 - FSR34(RHD)
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-01 - ACCELERATOR PEDAL AND CONTROL
▶
1-01 — ACCELERATOR PEDAL AND CONTROL
(#31019) — 61 parça
◀

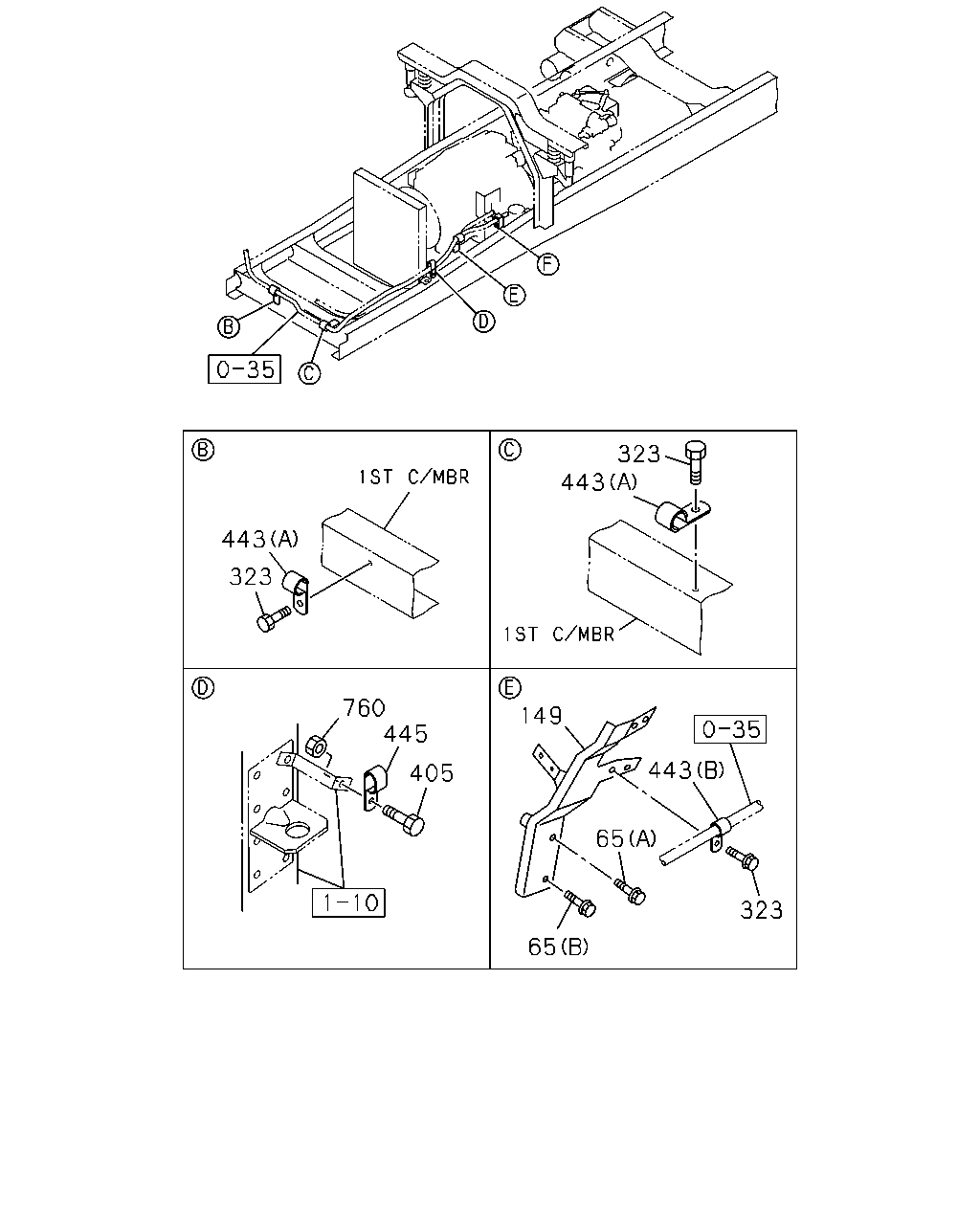

[101A] FRAME SIDE (20 parça)
[101A] ENGINE SIDE (3 parça)

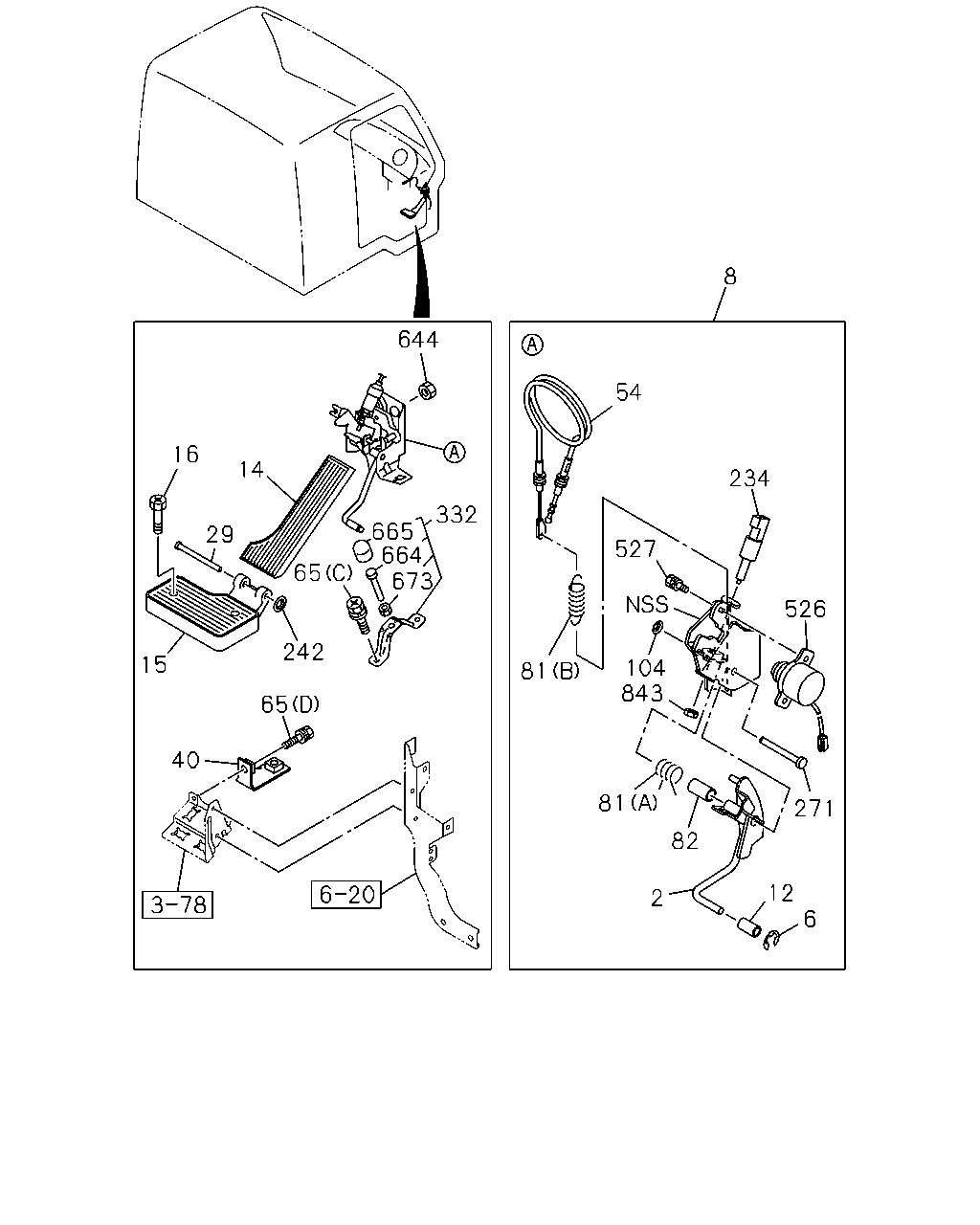

[101A] ACCEL PEDAL SIDE (38 parça)
▶
323
443
443
323
760
445
149
443
405
65
323
65
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
65
BOLT
(A) M10X60
0-16811-060-0
01
1
0107-0512
65
BOLT
(A) M10X60
0-16861-060-0
01
1
0601-
65
BOLT
(B) M10X20 FLANGE
0-28181-020-0
01
1
0107-0512
65
BOLT
(B) M10X20 FLANGE
0-28151-020-0
01
1
0601-
65
BOLT
(C) M6X19.5 W/LK&PL WASHER
8-94279-201-0
02
1
0107-
65
BOLT
(D) M8X24.5 W/LK&PL WASHER
8-94279-208-0
01
1
0111-0904
65
BOLT
(D) M8X24.5 W/LK&PL WASHER
8-98059-720-0
01
1
0905-
149
BRACKET; ENG CONT
8-94394-532-1
01
1
0107-
323
BOLT; CLIP
M8X16 FLANGE
0-28080-816-0
03
1
0107-0512
323
BOLT; CLIP
M8X16 FLANGE
0-28050-816-0
03
1
0601-
405
BOLT; CABLE CLIP
M8X16 FLANGE
0-28080-816-0
01
1
0107-0512
405
BOLT; CABLE CLIP
M8X16 FLANGE
0-28050-816-0
01
1
0601-
443
CLIP; CABLE
(B) ID=7 L=20
9-09524-635-0
01
1
0107-0606
443
CLIP; CABLE
(B) ID=7 L=20
0-95234-635-0
01
1
0607-
443
CLIP; CABLE
(A) ID=13 L=32
9-09525-265-0
02
1
0107-0606
443
CLIP; CABLE
(A) ID=13 L=32
0-95235-265-0
02
1
0607-
445
CLIP; RAD
ID=7 L=20
9-09524-635-0
01
1
0107-0606
445
CLIP; RAD
ID=7 L=20
0-95234-635-0
01
1
0607-
760
NUT; CLIP,BRKT
M8 FLANGE
0-91150-108-0
01
1
0107-0602
760
NUT; CLIP,BRKT
M8 FLANGE
0-91180-108-0
01
1
0603-
439
56
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
56
PIN; SNAP,JAW JOINT
L=17.9
1-09747-015-0
01
1
0107-
439
WASHER; PL,PIN,JAW JOINT
ID=5.3
9-09160-505-0
01
1
0107-0605
439
WASHER; PL,PIN,JAW JOINT
ID=5.3
0-91610-505-0
01
1
0606-
8
644
54
16
14
234
332
665
664
673
29
527
65
526
242
15
104
843
81
65
40
81
271
82
12
2
6
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
LEVER; ENG CONT
1-71907-500-2
01
1
0107-
6
RING; SNAP,LINK TO LINK
ID=6
9-09185-406-0
01
1
0107-0204
8
LINK ASM; ENG CONT
1-71907-161-9
01
1
0107-1101
8
LINK ASM; ENG CONT
8-98170-161-0
01
1
1102-
12
ROLLER; ENG CONT LEVER
1-09989-007-0
01
1
0107-0204
14
PAD; PEDAL,ACCEL
1-73907-563-0
01
1
0107-
15
STAND; HEEL,ACCEL PEDAL
1-73907-266-3
01
1
0107-
16
SCREW; HEEL STAND,ACCEL PEDAL
M6X28 W/LK&PL WASHER
1-09980-543-0
02
1
0107-
29
SHAFT; ACCEL PEDAL
OD=8.0 L=74
1-71907-212-1
01
1
0107-
40
BRACKET; ENG CONT CABLE
1-47478-612-0
01
1
0111-
54
CABLE; ENG CONT
L=850
1-71907-257-0
01
1
0107-
65
BOLT
(A) M10X60
0-16811-060-0
01
1
0107-0512
65
BOLT
(A) M10X60
0-16861-060-0
01
1
0601-
65
BOLT
(B) M10X20 FLANGE
0-28181-020-0
01
1
0107-0512
65
BOLT
(B) M10X20 FLANGE
0-28151-020-0
01
1
0601-
65
BOLT
(C) M6X19.5 W/LK&PL WASHER
8-94279-201-0
02
1
0107-
65
BOLT
(D) M8X24.5 W/LK&PL WASHER
8-94279-208-0
01
1
0111-0904
65
BOLT
(D) M8X24.5 W/LK&PL WASHER
8-98059-720-0
01
1
0905-
81
SPRING; RETURN,ENG CONT LEVER
(B)
1-71907-268-0
01
1
0107-0206
81
SPRING; RETURN,ENG CONT LEVER
(B)
8-97997-917-0
01
1
0207-
81
SPRING; RETURN,ENG CONT LEVER
(A)
8-97853-205-1
01
1
0107-
82
BUSHING; ENG CONT LVR
L=31.5
1-53459-627-0
01
1
0107-
104
NUT; ENG CONT
ID=7.9 PUSH NUT
8-94368-617-0
01
1
0107-
234
SWITCH; ACCEL
1-82380-131-2
01
1
0107-
242
NUT; ACCEL PEDAL
ID=7.9 PUSH NUT
8-97022-565-0
01
1
0107-
271
SHAFT; ENG CONT
OD=8.0 L=69
1-71907-298-0
01
1
0107-
332
BRACKET; ACCEL PEDAL STOPPER
1-73998-937-1
01
1
0107-0212
332
BRACKET; ACCEL PEDAL STOPPER
1-73908-428-0
01
1
0301-
526
SENSOR; ACCEL
1-81534-003-2
01
1
0107-
527
BOLT; ACCEL SENSOR
M6X19.5 W/LK&PL WASHER
8-94279-201-0
02
1
0107-0206
527
BOLT; ACCEL SENSOR
M6X16 W/LK&PL WASHER
8-94139-963-0
02
1
0207-
644
NUT; LINK,ENG CONT
M8 FLANGE W/RUBBER
1-09984-176-0
02
1
0107-
664
BOLT; STOPPER
M8X45
0-20800-845-0
01
1
0107-
665
COVER; STOPPER
RUBBER
1-23249-009-0
01
1
0107-0212
673
NUT; STOPPER
M8
9-09111-408-0
01
1
0107-0512
673
NUT; STOPPER
M8
0-91111-508-0
01
1
0601-
843
NUT
M12
9-99111-412-0
01
1
0107-0512
843
NUT
M12
0-91111-512-0
01
1
0601-
