8-40 — HEATER SYSTEM (#3101) — 136 parça

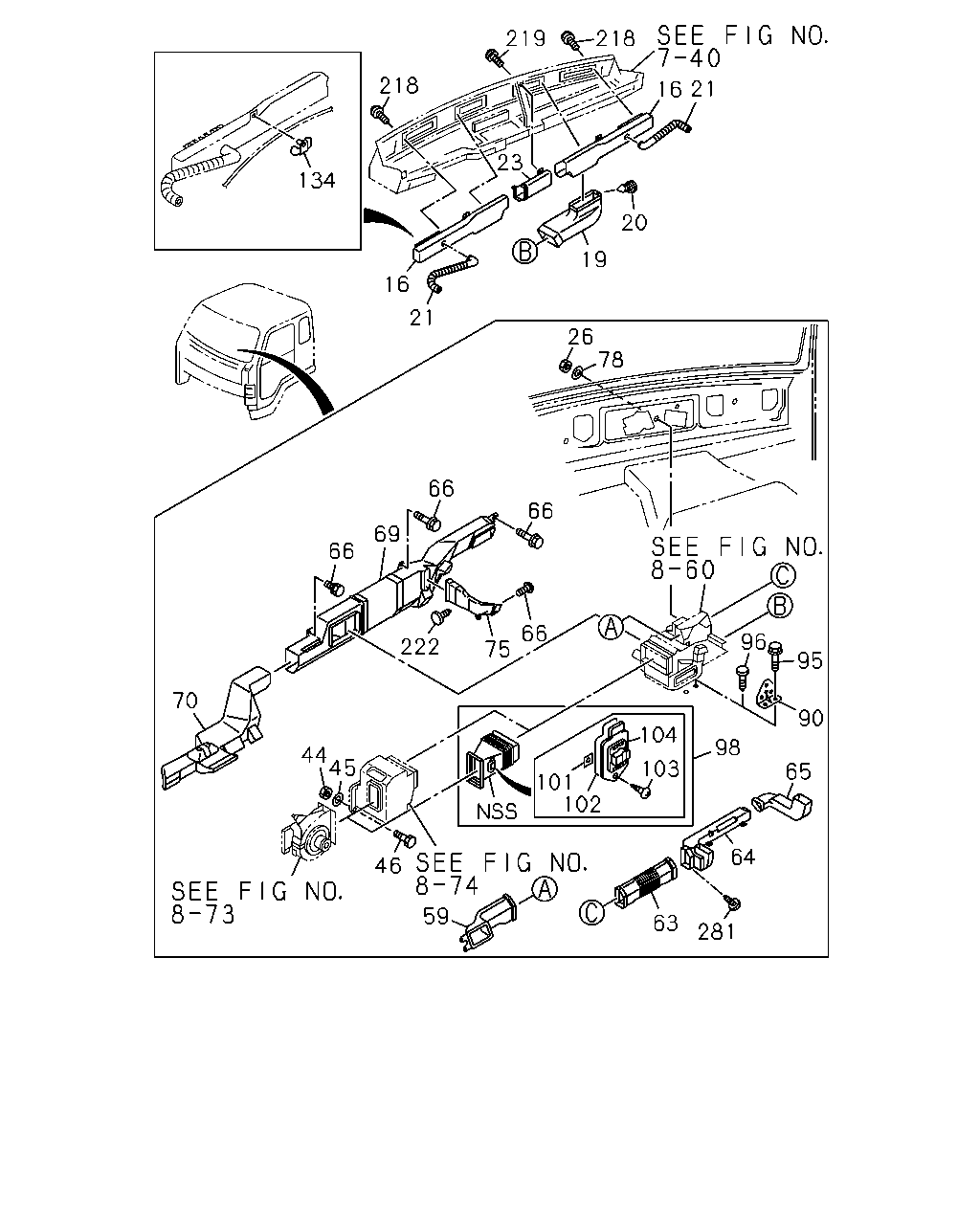

281 63 64 65 98 104 103 102 101 59 46 45 44 70 66 69 66 66 66 75 222 96 95 90 78 26 19 20 21 16 134 218 219 218 16 21 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
16	DUCT ASM; DEFROSTER	1-76377-072-5	01	1	9002-	●	●
16	DUCT ASM; DEFROSTER	1-76377-071-6	01	1	9002-	●	●
16	DUCT ASM; DEFROSTER	1-76377-074-5	01	1	9002-			●	●
16	DUCT ASM; DEFROSTER	1-76377-073-4	01	1	9002-			●	●
19	DUCT; DEFROSTER,HTR JOINT	1-76377-076-2	01	1	9002-	●	●
19	DUCT; DEFROSTER,HTR JOINT	1-76377-097-1	01	1	9002-			●	●
20	FASTENER; DEFROSTER DUCT,HTR JOINT	1-09987-144-0	01	1	9002-	●	●	●	●
21	HOSE; DEFROSTER,DRIVER SIDE WO/URETHANE	1-76377-085-4	02	1	9002-	●	●	●	●
23	DUCT ASM; DEFROSTER,JOINT CTR	1-76377-087-4	01	1	9002-	●	●
23	DUCT ASM; DEFROSTER,JOINT CTR	1-76377-088-3	01	1	9002-			●	●
26	NUT; HTR M6 FLANGE	1-09984-141-0	03	1	9002-	●	●	●	●
44	NUT; EVAP AIR CONDITIONER MANUAL CONTROL(C60) M6 FLANGE	1-09984-141-0	02	1	9002-	●	●
45	WASHER; PL,EVAP AIR CONDITIONER MANUAL CONTROL(C60) ID=6.4 OD=14	9-09160-606-0	04	1	9002-	●	●
46	BOLT; EVAP AIR CONDITIONER MANUAL CONTROL(C60) M6X25	9-02040-625-0	02	1	9002-9204	●	●
46	BOLT; EVAP AIR CONDITIONER MANUAL CONTROL(C60) M6X25	0-20800-625-0	02	1	9205-	●	●
59	DUCT; VENT,ASSIST SIDE	1-76377-083-2	01	1	9002-	●	●
59	DUCT; VENT,ASSIST SIDE	1-76377-084-3	01	1	9002-			●	●
63	DUCT; VENT,DRIVER JOINT	1-76377-082-5	01	1	9002-	●	●
63	DUCT; VENT,DRIVER JOINT	1-76377-098-4	01	1	9002-			●	●
64	DUCT; VENT,DRIVER SIDE	1-76377-080-2	01	1	9002-	●	●
64	DUCT; VENT,DRIVER SIDE	1-76377-081-4	01	1	9002-			●	●
65	DUCT; VENT,DRIVER SIDE	1-76377-078-3	01	1	9002-	●	●
65	DUCT; VENT,DRIVER SIDE	1-76377-079-3	01	1	9002-			●	●
66	BOLT; DUCT M6X16 W/LK&PL WASHER	9-01960-616-0	03	1	9002-9204	●	●
66	BOLT; DUCT M6X16 W/LK&PL WASHER	0-50140-616-0	03	1	9205-	●	●
66	BOLT; DUCT M6X16 W/LK&PL WASHER	9-01960-616-0	01	1	9002-9204	●	●	●	●
66	BOLT; DUCT M6X16 W/LK&PL WASHER	0-50140-616-0	01	1	9205-	●	●	●	●
66	BOLT; DUCT M6X16 W/LK&PL WASHER	9-01960-616-0	02	1	9002-9204			●	●
66	BOLT; DUCT M6X16 W/LK&PL WASHER	0-50140-616-0	02	1	9205-			●	●
69	DUCT; ROOM	1-83542-047-0	01	1	9002-	●	●
69	DUCT; ROOM	1-83542-053-1	01	1	9002-			●	●
70	DUCT; ROOM	1-83542-044-1	01	1	9002-	●	●
70	DUCT; ROOM	1-83542-057-1	01	1	9002-			●	●
75	DUCT; ROOM	1-83542-045-0	01	1	9002-	●	●
78	WASHER; PL,HTR UNIT OD=20	1-09509-047-0	01	1	9002-	●	●	●	●
78	WASHER; PL,HTR UNIT OD=14	1-09509-048-0	02	1	9002-	●	●	●	●
90	BRACKET; SUPPORT,HTR UNIT CAB SUSPENSION RIGID<W71>	1-76397-008-2	01	1	9002-9306		●
90	BRACKET; SUPPORT,HTR UNIT	1-76397-008-2	01	1	9002-9306			●	●
90	BRACKET; SUPPORT,HTR UNIT CAB SUSPENSION RIGID<W71>	1-76397-008-2	01	1	9307-9311				●
90	BRACKET; SUPPORT,HTR UNIT	1-76397-008-2	01	1	9312-				●
95	BOLT; SUPPORT BRKT CAB SUSPENSION RIGID<W71> M6X16 W/LK&PL WASHER	1-09980-497-0	02	1	9002-9301		●
95	BOLT; SUPPORT BRKT M6X16 W/LK&PL WASHER	1-09980-497-0	02	1	9002-9301			●	●
95	BOLT; SUPPORT BRKT CAB SUSPENSION RIGID<W71> M6X16 W/LK&PL WASHER	1-09980-586-0	02	1	9302-9306		●
95	BOLT; SUPPORT BRKT M6X16 W/LK&PL WASHER	1-09980-586-0	02	1	9302-9306			●	●
95	BOLT; SUPPORT BRKT CAB SUSPENSION RIGID<W71> M6X16 W/LK&PL WASHER	1-09980-586-0	02	1	9307-				●
96	PLUG; DUMMY,HTR UNIT BRKT D4.7X11	1-76378-154-0	02	1	9002-9306	●
96	PLUG; DUMMY,HTR UNIT BRKT EXC. CAB SUSPENSION RIGID<W71> D4.7X11	1-76378-154-0	02	1	9002-9306		●
96	PLUG; DUMMY,HTR UNIT BRKT EXC. CAB SUSPENSION RIGID<W71> D4.7X11	1-76378-154-0	02	1	9307-				●
98	DUCT; BLOWER UNIT TO HTR UNIT EXC. AIR CONDITIONER MANUAL CONTROL(C60)	1-83542-048-3	01	1	9002-	●	●
98	DUCT; BLOWER UNIT TO HTR UNIT EXC. AIR CONDITIONER MANUAL CONTROL(C60)	1-83542-054-2	01	1	9002-			●	●
101	NUT; RESISTOR FIX EXC. AIR CONDITIONER MANUAL CONTROL(C60)	1-83519-047-0	01	1	9002-	●	●
102	LINING; HTR DUCT EXC. AIR CONDITIONER MANUAL CONTROL(C60)	1-83519-049-0	01	1	9002-	●	●
103	SCREW; TAPPING,RESISTOR FIX EXC. AIR CONDITIONER MANUAL CONTROL(C60)	1-83519-048-0	01	1	9002-	●	●
104	RESISTOR; HTR DUCT EXC. AIR CONDITIONER MANUAL CONTROL(C60)	1-83519-028-0	01	1	9002-	●	●	●	●
134	CLIP; CONT CABLE	1-09987-147-0	01	1	9002-	●	●	●	●
218	SCREW; DEFROSTER DUCT M5X14 W/PL WASHER	5-09981-050-0	04	1	9002-	●	●	●	●
219	SCREW; DEFROSTER DUCT,CTR M5X14 W/PL WASHER	5-09981-050-0	01	1	9002-	●	●	●	●
222	FASTENER; DUCT BLACK	8-94104-935-0	01	1	9408-		●
281	FASTENER; VENT DUCT,DRIVER SIDE BLACK	8-94104-935-0	04	1	9407-		●		●

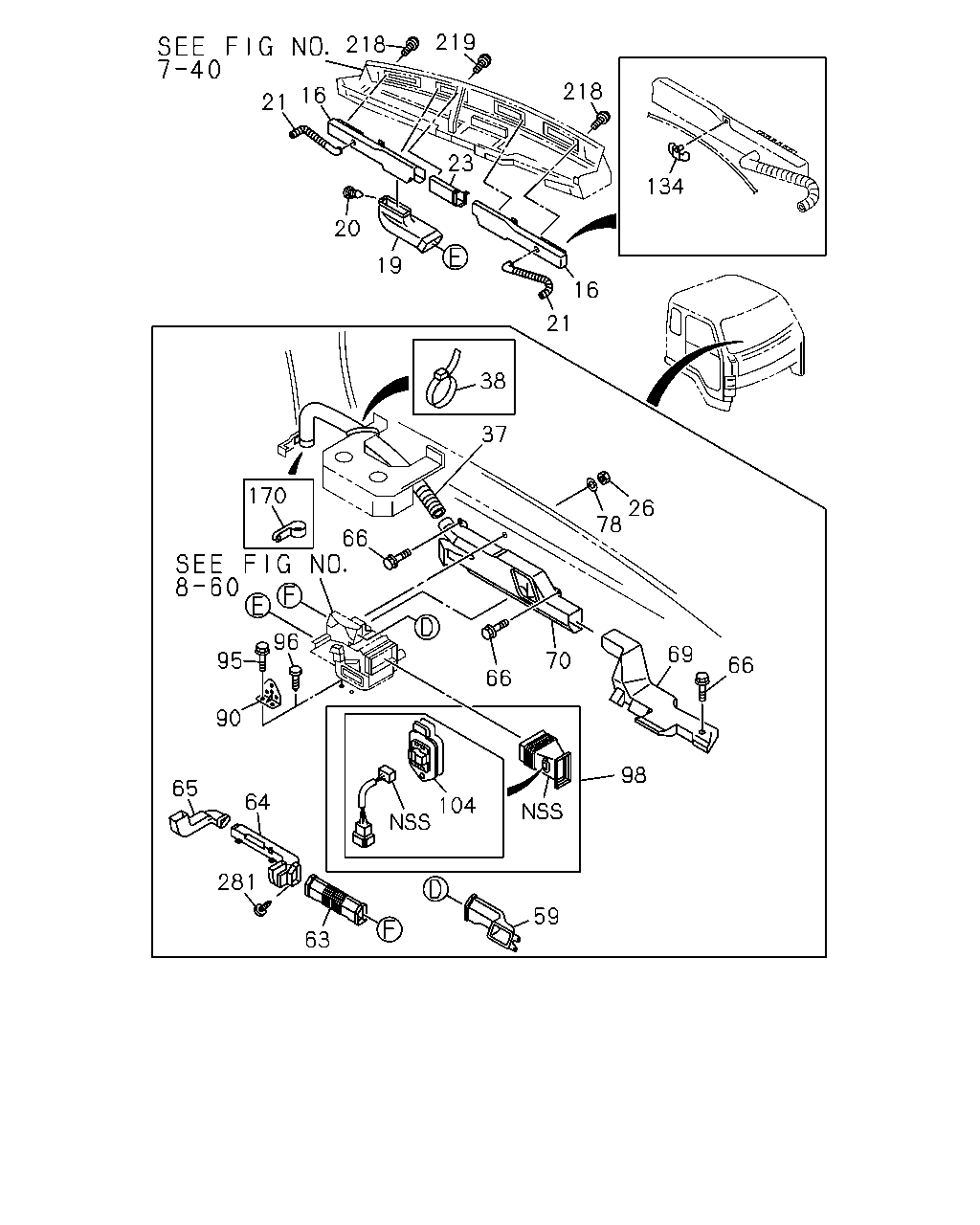

59 63 281 65 64 104 98 66 69 70 66 90 95 96 66 170 37 38 78 26 21 16 134 218 219 218 16 21 23 20 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
16	DUCT ASM; DEFROSTER	1-76377-072-5	01	1	9002-	●	●
16	DUCT ASM; DEFROSTER	1-76377-071-6	01	1	9002-	●	●
16	DUCT ASM; DEFROSTER	1-76377-074-5	01	1	9002-			●	●
16	DUCT ASM; DEFROSTER	1-76377-073-4	01	1	9002-			●	●
19	DUCT; DEFROSTER,HTR JOINT	1-76377-076-2	01	1	9002-	●	●
19	DUCT; DEFROSTER,HTR JOINT	1-76377-097-1	01	1	9002-			●	●
20	FASTENER; DEFROSTER DUCT,HTR JOINT	1-09987-144-0	01	1	9002-	●	●	●	●
21	HOSE; DEFROSTER,DRIVER SIDE WO/URETHANE	1-76377-085-4	02	1	9002-	●	●	●	●
23	DUCT ASM; DEFROSTER,JOINT CTR	1-76377-087-4	01	1	9002-	●	●
23	DUCT ASM; DEFROSTER,JOINT CTR	1-76377-088-3	01	1	9002-			●	●
26	NUT; HTR M6 FLANGE	1-09984-141-0	03	1	9002-	●	●	●	●
37	HOSE; AIR,HTR	1-83512-112-0	01	1	9002-			●	●
38	CLIP; BAND,HTR AIR HOSE L=300	1-09707-001-0	01	1	9002-			●	●
59	DUCT; VENT,ASSIST SIDE	1-76377-083-2	01	1	9002-	●	●
59	DUCT; VENT,ASSIST SIDE	1-76377-084-3	01	1	9002-			●	●
63	DUCT; VENT,DRIVER JOINT	1-76377-082-5	01	1	9002-	●	●
63	DUCT; VENT,DRIVER JOINT	1-76377-098-4	01	1	9002-			●	●
64	DUCT; VENT,DRIVER SIDE	1-76377-080-2	01	1	9002-	●	●
64	DUCT; VENT,DRIVER SIDE	1-76377-081-4	01	1	9002-			●	●
65	DUCT; VENT,DRIVER SIDE	1-76377-078-3	01	1	9002-	●	●
65	DUCT; VENT,DRIVER SIDE	1-76377-079-3	01	1	9002-			●	●
66	BOLT; DUCT M6X16 W/LK&PL WASHER	9-01960-616-0	03	1	9002-9204	●	●
66	BOLT; DUCT M6X16 W/LK&PL WASHER	0-50140-616-0	03	1	9205-	●	●
66	BOLT; DUCT M6X16 W/LK&PL WASHER	9-01960-616-0	01	1	9002-9204	●	●	●	●
66	BOLT; DUCT M6X16 W/LK&PL WASHER	0-50140-616-0	01	1	9205-	●	●	●	●
66	BOLT; DUCT M6X16 W/LK&PL WASHER	9-01960-616-0	02	1	9002-9204			●	●
66	BOLT; DUCT M6X16 W/LK&PL WASHER	0-50140-616-0	02	1	9205-			●	●
69	DUCT; ROOM	1-83542-047-0	01	1	9002-	●	●
69	DUCT; ROOM	1-83542-053-1	01	1	9002-			●	●
70	DUCT; ROOM	1-83542-044-1	01	1	9002-	●	●
70	DUCT; ROOM	1-83542-057-1	01	1	9002-			●	●
78	WASHER; PL,HTR UNIT OD=20	1-09509-047-0	01	1	9002-	●	●	●	●
78	WASHER; PL,HTR UNIT OD=14	1-09509-048-0	02	1	9002-	●	●	●	●
90	BRACKET; SUPPORT,HTR UNIT CAB SUSPENSION RIGID<W71>	1-76397-008-2	01	1	9002-9306		●
90	BRACKET; SUPPORT,HTR UNIT	1-76397-008-2	01	1	9002-9306			●	●
90	BRACKET; SUPPORT,HTR UNIT CAB SUSPENSION RIGID<W71>	1-76397-008-2	01	1	9307-9311				●
90	BRACKET; SUPPORT,HTR UNIT	1-76397-008-2	01	1	9312-				●
95	BOLT; SUPPORT BRKT CAB SUSPENSION RIGID<W71> M6X16 W/LK&PL WASHER	1-09980-497-0	02	1	9002-9301		●
95	BOLT; SUPPORT BRKT M6X16 W/LK&PL WASHER	1-09980-497-0	02	1	9002-9301			●	●
95	BOLT; SUPPORT BRKT CAB SUSPENSION RIGID<W71> M6X16 W/LK&PL WASHER	1-09980-586-0	02	1	9302-9306		●
95	BOLT; SUPPORT BRKT M6X16 W/LK&PL WASHER	1-09980-586-0	02	1	9302-9306			●	●
95	BOLT; SUPPORT BRKT CAB SUSPENSION RIGID<W71> M6X16 W/LK&PL WASHER	1-09980-586-0	02	1	9307-				●
96	PLUG; DUMMY,HTR UNIT BRKT D4.7X11	1-76378-154-0	02	1	9002-9306	●
96	PLUG; DUMMY,HTR UNIT BRKT EXC. CAB SUSPENSION RIGID<W71> D4.7X11	1-76378-154-0	02	1	9002-9306		●
96	PLUG; DUMMY,HTR UNIT BRKT EXC. CAB SUSPENSION RIGID<W71> D4.7X11	1-76378-154-0	02	1	9307-				●
98	DUCT; BLOWER UNIT TO HTR UNIT EXC. AIR CONDITIONER MANUAL CONTROL(C60)	1-83542-048-3	01	1	9002-	●	●
98	DUCT; BLOWER UNIT TO HTR UNIT EXC. AIR CONDITIONER MANUAL CONTROL(C60)	1-83542-054-2	01	1	9002-			●	●
104	RESISTOR; HTR DUCT EXC. AIR CONDITIONER MANUAL CONTROL(C60)	1-83519-028-0	01	1	9002-	●	●	●	●
134	CLIP; CONT CABLE	1-09987-147-0	01	1	9002-	●	●	●	●
170	CLIP; HTR HOSE	9-09915-526-2	01	1	9002-			●	●
218	SCREW; DEFROSTER DUCT M5X14 W/PL WASHER	5-09981-050-0	04	1	9002-	●	●	●	●
219	SCREW; DEFROSTER DUCT,CTR M5X14 W/PL WASHER	5-09981-050-0	01	1	9002-	●	●	●	●
281	FASTENER; VENT DUCT,DRIVER SIDE BLACK	8-94104-935-0	04	1	9407-		●		●

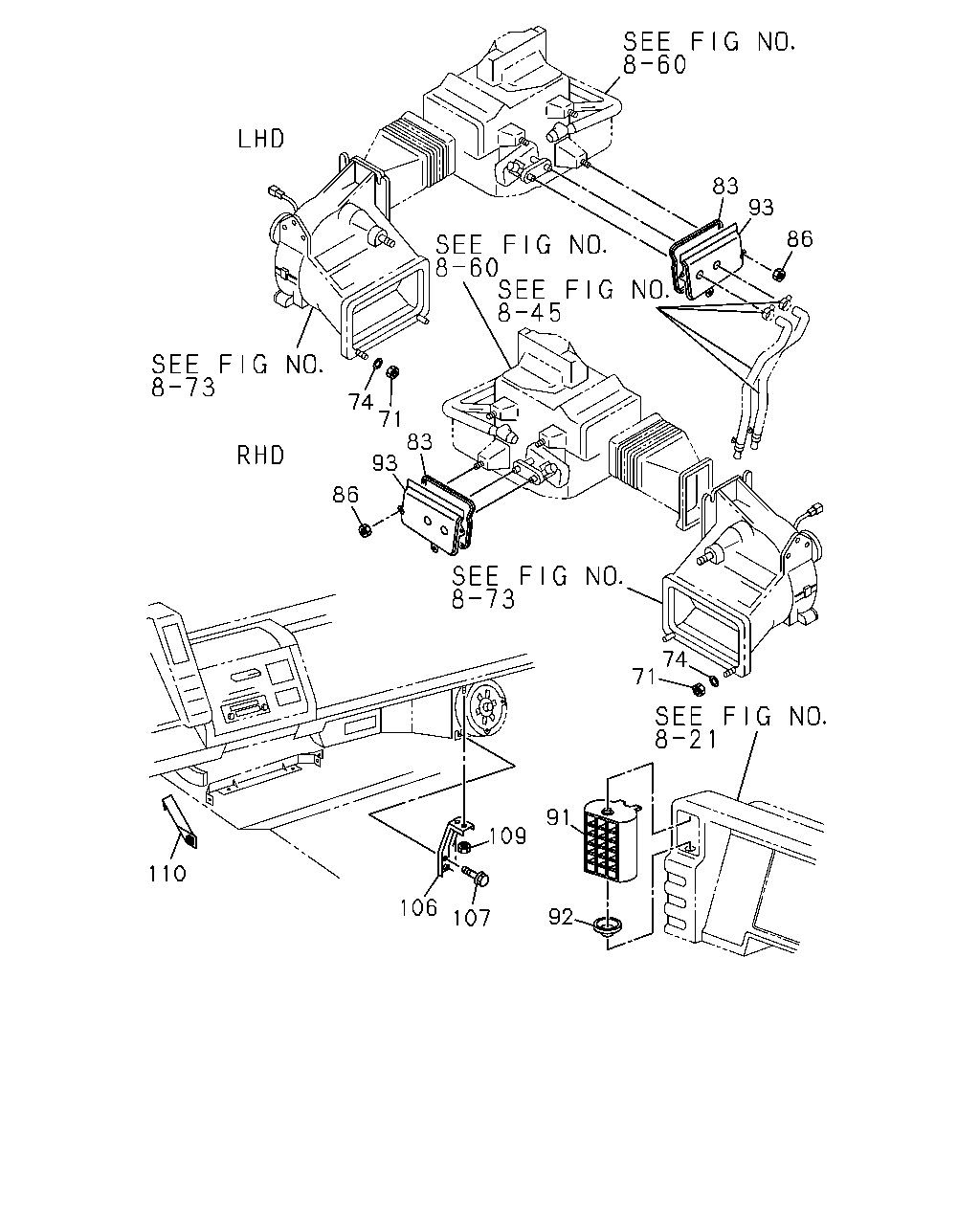

92 107 106 110 109 91 71 74 86 93 83 71 74 83 93 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
71	NUT; BLOWER UNIT TO DASH M6 FLANGE	1-09984-141-0	03	1	9002-	●	●
71	NUT; BLOWER UNIT TO DASH EXC. AIR CONDITIONER MANUAL CONTROL(C60) M6 FLANGE	1-09984-141-0	03	1	9002-			●	●
74	WASHER; PL,BLOWER UNIT TO DASH OD=20	1-09509-047-0	01	1	9002-	●	●
74	WASHER; PL,BLOWER UNIT TO DASH EXC. AIR CONDITIONER MANUAL CONTROL(C60) OD=20	1-09509-047-0	01	1	9002-			●	●
74	WASHER; PL,BLOWER UNIT TO DASH OD=14	1-09509-048-0	02	1	9002-	●	●
74	WASHER; PL,BLOWER UNIT TO DASH EXC. AIR CONDITIONER MANUAL CONTROL(C60) OD=14	1-09509-048-0	02	1	9002-			●	●
83	SEAL; COVER,HTR HOLE	1-71997-456-3	01	1	9002-	●	●	●	●
86	NUT; COVER,HTR HOLE M6 FLANGE	1-09984-141-0	03	1	9002-	●	●	●	●
91	GRILLE ASM; AIR OUTLET,METER CLUSTER	1-76367-050-1	02	1	9002-	●	●	●	●
92	BUSHING; AIR OUTLET GRILLE,METER CLUST	1-72547-048-1	02	1	9002-	●	●	●	●
93	COVER; HTR CORE	1-71997-891-0	01	1	9002-	●	●
93	COVER; HTR CORE	1-71997-476-3	01	1	9002-			●	●
106	STAY; HTR UNIT CAB SUSPENSION RIGID<W71>	1-65680-450-1	01	1	9002-9306		●
106	STAY; HTR UNIT	1-65680-450-1	01	1	9002-9306			●	●
106	STAY; HTR UNIT	1-65680-450-1	01	1	9307-				●
107	BOLT; STAY,HTR UNIT CAB SUSPENSION RIGID<W71> M6X20 W/LK&PL WASHER	9-01960-620-0	01	1	9002-9204		●
107	BOLT; STAY,HTR UNIT M6X20 W/LK&PL WASHER	9-01960-620-0	01	1	9002-9204			●	●
107	BOLT; STAY,HTR UNIT CAB SUSPENSION RIGID<W71> M6X20 W/LK&PL WASHER	0-50140-620-0	01	1	9205-9306		●
107	BOLT; STAY,HTR UNIT M6X20 W/LK&PL WASHER	0-50140-620-0	01	1	9205-9306			●	●
107	BOLT; STAY,HTR UNIT M6X20 W/LK&PL WASHER	0-50140-620-0	01	1	9307-				●
109	NUT; STAY,HTR UNIT CAB SUSPENSION RIGID<W71> M6 FLANGE	5-09440-004-0	01	1	9002-9306		●
109	NUT; STAY,HTR UNIT M6 FLANGE	5-09440-004-0	01	1	9002-9306			●	●
109	NUT; STAY,HTR UNIT M6 FLANGE	5-09440-004-0	01	1	9307-				●
110	BRACKET ASM; CONT UNIT INTAKE HEATER<SL2>	1-73997-787-0	01	1	9002-			●	●
