8-28 — CHASSIS ELECTRICAL (#3100) — 86 parça
çizim 35426
115 116 117 52 52 54 67 93 94 58 59
BalonParca AdiParca NoAdetTipApplied Date A B C D
52 BUZZER; BACK
REVERSING WARNING BUZZER<YM9> NIKKO 		1-83460-010-0 01 1 9002-9112 ● ● ● ●
52 BUZZER; BACK
REVERSING WARNING BUZZER<YM9> NIKKO 		8-97061-718-0 01 1 9201-9306 ● ● ● ●
52 BUZZER; BACK
REVERSING WARNING BUZZER<YM9> NIKKO 		1-83460-052-0 01 1 9307- ● ●
54 BOLT; BACK BUZZER
REVERSING WARNING BUZZER<YM9> M10X25 W/LK WASHER 		0-50041-025-0 01 1 9002-9006 ● ● ● ●
58 BUZZER; AIR PRESSURE WARNING 1-83460-029-0 01 1 9002- ● ●
58 BUZZER; AIR PRESSURE WARNING 1-83460-005-0 01 1 9002- ● ●
59 SCREW; BUZZER
M5X14 W/PL WASHER 		5-09981-050-0 01 1 9002- ● ● ● ●
67 BUZZER; ENG OVERRUN
ENGINE OVERRUN BUZZER<SK4> 		1-83460-032-0 01 1 9002- ● ● ● ●
93 NUT; CONSENT TO BLIND PNL
M5 FLANGE 		5-09440-003-0 02 1 9002- ● ●
94 SCREW; CONSENT TO BLIND PNL
M5X14 W/PL WASHER 		5-09981-050-0 02 1 9002- ● ●
94 SCREW; CONSENT TO BLIND PNL 1-09981-282-0 02 1 9002- ● ●
115 RELAY; POWER CAB TILT UNIT
AUTO CAB TILT<WV2> NIKKO 		1-81171-034-1 01 1 9206-9306 ● ●
116 BOLT; RELAY FIX
AUTO CAB TILT<WV2> M8X20 W/LK&PL WASHER 		0-50140-820-0 02 1 9206-9306 ● ●
117 NUT; RELAY FIX
AUTO CAB TILT<WV2> M8 		9-09110-408-0 02 1 9206-9306 ● ●

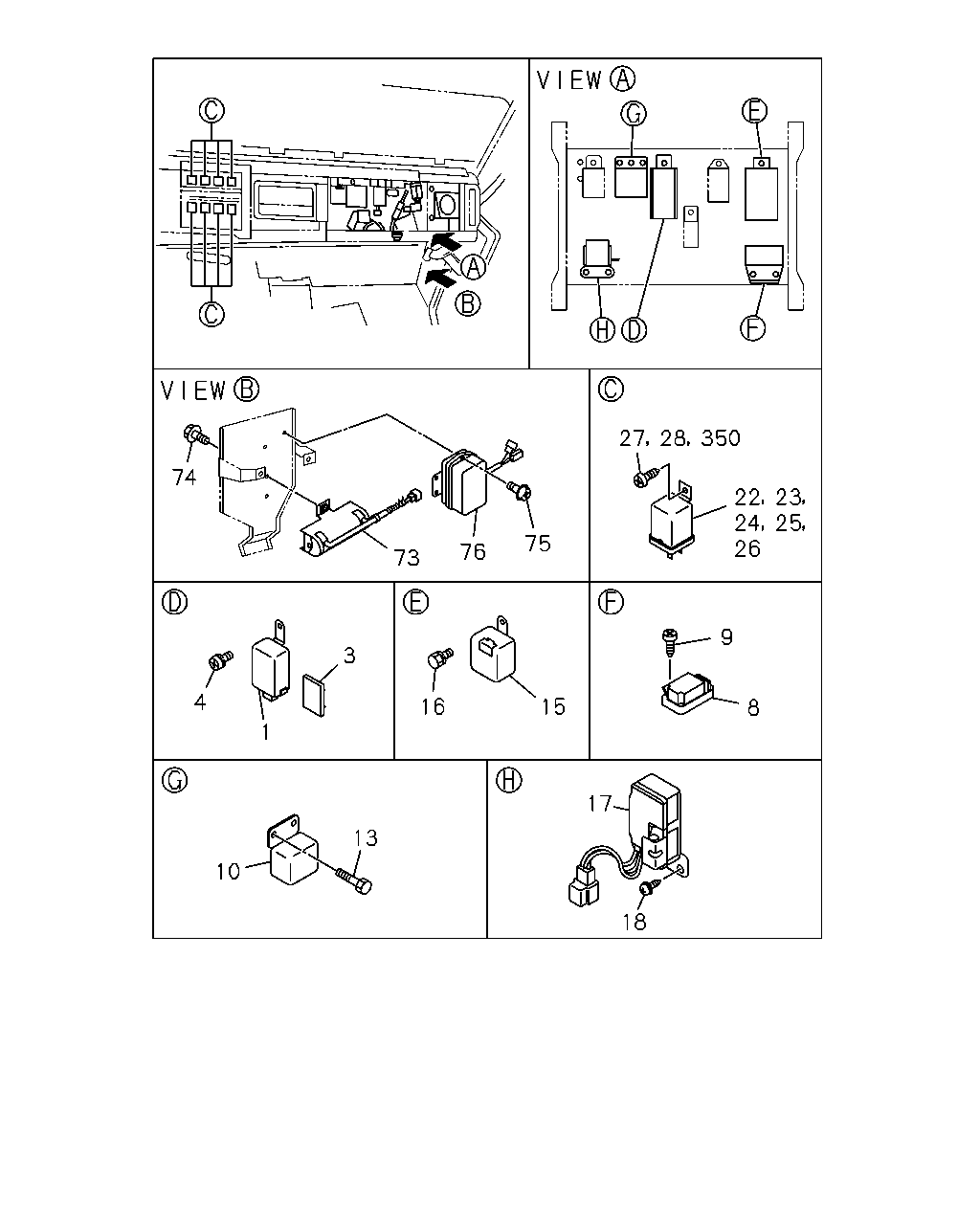

çizim 36543
18 17 13 10 1 4 3 16 15 9 8 26 24 22 23 25 27 28 350 75 76 73 74
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 UNIT; FLASHER 1-83470-034-1 01 1 9002-9401 ● ● ● ●
1 UNIT; FLASHER 1-83470-034-1 01 1 9402-9509 ●
1 UNIT; FLASHER
WHEEL BASE 4600MM(46W) CHINA EQUIPMENT(YT2) 		1-83470-034-1 01 1 9402-9509 ●
1 UNIT; FLASHER
EXC. CHINA EQUIPMENT(YT2) 		1-83470-034-1 01 1 9402-9509 ●
1 UNIT; FLASHER 1-83470-034-1 01 1 9510- ●
1 UNIT; FLASHER
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB) CHINA EQUIPMENT(YT2) 		1-83470-034-1 01 1 9510- ●
1 UNIT; FLASHER
WHEEL BASE 5400MM(54W) CHINA EQUIPMENT(YT2) 		1-83470-056-0 01 1 9402-9509 ●
1 UNIT; FLASHER
WHEEL BASE 4600MM(46W) CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) 		1-83470-056-1 01 1 9510- ●
1 UNIT; FLASHER
WHEEL BASE 5400MM(54W) CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) 		1-83470-033-1 01 1 9510- ●
3 SEAL; SILENT,RELAY 1-73368-001-0 01 1 9002- ● ● ● ●
4 SCREW; FLASHER UNIT
M5X14 TAPPING W/PL WASHER 		0-74100-514-0 01 1 9002- ● ● ● ●
8 RELAY; WIPER
INTERMITTENT WIPER<C13> 		1-82550-095-3 01 1 9002- ● ● ● ●
9 SCREW; WIPER RELAY
INTERMITTENT WIPER<C13> M5X14 TAPPING W/PL WASHER 		0-74100-514-0 02 1 9002- ● ● ● ●
10 DETECTOR ASM; FUEL 1-81553-001-0 01 1 9002- ● ● ● ●
13 BOLT; FUEL DETECTOR
M5X14 TAPPING W/PL WASHER 		0-74100-514-0 01 1 9002- ● ● ● ●
15 RELAY; STOP & TAIL WARNING 1-82550-143-2 01 1 9002- ● ● ● ●
16 SCREW; RELAY
M5X14 TAPPING W/PL WASHER 		0-74100-514-0 01 1 9002- ● ● ● ●
17 TIMER; SEAT BELT
SAUDI ARABIA EQUIPMENT(WH1) 		1-82550-183-1 01 1 9002-9306 ● ●
18 SCREW; TIMER
SAUDI ARABIA EQUIPMENT(WH1) M5X14 TAPPING W/PL WASHER 		0-74100-514-0 02 1 9002-9306 ● ●
22 RELAY; STOP LAMP
GREEN 		1-82550-146-0 01 1 9002- ● ● ● ●
23 RELAY; AIR MASTER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) GREEN 		1-82550-146-0 01 1 9002- ● ●
24 RELAY; LIGHTING
GREEN 		1-82550-146-0 02 1 9002- ● ● ● ●
25 RELAY; TAIL LAMP
GREEN 		1-82550-146-0 01 1 9002- ● ● ● ●
26 RELAY; CONSENT
GREEN 		1-82550-146-0 01 1 9002- ● ● ● ●
27 SCREW; SET,LIGHTING RELAY
M5X14 TAPPING W/PL WASHER 		0-74100-514-0 02 1 9002- ● ● ● ●
28 SCREW; SET,TAIL LAMP RELAY
M5X14 TAPPING W/PL WASHER 		0-74100-514-0 01 1 9002- ● ● ● ●
73 RESISTOR; RELAY
INTAKE HEATER<SL2> 		1-81375-004-1 01 1 9002- ● ● ● ●
74 SCREW; RESISTOR
INTAKE HEATER<SL2> M5X14 TAPPING W/PL WASHER 		0-74100-514-0 04 1 9002- ● ● ● ●
75 SCREW; STOP LAMP RELAY
M5X14 TAPPING W/PL WASHER 		0-74100-514-0 01 1 9002- ● ● ● ●
76 TIMER; INT HTR
INTAKE HEATER<SL2> 		1-82550-132-1 01 1 9002- ● ● ● ●
350 SCREW; RELAY
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M5X14 TAPPING W/PL WASHER 		0-74100-514-0 02 1 9002- ● ●

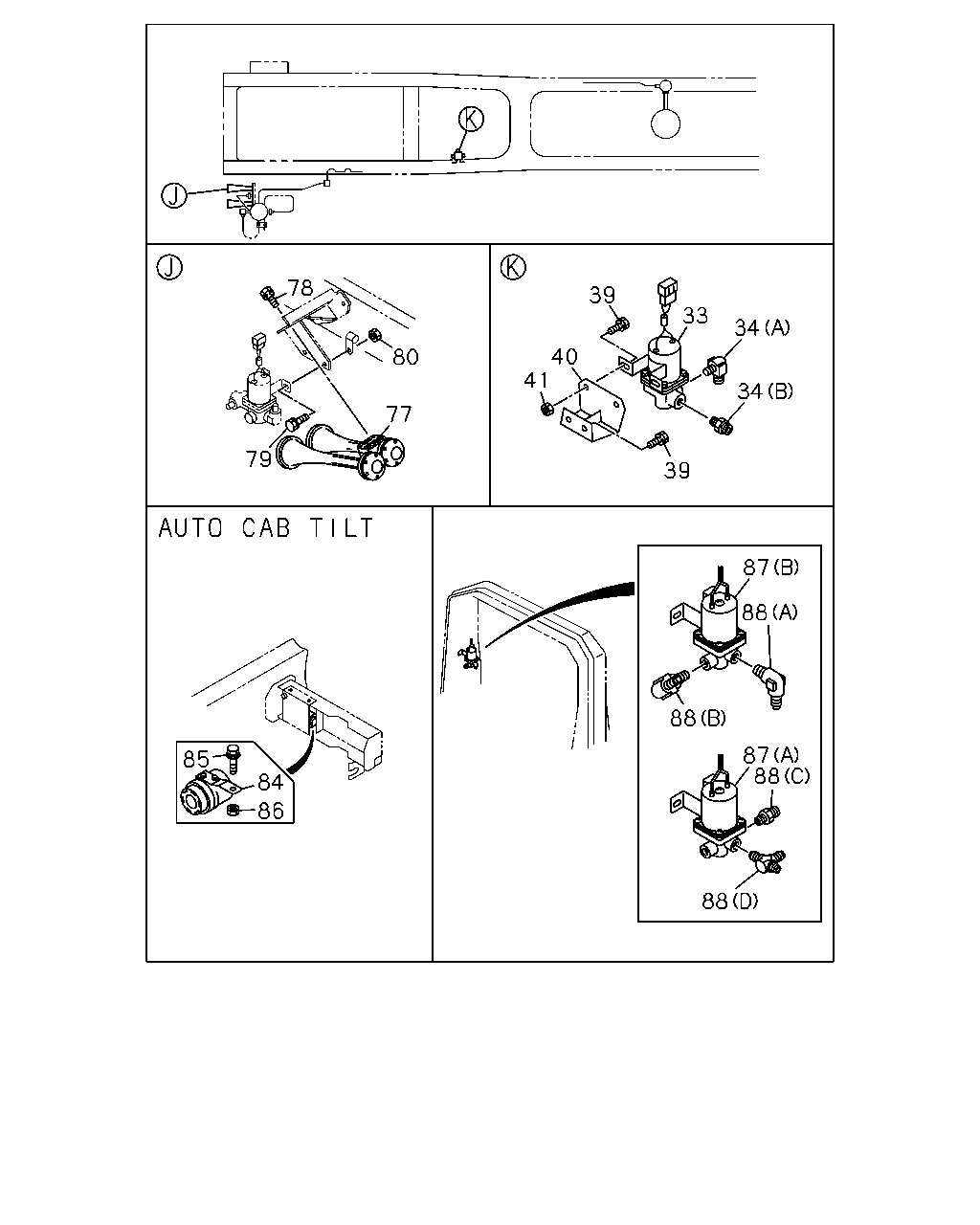

çizim 37025
88 88 87 88 88 87 39 34 34 33 39 40 41 80 77 78 79 85 84 86
BalonParca AdiParca NoAdetTipApplied Date A B C D
33 VALVE; MAG,PTO CONT
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-82563-305-0 01 1 9002- ● ● ● ●
34 CONNECTOR; MAG VLV,INL PORT
TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) PT1/4 & M12 ELBOW 		1-09650-117-1 01 1 9002-9302 ● ● ● ●
34 CONNECTOR; MAG VLV,INL PORT
TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 9303- ● ● ● ●
34 CONNECTOR; MAG VLV,INL PORT
TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M20 & PT1/4 		9-09902-386-0 01 1 9002- ● ● ● ●
39 BOLT; BRKT,MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X16 W/LK WASHER 		9-01900-816-0 02 1 9002-9204 ● ● ● ●
39 BOLT; BRKT,MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X16 W/LK WASHER 		0-50040-816-0 02 1 9205-9302 ● ● ● ●
39 BOLT; BRKT,MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X16 FLANGE 		0-28080-816-0 02 1 9303- ● ● ● ●
39 BOLT; BRKT,MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X25 W/LK WASHER 		9-01900-825-0 02 1 9002-9204 ● ● ● ●
39 BOLT; BRKT,MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X25 W/LK WASHER 		0-50040-825-0 02 1 9205-9302 ● ● ● ●
39 BOLT; BRKT,MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X25 FLANGE 		0-28080-825-0 02 1 9303- ● ● ● ●
40 BRACKET; MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-47475-361-3 01 1 9002- ● ● ● ●
41 NUT; BRKT,MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) M8 		9-09110-408-0 04 1 9002- ● ● ● ●
77 HORN ASM 1-83430-017-0 01 1 9002- ● ● ● ●
78 BOLT; AIR HORN
M8X20 W/LK WASHER 		9-01900-820-0 02 1 9002-9204 ● ● ● ●
78 BOLT; AIR HORN
M8X20 W/LK WASHER 		0-50040-820-0 02 1 9205-9302 ● ● ● ●
78 BOLT; AIR HORN
M8X20 FLANGE 		0-28080-820-0 02 1 9303- ● ● ● ●
79 BOLT; MAG VLV
M8X20 W/LK WASHER 		9-01900-820-0 02 1 9002-9204 ● ● ● ●
79 BOLT; MAG VLV
M8X20 W/LK WASHER 		0-50040-820-0 02 1 9205-9302 ● ● ● ●
79 BOLT; MAG VLV
M8X20 FLANGE 		0-28080-820-0 02 1 9303- ● ● ● ●
80 NUT; MAG VLV
M8 		9-09110-408-0 02 1 9002- ● ● ● ●
84 BUZZER; POWER CAB TILT
AUTO CAB TILT<WV2> 		1-83460-033-3 01 1 9002-9306 ● ●
85 BOLT; BUZZER,POWER CAB TILT
AUTO CAB TILT<WV2> M8X20 W/LK&PL WASHER 		9-01960-820-0 01 1 9002-9204 ● ●
85 BOLT; BUZZER,POWER CAB TILT
AUTO CAB TILT<WV2> M8X30 W/LK&PL WASHER 		0-50140-830-0 01 1 9205-9304 ● ●
85 BOLT; BUZZER,POWER CAB TILT
AUTO CAB TILT<WV2> M8X20 W/LK&PL WASHER 		0-50140-820-0 01 1 9305-9306 ● ●
86 NUT; BUZZER
AUTO CAB TILT<WV2> M8 		9-09110-408-0 01 1 9002-9306 ● ●
87 VALVE; MAG,GOV CONT
GOVERNOR CONTROL<W69> (B) 		1-82563-094-0 01 1 9002-9306 ●
87 VALVE; MAG,GOV CONT
GOVERNOR CONTROL<W69> EXC. CONCRETE PUMP<RA5> (B) 		1-82563-094-0 01 1 9002-9306 ●
87 VALVE; MAG,GOV CONT
CONCRETE PUMP<RA5> (A) 		1-82563-114-0 01 1 9002-9012 ●
87 VALVE; MAG,GOV CONT
CONCRETE PUMP<RA5> (A) 		1-82563-222-0 01 1 9101-9306 ●
87 VALVE; MAG,GOV CONT
CONCRETE PUMP<RA5> (A) 		1-82563-404-0 01 1 9307- ●
87 VALVE; MAG,GOV CONT
GOVERNOR CONTROL<W69> EXC. CONCRETE PUMP<RA5> (B) 		1-82563-402-0 01 1 9307- ●
88 CONNECTOR; MAG VLV
GOVERNOR CONTROL<W69> (A) PT1/4 & M12 ELBOW 		1-09650-117-1 01 1 9002-9302 ●
88 CONNECTOR; MAG VLV
GOVERNOR CONTROL<W69> EXC. CONCRETE PUMP<RA5> (A) PT1/4 & M12 ELBOW 		1-09650-117-1 01 1 9002-9302 ●
88 CONNECTOR; MAG VLV
GOVERNOR CONTROL<W69> (A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 9303- ●
88 CONNECTOR; MAG VLV
GOVERNOR CONTROL<W69> EXC. CONCRETE PUMP<RA5> (A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 9303- ●
88 CONNECTOR; MAG VLV
GOVERNOR CONTROL<W69> (B) M20 & PT1/4 ELBOW 		1-09660-137-0 01 1 9002-9302 ●
88 CONNECTOR; MAG VLV
GOVERNOR CONTROL<W69> EXC. CONCRETE PUMP<RA5> (B) M20 & PT1/4 ELBOW 		1-09660-137-0 01 1 9002-9302 ●
88 CONNECTOR; MAG VLV
GOVERNOR CONTROL<W69> (B) M20 & PT1/4 ELBOW 		1-09660-681-0 01 1 9303- ●
88 CONNECTOR; MAG VLV
GOVERNOR CONTROL<W69> EXC. CONCRETE PUMP<RA5> (B) M20 & PT1/4 ELBOW 		1-09660-681-0 01 1 9303- ●
88 CONNECTOR; MAG VLV
CONCRETE PUMP<RA5> (D) M12X2 & PT1/4 3WAY 		1-09656-230-1 01 1 9002- ●
88 CONNECTOR; MAG VLV
CONCRETE PUMP<RA5> (C) M20 & PT1/4 		9-09902-386-0 01 1 9002- ●
