◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 10626 - FTR-RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-38 - AIR COMPRESSOR PIPING; ENGINE SIDE ▶
0-38 — AIR COMPRESSOR PIPING; ENGINE SIDE (#310) — 60 parça

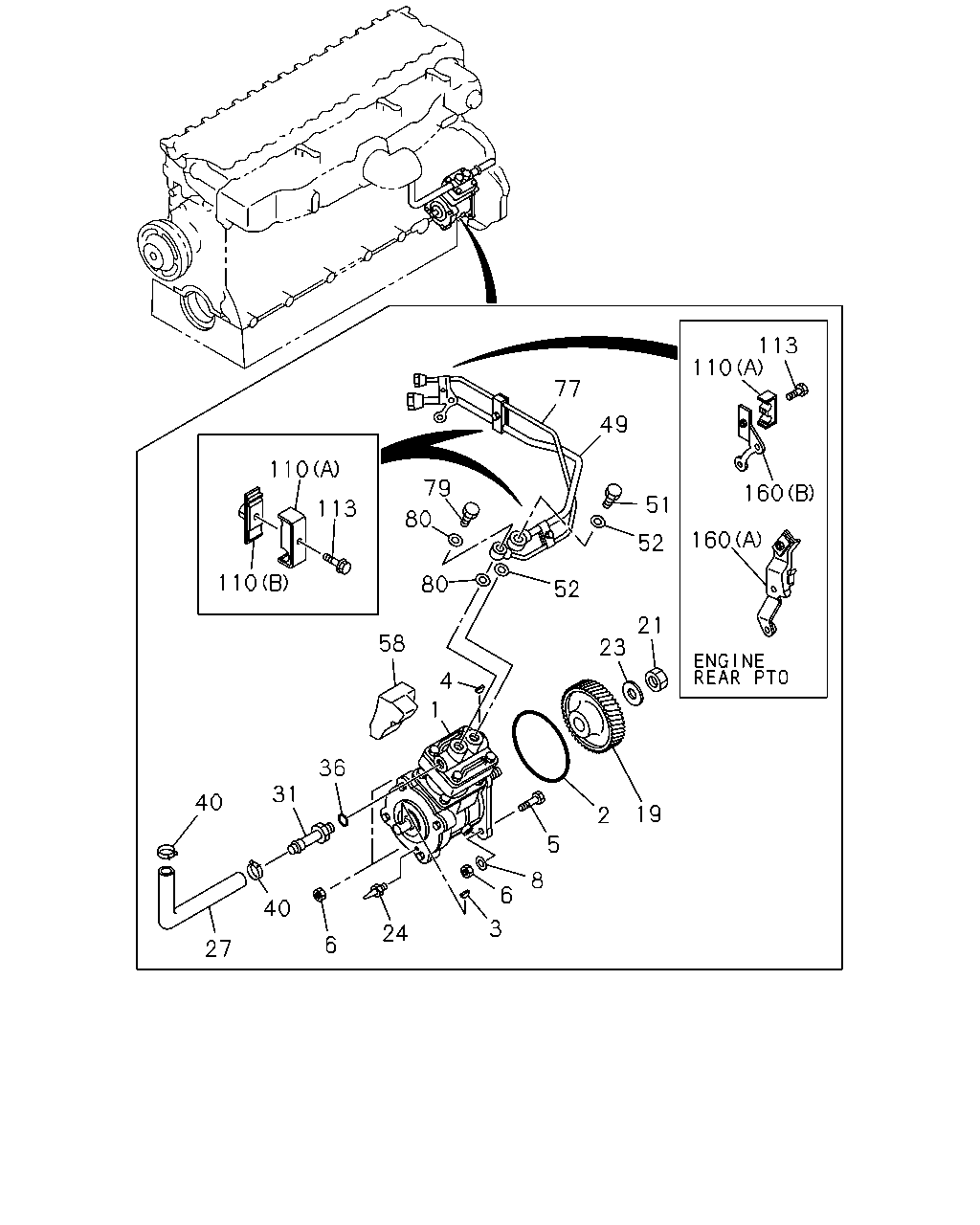

çizim 95595
113 110 77 49 110 79 160 51 113 80 160 52 110 80 52 21 58 23 4 1 36 31 40 19 2 5 8 6 40 3 24 6 27
BalonParca AdiParca NoAdetTipApplied Date A B
1 COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY(E1Q) 		8-94396-892-6 01 1 9202- ● ●
1 COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		8-94396-891-3 01 1 9202- ● ●
2 GASKET; AIR CMPR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6 		1-09623-464-0 01 1 9202- ● ●
3 KEY; COUPLING,INJ PUMP 9-08055-416-0 01 1 9202- ● ●
4 KEY; INJ PUMP GEAR 9-08055-516-0 01 1 9202- ● ●
5 BOLT; AIR CMPR FIX
MLD6 M/T<X9Y>,MLD7 M/T<X9Z> EXC. ENGINE REAR PTO(SV1) M12X95 		0-16806-295-0 01 1 9202-9212 ● ●
5 BOLT; AIR CMPR FIX
ENGINE REAR PTO(SV1) M12X128 		8-94399-252-0 01 1 9202-9205 ●
5 BOLT; AIR CMPR FIX
ENGINE REAR PTO(SV1) M12X153 		1-09020-054-1 01 1 9206- ●
5 BOLT; AIR CMPR FIX
MBG5 M/T<X9W> M12X95 FLANGE 		8-94396-485-1 01 1 9202-9212 ●
5 BOLT; AIR CMPR FIX
M12X95 FLANGE 		8-94396-485-1 01 1 9301- ●
5 BOLT; AIR CMPR FIX
EXC. ENGINE REAR PTO(SV1) M12X95 FLANGE 		8-94396-485-1 01 1 9301- ●
6 NUT; AIR CMPR
M10 FLANGE 		0-91150-110-0 02 1 9202- ● ●
6 NUT; AIR CMPR
M12 		9-99110-512-0 01 1 9202-9208 ● ●
6 NUT; AIR CMPR
M12 FLANGE 		0-91150-212-0 01 1 9209-9312 ● ●
6 NUT; AIR CMPR
M12 FLANGE 		0-91150-112-0 01 1 9401- ● ●
8 WASHER; PL,AIR CMPR
ID=12.5 OD=22 		8-94393-140-1 02 1 9202-9202 ● ●
8 WASHER; PL,AIR CMPR
ID=12.5 OD=22 		8-94393-140-1 01 1 9203-9212 ● ●
19 GEAR; INJ PUMP
Z=35 		8-94336-157-4 01 1 9202- ● ●
21 NUT; PUMP GEAR
M20 		9-99110-520-0 01 1 9202- ● ●
23 WASHER; PL,PUMP GEAR
ID=21 		9-09160-520-0 01 1 9202- ● ●
24 POINTER; AIR CMPR
L=21 		9-11327-602-0 01 1 9202- ● ●
27 HOSE; AIR CMPR,SUCTION
AIR COMPRESSOR HEAVY DUTY(E1Q) 		8-94397-173-0 01 1 9202-9307 ● ●
27 HOSE; AIR CMPR,SUCTION
AIR COMPRESSOR HEAVY DUTY(E1Q) 		8-94395-083-0 01 1 9308- ● ●
27 HOSE; AIR CMPR,SUCTION
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		8-94397-156-0 01 1 9202-9307 ● ●
27 HOSE; AIR CMPR,SUCTION
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		8-94395-082-0 01 1 9308- ● ●
31 PIPE; AIR,AIR CMPR SUCTION
AIR COMPRESSOR HEAVY DUTY(E1Q) 		8-94399-954-0 01 1 9202- ● ●
31 PIPE; AIR,AIR CMPR SUCTION
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		8-94399-942-1 01 1 9202- ● ●
36 GASKET; AIR PIPE TO AIR CMPR
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=24.5 OD=32 		9-09571-424-0 01 1 9202- ● ●
40 CLIP; AIR PIPE
ID=28.5 		1-09707-150-0 02 1 9202-9307 ● ●
40 CLIP; AIR PIPE
ID=26 		1-09707-091-0 02 1 9308- ● ●
49 PIPE; AIR,CHARGE
AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. ENGINE REAR PTO(SV1) 		8-94393-200-0 01 1 9202- ● ●
49 PIPE; AIR,CHARGE
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),ENGINE REAR PTO(SV1) 		8-94393-198-0 01 1 9202- ● ●
51 BOLT; EYE,AIR PIPE TO CMPR
AIR COMPRESSOR HEAVY DUTY(E1Q) M24X39 		1-09675-132-0 01 1 9202- ● ●
51 BOLT; EYE,AIR PIPE TO CMPR
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M20X38 		1-09675-133-0 01 1 9202- ● ●
52 GASKET; EYE BOLT,AIR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). AIR COMPRESSOR HEAVY DUTY(E1Q) ID=24.5 OD=32 		9-09571-424-0 02 1 9202- ● ●
52 GASKET; EYE BOLT,AIR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=20.5 OD=28.0 		9-09571-420-0 02 1 9202- ● ●
58 SPACER; AIR CMPR
AUSTRALIA EQUIPMENT(RR3) 		8-94393-045-2 01 1 9202-9410 ●
58 SPACER; AIR CMPR
ANTI NOISE EQUIPMENT VAR2<TAK> 		8-94393-045-2 01 1 9411-9502 ●
58 SPACER; AIR CMPR
AUSTRALIA EQUIPMENT(RR3) 		8-94393-045-2 01 1 9411-9502 ●
58 SPACER; AIR CMPR
ANTI NOISE EQUIPMENT VAR2<TAK> 		8-94395-675-1 01 1 9503- ●
58 SPACER; AIR CMPR
AUSTRALIA EQUIPMENT(RR3) 		8-94395-675-1 01 1 9503- ●
77 PIPE; AIR,GOV
AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. ENGINE REAR PTO(SV1) 		8-94393-795-0 01 1 9202- ● ●
77 PIPE; AIR,GOV
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),ENGINE REAR PTO(SV1) 		8-94393-199-0 01 1 9202- ● ●
79 BOLT; EYE,AIR PIPE TO CMPR
AIR COMPRESSOR HEAVY DUTY(E1Q) M14X27 FLANGE 		1-09675-086-0 01 1 9202- ● ●
79 BOLT; EYE,AIR PIPE TO CMPR
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M18X33 		1-09675-058-0 01 1 9202- ● ●
80 GASKET; AIR PIPE TO CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) ID=14.2 OD=19.2 		1-09630-085-0 02 1 9202- ● ●
80 GASKET; AIR PIPE TO CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=18.2 OD=24.4 		1-09630-087-0 02 1 9202- ● ●
110 CLIP; AIR PIPE
(A) 		8-94393-037-0 03 1 9202- ● ●
110 CLIP; AIR PIPE
(B) 		8-94393-090-0 02 1 9202- ● ●
110 CLIP; AIR PIPE
ENGINE REAR PTO(SV1) (A) 		8-94393-037-0 01 1 9202- ●
110 CLIP; AIR PIPE
ENGINE REAR PTO(SV1) (B) 		8-94393-090-0 01 1 9202- ●
113 BOLT; CLIP,AIR PIPE
M6X16 FLANGE 		0-28280-616-0 01 1 9205- ●
113 BOLT; CLIP,AIR PIPE
EXC. ENGINE REAR PTO(SV1) M6X16 FLANGE 		0-28280-616-0 01 1 9205- ●
113 BOLT; CLIP,AIR PIPE
M6X30 FLANGE 		0-28280-630-0 03 1 9202- ● ●
113 BOLT; CLIP,AIR PIPE
M6X40 W/LK&PL WASHER 		0-50140-640-0 03 1 9202- ● ●
113 BOLT; CLIP,AIR PIPE
ENGINE REAR PTO(SV1) M6X30 FLANGE 		0-28280-630-0 01 1 9202- ●
113 BOLT; CLIP,AIR PIPE
ENGINE REAR PTO(SV1) M6X40 W/LK&PL WASHER 		0-50140-640-0 01 1 9202- ●
160 BRACKET; AIR PIPE
MLD6 M/T<X9Y>,MLD7 M/T<X9Z> EXC. ENGINE REAR PTO(SV1) (B) 		8-94394-455-0 01 1 9202- ● ●
160 BRACKET; AIR PIPE
ENGINE REAR PTO(SV1) (A) 		8-94394-372-0 01 1 9202- ●
160 BRACKET; AIR PIPE
MBG5 M/T<X9W> (B) 		8-94393-202-0 01 1 9202- ●
