Isuzu WW
▶
TRUCKS
▶
FSR
▶
10624 - FSR-RHD
▶
3 - Brakes, Brake System
▶
3-34 - BRAKE VALVE; AIR
▶
3-34 — BRAKE VALVE; AIR
(#31) — 35 parça
Tümü
A - FSR5MF
B - FSR5WF
◀

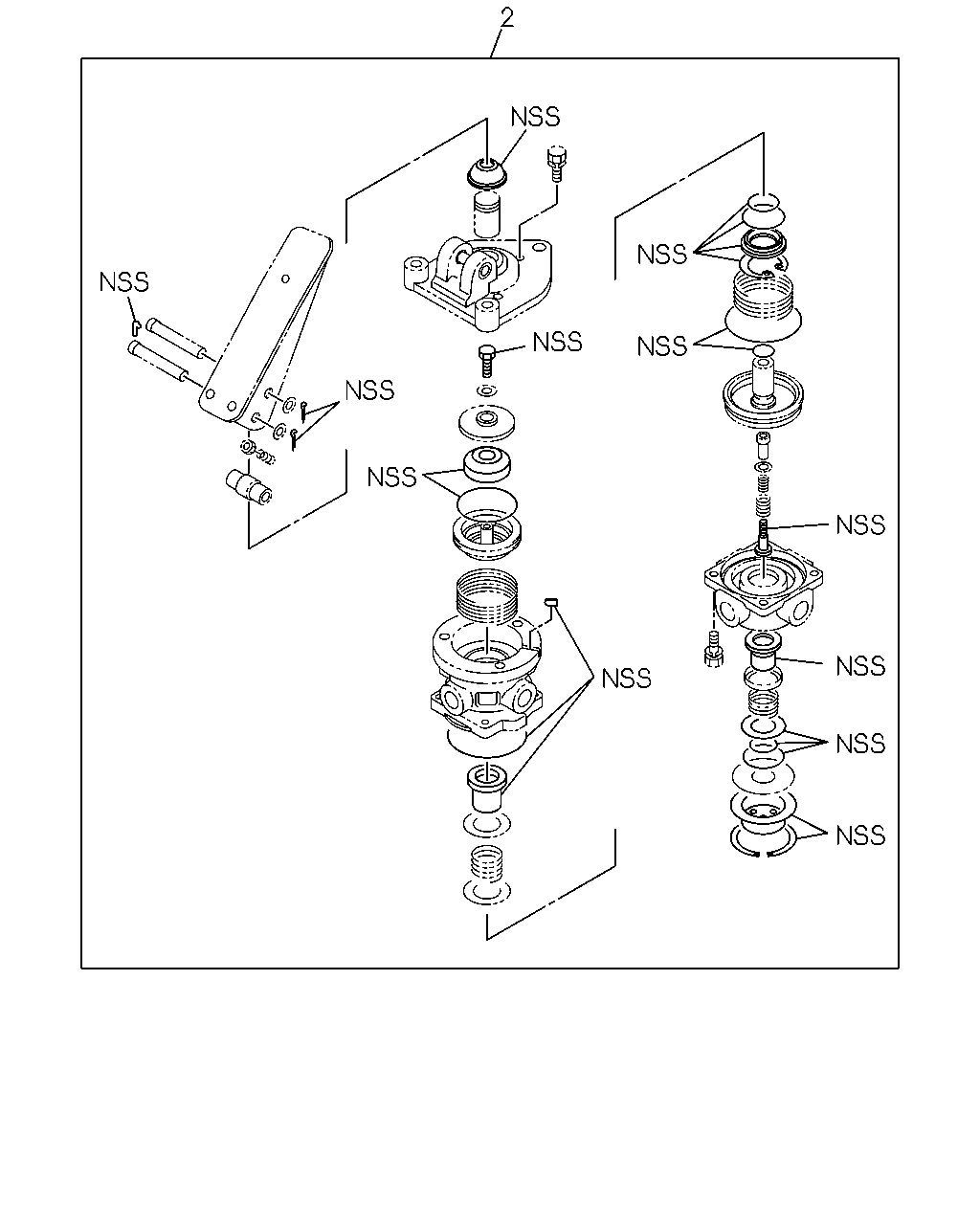

[334A] NO.2 REPAIR KIT (1 parça)

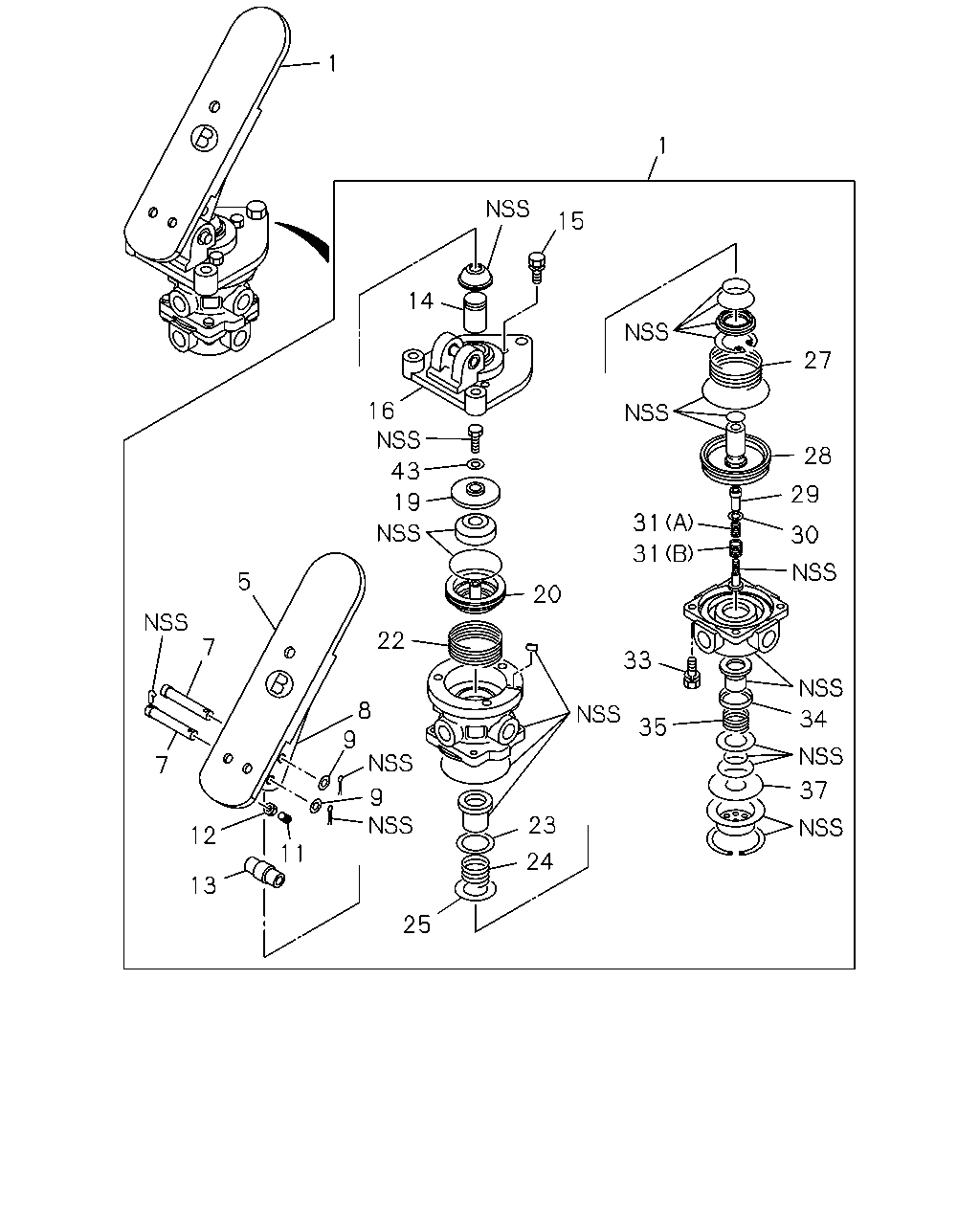

[334A] NO.1 (34 parça)
▶
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
REPAIR KIT; BRK VLV
1-85576-053-0
01
1
9202-
●
●
1
1
15
14
27
16
28
43
29
19
31
30
31
5
20
22
7
33
8
9
34
35
7
37
9
23
12
11
24
13
25
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
VALVE; BRK
1-48100-611-1
01
1
9202-9501
●
●
1
VALVE; BRK
1-48100-601-0
01
1
9502-
●
●
5
COVER; PEDAL,BRK VLV
1-48119-246-0
01
1
9202-9501
●
●
5
COVER; PEDAL,BRK VLV
1-48119-359-0
01
1
9502-
●
●
7
PIN; PEDAL,BRK VLV
1-48119-244-0
02
1
9202-
●
●
8
PEDAL; BRK VLV
1-48129-174-0
01
1
9202-9501
●
●
8
PEDAL; BRK VLV
1-48119-357-0
01
1
9502-
●
●
9
WASHER; PIN,BRK VLV
1-48119-106-0
02
1
9202-
●
●
11
SCREW; SET,BRK VLV
1-48119-300-0
01
1
9202-
●
●
12
NUT; SCREW,PEDAL,BRK VLV
9-88510-123-0
01
1
9202-
●
●
13
ROLLER; PEDAL,BRK VLV
1-48119-243-0
01
1
9202-
●
●
14
PLUNGER; BRK VLV
1-48119-277-0
01
1
9202-
●
●
15
BOLT; PLATE,BRK VLV
1-48219-039-0
03
1
9202-
●
●
16
PLATE; MTG,BRKT VLV
1-48119-268-0
01
1
9202-
●
●
19
SEAT; SPRING,BRK VLV
1-48119-270-0
01
1
9202-
●
●
20
PISTON; UPR,BRK VLV
1-48119-272-0
01
1
9202-
●
●
22
SPRING; PISTON,LWR,BRK VLV
1-48143-009-0
01
1
9202-
●
●
23
WASHER; UPR,BRK VLV
1-48129-145-0
01
1
9202-
●
●
24
SPRING; UPR,BRK VLV
1-48123-018-0
01
1
9202-
●
●
25
WASHER; PISTON,BRK VLV
1-48129-287-0
01
1
9202-9501
●
●
25
WASHER; PISTON,BRK VLV
1-48129-138-0
01
1
9502-
●
●
27
SPRING; PISTON,LWR,BRK VLV
1-48123-055-0
01
1
9202-
●
●
28
PISTON; LWR,BRK VLV
1-48129-140-0
01
1
9202-
●
●
29
SLEEVE; VLV,BRK VLV
1-48129-083-1
01
1
9202-
●
●
30
WASHER; SLEEVE,BRK VLV
1-48129-082-0
01
1
9202-
●
●
31
SPRING; VLV,BRK VLV
(A)
1-48123-032-0
01
1
9202-
●
●
31
SPRING; VLV,BRK VLV
(B)
1-48123-064-0
01
1
9202-9501
●
●
31
SPRING; VLV,BRK VLV
(B)
1-48123-033-0
01
1
9502-
●
●
33
BOLT; BODY,BRK VLV
1-48119-213-0
04
1
9202-
●
●
34
RETAINER; VLV,BRK VLV
1-48129-144-0
01
1
9202-
●
●
35
SPRING; VLV,BRK VLV
1-48129-019-0
01
1
9202-9501
●
●
35
SPRING; VLV,BRK VLV
1-48123-019-0
01
1
9502-
●
●
37
WASHER; VLV LWR,BRK VLV
1-48129-080-0
01
1
9202-
●
●
43
WASHER; SPR SEAT,BRK VLV
1-48419-002-0
01
1
9202-
●
●
