0-32 — WATER PIPING; ENGINE
(#30997) — 91 parça
◀

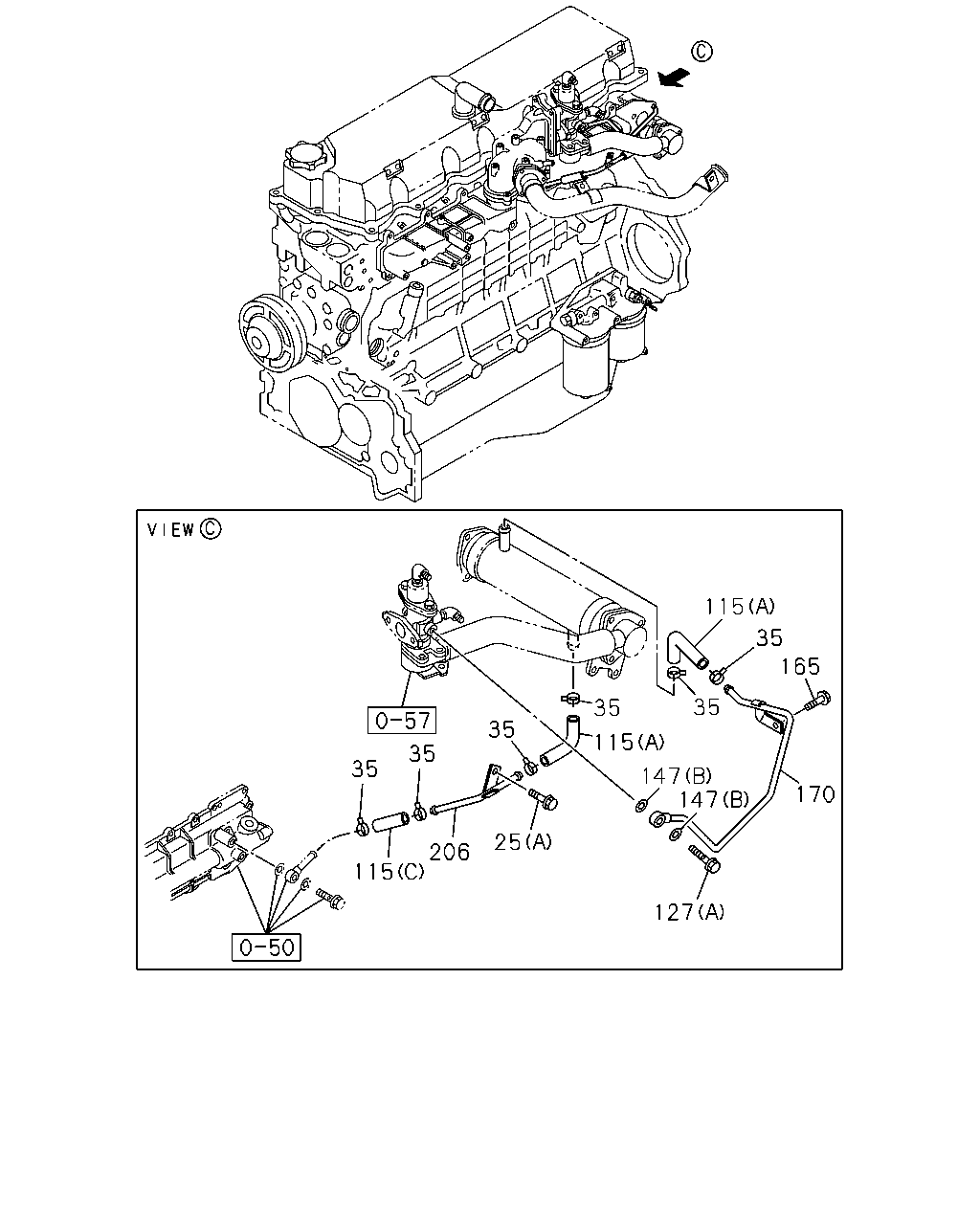

[032A] PIPING;EGR OIL COOLER SIDE (18 parça)

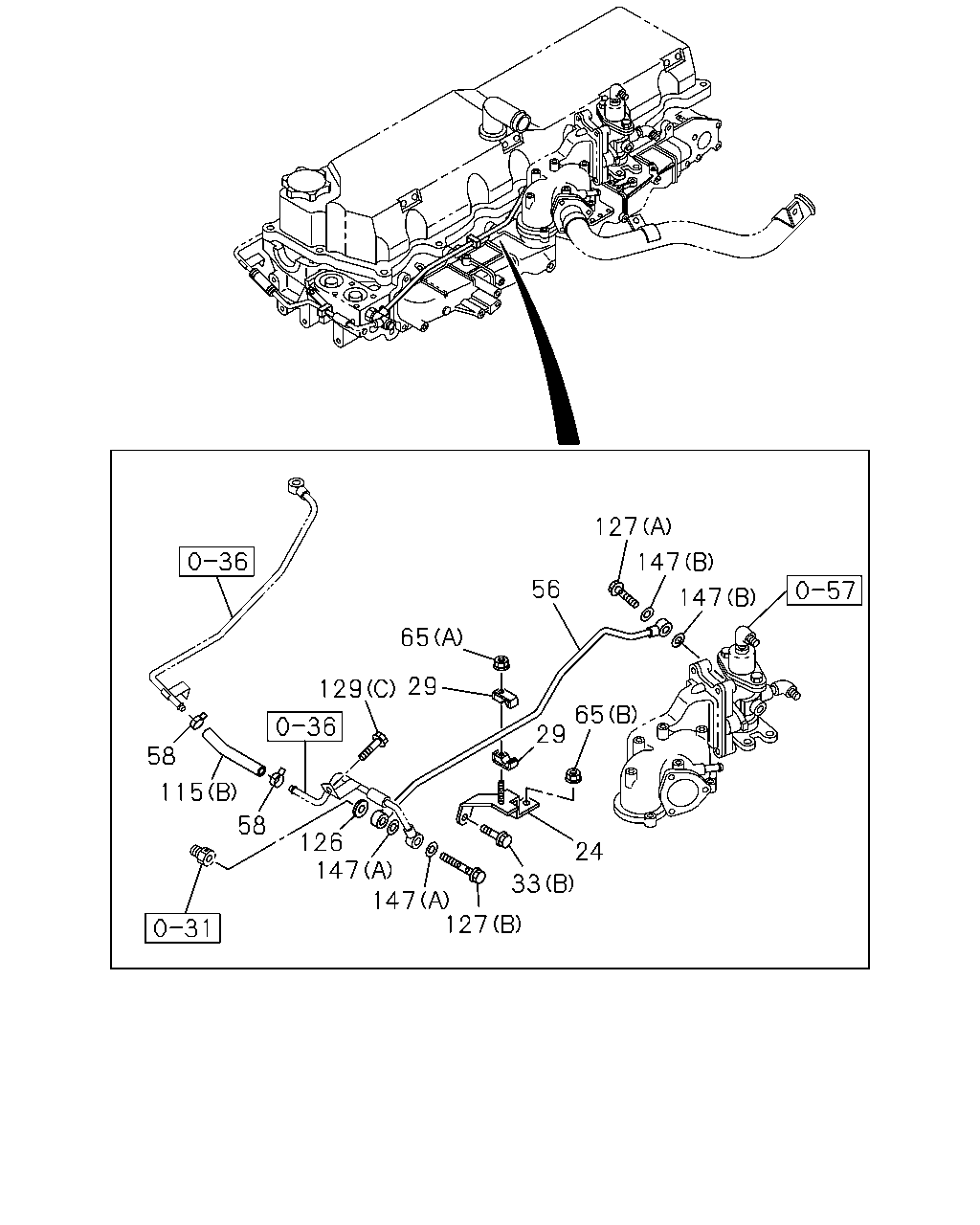

[032A] PIPING;EGR VLV SIDE (29 parça)

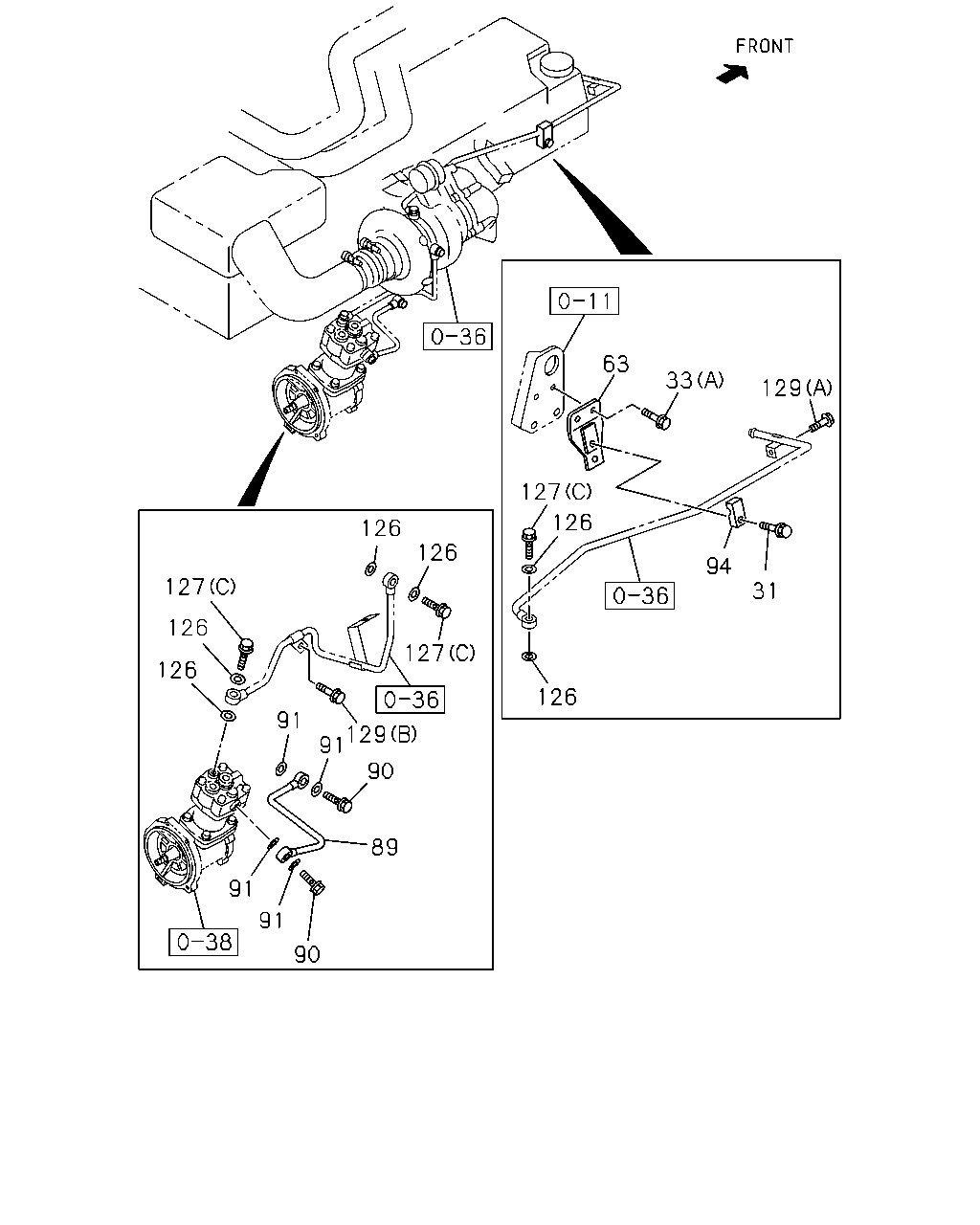

[032A] PIPING;TURBOCHARGER AND AIR CMPR (22 parça)

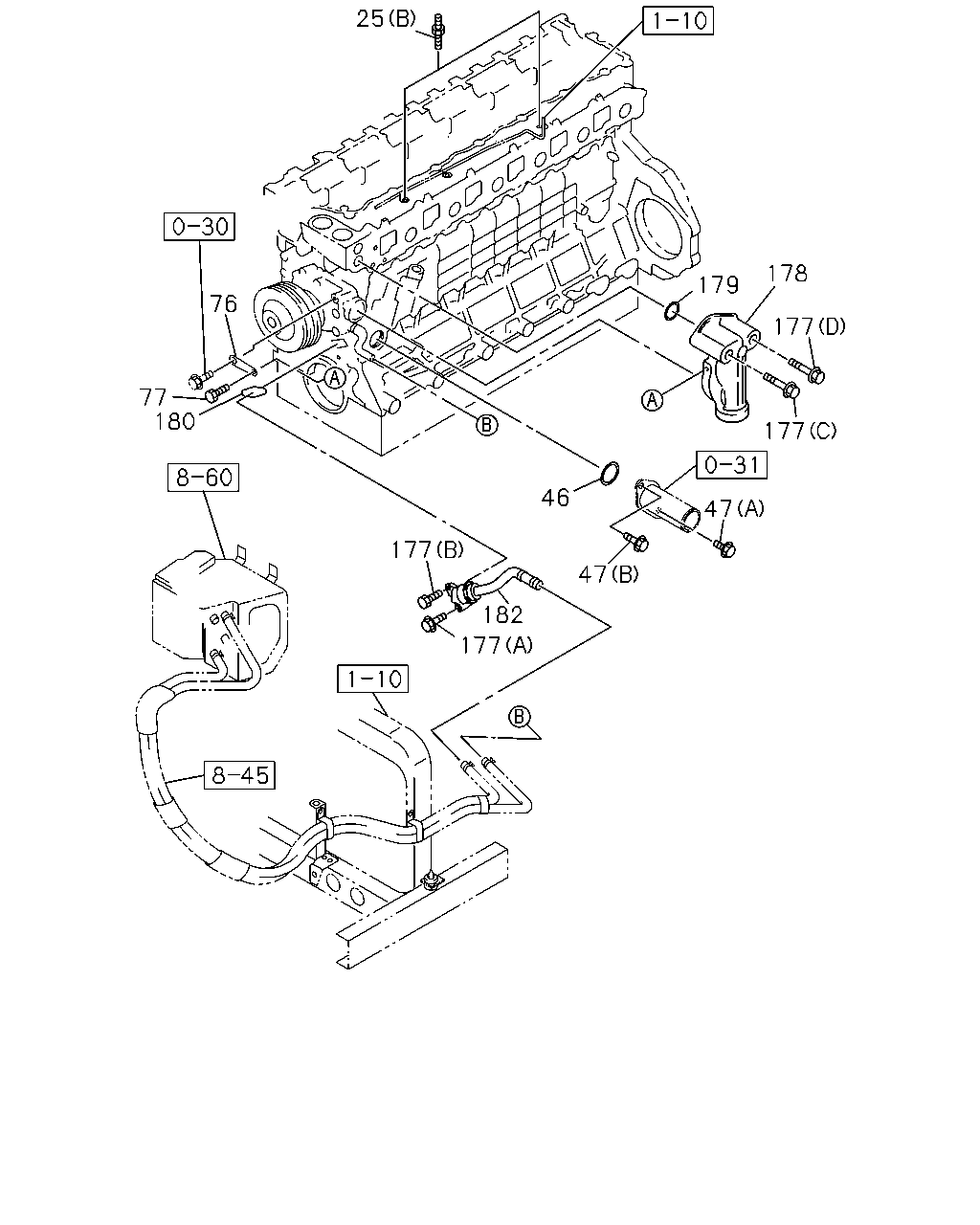

[032A] FIXING;WATER DUCT (22 parça)
▶
115
35
165
35
35
35
115
35
35
147
147
170
25
206
115
127
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
25
BOLT; WATER PIPE
(A) M8X16 FLANGE
0-28080-816-0
01
1
0107-0512
25
BOLT; WATER PIPE
(A) M8X16 FLANGE
0-28050-816-0
01
1
0601-
25
BOLT; WATER PIPE
(B) M8X14,M8X14 L=33
1-09300-058-1
02
1
0107-
35
CLIP; RUBBER HOSE
1-09707-143-0
06
1
0107-
115
HOSE; RUBBER
(B) L=60 SERVICED BY L=3000
0-03711-300-0
01
1
0107-0206
115
HOSE; RUBBER
(B) L=60 SERVICED BY L=3000
0-03561-300-0
01
1
0207-
115
HOSE; RUBBER
(C) L=60
8-97079-996-0
01
1
0107-
115
HOSE; RUBBER
(A)
8-97119-655-0
02
1
0107-
127
BOLT; EYE
(A) M16X30 FLANGE
1-09675-095-1
02
1
0107-
127
BOLT; EYE
(B)
1-09675-109-0
01
1
0107-
127
BOLT; EYE
(C) M14X27 EYE-BOLT
1-09675-193-0
03
1
0107-
147
GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2
1-09630-085-0
02
1
0107-1312
147
GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2
8-98251-345-0
02
1
1401-
147
GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=16.2
1-09630-086-0
04
1
0107-
165
BOLT; PIPE TO BRKT
M8X16 FLANGE
0-28080-816-0
01
1
0107-0512
165
BOLT; PIPE TO BRKT
M8X16 FLANGE
0-28050-816-0
01
1
0601-
170
PIPE; WATER,INL
8-97601-485-0
01
1
0107-
206
PIPE; WATER,EGR COOLER
8-97601-484-0
01
1
0107-
127
147
56
147
65
29
129
65
29
58
115
58
126
147
147
24
33
127
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
24
BRACKET; WATER PIPE
8-97601-487-0
01
1
0107-
29
CLIP; PIPE
1-09701-282-0
02
1
0107-
33
BOLT; BRKT
(A) M8X16 FLANGE
0-28080-816-0
02
1
0107-0512
33
BOLT; BRKT
(A) M8X16 FLANGE
0-28050-816-0
02
1
0601-
33
BOLT; BRKT
(B) M10X16 FLANGE
0-28181-016-0
01
1
0107-0512
33
BOLT; BRKT
(B) M10X16 FLANGE
0-28151-016-0
01
1
0601-
56
PIPE; WATER OUTLET
8-97601-486-0
01
1
0107-
58
CLIP; RUBBER HOSE
ID=16
8-94392-924-0
02
1
0107-
65
NUT
(A) M6 FLANGE
0-91150-106-0
01
1
0107-0602
65
NUT
(A) M6 FLANGE
0-91180-106-0
01
1
0603-
65
NUT
(B) M8 FLANGE
0-91150-108-0
01
1
0107-0602
65
NUT
(B) M8 FLANGE
0-91180-108-0
01
1
0603-
115
HOSE; RUBBER
(B) L=60 SERVICED BY L=3000
0-03711-300-0
01
1
0107-0206
115
HOSE; RUBBER
(B) L=60 SERVICED BY L=3000
0-03561-300-0
01
1
0207-
115
HOSE; RUBBER
(C) L=60
8-97079-996-0
01
1
0107-
115
HOSE; RUBBER
(A)
8-97119-655-0
02
1
0107-
126
GASKET; CAP NUT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2
1-09630-085-0
07
1
0107-1312
126
GASKET; CAP NUT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2
8-98251-345-0
07
1
1401-
127
BOLT; EYE
(A) M16X30 FLANGE
1-09675-095-1
02
1
0107-
127
BOLT; EYE
(B)
1-09675-109-0
01
1
0107-
127
BOLT; EYE
(C) M14X27 EYE-BOLT
1-09675-193-0
03
1
0107-
129
BOLT; WATER PIPE TO BRKT
(C) M8X16 FLANGE
0-28080-816-0
01
1
0107-0512
129
BOLT; WATER PIPE TO BRKT
(C) M8X16 FLANGE
0-28050-816-0
01
1
0601-
129
BOLT; WATER PIPE TO BRKT
(A) M12X20 FLANGE
0-28181-220-0
01
1
0107-0512
129
BOLT; WATER PIPE TO BRKT
(A) M12X20 FLANGE
0-28151-220-0
01
1
0601-
129
BOLT; WATER PIPE TO BRKT
(B) M8X15
1-09000-114-0
01
1
0107-
147
GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2
1-09630-085-0
02
1
0107-1312
147
GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2
8-98251-345-0
02
1
1401-
147
GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=16.2
1-09630-086-0
04
1
0107-
63
33
129
127
126
126
126
94
127
31
126
127
126
126
91
129
91
90
89
91
91
90
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
31
BOLT; CLIP
M6X35 FLANGE
0-28680-635-0
01
1
0107-0512
31
BOLT; CLIP
M6X35 FLANGE
0-28650-635-0
01
1
0601-
33
BOLT; BRKT
(A) M8X16 FLANGE
0-28080-816-0
02
1
0107-0512
33
BOLT; BRKT
(A) M8X16 FLANGE
0-28050-816-0
02
1
0601-
33
BOLT; BRKT
(B) M10X16 FLANGE
0-28181-016-0
01
1
0107-0512
33
BOLT; BRKT
(B) M10X16 FLANGE
0-28151-016-0
01
1
0601-
63
BRACKET; WATER PIPE
8-94392-951-0
01
1
0107-
89
PIPE; WATER,AIR CMPR,IN
8-94395-452-2
01
1
0107-
90
BOLT; EYE,WATER PIPE,AIR CMPR
M14X27 EYE-BOLT
1-09675-193-0
02
1
0107-
91
GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2
1-09630-085-0
04
1
0107-1312
91
GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2
8-98251-345-0
04
1
1401-
94
CLIP; WATER PIPE
8-94396-860-0
01
1
0107-
126
GASKET; CAP NUT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2
1-09630-085-0
07
1
0107-1312
126
GASKET; CAP NUT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2
8-98251-345-0
07
1
1401-
127
BOLT; EYE
(A) M16X30 FLANGE
1-09675-095-1
02
1
0107-
127
BOLT; EYE
(B)
1-09675-109-0
01
1
0107-
127
BOLT; EYE
(C) M14X27 EYE-BOLT
1-09675-193-0
03
1
0107-
129
BOLT; WATER PIPE TO BRKT
(C) M8X16 FLANGE
0-28080-816-0
01
1
0107-0512
129
BOLT; WATER PIPE TO BRKT
(C) M8X16 FLANGE
0-28050-816-0
01
1
0601-
129
BOLT; WATER PIPE TO BRKT
(A) M12X20 FLANGE
0-28181-220-0
01
1
0107-0512
129
BOLT; WATER PIPE TO BRKT
(A) M12X20 FLANGE
0-28151-220-0
01
1
0601-
129
BOLT; WATER PIPE TO BRKT
(B) M8X15
1-09000-114-0
01
1
0107-
25
178
179
76
177
77
180
177
46
47
177
47
182
177
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
25
BOLT; WATER PIPE
(A) M8X16 FLANGE
0-28080-816-0
01
1
0107-0512
25
BOLT; WATER PIPE
(A) M8X16 FLANGE
0-28050-816-0
01
1
0601-
25
BOLT; WATER PIPE
(B) M8X14,M8X14 L=33
1-09300-058-1
02
1
0107-
46
GASKET; WATER DUCT,TO OIL COOLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=48.5 OD=53.3
8-94396-680-2
01
1
0107-
47
BOLT; DUCT,TO OIL COOLER
(A) M8X45 FLANGE
0-28080-845-0
01
1
0107-0512
47
BOLT; DUCT,TO OIL COOLER
(A) M8X45 FLANGE
0-28050-845-0
01
1
0601-
47
BOLT; DUCT,TO OIL COOLER
(B) M8X25 FLANGE
0-28680-825-0
01
1
0107-0512
47
BOLT; DUCT,TO OIL COOLER
(B) M8X25 FLANGE
0-28650-825-0
01
1
0601-
76
BRACKET; WATER DUCT,PUMP
8-94394-784-0
01
1
0107-
77
BOLT; BRKT,WATER DUCT
M8X50 FLANGE
0-28080-850-0
01
1
0107-0512
77
BOLT; BRKT,WATER DUCT
M8X50 FLANGE
0-28050-850-0
01
1
0601-
177
BOLT; WATER DUCT
(C) M8X80 FLANGE
0-28080-880-0
01
1
0107-0512
177
BOLT; WATER DUCT
(C) M8X80 FLANGE
0-28050-880-0
01
1
0601-
177
BOLT; WATER DUCT
(B) M8X25 FLANGE
0-28680-825-0
01
1
0107-0512
177
BOLT; WATER DUCT
(B) M8X25 FLANGE
0-28650-825-0
01
1
0601-
177
BOLT; WATER DUCT
(A) M8X65 FLANGE
1-09044-072-1
01
1
0107-
177
BOLT; WATER DUCT
(D) M16X75 FLANGE
8-94397-360-1
01
1
0107-
178
DUCT; WATER,BYPASS
8-94396-627-3
01
1
0107-
179
GASKET; WATER DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=31.2
8-94396-679-0
01
1
0107-1408
179
GASKET; WATER DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=31.2
8-98276-756-0
01
1
1409-
180
GASKET; WATER DUCT
ALSO INCLUDED IN GASKET SET(ENGINE).
8-94396-720-1
01
1
0107-
182
DUCT; WATER,HTR
8-94394-348-5
01
1
0107-
