Isuzu WW
▶
TRUCKS
▶
FSR
▶
10890 - FSR34(RHD)
▶
0 - Engine, Emission, Engine Electrical
▶
0-25 - INLET MANIFOLD
▶
0-25 — INLET MANIFOLD
(#30992) — 63 parça
◀

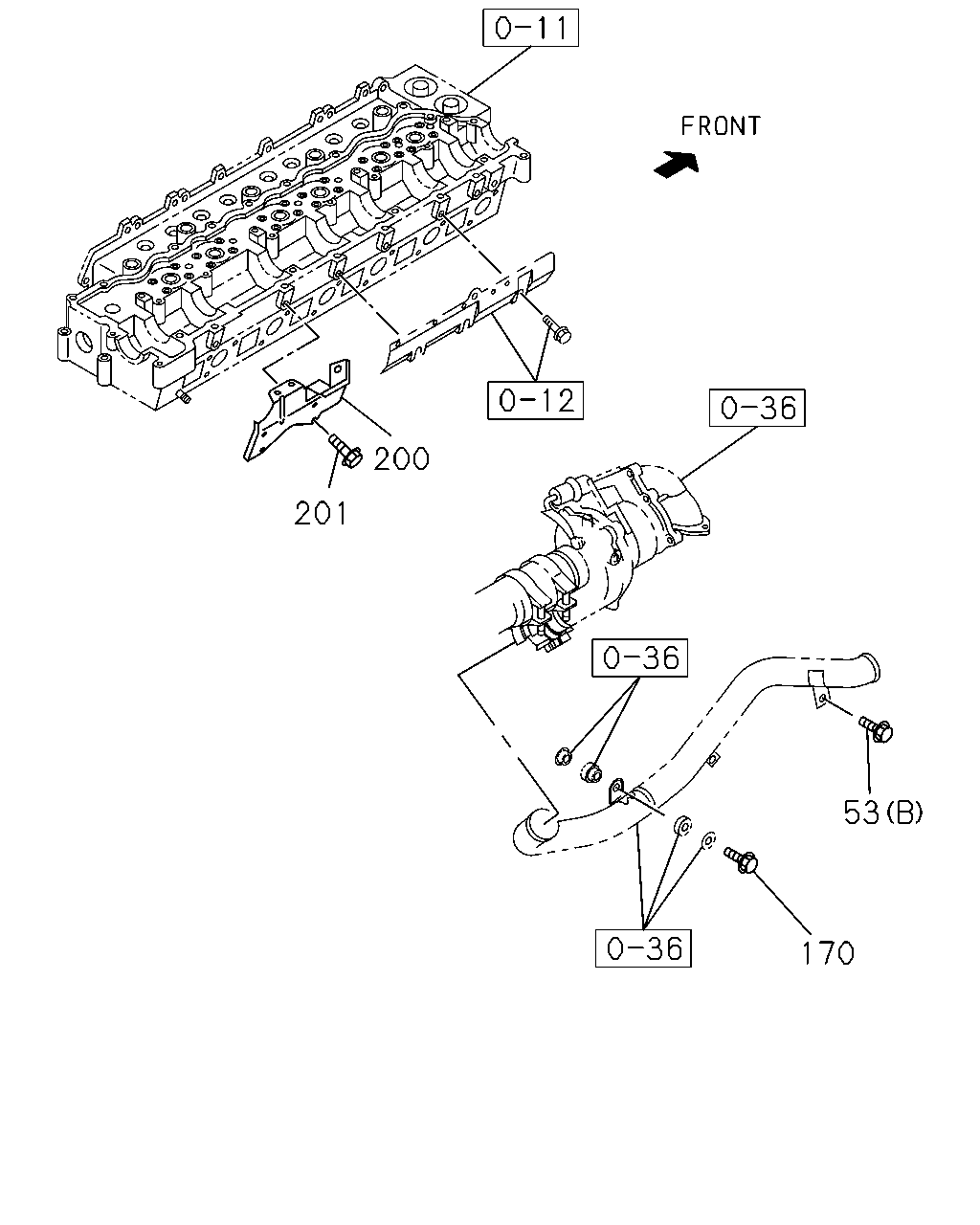

[025A] FIXING;AIR DUCT BRKT AND MTG (9 parça)
[025A] FIXING;AIR PIPE TO EGR VALVE (23 parça)

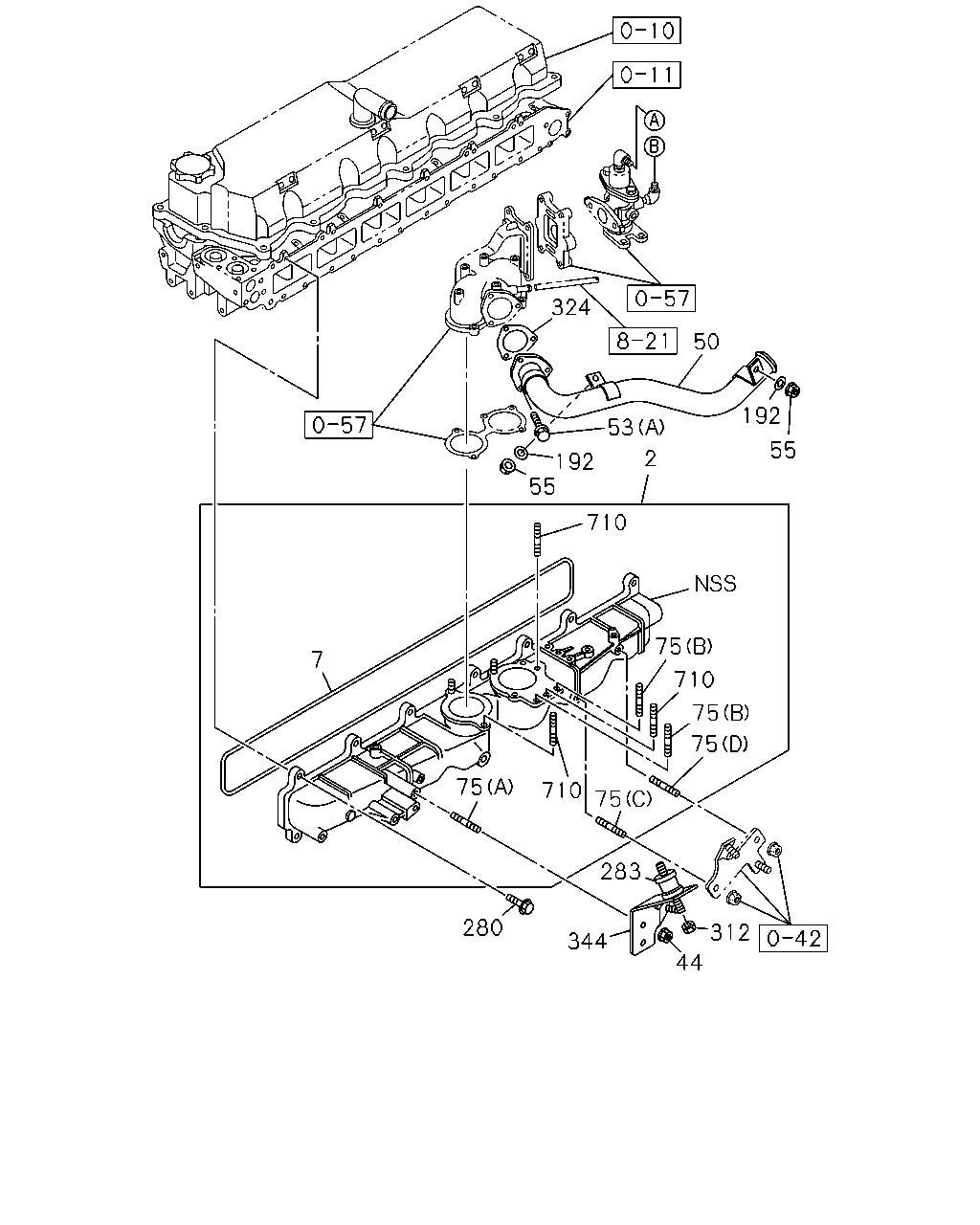

[025A] FIXING;MANIF,PIPE AND BRKT (31 parça)
▶
200
201
53
170
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
53
BOLT; INL PIPE
(A) M8X20 FLANGE
0-28680-820-0
03
1
0107-0512
53
BOLT; INL PIPE
(A) M8X20 FLANGE
0-28650-820-0
03
1
0601-
53
BOLT; INL PIPE
(B) M8X30 FLANGE
0-28680-830-0
01
1
0107-0512
53
BOLT; INL PIPE
(B) M8X30 FLANGE
0-28650-830-0
01
1
0601-
170
BOLT; BRKT
M8X35 FLANGE
0-28080-835-0
01
1
0107-0512
170
BOLT; BRKT
M8X35 FLANGE
0-28050-835-0
01
1
0601-
200
BRACKET; AIR DUCT
8-97601-726-0
01
1
0107-
201
BOLT; BRKT,AIR DUCT
M8X16 FLANGE
0-28080-816-0
02
1
0107-0512
201
BOLT; BRKT,AIR DUCT
M8X16 FLANGE
0-28050-816-0
02
1
0601-
692
692
139
147
379
365
372
578
379
147
247
147
382
472
354
361
122
354
578
122
692
382
472
692
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
122
BOLT; BRKT
M8X20 FLANGE
0-28680-820-0
04
1
0107-0512
122
BOLT; BRKT
M8X20 FLANGE
0-28650-820-0
04
1
0601-
139
BOLT; BRKT FIX
M8X20 FLANGE
0-28680-820-0
01
1
0107-0512
139
BOLT; BRKT FIX
M8X20 FLANGE
0-28650-820-0
01
1
0601-
147
NUT; BRKT
M8 FLANGE
0-91150-108-0
05
1
0107-0602
147
NUT; BRKT
M8 FLANGE
0-91180-108-0
05
1
0603-
247
BRACKET; CLIP
L=60
1-47475-455-0
01
1
0107-
354
CLIP; AIR PIPE
(A) ID=7 & 7 L=17.5 & 17.5
1-09700-745-0
01
1
0107-
354
CLIP; AIR PIPE
(B) ID=6.35 & 6.35
1-09709-273-1
02
1
0107-
361
BOLT; CLIP
M8X20 FLANGE
0-28680-820-0
01
1
0107-0512
361
BOLT; CLIP
M8X20 FLANGE
0-28650-820-0
01
1
0601-
365
NUT; CLIP
M8 FLANGE
0-91150-108-0
01
1
0107-0602
365
NUT; CLIP
M8 FLANGE
0-91180-108-0
01
1
0603-
372
CLIP; HOSE
ID=10 & 10
1-09709-277-1
01
1
0107-
379
HOSE; FLEX
(A) L=260
1-09363-609-0
01
1
0107-
379
HOSE; FLEX
(B) L=380
1-09363-884-0
01
1
0107-
382
WASHER; LK,FLEX HOSE
ID=12.2
9-09150-512-0
02
1
0107-0603
382
WASHER; LK,FLEX HOSE
ID=12.2
0-91510-512-0
02
1
0604-
472
NUT
M12
9-09840-280-0
02
1
0107-
578
BRACKET; FLEX HOSE
1-47479-244-0
01
1
0107-
578
BRACKET; FLEX HOSE
1-47479-243-0
01
1
0107-
692
PIPE; AIR,MAG VLV
(A)
1-49123-072-0
01
1
0107-
692
PIPE; AIR,MAG VLV
(B)
1-49123-073-0
01
1
0107-
324
50
192
53
55
2
192
55
710
75
7
710
75
75
75
710
75
283
280
312
344
44
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
COVER; INL
8-97600-658-1
01
1
0107-
7
GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-94390-775-0
01
1
0107-
44
NUT; PIPE BRKT
M8 FLANGE
0-91150-108-0
02
1
0107-0602
44
NUT; PIPE BRKT
M8 FLANGE
0-91180-108-0
02
1
0603-
50
PIPE; INL
8-97601-469-0
01
1
0107-
53
BOLT; INL PIPE
(A) M8X20 FLANGE
0-28680-820-0
03
1
0107-0512
53
BOLT; INL PIPE
(A) M8X20 FLANGE
0-28650-820-0
03
1
0601-
53
BOLT; INL PIPE
(B) M8X30 FLANGE
0-28680-830-0
01
1
0107-0512
53
BOLT; INL PIPE
(B) M8X30 FLANGE
0-28650-830-0
01
1
0601-
55
NUT; INL PIPE
M8 FLANGE
0-91150-108-0
02
1
0107-0602
55
NUT; INL PIPE
M8 FLANGE
0-91180-108-0
02
1
0603-
75
STUD; BRKT,AIR PIPE
(C) M6X16 L=25
9-04110-616-0
01
1
0107-0604
75
STUD; BRKT,AIR PIPE
(C) M6X16 L=25
0-41010-616-0
01
1
0605-
75
STUD; BRKT,AIR PIPE
(D) M6X25 L=34
9-04110-625-0
01
1
0107-0604
75
STUD; BRKT,AIR PIPE
(D) M6X25 L=34
0-41010-625-0
01
1
0605-
75
STUD; BRKT,AIR PIPE
(A) M8X16 L=28
9-04110-816-0
04
1
0107-0604
75
STUD; BRKT,AIR PIPE
(A) M8X16 L=28
0-41010-816-0
04
1
0605-
75
STUD; BRKT,AIR PIPE
(B) M10X25 L=40
9-04411-025-0
02
1
0107-0604
75
STUD; BRKT,AIR PIPE
(B) M10X25 L=40
0-44011-025-0
02
1
0605-
192
WASHER; PL,INL PIPE
ID=8.4 OD=26
9-09164-808-0
02
1
0107-0605
192
WASHER; PL,INL PIPE
ID=8.4 OD=26
0-91614-808-0
02
1
0606-
280
BOLT; INL COVER
M8X25 FLANGE
0-28680-825-0
14
1
0107-0512
280
BOLT; INL COVER
M8X25 FLANGE
0-28650-825-0
14
1
0601-
283
RUBBER
8-94394-268-1
01
1
0107-0910
283
RUBBER
8-98148-109-0
01
1
0911-
312
NUT; MTG RUBBER
M8 FLANGE
0-91150-108-0
01
1
0107-0602
312
NUT; MTG RUBBER
M8 FLANGE
0-91180-108-0
01
1
0603-
324
GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97601-471-2
01
1
0107-
344
BRACKET; INL PIPE
8-97602-160-0
01
1
0107-
710
STUD; DUCT
M8X25 L=37
9-04110-825-0
03
1
0107-0604
710
STUD; DUCT
M8X25 L=37
0-41010-825-0
03
1
0605-
